ISO 6722 High-Temperature & Specialty Polymer Automotive Wires (4Y / 5Y / 6Y / 7Y / 9Y)60 V DC ISO 6722-1 Class FPTFE (5Y) -65 to +200/+260 °CExhaust, Turbo & NOx Sensor Wire

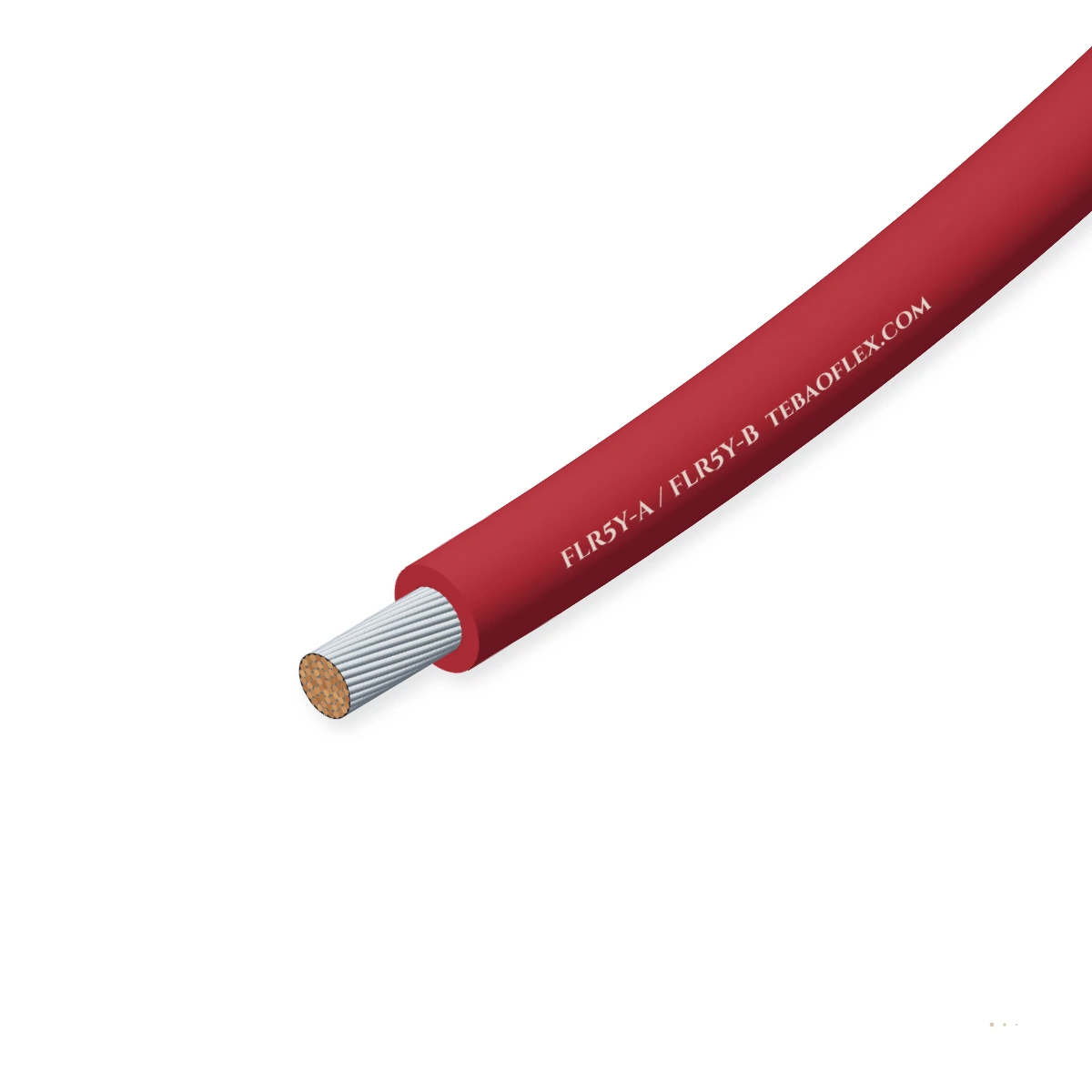

FLR5Y-A / FLR5Y-B FLR5Y Automotive Wire60 V DC ISO 6722-1 Class F (-65 to +200 °C / +260 °C) PTFE fluoropolymer extreme-temperatu

FLR5Y-A and FLR5Y-B are ISO 6722-1 Class F (-65 °C to +200 °C with nickel-plated or silver-plated copper up to +260 °C, or +180/+200 °C with tinned copper) reduced-wall automotive wires insulated with polytetrafluoroethylene ('5Y' = PTFE). Representing the hig

Class F +200/+260 °C PTFE (5Y)
Inert to All Fuels, Acids & Urea
-65 °C Cryogenic to Exhaust Heat
ISO 6722-1 / LV 112
Order designation
FLR5Y-A 0.75 mm²
Max. OD
1.85 mm
Copper mass
7.3 kg/km
Total mass ≈
11.2 kg/km
Min. bend R
7.4 mm
All sizes (8)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
60 V DC / 25 V A
600 V rms dielectric capability
Thermal class
Class F (+200 °C
-65 to +200 °C (+260 °C Ni-Cu)
Insulation
5Y PTFE fluoropo
Paste-extruded sintered PTFE
Conductor plating
Ni-Cu / Ag-Cu /
Prevents high-temp copper oxidation
Size range
0.22 to 4.00 mm²
Type A concentric & Type B bunched
Min. bend radius
4 × wire OD
Compact sensor & exhaust pigtails

Typical values for this cable type, based on ISO 6722-1 Class F / DIN 72551 / LV 112 — confirmed in the datasheet and quotation for your order.

Application fit

Is FLR5Y-A / FLR5Y-B right for your machine?

Specified for wideband lambda/O2 sensors, SCR/NOx exhaust modules, diesel particulate filter (DPF) temperature sensors, turbocharger wastegate actuators and internal mechatronic oil-bath wiring.

Furnace, kiln & high-temp zone

Suitable

Withstands +200 °C continuous (ISO 6722-1 Class F) and up to +260 °C with nickel-plated copper conductors.

Fixed installation

Suitable

Impervious to hot engine oil, diesel soot, sulphuric acid condensate and AdBlue/DEF urea solution.

Switchgear & control cabinet wiring

Suitable

Non-melting sintered PTFE wall will not deform during high-temperature soldering or laser welding.

Motorised monospiral reel

Not suitable

Designed for fixed high-temperature automotive sensor pigtails and engine harnesses.

FLR7Y +150 °C ETFE wire
Typical machinesLambda (O2) & NOx exhaust sensorsTurbocharger & EGR actuatorsDPF & exhaust gas temp (EGT) loomsInternal gearbox & wet-clutch wiringMotorsport & heavy-duty diesel engines

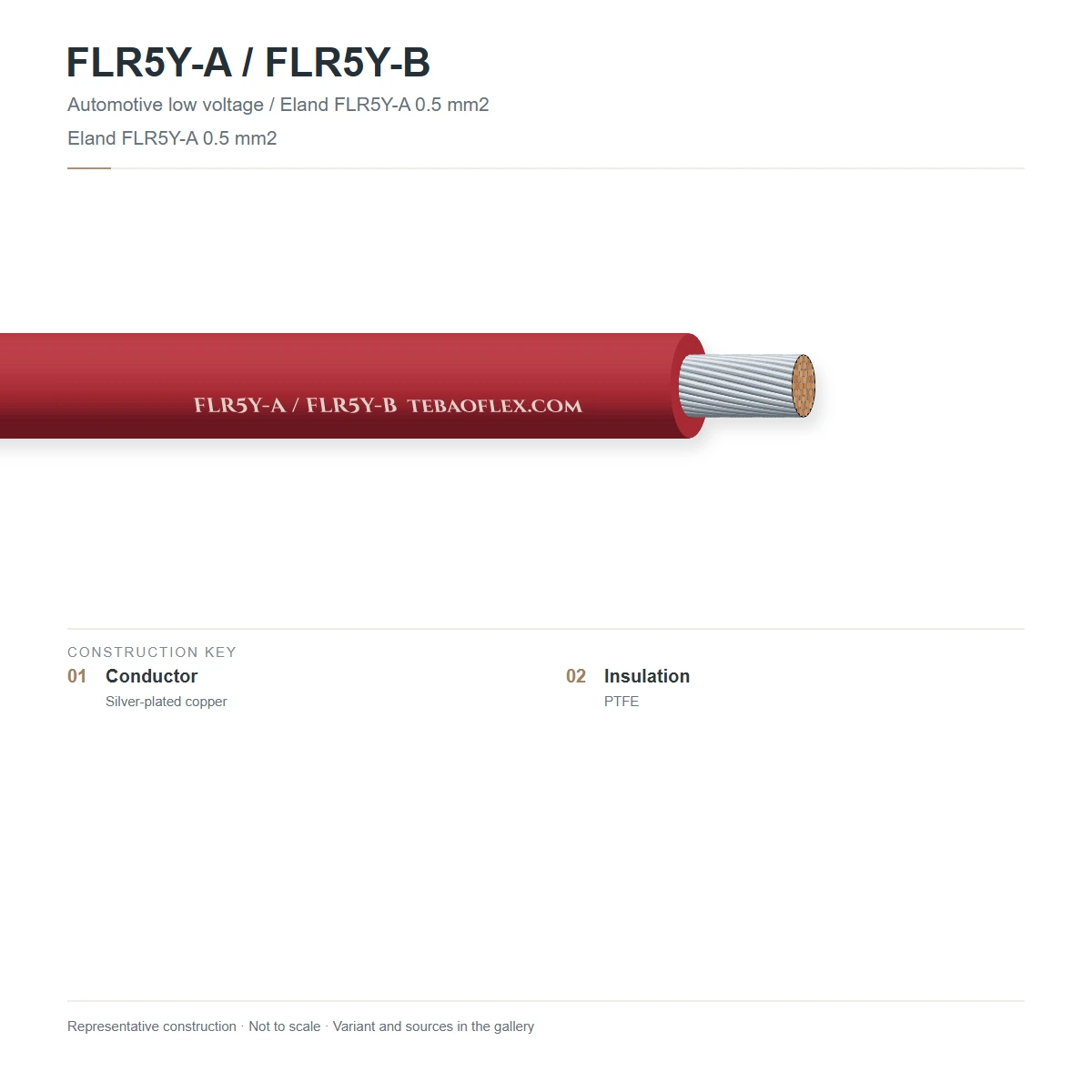

Construction

Layer by layer

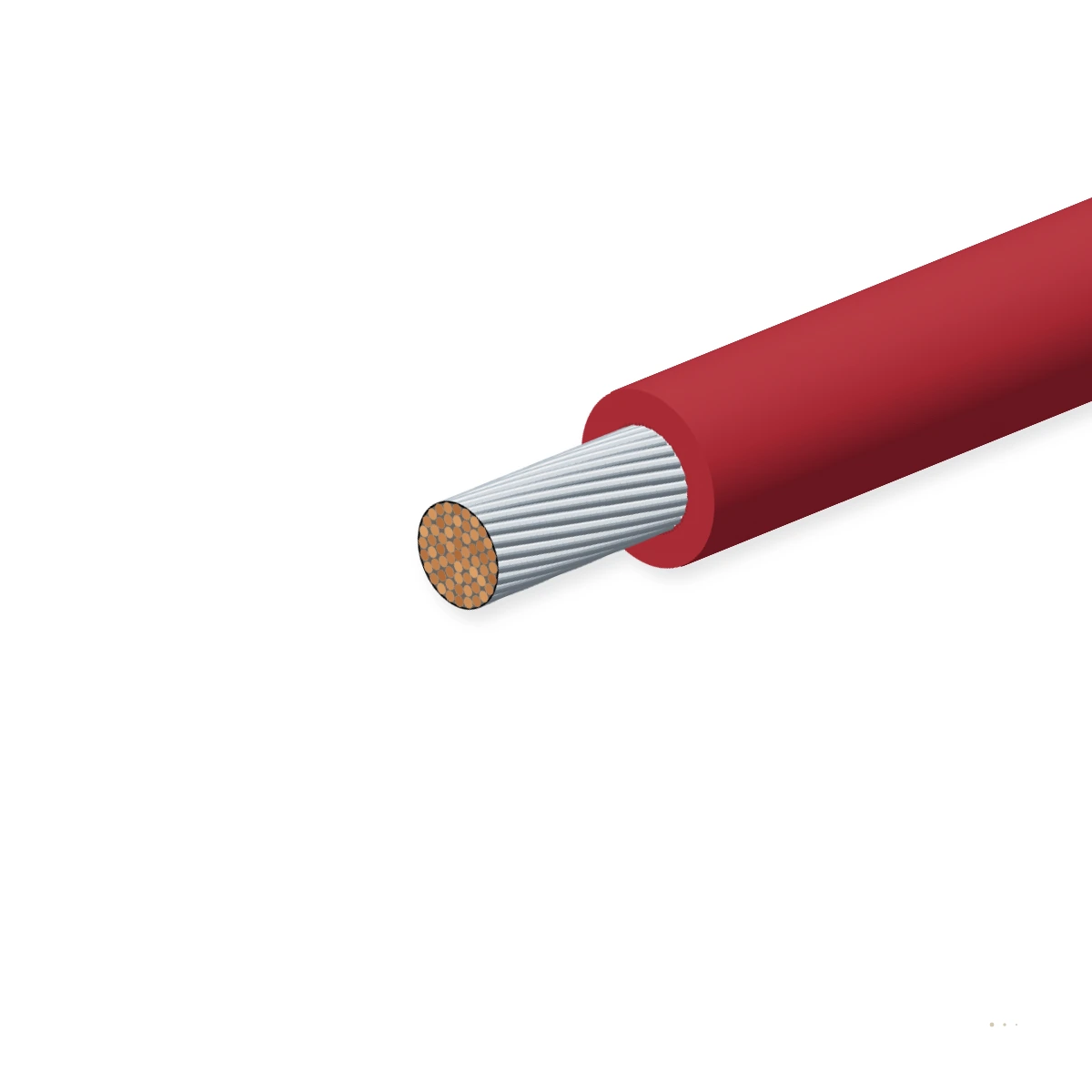

Nickel-plated (Cu/Ni27), silver-plated (Cu/Ag) or tinned (Cu/Sn) copper strands (Type A concentric or Type B bunched) + reduced-wall paste-extruded sintered PTFE insulation (5Y, -65 to +200/+260 °C).

123
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Plated copper conductor (Cu/Ni, Cu/Ag or Cu/Sn)19-strand concentric (Type A) or bunched (Type B) copper plated with nickel (+260 °C), silver (+200 °C) or tin (+180 °C)ISO 6722-1
2Polytetrafluoroethylene (5Y / PTFE)Paste-extruded and sintered virgin PTFE fluoropolymer reduced-wall insulation (-65 °C to +200/+260 °C, LOI >95 %)DIN 72551
3Non-stick chemical-inert PTFE surfaceUltra-low-friction, oil- and acid-proof sintered PTFE outer surface with colour/laser codingISO 6722-1

FLR5Y-A Cu/Ni (Nickel-Plated Copper, -65 to +260 °C)

19-strand concentric nickel-plated copper with sintered PTFE wall for lambda/NOx sensor pigtails and +260 °C exhaust zones.

FLR5Y-A Cu/Sn or Cu/Ag (-65 to +180/+200 °C)

Tinned or silver-plated concentric copper with PTFE reduced wall for crimping and soldering in Class E/F powertrain modules.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on ISO 6722-1 Class F / DIN 72551 / LV 112. Values for your order are confirmed in the datasheet and quotation.

Electrical

Nominal voltage
60 V DC / 25 V AC (tested to 3.0 kV AC rms)
Wet dielectric test
3.0 kV AC rms for 5 min (≥0.5 mm²) · 1.0 kV (<0.5 mm²)
In-line spark test
5.0 kV AC rms

Thermal

Thermal class
ISO 6722-1 Class F: -65 °C to +200 °C (3000 h) · up to +260 °C with Ni-Cu
Short-term ageing & overload
240 h at +225 °C · 6 h thermal overload at +250 °C
Cold winding test
-65 °C for 4 hours on mandrel without cracking

Mechanical

Min. wall thickness
0.20 mm (0.22–0.5 mm²) · 0.24 mm (0.75–1.5 mm²) · 0.28 mm (2.5 mm²)
Solder iron & hot-pinch resistance
Crystalline transition +327 °C—does not melt under soldering irons

Resistance

Flammability (Limiting Oxygen Index)
LOI >95 % — inherently non-flammable in atmospheric air
Chemical & fluid immunity
100 % inert to all fuels, synthetic oils, ATF, brake fluid, AdBlue/urea & concentrated acids

Reference standards

Reference standards
ISO 6722-1 Class F, DIN 72551 & VDA LV 112
OEM exhaust sensor specs
VW 60306 Class F, Bosch / Continental O2 & NOx sensor specifications

Identification

Code breakdown
FL = automotive · R = reduced wall · 5Y = PTFE fluoropolymer
Colour code
Solid PTFE colours + sintered tracer stripes

Sizes

8 standard sizes (FLR5Y-A / FLR5Y-B)

Nominal dimensions, wall thickness, copper mass and electrical parameters for FLR5Y-A / FLR5Y-B per ISO 6722-1 Class F / DIN 72551 / LV 112.

Dimensions & masses
DesignationType & Size mm²Strands × Ø / Wall mmMax. OD
mm		Copper
kg/km		Total mass ≈
kg/km		Min. bend R
mm		Enquiry
FLR5Y-A / FLR5Y-B size range
FLR5Y-A 0.22 mm²0.22 mm² Type A7×0.21 · 0.20 mm1.152.13.84.6
FLR5Y-A 0.35 mm²0.35 mm² Type A19×0.16 · 0.20 mm1.303.45.45.2
FLR5Y-A 0.50 mm²0.50 mm² Type A19×0.19 · 0.22 mm1.554.97.86.2
FLR5Y-A 0.75 mm²0.75 mm² Type A19×0.23 · 0.24 mm1.857.311.27.4
FLR5Y-A 1.00 mm²1.00 mm² Type A19×0.26 · 0.24 mm2.059.714.48.2
FLR5Y-A 1.50 mm²1.50 mm² Type A19×0.32 · 0.24 mm2.3514.620.59.4
FLR5Y-A 2.50 mm²2.50 mm² Type A19×0.41 · 0.28 mm2.9524.333.511.8
FLR5Y-B 4.00 mm²4.00 mm² Type B56×0.31 · 0.32 mm3.6538.852.014.6
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Dimensions and maximum overall diameters conform to ISO 6722-1 Class F / DIN 72551 / LV 112.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
3.0–5.0 kV AC spark test & plated-conductor DC resistance100 % pinhole-free; resistance per ISO 6722-1100 % of spools
Sample tests
Sintering degree test & -65 °C cold mandrel windingZero cracking at -65 °C; complete PTFE sintering verifiedEvery batch
3000-hour +200/+260 °C thermal endurance & fluid immersionCertified to ISO 6722-1 Class F / LV 112Type qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

ISO 6722-1 Class F (+200 °C / +260 °C)DIN 72551 (5Y PTFE)VDA LV 112RoHS 3 & ELV Compliant

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX FLR5Y-A [size]mm2 PTFE CLASS F 200C/260C ISO 6722-1 [lot/spool]
Delivery form
Non-returnable plastic spools, barrel packs or wooden drums
Standard spool lengths
500 m · 1000 m · 2000 m spools (or barrel packs)
MOQ
500 m (stock colours) · 2000 m (striped/custom)
Lead time
2–3 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFFLR5Y-A / FLR5Y-B FLR5Y Automotive Wire – technical datasheet8 sizes · construction, technical data, approvalsXLSXFLR5Y-A / FLR5Y-B spec data (Excel)All 8 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

Why does FLR5Y use plated copper strands instead of bare copper?
Above +150 °C, bare copper oxidises rapidly in air, forming brittle black cupric oxide that increases contact resistance. FLR5Y therefore uses tinned copper (up to +180 °C), silver-plated copper (up to +200 °C) or nickel-plated copper (up to +260 °C).
What is the difference between FLR5Y (PTFE), FLR6Y (FEP) and FLR7Y (ETFE)?
All three are fluoropolymers: 5Y is PTFE (-65 to +200/+260 °C, paste-extruded and sintered, highest thermal rating and gas permeability for O2 reference air), 6Y is melt-extrudable FEP (-65 to +180/+200 °C, continuous long lengths), and 7Y is ETFE (-65 to +150 °C Class D, highest mechanical cut-through and stiffness).
Why do wideband lambda (oxygen) sensors specifically require 19-strand FLR5Y-A PTFE wire?
Planar zirconia lambda sensors draw reference oxygen molecules through the microscopic interstitial channels between the 19 concentric nickel-plated strands and through the breathable sintered PTFE insulation—and must survive radiant exhaust pipe heat above +200 °C.
Can FLR5Y be stripped and crimped on standard automotive harness machines?
Yes, using sharp V-radius or die-type fluoropolymer stripping blades and B-crimp barrels calibrated for plated concentric conductors.
