Mining trailing & reeling cablesBS 6708 Type 4472/125 V (125/72 V) · 5×6 mm²Composite Phase Screens

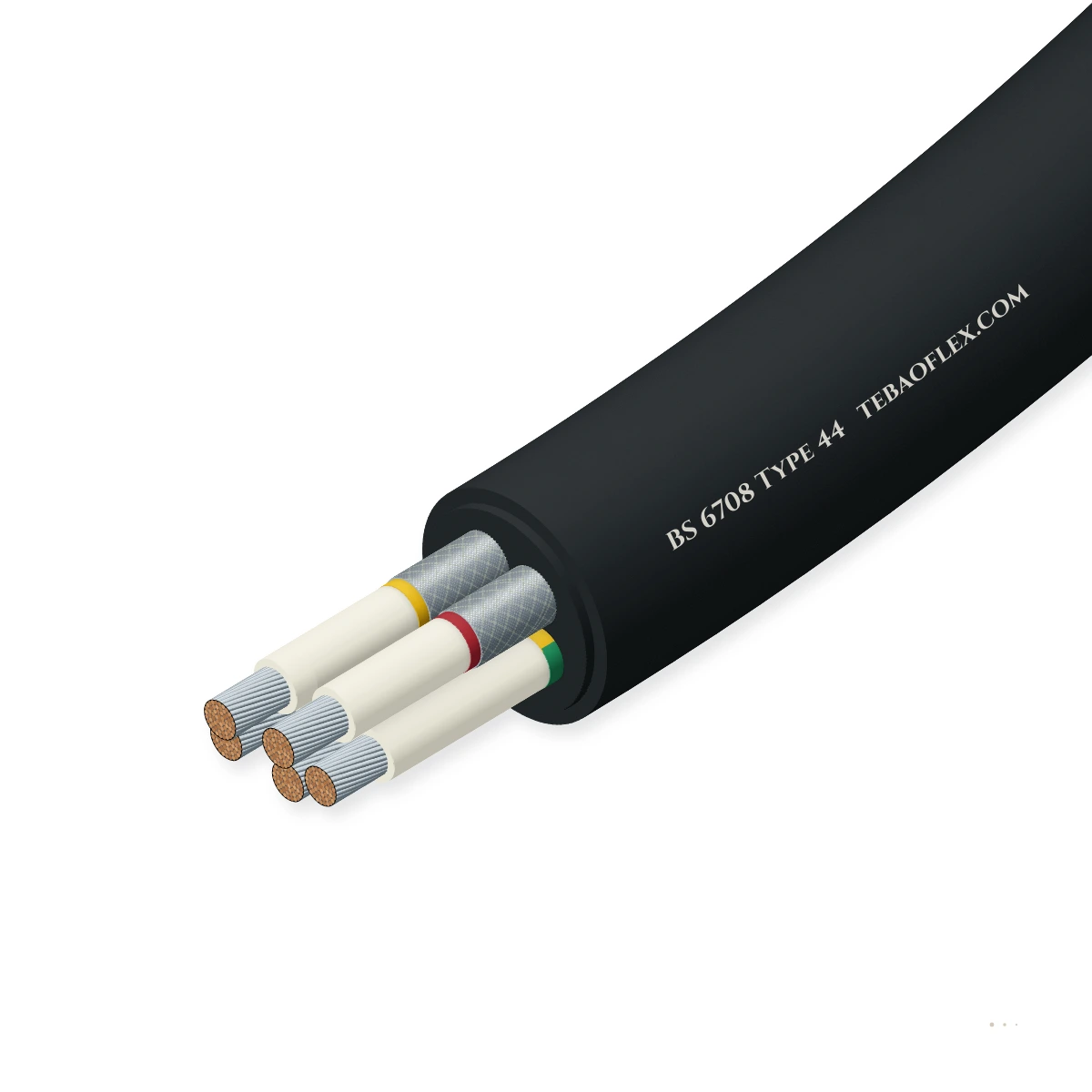

BS 6708 Type 44 Handheld Drilling Machine Cable72/125 V (125/72 V) 5×6 mm² coal-drill cable with composite copper/nylon phase screens

72/125 V (125/72 V) five-core 5×6 mm² flexible drilling machine cable to BS 6708:1998 for handheld coal and stone drills, with composite tinned-copper/nylon braided screens on the three phase cores, elastomeric cradle and 3.0 mm heavy-duty PCP sheath.

Anti-torsion braid
EMC screen
Oil-resistant
Flame-retardant
Order designation
Type 44 · 5×6 (3×6 scr. + 1×6E + 1×6P)
Max. OD
26.7 mm
Min. bend R
241 mm
Mass ≈
1,150 kg/km
Cont. current
46 A
Check against my drumAll sizes (1)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
72/125 V
1.5 kV AC core test voltage
Core layout
5 × 6 mm²
3 scr. phase + 1E + 1 pilot
Overall Ø
24.7–26.7 mm
1,150 kg/km · 46 A at 25 °C
Max. conductor T
+90 °C
EPR insulation (+85 °C sheath)
Min. operating T
−25 °C
Heavy-duty chloroprene (PCP)
Min. bend radius
9 × OD
241 mm · 218 kgf max pull

Typical values for this cable type, based on BS 6708 — confirmed in the datasheet and quotation for your order.

Application fit

Is BS 6708 Type 44 Drill Cable right for your machine?

Medium-lay screened flexible trailing cable to BS 6708 Type 44 for underground rotary drilling machines and gate-end drill transformers.

Drilling jumbo & rotary mast feed

Suitable

Primary duty — main feeder from drill gate-end box to underground drilling rig or coupler.

Trailing & towing

Suitable

Rugged underground trailing service in development headings and cross-measure drifts.

Mine roadway & tunnel wall hangers

Suitable

Temporary suspension along heading walls up to the active drilling stage.

Motorised monospiral reel

Not suitable

Not engineered for high-speed motorised crane reeling drums.

Use (N)SHTÖU Reeling

Free-hanging vertical run

Not suitable

Unarmoured flexible drill cable — do not suspend in deep vertical shafts.

Use BS 6708 Type 20/21
Typical machinesHandheld rotary coal drillsUnderground stone & roof-bolting drills125 V drill gate-end box leadsDeep-mine gassy workingsTunnel heading drill jumbos (125 V aux)Surface quarry handheld drills

Construction

Layer by layer

Five equal 6 mm² (84/0.30 mm) Class 5 tinned copper conductors insulated with 1.00 mm EPR and wrapped with coloured textile identification tape are laid up in contact around a central elastomeric cradle. The three phase cores carry individual composite tinned-copper/nylon braided screens (11 mm² total screen CSA; ≤ 11 Ω/km in parallel), while the earth and pilot cores are unscreened, bedded in rubber and enclosed in a 3.0 mm heavy-duty black chloroprene (PCP) outer sheath.

1234567
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
15 × 6 mm² conductorsElectrolytic stranded tinned copper wire, IEC 60228 Class 5 (84/0.30 mm, Ø 3.30 mm on all 5 cores)IEC 60228 Class 5
2Core insulationEPR (ethylene-propylene rubber), 1.00 mm nominal radial thicknessBS 7655 / BS 6708
3Identification tapeColoured textile tape over EPR insulation for phase, earth and pilot core identificationCore identification
4Composite phase screensTinned copper and nylon braided screen over the 3 phase cores (11 mm² total screen CSA; ≤ 11 Ω/km in parallel); pilot and earth cores unscreenedComposite Cu/nylon braid
5Elastomeric cradleCentral elastomeric cradle around which the five cores are laid up in contactCradle centre
6Inner beddingRubber-based elastomeric bedding compound extruded over laid-up coresRubber bedding
7Outer sheathHeavy-duty flame-retardant polychloroprene (chloroprene / PCP) outer sheath, black (3.0 mm radial wall)BS 6708 / BS 7655 EM2

BS 6708 Type 44 · 5×6 mm²

3 composite-screened phase cores (11 mm² total screen) + 1 unscreened earth + 1 unscreened pilot around elastomeric cradle + 3.0 mm PCP jacket

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on BS 6708. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage (U0/U)
72/125 V AC (U0/U, written 125/72 V on UK drill gate-end transformers)
AC test voltage
1.5 kV AC dielectric test on all cores
Current & short-circuit rating
46 A continuous current rating at 25 °C ambient · 908 A 1-second short-circuit rating
Max. core & screen DC resistance
3.48 Ω/km max. DC resistance at 20 °C on phase, earth and pilot cores · 11.0 Ω/km max. across 3 phase screens in parallel
Phase core screening
Individual composite tinned copper and nylon braided screen over each of the 3 phase cores (11 mm² total screen CSA); earth and pilot cores unscreened

Thermal

Max. conductor temperature
+90 °C maximum continuous conductor temperature (EPR insulation)
Operating temperature range
−25 °C to +85 °C ambient flex / coalface service range (current rating referenced at 25 °C)

Mechanical

Minimum bending radius
241 mm minimum bending radius (9 × maximum overall diameter)
Max. pulling tension & weight
218 kgf maximum pulling tension · 1,150 kg/km total mass (400 kg/km copper weight)
Dimensional profile
5 × 6 mm² (84/0.30 mm, Ø 3.30 mm) · 1.00 mm EPR insulation · elastomeric cradle · rubber bedding · 3.0 mm heavy-duty PCP outer sheath · 24.7–26.7 mm OD

Resistance

Flame retardance
Flame retardant polychloroprene outer sheath to BS 6708 / BS EN 60332-1-2
Coalface mechanical & chemical resistance
3.0 mm heavy-duty PCP sheath + nylon-reinforced copper phase screens resist coalface abrasion, oil, water and repetitive flexing

Reference standards

Standards compliance
BS 6708 Type 44; IEC 60228 Class 5; BS 7655
Designated duty
125 V 3-phase handheld rotary coal and rock drilling machines requiring metallic phase screens

Identification

Core identification
Coloured textile identification tape over EPR insulation (3 composite-screened phase cores + 1 unscreened earth + 1 unscreened pilot)
Outer sheath
Heavy-duty black chloroprene (PCP) outer sheath (3.0 mm radial thickness)

Sizes

BS 6708 Type 44 handheld drilling machine cable specification (5×6 mm²)

Complete dimensional, screen, pulling tension, current rating and DC resistance specification per BS 6708 and TEBAOFLEX datasheet.

Dimensions & electrical data
Type · nominal CSA
mm²		Conductor
stranding		Cond. Ø
mm		EPR insul.
mm		Total screen
mm²		Outer PCP sh.
mm		Min. OD
mm		Max. OD
mm		Min. R
mm		Max. pull
kgf		Mass ≈
kg/km		Cu wt
kg/km		Current (25 °C)
A		1 s SC
A		Core DC res.
Ω/km		3-scr. res.
Ω/km		Enquiry
Type 44 · 5×6 (3×6 scr. + 1×6E + 1×6P)84/0.303.301.0011.03.024.726.72412181,150400469083.4811.0
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Three composite tinned-copper/nylon phase screens provide 11 mm² total metallic screen area (≤ 11.0 Ω/km in parallel at 20 °C), increasing copper mass to 400 kg/km vs 150 kg/km on Type 43.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Check results

Enter your drum core diameterMinimum for this size is about 480 mm
Minimum bending radius
240 mm
Min. drum core diameter
≈ 480 mm
Cable weight on drum
115.0 kg
Outer diameter
26.7 mm
Indicative only: based on the datasheet outer diameter and 9 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC high-voltage dielectric test1.5 kV AC applied on all 5 × 6 mm² insulated coresEvery drum
Core & composite screen DC resistance check≤ 3.48 Ω/km on phase/earth/pilot cores; ≤ 11.0 Ω/km across 3 phase screens in parallel at 20 °CEvery drum
Sample tests
Flame retardance testSelf-extinguishing heavy-duty chloroprene outer sheath per BS 6708 / BS EN 60332-1-2Production batch
Dimensional & sheath wall inspectionVerification of 3.0 mm radial outer PCP wall and 24.7–26.7 mm overall diameter limitsEvery drum

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

BS 6708 Type 44CE · LVDRoHS · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX · BS 6708 TYPE 44 · 125/72 V · 5x6 mm² · PCP
Delivery form
Heat-treated seaworthy wooden drums lagged with solid timber battens
Lengths
Custom cut-to-length reels per coalface drill schedule
Certificate
EN 10204 3.1 inspection certificate with every dispatch
Quote response
Engineering specification and quote within 2 business hours

Technical documents

Downloads

PDFBS 6708 Type 44 Handheld Drilling Machine Cable – technical datasheet1 sizes · construction, technical data, approvalsXLSXBS 6708 Type 44 Drill Cable spec data (Excel)All 1 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

How does BS 6708 Type 44 differ from BS 6708 Type 43?
Type 44 applies individual composite tinned-copper/nylon braided screens (11 mm² total screen CSA, ≤ 11 Ω/km in parallel) over the three 6 mm² phase cores and lays all five cores in contact around an elastomeric cradle under a 3.0 mm PCP outer sheath. Type 43 has no metallic braids and instead uses a semiconducting cradle and a 1.5 mm conducting elastomeric inner sheath.
Why does Type 44 have a higher copper weight (400 kg/km) than Type 43 (150 kg/km)?
Both cables contain five 6 mm² tinned copper conductors, but Type 44 adds three tinned-copper/nylon composite phase screens (totalling 11 mm² of braided screen wire), raising the copper content to 400 kg/km and total cable weight to 1,150 kg/km.
What are the short-circuit and pulling tension limits for BS 6708 Type 44?
Per the published datasheet, BS 6708 Type 44 5×6 mm² is rated for 46 A continuous current at 25 °C, a 908 A 1-second short-circuit current, a 241 mm (9 × OD) minimum bending radius, and a 218 kgf maximum pulling tension.
Why is the rated voltage 72/125 V (125/72 V)?
Handheld coal and stone drills under BS 6708 are supplied from 125 V phase-to-phase (72 V phase-to-earth) drill transformer gate-end boxes, with a 1.5 kV AC factory test voltage on all cores.
