Heavy-duty rubber cables (NSSHÖU)MGM 112 · BS 6708 Type 62/63/64U0/U 660/1,100 V2–4C Screened · PWA

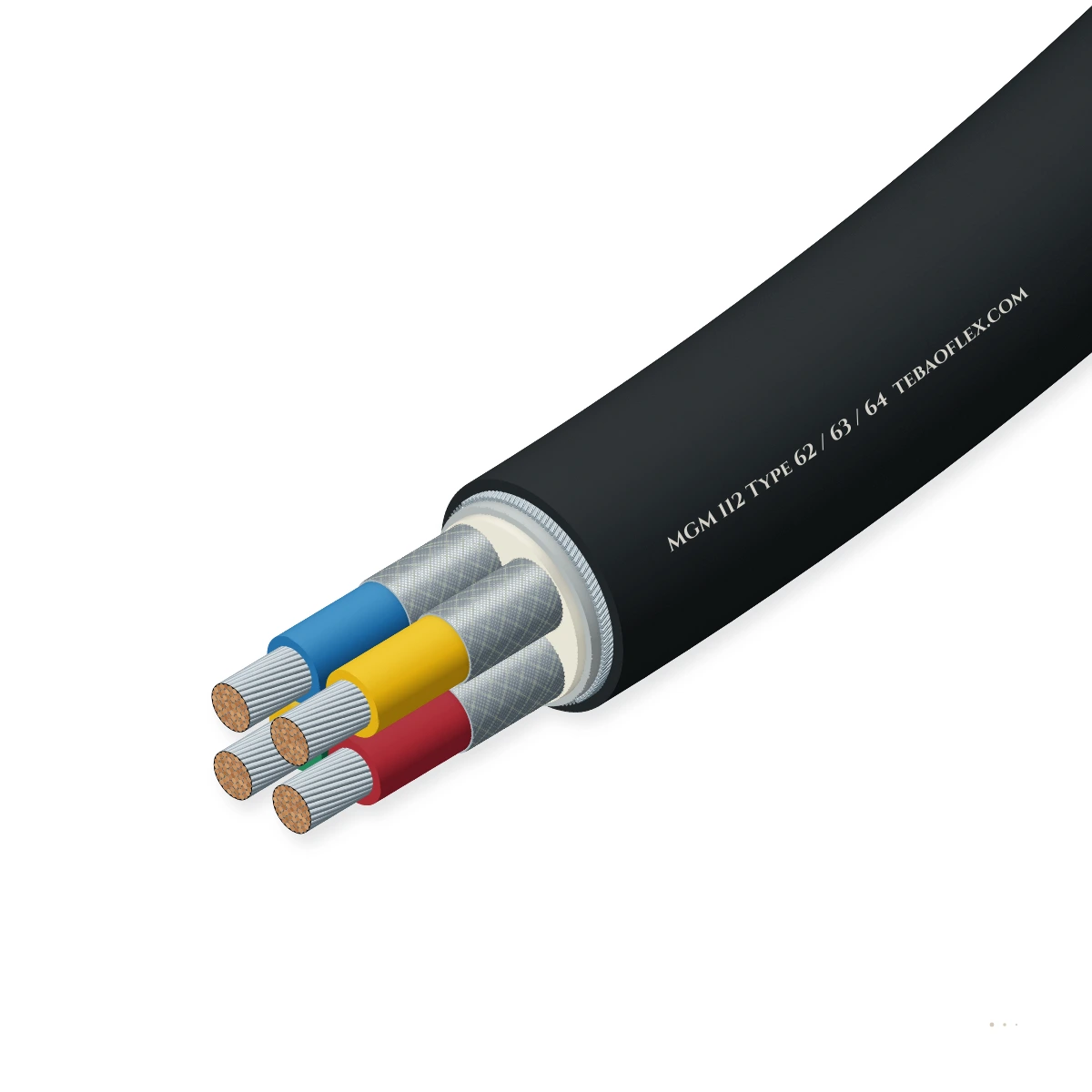

MGM 112 Type 62 / 63 / 64 Screened Armoured Cable660/1,100 V 2- to 4-core screened pliable-wire-armoured mining auxiliary cable

Low-voltage 660/1,100 V underground mining auxiliary, lighting and control cable to MGM 112 and BS 6708 in Type 62 (2C), Type 63 (3C) and Type 64 (3S+1E) with Class 5 tinned copper (4–10 mm²), EPR insulation, Cu/nylon core screens, steel PWA and PCP sheath.

EMC screen
Oil-resistant
Flame-retardant
Outdoor & humid
Order designation
MGM 112 Type 64 4×6
Outer Ø min
24.3 mm
Outer Ø max
26.4 mm
Weight ≈
1,190 kg/km
Min. bend R
158 mm
Check against my drumAll sizes (9)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
660/1,100 V
640/1,100 V AC · 2.5/3.0 kV test
Conductor temp.
+90 °C max.
+250 °C short-circuit (5 s)
Ambient temp.
−25…+80 °C
Flexing (−40…+80 °C fixed)
Bending radius
6 × OD
Fixed & semi-mobile gallery routing
Types covered
Type 62/63/64
2C screened · 3C screened · 3S+1E
Size range
4–10 mm²
Class 5 SnCu + Cu/PA screen + PWA

Typical values for this cable type, based on MGM 112 / BS 6708 Type 62, 63, 64 — confirmed in the datasheet and quotation for your order.

Application fit

Is MGM 112 Type 62 / 63 / 64 right for your machine?

MGM 112 Type 62, Type 63 and Type 64 extend individual copper/nylon phase screening and pliable wire armour down to 4–10 mm² 2-, 3- and 4-core cables for underground roadway lighting, signalling, gate-end interlocks and small auxiliary drives.

Trailing & towing

Suitable

Underground mine lighting strings, face signalling units, drill control boxes and small auxiliary drives.

Fixed installation

Suitable

Gallery lighting feeders, methane monitoring power links and gate-end control interconnections.

Immersion & wet locations

Suitable

Heavy-duty polychloroprene (RS4/EM2) outer jacket resists wet mine roadways, oil and rock abrasion.

Motorised monospiral reel

Not suitable

Pliable wire armour is engineered for roadway and auxiliary interconnections, not fast crane reeling.

Use NSHTÖU Reeling
Typical machinesUnderground mine roadway lightingLongwall face signalling & interlocksGate-end auxiliary & pilot feedersSmall underground pumps & winchesGassy coal & hard-rock mine galleries

Construction

Layer by layer

Shown: MGM 112 Type 64 4×6 — 3 EPR-insulated 6 mm² cores with individual copper/nylon braid screens + 1 unscreened 6 mm² earth core around a central elastomeric cradle, rubber inner bedding, galvanised steel pliable wire armour (PWA) and black PCP outer sheath.

1234567
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Tinned copper conductorFine-stranded annealed tinned copper wire (IEC 60228 / BS EN 60228 Class 5, 4–10 mm²)IEC 60228 Class 5
2EPR core insulationCross-linked ethylene-propylene rubber compound Type GP8 (+90 °C rated)BS 7655-1.2 GP8 / MGM 112
3Individual core screenComposite tinned-copper and nylon (polyamide) braid screen over each live core (2 cores in Type 62; 3 cores in Type 63 & 64)MGM 112 / BS 6708 Type 62/63/64
4Elastomeric cradle centerExtruded rubber cradle separator maintaining core spacing and impact resistanceMGM 112 / BS 6708
5Elastomeric inner beddingExtruded vulcanised rubber inner sheath over the cabled core assemblyMGM 112 inner bedding
6Pliable wire armour (PWA)Stranded galvanised steel wire armour (PWA) providing crush resistance and earth-fault return conductanceMGM 112 / BS 6708 PWA
7Heavy-duty PCP outer sheathCross-linked polychloroprene (PCP / Type RS4 / EM2) extra-heavy-duty outer sheath, blackBS 7655-2.1 / IEC 60332-1-2

MGM 112 Type 62 (2×4 to 2×10 mm²)

2 individually copper/nylon-screened cores laid around a rubber cradle + inner sheath + PWA + PCP jacket

MGM 112 Type 63 (3×4 to 3×10 mm²)

3 individually copper/nylon-screened cores laid around a rubber cradle + inner sheath + PWA + PCP jacket

MGM 112 Type 64 (4×4 to 4×10 mm²)

3 individually copper/nylon-screened live cores + 1 unscreened earth core around cradle + inner sheath + PWA + PCP jacket

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on MGM 112 / BS 6708 Type 62, 63, 64. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
660/1,100 V (640/1,100 V AC · 1.1 kV mining system)
AC test voltage
2500–3000 V AC (50 Hz, 5 min)
Conductor stranding
IEC 60228 / BS EN 60228 Class 5 tinned copper (4, 6 & 10 mm²)
Core screening
Individual tinned-copper/nylon braid over each live conductor
Earth fault path
Core screens + galvanised steel PWA (plus 4th earth core in Type 64)

Thermal

Max. conductor temperature
+90 °C continuous operation
Short-circuit temperature
+250 °C max. (up to 5 s)
Temperature, flexing
−25 °C to +80 °C
Temperature, fixed
−40 °C to +80 °C

Mechanical

Min. bending radius
6 × overall diameter
Armour construction
Galvanised steel pliable wire armour (PWA) in multi-wire strands
Core cradle
Central elastomeric cradle prevents core-to-core pinch under rock impact
Mechanical duty
Heavy underground gallery lighting, control & auxiliary duty

Resistance

Flame retardance
IEC 60332-1-2 / BS EN 60332-1-2 underground mine flame test
Oil & hydraulic emulsion
EN 60811-404 mineral oil, grease & hydraulic fluid resistant
Mine water & humidity
Resistant to wet coal-mine roadways, sludge and grease
Abrasion & tear
Heavy-duty RS4/EM2 polychloroprene outer sheath

Reference standards

Primary specification
TTK MGM 112 / BS 6708 Type 62, Type 63 & Type 64
Compound standards
BS 7655-1.2 GP8 (EPR) & BS 7655-2.1 RS4 / EN 50363 EM2 (PCP)
Conductor standard
IEC 60228 / BS EN 60228 Class 5
RoHS & REACH
2011/65/EU (RoHS 2) & EC 1907/2006 compliant

Identification

Sheath colour
Black
Core identification
Type 62: 2 screened · Type 63: 3 screened · Type 64: 3 screened + 1 earth
Sheath marking
TEBAOFLEX MGM 112 TYPE 62 / 63 / 64 [Size] 660/1100V MINING CABLE
Customs tariff (HS)
8544.49 (insulated conductors ≤ 1000 V / 1100 V)

Sizes

9 standard MGM 112 Type 62 / 63 / 64 configurations

Typical MGM 112 / BS 6708 Type 62, 63, 64 outer diameter limits, copper content and cable weight.

Dimensions & weights
Order designationCores × mm²AWG ≈Outer Ø min
mm		Outer Ø max
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
mm		Enquiry
MGM 112 Type 62 — 2 Screened Cores + Pliable Wire Armour (4–10 mm², 660/1,100 V)
MGM 112 Type 62 2×42×41219.120.8120690125
MGM 112 Type 62 2×62×61020.622.4165810134
MGM 112 Type 62 2×102×10823.225.22551,060151
MGM 112 Type 63 — 3 Screened Cores + Pliable Wire Armour (4–10 mm², 660/1,100 V)
MGM 112 Type 63 3×43×41220.422.2175810133
MGM 112 Type 63 3×63×61022.524.52401,020147
MGM 112 Type 63 3×103×10825.427.63601,340166
MGM 112 Type 64 — 3 Screened Cores + 1 Earth Core + Pliable Wire Armour (4–10 mm², 660/1,100 V)
MGM 112 Type 64 4×44×41222.124.0215960144
MGM 112 Type 64 4×64×61024.326.42951,190158
MGM 112 Type 64 4×104×10827.429.84551,580179
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Dimensions and weights are typical values per MGM 112 / BS 6708 Type 62, 63, 64. Minimum fixed bending radius shown is 6 × OD.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Check results

Drum core 300 mm is below 316 mmUse a larger drum core or a smaller cable size
Minimum bending radius
158 mm
Min. drum core diameter
≈ 316 mm
Cable weight on drum
59.5 kg
Copper content
14.8 kg
Indicative only: based on the datasheet outer diameter and 6 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC voltage test2.5 kV AC (50 Hz)Every manufactured length
Conductor DC resistanceIEC 60228 Class 5 (tinned copper)Every manufactured length
Sample tests
Vertical flame propagationIEC 60332-1-2 / EN 60332-1-2Per production batch
Insulation & sheath elastomer physical propertiesMGM 112 / BS 6708 Type 62, 63, 64Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

MGM 112 / BS 6708 Type 62, 63, 64CE · RoHS 2 (2011/65/EU) · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX MGM 112 TYPE 62 / 63 / 64 [Size] 660/1100 V MINING CABLE
Delivery form
Export wooden drums or coils, cut-to-length on request
Packaging
Heat-treated ISPM-15 timber drums with sealed cable ends
Conductor / sheath options
Custom core counts, pilot cores or sheath colours on request

Technical documents

Downloads

PDFMGM 112 Type 62 / 63 / 64 Screened Armoured Cable – technical datasheet9 sizes · construction, technical data, approvalsXLSXMGM 112 Type 62 / 63 / 64 spec data (Excel)All 9 sizes with dimensions and data, for your BOM or quotation
