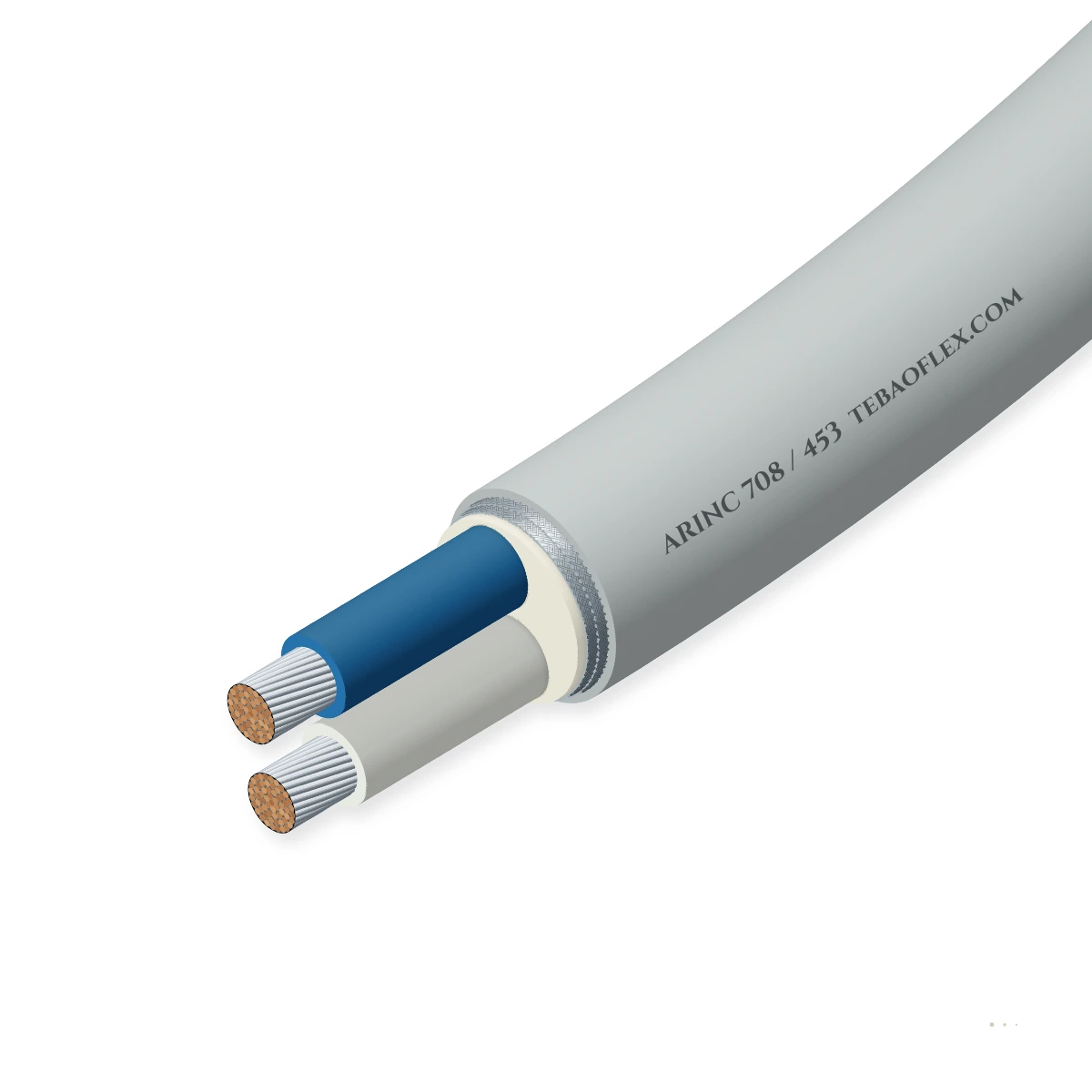

ARINC 708 / 453 Weather-Radar Avionics Data Bus CableAEEC ARINC 708 / 453 · 78 Ω ± 4 Ω · 1 Mbps · 22/24/26 AWG · Foam FEP (≤ 56 pF/m) · Foil

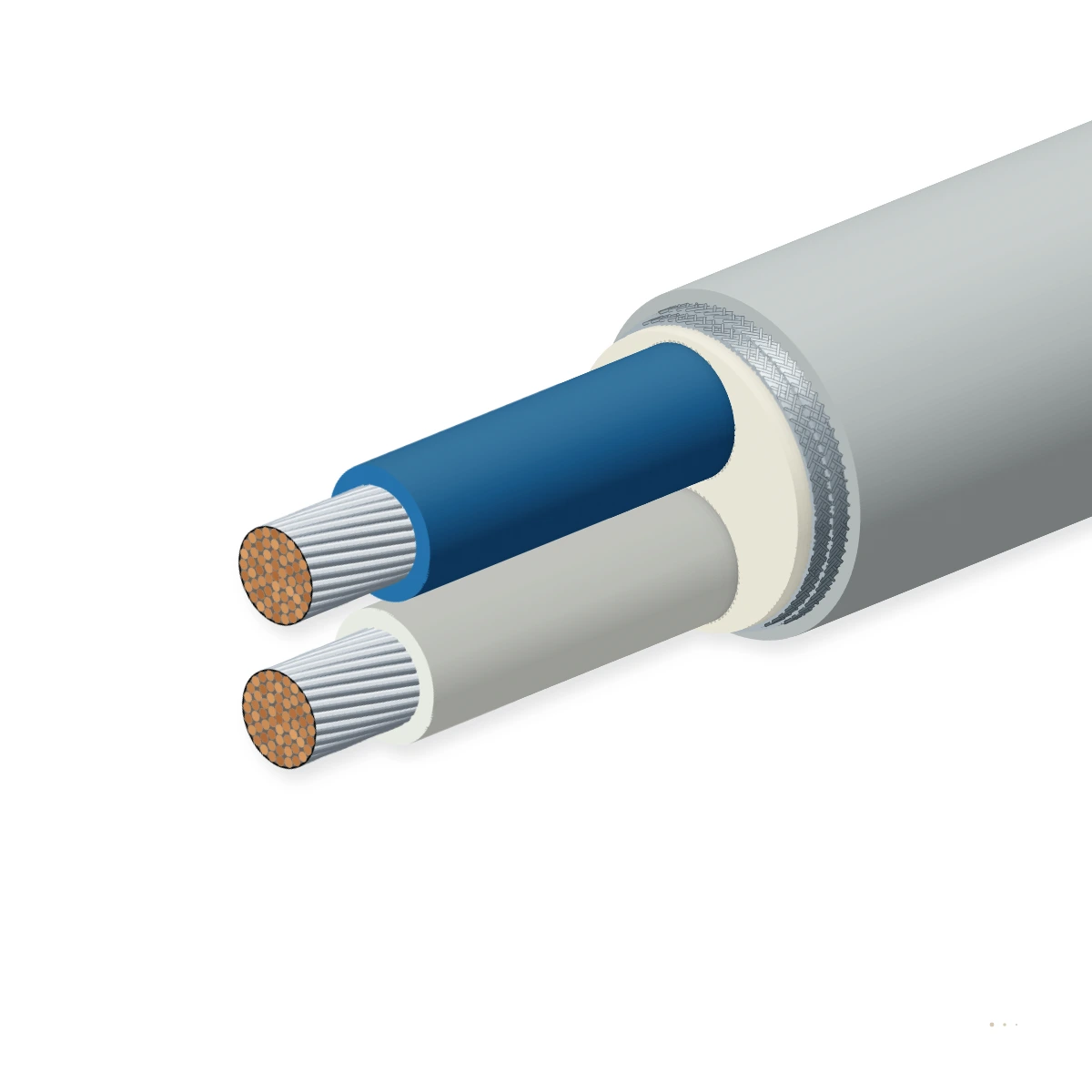

ARINC 708 / 453 Weather Radar Avionics Data Bus Cable is a tight-tolerance 78 Ω ± 4 Ω high-speed twinax cable engineered to AEEC ARINC Characteristic 708 and ARINC 453 for 1 Mbps Manchester-coded airborne weather radar (WXR), predictive windshear, and

EMC screen

Low-EMC design

Flame-retardant

Approved

Variant

Order designation: ARINC 708/453 1×2×24 AWG Foam FEP Twinax
Outer Ø ≈: 2.95 mm
Metal weight: 10.5 kg/km
Total weight ≈: 17.2 kg/km
Min. bend R (fixed): 15 mm

All sizes (4)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Impedance Z₀: 78 Ω ± 4 Ω
Bus protocol: 1 Mbps Manchest
Mutual cap.: ≤ 54–59 pF/m
Attenuation: ≤ 3.9 dB/100m
HIRF shielding: Foil + 95 % SPC
Temp. rating: -55 to +200 °C

Typical values for this cable type, based on AEEC ARINC 708 / ARINC 453 / MIL-DTL-27500 — confirmed in the datasheet and quotation for your order.

Application fit

Is ARINC 708 / 453 right for your machine?

Engineered specifically for airborne weather radar receiver-transmitter (R/T) to cockpit EFIS/ND/MFD display buses, terrain awareness (TAWS/EGPWS) high-speed picture buses, and ARINC 453 Very High

Fixed installation

Suitable

Routes from the unpressurized forward nose radome bulkhead through the avionics bay to the flight deck.

Switchgear & control cabinet wiring

Suitable

Fits ARINC 600 Size 8 and MIL-DTL-38999 Size 8 twinax contacts on WXR R/T trays.

Furnace, kiln & high-temp zone

Suitable

Withstands -55 °C high-altitude cold soak in the nose cone up to +200 °C thermal environments.

Energy chain / drag chain

Not suitable

Designed for fixed airframe harnesses; for antenna gimbal RF use RG-400 or BCB009.

BCB009

Typical machinesAirborne Weather Radar (WXR-2100 / RDR-4000)Predictive Windshear & Turbulence DisplaysCockpit Multi-Function Displays (MFD / ND)TAWS / EGPWS Terrain Picture BusesMilitary Tanker, Awacs & Maritime Patrol

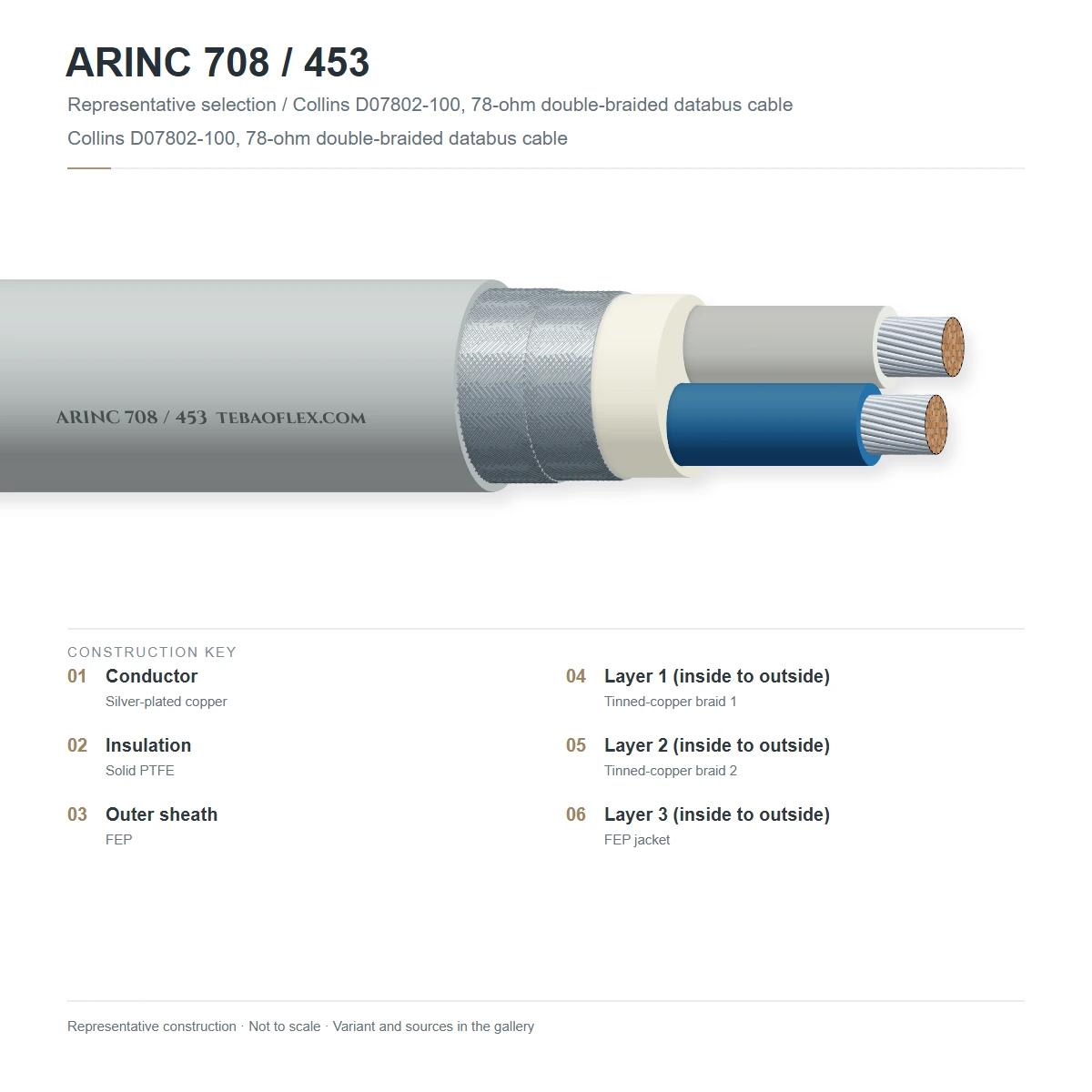

Construction

Layer by layer

2 × 19-strand (22, 24, or 26 AWG) silver-plated copper or silver-plated high-strength copper-alloy conductors (blue & white), low-loss

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	19-strand SPC / Ag-Cu alloy twinax pair	2 × 22, 24, or 26 AWG (19-strand) silver-plated copper or high-strength Cu-Ag/Cu-Cr alloyARINC 708 / AS22759
2	Low-capacitance cellular foam FEP / PTFE	Gas-injected fluoropolymer pair insulation (Blue & White), 78 % VoP, ≤ 54–59 pF/m mutualARINC 708 / 453
3	100 % aluminised fluoropolymer/polyimid	Full-coverage metallic vapour-deposited tape blocking nose-radome X-band radar andARINC 708
4	High-coverage silver-plated copper braid	38 AWG silver-plated copper braid (≥ 95 % coverage; dual shield option for unpressurizedMIL-DTL-27500
5	Laser-markable FEP / ETFE / PTFE outer	White UV-laser-printable fluoropolymer outer sheath (-55 °C to +200 °C, FAR 25.853FAR 25.853

ARINC 708 24 AWG Low-Loss Twinax (Ø 2.95 mm)

Standard 78 Ω ± 4 Ω weather radar display bus cable with foamed FEP dielectric and foil + 95 % SPC braid.

ARINC 708 22 AWG Extended-Reach Twinax (Ø 3.40 mm)

Lower DC resistance and RF attenuation for wide-body aircraft nose-to-tail / dual-cockpit WXR runs.

ARINC 708 Dual-Braid HIRF Grade (Ø 3.35 mm)

Foil + double silver-plated copper braid (> 90 dB isolation) for routing through composite fuselage and

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on AEEC ARINC 708 / ARINC 453 / MIL-DTL-27500. Values for your order are confirmed in the datasheet and quotation.

Electrical

Characteristic impedance Z₀: 78 Ω ± 4 Ω (swept 1 MHz to 20 MHz)
Mutual pair capacitance: 54.0 to 59.0 pF/m (16.5 to 18.0 pF/ft)
Velocity of propagation (VoP): 78.0 % (4.27 ns/m delay)
Attenuation at 1 MHz / 10 MHz: ≤ 3.9 dB/100m / ≤ 11.8 dB/100m
Pair capacitive unbalance: ≤ 1.5 pF/m to shield
Dielectric test voltage: 1,500 V rms at 60 Hz

Thermal

Operating temperature range: -55 °C to +200 °C continuous
Unpressurized nose-bay cold soak: -55 °C at 55,000 ft altitude
Flammability & smoke rating: FAA FAR 25.853, Airbus ABD0031, BSS 7230
Thermal shock stability: -55 °C to +200 °C without impedance drift
Soldering heat resistance: Fluoropolymer resists termination iron heat
UV laser markability: High-contrast 355 nm UV laser printable

Mechanical

Conductor gauges available: 22 AWG, 24 AWG, and 26 AWG (19-strand)
Outer jacket diameter (24 / 22 AWG): 2.95 mm (0.116 in) / 3.40 mm (0.134 in)
Min. bend radius (fixed / install): 15 mm (5×D) / 30 mm (10×D)
Nominal weight (24 / 22 AWG): 17.2 kg/km / 24.5 kg/km
Connector contact size: MIL-DTL-38999 & ARINC 600 Size 8 twinax
Pair lay symmetry: Precision concentric twinax stranding

Resistance

Aviation fluids & Skydrol: Inert to Skydrol, Jet-A, hydraulic oil &
X-band radar HIRF immunity: Foil + 95 % SPC braid blocks radome RF
Composite airframe lightning guard: Optional dual SPC braid for CFRP airframes
Moisture & altitude sealing: Closed-cell fluoropolymer resists
Arc-tracking resistance: Passes SAE AS4373 wet/dry arc track
RoHS / REACH status: Aerospace RoHS compliant

Reference standards

Weather radar bus standard: AEEC ARINC Characteristic 708 & 708A
High-speed data bus standard: AEEC ARINC Specification 453
Military twinax reference: MIL-DTL-17/176 & MIL-DTL-27500
Airframe flammability standard: FAA FAR 25.853 / EASA CS-25
Aerospace wire test standard: SAE AS4373 / EN 3475
Quality certification: EN 10204 3.1 + 1–20 MHz TDR/VNA report

Identification

Insulated core colours: Blue & White
Outer jacket colour: White (UV-laser markable) or Blue stripe
Surface legend: TEBAOFLEX ARINC 708/453 78 OHM WXR BUS 200C
Standard spool lengths: 152 m (500 ft), 305 m (1000 ft), 500 m
Bus designation: ARINC 708 / 453 1 Mbps Weather Radar Twinax
Batch traceability: Aerospace lot number & conformity cert

Sizes

4 standard configurations (ARINC 708 / 453)

Dimensional, physical and high-frequency electrical parameters for ARINC 708 / 453 per AEEC ARINC 708 / ARINC 453 / MIL-DTL-27500.

Dimensions & construction
Order designation	Construction / Variant	Conductor	Outer Ø ≈ mm	Metal kg/km	Weight ≈ kg/km	Min. bend R fixed mm
Standard ARINC 708 / 453 variants
ARINC 708/453 1×2×24 AWG Foam FEP Twinax	78 Ω ± 4 Ω + Foil + 95% SPC Braid	24 AWG (19×36 Alloy)	2.95	10.5	17.2	15
ARINC 708/453 1×2×22 AWG Extended-Run Twinax	78 Ω ± 4 Ω + Foil + 95% SPC Braid	22 AWG (19×34 SPC)	3.40	15.2	24.5	17
ARINC 708/453 1×2×24 AWG Dual-Braid CFRP Grade	78 Ω ± 4 Ω + Foil + Dual SPC Braid	24 AWG (19×36 Alloy)	3.35	16.8	24.8	17
ARINC 708/453 1×2×26 AWG Ultra-Lightweight	78 Ω ± 4 Ω + Foil + 95% SPC Braid	26 AWG (19×38 Alloy)	2.55	7.4	12.8	13

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Dimensions and weights are nominal production values subject to manufacturing tolerances per AEEC ARINC 708 / ARINC 453 / MIL-DTL-27500.

Impedance, capacitance & electrical data
Configuration	Max. conductor DC R Ω / km @ 20 °C	Characteristic Z₀ Ω	Capacitance pF / m	Velocity VoP %	Test voltage V rms
78 Ω ± 4 Ω + Foil + 95% SPC Braid	1.5	78	48.0	78	1,500
78 Ω ± 4 Ω + Foil + 95% SPC Braid	1.6	78	48.0	78	1,500
78 Ω ± 4 Ω + Foil + Dual SPC Braid	1.5	78	48.0	78	1,500
78 Ω ± 4 Ω + Foil + 95% SPC Braid	1.4	78	48.0	78	1,500

Transmission parameters measured at 1–100 MHz (+20 °C) in accordance with AEEC ARINC 708 / ARINC 453 / MIL-DTL-27500.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
Sweep impedance & return loss (1–20 MHz)	78 Ω ± 4 Ω; low structural reflections across Manchester spectrum	Every spool
Mutual capacitance, unbalance & 1.5 kV HV	≤ 59 pF/m mutual cap; ≤ 1.5 pF/m unbalance; 1.5 kV AC pass	Every spool
Sample tests
1 Mbps Manchester eye-diagram & HIRF transfer	Clean zero-crossing eye pattern; > 85 dB shield isolation	Per batch
FAR 25.853 burn test & -55/+200 °C thermal shock	Meets FAA/EASA airframe flammability and thermal aging	Qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

AEEC ARINC 708 & ARINC 453MIL-DTL-27500 / AS4373FAA FAR 25.853 / ABD0031

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX ARINC 708/453 78 OHM WEATHER

Delivery form: Spools, reels or export wooden drums
Standard reel lengths: 100 m · 305 m (1000 ft) · 500 m · 1000 m
MOQ: 100 m (stock) · 305–500 m (production)
Lead time: 1–3 weeks ex-works
Incoterms: EXW, FCA, FOB, CIF, DAP

Technical documents

Downloads

PDFARINC 708 / 453 Weather-Radar Avionics Data Bus Cable – technical datasheet4 sizes · construction, technical data, approvals XLSXARINC 708 / 453 spec data (Excel)All 4 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
