Hook-up & equipment wiresEXRAD 180B · ISO 6722 Class E−70…+180 °C · ATF Immersion0 ml Oil/Water Wicking

EXRAD 180B Anti-Capillary Engine and Transmission WireEXRAD 180B −70…+180 °C anti-capillary XLFE wire for automatic transmissions & engines

High-temperature anti-capillary automotive wire (`EXRAD 180B`) rated −70 °C to +180 °C (ISO 6722-1 Class E, 600 V), combining tinned copper strands sealed against oil/water wicking with e-beam cross-linked fluoropolymer-elastomer (XLFE) for hot ATF immersion.

Flame-retardant
Oil-resistant
Water-resistant
Ozone, UV & moisture
Order designation
EXRAD 180B 18 AWG (19/30)
Outer Ø min
1.9 mm
Outer Ø max
2.1 mm
Weight ≈
11 kg/km
Min. bend R
6 mm
Check against my drumAll sizes (7)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Voltage rating
60 V / 600 V
60 V auto (ISO 6722) · 600 V industrial
Temp. range
−70…+180 °C
ISO 6722-1 Class E · −70 °C cold bend
Fluid immersion
Hot ATF / Oil
Submerged valve-body & DCT gearbox duty
Capillary block
0 ml oil/water
Interstitial cured elastomer strand seal
Bending radius
3 × OD
3 × overall diameter compact routing
Size range
22–10 AWG
0.35–6.0 mm² · 19/37-strand tinned Cu

Typical values for this cable type, based on ISO 6722-1 Class E (+180 °C) · SAE J1128 — confirmed in the datasheet and quotation for your order.

Application fit

Is EXRAD 180B right for your machine?

Inside automatic transmissions, dual-clutch gearboxes (DCT) and e-axles, internal solenoid harnesses are continuously submerged in +150 °C to +180 °C automatic transmission fluid (ATF). `EXRAD 180B` resists aggressive synthetic ATF additives while preventing oil from wicking up the strands into external TCUs.

Fixed installation

Suitable

Submerged automatic transmission valve bodies, mechatronic TCUs, e-axle oil sumps and turbo engine sensors.

VFD inverter to AC motor screened feeder

Not suitable

Unscreened single-core gearbox and engine harness wire.

Use UL 2464 / 2517

Trailing & towing

Not suitable

Internal transmission and engine harness wire; for standard +125 °C dry/wet chassis harnesses use TXL Anti-Capillary.

Use TXL Anti-Capillary

Energy chain / drag chain

Not suitable

For 600 V / 1500 V DC high-voltage EV traction battery and inverter cables up to +200 °C, select EXRAD S200XL.

Use EXRAD S200XL
Typical machinesAutomatic transmission (AT/DCT/CVT) valve bodiesSubmerged mechatronic TCU & shift-solenoid loomsE-axle oil-cooled motor stator & thermistor leadsTurbocharger actuator, EGR & exhaust NOx sensorsHeavy-duty diesel under-valve-cover harnesses

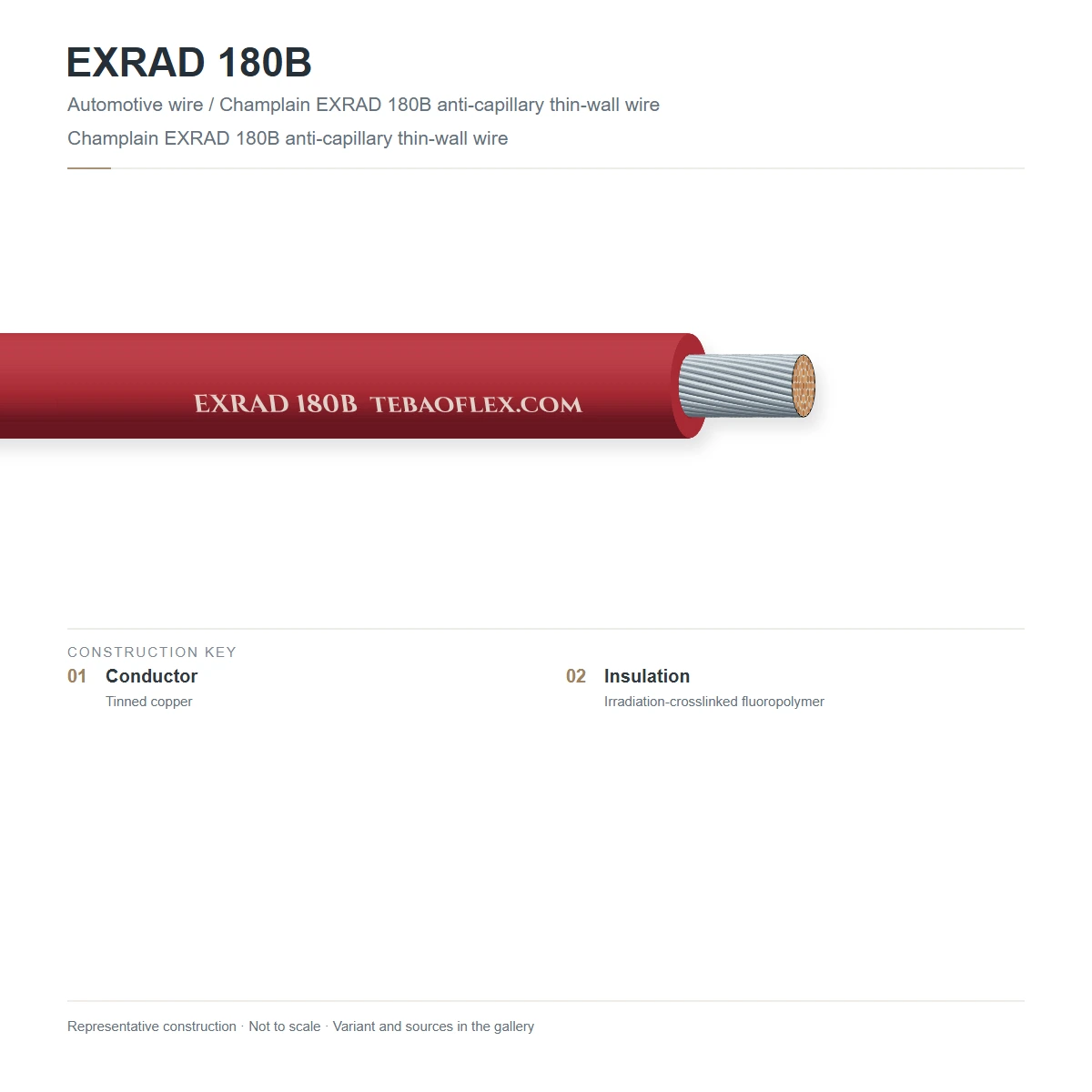

Construction

Layer by layer

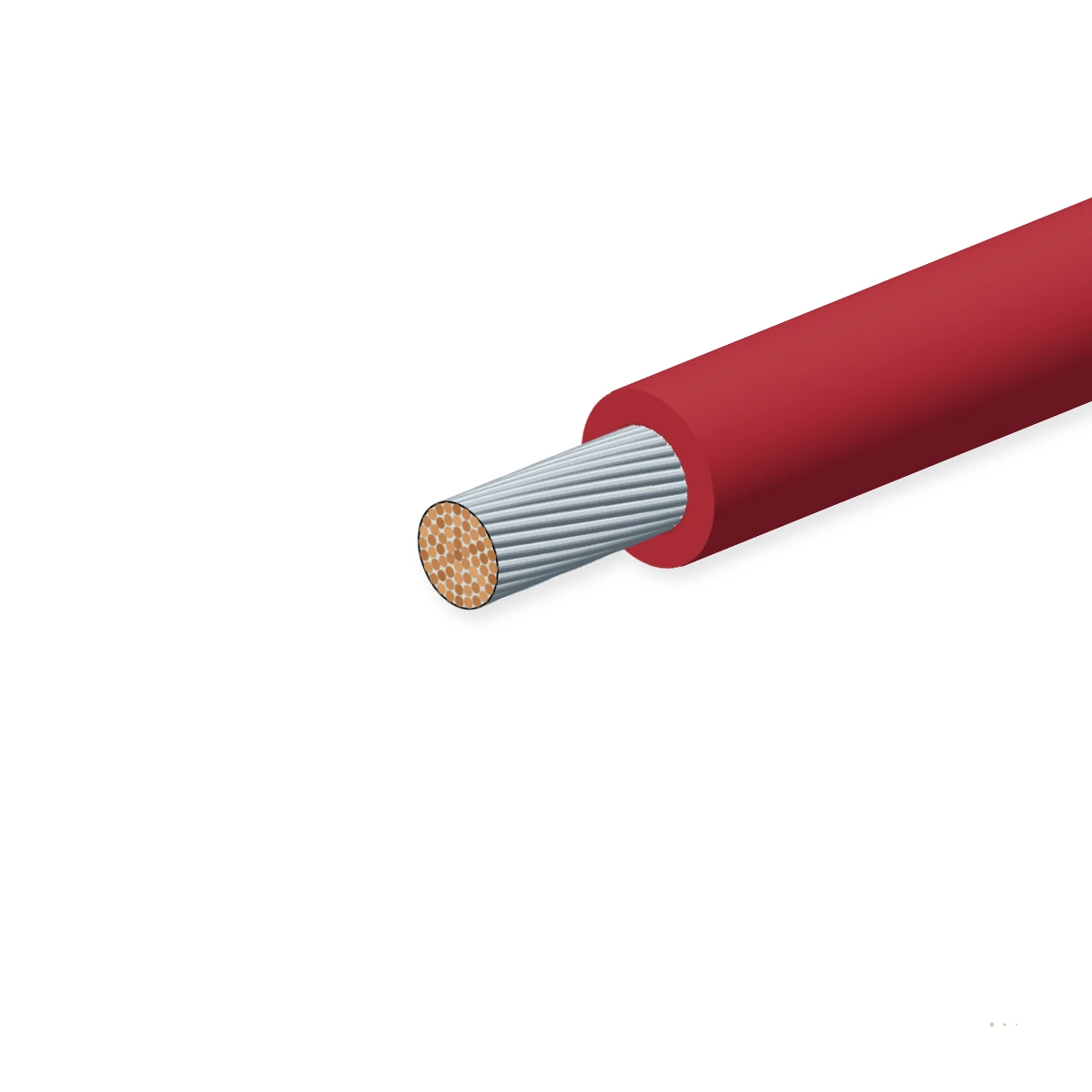

Shown: EXRAD 180B 18 AWG (19/30) — 19-strand tinned annealed copper conductor internally sealed with a high-temperature cured anti-capillary compound and insulated with an electron-beam cross-linked fluoropolymer-elastomer (XLFE) wall.

123
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Oil/water-blocked tinned copper19- or 37-strand tinned annealed copper (22–10 AWG) with cured high-temperature interstitial elastomer blocking ATF and water wickingSAE J1128 · ISO 6722-1
2E-beam cross-linked XLFE dielectricThin-wall electron-beam cross-linked fluoropolymer-elastomer rated −70 °C to +180 °C continuousISO 6722-1 Class E · SAE J1128
3ATF- & pinch-resistant XLFE surfaceFlexible, non-cracking thermoset surface engineered to withstand 3,000+ hours submerged in hot synthetic ATF, gear oil and dieselISO 6722-1 Class E

EXRAD 180B TXL-Wall Anti-Capillary (22–12 AWG, 0.40–0.46 mm wall)

Compact thin-wall 180 °C XLFE wire with interstitial oil/water block for transmission valve-body connectors

EXRAD 180B GXL-Wall Anti-Capillary (20–10 AWG, 0.58–0.79 mm wall)

Heavier-wall 180 °C XLFE wire for under-valve-cover diesel injector harnesses and turbocharger actuators

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on ISO 6722-1 Class E (+180 °C) · SAE J1128. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage
60 V DC (ISO 6722-1 automotive) · 600 V RMS (SAE / industrial equipment rating)
Dielectric withstand voltage
1.0–2.0 kV AC for 1 min · 5.0 kV spark test
Max. DC conductor resistance (20 °C)
22 AWG: ≤ 54.3 Ω/km · 20 AWG: ≤ 34.6 Ω/km · 18 AWG: ≤ 21.8 Ω/km · 16 AWG: ≤ 14.0 Ω/km · 14 AWG: ≤ 8.79 Ω/km · 12 AWG: ≤ 5.56 Ω/km

Thermal

Operating temperature range
−70 °C cold bend to +180 °C continuous (3,000 h thermal aging to ISO 6722-1 Class E)
Short-term thermal Excursion
+200 °C to +230 °C short-term peak

Mechanical

Min. bending radius
3 × overall diameter (remains flexible down to −70 °C without fluoropolymer stiffness)
Anti-capillary fluid block
Zero ATF, engine oil or water wicking along conductor strands under differential pressure

Resistance

Hot ATF & hypoid gear oil
Engineered for continuous immersion in Dexron/Mercon ATF, DCT fluid, e-axle dielectric oil and engine oil at +150…+180 °C
Flame & pinch resistance
Passes ISO 6722-1 / SAE J1128 flame propagation, hot-wire pinch and scrape abrasion tests

Reference standards

Primary standards
ISO 6722-1 Class E (+175/+180 °C) & SAE J1128 dimensional profiles
RoHS, ELV & REACH
2000/53/EC (ELV), 2011/65/EU (RoHS 2) & IMDS compliant

Identification

Insulation colours
Black, Red, Blue, Yellow, Green, White, Brown, Orange, Violet & Grey
Customs tariff (HS)
8544.49 (insulated conductors ≤ 1000 V)

Sizes

7 standard EXRAD 180B configurations

Typical ISO 6722-1 Class E (+180 °C) · SAE J1128 outer diameter limits, copper content and cable weight.

Dimensions & weights
Order designationCores × mm² / AWGAWG ≈Outer Ø min
mm		Outer Ø max
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
mm		Enquiry
EXRAD 180B −70…+180 °C Anti-Capillary Engine & Transmission Wire (22–10 AWG)
EXRAD 180B 22 AWG (19/34)22 AWG (0.35 mm²)221.51.6365
EXRAD 180B 20 AWG (19/32)20 AWG (0.50 mm²)201.71.9586
EXRAD 180B 18 AWG (19/30)18 AWG (0.80 mm²)181.92.17116
EXRAD 180B 16 AWG (19/29)16 AWG (1.25 mm²)162.22.412167
EXRAD 180B 14 AWG (19/27)14 AWG (2.00 mm²)142.62.819248
EXRAD 180B 12 AWG (19/25)12 AWG (3.00 mm²)123.13.4313810
EXRAD 180B 10 AWG (37/26)10 AWG (5.00 mm²)103.84.2505812
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Dimensions and weights are typical values per ISO 6722-1 Class E (+180 °C) · SAE J1128. Minimum fixed bending radius shown is 3 × OD.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Check results

Drum core 300 mm ≥ 12 mmBending radius OK (3 × OD 2.1 mm)
Minimum bending radius
6 mm
Min. drum core diameter
≈ 12 mm
Cable weight on drum
0.6 kg
Copper content
0.4 kg
Indicative only: based on the datasheet outer diameter and 3 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC dielectric voltage test2.0 kV AC (50/60 Hz)Every manufactured length
Conductor DC resistanceIEC 60228 / ASTM (tinned copper)Every manufactured length
Sample tests
Flame propagation testIEC 60332-1-2 / UL VW-1 / ISO 6722-1Per production batch
Insulation & sheath material physical propertiesISO 6722-1 Class E (+180 °C) · SAE J1128Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

ISO 6722-1 Class E (+180 °C) · SAE J1128CE · RoHS 2 (2011/65/EU) · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

EXRAD 180B [AWG] ANTI-CAPILLARY 180C ISO 6722 CLASS E TEBAOFLEX
Delivery form
Export wooden drums, reels or coils, cut-to-length on request
Packaging
Heat-treated ISPM-15 timber drums or spools with sealed ends
Conductor / colour options
Custom core counts, stripe combinations or cut harnesses on request

Technical documents

Downloads

PDFEXRAD 180B Anti-Capillary Engine and Transmission Wire – technical datasheet7 sizes · construction, technical data, approvalsXLSXEXRAD 180B spec data (Excel)All 7 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

Why do standard XLPE (TXL/GXL) wires fail inside automatic transmissions?
Cross-linked polyethylene (XLPE, ISO 6722 Class C) is rated to +125 °C and swells and softens when continuously submerged in +150 °C to +180 °C synthetic automatic transmission fluid (ATF). EXRAD 180B uses an electron-beam cross-linked fluoropolymer-elastomer (XLFE) that stays dimensionally and electrically stable in hot ATF.
How does EXRAD 180B prevent transmission fluid from reaching the external TCU?
Transmission pressure and thermal cycling force ATF into the unsealed solenoid crimps inside the oil pan. The cured interstitial anti-capillary compound inside EXRAD 180B blocks every capillary path between the 19 tinned copper strands so zero ATF can wick through the bulkheads into the transmission control unit (TCU).
Why choose cross-linked fluoropolymer-elastomer (XLFE) over standard PTFE or FEP?
Conventional fluoropolymers (PTFE/FEP/ETFE) are stiff, prone to cold-flow under connector seals and difficult to seal in elastomeric grommets. XLFE combines fluoropolymer fluid/heat resistance (+180 °C) with true elastomeric flexibility down to −70 °C.
Is EXRAD 180B suitable for oil-cooled electric vehicle e-axles?
Yes. Modern wet e-axles spray synthetic dielectric cooling oil directly over the stator windings, thermistors and resolver harnesses, making EXRAD 180B ideal for internal e-motor sensor leads.
