Product

Hook-up & equipment wiresUL 2464 (80 °C) & 2517 (105 °C)300 V · Foil + Tinned-Cu Braid2–50 Cores · 28–16 AWG

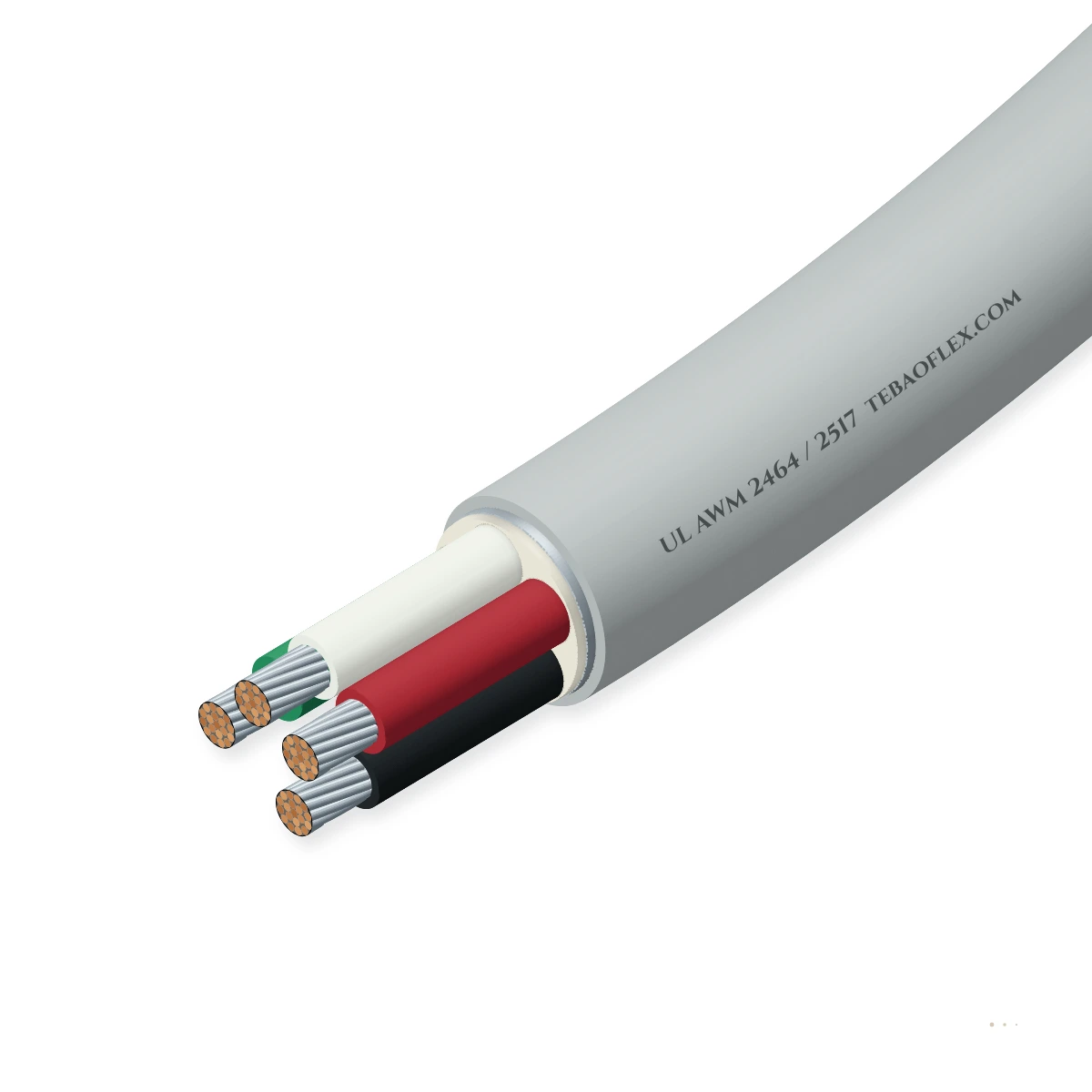

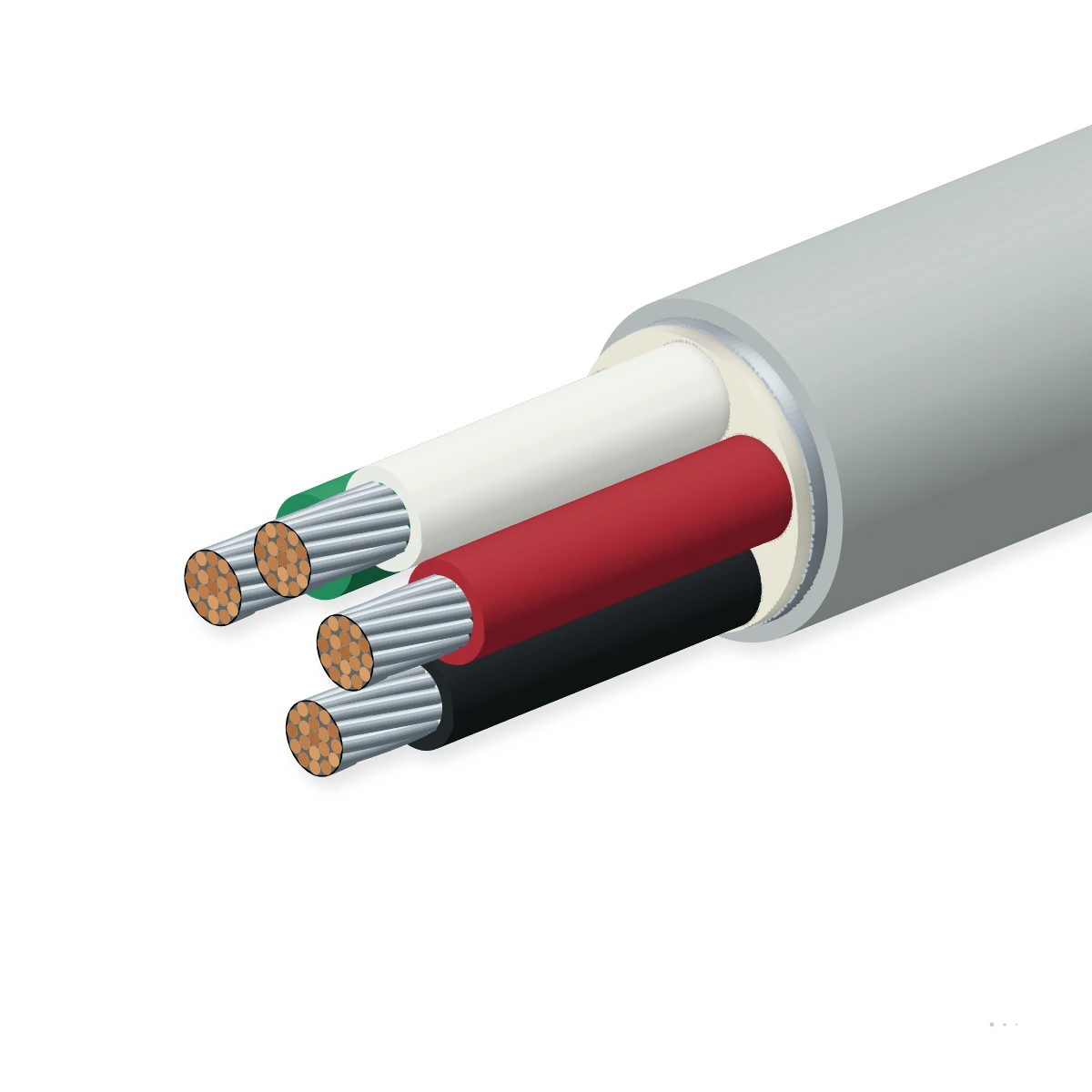

UL AWM 2464 / 2517 Shielded Multicore CableUL AWM 2464 (80 °C) & 2517 (105 °C oil) 300 V foil + braid shielded multicore cable

EMC-shielded 300 V multi-conductor and twisted-pair control cable certified to UL AWM Style 2464 (80 °C) and Style 2517 (105 °C oil-resistant CNC grade) plus CSA FT1/FT4, combining 28–16 AWG tinned copper cores with 100 % Al/Mylar foil + ≥85 % tinned-Cu braid.

Flame-retardant
Oil-resistant
Low-EMC design
Approved
Order designation
UL 2464/2517 6×22 AWG
Outer Ø min
5.4 mm
Outer Ø max
5.9 mm
Weight ≈
58 kg/km
Min. bend R
35 mm
Check against my drumAll sizes (20)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Voltage rating
300 V RMS
UL AWM Style 2464 & Style 2517
Temp. rating
80 °C / 105 °C
UL 2464: 80 °C · UL 2517: 105 °C oil
EMC shielding
Foil + Cu Braid
100 % Al/Mylar + drain + tinned-Cu braid
Flame rating
VW-1 / FT1 / FT4
UL 1581 VW-1 & CSA FT1 / FT4 vertical
Bending radius
6 × OD / 10 × OD
6 × OD fixed · 10 × OD flexing
Core range
2–50C · 28–16AWG
0.08–1.31 mm² · multicore or pairs

Typical values for this cable type, based on UL 758 Style 2464 (80 °C) & Style 2517 (105 °C) · CSA AWM I/II A/B — confirmed in the datasheet and quotation for your order.

Application fit

Is UL AWM 2464 / 2517 right for your machine?

UL 2464 is the global standard 300 V shielded interconnect cable for RS-232/RS-422/RS-485 serial interfaces, PLC I/O, barcode scanners and scales, while UL 2517 adds a +105 °C oil-resistant PVC outer jacket favored on Japanese and North American CNC machine tools and servo encoders.

Fixed installation

Suitable

RS-232/422/485 data links, CNC servo encoder harnesses, PLC I/O trunks and industrial instrumentation.

VFD inverter to AC motor screened feeder

Suitable

Dual shield (100 % Al-foil + tinned-Cu drain wire + ≥85 % tinned-Cu braid) blocks broadband HF and LF noise.

Trailing & towing

With conditions

UL 2517 oil-resistant grade handles machine-tool splash and occasional flex; not for continuous high-speed drag chains.

Energy chain / drag chain

Not suitable

For mass-terminated 1.27 mm IDC internal ribbon jumpers, select UL AWM 2651.

Use UL 2651 Ribbon
Typical machinesCNC machine tools, servo encoders & MPG pendantsRS-232 / RS-422 / RS-485 & Modbus serial busesSemiconductor, SMT & automated test equipmentMedical diagnostic, POS & weighing terminalsAudio/control & building automation interfaces

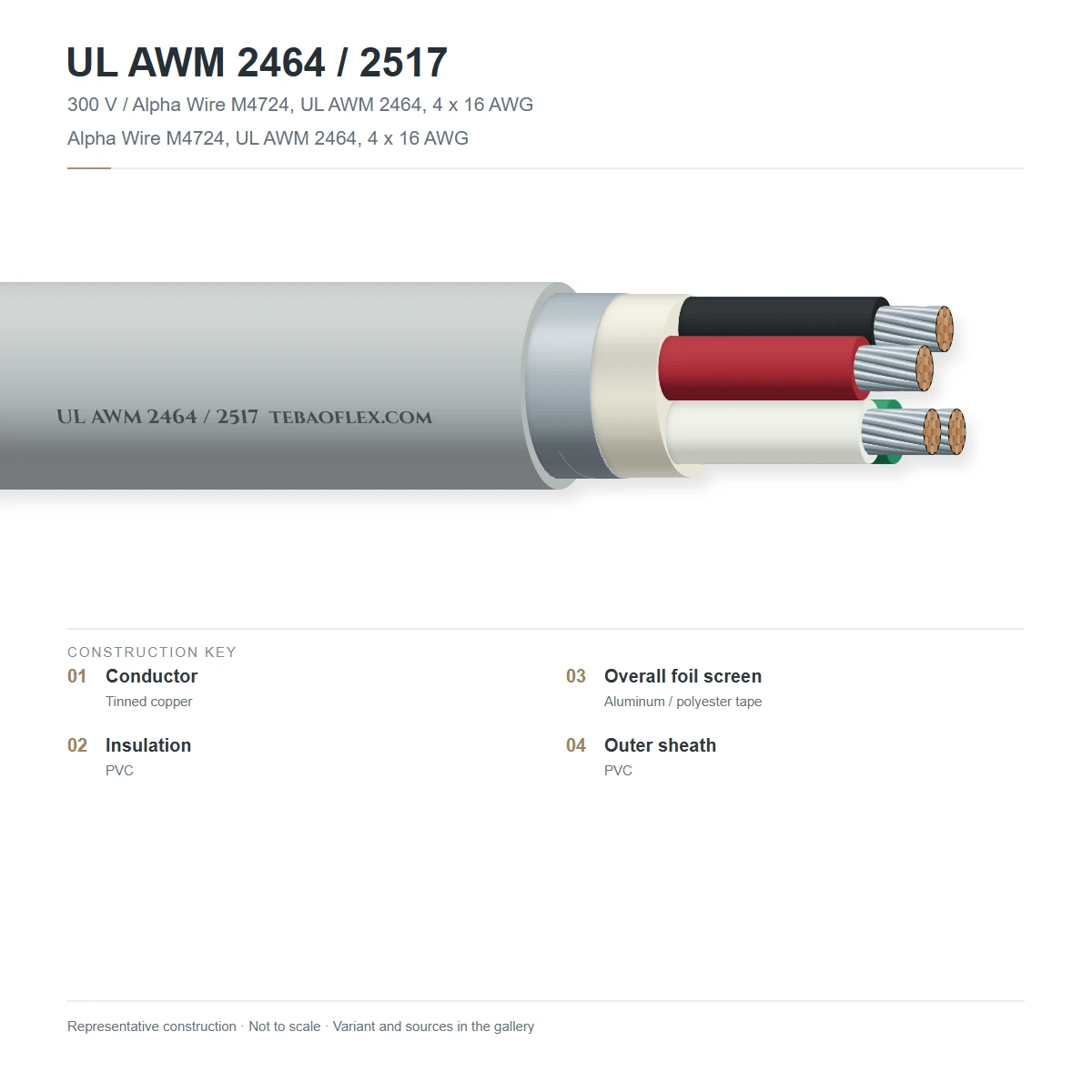

Construction

Layer by layer

Shown: UL AWM 2464 / 2517 6×22 AWG Foil + Braid Shielded — six 7/30 stranded tinned copper cores with colour-coded SR-PVC / PVC insulation, 100 % aluminium/polyester foil tape with tinned copper drain wire, ≥85 % tinned-copper wire braid shield and VW-1 / FT1 PVC outer jacket.

12345
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Stranded tinned copper conductors7-strand or 19/26-strand tinned annealed copper (28 AWG / 0.08 mm² to 16 AWG / 1.31 mm²) per ASTM B33ASTM B33 · UL 758
2SR-PVC (UL 1061) or PVC (UL 1007/1569) coresColour-coded semi-rigid PVC (28–20 AWG) or 105 °C PVC (UL 2517 / 18–16 AWG) cabled as multicore or twisted pairsUL 758 Style 2464 / 2517
3100 % Al/Mylar foil + drain wireOverlapped aluminium/polyester foil tape (100 % coverage) with stranded tinned-copper drain wire for fast terminationUL 758
4Tinned-copper braid shield (≥85 %)Close-woven tinned annealed copper wire braid over the foil for low-frequency magnetic and mechanical shieldingUL 758 Style 2464 / 2517
5VW-1 / FT1 PVC jacket (80 °C or 105 °C oil)0.80 mm nominal flame-retardant grey or matte-black PVC outer sheath (oil- & coolant-resistant 105 °C on UL 2517)UL 758 · CSA AWM I/II A/B FT1/FT4

UL AWM 2464 Foil + Braid Shielded Multicore (80 °C, 300 V, 2–50C)

Dual-shielded grey or black PVC computer, RS-232/485 and instrumentation cable

UL AWM 2517 Oil-Resistant CNC Shielded Cable (105 °C, 300 V)

Matte-black oil- and cutting-fluid-resistant 105 °C PVC jacket for CNC servo encoders and machine tools

UL 2464 / 2517 Shielded Twisted Pairs (1P to 25P)

Paired colour-coded cores with overall foil/braid shield for differential RS-422/485 and encoder channels

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on UL 758 Style 2464 (80 °C) & Style 2517 (105 °C) · CSA AWM I/II A/B. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage
300 V RMS
Dielectric withstand voltage
1500 V AC for 1 min
Mutual capacitance (typical)
≈ 95–115 pF/m (core to core) · ≈ 170–210 pF/m (core to shield)
Max. DC conductor resistance (20 °C)
28 AWG: ≤ 216 Ω/km · 26 AWG: ≤ 135 Ω/km · 24 AWG: ≤ 84.2 Ω/km · 22 AWG: ≤ 53.2 Ω/km · 20 AWG: ≤ 33.2 Ω/km · 18 AWG: ≤ 21.0 Ω/km · 16 AWG: ≤ 13.2 Ω/km

Thermal

Temperature rating
−20 °C to +80 °C (UL 2464) · −20 °C to +105 °C (UL 2517)
Short-circuit / solder heat
+150 °C to +250 °C (5 s)

Mechanical

Min. bending radius
6 × overall diameter (fixed) · 10 × overall diameter (occasional flexing)
Nominal jacket wall
0.81 mm (32 mil) minimum average per UL Style 2464 / 2517

Resistance

Flame retardance
UL 1581 VW-1, UL 1685 FT4 & CSA C22.2 FT1 / FT4
Oil & coolant resistance
UL 2517 passes UL 60 °C / 80 °C oil immersion and CNC soluble-oil coolant splash tests

Reference standards

UL AWM styles
UL 758 Style 2464 (80 °C, 300 V) & Style 2517 (105 °C, 300 V)
CSA certification
CSA C22.2 No. 210 AWM Class I/II Group A/B (80/105 °C, 300 V, FT1/FT4)
Colour code standard
DIN 47100, Chart 1/2 EIA-359 or Japanese CNC dot/stripe code
RoHS & REACH
2011/65/EU (RoHS 2) & EC 1907/2006 compliant

Identification

Outer jacket colour
Slate Grey (RAL 7001 / 7032) or Matte Black (RAL 9005)
Core identification
Colour-coded (black, white, red, green, brown, blue, orange, yellow, violet, grey...) or numbered
Sheath marking
E-File AWM STYLE 2464 80C OR 2517 105C 300V VW-1 [n×AWG] SHIELDED CSA I/II A/B FT1/FT4 TEBAOFLEX
Customs tariff (HS)
8544.49 (insulated conductors ≤ 1000 V)

Sizes

20 standard UL AWM 2464 / 2517 configurations

Typical UL 758 Style 2464 (80 °C) & Style 2517 (105 °C) · CSA AWM I/II A/B outer diameter limits, copper content and cable weight.

Dimensions & weights
Order designationCores × mm² / AWGAWG ≈Outer Ø min
mm		Outer Ø max
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
mm		Enquiry
300 V Shielded Signal & RS-232/485 Multicore (UL 2464 / 2517, 26 & 24 AWG)
UL 2464/2517 4×26 AWG4×26 AWG (0.13 mm²)264.04.4112826
UL 2464/2517 8×26 AWG8×26 AWG (0.13 mm²)265.05.4184232
UL 2464/2517 15×26 AWG15×26 AWG (0.13 mm²)266.36.8306841
UL 2464/2517 25×26 AWG25×26 AWG (0.13 mm²)267.58.24610249
UL 2464/2517 3×24 AWG3×24 AWG (0.20 mm²)244.04.4122926
UL 2464/2517 4×24 AWG4×24 AWG (0.20 mm²)244.34.7153428
UL 2464/2517 6×24 AWG6×24 AWG (0.20 mm²)245.05.4204632
UL 2464/2517 9×24 AWG9×24 AWG (0.20 mm²)245.76.2286237
UL 2464/2517 15×24 AWG15×24 AWG (0.20 mm²)246.97.5439245
UL 2464/2517 25×24 AWG25×24 AWG (0.20 mm²)248.59.26814255
300 V Shielded Control & Encoder Multicore (UL 2464 / 2517, 22 to 16 AWG)
UL 2464/2517 2×22 AWG2×22 AWG (0.33 mm²)224.14.5133027
UL 2464/2517 4×22 AWG4×22 AWG (0.33 mm²)224.75.1214431
UL 2464/2517 6×22 AWG6×22 AWG (0.33 mm²)225.45.9295835
UL 2464/2517 8×22 AWG8×22 AWG (0.33 mm²)225.96.4377238
UL 2464/2517 12×22 AWG12×22 AWG (0.33 mm²)226.97.55310245
UL 2464/2517 4×20 AWG4×20 AWG (0.52 mm²)205.35.8305835
UL 2464/2517 6×20 AWG6×20 AWG (0.52 mm²)206.26.7428040
UL 2464/2517 4×18 AWG4×18 AWG (0.82 mm²)186.16.6448240
UL 2464/2517 6×18 AWG6×18 AWG (0.82 mm²)187.17.76311446
UL 2464/2517 4×16 AWG4×16 AWG (1.31 mm²)167.07.66811846
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Dimensions and weights are typical values per UL 758 Style 2464 (80 °C) & Style 2517 (105 °C) · CSA AWM I/II A/B. Minimum fixed bending radius shown is 6 × OD.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Check results

Drum core 300 mm ≥ 70 mmBending radius OK (6 × OD 5.9 mm)
Minimum bending radius
35 mm
Min. drum core diameter
≈ 70 mm
Cable weight on drum
2.9 kg
Copper content
1.5 kg
Indicative only: based on the datasheet outer diameter and 6 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC dielectric voltage test1.5 kV AC (50/60 Hz)Every manufactured length
Conductor DC resistanceIEC 60228 / ASTM (tinned copper)Every manufactured length
Sample tests
Flame propagation testIEC 60332-1-2 / UL VW-1 / ISO 6722-1Per production batch
Insulation & sheath material physical propertiesUL 758 Style 2464 (80 °C) & Style 2517 (105 °C) · CSA AWM I/II A/BType approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

UL 758 Style 2464 (80 °C) & Style 2517 (105 °C) · CSA AWM I/II A/BCE · RoHS 2 (2011/65/EU) · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

AWM STYLE 2464 80C / 2517 105C 300V VW-1 [n×AWG] SHIELDED CSA FT1/FT4 TEBAOFLEX
Delivery form
Export wooden drums, reels or coils, cut-to-length on request
Packaging
Heat-treated ISPM-15 timber drums or spools with sealed ends
Conductor / colour options
Custom core counts, stripe combinations or cut harnesses on request

Technical documents

Downloads

PDFUL AWM 2464 / 2517 Shielded Multicore Cable – technical datasheet20 sizes · construction, technical data, approvalsXLSXUL AWM 2464 / 2517 spec data (Excel)All 20 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What is the difference between UL AWM Style 2464 and Style 2517?
Both are 300 V multi-conductor shielded cables with a 0.81 mm (32 mil) PVC outer jacket. UL Style 2464 is rated +80 °C for general electronic, computer and RS-232/485 applications, whereas UL Style 2517 is rated +105 °C with oil-resistant PVC insulation and sheath, making it the preferred specification for CNC machine tools, servo encoders and industrial automation.
Why combine an aluminium/Mylar foil shield with a tinned-copper braid shield?
A 100 % coverage aluminium/polyester foil tape blocks high-frequency RF interference above 10 MHz (and includes a tinned-copper drain wire for fast pin termination), while the ≥85 % tinned-copper wire braid provides low DC resistance and low-frequency electromagnetic shielding from 10 kHz to 10 MHz plus mechanical pull relief at the connector backshell.
Can UL 2464 / 2517 be ordered with twisted pairs instead of cabled single cores?
Yes. Both styles cover cabled single cores as well as twisted pairs (1P to 25P) or mixed power + signal gauges (e.g. 2×18 AWG power + 2×2P×24 AWG encoder feedback).
What core insulation style is used inside UL 2464 and UL 2517?
UL 2464 typically uses UL 1061 semi-rigid PVC (10-mil wall) or UL 1007 PVC (16-mil wall) cores, while UL 2517 uses 105 °C PVC cores.
