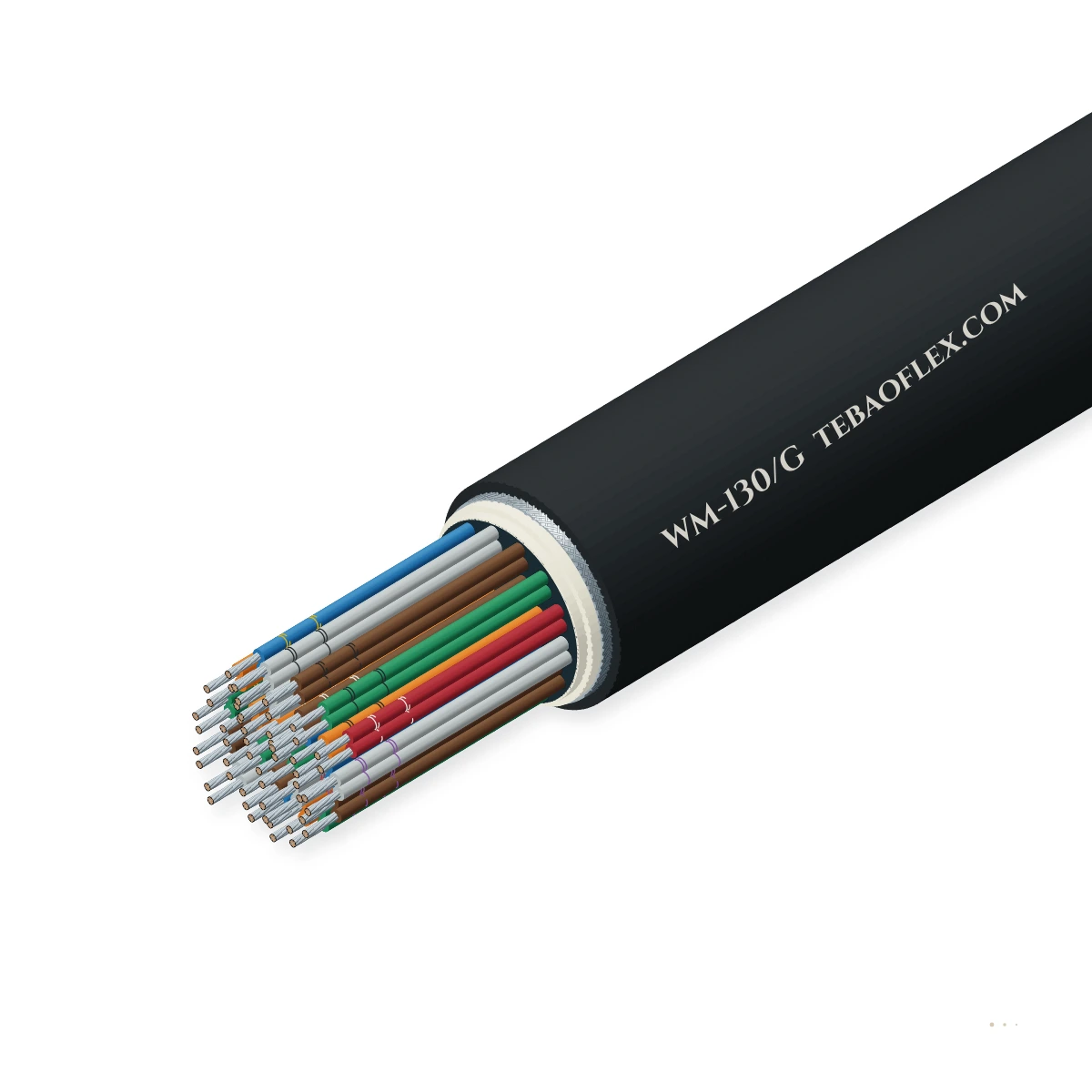

Control & signal cableU.S. Military WM-130/G26-Pair (52-Core) Switchboard-55 °C to +80 °C Arctic Neoprene

WM-130/G Multi-Pair Neoprene-Jacketed Tactical Switchboard &CECOM WM-130/G 300 V -55 to +80 °C 26-pair shielded neoprene tactical switchboard cable

WM-130/G multi-pair neoprene-jacketed tactical switchboard cable (300 V, -55 to +80 °C, for CX-4566/G 26-pair trunks) with 6–26 twisted pairs (22/24 AWG tinned copper/alloy), PE/PP insulation, overall foil + braid shield, and arctic neoprene jacket.

Approved
EMC screen
Low-EMC design
Oil-resistant
Order designation
WM-130/G 26PR×22AWG (52C)
Outer Ø ≈
18.20 mm
Wall thickness
2.00 mm
Total weight ≈
465.0 kg/km
Min. bend R (fixed)
146 mm
All sizes (5)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Military type
Cable WM-130/G
CX-4566/G 26-pair trunk cable
Pair count
26 pairs (52C)
Also 6, 12 & 19-pair variants
Rated voltage
300 V RMS
1500 V AC dielectric test
Conductor
22 or 24 AWG
Stranded Sn-Cu / Cu-alloy
Overall shield
Al/PET + Braid
EMC screen + drain/braid
Outer jacket
Arctic PCP
-55…+80 °C polychloroprene

Typical values for this cable type, based on U.S. Military CECOM / MIL-DTL-55021 / CX-4566 Cable WM-130/G Tactical Switchboard Trunk — confirmed in the datasheet and quotation for your order.

Application fit

Is WM-130/G right for your machine?

Select WM-130/G for interconnecting tactical telephone switchboards (SB-22 / SB-3614 / TTC-39 / JNN shelters), J-1077/U distribution boxes, and multi-shelter command-post patch panels.

Cylindrical / multi-layer drum

Suitable

Supplied in bulk or on tactical reels (including CX-4566/G U-185/G assemblies) for rapid C4ISR shelter hookup and recovery.

Trailing & towing

Suitable

Cold-flexible neoprene jacket stays supple to -55 °C and withstands mud, diesel/JP-8 fuel, between command shelters.

VFD inverter to AC motor screened feeder

Suitable

Staggered-lay twisted pairs inside an overall EMC shield isolate 26 voice and data channels from shelter generator and radar EMI.

Typical machinesTactical Command Post & C4ISR Shelter InterconnectsCX-4566/G & J-1077/U 26-Pair Distribution TrunksMobile Air-Traffic Control & Radar Shelter HarnessesEmergency Mobile Telecom & Disaster-Response HubsDefense Test Range Multi-Channel Instrumentation

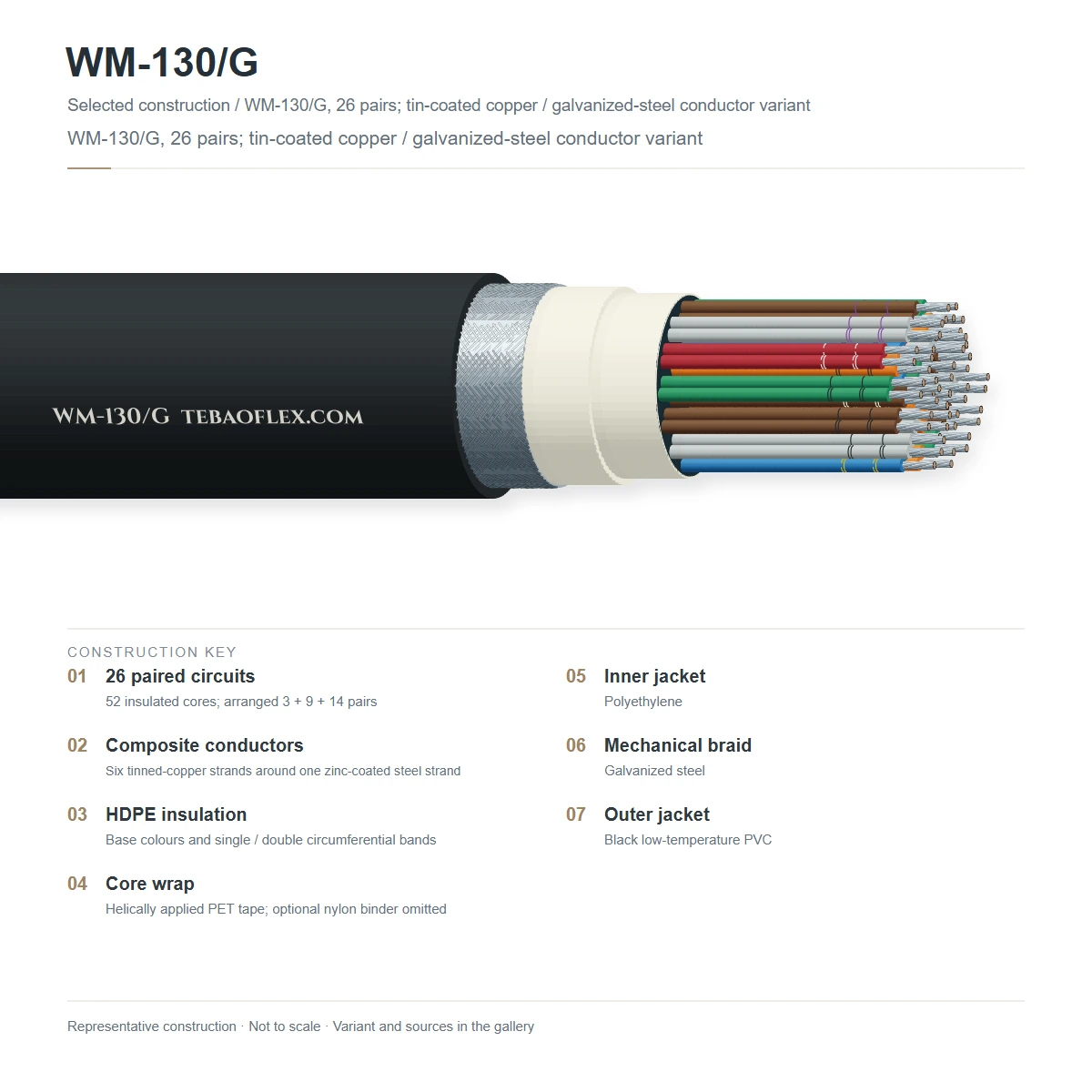

Construction

Layer by layer

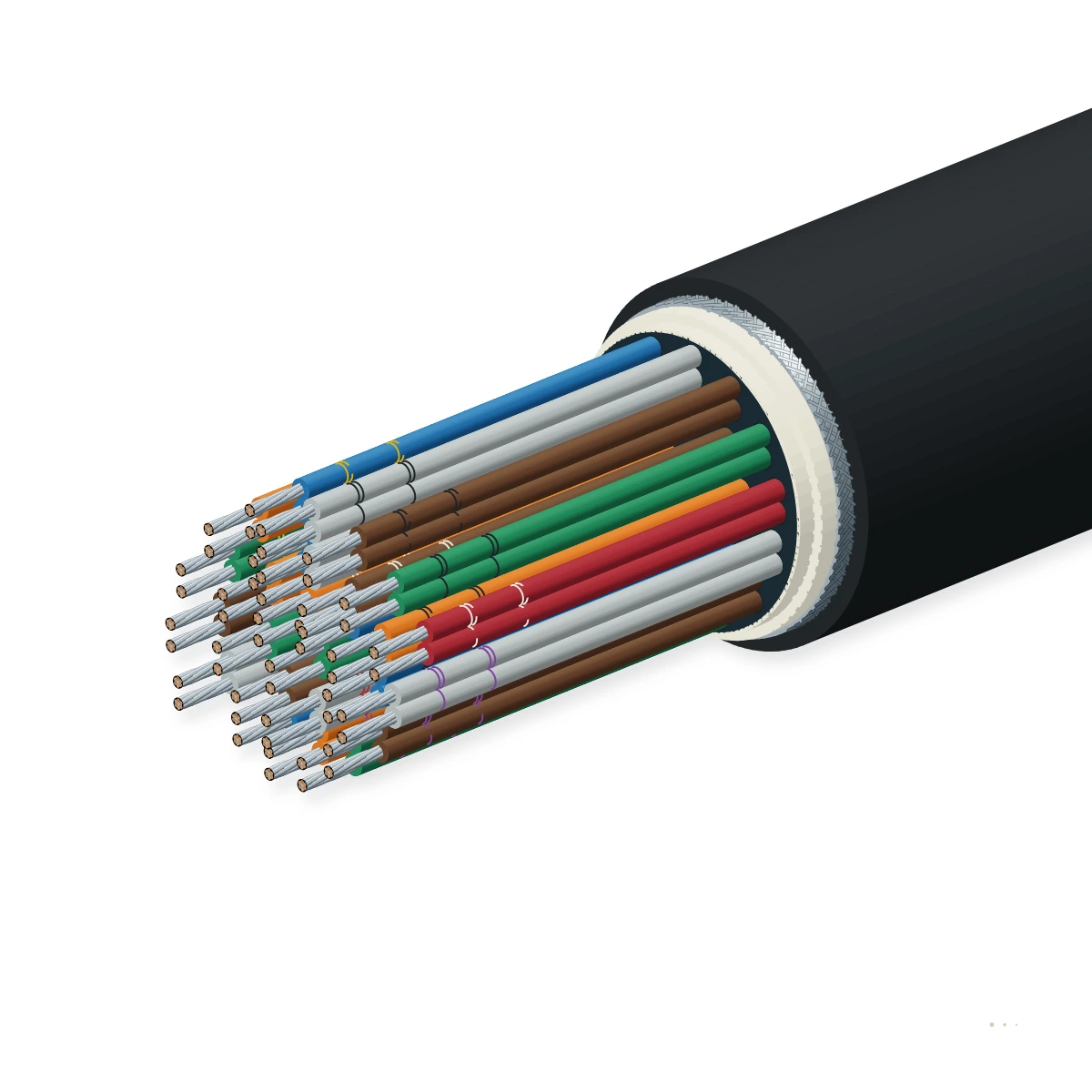

WM-130/G construction: 26 twisted pairs (52 conductors, plus 6/12/19-pair options) of 7- or 19-strand tinned copper / high-strength copper alloy (22 or 24 AWG), PE/PP insulation (standard telco 25-pair + binder colour code), core wrap, overall Al/PET + tinned copper braid shield, and black arctic polychloroprene jacket.

12345
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Stranded tinned copper / alloy pairs7- or 19-strand tinned annealed copper / cadmium-bronze alloy (22 AWG = 0.35 mm² or 24 AWG = 0.22 mm²)Withstands repeated coiling and termination onto U-185/G / U-186/G 52-pin military connectors
2Low-loss PE / PP primary insulationHigh-density polyethylene or polypropylene (26-pair standard Tip/Ring colour code)Thin, tough core wall keeps 26-pair cable diameter compact (~16.5–18.5 mm) and cold-flexible
3Core bedding & moisture wrapNon-hygroscopic polyester/fabric core binder tapeProtects the 26-pair bundle and prevents core pinching during tight reeling
4Overall foil + tinned Cu braid shield100 % aluminum-polyester tape plus braided tinned copper wire shield (≥ 80–85 % coverage)Provides 360° EMI/EMP termination into military multi-pin connector backshells
5Arctic polychloroprene (neoprene) jacketHeavy-duty thermoset polychloroprene rubber compound (matte black, -55 °C to +80 °C)Impervious to JP-8 aviation fuel, diesel, hydraulic oils, solar UV, and sub-zero cracking

WM-130/G 26-Pair 22 AWG (52×0.35 mm²)

Standard 26-pair (52-conductor) neoprene-jacketed tactical switchboard trunk cable for CX-4566/G assemblies

WM-130/G 12-Pair & 19-Pair Series (22 / 24 AWG)

Compact 12-pair (24C) and 19-pair (38C) neoprene tactical switchboard and shelter distribution cables

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on U.S. Military CECOM / MIL-DTL-55021 / CX-4566 Cable WM-130/G Tactical Switchboard Trunk. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage
300 V RMS (1,500 V AC dielectric test)
Conductor DC resistance
≤ 55 Ω/km (22 AWG) · ≤ 88 Ω/km (24 AWG) at +20 °C
Mutual capacitance
≤ 65 nF/km at 1 kHz
Near-end crosstalk (NEXT)
≥ 60 dB at 1 kHz between any two pairs

Thermal

Tactical operating temp.
-55 °C to +80 °C (-67 °F to +176 °F)
Arctic cold-flex rating
-55 °C mandrel bend without cracking

Mechanical

Standard pair count
26 twisted pairs (52 conductors) + 6/12/19 PR
Min. bending radius
8 × overall cable diameter (flexing)
Connector compatibility
U-185/G, U-186/G & MIL-DTL-55116 / 22992

Resistance

Fuel, oil & solvent resistance
Heavy polychloroprene resists JP-8 & diesel
Flame, weather & fungus
Self-extinguishing, UV- & fungus-resistant

Reference standards

Military reference
Cable WM-130/G (CX-4566/G) · TM 11-5805
RoHS & REACH
RoHS 3 & REACH compliant

Identification

Outer sheath colour
Matte black tactical finish
Surface legend
U.S. CABLE TELEPHONE WM-130/G 26 PAIR NEOPRENE TEBAOFLEX
Customs tariff (HS)
8544.49

Sizes

5 standard configurations (WM-130/G)

Engineering dimensions, conductor stranding, mass and electrical ratings for WM-130/G per U.S. Military CECOM / MIL-DTL-55021 / CX-4566 Cable WM-130/G Tactical Switchboard Trunk.

Dimensions & weights
Order designationCross-section / sizeConductor buildWall ≈
mm		Outer Ø ≈
mm		Metal
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard WM-130/G configurations
WM-130/G 26PR×22AWG (52C)26 PR × 22 AWG (0.35 mm²)Solid / Stranded Cu2.0018.20204.6465.0146
WM-130/G 26PR×24AWG (52C)26 PR × 24 AWG (0.22 mm²)Solid / Stranded Cu1.8016.40156.2355.0132
WM-130/G 19PR×22AWG (38C)19 PR × 22 AWG (0.35 mm²)Solid / Stranded Cu1.7616.00158.4360.0128
WM-130/G 12PR×22AWG (24C)12 PR × 22 AWG (0.35 mm²)Solid / Stranded Cu1.5013.60112.2255.0110
WM-130/G 6PR×22AWG (12C)6 PR × 22 AWG (0.35 mm²)Solid / Stranded Cu1.1910.8070.4160.088
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal engineering values for WM-130/G subject to standard manufacturing tolerances per U.S. Military CECOM / MIL-DTL-55021 / CX-4566 Cable WM-130/G Tactical Switchboard Trunk.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
Dielectric spark / high-voltage withstand test100 % in-line spark and AC/DC dielectric withstand per U.S. Military CECOM / MIL-DTL-55021 / CX-4566 Cable WM-130/G Tactical Switchboard TrunkEvery manufactured length
Conductor DC resistance & continuity checkWithin maximum 20 °C resistance limit specified for WM-130/GEvery spool or drum length
Sample tests
Insulation resistance & dimensional verificationWall thickness, concentricity and insulation resistance per U.S. Military CECOM / MIL-DTL-55021 / CX-4566 Cable WM-130/G Tactical Switchboard TrunkPer production batch
Environmental, mechanical & EMC qualificationQualified to U.S. Military CECOM / MIL-DTL-55021 / CX-4566 Cable WM-130/G Tactical Switchboard Trunk thermal, mechanical and environmental performance criteriaType qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

U.S. Military CECOM / MIL-DTL-55021 / CX-4566 Cable WM-130/G Tactical Switchboard TrunkCE (2014/35/EU) & RoHS 3 (2015/863/EU) CompliantREACH SVHC Compliance Verified

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

CABLE TELEPHONE WM-130/G 26PR 22AWG NEOPRENE SWITCHBOARD TEBAOFLEX
Delivery form
Export wooden drums, tactical reels or coils
Standard lengths
100 m · 500 m · 1000 m (or custom cut lengths)
MOQ
100 m (stock sizes) · 300–500 m (custom build)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFWM-130/G Multi-Pair Neoprene-Jacketed Tactical Switchboard & – technical datasheet5 sizes · construction, technical data, approvalsXLSXWM-130/G spec data (Excel)All 5 sizes with dimensions and data, for your BOM or quotation
