Hook-up & equipment wiresUL 1015 · MTW · CSA TEW600 V · 105 °C · VW-1 / FT126–10 AWG Panel Wire

UL AWM 1015 Equipment and Machine Tool WireTriple-rated UL AWM 1015 / UL 1063 MTW / CSA TEW 600 V 105 °C panel & machine tool wire

Heavy-duty 600 V industrial control panel and equipment lead wire triple-rated to UL AWM Style 1015 (105 °C), UL 1063 Machine Tool Wire (MTW, 90 °C dry / 60 °C oil) and CSA TEW (105 °C), built with a 0.79 mm (30 mil) VW-1 / FT1 PVC wall over 26–10 AWG copper.

Flame-retardant
Oil-resistant
Water-resistant
Approved
Order designation
UL 1015 / MTW 16 AWG (26/30)
Outer Ø min
2.9 mm
Outer Ø max
3.1 mm
Weight ≈
20 kg/km
Min. bend R
13 mm
Check against my drumAll sizes (9)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Voltage rating
600 V RMS
UL 1015 / UL 1063 MTW / CSA TEW
Temp. rating
105 °C / MTW 90
105 °C UL 1015 & TEW · 60 °C oil/wet
Insulation wall
0.79 mm (30 mil)
Nominal 2/64 inch extruded PVC wall
Flame rating
UL VW-1 / FT1
Vertical flame test compliant
Bending radius
4 × OD
4 × overall diameter fixed duct routing
Size range
26–10 AWG
0.13–5.26 mm² (larger in 1028/1283/1284)

Typical values for this cable type, based on UL 758 Style 1015 · UL 1063 MTW · CSA C22.2 No. 127 TEW — confirmed in the datasheet and quotation for your order.

Application fit

Is UL AWM 1015 right for your machine?

Triple-certified UL 1015 / MTW / CSA TEW is the workhorse 600 V single-core control cabinet wire for NFPA 79 industrial machinery, UL 508A control panels, switchgear, transformers and appliance power harnesses exported to North America.

Fixed installation

Suitable

UL 508A / NFPA 79 control panels, PLC I/O wiring ducts, motor starters, transformers and switchgear.

VFD inverter to AC motor screened feeder

Not suitable

Single-core unscreened cabinet wire; for shielded multi-conductor machine cables see UL 2464 / 2517.

Use UL 2464 / 2517

Trailing & towing

Not suitable

Internal cabinet and conduit wire; not for external trailing duty.

Use EN 50264-2-2

Energy chain / drag chain

Not suitable

For 125 °C thermoset XLPE switchboard and Class F motor lead wiring, select UL 3173 / SIS or UL 3271.

Use UL 3173 / SIS
Typical machinesUL 508A industrial control panels & PLC racksNFPA 79 CNC machine tools & automation linesDry-type transformers, UPS & power suppliesCommercial HVAC, chiller & pump starter panelsSwitchgear, MCCs & export machinery harnesses

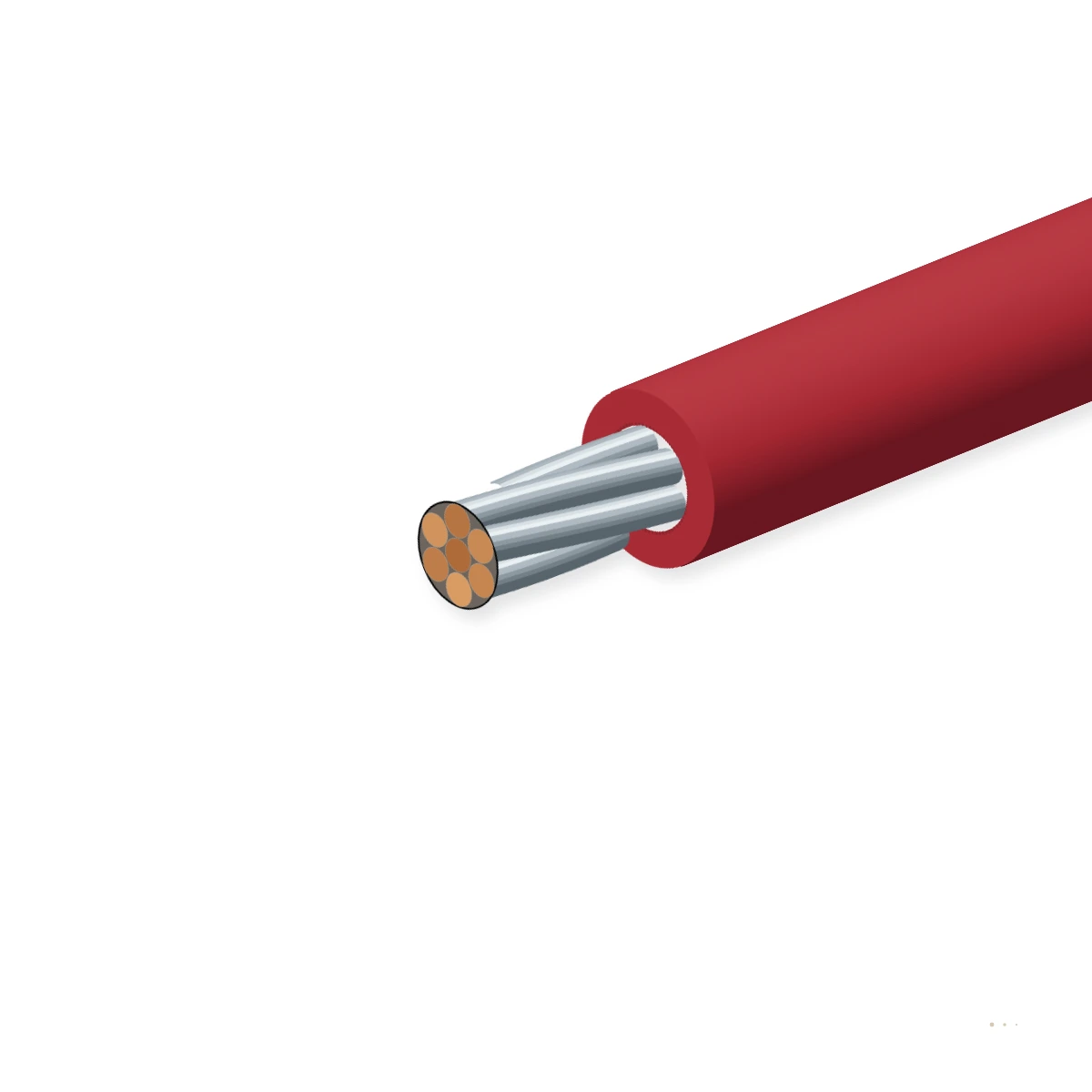

Construction

Layer by layer

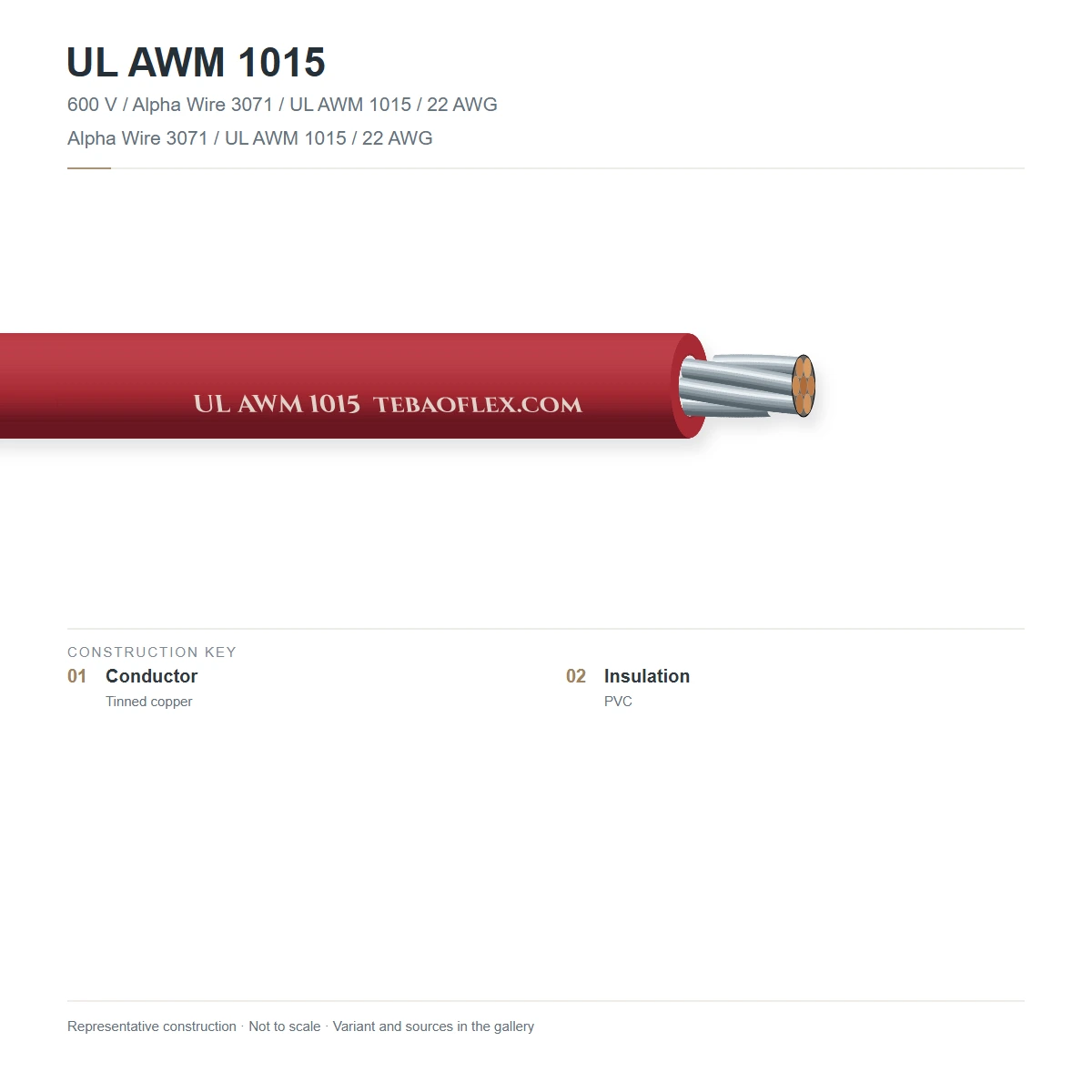

Shown: UL 1015 / MTW / TEW 16 AWG (26/30) — flexible stranded tinned (or bare) annealed copper conductor (1.31 mm²), 0.79 mm (30 mil) oil- and moisture-resistant 105 °C PVC insulation and VW-1 / FT1 surface print.

123
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Stranded tinned or bare copperFlexible stranded tinned or bare annealed copper per ASTM B33 / B8 / UL 1063 (26 AWG to 10 AWG; companion Styles 1028/1283/1284 up to 4/0 AWG)ASTM B33 · UL 758 · UL 1063
20.79 mm (30 mil) 105 °C PVC dielectricHeavy-wall 2/64-inch polyvinyl chloride rated 600 V RMS at 105 °C dry and 60 °C in oil/waterUL 758 Style 1015 · UL 1063 MTW
3VW-1 / FT1 oil-resistant PVC finishSmooth, abrasion-resistant outer surface facilitating pull-through in slotted panel trunking and conduitUL 1581 VW-1 · CSA C22.2 No. 127 TEW

UL 1015 / MTW / TEW Tinned Copper (26–10 AWG)

Corrosion-resistant tinned copper strands for humid environments, soldering and marine/industrial panels

UL 1015 / MTW / TEW Bare Copper (18–10 AWG)

Fine-stranded bare copper for standard UL 508A / NFPA 79 ferrules and compression lugs

Heavy Gauge Companion Styles 1028 / 1283 / 1284 (8 AWG–4/0 AWG)

600 V 105 °C MTW / TEW power distribution panel leads with thicker insulation walls

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on UL 758 Style 1015 · UL 1063 MTW · CSA C22.2 No. 127 TEW. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage
600 V RMS
Dielectric withstand voltage
2000 V AC for 1 min · 6000 V AC spark test
Max. DC conductor resistance (20 °C)
22 AWG: ≤ 53.2 Ω/km · 18 AWG: ≤ 21.0 Ω/km · 16 AWG: ≤ 13.2 Ω/km · 14 AWG: ≤ 8.28 Ω/km · 12 AWG: ≤ 5.21 Ω/km · 10 AWG: ≤ 3.28 Ω/km

Thermal

Temperature rating
−40 °C to +105 °C (UL 1015 & CSA TEW dry) · +90 °C dry / +60 °C wet & oil (UL 1063 MTW)
Short-circuit / solder heat
+150 °C to +250 °C (5 s)

Mechanical

Nominal insulation wall
0.79 mm (0.031 in / 30 mil) minimum average, 0.71 mm (28 mil) minimum at any point
Min. bending radius
4 × overall diameter (fixed panel routing)

Resistance

Flame retardance
UL 1581 VW-1 & CSA FT1 vertical flame tests
Oil & coolant resistance
UL 1063 MTW & CSA TEW 60 °C oil immersion and cutting-fluid splash resistant

Reference standards

UL standards
UL 758 AWM Style 1015 & UL 1063 Machine Tool Wire (MTW, 16–10 AWG)
CSA & NFPA compliance
CSA C22.2 No. 127 Equipment Wire Type TEW · NFPA 79 & UL 508A compliant
European harmonisation option
Available multi-norm H05V-K / H07V-K + UL 1015 / MTW / CSA TEW for global control cabinets
RoHS & REACH
2011/65/EU (RoHS 2) & EC 1907/2006 compliant

Identification

NFPA 79 panel colours
Black (AC/DC power), Red (AC control), Blue (DC control), White (neutral), Green-Yellow (PE), Orange (interlock)
Surface marking
E-File AWM STYLE 1015 105C 600V VW-1 — MTW 90C — CSA TEW 105C 600V FT1 [AWG] TEBAOFLEX
Customs tariff (HS)
8544.49 (insulated conductors ≤ 1000 V)

Sizes

9 standard UL AWM 1015 configurations

Typical UL 758 Style 1015 · UL 1063 MTW · CSA C22.2 No. 127 TEW outer diameter limits, copper content and cable weight.

Dimensions & weights
Order designationCores × mm² / AWGAWG ≈Outer Ø min
mm		Outer Ø max
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
mm		Enquiry
600 V 105 °C Equipment & Machine Tool Wire (UL 1015 / MTW / CSA TEW, 26–10 AWG)
UL 1015 26 AWG (7/34)26 AWG (0.13 mm²)261.92.1168
UL 1015 24 AWG (7/32)24 AWG (0.20 mm²)242.12.2279
UL 1015 22 AWG (7/30)22 AWG (0.33 mm²)222.22.43910
UL 1015 20 AWG (10/30)20 AWG (0.52 mm²)202.42.651110
UL 1015 / MTW 18 AWG (16/30)18 AWG (0.82 mm²)182.62.971411
UL 1015 / MTW 16 AWG (26/30)16 AWG (1.31 mm²)162.93.1122013
UL 1015 / MTW 14 AWG (41/30)14 AWG (2.08 mm²)143.33.5202814
UL 1015 / MTW 12 AWG (65/30)12 AWG (3.31 mm²)123.74.0314216
UL 1015 / MTW 10 AWG (105/30)10 AWG (5.26 mm²)104.34.7506419
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Dimensions and weights are typical values per UL 758 Style 1015 · UL 1063 MTW · CSA C22.2 No. 127 TEW. Minimum fixed bending radius shown is 4 × OD.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Check results

Drum core 300 mm ≥ 24 mmBending radius OK (4 × OD 3.1 mm)
Minimum bending radius
12 mm
Min. drum core diameter
≈ 24 mm
Cable weight on drum
1.0 kg
Copper content
0.6 kg
Indicative only: based on the datasheet outer diameter and 4 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC dielectric voltage test2.0 kV AC (50/60 Hz)Every manufactured length
Conductor DC resistanceIEC 60228 / ASTM (tinned copper)Every manufactured length
Sample tests
Flame propagation testIEC 60332-1-2 / UL VW-1 / ISO 6722-1Per production batch
Insulation & sheath material physical propertiesUL 758 Style 1015 · UL 1063 MTW · CSA C22.2 No. 127 TEWType approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

UL 758 Style 1015 · UL 1063 MTW · CSA C22.2 No. 127 TEWCE · RoHS 2 (2011/65/EU) · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

AWM STYLE 1015 105C 600V VW-1 MTW CSA TEW FT1 [AWG] TEBAOFLEX
Delivery form
Export wooden drums, reels or coils, cut-to-length on request
Packaging
Heat-treated ISPM-15 timber drums or spools with sealed ends
Conductor / colour options
Custom core counts, stripe combinations or cut harnesses on request

Technical documents

Downloads

PDFUL AWM 1015 Equipment and Machine Tool Wire – technical datasheet9 sizes · construction, technical data, approvalsXLSXUL AWM 1015 spec data (Excel)All 9 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20
