Product

Hook-up & equipment wiresUL 1061 · CSA AWM I A/B300 V · 80 °C · 10-mil SR-PVC30–16 AWG Thin-Wall

UL AWM 1061 SR-PVC Hook-Up WireUL AWM 1061 300 V 80 °C thin-wall cut-through-resistant semi-rigid PVC (SR-PVC) wire

High-density 300 V 80 °C electronic hook-up wire certified to UL AWM Style 1061 and CSA AWM I A/B FT1, engineered with a 0.25 mm (10 mil) semi-rigid PVC (SR-PVC) wall that delivers superior cut-through, pinch and abrasion resistance in a minimal OD.

Flame-retardant
Oil-resistant
Approved
Order designation
UL 1061 24 AWG (7/32)
Outer Ø min
1.0 mm
Outer Ø max
1.1 mm
Weight ≈
3 kg/km
Min. bend R
5 mm
Check against my drumAll sizes (8)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Voltage rating
300 V RMS
UL AWM Style 1061 & CSA AWM I A/B
Temp. rating
80 °C
−20 °C to +80 °C continuous
Insulation wall
0.25 mm (10 mil)
Semi-rigid PVC (SR-PVC) thin wall
Flame rating
UL VW-1 / FT1
Vertical wire flame test compliant
Cut-through resist
High (SR-PVC)
High-durometer semi-rigid vinyl compound
Size range
30–16 AWG
0.05–1.31 mm² · stranded/solid CuSn

Typical values for this cable type, based on UL 758 Style 1061 · CSA C22.2 No. 210 AWM I A/B — confirmed in the datasheet and quotation for your order.

Application fit

Is UL AWM 1061 right for your machine?

By using a high-modulus semi-rigid PVC (SR-PVC) compound instead of plasticised flexible PVC, UL Style 1061 reduces the 300 V insulation wall from 16 mil (0.41 mm) to 10 mil (0.25 mm) while resisting sharp sheet-metal edges, backplane pins and high-speed automatic wire-cutting blades.

Fixed installation

Suitable

High-density computer, telecom, audio/video and business-machine chassis wiring and IDC/crimp harnesses.

VFD inverter to AC motor screened feeder

Not suitable

Single-core unscreened wire; UL 1061 cores are also used inside UL 2464 shielded multicore cables.

Use UL 2464 Shielded

Trailing & towing

Not suitable

Internal electronic enclosure hook-up wire; not for external trailing.

Use EN 50264-2-2

Energy chain / drag chain

Not suitable

Where soldering iron contact could deform thermoplastic SR-PVC, choose UL 1429 / 1430 XLPVC.

Use UL 1429 / 1430
Typical machinesTelecom racks, servers & backplane harnessesHigh-density crimp & IDC connector assembliesPoint-of-sale, printer & office automation chassisAudio/video amplifiers & broadcast equipmentCore element for UL 2464 multi-conductor cables

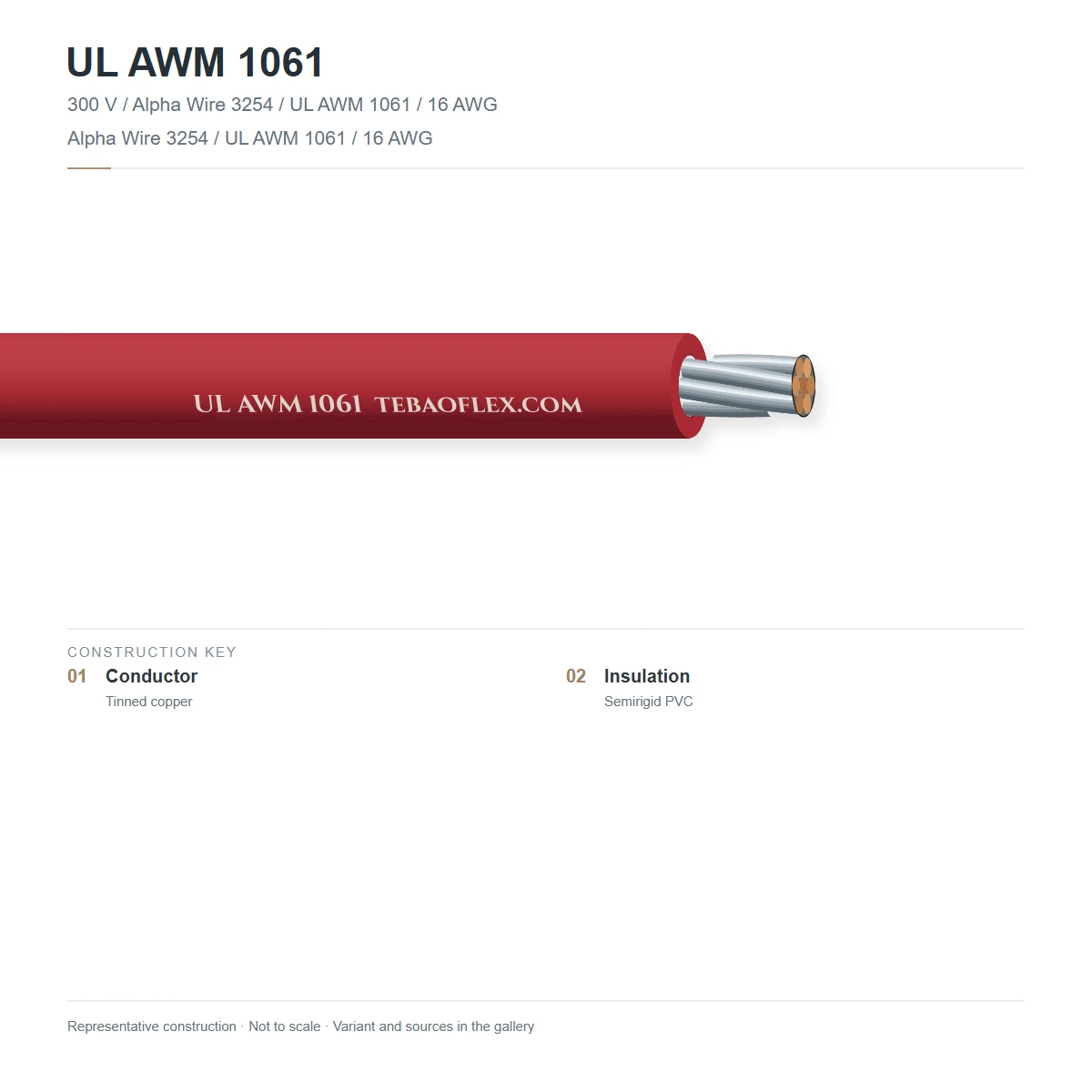

Construction

Layer by layer

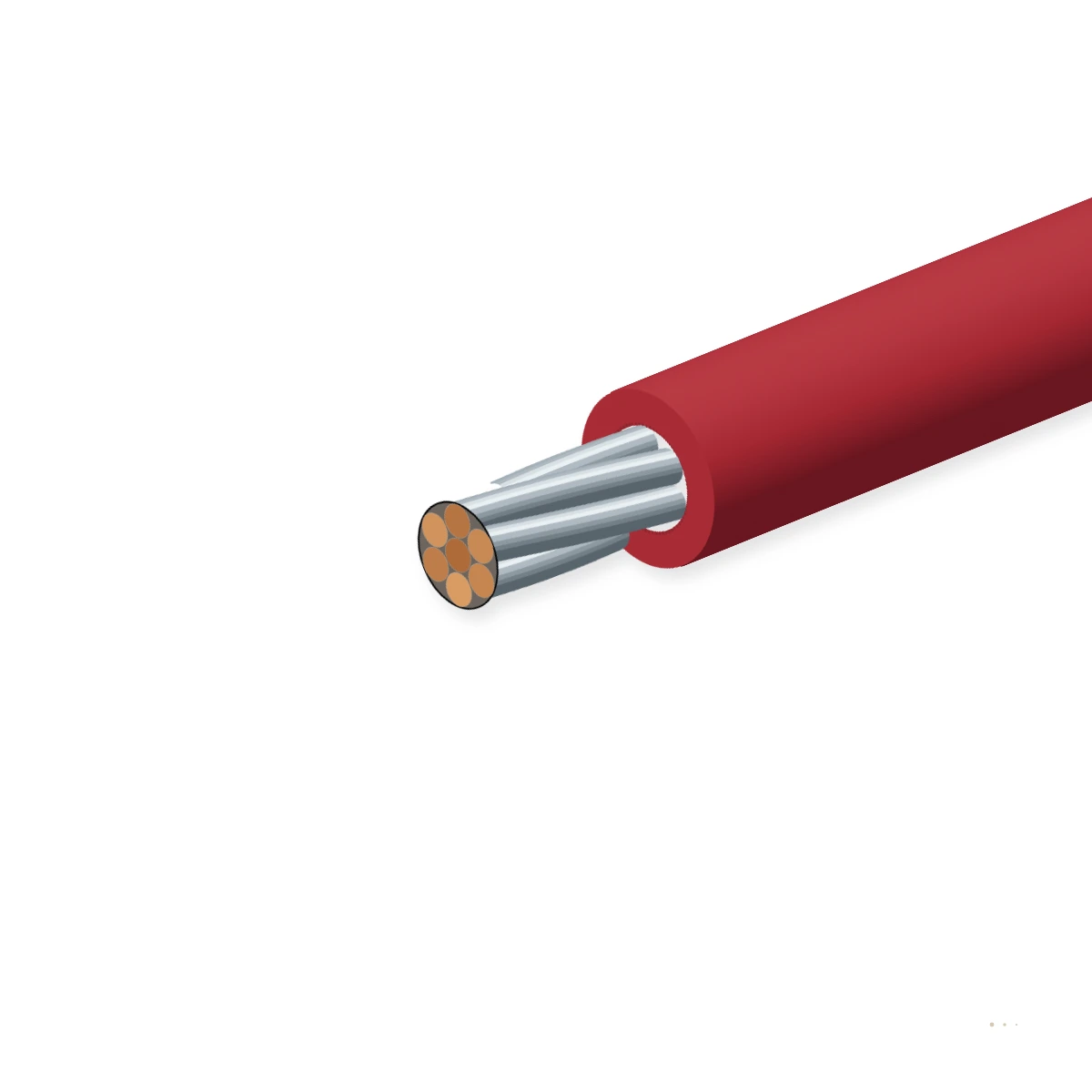

Shown: UL AWM 1061 24 AWG (7/32) — 7-strand tinned annealed copper conductor (0.20 mm²), 0.25 mm (10 mil) high-durometer semi-rigid polyvinyl chloride (SR-PVC) dielectric and slick low-friction VW-1 / FT1 surface.

123
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Stranded or solid tinned copperConcentric or bunched 7-strand / 19-strand or solid tinned annealed copper (30 AWG to 16 AWG) per ASTM B33ASTM B33 · UL 758
20.25 mm (10 mil) semi-rigid PVC (SR-PVC)High-durometer semi-rigid polyvinyl chloride compound providing mechanical pinch and edge cut-through protection at 0.25 mm wallUL 758 Style 1061
3Slick low-friction VW-1 / FT1 finishHard, clean-stripping surface ideal for automatic cut-strip-terminate machines and insulation displacement connectors (IDC)UL 1581 VW-1 · CSA FT1

UL 1061 Stranded Tinned Copper (30–16 AWG)

7-strand to 26-strand tinned copper for automated crimp-housing and multi-pin harness assembly

UL 1061 Solid Tinned Copper (28–18 AWG)

Solid tinned copper conductor that holds its formed routing shape along chassis walls and backplanes

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on UL 758 Style 1061 · CSA C22.2 No. 210 AWM I A/B. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage
300 V RMS
Dielectric withstand voltage
1500 V AC for 1 min · 3000 V AC spark test
Max. DC conductor resistance (20 °C)
28 AWG: ≤ 216 Ω/km · 26 AWG: ≤ 135 Ω/km · 24 AWG: ≤ 84.2 Ω/km · 22 AWG: ≤ 53.2 Ω/km · 20 AWG: ≤ 33.2 Ω/km · 18 AWG: ≤ 21.0 Ω/km

Thermal

Temperature rating
−20 °C to +80 °C continuous
Short-circuit / solder heat
+150 °C to +250 °C (5 s)

Mechanical

Nominal insulation wall
0.25 mm (0.010 in / 10 mil) minimum average, 0.20 mm (8 mil) minimum at any point
Min. bending radius
4 × overall diameter
Space & weight reduction
Up to 25 % smaller diameter and 35 % less bundle area than UL 1007 (16-mil wall)

Resistance

Flame retardance
UL 1581 VW-1 vertical wire flame test & CSA C22.2 FT1
Pinch & cut-through resistance
Semi-rigid PVC resists chassis burrs, cable ties and IDC contact blades

Reference standards

UL AWM style
UL 758 Appliance Wiring Material Style 1061 (300 V, 80 °C)
CSA certification
CSA C22.2 No. 210 AWM Class I Group A/B (80 °C, 300 V, FT1)
RoHS & REACH
2011/65/EU (RoHS 2) & EC 1907/2006 compliant

Identification

Standard stock colours
Black, White, Red, Blue, Yellow, Green, Brown, Orange, Violet & Grey
Surface marking
AWM STYLE 1061 80C 300V VW-1 CSA I A/B 80C 300V FT1 TEBAOFLEX
Customs tariff (HS)
8544.49 (insulated conductors ≤ 1000 V)

Sizes

8 standard UL AWM 1061 configurations

Typical UL 758 Style 1061 · CSA C22.2 No. 210 AWM I A/B outer diameter limits, copper content and cable weight.

Dimensions & weights
Order designationCores × mm² / AWGAWG ≈Outer Ø min
mm		Outer Ø max
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
mm		Enquiry
300 V Thin-Wall Semi-Rigid PVC Hook-Up Wire (UL 1061 · CSA AWM I A/B, 30–16 AWG)
UL 1061 30 AWG (7/38)30 AWG (0.05 mm²)300.70.8013
UL 1061 28 AWG (7/36)28 AWG (0.08 mm²)280.80.9024
UL 1061 26 AWG (7/34)26 AWG (0.13 mm²)260.91.0124
UL 1061 24 AWG (7/32)24 AWG (0.20 mm²)241.01.1235
UL 1061 22 AWG (7/30)22 AWG (0.33 mm²)221.21.3345
UL 1061 20 AWG (7/28)20 AWG (0.52 mm²)201.41.5566
UL 1061 18 AWG (16/30)18 AWG (0.82 mm²)181.61.8797
UL 1061 16 AWG (26/30)16 AWG (1.31 mm²)161.92.012148
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Dimensions and weights are typical values per UL 758 Style 1061 · CSA C22.2 No. 210 AWM I A/B. Minimum fixed bending radius shown is 4 × OD.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Check results

Drum core 300 mm ≥ 8 mmBending radius OK (4 × OD 1.1 mm)
Minimum bending radius
4 mm
Min. drum core diameter
≈ 8 mm
Cable weight on drum
0.2 kg
Copper content
0.1 kg
Indicative only: based on the datasheet outer diameter and 4 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC dielectric voltage test1.5 kV AC (50/60 Hz)Every manufactured length
Conductor DC resistanceIEC 60228 / ASTM (tinned copper)Every manufactured length
Sample tests
Flame propagation testIEC 60332-1-2 / UL VW-1 / ISO 6722-1Per production batch
Insulation & sheath material physical propertiesUL 758 Style 1061 · CSA C22.2 No. 210 AWM I A/BType approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

UL 758 Style 1061 · CSA C22.2 No. 210 AWM I A/BCE · RoHS 2 (2011/65/EU) · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

AWM STYLE 1061 80C 300V VW-1 CSA I A/B FT1 TEBAOFLEX
Delivery form
Export wooden drums, reels or coils, cut-to-length on request
Packaging
Heat-treated ISPM-15 timber drums or spools with sealed ends
Conductor / colour options
Custom core counts, stripe combinations or cut harnesses on request

Technical documents

Downloads

PDFUL AWM 1061 SR-PVC Hook-Up Wire – technical datasheet8 sizes · construction, technical data, approvalsXLSXUL AWM 1061 spec data (Excel)All 8 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What makes SR-PVC (semi-rigid PVC) in UL 1061 different from standard PVC in UL 1007?
Standard UL 1007 uses softer plasticised PVC with a 0.41 mm (16 mil) wall. UL 1061 uses a higher-durometer semi-rigid PVC (SR-PVC) formulation that achieves the same 300 V rating with only a 0.25 mm (10 mil) wall, giving smaller bundle diameters and much higher resistance to pinch, cut-through and insulation displacement.
Why is UL 1061 preferred for automated wire processing and IDC connectors?
Because SR-PVC does not stretch or gum up stripping blades like soft PVC, high-speed cut-and-strip machines achieve clean, repeatable strip lengths, and IDC U-contacts pierce the 10-mil wall cleanly to grip the tinned copper conductor.
How does UL 1061 relate to UL 2464 shielded multicore cables?
UL 2464 multi-conductor control and computer cables typically use UL 1061 SR-PVC insulated single cores (for 28–20 AWG) cabled beneath an overall foil/braid shield and PVC jacket.
What if I need a 10-mil wall wire that will not melt or shrink back during hand soldering?
Select UL AWM 1429 (150 V, 80 °C, 10-mil cross-linked PVC) or UL AWM 3265 (150 V, 125 °C, 10-mil cross-linked polyolefin).
