Product

Hook-up & equipment wiresUL 1429 (150 V) & 1430 (300 V)E-Beam Cross-Linked XLPVCSolder-Iron Resistant · VW-1

UL AWM 1429 / 1430 Cross-Linked PVC WireElectron-beam cross-linked PVC (XLPVC) solder-resistant wire (UL 1429 150 V & 1430 300 V)

Irradiated cross-linked PVC (XLPVC) electronic hook-up wire certified to UL AWM Style 1429 (150 V, 80 °C, 10 mil) and Style 1430 (300 V, 105 °C, 16 mil), engineered so the thermoset insulation will not melt, flow or shrink back on contact with soldering irons.

Flame-retardant
Oil-resistant
Approved
Order designation
UL 1430 300V 22 AWG (7/30)
Outer Ø min
1.5 mm
Outer Ø max
1.6 mm
Weight ≈
5 kg/km
Min. bend R
5 mm
Check against my drumAll sizes (13)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Voltage rating
150 V / 300 V
UL 1429: 150 V · UL 1430: 300 V RMS
Temp. rating
80 °C / 105 °C
UL 1429: 80 °C · UL 1430: 105 °C
Insulation wall
0.25 / 0.41 mm
10 mil (UL 1429) · 16 mil (UL 1430)
Solder resistance
Thermoset XLPVC
No meltback at 350 °C soldering iron
Flame rating
UL VW-1 / FT1
Self-extinguishing vertical flame test
Size range
30–16 AWG
0.05–1.31 mm² · stranded/solid CuSn

Typical values for this cable type, based on UL 758 Style 1429 (150 V) & Style 1430 (300 V) · CSA XL-PVC — confirmed in the datasheet and quotation for your order.

Application fit

Is UL AWM 1429 / 1430 right for your machine?

Electron-beam irradiation converts thermoplastic PVC into an infusible three-dimensional polymer network (XLPVC). Unlike UL 1061 or UL 1007, UL 1429 and UL 1430 withstand accidental soldering-iron contact, wave soldering, hot potting compounds and flux solvents without insulation shrinkback.

Fixed installation

Suitable

Hand-soldered PCB jumpers, wave-soldered harnesses, potted electronics, coils and dense instrument chassis.

VFD inverter to AC motor screened feeder

Not suitable

Unscreened internal electronic hook-up wire.

Use UL 2464 / 2517

Trailing & towing

Not suitable

Fixed internal appliance and PCB lead wire.

Use EN 50264-2-2

Energy chain / drag chain

Not suitable

Where 125 °C continuous rating or halogen-free cross-linked polyolefin is needed, select UL 3265 / 3266.

Use UL 3265 / 3266
Typical machinesHand-soldered & wave-soldered PCB assembliesAvionics, defence & industrial instrument racksPotted & conformal-coated electronic modulesAudio consoles, telecom & medical electronicsPrecision coil, solenoid & sensor lead-outs

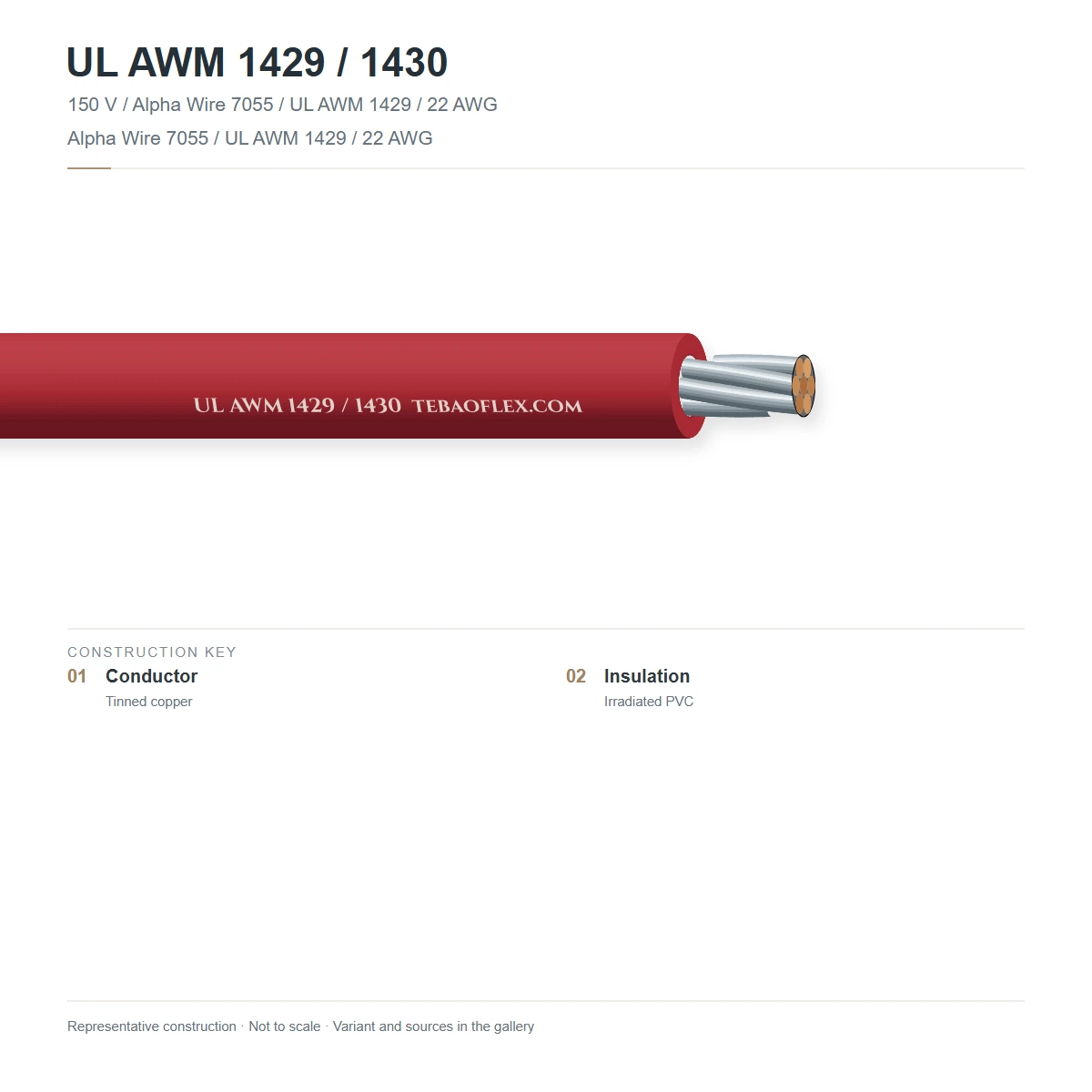

Construction

Layer by layer

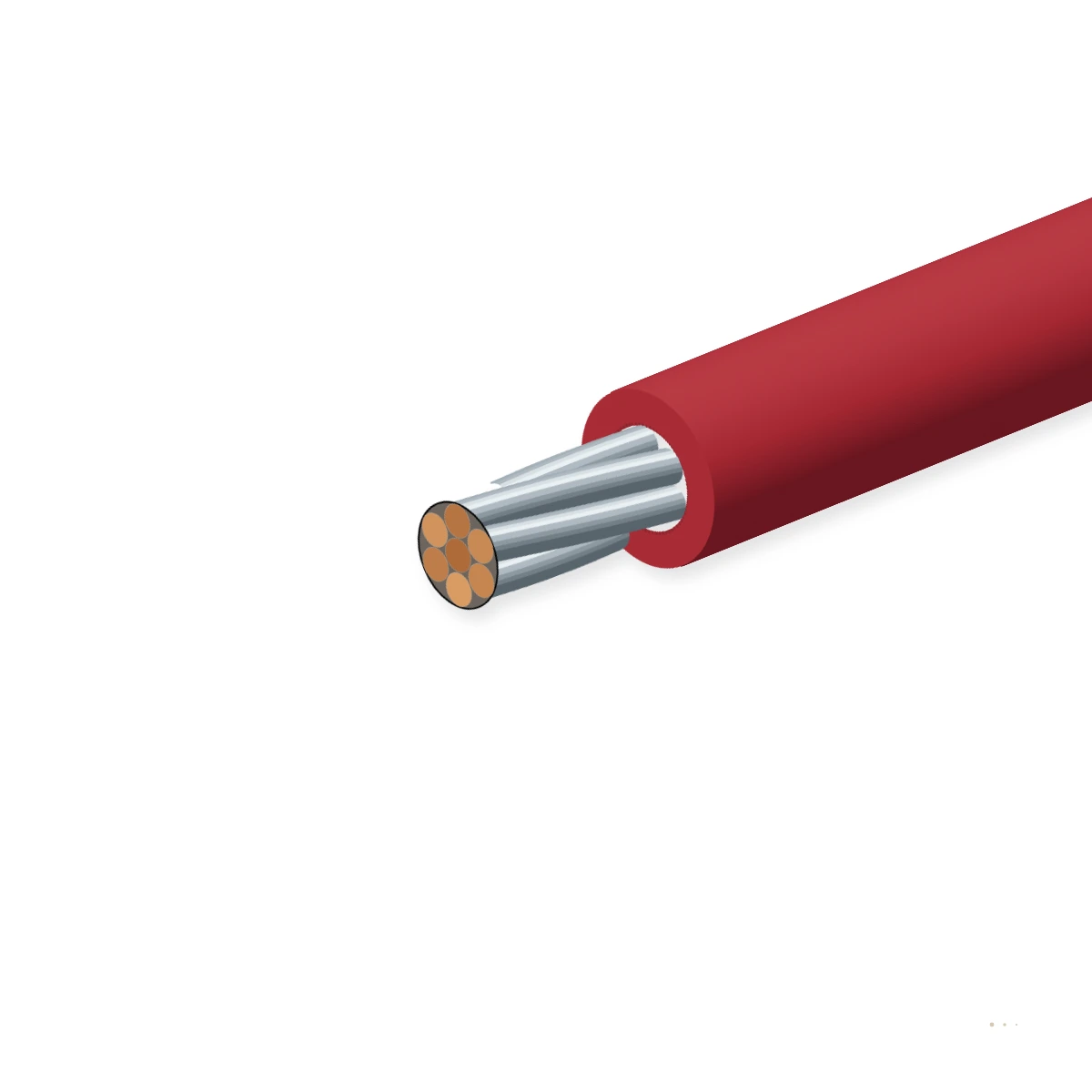

Shown: UL AWM 1430 22 AWG (7/30) — 7-strand tinned annealed copper conductor (0.33 mm²), 0.41 mm (16 mil) electron-beam irradiated cross-linked polyvinyl chloride (XLPVC) dielectric and abrasion/solder-resistant VW-1 / FT1 surface.

123
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Stranded or solid tinned copperFine-stranded (7/38 to 26/30) or solid tinned annealed copper per ASTM B33 for instant solder wettingASTM B33 · UL 758
2E-beam cross-linked PVC (XLPVC)0.25 mm (10 mil, UL 1429) or 0.41 mm (16 mil, UL 1430) irradiated thermoset PVC immune to thermal flow and solder meltbackUL 758 Style 1429 / 1430
3Abrasion- & solvent-resistant XLPVC skinTough thermoset outer surface resisting flux cleaners, alcohol, MEK, potting resins and mechanical scrapeUL 1581 VW-1 · CSA FT1

UL AWM 1429 (150 V, 80 °C, 0.25 mm / 10-mil XLPVC)

Ultra-thin-wall irradiated XLPVC replacement for UL 1061 where solder-iron and cut-through immunity are required

UL AWM 1430 (300 V, 105 °C, 0.41 mm / 16-mil XLPVC)

Standard-wall irradiated XLPVC replacement for UL 1007 / 1569 in wave-soldered and potted 300 V assemblies

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on UL 758 Style 1429 (150 V) & Style 1430 (300 V) · CSA XL-PVC. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage
150 V RMS (UL Style 1429) · 300 V RMS (UL Style 1430)
Dielectric withstand voltage
1500 V AC for 1 min · 3000 V AC spark test
Max. DC conductor resistance (20 °C)
28 AWG: ≤ 216 Ω/km · 26 AWG: ≤ 135 Ω/km · 24 AWG: ≤ 84.2 Ω/km · 22 AWG: ≤ 53.2 Ω/km · 20 AWG: ≤ 33.2 Ω/km · 18 AWG: ≤ 21.0 Ω/km

Thermal

Continuous temperature rating
−55 °C to +80 °C (UL 1429) · −55 °C to +105 °C (UL 1430)
Solder-iron resistance
Withstands 350 °C soldering iron contact without melting through to conductor

Mechanical

Nominal insulation wall
UL 1429: 0.25 mm (10 mil) · UL 1430: 0.41 mm (16 mil)
Min. bending radius
3 × overall diameter (fixed chassis routing)
Crush & scrape abrasion
Cross-linked molecular structure provides 3–5× higher dynamic cut-through resistance than non-irradiated PVC

Resistance

Flame retardance
UL 1581 VW-1 vertical wire flame test & CSA FT1
Chemicals & potting solvents
Resistant to flux removers, isopropyl alcohol, oils, acids and two-part epoxy/polyurethane potting

Reference standards

UL AWM styles
UL 758 Style 1429 (150 V, 80 °C) & Style 1430 (300 V, 105 °C)
CSA certification
CSA C22.2 No. 210 Type RE-80 / XL-PVC (AWM I A/B FT1)
RoHS & REACH
2011/65/EU (RoHS 2) & EC 1907/2006 compliant

Identification

Standard stock colours
Black, White, Red, Blue, Yellow, Green, Brown, Orange, Violet & Grey
Surface marking
AWM STYLE 1429 80C 150V OR 1430 105C 300V VW-1 XL-PVC CSA FT1 TEBAOFLEX
Customs tariff (HS)
8544.49 (insulated conductors ≤ 1000 V)

Sizes

13 standard UL AWM 1429 / 1430 configurations

Typical UL 758 Style 1429 (150 V) & Style 1430 (300 V) · CSA XL-PVC outer diameter limits, copper content and cable weight.

Dimensions & weights
Order designationCores × mm² / AWGAWG ≈Outer Ø min
mm		Outer Ø max
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
mm		Enquiry
UL AWM 1429 — 150 V 80 °C 10-mil Cross-Linked PVC (28–18 AWG)
UL 1429 150V 28 AWG (7/36)28 AWG (0.08 mm²)280.80.9023
UL 1429 150V 26 AWG (7/34)26 AWG (0.13 mm²)260.91.0123
UL 1429 150V 24 AWG (7/32)24 AWG (0.20 mm²)241.01.1233
UL 1429 150V 22 AWG (7/30)22 AWG (0.33 mm²)221.21.3344
UL 1429 150V 20 AWG (7/28)20 AWG (0.52 mm²)201.41.5564
UL 1429 150V 18 AWG (19/30)18 AWG (0.82 mm²)181.61.8795
UL AWM 1430 — 300 V 105 °C 16-mil Cross-Linked PVC (28–16 AWG)
UL 1430 300V 28 AWG (7/36)28 AWG (0.08 mm²)281.11.2024
UL 1430 300V 26 AWG (7/34)26 AWG (0.13 mm²)261.21.3134
UL 1430 300V 24 AWG (7/32)24 AWG (0.20 mm²)241.31.4244
UL 1430 300V 22 AWG (7/30)22 AWG (0.33 mm²)221.51.6355
UL 1430 300V 20 AWG (7/28)20 AWG (0.52 mm²)201.71.8575
UL 1430 300V 18 AWG (19/30)18 AWG (0.82 mm²)181.92.07106
UL 1430 300V 16 AWG (26/30)16 AWG (1.31 mm²)162.22.412157
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Dimensions and weights are typical values per UL 758 Style 1429 (150 V) & Style 1430 (300 V) · CSA XL-PVC. Minimum fixed bending radius shown is 3 × OD.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Check results

Drum core 300 mm ≥ 10 mmBending radius OK (3 × OD 1.6 mm)
Minimum bending radius
5 mm
Min. drum core diameter
≈ 10 mm
Cable weight on drum
0.3 kg
Copper content
0.2 kg
Indicative only: based on the datasheet outer diameter and 3 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC dielectric voltage test1.5 kV AC (50/60 Hz)Every manufactured length
Conductor DC resistanceIEC 60228 / ASTM (tinned copper)Every manufactured length
Sample tests
Flame propagation testIEC 60332-1-2 / UL VW-1 / ISO 6722-1Per production batch
Insulation & sheath material physical propertiesUL 758 Style 1429 (150 V) & Style 1430 (300 V) · CSA XL-PVCType approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

UL 758 Style 1429 (150 V) & Style 1430 (300 V) · CSA XL-PVCCE · RoHS 2 (2011/65/EU) · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

AWM STYLE 1429/1430 XL-PVC VW-1 CSA FT1 TEBAOFLEX
Delivery form
Export wooden drums, reels or coils, cut-to-length on request
Packaging
Heat-treated ISPM-15 timber drums or spools with sealed ends
Conductor / colour options
Custom core counts, stripe combinations or cut harnesses on request

Technical documents

Downloads

PDFUL AWM 1429 / 1430 Cross-Linked PVC Wire – technical datasheet13 sizes · construction, technical data, approvalsXLSXUL AWM 1429 / 1430 spec data (Excel)All 13 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

How do UL 1429 and UL 1430 compare in wall thickness and voltage rating?
UL Style 1429 has a 0.25 mm (10 mil) cross-linked PVC wall rated 150 V RMS at 80 °C (matching the dimensions of UL 1061). UL Style 1430 has a 0.41 mm (16 mil) cross-linked PVC wall rated 300 V RMS at 105 °C (matching the dimensions of UL 1007 / 1569).
Why does electron-beam cross-linked PVC resist soldering irons?
High-energy electron-beam irradiation links the PVC polymer chains into a permanent three-dimensional thermoset network. Above the crystalline melting point where ordinary PVC melts and pulls back from the strip point, XLPVC becomes rubbery and retains its shape.
Can UL 1429 / 1430 be stripped on standard automatic wire-processing machines?
Yes. Unlike slippery fluoropolymers (PTFE/FEP) that require special thermal or precision V-blades, XLPVC strips cleanly with standard carbide blades and accepts standard UV/hot-stamp ink marking.
When should I choose UL 3265 / 3266 instead of UL 1429 / 1430?
Choose UL 3265 (150 V, 10 mil) or UL 3266 (300 V, 16 mil) when the application requires a +125 °C continuous rating or cross-linked polyolefin (XLPE/XLPO) insulation.
