Product

TFOCA / TFOCA-II tactical fibre assemblyMIL-DTL-83526 / TFOCA-II1,800 N Pull / 440 N/cm Crush2 / 4 / 6 / 12 Channels

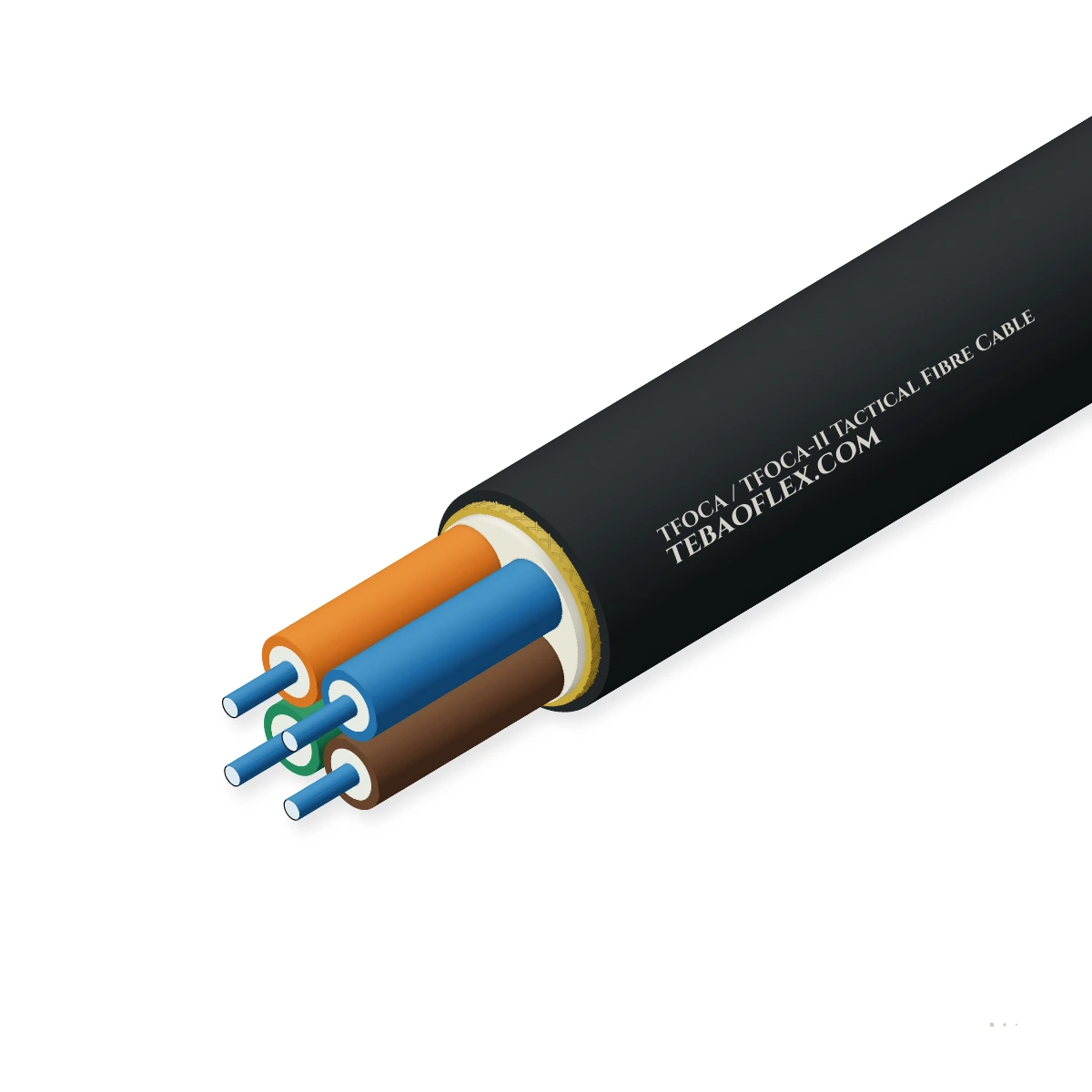

TFOCA / TFOCA-II Tactical Fibre Cable2, 4, 6 & 12-channel hermaphroditic TFOCA / TFOCA-II tactical field fibre-optic assembly

Genderless (hermaphroditic) TFOCA (2/4-ch) and TFOCA-II (4/6/12-ch) tactical field fibre-optic assembly built on MIL-PRF-85045 tight-buffered polyaramid PUR cable for C4ISR defence, OB broadcast, mining and frac spreads.

Water-resistant
Outdoor & humid
Ozone, UV & moisture
Oil-resistant
Order designation
TF2-4C-SM-G657-300M
Std reel length
300 m
Typical IL
0.45 dB
Cable OD
5.8 mm
Max pull load
1,800 N
All sizes (12)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Connector
TFOCA / TFOCA-II
Genderless hermaphroditic daisy-chain
Channels
2, 4, 6 or 12 FO
G.657.A2 SM, OM1 62.5/125 or OM3/OM4
Insertion loss
≤ 0.50 dB typ.
Spring-loaded 2.5/1.25 mm ZrO2 ferrules
Tensile rating
1,800 N deploy
Polyaramid yarn anchored to shell
Crush resistance
440 N/cm
Survives heavy vehicle rollover
Sealing
IP67 / IP68
−46 °C to +85 °C MIL-STD-810G tactical

Typical values for this cable type, based on MIL-DTL-83526 / MIL-PRF-85045 / TIA-568 / ITU-T G.657.A2 — confirmed in the datasheet and quotation for your order.

Application fit

Is TFOCA / TFOCA-II Tactical Fibre Cable right for your machine?

Hermaphroditic (genderless) plugs mate directly to one another without adapters, allowing any reel to extend any other reel in the field regardless of payout direction.

Trailing & towing

Suitable

1,800 N deployment tensile rating and 440 N/cm crush resistance survive rapid ground payout and vehicle rollover.

Immersion & wet locations

Suitable

IP67/IP68 sealed hard-anodized aluminium or Zn-Ni shells with captive dust caps withstand mud, ice and 15 m immersion.

Motorised monospiral reel

Suitable

Matte black tactical polyether PUR jacket spools smoothly on field reels from −46 °C to +85 °C with zero UV degradation.

Energy chain / drag chain

Not suitable

Tactical field reel assembly is designed for mobile ground deployment, not factory automation cable carriers.

Use M12 X-coded 10GbE
Typical machinesC4ISR Tactical Defence CommunicationsPATRIOT / Air-Defence Radar InterconnectsHydraulic Fracturing (Frac Spread) TelemetryOutside Broadcast (OB Van) SMPTE/Fibre LinksEmergency Disaster Recovery & Mining

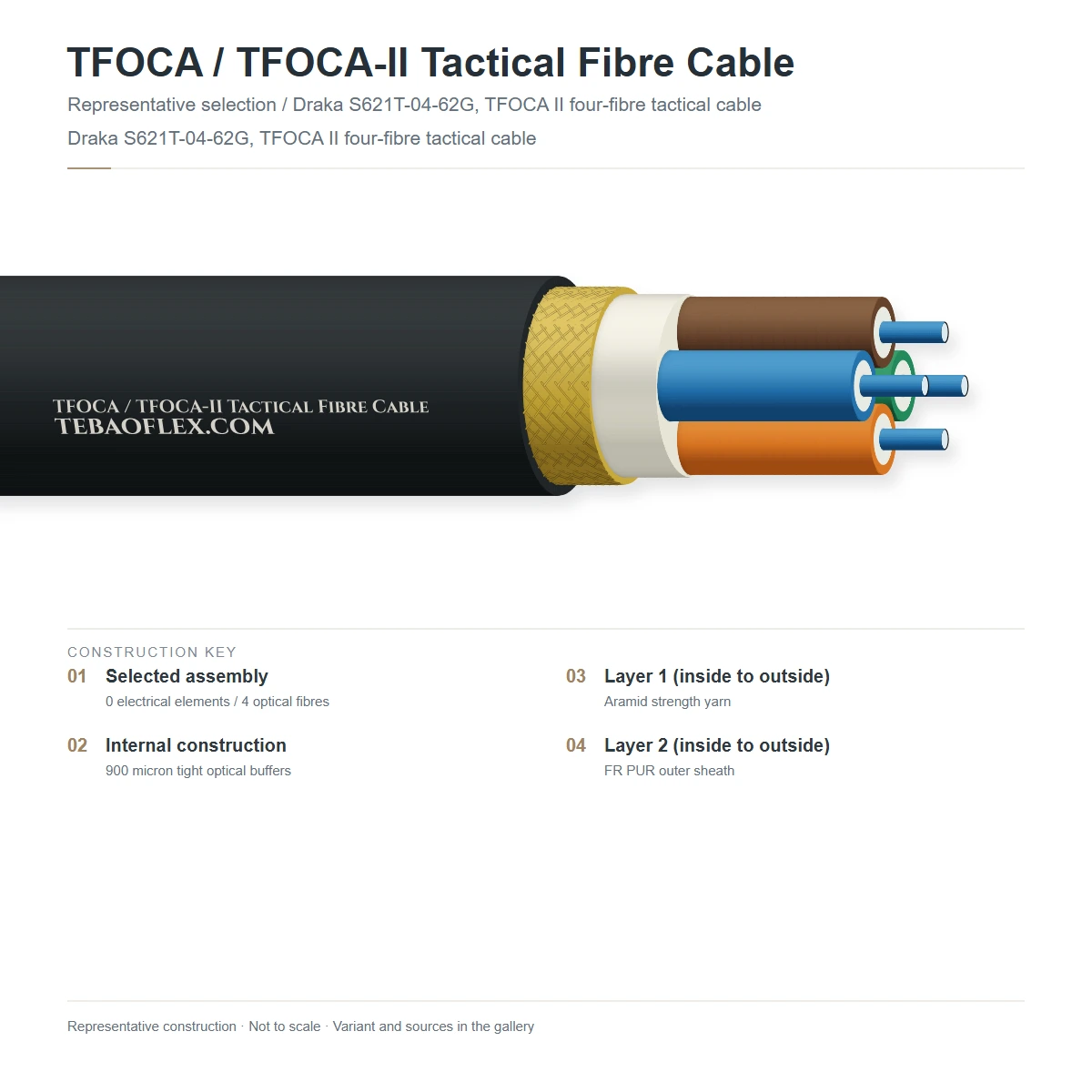

Construction

Layer by layer

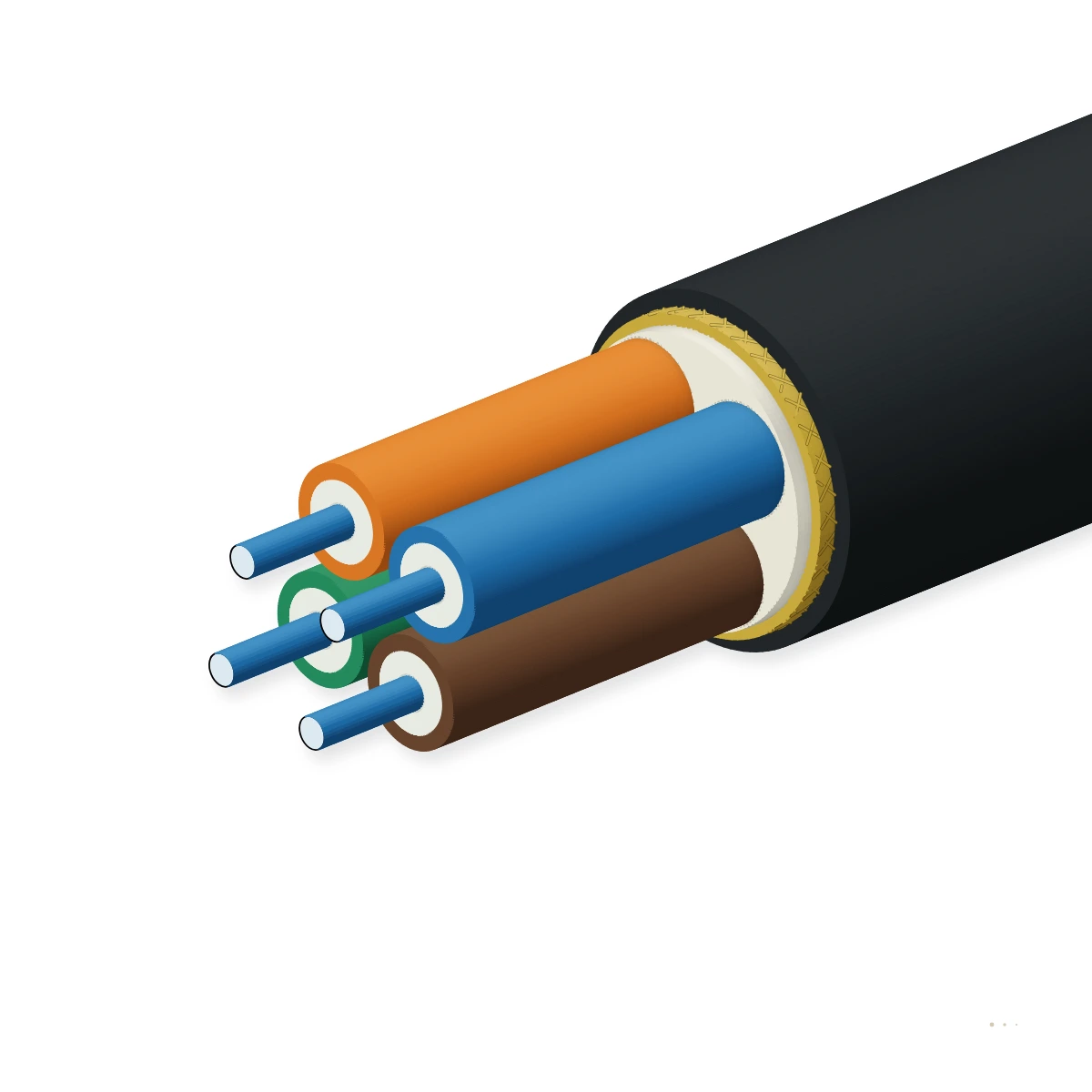

Representative 4-channel or 12-channel MIL-PRF-85045 tactical cable: 900 μm elastomeric tight-buffered G.657.A2 or OM3 fibres + high-modulus polyaramid strength yarn + inner sub-unit/jacket + matte black tear-resistant tactical PUR outer sheath.

1234
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Bend-insensitive optical fibres2, 4, 6 or 12 × ITU-T G.657.A2 Single-Mode (9/125 μm) or OM1 (62.5/125 μm) / OM3 / OM4 (50/125 μm) Multimode optical fibresSupports 1G/10G/40G optical links with < 0.1 dB macro-bend loss at 7.5 mm radius
2900 μm tactical elastomeric tight bufferColour-coded TIA-598 elastomeric 900 μm tight buffer (or 2.0 mm sub-units on heavy breakout builds)Cushions silica glass cladding against 200-cycle EIA-455-25 military impact testing
3High-density polyaramid tensile yarnSurrounding high-modulus polyaramid yarn layer mechanically crimped directly into the TFOCA / TFOCA-II connector strain-relief sleeveProvides 1,800 N (400 lbf) pulling tension and zero fibre strain during field payout
4Matte black tactical polyether PUR jacketExtruded flame-retardant, fungus-resistant, UV-stabilised matte black polyether polyurethane (PUR) outer sheath (5.5 mm to 8.5 mm OD)Withstands −55 °C arctic cold bend, JP-8 jet fuel, hydraulic fluids and 440 N/cm crush

TFOCA-II-4C (4-Channel Standard Tactical Reel)

4 × G.657.A2 SM or OM3 MM fibres in 5.8 mm OD MIL-PRF-85045 tactical PUR cable with hermaphroditic TFOCA-II plugs on field reel

TFOCA-II-6C / 12C (High-Count C4ISR / Frac Trunk)

6 or 12 optical channels with TFOCA-II 6/12-ch hermaphroditic plugs or ruggedized LC/SC fanout tails

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on MIL-DTL-83526 / MIL-PRF-85045 / TIA-568 / ITU-T G.657.A2. Values for your order are confirmed in the datasheet and quotation.

Thermal

Operating temperature
−46 °C to +85 °C (cable rated −55 °C to +85 °C)
Storage temperature
−57 °C to +85 °C (MIL-STD-810G)

Mechanical

Deployment tensile load
1,800 N (400 lbf) short-term · 600 N long-term
Crush resistance (TIA-455-41)
440 N/cm (2,200 N over 5 cm plate)
Impact resistance (TIA-455-25)
200 impacts at 2.2 N·m
Mating durability
≥ 2,000 mating cycles (hermaphroditic coupling nut)
Min. bend radius
8 × OD dynamic · 4 × OD static (G.657.A2)

Optical

Fibre types supported
G.652.D / G.657.A2 SM (9/125) · OM1 (62.5/125) · OM3/OM4 (50/125)
Connector insertion loss
≤ 0.50 dB typical · ≤ 0.75 dB max per mated pair
Optical return loss (UPC)
≥ 50 dB (Single-Mode UPC) · ≥ 30 dB (Multimode)
Cable attenuation (SM)
≤ 0.40 dB/km (1310 nm) · ≤ 0.30 dB/km (1550 nm)
Cable attenuation (MM)
≤ 3.0 dB/km (850 nm) · ≤ 1.0 dB/km (1300 nm)

Resistance

Ingress protection
IP67 / IP68 (15 m water immersion for 24 h)
Corrosion resistance
500 h salt spray (hard-anodized Al or Zn-Ni)
Fluid & fungus resistance
JP-8 fuel, hydraulic oil, diesel & MIL-STD-810G fungus

Reference standards

Connector architecture
TFOCA / TFOCA-II (MIL-DTL-83526 heritage)
Tactical cable standard
MIL-PRF-85045 / TIA-455 FOTP series
Optical colour code
TIA/EIA-598-D

Identification

Outer jacket colour
Matte Tactical Black (Desert Tan / Olive Drab optional)
Serialization
Laser-engraved metal band with part number, length & SN
Customs tariff (HS)
8544.70

Sizes

12 standard TFOCA & TFOCA-II tactical field fibre-optic cable assemblies

Available as double-ended hermaphroditic field reels (100 m to 1,000 m) or bulkhead-to-LC/SC shelter fanout jumpers.

Channels, fibre mode, connector style & mass
Order designationChannels & Fibre ModeConnector ConfigurationStd Reel
m		Typ. IL
dB		Cable OD
mm		Cable Wt
kg/km		Max Pull
N		Enquiry
2 & 4-Channel TFOCA / TFOCA-II Tactical Field Assemblies (5.5–5.8 mm OD)
TF2-2C-SM-G657-300M2-Ch Single-Mode G.657.A2TFOCA-II Plug ↔ TFOCA-II Plug3000.455.5281,800
TF1-4C-OM1-625-300M4-Ch Multimode OM1 62.5/125TFOCA Gen-I ↔ TFOCA Gen-I3000.505.8321,800
TF2-4C-SM-G657-100M4-Ch Single-Mode G.657.A2TFOCA-II Plug ↔ TFOCA-II Plug1000.455.8321,800
TF2-4C-SM-G657-300M4-Ch Single-Mode G.657.A2TFOCA-II Plug ↔ TFOCA-II Plug3000.455.8321,800
TF2-4C-SM-G657-500M4-Ch Single-Mode G.657.A2TFOCA-II Plug ↔ TFOCA-II Plug5000.455.8321,800
TF2-4C-OM3-50-300M4-Ch Multimode OM3 10GbETFOCA-II Plug ↔ TFOCA-II Plug3000.455.8321,800
TF2-4C-OM4-50-300M4-Ch Multimode OM4TFOCA-II Plug ↔ TFOCA-II Plug3000.455.8321,800
6 & 12-Channel TFOCA-II High-Density & Shelter Fanout Assemblies
TF2-6C-SM-G657-300M6-Ch Single-Mode G.657.A2TFOCA-II 6Ch ↔ TFOCA-II 6Ch3000.506.5401,800
TF2-6C-OM3-50-300M6-Ch Multimode OM3 10GbETFOCA-II 6Ch ↔ TFOCA-II 6Ch3000.506.5401,800
TF2-12C-SM-G657-300M12-Ch Single-Mode G.657.A2TFOCA-II 12Ch ↔ TFOCA-II 12Ch3000.558.0581,800
TF2-4C-SM-LC-FAN-15M4-Ch SM Shelter PigtailTFOCA-II Plug → 4 × LC/UPC150.355.8321,800
TF2-12C-SM-LC-FAN-15M12-Ch SM Shelter PigtailTFOCA-II 12Ch → 12 × LC/UPC150.408.0581,800
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Field reel assemblies (> 50 m) are supplied on heavy-duty elastomer or military steel backpack/checkout reels with a 2 m accessible connector hub tail.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
100 % 3D interferometer end-face & IL/RL optical testRadius of curvature, apex offset, fibre height + bidirectional IL ≤ 0.50 dB & RL ≥ 50 dB (SM)Every ferrule & channel
1310 / 1550 nm (or 850 / 1300 nm) OTDR traceZero splice/micro-bend anomalies across full reel lengthEvery reel assembly
Sample tests
1,800 N tensile pull & 440 N/cm crush testΔIL ≤ 0.2 dB under axial deployment tension and plate crushQualification lot

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

MIL-DTL-83526 / TFOCA & TFOCA-II IntermateableMIL-PRF-85045 Tactical Optical Cable Compliant

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX TACTICAL FIBER OPTIC MIL-PRF-85045 TFOCA-II [CH] [METRE]
Delivery form
Coiled or pre-spooled on tactical backpack / vehicle deployment drums
Standard reel lengths
50 m · 100 m · 250 m · 300 m · 400 m · 500 m · 1,000 m
Panel & fanout kits
Jam-nut / square-flange D-hole bulkhead receptacles & LC/SC fanouts
Lead time
2–4 weeks ex-works

Technical documents

Downloads

PDFTFOCA / TFOCA-II Tactical Fibre Cable – technical datasheet12 sizes · construction, technical data, approvalsXLSXTFOCA / TFOCA-II Tactical Fibre Cable spec data (Excel)All 12 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What does 'hermaphroditic' mean on a TFOCA or TFOCA-II connector, and why does it matter in the field?
Traditional connectors have male plugs and female sockets, meaning a cable must be unreeled in the correct direction and requires bulkhead couplers to join two reels. A hermaphroditic TFOCA/TFOCA-II connector has identical half-keyed shells and recessed/protruding alignment sleeves on both ends, so any connector mates directly with any other connector regardless of which way the reel was laid out.
What is the difference between original TFOCA (Gen-I) and TFOCA-II?
Original 4-channel TFOCA (used on legacy tactical air-defence systems) uses 2.5 mm ferrules in a larger shell. TFOCA-II uses precision 1.25 mm zirconia ceramic ferrules with individual spring-loaded alignment sleeves in a smaller shell that supports 4, 6, or 12 channels and allows easy field cleaning when the alignment sleeve retainer is unclipped.
Can a vehicle drive over the tactical fibre-optic cable without breaking the glass fibres?
Yes. The MIL-PRF-85045 tactical cable combines 900 μm elastomeric tight buffers, a dense polyaramid yarn cushion, and a thick polyether PUR jacket rated for 440 N/cm crush resistance and 200 impacts of 2.2 N·m.
Can you supply stainless-steel armoured rodent-proof tactical fibre reels for oilfield frac spreads?
Yes. In addition to all-dielectric MIL-PRF-85045 tactical cable, we offer helical stainless-steel spiral-tube armoured tactical PUR cable (≥ 3,000 N/100 mm crush) terminated with TFOCA-II connectors for hydraulic fracturing pads.
