fiber optic cable seriesSMPTE ST 311M2 SM + 4 Power + 2 SignalLEMO 3K.93C Compatible

SMPTE 311M Hybrid Fibre-Optic and Power HD Broadcast Camera CableHybrid 2-SM-fibre + 4-power + 2-control HD/4K/8K broadcast studio & OB camera cable

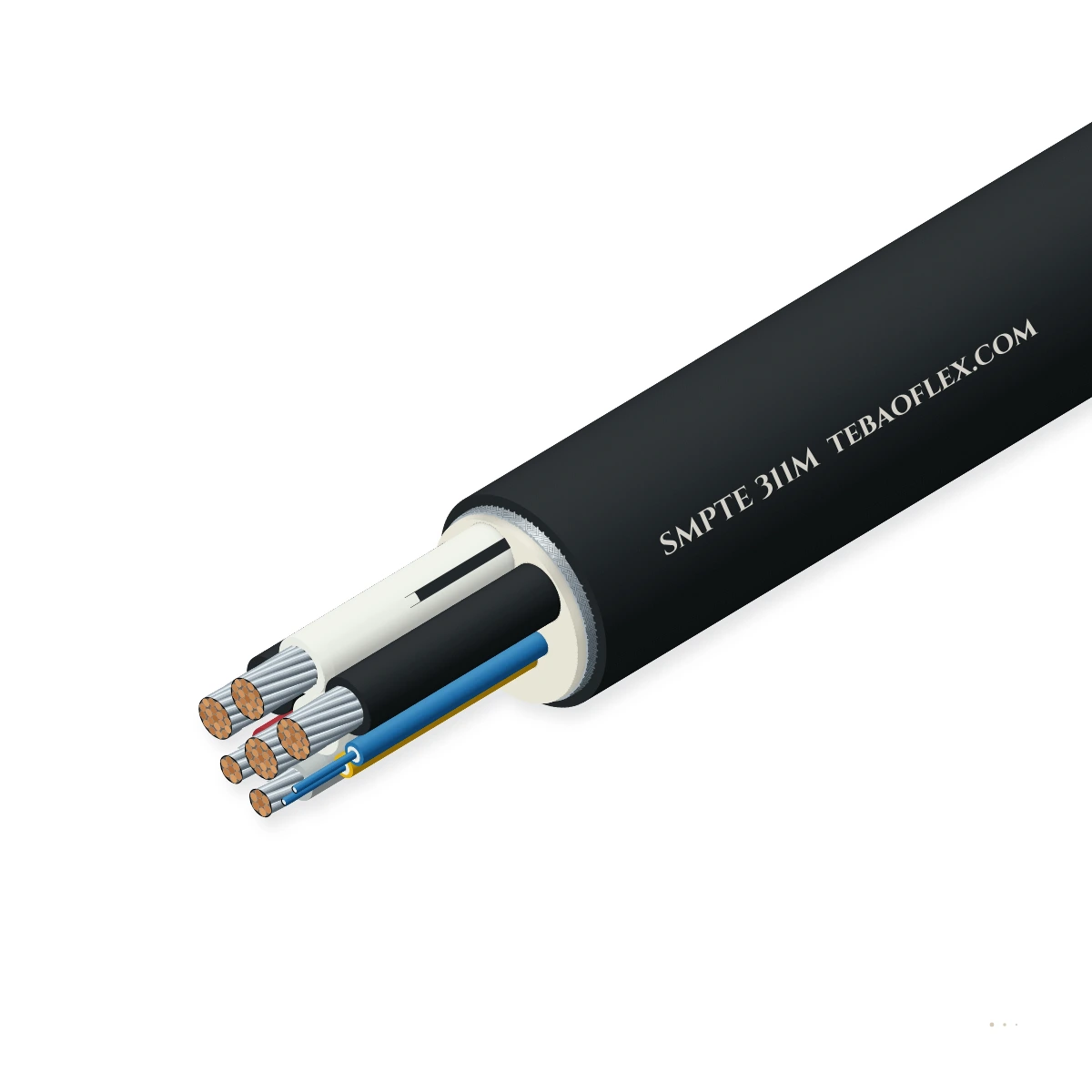

SMPTE 311M Hybrid Fibre-Optic and Power HD Broadcast Camera Cable combining 2 ITU-T G.657.A2 single-mode optical fibres, 4 × 20 AWG auxiliary camera power conductors, 2 × 24 AWG control/intercom wires, central steel strength member.

≥ 95 % Tinned Cu Braid
OB Reel & Studio Flex
LSZH / Matte PVC / PUR
SMPTE ST 311M
Order designation
SMPTE 311M-STD-92
Outer Ø
9.2 mm
Weight ≈
132 kg/km
Max. pull load
700 N
Power core DC R
35.8 Ω/km
All sizes (4)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Standard
SMPTE ST 311M
ARIB B29 / LEMO 3K.93C
Hybrid core
2F + 4P + 2C
2 SM + 4×20AWG + 2×24AWG
Outer Ø
9.2 mm ± 0.3 mm
Standard OB & studio Ø 9.2 mm
Power rating
600 V AC rms
Camera CCU remote power
Tensile load
700 N max
Central stranded steel wire
Video rate
3G / 12G-SDI / 8
Up to 40+ Gbps optical video

Typical values for this cable type, based on SMPTE ST 311 / ARIB STD-B29 / IEC 60794-2 — confirmed in the datasheet and quotation for your order.

Application fit

Is SMPTE 311M right for your machine?

Delivers uncompressed HD, 4K UHD (12G-SDI) and 8K video, tally/intercom control, and 240 V AC remote camera power over a single cable between the CCU and camera head.

Motorised monospiral reel

Suitable

Engineered for repeated payout and retrieval on outside broadcast (OB) truck and stadium drums.

Trailing & towing

Suitable

Matte non-glare elastomer/PUR jacket lies flat without memory coils on studio floors and sports fields.

TBM gantry & advancing tunnel reel

Suitable

Halogen-free LSZH (CPR Cca / B2ca) version for permanent stadium, theatre and arena infrastructure.

Energy chain / drag chain

With conditions

Suitable for camera pedestal and jib arms; for continuous robotic tracks specify PUR flex variant.

Typical machines4K / 8K UHD Broadcast StudiosOutside Broadcast (OB) Trucks & SportsStadium, Arena & Concert Hall Pre-RigRobotic PTZ & Rail Camera SystemsRemote Surgical & Defense Video Links

Construction

Layer by layer

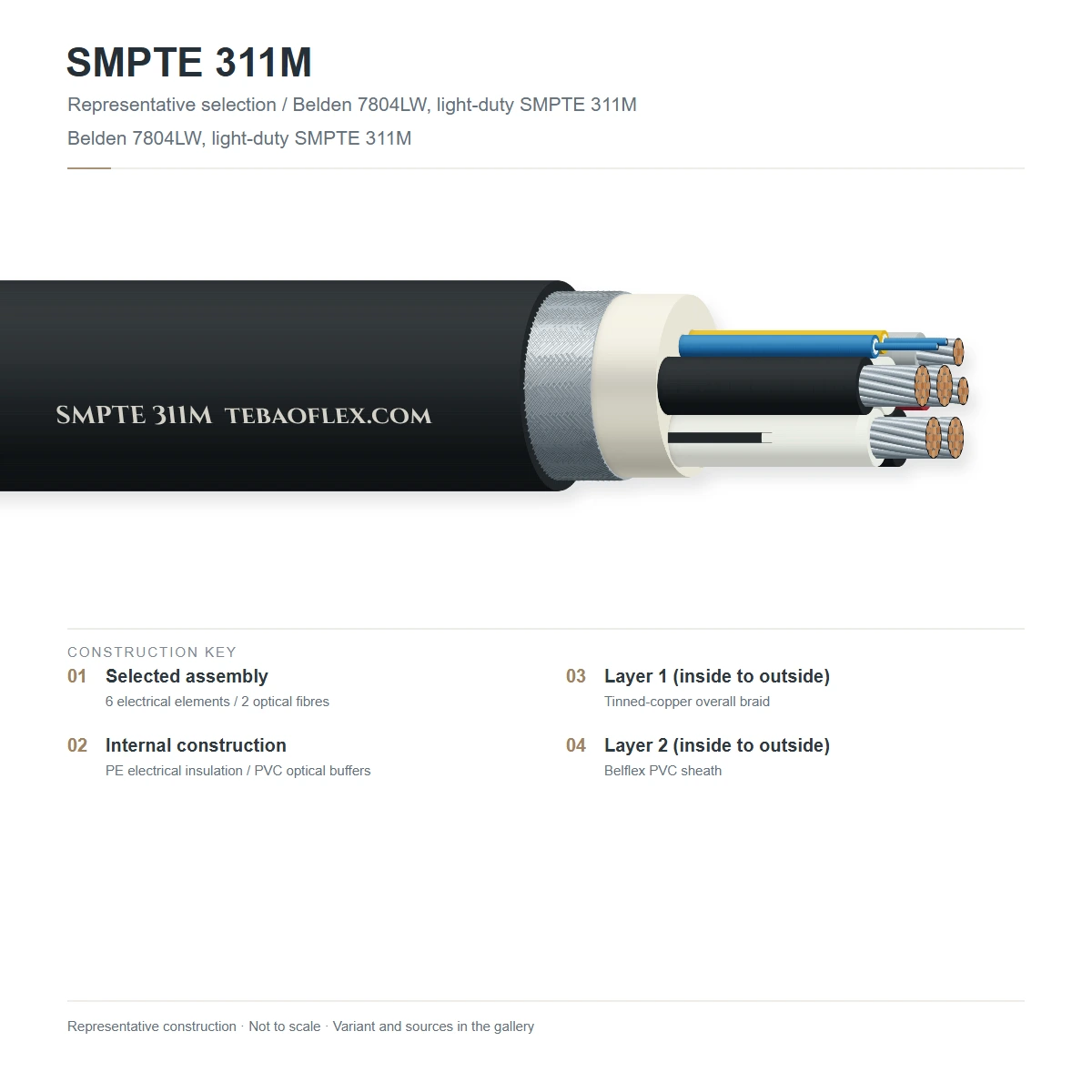

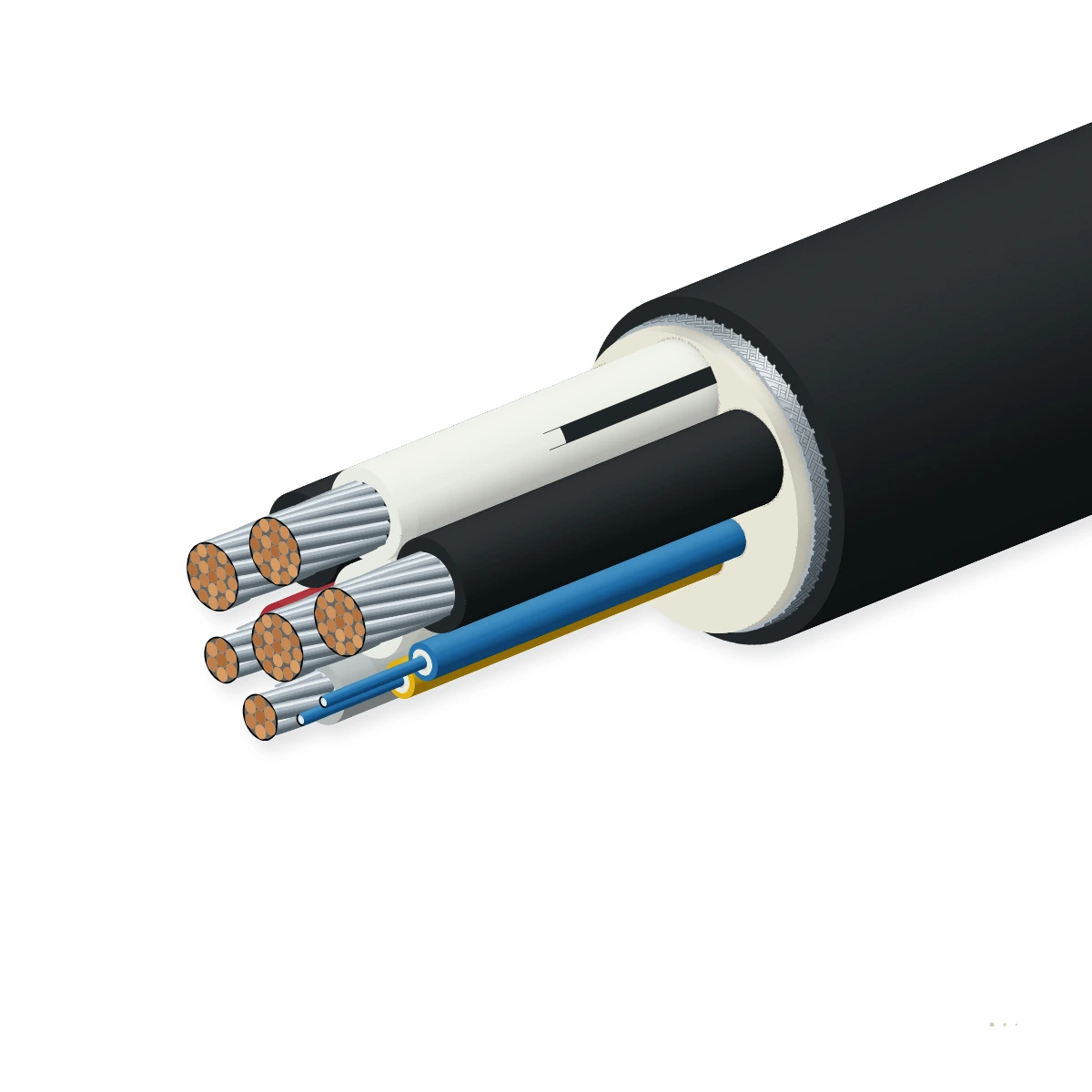

SMPTE 311M hybrid camera cable showing centralPVC-coated galvanized steel strength member, 2 × 900 µm G.657.A2 single-mode fibres, 4 × 20 AWG power cores, 2 × 24 AWG control cores, overall tinned copper braid shield, and matte black outer sheath.

12345
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
12 × SM optical fibres + 6 copper conductors2 × 9/125 µm ITU-T G.657.A2 tight-buffered (Blue/Yellow) fibres + 4 × 20 AWG (0.52 mm²) tinned Cu power cores + 2 × 24 AWG (0.22 mm²) tinned Cu control coresExact SMPTE ST 311M / ARIB B29 hybrid geometry
2Central steel wire strength memberStranded galvanized high-carbon steel wire rope (Ø 1.8 mm) with extruded polymer cushion700 N pulling strength & crimp anchor for LEMO 3K.93C plugs
3High-dielectric PE / TPE core insulationHeat-resistant PE/XLPE on 600 V power/control conductors and 0.9 mm low-friction tight buffer on optical fibres1,750 V rms dielectric test between power cores
4Overall tinned copper braid shieldNon-woven binder tape + ≥ 95 % optical coverage tinned copper wire braid screenEMI shielding & protective earth return
5Non-reflective matte broadcast jacketFlexible matte Black TPE-PVC, abrasion-resistant Polyether PUR (OB mobile), or halogen-free LSZH (fixed arena)Ø 9.2 mm standard (or Ø 6.8 / 7.8 mm lightweight camera jib variants)

SMPTE 311M-STD (Ø 9.2 mm Studio/OB)

Standard Ø 9.2 mm hybrid cable for LEMO 3K.93C, Canare F3A and Neutrik opticalCON DUO connectors

SMPTE 311M-PUR (Ø 9.2 mm Heavy Mobile)

Cold-flexible, cut-resistant polyurethane outer sheath for outdoor OB truck reels and harsh weather

SMPTE 311M-LSZH (Ø 9.2 mm Fixed Arena)

Halogen-free flame-retardant LSZH (IEC 60332-3-24) for permanent stadium and broadcast centre conduits

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on SMPTE ST 311 / ARIB STD-B29 / IEC 60794-2. Values for your order are confirmed in the datasheet and quotation.

Electrical

Auxiliary power cores
4 × 20 AWG (19/0.18 mm tinned Cu, ≤ 35.8 Ω/km @ 20 °C)
Signal / control cores
2 × 24 AWG (7/0.20 mm tinned Cu, ≤ 91.0 Ω/km @ 20 °C)
Rated voltage & test
600 V AC rms (power) · 1,750 V rms 1 min test
Braid shield resistance
≤ 10 Ω/km (≥ 95 % tinned copper coverage)

Thermal

Operating temperature
-40 °C to +75 °C (-50 °C on PUR OB variant)
Installation / reeling temp.
-25 °C to +60 °C
Storage temperature
-40 °C to +80 °C

Mechanical

Nominal outer diameter
9.2 mm ± 0.3 mm (lightweight 6.8 mm & 7.8 mm opt)
Max. tensile load
≥ 700 N on central steel strength member
Min. bend radius
6 × OD (55 mm static) · 10 × OD (92 mm reeling)
Crush resistance
1,500 N / 100 mm

Optical

Optical fibre type
2 × 9/125 µm ITU-T G.657.A2 bend-insensitive SM
Attenuation @ 1310 / 1550 nm
≤ 0.40 dB/km @ 1310 nm · ≤ 0.25 dB/km @ 1550 nm
Macro-bend loss
≤ 0.1 dB (10 turns @ R = 15 mm, 1550 nm)

Resistance

Flame retardancy
UL 1666 Riser / IEC 60332-1-2 / IEC 60332-3-24 (LSZH)
Abrasion & oil (PUR)
EN 60811-404 oil & OB truck wheel-over resistant
Studio floor handling
Low-friction, non-glare matte finish resists kinking

Reference standards

Broadcast standard
SMPTE ST 311 & ARIB STD-B29
Connector compatibility
LEMO 3K.93C · Neutrik opticalCON · Canare F3A
RoHS & REACH
2011/65/EU & EC 1907/2006 compliant

Identification

Fibre buffer colours
Fibre 1 Blue · Fibre 2 Yellow (0.9 mm tight buffer)
Power & control colours
20 AWG: Black, White, Red/Blk, Wht/Blk · 24 AWG: Red, Grey
Customs tariff (HS)
8544.7000

Sizes

4 standard SMPTE 311M hybrid camera cable models

Dimensional, electrical and mechanical specifications for standard 9.2 mm and lightweight 7.8 mm SMPTE 311M cables.

Dimensions & electrical ratings
Order designationJacket type & applicationOuter Ø
mm		Weight ≈
kg/km		Max. pull
N		20 AWG R
Ω/km		Enquiry
SMPTE ST 311M Hybrid Fibre + Copper Camera Cables
SMPTE 311M-STD-92Matte Flexible TPE-PVC · Studio & OB9.213270035.8
SMPTE 311M-PUR-92Matte Polyether PUR · Heavy Mobile Reel9.212685035.8
SMPTE 311M-LSZH-92Halogen-Free LSZH · Stadium Fixed Conduit9.213870035.8
SMPTE 311M-LW-78Lightweight TPE-PUR · Steadicam & Jib7.89250058.0
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • All 9.2 mm variants fit standard LEMO FMW/FXW.3K.93C and Neutrik opticalCON DUO/MTP termination kits.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
100 % bidirectional OTDR & 1,750 V AC dielectric testOptical α ≤ 0.40/0.25 dB/km and zero breakdown on 600 V power coresEvery manufactured reel
Conductor & shield DC resistance check20 AWG ≤ 35.8 Ω/km, 24 AWG ≤ 91.0 Ω/km, braid ≤ 10 Ω/kmEvery manufactured reel
Sample tests
Repeated OB reel payout & reverse-bend flex testNo fibre break or shield open after 10,000 flex cyclesType qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

SMPTE ST 311M & ARIB STD-B29ITU-T G.657.A2 & IEC 60332-3RoHS 2 & REACH Compliant

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX SMPTE 311M HYBRID CAMERA CABLE 2SM+4P+2C
Delivery form
Fumigated export wooden or steel drums
Standard drum lengths
1000 m · 2000 m · 4000 m (or custom cut lengths)
MOQ
500 m (standard) · 1000 m (custom build)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFSMPTE 311M Hybrid Fibre-Optic and Power HD Broadcast Camera Cable – technical datasheet4 sizes · construction, technical data, approvalsXLSXSMPTE 311M spec data (Excel)All 4 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

How far can a broadcast camera be powered over SMPTE 311M hybrid cable?
Using the four 20 AWG power conductors connected in parallel pairs (2 × ~1.04 mm² equivalent, loop resistance ~35.8 Ω/km) at 240 V AC from the Camera Control Unit (CCU), a standard HD/4K system camera with viewfinder and lens servo can operate at distances of 1,500 m to 2,500 m; optical video alone reaches over 10 km.
Why do we use ITU-T G.657.A2 bend-insensitive single-mode fibres instead of standard G.652.D?
During live sports and studio events, camera cables are frequently stepped on, knotted around tripod legs, or pulled tight around doorway corners. ITU-T G.657.A2 fibre maintains < 0.1 dB loss even at a 15 mm bend radius, preventing sudden 12G-SDI video blackouts.
Is this cable dimensionally matched to LEMO 3K.93C and Neutrik opticalCON connectors?
Yes. The central Ø 1.8 mm steel strength member, 0.9 mm tight buffers, 20/24 AWG insulation diameters and Ø 9.2 mm outer jacket are held to SMPTE ST 311 tolerances for LEMO 3K.93C, Canare F3A and Neutrik opticalCON crimping.
Can we order pre-terminated SMPTE 311M camera reel assemblies?
Yes. We supply bulk 300 m, 500 m and 1,000 m drums as well as pre-terminated LEMO 3K.93C or opticalCON camera reels from 25 m to 500 m.

Request a quote

Get an engineering quote for SMPTE 311M

Your selection and application details are copied into the enquiry form below.

01Selected sizes

Use + Add next to a size or configuration.

02Reel & motion

Add your operating conditions here to include them in your enquiry.

03Message for our engineers

SMPTE 311M Hybrid Fibre-Optic and Power HD Broadcast Camera Cable

Selected sizes:


Reel & motion:
- Reel type:
- Drum core diameter (mm):
- Cable length on drum (m):
- Travel speed (m/min):
- Max. acceleration:
- Cycles per hour:
- Length and quantity:
- Ambient temperature:
- Exposure (outdoor, water, oil, abrasion):
- Destination country:
- Equipment and operating conditions:
