MIL-DTL-17 PE/PVC RF Coaxial CablesMIL-DTL-17/11950 Ω · DC–1 GHzØ 2.79 mm Miniature Coax

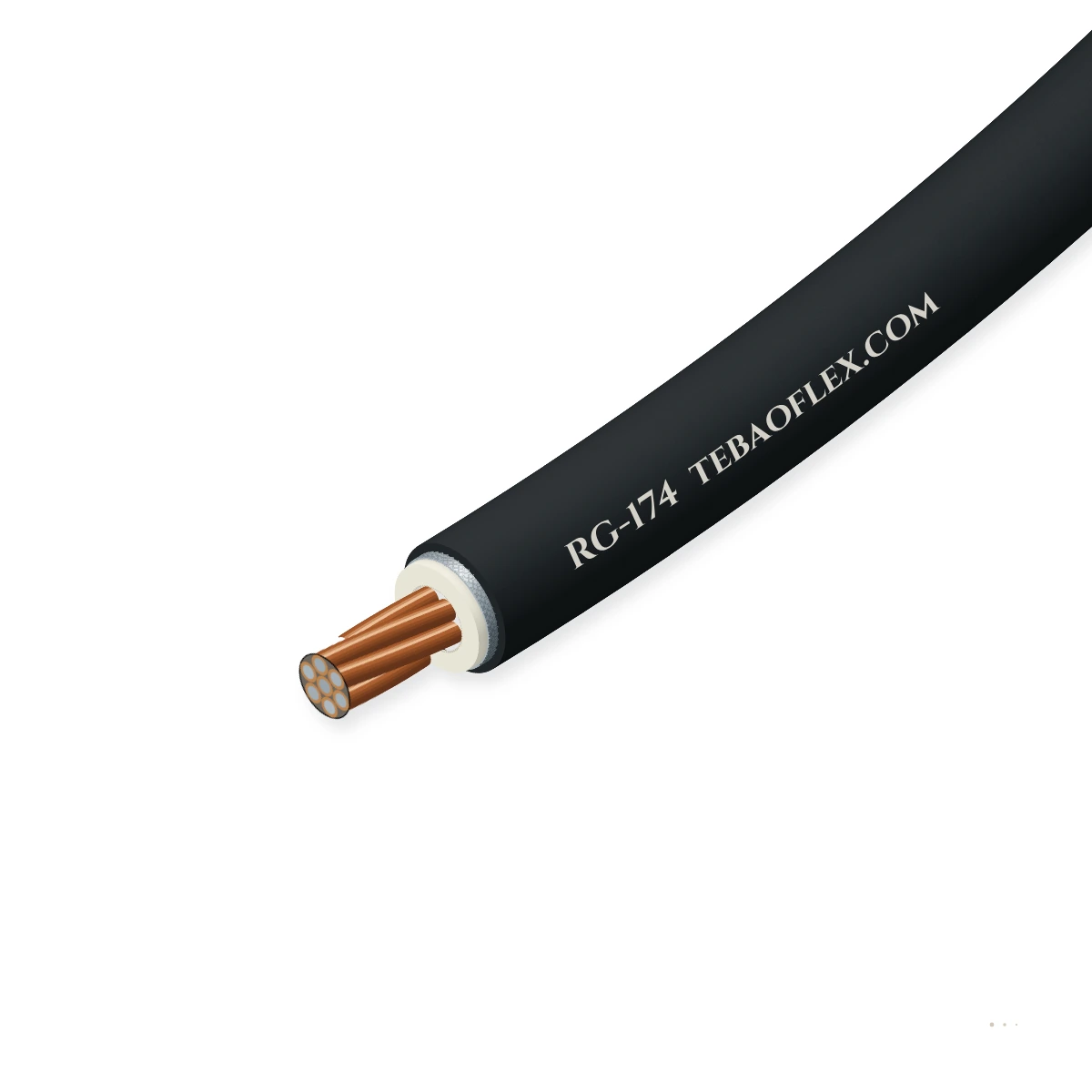

RG-174 Miniature Flexible Coaxial CableMIL-DTL-17/119 · 50 Ω ± 2 Ω · Ø 2.79 mm · 26 AWG (7×0.16) CCS/Cu · Solid PE · Tinned Cu

Q: Is RG-174 compatible with automotive FAKRA connectors?

Yes, RG-174 (both solid PE and low-loss foam PE variants) is the primary 2.8 mm cable size used with standard crimp FAKRA and Mini-FAKRA connectors in vehicle telematics. Each production reel undergoes sweep-frequency impedance and return-loss verification, dielectric spark testing, and dimensional inspection before dispatch with an EN 10204 3.1 test certificate.

Q: How small can RG-174 be bent inside an instrument enclosure?

With its 2.79 mm outer diameter and 7-strand 26 AWG center conductor, RG-174 supports a minimum static bend radius of 12 mm (4 × D) without impedance discontinuity. Each production reel undergoes sweep-frequency impedance and return-loss verification, dielectric spark testing, and dimensional inspection before dispatch with an EN 10204 3.1 test certificate.

RG-174 (RG-174/U and RG-174A/U, MIL-DTL-17/119) is a miniature, highly flexible 50 Ω coaxial cable with a 2.79 mm outer diameter for GNSS/GPS active antennas, cellular/IoT pigtails, automotive FAKRA harnesses, and test instrument leads up to 1000 MHz.

EMC screen

Low-EMC design

Flame-retardant

Oil-resistant

Variant

Order designation: RG-174/U (MIL CCS Conductor, PVC)
Outer Ø ≈: 2.79 mm
Metal weight: 5.8 kg/km
Total weight ≈: 12.5 kg/km
Min. bend R (fixed): 11 mm

All sizes (4)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Impedance Z₀: 50 Ω ± 2 Ω
Outer diameter: 2.79 mm (0.110")
Velocity / Cap.: 66 % · 101 pF/m
Temp. rating: -40 to +80 °C
Frequency range: DC to 1000 MHz
Max. voltage: 1100 V rms

Typical values for this cable type, based on MIL-DTL-17/119-RG174 (M17/196) — confirmed in the datasheet and quotation for your order.

Application fit

Is RG-174 right for your machine?

Designed for compact antenna pigtails (SMA, SMB, FAKRA, BNC, MCX), vehicle GNSS/LTE roof-sharkfin leads, medical sensor probes, and oscilloscope patch cords.

Switchgear & control cabinet wiring

Suitable

Compact 2.79 mm diameter routes effortlessly through tight instrument enclosures and dashboards.

Trailing & towing

Suitable

7-strand 26 AWG conductor and matte PVC jacket provide supple handling for laboratory test leads.

Fixed installation

Suitable

Widely used for automotive telematics harnesses, GNSS receiver feeders, and telemetry cabinets.

Furnace, kiln & high-temp zone

Not suitable

Solid PE dielectric softens above +85 °C; specify PTFE/FEP RG-316 for +200 °C or high-frequency > 1 GHz.

RG-316

Typical machinesAutomotive FAKRA & GNSS HarnessesIoT, Sub-GHz & Cellular Antenna LeadsOscilloscope & Test Instrument ProbesIndustrial Telemetry & SCADA RadiosMedical Patient Monitoring Leads

Construction

Layer by layer

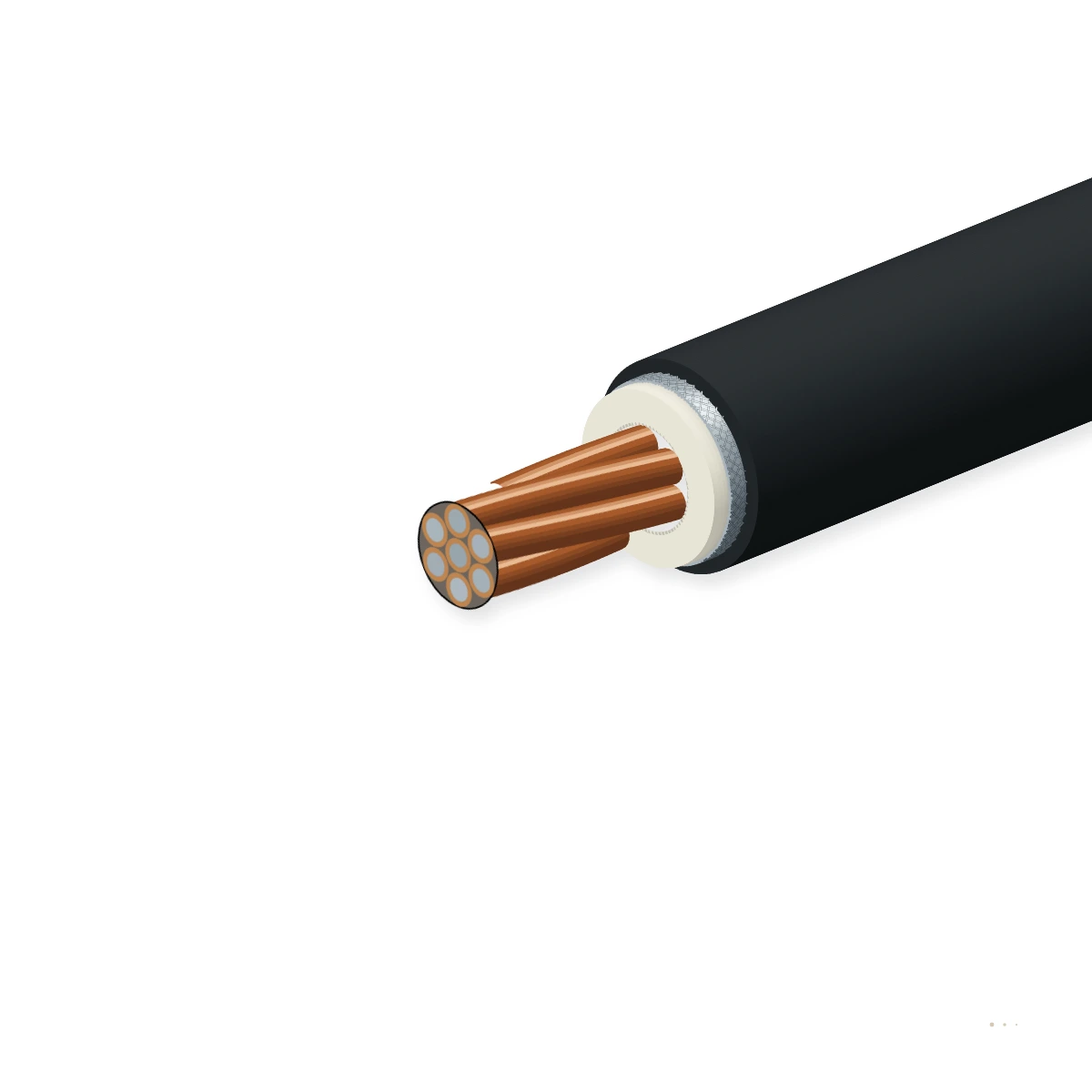

26 AWG (7×0.16 mm) copper-clad steel or bare copper conductor, Ø 1.52 mm solid polyethylene dielectric, ≥ 90 % tinned copper braid, and Ø

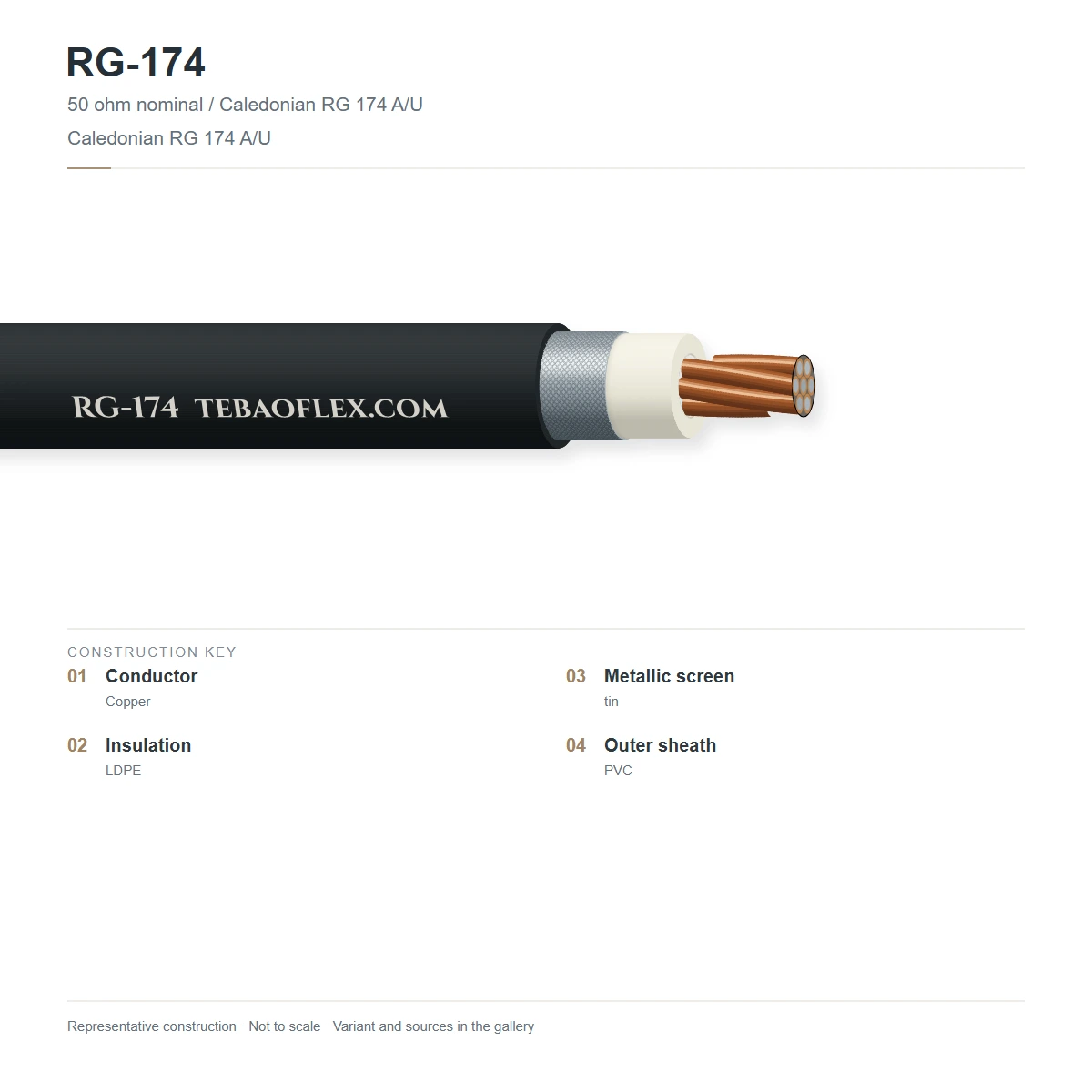

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Stranded 26 AWG center conductor	7 × 0.16 mm (Ø 0.48 mm) 40 % copper-clad steel (MIL RG-174/U) or bare/tinned pure copperMIL-DTL-17/119
2	Solid polyethylene (PE) dielectric	Extruded virgin low-loss solid polyethylene Type A, Ø 1.52 mm ± 0.05 mmMIL-DTL-17/119
3	Tinned copper wire braid shield	38 AWG tin-coated copper wire braid with ≥ 90 % optical coverageMIL-DTL-17/119
4	Non-contaminating PVC outer jacket	Flexible black polyvinyl chloride Type IIA (or halogen-free LSZH / automotive TPE), ØMIL-DTL-17/119

RG-174/U (MIL CCS Center)

7×0.16 mm copper-clad steel center conductor for maximum pull strength on test leads and antenna drops.

RG-174A/U (Pure Copper Center)

7×0.16 mm annealed bare/tinned copper center conductor for low DC loop resistance on phantom-powered active

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on MIL-DTL-17/119-RG174 (M17/196). Values for your order are confirmed in the datasheet and quotation.

Electrical

Characteristic impedance Z₀: 50 Ω ± 2 Ω
Nominal capacitance: 101.0 pF/m (30.8 pF/ft)
Velocity of propagation (VoP): 66.0 %
Propagation delay: 5.05 ns/m (1.54 ns/ft)
Max. operating voltage: 1,100 V rms
Dielectric withstand test: 2.0 kV rms at 60 Hz

Thermal

Operating temperature range: -40 °C to +80 °C (+105 °C automotive)
Installation temperature range: -20 °C to +70 °C
Dielectric softening point: +85 °C (solid polyethylene)
Flame retardance: IEC 60332-1-2 / UL VW-1
Cold-bend temperature: -40 °C per MIL-DTL-17
Thermal upgrade alternative: RG-316 (-55 to +200 °C PTFE/FEP)

Mechanical

Center conductor stranding: 7 × 0.16 mm (26 AWG, Ø 0.48 mm)
Dielectric diameter: 1.52 mm ± 0.05 mm (0.060 in)
Outer jacket diameter: 2.79 mm ± 0.10 mm (0.110 in)
Min. bend radius (fixed / flex): 12 mm (4×D) / 25 mm (9×D)
Nominal cable weight: 12.5 kg/km (8.4 lb/1000 ft)
Connector compatibility: SMA, FAKRA, SMB, SMC, MCX, BNC

Resistance

Abrasion & flex durability: Supple matte PVC Type IIA jacket
Oil & splash resistance: Resistant to light mineral oil splash
UV & outdoor weather: Black UV-stabilised jacket
Plasticizer non-contamination: Type IIA non-migrating PVC
LSZH option: IEC 60754-1/2 halogen-free version
RoHS / REACH status: RoHS 3 compliant

Reference standards

Military detail specification: MIL-DTL-17/119-RG174 & M17/196
Automotive harness norm: ISO 10305 / FAKRA Code A–Z compatible
Conductor standard: ASTM B452 (CCS) / ASTM B3 (Cu)
Flame test standard: IEC 60332-1-2 / UL 1581 VW-1
Coaxial test standard: IEC 61196-1
Quality certification: EN 10204 3.1 mill certificate

Identification

Dielectric colour: Translucent natural solid PE
Outer jacket colour: Black
Surface legend: TEBAOFLEX RG-174/U 50 OHM MIL-DTL-17
Standard spool lengths: 100 m, 305 m, 500 m, 1000 m
Impedance code: 50 Ω miniature PE coax
Batch traceability: Lot number & date code

Sizes

4 standard configurations (RG-174)

Dimensional, physical and high-frequency electrical parameters for RG-174 per MIL-DTL-17/119-RG174 (M17/196).

Dimensions & construction
Order designation	Construction / Variant	Conductor	Outer Ø ≈ mm	Metal kg/km	Weight ≈ kg/km	Min. bend R fixed mm
Standard RG-174 variants
RG-174/U (MIL CCS Conductor, PVC)	50 Ω Tinned Cu Braid (PVC)	26 AWG (7×0.16 CCS)	2.79	5.8	12.5	11
RG-174A/U (Pure Cu Conductor, PVC)	50 Ω Tinned Cu Braid (PVC)	26 AWG (7×0.16 Cu)	2.79	6.2	12.8	11
RG-174-LL Low-Loss Foam PE (FAKRA)	50 Ω Foil + Tinned Cu Braid	26 AWG (7×0.16 Cu)	2.80	6.8	11.8	11
RG-174-LSZH Halogen-Free	50 Ω Tinned Cu Braid (LSZH)	26 AWG (7×0.16 Cu)	2.80	6.2	13.2	11

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Dimensions and weights are nominal production values subject to manufacturing tolerances per MIL-DTL-17/119-RG174 (M17/196).

Attenuation & RF power handling
Frequency	Nominal attenuation dB / 100 m	Nominal attenuation dB / 100 ft	Max. CW RF power W (@ 40 °C)	Impedance Z₀ Ω	Velocity VoP %
10 MHz	11.2	3.41	240	50	66.0
50 MHz	21.7	6.61	110	50	66.0
100 MHz	29.5	8.99	78	50	66.0
200 MHz	42.7	13.01	52	50	66.0
400 MHz	62.3	18.99	35	50	66.0
1000 MHz (1 GHz)	105.0	32.00	20	50	66.0

Attenuation values apply at +20 °C ambient into a matched 50 Ω load; CW power ratings assume VSWR 1.0:1 at +40 °C ambient.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
Sweep impedance & return loss to 1 GHz	50 Ω ± 2 Ω; return loss ≥ 20 dB up to 1000 MHz	Every spool
AC dielectric voltage test	2.0 kV rms at 60 Hz without breakdown	Every spool
Sample tests
Attenuation & capacitance verification	≤ 101 pF/m and attenuation within MIL-DTL-17/119 limits	Per batch
-40 °C cold-bend & VW-1 flame test	No jacket cracking at -40 °C; passes vertical flame test	Qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

MIL-DTL-17/119-RG174UL VW-1 / IEC 60332-1-2RoHS 3 / CE

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX RG-174/U 50 OHM MIL-DTL-17/119

Delivery form: Spools, reels or export wooden drums
Standard reel lengths: 100 m · 305 m (1000 ft) · 500 m · 1000 m
MOQ: 100 m (stock) · 305–500 m (production)
Lead time: 1–3 weeks ex-works
Incoterms: EXW, FCA, FOB, CIF, DAP

Technical documents

Downloads

PDFRG-174 Miniature Flexible Coaxial Cable – technical datasheet4 sizes · construction, technical data, approvals XLSXRG-174 spec data (Excel)All 4 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

When should RG-174A/U (pure copper conductor) be chosen over standard RG-174/U (CCS)?

Standard RG-174/U uses a 40 % copper-clad steel (CCS) center conductor (~317 Ω/km DC resistance) for high tensile strength at RF, whereas RG-174A/U uses pure annealed copper (~140 Ω/km DC resistance) to minimize DC voltage drop when feeding 3.3 V or 5 V DC phantom power to active GNSS/GPS LNA antennas.

What is the practical upper frequency limit of RG-174?

RG-174 is ideal from DC to 1000 MHz (including VHF/UHF, 433/868/915 MHz ISM, and short < 3 m 1575 MHz GPS L1 pigtails); for higher frequencies up to 3–6 GHz or temperatures above +80 °C, specify PTFE-insulated RG-316. Each production reel undergoes sweep-frequency impedance and return-loss verification, dielectric spark testing, and dimensional inspection before dispatch with an EN 10204 3.1 test certificate.

Is RG-174 compatible with automotive FAKRA connectors?

Yes, RG-174 (both solid PE and low-loss foam PE variants) is the primary 2.8 mm cable size used with standard crimp FAKRA and Mini-FAKRA connectors in vehicle telematics. Each production reel undergoes sweep-frequency impedance and return-loss verification, dielectric spark testing, and dimensional inspection before dispatch with an EN 10204 3.1 test certificate.

How small can RG-174 be bent inside an instrument enclosure?

With its 2.79 mm outer diameter and 7-strand 26 AWG center conductor, RG-174 supports a minimum static bend radius of 12 mm (4 × D) without impedance discontinuity. Each production reel undergoes sweep-frequency impedance and return-loss verification, dielectric spark testing, and dimensional inspection before dispatch with an EN 10204 3.1 test certificate.

Request a quote

Get an engineering quote for RG-174

Your selection and application details are copied into the enquiry form below.

01Selected sizes

Use + Add next to a size or configuration.

02Reel & motion

Add your operating conditions here to include them in your enquiry.

Reel typeDrum core diameter (mm)Cable length on drum (m)Travel speed (m/min)Max. accelerationCycles per hourLength and quantityAmbient temperatureExposure (outdoor, water, oil, abrasion)Destination countryEquipment and operating conditions

03Message for our engineers

RG-174 Miniature Flexible Coaxial Cable

Selected sizes:


Reel & motion:
- Reel type:
- Drum core diameter (mm):
- Cable length on drum (m):
- Travel speed (m/min):
- Max. acceleration:
- Cycles per hour:
- Length and quantity:
- Ambient temperature:
- Exposure (outdoor, water, oil, abrasion):
- Destination country:
- Equipment and operating conditions:

Send via WhatsApp

Datasheet Request a quote
