MIL-DTL-17 Fluoropolymer & RF Coaxial CablesMIL-C-17 RG-196A/U50 Ω · Ø 2.03 mm30 AWG Subminiature +250 °C

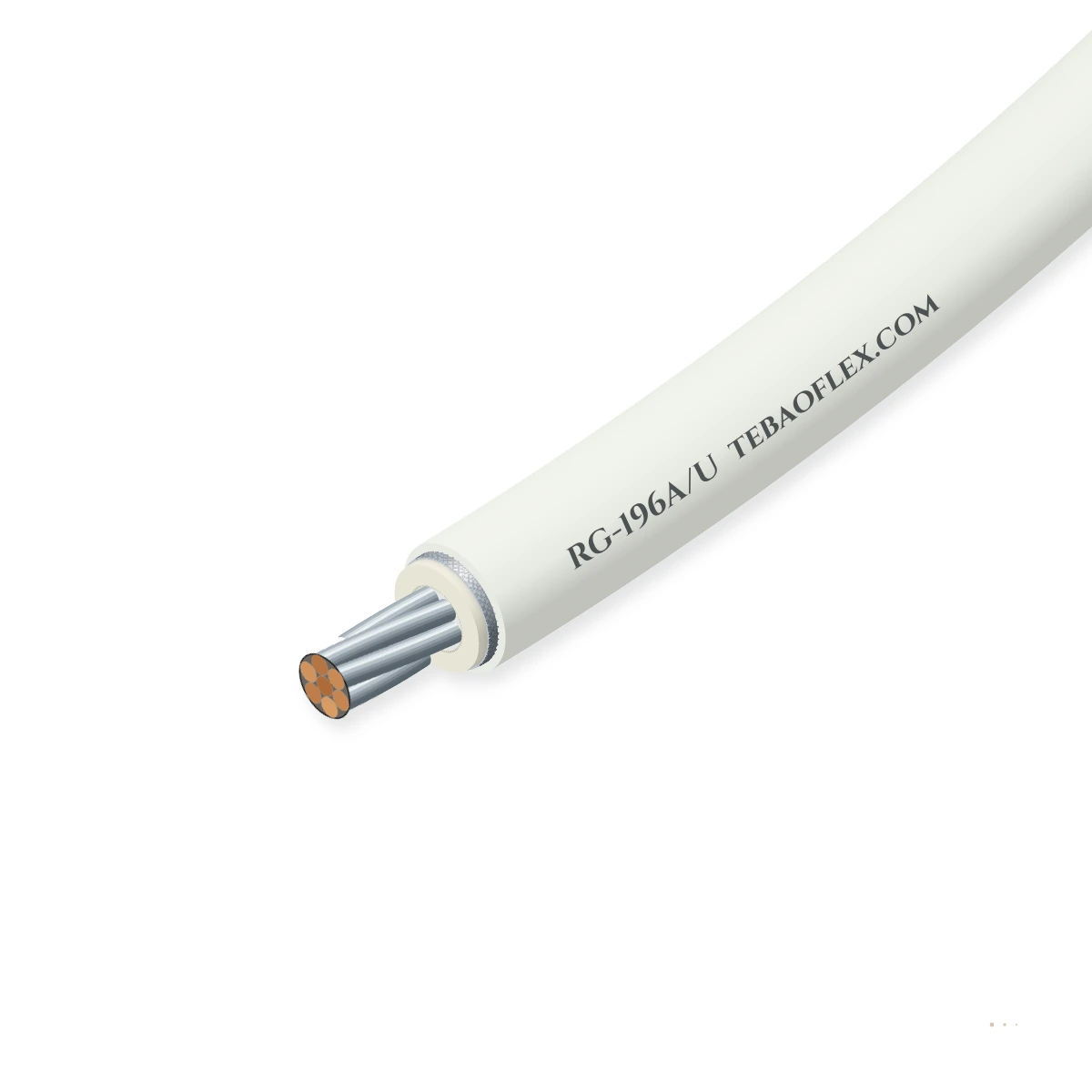

RG-196A/U Miniature Coaxial CableMIL-C-17 · 50 Ω ± 2 Ω · Ø 2.03 mm · 30 AWG (7×0.10) SCCS · Solid PTFE · SPC braid · +250

Q: How does RG-196A/U compare to RG-178B/U?

Both cables share the exact same 30 AWG (7×0.102 mm) silver-plated copper-clad steel center conductor, 0.86 mm solid PTFE dielectric, and 38 AWG silver-plated copper braid; RG-196A/U uses a fused white PTFE tape jacket rated to +250 °C, while RG-178B/U uses an extruded brown FEP jacket rated to +200 °C.

Q: When should RG-196A/U be chosen over RG-316 or RG-188A/U?

Choose RG-196A/U when routing space or weight is critical—its 2.03 mm diameter and 8.9 kg/km mass are roughly half the weight of RG-316/RG-188A/U, fitting subminiature MMCX, SSMB, and MCX board connectors. Each production reel undergoes sweep-frequency impedance and return-loss verification, dielectric spark testing, and dimensional inspection before dispatch with an EN 10204 3.1 test certificate.

Q: What is the maximum voltage rating of RG-196A/U?

Despite its 0.86 mm dielectric diameter, the high dielectric strength of virgin PTFE allows RG-196A/U to carry 750 V rms continuous working voltage and pass a 1.5 kV rms AC withstand test. Each production reel undergoes sweep-frequency impedance and return-loss verification, dielectric spark testing, and dimensional inspection before dispatch with an EN 10204 3.1 test certificate.

Q: For even smaller medical ultrasound probe bundles, what cable is recommended?

For 36 AWG to 46 AWG multi-channel catheter, endoscope, and ultrasound probe bundles, specify our Micro-Coaxial Cable for Medical and Precision Equipment. Each production reel undergoes sweep-frequency impedance and return-loss verification, dielectric spark testing, and dimensional inspection before dispatch with an EN 10204 3.1 test certificate.

RG-196A/U (MIL-C-17 / M17/69 and M17/139) is a 50 Ω subminiature fluoropolymer coaxial cable with a 2.03 mm outer diameter rated from -55 °C to +250 °C. Engineered with a 30 AWG (7×0.10 mm) silver-plated copper-clad steel center, Ø 0.86 mm solid PTFE

EMC screen

Low-EMC design

Flame-retardant

Oil-resistant

Variant

Order designation: RG-196A/U White PTFE Jacket (+250 °C)
Outer Ø ≈: 2.03 mm
Metal weight: 4.2 kg/km
Total weight ≈: 8.9 kg/km
Min. bend R (fixed): 10 mm

All sizes (4)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Impedance Z₀: 50 Ω ± 2 Ω
Outer diameter: 2.03 mm (0.080")
Velocity / Cap.: 69.5 % · 96.5
Temp. rating: -55 to +250 °C
Frequency range: DC to 3 GHz
Max. voltage: 750 V rms

Typical values for this cable type, based on MIL-DTL-17 (RG-196A/U / M17/69) — confirmed in the datasheet and quotation for your order.

Application fit

Is RG-196A/U right for your machine?

Built for high-density board-to-board RF jumpers, U.FL/MHF/MMCX/SSMB miniature connectors, phased-array radar backplanes, and implantable or endoscopic medical RF assemblies.

Switchgear & control cabinet wiring

Suitable

10 mm minimum bend radius and 2.03 mm OD allow tight routing inside dense RF modules.

Furnace, kiln & high-temp zone

Suitable

Withstands +250 °C continuous service and wave/reflow soldering proximity without core melt.

Fixed installation

Suitable

7×0.10 mm SCCS center conductor provides high break strength in a 30 AWG cross-section.

Energy chain / drag chain

Not suitable

Subminiature RF coax is intended for internal chassis wiring, not industrial drag chains.

S 368 C

Typical machinesHigh-Density Avionics & EW ModulesPhased-Array Radar & SATCOM BackplanesMedical Diagnostic & RF Ablation ProbesMiniature MMCX / SSMB / U.FL JumpersCryogenic & High-Temp Sensor Feeds

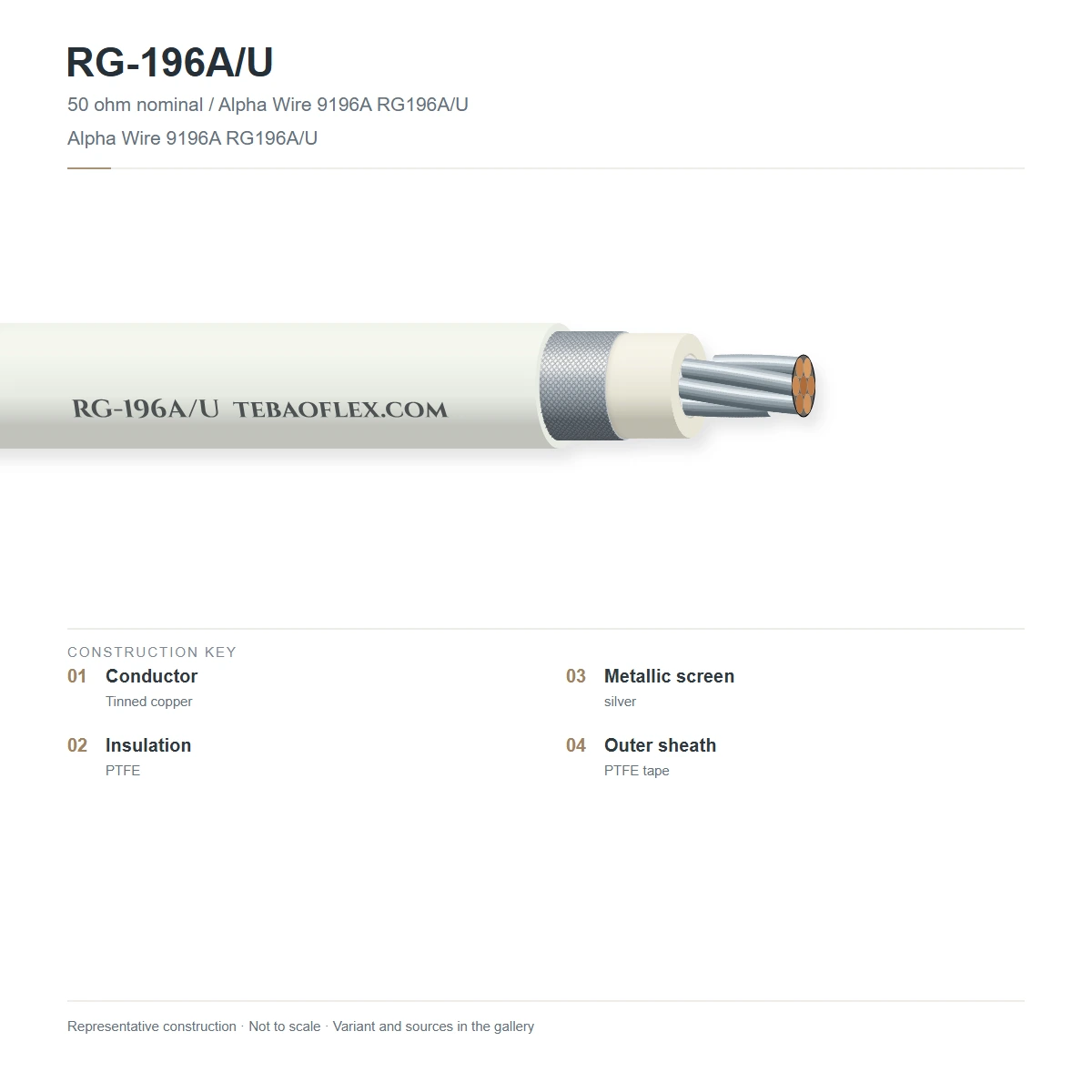

Construction

Layer by layer

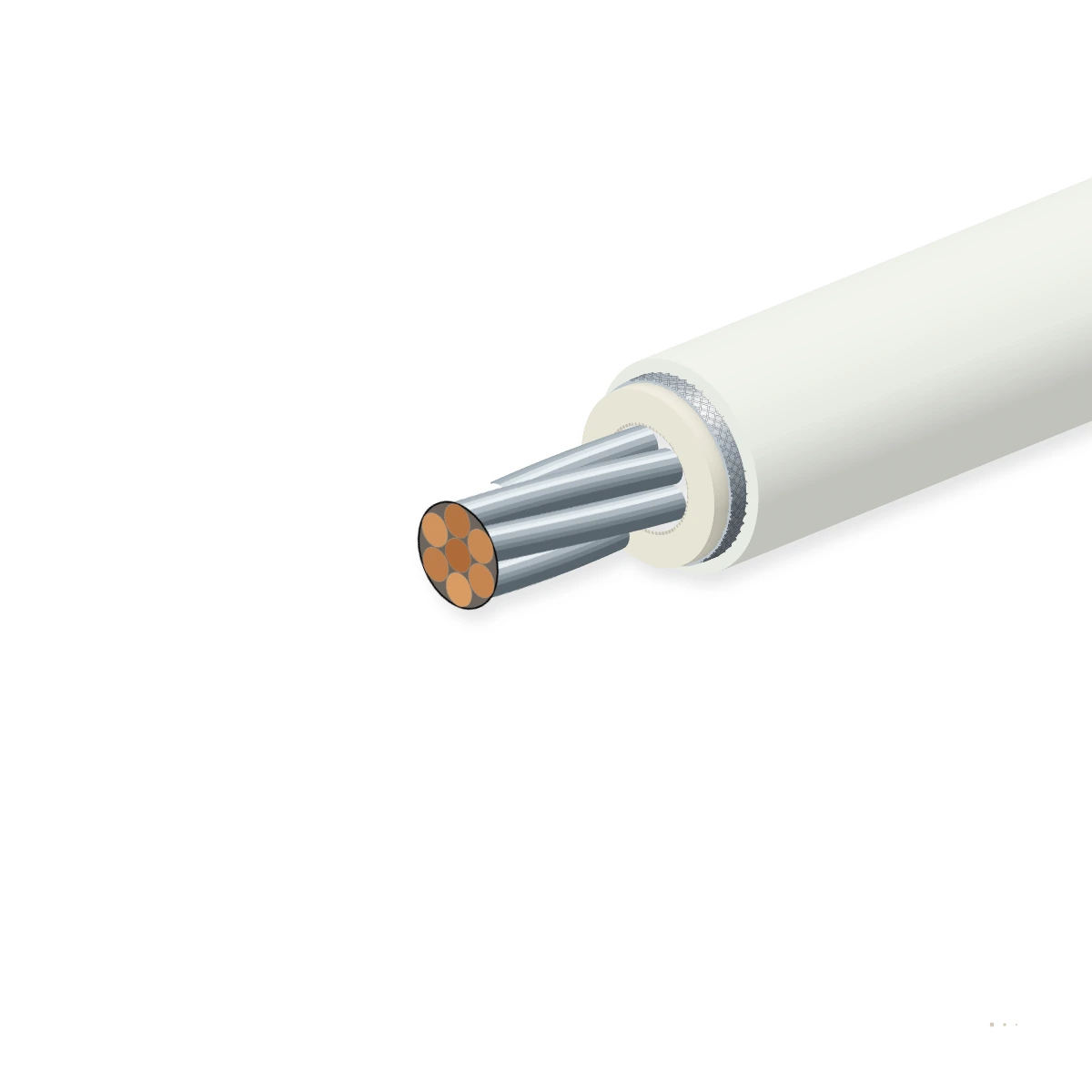

30 AWG (7×0.10 mm) silver-plated copper-clad steel center, Ø 0.86 mm virgin PTFE dielectric, ≥ 95 % silver-plated copper braid, and Ø 2.03

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Stranded SCCS center conductor (30 AWG)	7 × 0.102 mm (Ø 0.30 mm) silver-plated copper-clad steel wire per ASTM B501MIL-C-17
2	Solid virgin PTFE dielectric	Extruded polytetrafluoroethylene (PTFE), Ø 0.86 mm ± 0.05 mmMIL-C-17
3	Silver-plated copper wire braid	38 AWG silver-plated copper wire braid (≥ 95 % optical coverage)MIL-C-17
4	Sintered white PTFE outer jacket	Fused polytetrafluoroethylene (PTFE) tape jacket, white, Ø 2.03 mm max (or extruded FEPMIL-C-17

RG-196A/U (White PTFE +250 °C)

Sintered white PTFE tape jacket rated from -55 °C to +250 °C (Ø 2.03 mm max).

RG-178B/U / M17/93-RG178 (Brown FEP +200 °C)

Identical 30 AWG core and braid with extruded translucent brown FEP jacket (Ø 1.80 mm).

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on MIL-DTL-17 (RG-196A/U / M17/69). Values for your order are confirmed in the datasheet and quotation.

Electrical

Characteristic impedance Z₀: 50 Ω ± 2 Ω
Nominal capacitance: 96.5 pF/m (29.4 pF/ft)
Velocity of propagation (VoP): 69.5 %
Conductor DC resistance: ≤ 800 Ω/km at 20 °C (30 AWG SCCS)
Max. operating voltage: 750 V rms (1,000 V rms peak)
Dielectric withstand test: 1.5 kV rms at 60 Hz

Thermal

Operating temperature range: -55 °C to +250 °C continuous
FEP variant temperature (RG-178): -55 °C to +200 °C continuous
Soldering heat immunity: +260 °C without core deformation
Flammability rating: UL 94 V-0 / FAR 25.853 non-flammable
Cold-bend rating: -55 °C per MIL-DTL-17
Continuous CW power @ 400 MHz: 110 W (@ +40 °C ambient)

Mechanical

Center conductor stranding: 7 × 0.102 mm (30 AWG, Ø 0.30 mm)
Dielectric diameter: 0.86 mm ± 0.05 mm (0.034 in)
Outer jacket diameter: 2.03 mm max (0.080 in)
Min. bend radius (fixed / flex): 10 mm (5×D) / 20 mm (10×D)
Nominal cable weight: 8.9 kg/km (6.0 lb/1000 ft)
Connector compatibility: MMCX, MCX, SSMB,SSMC, SMB, SMA

Resistance

Chemical & solvent immunity: Inert to aviation fuels, solvents & acids
Moisture absorption: < 0.01 % water uptake
High-temperature aging: Zero melt or embrittlement at +250 °C
Tensile pull strength: High-strength 40 % CCS core
Radiation & UV stability: Fluoropolymer jacket resists UV
RoHS / REACH status: RoHS 3 compliant

Reference standards

Military specification: MIL-C-17 (RG-196A/U) & M17/139
FEP sister specification: MIL-DTL-17/93-RG178
Conductor standard: ASTM B501 silver-coated CCS
Dielectric standard: ASTM D4894 virgin PTFE
Flame standard: FAA FAR 25.853 & IEC 60332-1-2
Quality certification: EN 10204 3.1 mill certificate

Identification

Dielectric colour: Natural translucent white PTFE
Outer jacket colour: White (RG-196A/U) or Brown (RG-178B/U)
Surface legend: TEBAOFLEX RG-196A/U 50 OHM 250C
Standard spool lengths: 100 m, 305 m, 500 m
Impedance code: 50 Ω subminiature 30 AWG coax
Batch traceability: Lot number & sweep trace

Sizes

4 standard configurations (RG-196A/U)

Dimensional, physical and high-frequency electrical parameters for RG-196A/U per MIL-DTL-17 (RG-196A/U / M17/69).

Dimensions & construction
Order designation	Construction / Variant	Conductor	Outer Ø ≈ mm	Metal kg/km	Weight ≈ kg/km	Min. bend R fixed mm
Standard RG-196A/U variants
RG-196A/U White PTFE Jacket (+250 °C)	50 Ω Single SPC Braid (PTFE)	30 AWG (7×0.10 SCCS)	2.03	4.2	8.9	10
RG-178B/U (M17/93) Brown FEP (+200 °C)	50 Ω Single SPC Braid (FEP)	30 AWG (7×0.10 SCCS)	1.80	4.2	8.2	9
M17/139-00001 PFA Jacket (+250 °C)	50 Ω Single SPC Braid (PFA)	30 AWG (7×0.10 SCCS)	1.90	4.2	8.6	10
RG-316/U Larger 26 AWG Sister Coax	50 Ω Single SPC Braid (FEP)	26 AWG (7×0.17 SCCS)	2.50	7.8	15.6	12

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Dimensions and weights are nominal production values subject to manufacturing tolerances per MIL-DTL-17 (RG-196A/U / M17/69).

Attenuation & RF power handling
Frequency	Nominal attenuation dB / 100 m	Nominal attenuation dB / 100 ft	Max. CW RF power W (@ 40 °C)	Impedance Z₀ Ω	Velocity VoP %
50 MHz	42.7	13.01	300	50	69.5
100 MHz	52.5	16.00	210	50	69.5
400 MHz	108.3	33.01	110	50	69.5
1000 MHz (1 GHz)	170.6	52.00	68	50	69.5
2400 MHz (2.4 GHz)	275.6	84.00	42	50	69.5
3000 MHz (3 GHz)	315.0	96.01	36	50	69.5

Attenuation values apply at +20 °C ambient into a matched 50 Ω load; CW power ratings assume VSWR 1.0:1 at +40 °C ambient.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
Sweep impedance & VSWR to 3 GHz	50 Ω ± 2 Ω; consistent velocity 69.5 %	Every spool
1.5 kV AC dielectric spark test	1.5 kV rms at 60 Hz without breakdown	Every spool
Sample tests
Attenuation at 400 MHz & 1 GHz	Complies with MIL-C-17 RG-196A/U limits	Per batch
+250 °C heat aging & -55 °C cold bend	Zero dielectric cracking or shrink-back	Qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

MIL-C-17 (RG-196A/U)MIL-DTL-17/93 (RG-178)RoHS 3 / CE

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX RG-196A/U 50 OHM 250C PTFE [Lot]

Delivery form: Spools, reels or export wooden drums
Standard reel lengths: 100 m · 305 m (1000 ft) · 500 m · 1000 m
MOQ: 100 m (stock) · 305–500 m (production)
Lead time: 1–3 weeks ex-works
Incoterms: EXW, FCA, FOB, CIF, DAP

Technical documents

Downloads

PDFRG-196A/U Miniature Coaxial Cable – technical datasheet4 sizes · construction, technical data, approvals XLSXRG-196A/U spec data (Excel)All 4 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

How does RG-196A/U compare to RG-178B/U?

Both cables share the exact same 30 AWG (7×0.102 mm) silver-plated copper-clad steel center conductor, 0.86 mm solid PTFE dielectric, and 38 AWG silver-plated copper braid; RG-196A/U uses a fused white PTFE tape jacket rated to +250 °C, while RG-178B/U uses an extruded brown FEP jacket rated to +200 °C.

When should RG-196A/U be chosen over RG-316 or RG-188A/U?

Choose RG-196A/U when routing space or weight is critical—its 2.03 mm diameter and 8.9 kg/km mass are roughly half the weight of RG-316/RG-188A/U, fitting subminiature MMCX, SSMB, and MCX board connectors. Each production reel undergoes sweep-frequency impedance and return-loss verification, dielectric spark testing, and dimensional inspection before dispatch with an EN 10204 3.1 test certificate.

What is the maximum voltage rating of RG-196A/U?

Despite its 0.86 mm dielectric diameter, the high dielectric strength of virgin PTFE allows RG-196A/U to carry 750 V rms continuous working voltage and pass a 1.5 kV rms AC withstand test. Each production reel undergoes sweep-frequency impedance and return-loss verification, dielectric spark testing, and dimensional inspection before dispatch with an EN 10204 3.1 test certificate.

For even smaller medical ultrasound probe bundles, what cable is recommended?

For 36 AWG to 46 AWG multi-channel catheter, endoscope, and ultrasound probe bundles, specify our Micro-Coaxial Cable for Medical and Precision Equipment. Each production reel undergoes sweep-frequency impedance and return-loss verification, dielectric spark testing, and dimensional inspection before dispatch with an EN 10204 3.1 test certificate.
