EN 50288-7 PVC/PVC instrumentation cableBS EN 50288-7300/500 V · PVC / PVCL/R ≤ 25–40 µH/Ω · OS / PiMF

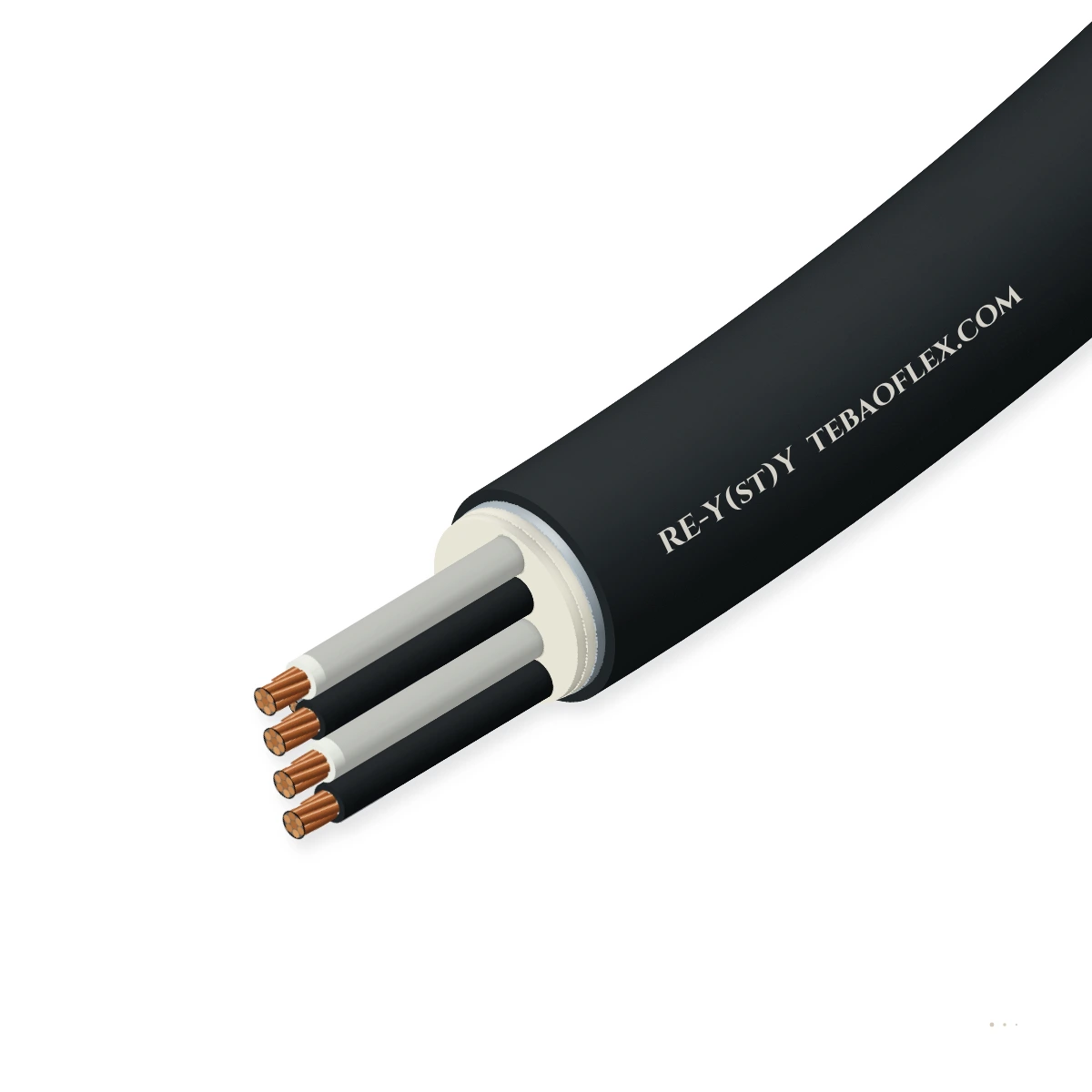

RE-Y(st)Y Instrumentation CableEN 50288-7 PVC-insulated collectively or PiMF-screened PVC instrumentation cable

Flexible, economical 300/500 V process instrumentation cable built to BS EN 50288-7 with Class 2 (or Class 5) copper conductors, PVC (Y / TI1) core insulation, collective or PiMF Al/PET screen with tinned drain wire and flame-retardant PVC sheath.

Low-EMC design
EMC screen
Flame-retardant
Oil-resistant
Order designation
RE-Y(st)Y 4×2×1.0 PiMF
Outer Ø ≈
12.2 mm
Copper weight
90 kg/km
Total weight ≈
192 kg/km
Min. bend R (fixed)
92 mm
All sizes (18)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
300/500 V
EN 50288-7 · 2000 V AC test
Insulation
PVC (Y / TI1)
EN 50290-2-21 · −30…+70 °C
Max. L/R ratio
≤ 25 / 40 µH/Ω
0.5–1.0 mm² (25) · 1.5 mm² (40)
Capacitance
≤ 200–250 nF/km
at 800 Hz (PVC dielectric)
Screening
OS or PiMF+OS
Al/PET foil + 0.5 mm² drain
Bend radius
7.5 × OD
fixed routing · 10 × OD pulling

Typical values for this cable type, based on BS EN 50288-7 (300/500 V) — confirmed in the datasheet and quotation for your order.

Application fit

Is RE-Y(st)Y right for your machine?

Widely specified for general industrial 4–20 mA analogue loops, RTD/sensor leads, PLC/DCS marshalling cabinets and indoor/outdoor cable trays where PVC core flexibility and self-extinguishing core insulation are advantageous.

Fixed installation

Suitable

Supple PVC cores dress neatly into high-density marshalling terminal blocks and cable trays.

Offshore platform & shipboard deck trays

Suitable

UV-stabilised Black RAL 9005 PVC outer sheath for sheltered and open-air industrial racks.

TBM gantry & advancing tunnel reel

Not suitable

Unarmoured PVC sheath requires ducting underground; use SWA armoured RE-Y(st)Y SWAY / RE-2Y(st)Y SWAY for direct burial.

Use RE-2Y(st)Y SWAY

Energy chain / drag chain

Not suitable

Static EN 50288-7 process cable; use PVC Shielded Drag-Chain Control Cable for moving carriers.

PUR Drag-Chain Control Cable
Typical machinesChemical, Water & Wastewater Treatment PlantsPower Stations, Boilers & Balance-of-PlantPLC & DCS Marshalling Cabinet WiringFood, Beverage & Pharmaceutical UtilitiesCement, Steel & General Process Automation

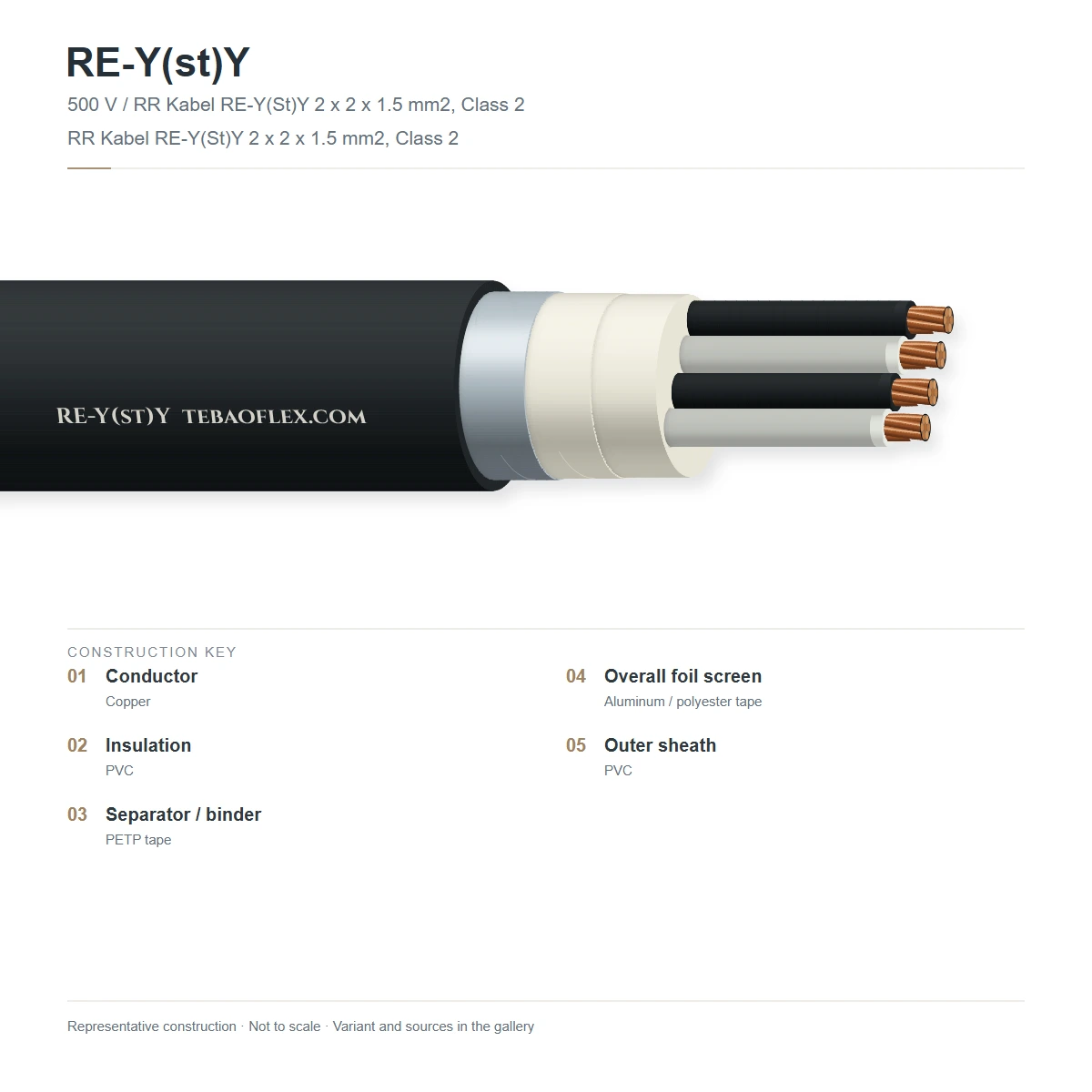

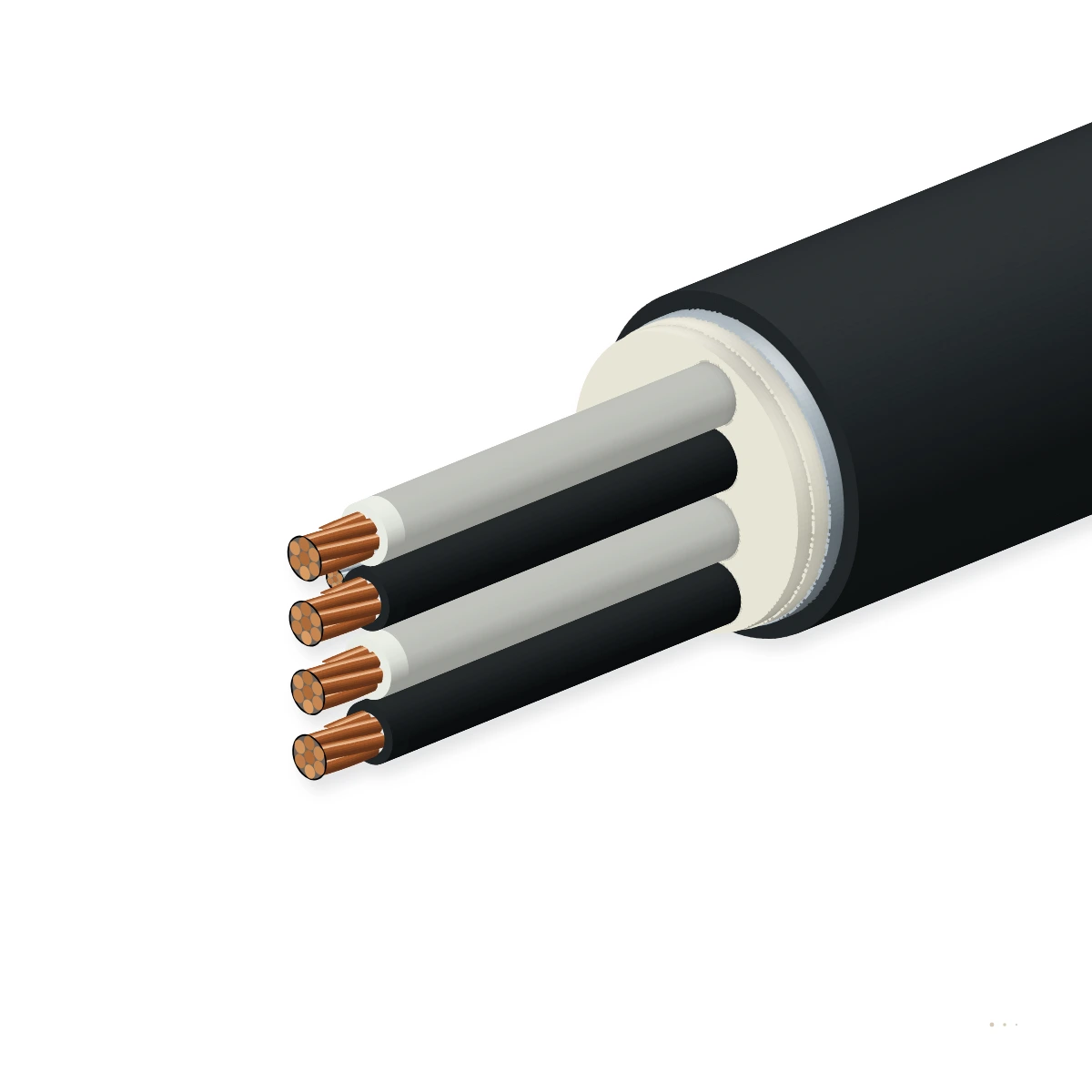

Construction

Layer by layer

Shown: RE-Y(st)Y PiMF 4×2×1.0 mm² with Class 2 copper conductors, Black/White numbered PVC (Y) cores, individual Al/PET pair screens (PiMF), collective Al/PET screen and Black or Ex-i Blue PVC outer sheath.

123456
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Stranded copper conductorsAnnealed bare or tinned copper, 7-wire stranded (IEC 60228 Class 2; Class 5 flexible optional)Low DC loop resistance and reliable screw/spring terminal clamping
2Flame-retardant PVC core insulation (Y)Extruded PVC compound (TI1 / YI2 per EN 50290-2-21)Self-extinguishing individual cores that hold their formed shape inside cabinets
3Individual pair screen (PiMF option)Al/PET laminated tape + 0.5 mm² tinned copper drain wire on each pairPrevents pair-to-pair crosstalk on multi-pair trunks
4Polyester binder tapeHelical PET separating wrap over laid-up pairs or triadsMaintains circular pair bundle geometry
5Collective Al/PET electrostatic screen (st)Aluminium/PET tape (≥ 20 % overlap) + 0.5 mm² tinned copper drain wire100 % electrostatic shielding
6Flame-retardant PVC outer sheath (Y)Extruded PVC (TM1 / YM1 per EN 50290-2-22) with ripcord, Black RAL 9005 or Blue RAL 5015 (Ex-i)IEC 60332-1-2 & IEC 60332-3-24 Cat C flame retardant

RE-Y(st)Y (Collective Screen)

PVC-insulated pairs or triads with overall Al/PET tape screen and PVC sheath

RE-Y(st)Y PiMF (Indiv. + Overall)

Individual Al/PET pair screens plus overall Al/PET screen and PVC sheath

RE-Y(st)Y Ex-i (RAL 5015 Blue)

Sky-blue PVC outer sheath for Zone 0/1/2 intrinsically safe loops

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on BS EN 50288-7 (300/500 V). Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
300/500 V
Test voltage
2000 V AC (core/core & core/screen) for 1 min
Insulation resistance
≥ 100 MΩ·km at +20 °C
Mutual capacitance (at 800 Hz)
≤ 200 nF/km (OS) · ≤ 250 nF/km (PiMF)
Max. L/R ratio
≤ 25 µH/Ω (0.5–1.0 mm²) · ≤ 40 µH/Ω (1.5 mm²)

Thermal

Operating temperature, fixed
−30 °C to +70 °C (+90 °C HR-PVC option)
Operating temperature, installation
−5 °C to +50 °C

Mechanical

Min. bending radius, fixed
7.5 × OD
Min. bending radius, during pulling
10 × OD

Resistance

Flame retardance
IEC 60332-1-2 & IEC 60332-3-24 (Cat C)
Oil & chemical resistance
EN 50290-2-22 TM1 oil-resistant PVC

Reference standards

Design standard
BS EN 50288-7
Conductor standard
IEC 60228 Class 2 (or Class 5)

Identification

Core identification
Black / White numbered 1, 2… (Triads: Bk/Wh/Rd)
Outer sheath colour
Black (RAL 9005), Blue (RAL 5015 Ex-i) or Grey
Customs tariff (HS)
8544.49

Sizes

18 standard RE-Y(st)Y & RE-Y(st)Y PiMF instrumentation sizes

1 to 24 pairs in 0.5, 0.75, 1.0 and 1.5 mm² with PVC core insulation and PVC outer sheath.

Dimensions & weights
Order designationFormatScreeningOuter Ø ≈
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
0.5 mm² PVC/PVC — L/R ≤ 25 µH/Ω · R₂₀ ≤ 36.7 Ω/km
RE-Y(st)Y 1×2×0.51×2×0.5 mm²OS5.6154442
RE-Y(st)Y 2×2×0.52×2×0.5 mm²OS8.0257560
RE-Y(st)Y 4×2×0.5 PiMF4×2×0.5 mm²PiMF+OS10.45213078
RE-Y(st)Y 8×2×0.5 PiMF8×2×0.5 mm²PiMF+OS13.598222101
RE-Y(st)Y 12×2×0.5 PiMF12×2×0.5 mm²PiMF+OS16.2144315122
0.75 mm² PVC/PVC — L/R ≤ 25 µH/Ω · R₂₀ ≤ 25.0 Ω/km
RE-Y(st)Y 1×2×0.751×2×0.75 mm²OS6.0205345
RE-Y(st)Y 2×2×0.752×2×0.75 mm²OS8.8349166
RE-Y(st)Y 4×2×0.75 PiMF4×2×0.75 mm²PiMF+OS11.47116086
RE-Y(st)Y 8×2×0.75 PiMF8×2×0.75 mm²PiMF+OS14.9136275112
1.0 mm² PVC/PVC — L/R ≤ 25 µH/Ω · R₂₀ ≤ 18.5 Ω/km
RE-Y(st)Y 1×2×1.01×2×1.0 mm²OS6.4256348
RE-Y(st)Y 4×2×1.0 PiMF4×2×1.0 mm²PiMF+OS12.29019292
RE-Y(st)Y 8×2×1.0 PiMF8×2×1.0 mm²PiMF+OS16.1174334121
1.5 mm² PVC/PVC — L/R ≤ 40 µH/Ω · R₂₀ ≤ 12.3 Ω/km
RE-Y(st)Y 1×2×1.51×2×1.5 mm²OS7.2358154
RE-Y(st)Y 2×2×1.52×2×1.5 mm²OS10.56314479
RE-Y(st)Y 4×2×1.5 PiMF4×2×1.5 mm²PiMF+OS13.8129254104
RE-Y(st)Y 8×2×1.5 PiMF8×2×1.5 mm²PiMF+OS18.2252442136
RE-Y(st)Y 12×2×1.5 PiMF12×2×1.5 mm²PiMF+OS21.9374632164
RE-Y(st)Y 24×2×1.5 PiMF24×2×1.5 mm²PiMF+OS30.27421,195226
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Triads (1×3 to 24×3) for 3-wire Pt100 RTD sensors are also stocked in RE-Y(st)Y.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
2000 V AC dielectric test & DC resistance check2.0 kV AC for 1 min; R₂₀ per IEC 60228 Class 2Every manufactured drum
Sample tests
IEC 60332-3-24 Cat C vertical tray flame testPass bunched vertical ladder flame testPeriodic audit

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

BS EN 50288-7 CompliantIEC 60332-1-2 & IEC 60332-3-24 Cat CCE, RoHS 2 (2011/65/EU) & REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX RE-Y(st)Y <size> 300/500V EN 50288-7 IEC 60332-3-24 CE
Delivery form
Non-returnable fumigated wooden drums
Standard lengths
500 m · 1000 m standard drums (cut lengths on request)
MOQ
500 m (stock sizes) · 1000 m (custom)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FCA, FOB, CIF, DAP

Technical documents

Downloads

PDFRE-Y(st)Y Instrumentation Cable – technical datasheet18 sizes · construction, technical data, approvalsXLSXRE-Y(st)Y spec data (Excel)All 18 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What is the difference between RE-Y(st)Y and RE-2Y(st)Y?
In RE-Y(st)Y, the first 'Y' stands for PVC core insulation (mutual capacitance ≤ 200–250 nF/km, insulation resistance ≥ 100 MΩ·km). In RE-2Y(st)Y, '2Y' stands for Polyethylene (PE) core insulation (mutual capacitance ≤ 100–115 nF/km, insulation resistance ≥ 5000 MΩ·km). RE-Y(st)Y is more supple and economical for cabinet and general plant wiring, while RE-2Y(st)Y is preferred for long-distance Ex-i and HART loops.
How does RE-Y(st)Y compare with British BS 5308 Part 2 Type 1?
Both are 300/500 V PVC-insulated, Al/PET-screened, PVC-sheathed instrumentation cables. RE-Y(st)Y follows EN 50288-7 (Class 2 7-wire stranding, Black/White numbered pairs), whereas BS 5308 Part 2 Type 1 uses British Class 5/1/2 stranding and Black/Blue numbered pairs.
Is RE-Y(st)Y suitable for 3-wire Pt100 RTD temperature transmitters?
Yes. Multi-triad RE-Y(st)Y (e.g. 1×3×0.75 mm² or 4×3×1.0 mm² with Black/White/Red numbered cores) is widely used to connect 3-wire Pt100 RTDs to marshalling cabinets.
How should the screen and drain wire of RE-Y(st)Y be earthed in instrumentation and Ex-i loops?
To prevent circulating 50/60 Hz ground-loop currents from coupling into millivolt or 4–20 mA signals, the Al/PET screen and tinned copper drain wire of RE-Y(st)Y should be bonded to the clean instrumentation earth bar at one end only (typically in the control/marshalling cabinet) and insulated against chassis contact at the field transmitter or junction box, in accordance with IEC 60079-14 and EN 50288-7.
