Product

EN 50288-7 process instrumentation cableBS EN 50288-7300/500 V · L/R ≤ 25–40 µH/ΩEx-i Blue / Black PVC

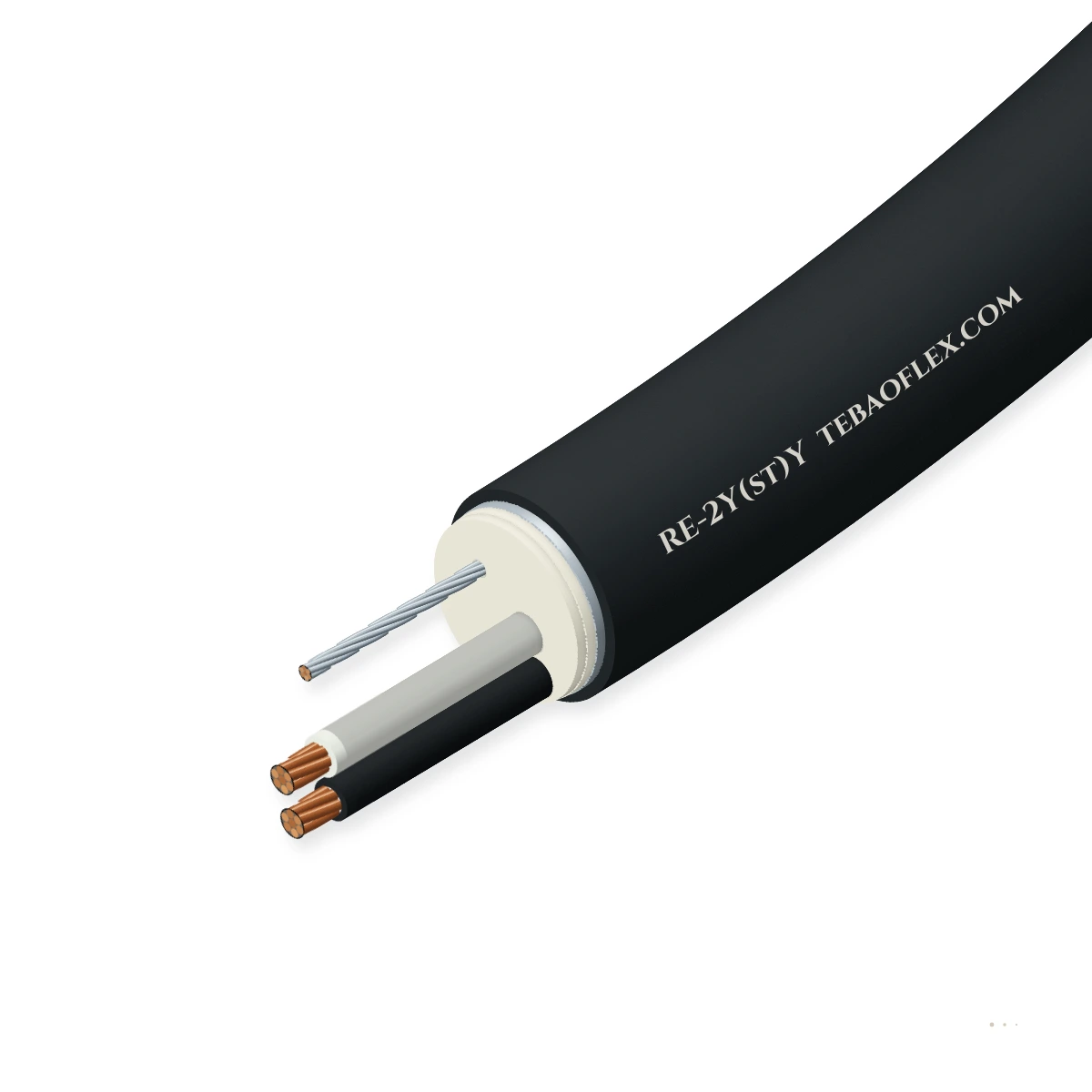

RE-2Y(st)Y Instrumentation CableEN 50288-7 PE-insulated collectively or PiMF-screened PVC instrumentation cable

Low-capacitance 300/500 V process instrumentation cable built to BS EN 50288-7 with IEC 60228 Class 2 copper conductors, polyethylene (2Y) core insulation, collective or PiMF Al/PET screen with tinned copper drain wire and flame-retardant PVC sheath.

Low-EMC design
EMC screen
Flame-retardant
Oil-resistant
Order designation
RE-2Y(st)Y 4×2×1.0 PiMF
Outer Ø ≈
12.5 mm
Copper weight
90 kg/km
Total weight ≈
194 kg/km
Min. bend R (fixed)
94 mm
All sizes (19)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
300/500 V
EN 50288-7 · 2000 V AC test
Max. L/R ratio
≤ 25 / 40 µH/Ω
0.5–1.0 mm² (25) · 1.5 mm² (40)
Capacitance
≤ 100 nF/km
OS · ≤ 115 nF/km PiMF+OS
Temperature
−40…+70 °C
fixed · −5…+50 °C installation
Screening
OS or PiMF+OS
Al/PET foil + 0.5 mm² drain
Bend radius
7.5 × OD
fixed routing · 10 × OD pulling

Typical values for this cable type, based on BS EN 50288-7 (300/500 V) — confirmed in the datasheet and quotation for your order.

Application fit

Is RE-2Y(st)Y right for your machine?

Engineered for fixed 4–20 mA current loops, HART digital overlays, DCS/PLC marshalling cabinets and intrinsically safe (Ex-i) process transmitters in refineries, chemical plants and power stations.

Fixed installation

Suitable

Designed for fixed cable trays, ladders, conduits and indoor/outdoor process racks.

Offshore platform & shipboard deck trays

Suitable

UV-stabilised black PVC sheath withstands sheltered and open-air industrial pipe racks.

TBM gantry & advancing tunnel reel

Not suitable

Unarmoured PVC sheath requires ducting underground; specify RE-2Y(st)Y SWAY for direct burial.

Use RE-2Y(st)Y SWAY

Energy chain / drag chain

Not suitable

Class 2 7-wire stranding and PE insulation are for static process routing, not drag chains.

PUR Drag-Chain Control Cable
Typical machinesOil & Gas Refineries & Petrochemical PlantsDCS, SCADA & PLC Marshalling SystemsEx-i Intrinsically Safe Process Loops (IEC 60079-14)Power Generation & Water TreatmentPharmaceutical & Bulk Chemical Processing

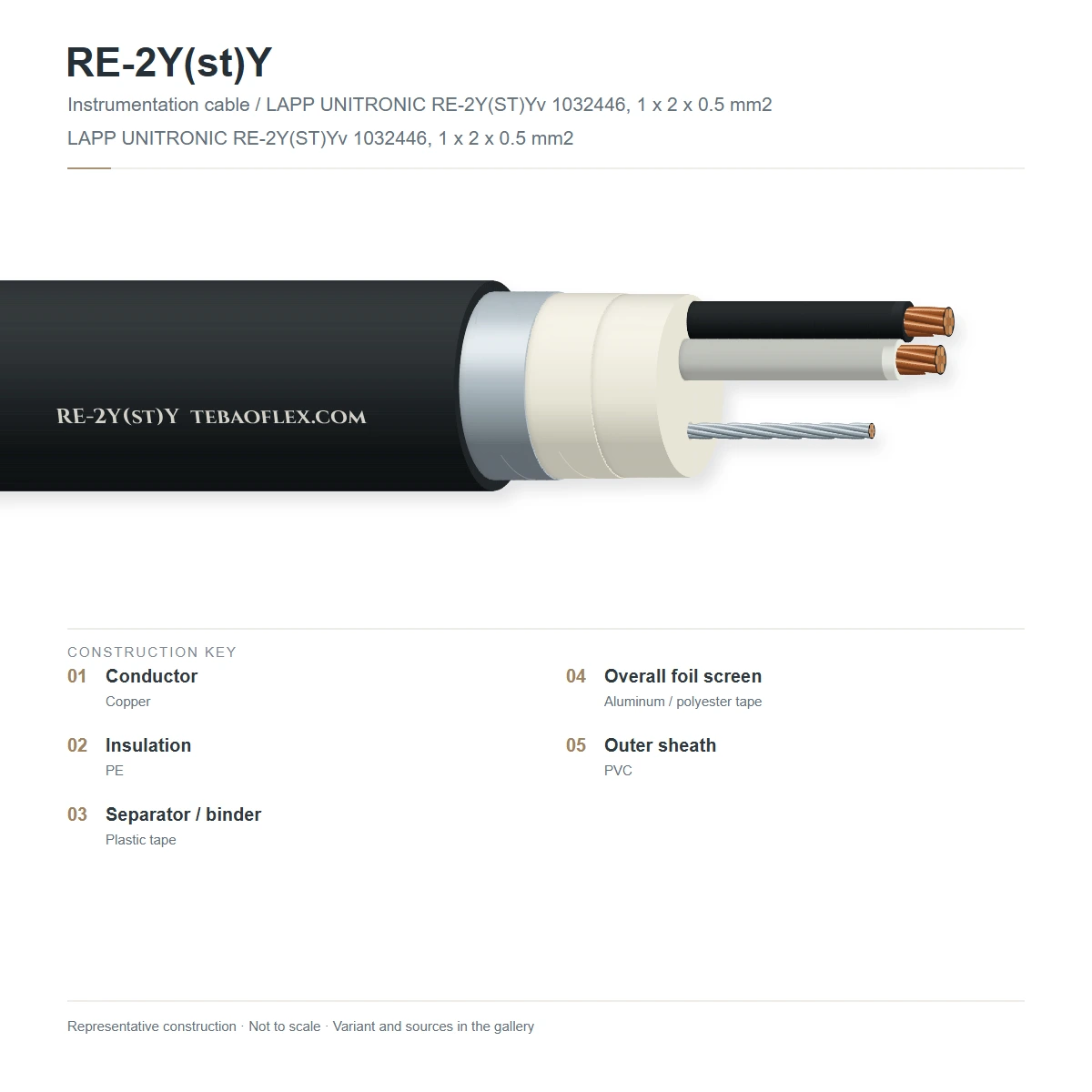

Construction

Layer by layer

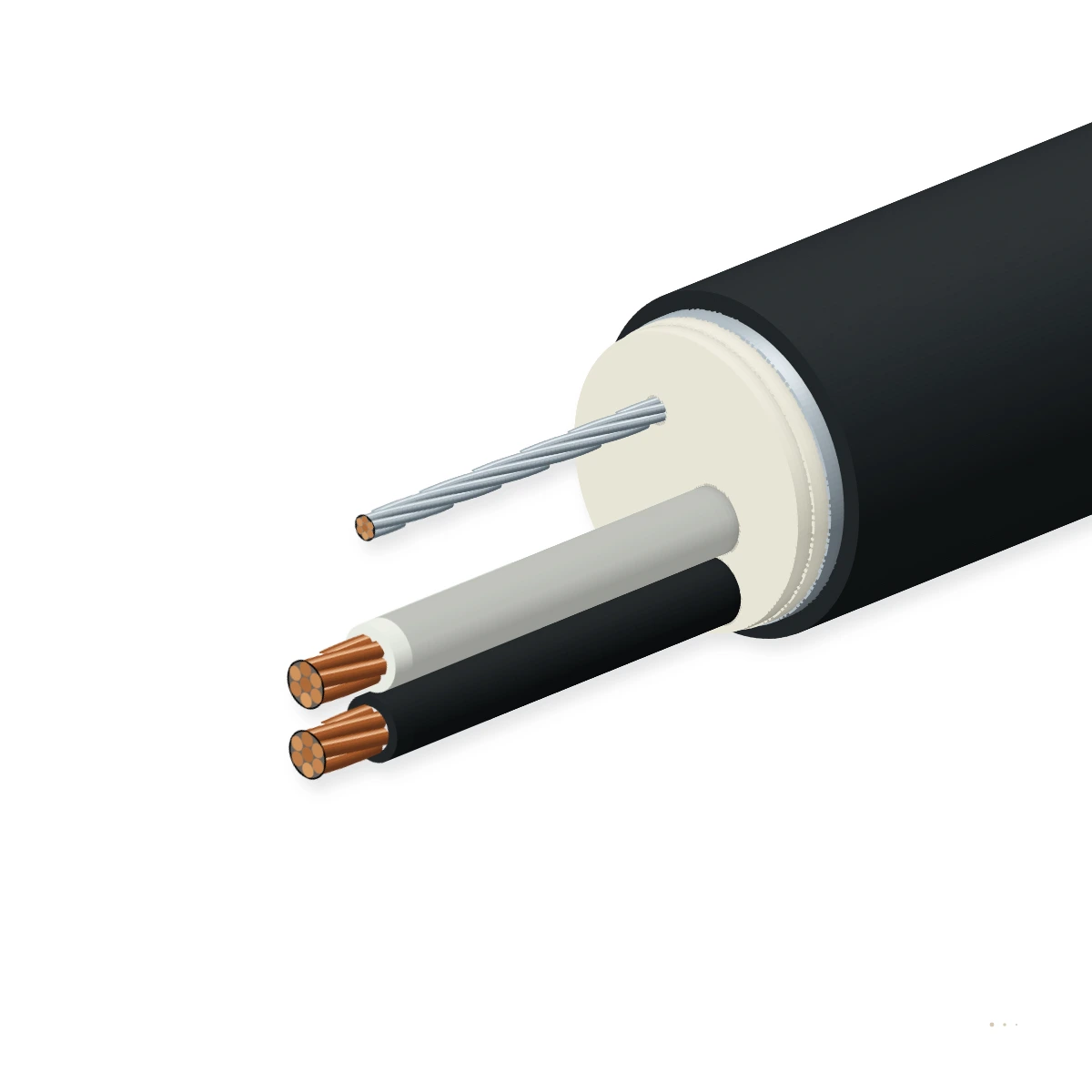

Shown: RE-2Y(st)Y PiMF 4×2×1.0 mm² with Class 2 copper pairs, numbered black/white PE cores, individual Al/PET pair screens (PiMF), collective Al/PET screen and black or RAL 5015 blue PVC outer sheath.

123456
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Stranded copper conductorsAnnealed bare or tinned copper, 7-wire stranded (IEC 60228 Class 2)Low DC loop resistance for long 4–20 mA transmitter runs
2Low-capacitance polyethylene insulationSolid polyethylene (PE / 2Y per EN 50290-2-23)Dielectric constant εr ≈ 2.3 keeps mutual capacitance ≤ 100–115 nF/km
3Individual pair screen (PiMF option)Aluminium/PET laminated tape (≥ 20 % overlap) + 0.5 mm² tinned copper drain wire per pairEliminates pair-to-pair crosstalk on multi-pair home-run trunks
4Polyester binder tapeHelical PET separating wrap over laid-up pairs or triadsMaintains circular pair bundle geometry
5Collective electrostatic screen (st)Aluminium/PET laminated tape with ≥ 0.5 mm² (7-wire) tinned copper drain wire100 % electrostatic shielding against plant VFD and switchgear noise
6Flame-retardant PVC outer sheathExtruded PVC (Y / TM1 per EN 50290-2-22) with nylon ripcord, Black RAL 9005 or Blue RAL 5015 (Ex-i)IEC 60332-1-2 & IEC 60332-3-24 Cat C flame retardant

RE-2Y(st)Y (Collective Screen)

Twisted pairs or triads with overall Al/PET tape screen and drain wire (Black or Ex-i Blue)

RE-2Y(st)Y PiMF (Indiv. + Overall)

Each pair individually foil-screened with drain wire plus collective Al/PET screen

RE-2Y(st)Y Ex-i (RAL 5015 Blue)

Intrinsically safe execution with RAL 5015 sky-blue sheath for Zone 0/1/2 Ex-i circuits

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on BS EN 50288-7 (300/500 V). Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
300/500 V
Test voltage
2000 V AC (core/core) · 2000 V AC (core/screen) for 1 min
Insulation resistance
≥ 5000 MΩ·km at +20 °C
Mutual capacitance (at 800 Hz)
≤ 100 nF/km (OS) · ≤ 115 nF/km (PiMF)
Max. L/R ratio (inductance/resistance)
≤ 25 µH/Ω (0.5–1.0 mm²) · ≤ 40 µH/Ω (1.5 mm²)

Thermal

Operating temperature, fixed
−40 °C to +70 °C
Operating temperature, installation
−5 °C to +50 °C
Max. short-circuit temperature
+150 °C (max. 5 s on PE dielectric)

Mechanical

Min. bending radius, fixed
7.5 × OD
Min. bending radius, during pulling
10 × OD
Pair twist lay length
≤ 50–100 mm (staggered lays in multi-pair)

Resistance

Flame retardance
IEC 60332-1-2 & IEC 60332-3-24 (Cat C bunched)
Oil & chemical resistance
EN 50290-2-22 TM1 / ICEA S-73-532 oil resistant
UV & weather resistance
UV-stabilised black RAL 9005 sheath (ISO 4892-2)

Reference standards

Design standard
BS EN 50288-7
Conductor standard
IEC 60228 / BS EN 60228 Class 2
Intrinsic safety compliance
IEC 60079-14 Clause 12.2.2 (Ex-i blue sheath)

Identification

Core identification
Pairs: Black / White numbered 1, 2… (Triads: Bk/Wh/Rd)
Outer sheath colour
Black (RAL 9005) or Blue (RAL 5015 for Ex-i)
Customs tariff (HS)
8544.49

Sizes

19 standard RE-2Y(st)Y & RE-2Y(st)Y PiMF instrumentation sizes

Available in 1 to 50 pairs or triads (0.5, 0.75, 1.0, 1.3, 1.5 and 2.5 mm²) with collective (OS) or individual + collective (PiMF) screening.

Dimensions & weights
Order designationFormatScreeningOuter Ø ≈
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
0.5 mm² (7×0.30 mm) — L/R ≤ 25 µH/Ω · R₂₀ ≤ 36.7 Ω/km
RE-2Y(st)Y 1×2×0.51×2×0.5 mm²OS5.8154544
RE-2Y(st)Y 2×2×0.52×2×0.5 mm²OS8.2257661
RE-2Y(st)Y 4×2×0.5 PiMF4×2×0.5 mm²PiMF+OS10.65213280
RE-2Y(st)Y 8×2×0.5 PiMF8×2×0.5 mm²PiMF+OS13.898224104
RE-2Y(st)Y 12×2×0.5 PiMF12×2×0.5 mm²PiMF+OS16.5144318124
0.75 mm² (7×0.37 mm) — L/R ≤ 25 µH/Ω · R₂₀ ≤ 25.0 Ω/km
RE-2Y(st)Y 1×2×0.751×2×0.75 mm²OS6.2205446
RE-2Y(st)Y 2×2×0.752×2×0.75 mm²OS9.0349268
RE-2Y(st)Y 4×2×0.75 PiMF4×2×0.75 mm²PiMF+OS11.67116287
RE-2Y(st)Y 8×2×0.75 PiMF8×2×0.75 mm²PiMF+OS15.2136278114
RE-2Y(st)Y 12×2×0.75 PiMF12×2×0.75 mm²PiMF+OS18.2202396136
1.0 mm² (7×0.43 mm) — L/R ≤ 25 µH/Ω · R₂₀ ≤ 18.5 Ω/km
RE-2Y(st)Y 1×2×1.01×2×1.0 mm²OS6.6256450
RE-2Y(st)Y 4×2×1.0 PiMF4×2×1.0 mm²PiMF+OS12.59019494
RE-2Y(st)Y 8×2×1.0 PiMF8×2×1.0 mm²PiMF+OS16.5174338124
1.5 mm² (7×0.53 mm) — L/R ≤ 40 µH/Ω · R₂₀ ≤ 12.3 Ω/km
RE-2Y(st)Y 1×2×1.51×2×1.5 mm²OS7.4358256
RE-2Y(st)Y 2×2×1.52×2×1.5 mm²OS10.86314681
RE-2Y(st)Y 4×2×1.5 PiMF4×2×1.5 mm²PiMF+OS14.1129258106
RE-2Y(st)Y 8×2×1.5 PiMF8×2×1.5 mm²PiMF+OS18.6252448140
RE-2Y(st)Y 12×2×1.5 PiMF12×2×1.5 mm²PiMF+OS22.4374642168
RE-2Y(st)Y 24×2×1.5 PiMF24×2×1.5 mm²PiMF+OS30.87421,215231
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • All multi-pair sizes (≥ 2 pairs) are available in both collective screen RE-2Y(st)Y and individual + collective screen RE-2Y(st)Y PiMF.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
2000 V AC core-to-core & core-to-screen dielectric test2.0 kV rms AC for 1 min without breakdownEvery manufactured drum
Conductor DC resistance & mutual capacitance @ 800 HzR₂₀ per IEC 60228 Class 2; C ≤ 100 / 115 nF/km; L/R ≤ 25 / 40 µH/ΩEvery manufactured drum
Sample tests
IEC 60332-3-24 Category C vertical tray flame testChar height ≤ 2.5 m above burner on bunched cable ladderPeriodic batch audit

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

BS EN 50288-7 CompliantIEC 60332-1-2 & IEC 60332-3-24 Cat CCE, RoHS 2 (2011/65/EU) & REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX RE-2Y(st)Y <size> 300/500V EN 50288-7 IEC 60332-3-24 CE
Delivery form
Non-returnable fumigated wooden drums
Standard lengths
500 m · 1000 m standard drums (cut lengths on request)
MOQ
500 m (stock sizes) · 1000 m (custom)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FCA, FOB, CIF, DAP

Technical documents

Downloads

PDFRE-2Y(st)Y Instrumentation Cable – technical datasheet19 sizes · construction, technical data, approvalsXLSXRE-2Y(st)Y spec data (Excel)All 19 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What does each code letter in RE-2Y(st)Y and RE-2Y(st)Y PiMF stand for?
'RE' denotes a process instrumentation and computer cable; '2Y' specifies solid polyethylene (PE) core insulation; '(st)' indicates a static Al/PET foil screen with tinned copper drain wire; 'PiMF' (Paar in Metallfolie) adds an individual foil screen around every pair; and the final 'Y' designates a flame-retardant PVC outer sheath.
Why is PE insulation (RE-2Y(st)Y) preferred over PVC insulation (RE-Y(st)Y) for intrinsically safe Ex-i and HART loops?
Polyethylene has a relative permittivity of εr ≈ 2.3 compared with εr ≈ 4.5–6.0 for PVC, cutting mutual capacitance below 100 nF/km (vs 200–250 nF/km for PVC). In Ex-i circuits governed by IEC 60079-14, total cable capacitance (Cc) and inductance-to-resistance ratio (L/R) must stay below the safety barrier's maximum allowable Co and Lo/Ro limits.
When should I specify PiMF (individual + collective screening) instead of collective screening only?
Collective screening (OS) protects the entire cable against external power-frequency and VFD noise and is ideal for single-pair field drops or homogeneous 4–20 mA analogue trunks. Specify PiMF when a multi-pair trunk mixes high-frequency pulse/frequency signals, HART digital bursts, and low-level millivolt signals where pair-to-pair capacitive crosstalk must be ≥ 60 dB attenuated.
When should I switch from RE-2Y(st)Y to RE-2X(st)Y or RE-2X(st)H?
Thermoplastic PE (2Y) softens above +70 °C. If the cable runs near steam tracing, hot process vessels, or high ambient zones requiring a +90 °C continuous conductor rating and +250 °C short-circuit rating, specify XLPE-insulated RE-2X(st)Y (PVC sheath) or RE-2X(st)H (LSZH sheath).
