AD8 Permanent-Submersion Rubber & Pump CablesEN 50525-2-21 AD8450/750 VScreened Submersible 'C4N8'

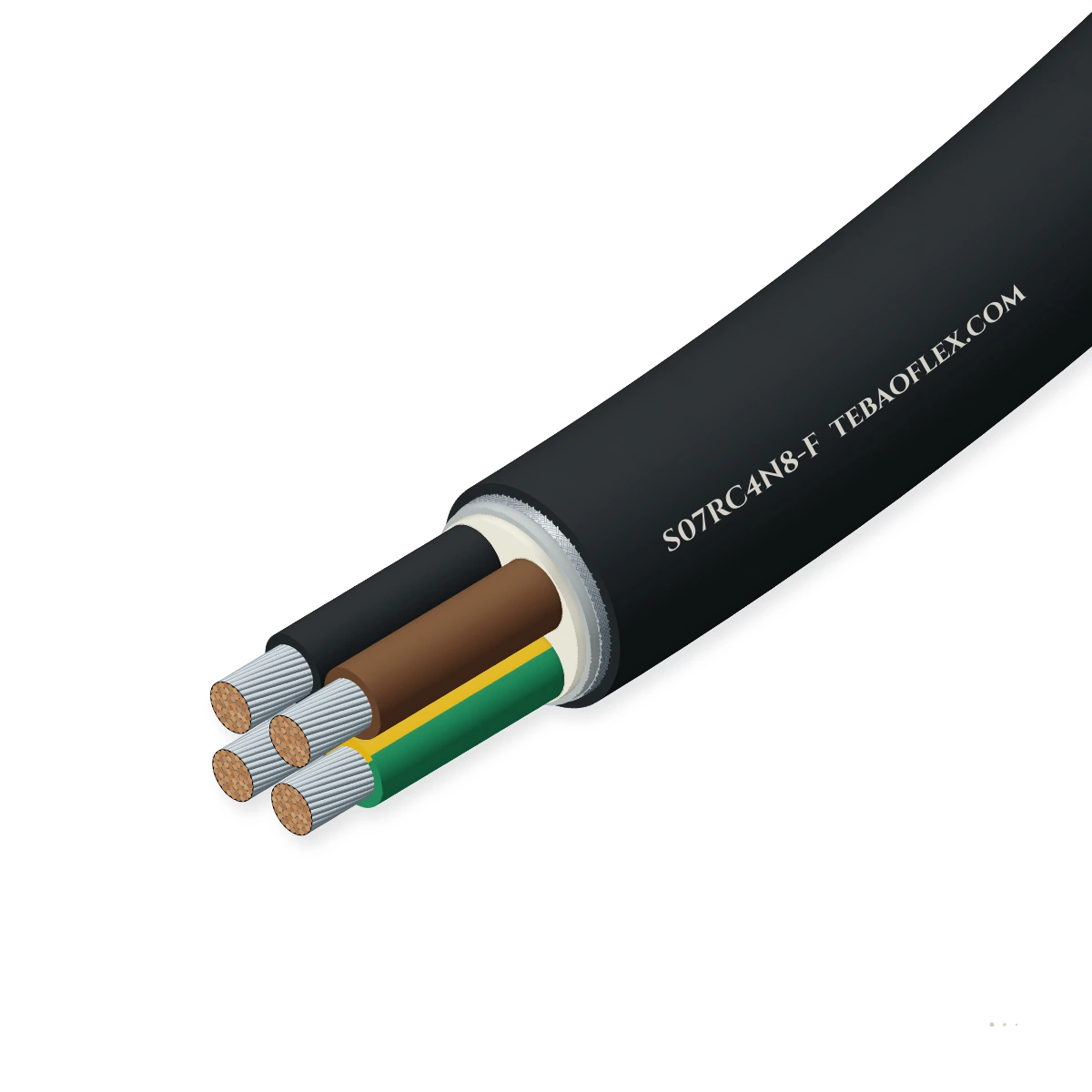

S07RC4N8-F Screened Heavy-Duty Submersible Polychloroprene RubberEN 50525-2-21 AD8 / HD 361 · 450/750 V · EPR ('R') · Cu braid ('C4') · AD8 PCP sheath

S07RC4N8-F is the EMC-screened counterpart to H07RN8-F, coded to CENELEC HD 361 for 450/750 V AD8 permanent water submersion. It combines low-water-uptake EPR core insulation ('R'), an ≥ 85 % tinned copper wire braid screen ('C4'), and a heavy-duty AD8

Water-resistant
EMC screen
Low-EMC design
Oil-resistant
Order designation
S07RC4N8-F 4G6.0
Outer Ø ≈
18.5 mm
Copper weight
302 kg/km
Total weight ≈
565 kg/km
Min. bend R (fixed)
74 mm
All sizes (12)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
450/750 V
U0/U AC · Submersible pump & control
Water class
AD8 Submersion
Permanent immersion to 10–100 m
EMC screening
Tinned Cu 'C4'
≥ 85 % braid for VFD & sensors
Conductor max.
+60 °C (+85 °C)
+40 °C water / +85 °C in air
Min. bend R
4 × D / 6 × D
Fixed submerged / pump hoisting
Outer sheath
EM2 AD8 PCP 'N8'
Oil-, sewage- & flame-retardant

Typical values for this cable type, based on EN 50525-2-21 AD8 / HD 361 — confirmed in the datasheet and quotation for your order.

Application fit

Is S07RC4N8-F right for your machine?

Engineered for VFD-driven submersible dewatering pumps, wastewater agitators, float/level sensor harnesses, and wet industrial machinery requiring both AD8 submersion and EMC screening.

Immersion & wet locations

Suitable

Certified for AD8 permanent submersion in raw water, groundwater, and municipal wastewater.

VFD inverter to AC motor screened feeder

Suitable

Tinned copper braid ('C4') suppresses PWM switching noise on variable-speed submersible pumps.

Trailing & towing

Suitable

Heavy-duty EM2 polychloroprene ('N8') sheath resists sump floor abrasion and pump hoisting.

Fixed installation

Suitable

Ideal for wet-well pump risers, hydro-turbine pits, and lock-gate control circuits.

Motorised monospiral reel

With conditions

Suitable for low-speed pump service winches; use NSHTÖU for high-speed crane reeling.

NSHTÖU 0.6/1 kV
Typical machinesVFD Submersible Dewatering PumpsMunicipal Wastewater & Sewage PlantsMine & Tunnel Sump PumpingHydroelectric & Lock-Gate ControlsMarine & Offshore Bilge Systems

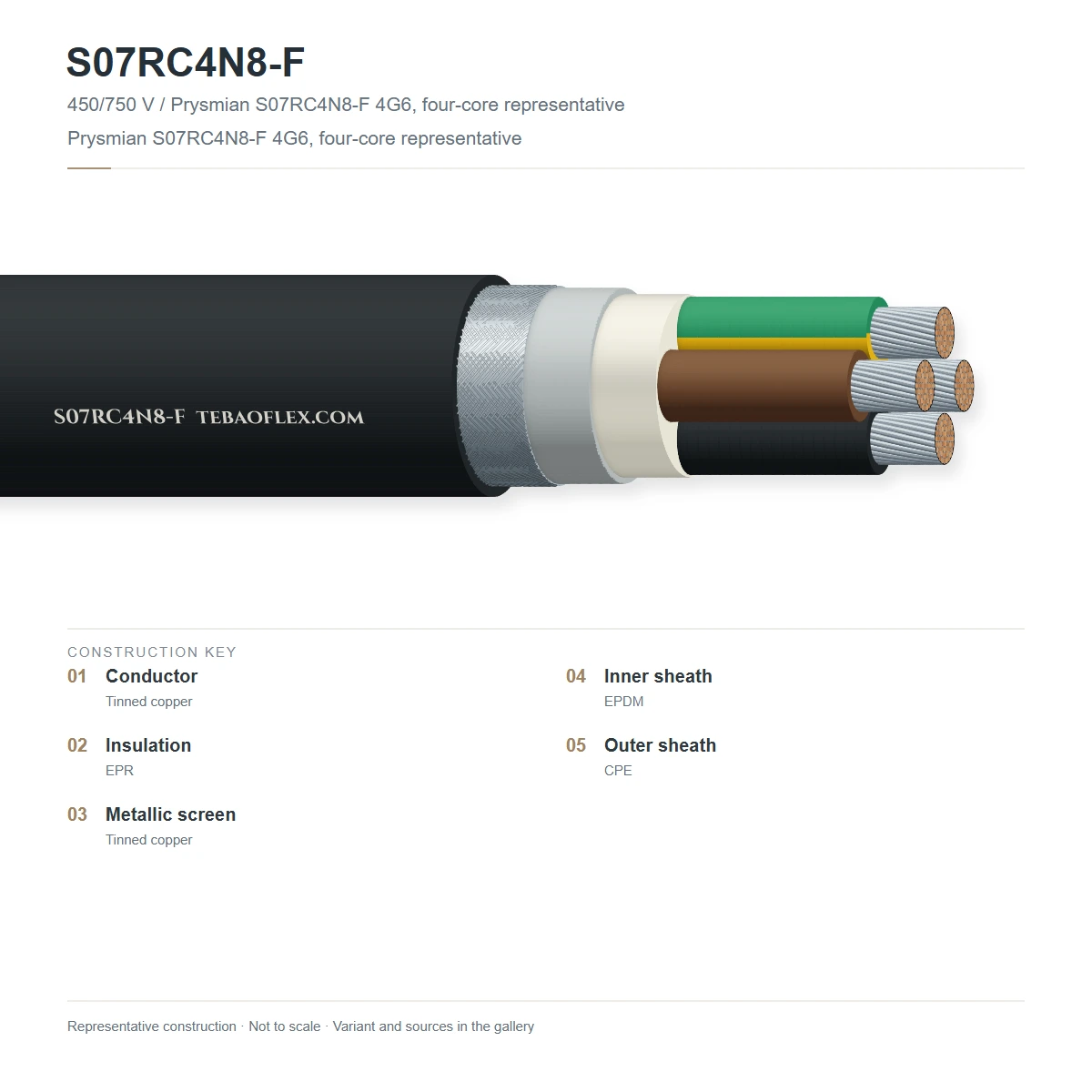

Construction

Layer by layer

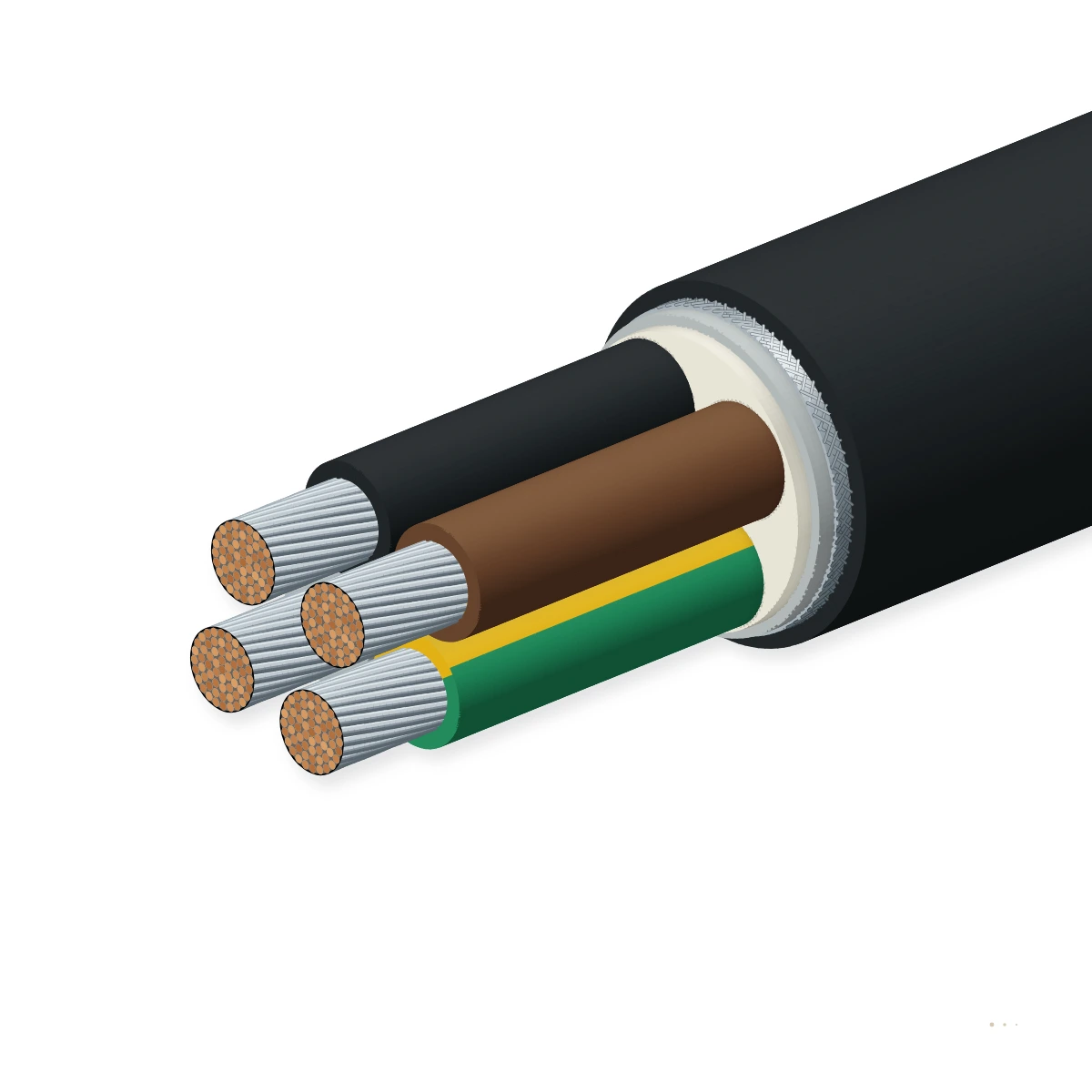

Class 5 copper conductors, water-resistant EI4 EPR insulation ('R'), elastomeric inner bedding, tinned copper braid screen ('C4'), and AD8

12345
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Flexible copper conductor ('-F')Class 5 fine-stranded plain or tinned annealed copper wireEN 60228 Class 5
2Water-resistant EPR insulation ('R')Cross-linked ethylene-propylene elastomer Type EI4 formulated for AD8 low water absorptionEN 50363-1 / EN 50525-2-21
3Water-blocking inner elastomer beddingExtruded rubber inner covering filling core interstices beneath the metallic screenEN 50525-2-21
4Tinned copper wire braid screen ('C4')Braided tin-coated copper wires (≥ 85 % optical coverage) providing 360° EMC shieldingHD 361 S3
5AD8 submersible polychloroprene sheathHeavy-duty flame-retardant, oil- and sewage-resistant polychloroprene compound Type EM2EN 50363-2-1 / EN 50525-2-21

S07RC4N8-F Power (4G1.5–4G50)

Screened 4-core (3+PE) submersible pump motor feeder for inverter-driven wet-well and dewatering pumps.

S07RC4N8-F Control (7G1.5–18G2.5)

Screened multi-core submersible control and thermal/moisture sensor cable for large pump units.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on EN 50525-2-21 AD8 / HD 361. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
450/750 V AC
Routine AC test voltage
2.5 kV rms / 5 min
Screen optical coverage ('C4')
≥ 85 % tinned copper wire braid
Wet insulation resistance
Stable under AD8 immersion
Conductor stranding class
EN 60228 Class 5
Operating frequency
50 / 60 Hz & VFD PWM

Thermal

Max. water temperature (AD8)
+40 °C continuous submersion
Max. conductor temp. (in air)
+60 °C (EN 50525-2-21) / +85 °C EPR
Max. short-circuit temperature
+200 °C (max. 5 s)
Mobile ambient range (in air)
-25 °C to +60 °C
Fixed ambient range (in air)
-40 °C to +60 °C
Min. installation temperature
-25 °C

Mechanical

Min. bend radius (fixed)
4 × D (≤ 12 mm) / 5 × D (> 12 mm)
Min. bend radius (flexing)
6 × D (≤ 12 mm) / 8 × D (> 12 mm)
Max. submersion depth
10 m (EN 50525-2-21) / up to 100 m factory
Max. tensile pull on copper
15 N/mm²
Crush & abrasion resistance
Heavy-duty EM2 polychloroprene
Gland termination
360° EMC compression gland compatible

Resistance

AD8 permanent water immersion
EN 50525-2-21 Annex D/E certified
Oil, grease & sewage sludge
EN 60811-404 oil-resistant EM2 PCP
Flame retardance
EN 60332-1-2 self-extinguishing
Ozone & UV weather resistance
EN 60811-403 ozone-proof
EMC interference immunity
Shielded against VFD common-mode currents
Halogen status
Polychloroprene elastomer

Reference standards

Designation code system
CENELEC HD 361 S3 ('S07RC4N8-F')
Submersible reference norm
EN 50525-2-21 (H07RN8-F AD8 family)
Compound standard
EN 50363-1 (EI4) & EN 50363-2-1 (EM2)
Conductor standard
EN 60228 Class 5
Flame test standard
EN 60332-1-2
Quality certification
EN 10204 3.1 mill certificate

Identification

Core identification (≤ 5 cores)
HD 308 S2 colours (with G/Y)
Core identification (≥ 6 cores)
White numbers on black cores + G/Y
Outer sheath colour
Black
Surface marking
TEBAOFLEX S07RC4N8-F [n×mm²] AD8 CE
Length marking
Sequential metre marking
Batch traceability
Lot number & year code

Sizes

12 standard configurations (S07RC4N8-F)

Nominal dimensions, copper weights and electrical parameters for S07RC4N8-F per EN 50525-2-21 AD8 / HD 361.

Dimensions & weights
Order designationConfigurationPhase size mm²Outer Ø ≈
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard S07RC4N8-F configurations
S07RC4N8-F 4G1.54G1.51.512.29222549
S07RC4N8-F 4G2.54G2.52.514.214231057
S07RC4N8-F 4G4.04G4.04.016.421242566
S07RC4N8-F 4G6.04G6.06.018.530256574
S07RC4N8-F 4G104G101023.248589093
S07RC4N8-F 4G164G161626.87351,250107
S07RC4N8-F 4G254G252531.61,1101,810126
S07RC4N8-F 4G354G353535.21,5202,360141
S07RC4N8-F 7G1.57G1.51.515.014834060
S07RC4N8-F 12G1.512G1.51.519.224053077
S07RC4N8-F 7G2.57G2.52.517.623549070
S07RC4N8-F 12G2.512G2.52.522.438576590
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal factory values subject to ±5 % manufacturing tolerance per EN 50525-2-21 AD8 / HD 361.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC water-bath dielectric test2.5 kV rms for 5 minutes without breakdownEvery drum
Conductor & C4 braid DC resistanceEN 60228 Class 5 & ≥ 85 % tinned copper braid verifiedEvery drum
Sample tests
AD8 gravimetric water absorption testComplies with EN 50525-2-21 Annex D/E water immersion limitsPer batch
Oil immersion & vertical flame testPasses EN 60811-404 oil test and EN 60332-1-2 flame testType approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

EN 50525-2-21 AD8 / HD 361EN 60332-1-2CE / RoHS

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX S07RC4N8-F 450/750V [n×mm²] AD8
Delivery form
Fumigated export wooden drums or coils
Standard drum lengths
500 m · 1000 m (or custom cut lengths)
MOQ
100 m (stock sizes) · 300–500 m (production)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFS07RC4N8-F Screened Heavy-Duty Submersible Polychloroprene Rubber – technical datasheet12 sizes · construction, technical data, approvalsXLSXS07RC4N8-F spec data (Excel)All 12 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

How does S07RC4N8-F differ from standard H07RN8-F submersible pump cable?
Standard H07RN8-F is an unscreened 450/750 V AD8 submersible rubber cable, whereas S07RC4N8-F adds an inner elastomeric bedding and an ≥ 85 % optical coverage tinned copper wire braid screen ('C4') for VFD-driven submersible pumps and noise-free sensor monitoring. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.
Why does the designation begin with 'S07' instead of 'H07'?
Because EN 50525-2-21 only harmonises the unscreened H07RN8-F construction, adding the 'C4' copper braid screen requires the CENELEC HD 361 'S' (national/recognized type) prefix, yielding S07RC4N8-F. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.
When should S1BC4N8-F be selected instead of S07RC4N8-F?
Select S1BC4N8-F when the installation requires a full 0.6/1 kV voltage rating ('1') and +90 °C heat-resistant EPR core insulation ('B') for higher current-carrying capacity or long VFD pump feeders. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.
Can S07RC4N8-F be permanently submerged in municipal sewage and construction slurry?
Yes, its Type EM2 polychloroprene ('N8') outer jacket resists municipal wastewater, oily sludge, and mechanical abrasion in wet wells at water temperatures up to +40 °C. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.
