Product

Coiled PUR spiral power & control cable300/500 V & 450/750 V3.5 : 1 Extension (L1:L0)High-Memory PUR

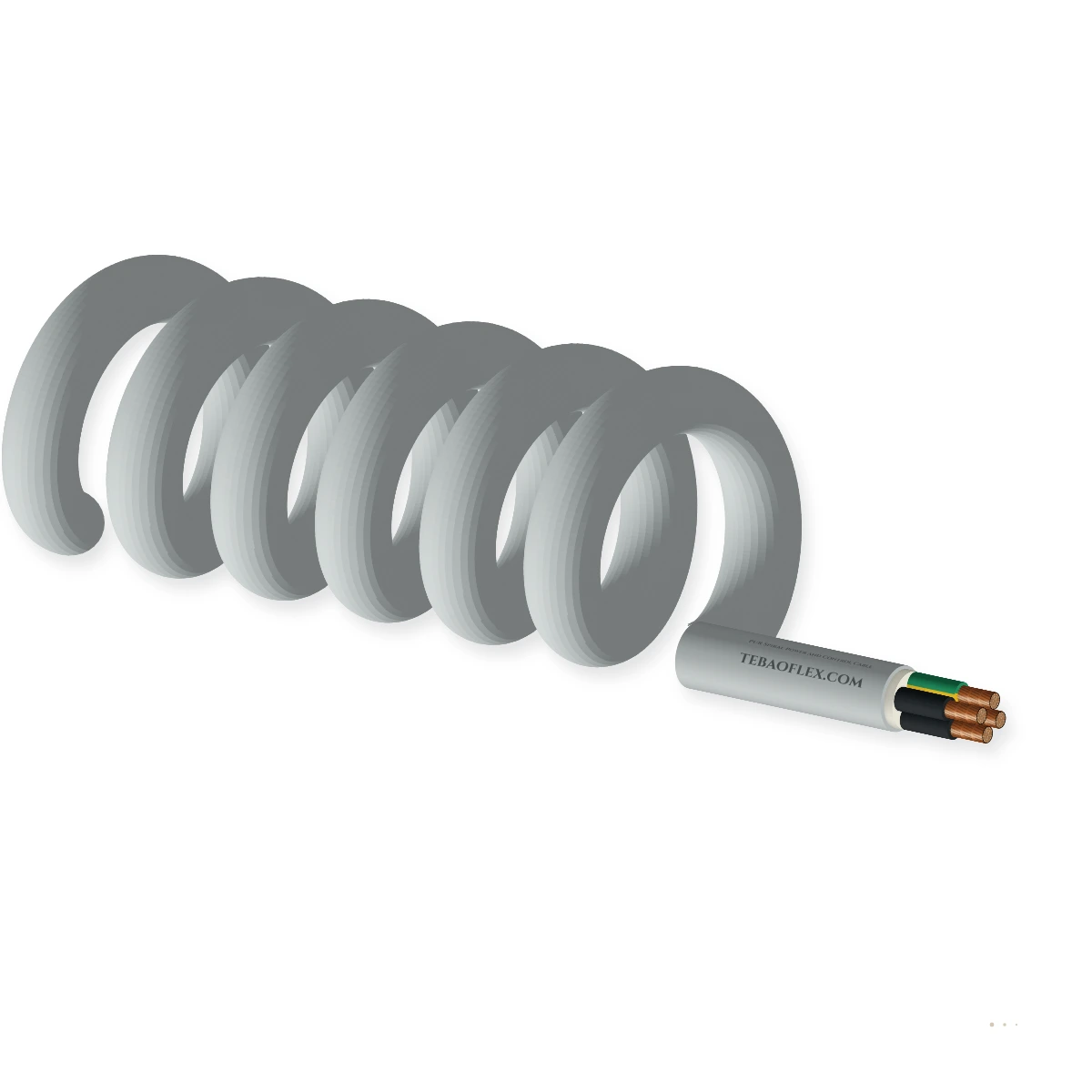

PUR Spiral Power and Control Cable3.5 : 1 retractable coiled PUR power & control cable (L0 100–1500 mm)

Self-retracting coiled power and control cable engineered with IEC 60228 Class 5/6 fine copper strands, high-modulus memory TPE-E/PVC core insulation and abrasion-proof polyether PUR jacket delivering a 3.5 : 1 extension ratio (L1 : L0) without sagging.

Oil-resistant

Flame-retardant

Ozone, UV & moisture

Outdoor & humid

Configuration (L0 = 500 mm)

Order designation: SPIRAL-PUR 4G1.5 (500/1750)
Cable Ø ≈: 8.3 mm
Coil outer Ø ≈: 30.0 mm
Linear copper: 58 kg/km
Linear weight ≈: 108 kg/km

Check against my drum All sizes (16)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Extension ratio: 3.5 : 1 (L1:L0)
Rated voltage: 300/500 V
Block length L0: 100–1500 mm
Temperature: −30…+70 °C
Conductor class: IEC 60228 Cl. 6
Outer sheath: PUR (TMPU)

Typical values for this cable type, based on DIN VDE 0285 / DIN EN 50363-10-2 — confirmed in the datasheet and quotation for your order.

Application fit

Is PUR Spiral Power and Control Cable right for your machine?

Ideal for retractable power and control leads on scissor lifts, AGV charging gates, handheld power tools, medical booms and mobile machine guards where a drag chain cannot fit.

Self-supporting pendant & push-button drop

Suitable

Self-retracting spiral coil keeps handheld pendants, foot switches and mobile control boxes off the shop floor.

Free-hanging vertical run

Suitable

Supports vertical scissor-lift and lifting-table extension up to 3.5 × closed block length L0.

Fixed installation

With conditions

Straight 200 mm axial or radial tail ends clamp directly into terminal boxes via strain-relief glands.

Use Unscreened Control Cable

Energy chain / drag chain

Not suitable

Coiled spiral geometry cannot run inside enclosed cable carriers; use linear drag-chain cable.

Use SERVO FD 95810 P

Typical machinesScissor Lifts & Elevating TablesHandheld Power Tools & HoistsAGV & Roller-Conveyor Transfer GatesMedical & Dental Overhead BoomsCommercial Vehicle & Trailer Leads

Construction

Layer by layer

Shown: SPIRAL-PUR 4G1.5 coiled power cable with high-rebound TPE-E/PVC core insulation, reverse-cured helical coil memory and black/orange TMPU jacket.

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Flexible copper conductor	Fine/superfine bare copper strands (IEC 60228 Class 5 / Class 6) with short pitchResists torsional fatigue during helix extension
2	High-rebound core insulation	Modified high-modulus TPE-E / special PVC compoundProvides internal spring-back restoring force alongside the PUR sheath
3	Torsion-balanced core lay	Cores stranded with reverse-cure pitch matched to the helix winding directionPrevents coil tangling and kinking over > 100,000 extension cycles
4	Interlayer separating film	Talc-free low-friction separating foilFacilitates clean stripping of the 200 mm straight tail ends
5	High-memory PUR outer sheath	Cross-linked / high-Shore-D polyether polyurethane (TMPU), Black RAL 9005, Grey RAL 7001 or Orange RAL 2003DIN EN 50363-10-2 · oil, hydrolysis, UV & abrasion resistant

Axial Straight Ends

200 mm / 200 mm straight tangent tails exiting axially in line with the coil centreline

Radial (90°) Straight Ends

200 mm / 200 mm straight tails exiting tangentially (90° to coil axis) for side-mounted gland boxes

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0285 / DIN EN 50363-10-2. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U: 300/500 V (450/750 V heavy-duty option)
AC test voltage: 3000 V AC (50 Hz, 5 min)
Insulation resistance: ≥ 20 MΩ·km at 20 °C
Current rating: Per DIN VDE 0298-4 (apply 0.65× coil factor)

Thermal

Temperature, flexing: −30 °C to +70 °C (coil extension service)
Temperature, fixed installation: −40 °C to +80 °C
Max. conductor temperature: +70 °C

Mechanical

Extension ratio (L1 : L0): Up to 3.5 : 1 (standard) · 4.0 : 1 (≤ 4G1.0)
Standard block lengths (L0): 100, 200, 300, 400, 500, 750, 1000, 1500 mm
Straight tail ends: 200 mm / 200 mm (axial or radial exit)
Extension endurance: ≥ 100,000 full extension/retraction cycles

Resistance

Oil resistance: DIN EN 50363-10-2 (mineral & cutting oils)
Flame retardance: IEC 60332-1-2 self-extinguishing
UV & ozone: UV, weather and microbe resistant (EN ISO 846)
Abrasion: High tear and notch resistance (DIN ISO 4649)

Reference standards

Cable type (construction standard): Based on DIN EN 50525-2-21 / VDE 0285
Conductor: IEC 60228 Class 5 / Class 6 fine copper
RoHS & REACH: 2011/65/EU (RoHS 2) & EC 1907/2006 compliant

Identification

Sheath colour: Black (RAL 9005), Grey (RAL 7001) or Orange
Core identification: ≤ 5G: VDE 0293-308 colour · ≥ 7G: Black numbered + GNYE
Marking: TEBAOFLEX SPIRAL-PUR <size> 300/500V CE
Customs tariff (HS): 8544.49

Sizes

16 reference sizes (shown for L0 = 500 mm block length)

Each configuration is also available in closed block lengths L0 = 100, 200, 300, 400, 750, 1000 and 1500 mm (with proportional extended length L1 ≈ 3.0–3.5 × L0).

Dimensions, coil Ø & extension (L0 = 500 mm)
Order designation	Cores × mm²	Block L0 / Max L1	Cable Ø ≈ mm	Coil outer Ø mm ≈	Linear Cu kg/km	Linear wt ≈ kg/km
0.75 mm² PUR spiral control & power cables
SPIRAL-PUR 3G0.75 (500/1750)	3G0.75	500 / 1750 mm	6.2	23.0	22	54
SPIRAL-PUR 4G0.75 (500/1750)	4G0.75	500 / 1750 mm	6.8	25.0	29	66
SPIRAL-PUR 5G0.75 (500/1750)	5G0.75	500 / 1750 mm	7.4	27.0	36	79
SPIRAL-PUR 7G0.75 (500/1750)	7G0.75	500 / 1750 mm	8.5	31.0	50	108
SPIRAL-PUR 12G0.75 (500/1750)	12G0.75	500 / 1750 mm	10.6	38.0	86	172
SPIRAL-PUR 18G0.75 (500/1500)	18G0.75	500 / 1500 mm	12.5	45.0	130	245
1.0 mm² PUR spiral power & control cables
SPIRAL-PUR 3G1.0 (500/1750)	3G1.0	500 / 1750 mm	6.6	24.0	29	64
SPIRAL-PUR 4G1.0 (500/1750)	4G1.0	500 / 1750 mm	7.2	26.0	38	78
SPIRAL-PUR 5G1.0 (500/1750)	5G1.0	500 / 1750 mm	7.9	29.0	48	95
SPIRAL-PUR 7G1.0 (500/1750)	7G1.0	500 / 1750 mm	9.2	34.0	67	132
1.5 mm² heavy-duty PUR spiral power cables
SPIRAL-PUR 3G1.5 (500/1750)	3G1.5	500 / 1750 mm	7.5	28.0	43	86
SPIRAL-PUR 4G1.5 (500/1750)	4G1.5	500 / 1750 mm	8.3	30.0	58	108
SPIRAL-PUR 5G1.5 (500/1750)	5G1.5	500 / 1750 mm	9.1	33.0	72	132
SPIRAL-PUR 7G1.5 (500/1500)	7G1.5	500 / 1500 mm	10.7	39.0	101	184
2.5 mm² 3-phase PUR spiral power cables
SPIRAL-PUR 4G2.5 (500/1500)	4G2.5	500 / 1500 mm	10.1	37.0	96	168
SPIRAL-PUR 5G2.5 (500/1500)	5G2.5	500 / 1500 mm	11.2	41.0	120	206

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Linear cable length inside a 500 mm closed spiral block (L0) is approximately 2.1 m to 2.4 m plus two 200 mm straight ends.

Standard block lengths (L0 vs L1) & electrical data
Closed block L0	Working length L1 (3.5 : 1 ratio)	Working length L1 (≥ 12G / 2.5 mm²)	Standard straight ends (End A / End B)	Ref. 1.5 mm² DC R Ω/km
100 mm	350 mm	300 mm	200 mm / 200 mm	13.3
200 mm	700 mm	600 mm	200 mm / 200 mm	13.3
300 mm	1050 mm	900 mm	200 mm / 200 mm	13.3
400 mm	1400 mm	1200 mm	200 mm / 200 mm	13.3
500 mm	1750 mm	1500 mm	200 mm / 200 mm	13.3
750 mm	2600 mm	2250 mm	200 mm / 200 mm	13.3
1000 mm	3500 mm	3000 mm	200 mm / 200 mm	13.3
1500 mm	5000 mm	4200 mm	250 mm / 250 mm	13.3

For continuous current loads when the spiral is closed (L0), apply a 0.65× grouping derating factor to account for adjacent coil turns.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Cable sizeDrum core diameter (mm)

Travel speed (m/min)

m/min

Cable length on drum (m)

Drum core 30 mm is below 84 mmUse a larger drum core or a smaller cable size

30 m/min ≤ 60 m/minWithin the rated travel speed

Minimum bending radius: 42 mm
Min. drum core diameter: ≈ 84 mm
Cable weight on drum: 0.3 kg
Copper content: 0.2 kg

Indicative only: based on the datasheet outer diameter and 5 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
3000 V AC high-voltage dielectric test	3.0 kV AC for 5 min without breakdown	Every manufactured coil batch
Conductor DC resistance & continuity	Complies with IEC 60228 Class 5/6 maximum at 20 °C	100 % of finished spiral cords
Sample tests
100,000-cycle extension & snap-back recovery test	Residual block length growth ≤ 8 % after 100,000 extensions to 3.5 × L0	Per production lot
PUR oil, hydrolysis & abrasion test	Pass DIN EN 50363-10-2 TMPU and DIN ISO 4649 abrasion	Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

CE (2014/35/EU Low Voltage Directive)DIN EN 50363-10-2 TMPU Sheath CompliantRoHS 2 (2011/65/EU) & REACH Compliant

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX SPIRAL-PUR <size> 300/500V CE

Delivery form: Individually bagged coiled assemblies in export cartons
Standard lengths: Block lengths L0 = 100 mm to 1500 mm (200/200 mm straight ends)
MOQ: 100 m (stock sizes) · 300 m (custom)
Lead time: 2–3 weeks ex-works
Incoterms: EXW, FCA, FOB, CIF, DAP

Technical documents

Downloads

PDFPUR Spiral Power and Control Cable – technical datasheet16 sizes · construction, technical data, approvals XLSXPUR Spiral Power and Control Cable spec data (Excel)All 16 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

How are closed block length (L0) and maximum extended working length (L1) defined on a PUR spiral cable?

Closed block length (L0) is the length of the tightly wound helical coil section at rest, excluding the two straight tangent ends (typically 200 mm each). Extended working length (L1) is the safe maximum distance the spiral can be stretched in regular service — typically 3.5 × L0 for cables up to 7 cores (so a 500 mm block extends cleanly to 1750 mm) and 3.0 × L0 for heavier multi-core or 2.5 mm² sizes.

Why must a spiral cable use a polyurethane (PUR) outer sheath and TPE-E core insulation instead of PVC?

PVC has high mechanical creep (cold flow): after a few hundred stretches, a PVC spiral loses its thermal set and hangs down in loose, sagging loops. High-resilience polyether/polyester PUR combined with high-modulus TPE-E core insulation acts like a composite torsion spring, snapping back crisply to its closed block length L0 over more than 100,000 extension cycles.

Should I specify axial or radial (tangential) straight ends for my equipment?

Specify axial straight ends when the cable exits straight out of a handheld tool handle, pendant grip, or vertical ceiling drop. Specify radial (90° tangential) ends when the cable enters a side-mounted cable gland on a scissor-lift frame or horizontal junction box so the first turn of the coil is not bent sharply against the gland nut.

How can I prevent sagging on long horizontal spiral spans exceeding 2 metres?

For horizontal spans where L1 exceeds 2.0 m, either select a smaller conductor cross-section to reduce self-weight or run a plastic-coated steel support wire or guide rod through the hollow internal bore of the spiral coil.
