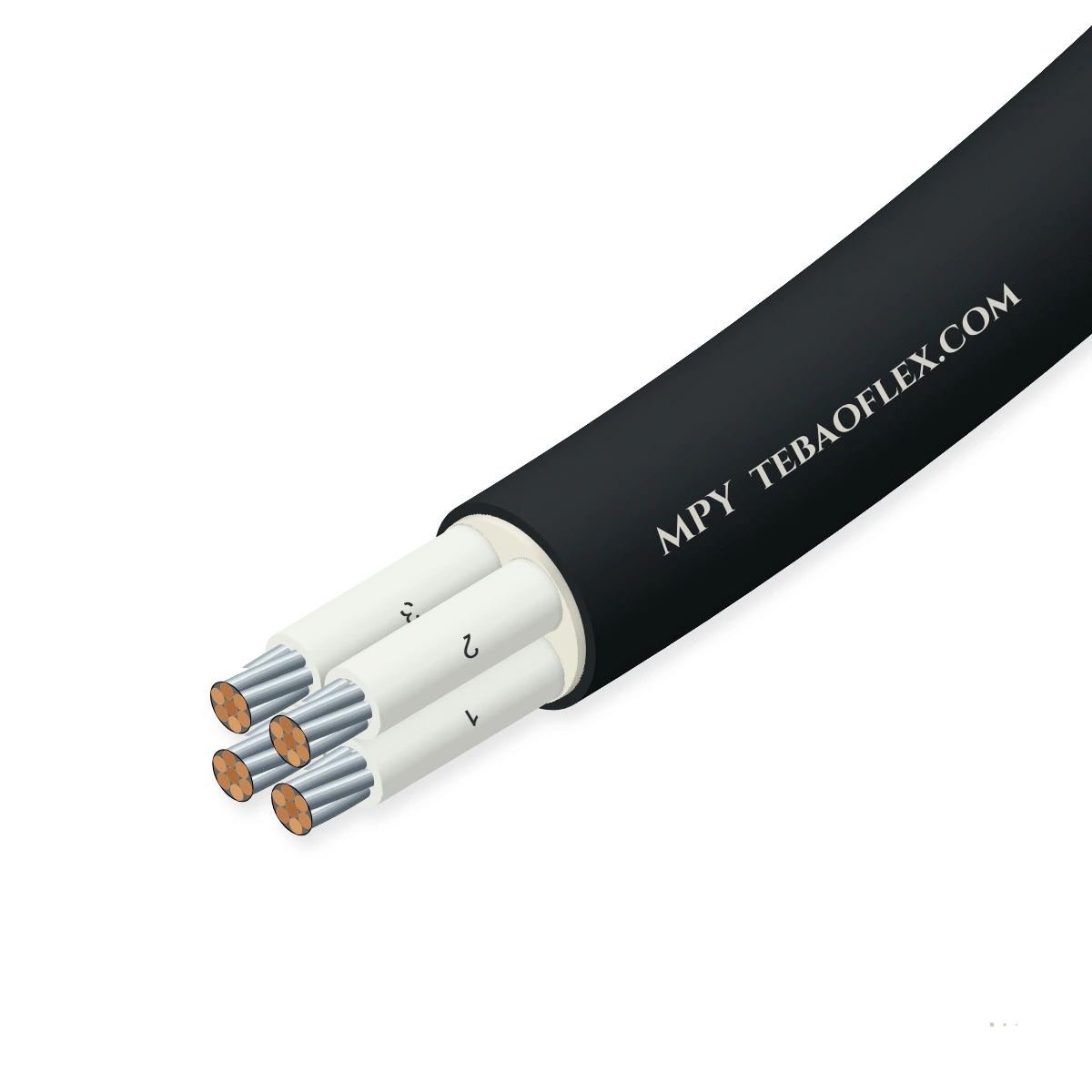

MPY Shipboard Control CableJIS C 3410 250 V unarmoured EP-rubber / PVC marine shipboard control cable

Unarmoured 250 V marine shipboard control and signal cable built to JIS C 3410 with stranded annealed copper conductors (0.75–2.5 mm²), +90 °C cross-linked ethylene-propylene rubber (EPR) core insulation and flame-retardant vinyl (PVC) outer sheath.

Flame-retardant
Oil-resistant
Water-resistant
Approved
Order designation
MPY 7×1.5
Outer Ø min
11.1 mm
Outer Ø max
12.1 mm
Weight ≈
228 kg/km
Min. bend R
48 mm
Check against my drumAll sizes (22)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Voltage rating
250 V
150/250 V AC · JIS C 3410 control
Test voltage
1500 V AC
50/60 Hz 5 min dielectric test
Conductor temp.
+90 °C max.
+90 °C continuous · +250 °C short-circ.
Flame test
IEC 60332-3-22
Category A bunched vertical flame test
Bending radius
4 × OD
4 × overall diameter fixed installation
Size range
0.75–2.5 mm²
2 to 37 cores · 7-wire stranded Cu

Typical values for this cable type, based on JIS C 3410 / IEC 60092-376 — confirmed in the datasheet and quotation for your order.

Application fit

Is MPY right for your machine?

MPY is the lightweight unarmoured JIS C 3410 shipboard control cable for dry internal accommodation spaces, wheelhouse consoles, bridge navigation racks and enclosed switchboard decks where wire-braid armour is not required.

Fixed installation

Suitable

Bridge consoles, accommodation decks, internal control rooms and protected cable trunks on commercial vessels.

VFD inverter to AC motor screened feeder

Not suitable

Unscreened and unarmoured; for EMI-sensitive shipboard instrumentation, select overall-screened MPYS/MPYCYS.

Use MPYS / MPYCYS

Trailing & towing

Not suitable

Fixed shipboard installation cable with 7-wire Class 2 stranded conductors; not for mobile trailing.

Use MPYCY Armoured

Energy chain / drag chain

Not suitable

Not intended for dynamic drag-chain service.

Use JZ-500-PUR
Typical machinesCommercial shipbuilding (NK, ABS, DNV, LR, CCS)Wheelhouse & bridge navigation consolesEngine control room (ECR) internal wiringShipboard alarm, monitoring & telegraph circuitsOffshore accommodation modules

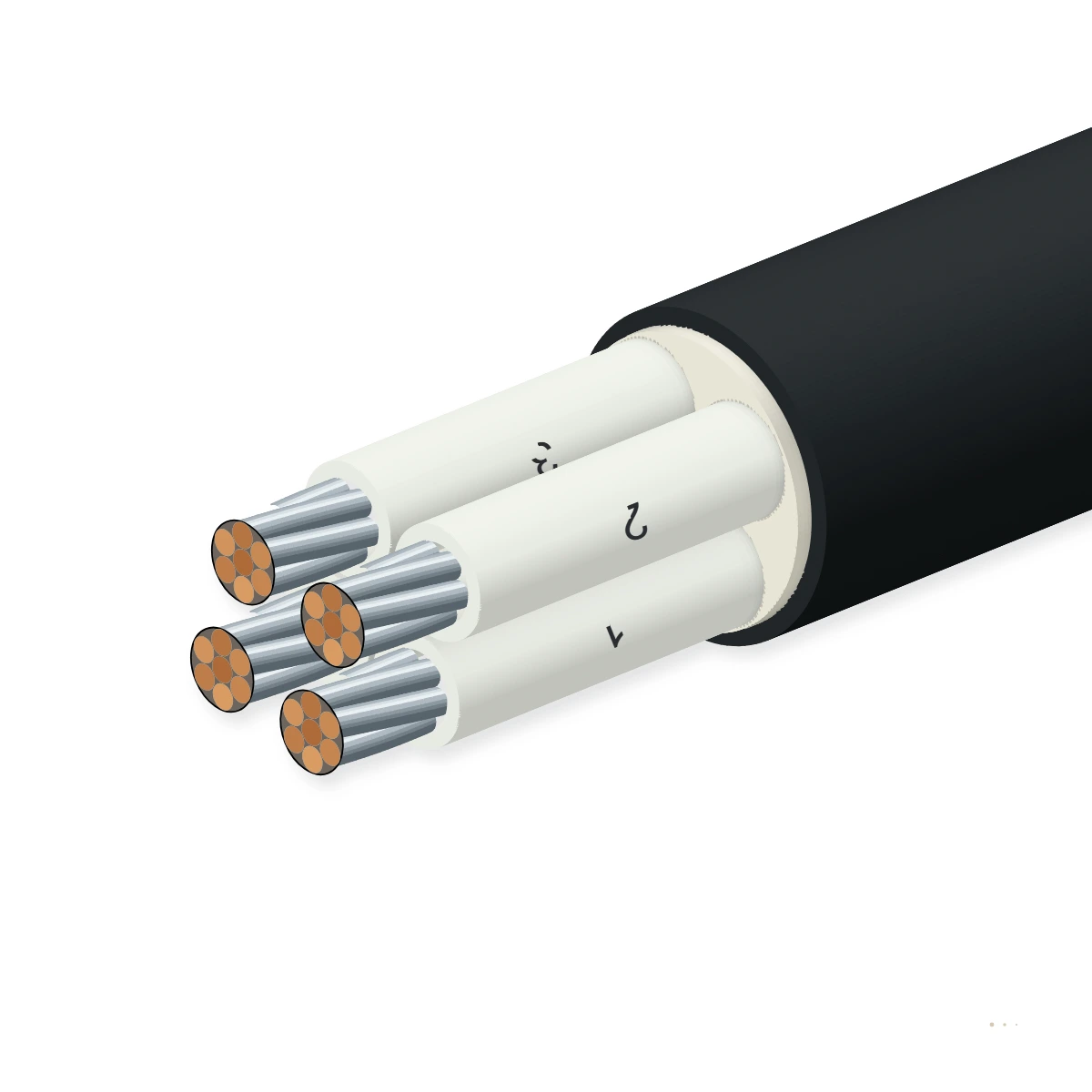

Construction

Layer by layer

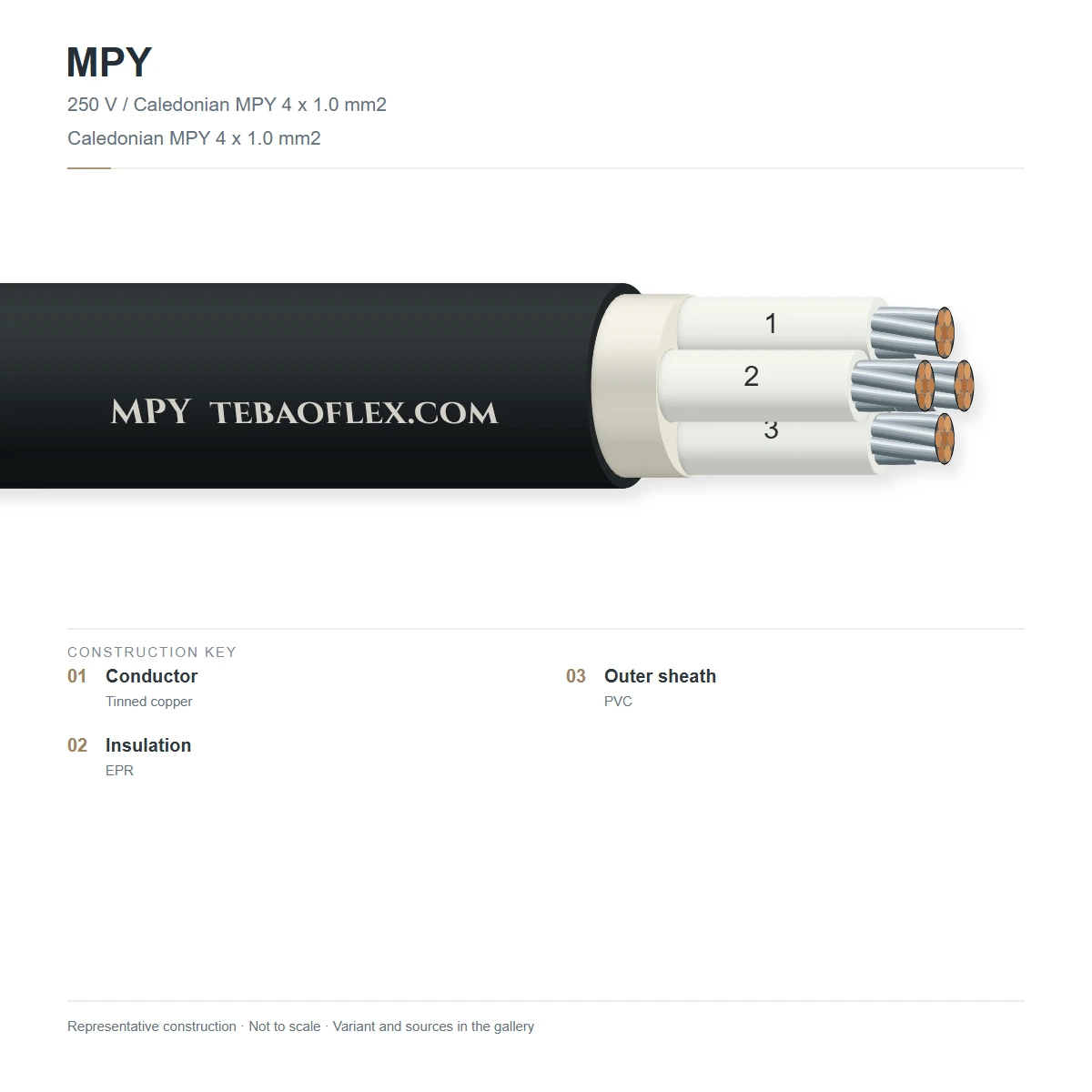

Shown: MPY 7×1.5 mm² — 7-wire stranded annealed copper conductors, +90 °C ethylene-propylene rubber (EPR = 'P') core insulation with sequential number printing, non-hygroscopic filler/tape and flame-retardant vinyl (PVC = 'Y') outer sheath.

1234
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Stranded annealed copper conductorCircular stranded annealed copper (JIS C 3102 / IEC 60228 Class 2, 7 wires) for reliable marine terminal clampingJIS C 3410 / IEC 60228 Cl. 2
2EP-rubber core insulation (P)+90 °C cross-linked ethylene-propylene rubber (EPR) with sequential core numberingJIS C 3410 · IEC 60092-360 EPR
3Cabled core bundle + binder tapeCores laid up with non-hygroscopic fillers and overlapped textile/polyester binder tapeJIS C 3410
4Flame-retardant vinyl sheath (Y)Lead-free heat- and oil-resistant polyvinyl chloride (PVC / ST2) outer sheath meeting IEC 60332-3-22 Cat. AJIS C 3410 · IEC 60332-3-22 Cat. A

MPY 1.25 / 1.5 mm² (2 to 37 cores)

Standard 250 V unarmoured shipboard control and alarm cable for bridge and ECR consoles

MPY 0.75 / 2.5 mm² (2 to 30 cores)

Compact 0.75 mm² indicator leads and heavy 2.5 mm² solenoid/interlock control circuits

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on JIS C 3410 / IEC 60092-376. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage
250 V (150/250 V AC)
AC test voltage (50/60 Hz)
1500 V AC for 5 minutes
Max. DC conductor resistance (20 °C)
1.25 mm²: ≤ 15.0 Ω/km · 1.5 mm²: ≤ 12.1 Ω/km · 2.5 mm²: ≤ 7.41 Ω/km
Insulation resistance (20 °C)
≥ 1000 MΩ·km (EP rubber)

Thermal

Max. conductor temperature
+90 °C continuous operation
Short-circuit temperature
+250 °C max. (5 s)
Fixed ambient range
−25 °C to +80 °C (minimum installation −15 °C)

Mechanical

Min. bending radius, fixed
4 × overall diameter
Conductor construction
7-wire circular stranded annealed copper (0.75, 1.25, 1.5, 2.0, 2.5 mm²)
Armour
Unarmoured (select MPYC or MPYCY for machinery spaces)

Resistance

Bunched flame test
IEC 60332-3-22 Category A & IEC 60332-1-2 vertical flame retardant
Marine environment
Resistant to salt mist, humidity and marine lubricating oils

Reference standards

Primary standard
JIS C 3410 (Japanese Industrial Standard for Shipboard Cables)
IEC alignment
IEC 60092-350, IEC 60092-360 & IEC 60092-376
Marine society scope
Designed to NK, ABS, DNV, LR, BV and CCS ship classification rules
RoHS & asbestos-free
RoHS 2 & SOLAS asbestos-free compliant

Identification

Sheath colour
Black or grey marine PVC
Core identification
White/natural EP rubber cores with printed sequential numbers (1, 2, 3…)
Sheath marking
TEBAOFLEX JIS C 3410 MPY 250V [Size] IEC 60332-3-22 CAT.A
Customs tariff (HS)
8544.49 (insulated conductors ≤ 1000 V)

Sizes

22 standard MPY configurations

Typical JIS C 3410 / IEC 60092-376 outer diameter limits, copper content and cable weight.

Dimensions & weights
Order designationCores × mm²AWG ≈Outer Ø min
mm		Outer Ø max
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
mm		Enquiry
0.75 mm² JIS C 3410 MPY Control Configurations (250 V)
MPY 2×0.752×0.75187.07.6147230
MPY 4×0.754×0.75188.18.82810435
MPY 7×0.757×0.75189.610.45015242
MPY 12×0.7512×0.751812.313.48624854
MPY 19×0.7519×0.751814.515.813636263
1.25 mm² JIS C 3410 MPY Control Configurations (250 V)
MPY 2×1.252×1.25167.78.4249234
MPY 4×1.254×1.25169.09.84813639
MPY 7×1.257×1.251610.711.68420446
MPY 12×1.2512×1.251613.915.114433860
MPY 19×1.2519×1.251616.417.822849871
MPY 27×1.2527×1.251619.521.232469585
1.50 mm² JIS C 3410 MPY Control Configurations (250 V)
MPY 2×1.52×1.5168.08.72810035
MPY 4×1.54×1.5169.410.25715041
MPY 7×1.57×1.51611.112.110022848
MPY 12×1.512×1.51614.515.817237863
MPY 19×1.519×1.51617.118.627355874
MPY 27×1.527×1.51620.322.138878088
MPY 37×1.537×1.51622.824.85321,04099
2.50 mm² JIS C 3410 MPY Control Configurations (250 V)
MPY 2×2.52×2.5148.99.74813239
MPY 4×2.54×2.51410.511.49620646
MPY 7×2.57×2.51412.513.616831854
MPY 12×2.512×2.51416.417.828853071
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Dimensions and weights are typical values per JIS C 3410 / IEC 60092-376. Minimum fixed bending radius shown is 4 × OD.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Check results

Drum core 300 mm ≥ 96 mmBending radius OK (4 × OD 12.1 mm)
Minimum bending radius
48 mm
Min. drum core diameter
≈ 96 mm
Cable weight on drum
11.4 kg
Copper content
5.0 kg
Indicative only: based on the datasheet outer diameter and 4 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC voltage test1.5 kV AC (50 Hz)Every manufactured length
Conductor DC resistanceIEC 60228 / JIS C 3410 / IEC 60092-376 (bare copper)Every manufactured length
Sample tests
Vertical flame propagationIEC 60332-1-2 / EN 60332-1-2Per production batch
Insulation & sheath material physical propertiesJIS C 3410 / IEC 60092-376Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

JIS C 3410 / IEC 60092-376CE · RoHS 2 (2011/65/EU) · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX JIS C 3410 MPY 250V [Size] IEC 60332-3-22 CAT.A
Delivery form
Export wooden drums or coils, cut-to-length on request
Packaging
Heat-treated ISPM-15 timber drums with sealed cable ends
Conductor / sheath options
Custom core counts, pair counts or sheath colours on request

Technical documents

Downloads

PDFMPY Shipboard Control Cable – technical datasheet22 sizes · construction, technical data, approvalsXLSXMPY spec data (Excel)All 22 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20
