Fixed installation
Shipboard machinery spaces, steering gear rooms, bulkhead penetrations and steel ladder racks.
Product

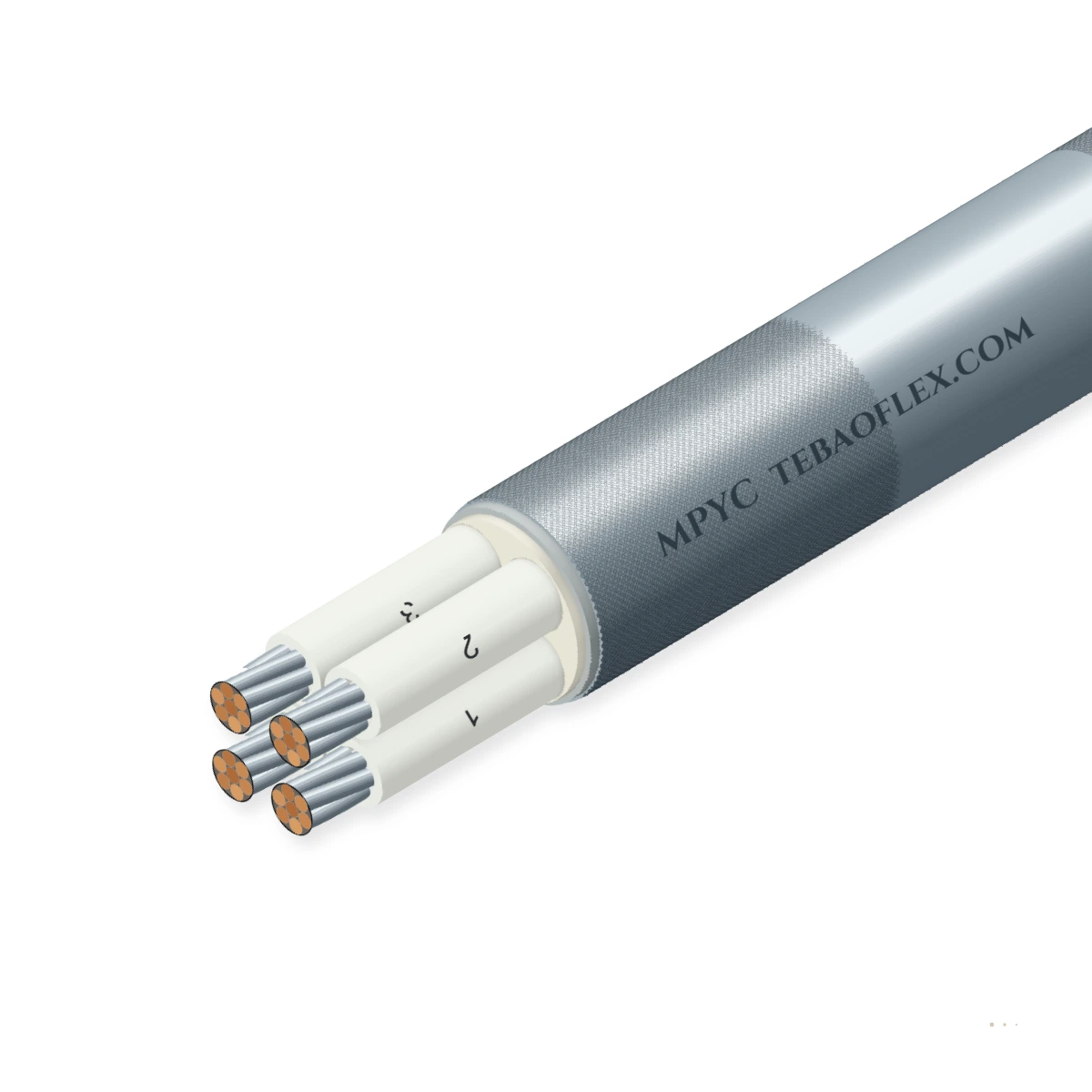

Wire-braid armoured 250 V marine shipboard control cable to JIS C 3410 (`MPYC`) with 7-wire stranded copper conductors (0.75–2.5 mm²), +90 °C EP-rubber core insulation, flame-retardant PVC inner sheath and galvanised steel or copper wire braid armour.
Typical values for this cable type, based on JIS C 3410 / IEC 60092-376 — confirmed in the datasheet and quotation for your order.
Application fit
MPYC features an exposed galvanised steel wire braid (with anti-corrosion paint) or tinned-copper wire braid directly over the vinyl sheath, providing rugged mechanical and rodent protection in dry machinery spaces and shipboard cableways.
Shipboard machinery spaces, steering gear rooms, bulkhead penetrations and steel ladder racks.
Wire braid provides mechanical and low-frequency earth screening; for wet bilges or oily decks, select oversheathed MPYCY.
Use MPYCY OversheathedFixed shipboard installation cable; not designed for dynamic trailing duty.
Use MPYCY OversheathedNot intended for drag chains; for EMI-critical analog circuits, select overall-screened MPYCS/MPYCYS.
Use MPYS / MPYCYSConstruction

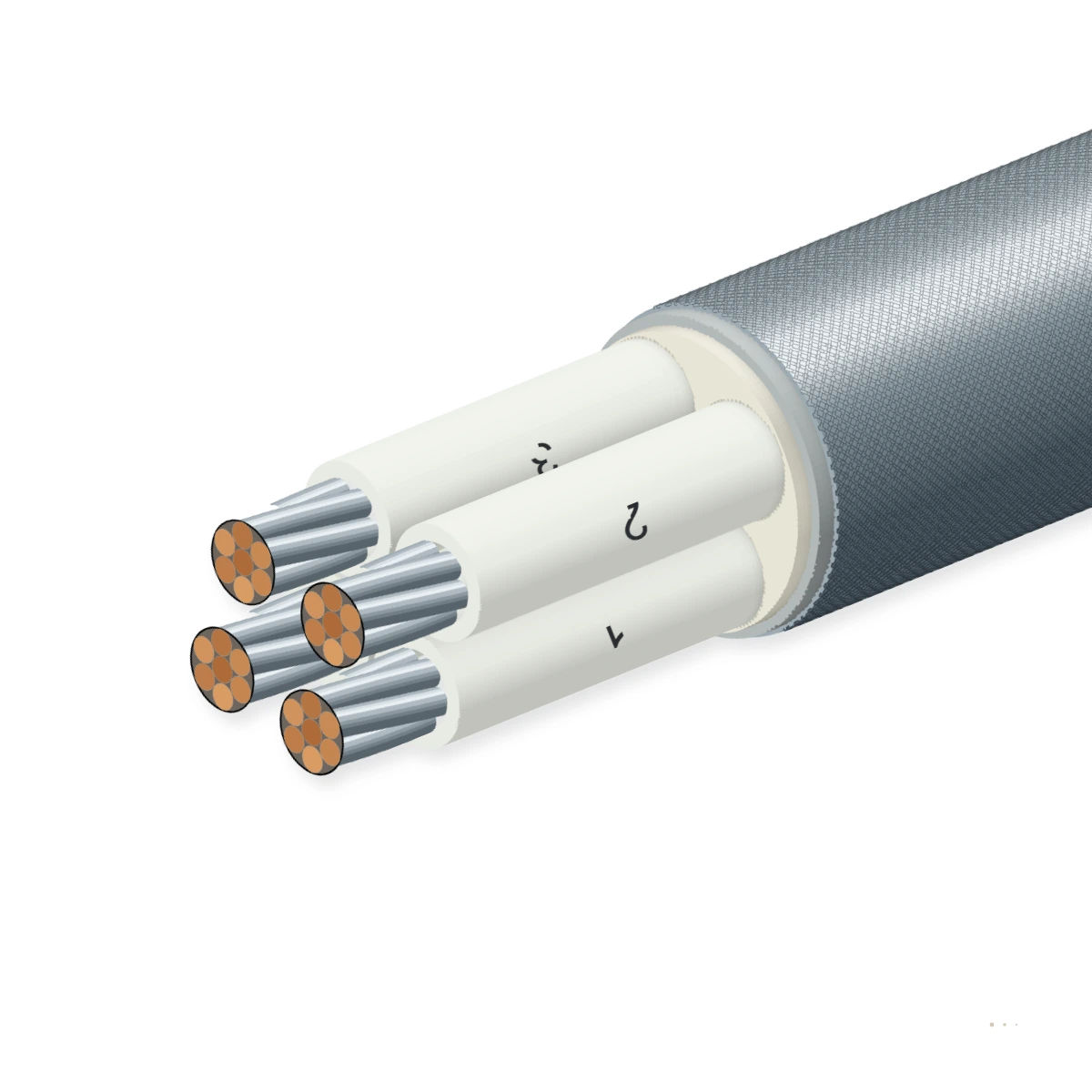

Shown: MPYC 7×1.5 mm² — 7-wire stranded annealed copper conductors, +90 °C EP-rubber core insulation (numbered), flame-retardant vinyl (PVC) inner sheath and outer galvanised steel wire braid armour with protective marine coating.
| # | Layer | Material & reference |
|---|---|---|
| 1 | Stranded annealed copper conductor | 7-wire circular stranded annealed copper to JIS C 3102 / IEC 60228 Class 2JIS C 3410 / IEC 60228 Cl. 2 |
| 2 | EP-rubber core insulation (P) | +90 °C cross-linked ethylene-propylene rubber (EPR) with sequential number printingJIS C 3410 · IEC 60092-360 EPR |
| 3 | Flame-retardant vinyl sheath (Y) | Extruded polyvinyl chloride (PVC) inner sheath over the cabled core assemblyJIS C 3410 |
| 4 | Galvanised steel / copper wire braid (C) | Close-woven galvanised steel wire braid (with lead-free protective paint) or tinned-copper wire braid for magnetic zonesJIS C 3410 |
Standard JIS C 3410 galvanised steel wire braided shipboard control cable for machinery spaces
Non-magnetic copper wire braid armour for wheelhouse compass zones and high-EMC areas
Technical data
Sizes
Typical JIS C 3410 / IEC 60092-376 outer diameter limits, copper content and cable weight.
| Order designation | Cores × mm² | AWG ≈ | Outer Ø min mm | Outer Ø max mm | Copper kg/km | Weight ≈ kg/km | Min. bend R mm | Enquiry |
|---|---|---|---|---|---|---|---|---|
| 0.75 mm² JIS C 3410 MPYC Braided Control (250 V) | ||||||||
| MPYC 2×0.75 | 2×0.75 | 18 | 8.5 | 9.2 | 14 | 128 | 55 | |
| MPYC 4×0.75 | 4×0.75 | 18 | 9.6 | 10.4 | 28 | 168 | 62 | |
| MPYC 7×0.75 | 7×0.75 | 18 | 11.0 | 12.0 | 50 | 228 | 72 | |
| MPYC 12×0.75 | 12×0.75 | 18 | 13.8 | 15.0 | 86 | 348 | 90 | |
| MPYC 19×0.75 | 19×0.75 | 18 | 16.0 | 17.4 | 136 | 488 | 104 | |
| 1.25 mm² JIS C 3410 MPYC Braided Control (250 V) | ||||||||
| MPYC 2×1.25 | 2×1.25 | 16 | 9.2 | 10.0 | 24 | 154 | 60 | |
| MPYC 4×1.25 | 4×1.25 | 16 | 10.5 | 11.4 | 48 | 208 | 68 | |
| MPYC 7×1.25 | 7×1.25 | 16 | 12.1 | 13.2 | 84 | 290 | 79 | |
| MPYC 12×1.25 | 12×1.25 | 16 | 15.4 | 16.7 | 144 | 452 | 100 | |
| MPYC 19×1.25 | 19×1.25 | 16 | 17.8 | 19.4 | 228 | 640 | 116 | |
| MPYC 27×1.25 | 27×1.25 | 16 | 21.0 | 22.8 | 324 | 868 | 137 | |
| 1.50 mm² JIS C 3410 MPYC Braided Control (250 V) | ||||||||
| MPYC 2×1.5 | 2×1.5 | 16 | 9.5 | 10.3 | 28 | 164 | 62 | |
| MPYC 4×1.5 | 4×1.5 | 16 | 10.9 | 11.8 | 57 | 224 | 71 | |
| MPYC 7×1.5 | 7×1.5 | 16 | 12.6 | 13.7 | 100 | 318 | 82 | |
| MPYC 12×1.5 | 12×1.5 | 16 | 16.0 | 17.4 | 172 | 498 | 104 | |
| MPYC 19×1.5 | 19×1.5 | 16 | 18.6 | 20.2 | 273 | 708 | 121 | |
| MPYC 27×1.5 | 27×1.5 | 16 | 21.8 | 23.7 | 388 | 965 | 142 | |
| MPYC 37×1.5 | 37×1.5 | 16 | 24.3 | 26.4 | 532 | 1,255 | 158 | |
| 2.50 mm² JIS C 3410 MPYC Braided Control (250 V) | ||||||||
| MPYC 2×2.5 | 2×2.5 | 14 | 10.4 | 11.3 | 48 | 204 | 68 | |
| MPYC 4×2.5 | 4×2.5 | 14 | 12.0 | 13.0 | 96 | 290 | 78 | |
| MPYC 7×2.5 | 7×2.5 | 14 | 14.0 | 15.2 | 168 | 422 | 91 | |
| MPYC 12×2.5 | 12×2.5 | 14 | 17.8 | 19.4 | 288 | 672 | 116 | |
| Cross-section mm² | AWG ≈ | Max. DC resistance 20 °C, Ω/km | Single pair/core 30 °C, A | Multi-core bundle 30 °C, A |
|---|---|---|---|---|
| 0.75 | 18 | 26 | 12.0 | 10.0 |
| 1.25 | 16 | 15.6 | 18.0 | 15.0 |
| 1.5 | 16 | 13.3 | 23.0 | 18.0 |
| 2.5 | 14 | 7.98 | 30.0 | 25.0 |
Reel check
A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.
Quality & approvals
Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.
| Testing & inspection | Test value / reference | Frequency |
|---|---|---|
| Routine tests | ||
| AC voltage test | 1.5 kV AC (50 Hz) | Every manufactured length |
| Conductor DC resistance | IEC 60228 / JIS C 3410 / IEC 60092-376 (bare copper) | Every manufactured length |
| Sample tests | ||
| Vertical flame propagation | IEC 60332-1-2 / EN 60332-1-2 | Per production batch |
| Insulation & sheath material physical properties | JIS C 3410 / IEC 60092-376 | Type approval |
Marking & supply
Sheath marking
