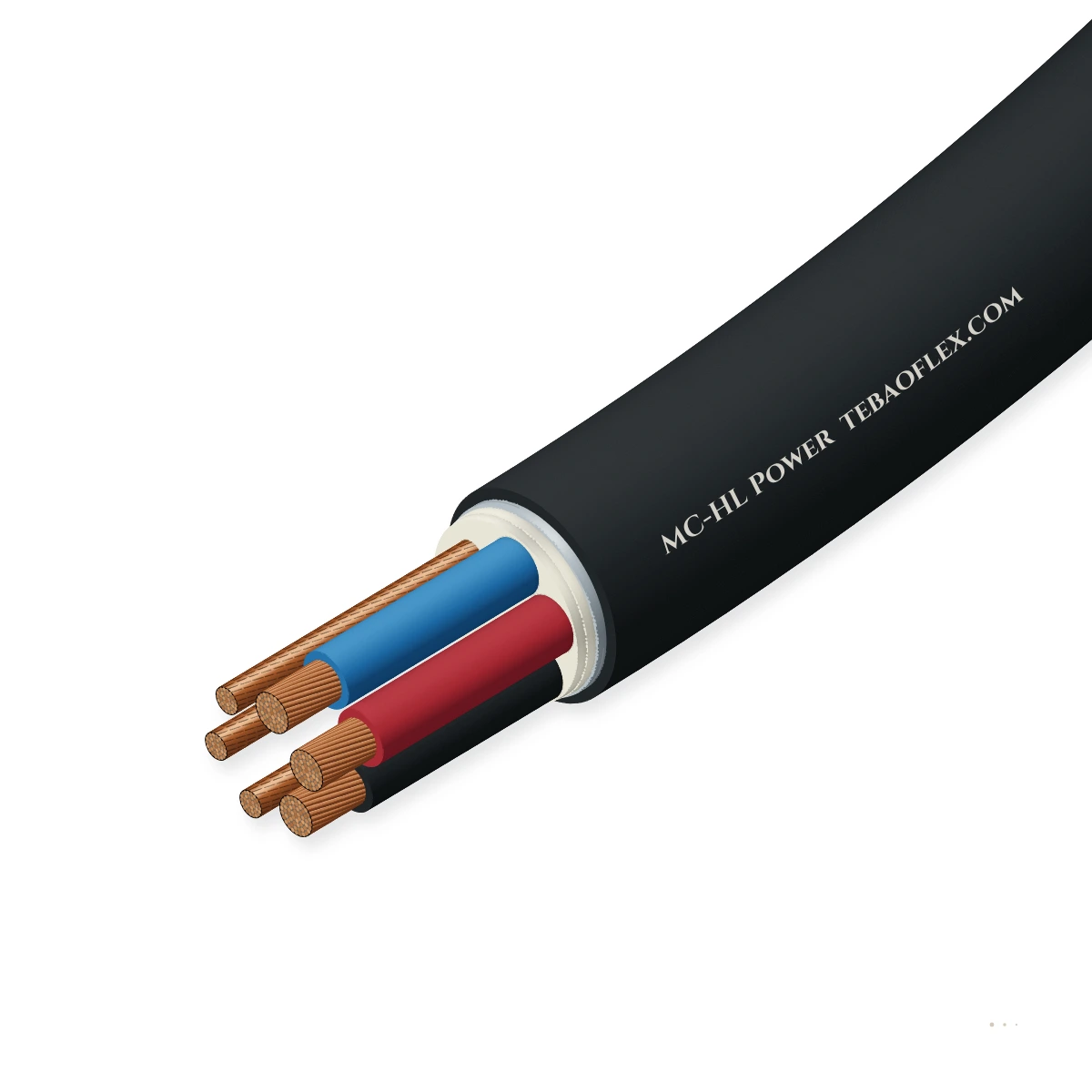

MC-HL Power Metal-Clad Power Cable600 V to 15 kV UL 2225 Class I Div 1 continuously welded & corrugated aluminum MC-HL power

MC-HL Power (Metal-Clad Hazardous Location) is a gas- and vapour-tight armoured power and VFD cable listed to UL 2225 and UL 1569 for NEC Class I Division 1 (and Zone 1) explosive atmospheres. Unlike interlocked-strip Type MC or TECK90, MC-HL features an imper

360° Welded Al Sheath + 3 Grounds (VFD)
Impervious Gas/Vapor Barrier (UL 2225)
UL 1685 / IEEE 1202 / FT4 Tray Flame
UL 2225 MC-HL / ABS / Coast Guard
Order designation
MC-HL 3C 8 AWG
Nom. OD
19.60 mm
Copper mass
248.0 kg/km
Total mass ≈
510.0 kg/km
Min. bend R
137.2 mm
All sizes (13)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Voltage ratings
600 V to 15 kV
600 V, 1/2 kV VFD, 5 kV & 15 kV
Hazardous rating
Class I Div 1 &
NEC Art. 501 / 505 Zone 1 & 2
Metallic sheath
Continuously wel
Impervious corrugated CWCMC tube
Grounding / VFD
3 symmetrical gr
Low common-mode VFD impedance
Core insulation
XHHW-2 XLPE or E
90 °C wet/dry (+130 °C overload)
Operating temp
-40 to +90 °C
Offshore, refinery & LNG rated

Typical values for this cable type, based on UL 2225 / UL 1569 / NEC Art. 330 & 501 — confirmed in the datasheet and quotation for your order.

Application fit

Is MC-HL Power right for your machine?

Specified for offshore oil and gas production platforms, FPSOs, LNG liquefaction trains, petrochemical Class I Division 1 hazardous zones, chemical processing plants and long-run PWM Variable Frequency Drive (VFD) motor feeders.

Fixed installation

Suitable

Replaces rigid explosion-proof galvanized steel conduit and poured conduit seals in Class I Div 1 zones.

Motor stator, traction & converter leads

Suitable

360° solid welded aluminum tube + 3 symmetrical grounds contain 100 % of VFD high-frequency radiated EMI.

Switchgear & control cabinet wiring

Suitable

Terminates into UL 2225 listed MC-HL compound-barrier elastomer cable glands.

Motorised monospiral reel

Not suitable

Fixed installation metal-clad power cable; not for reeling drums.

SEOOW 600 V portable cord
Typical machinesOffshore oil & gas platforms / FPSOsLNG terminals & gas processingRefinery Class I Div 1 hazardous areasIndustrial VFD motor feedersChemical & pharmaceutical plants

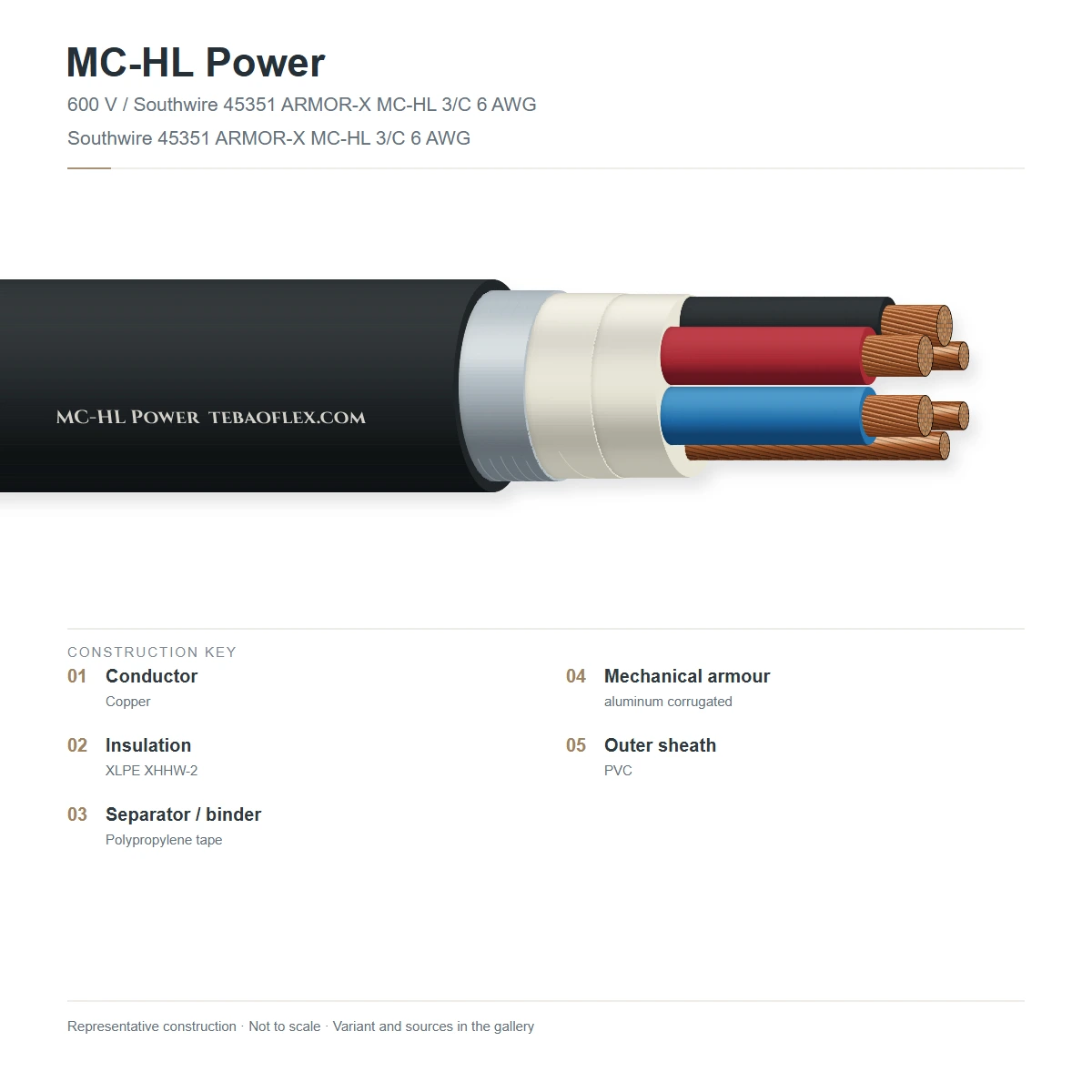

Construction

Layer by layer

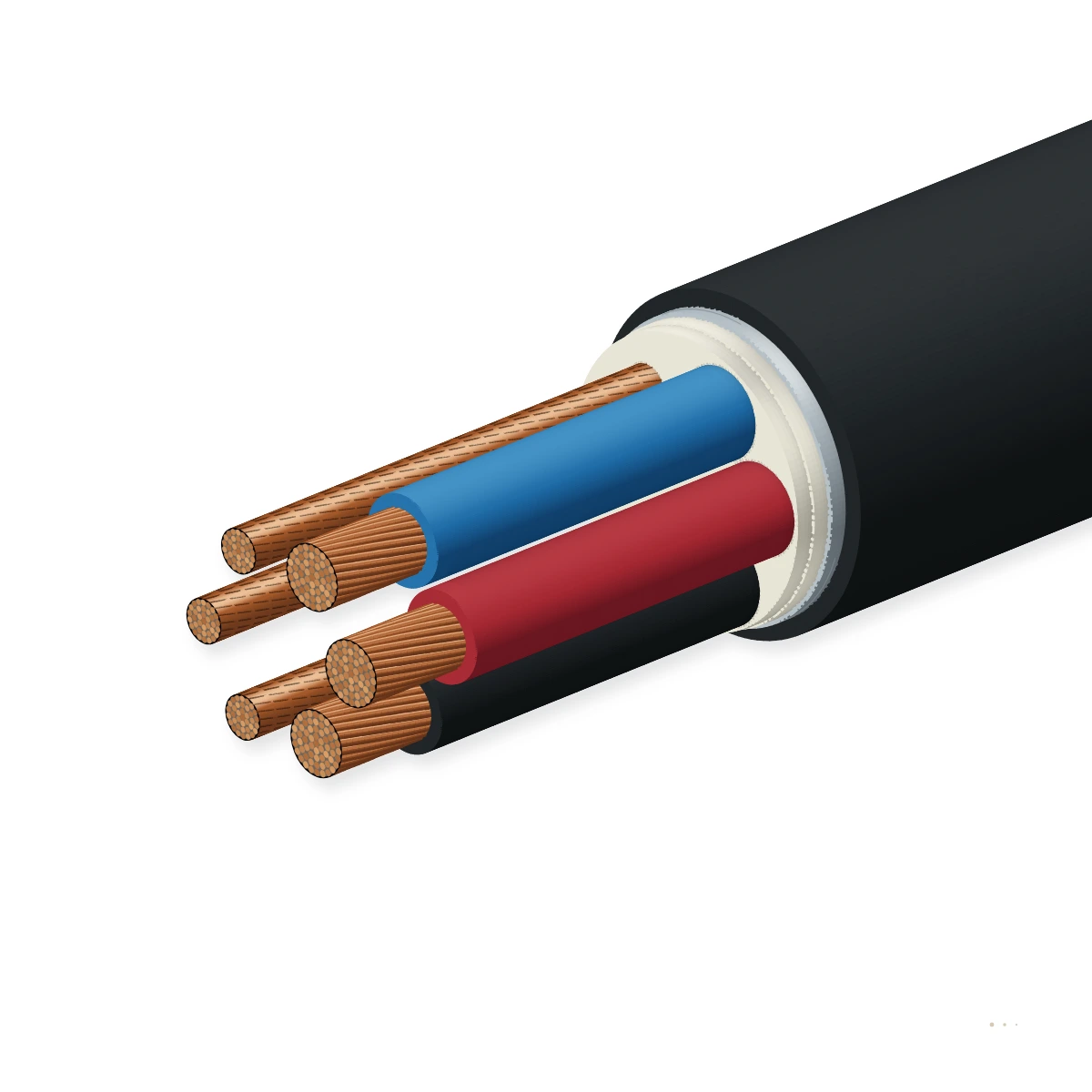

3 × Class B stranded copper phase conductors + XHHW-2 cross-linked polyethylene (or EPR) insulation + 3 × bare stranded copper grounds in the outer interstices + polyester binder tape + continuously welded and corrugated impervious aluminum sheath (CWCMC) + sunlight- and oil-resistant PVC or CPE outer jacket.

12345
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
13 × stranded copper phase conductorsCompressed concentric stranded annealed bare or tinned copper (14 AWG to 750 MCM) per UL 1569 / UL 44UL 1569
2XHHW-2 XLPE (or EPR) 90 °C dielectricThermoset cross-linked polyethylene (XHHW-2) or ethylene-propylene rubber (EPR) rated +90 °C wet/dryUL 44
33 × symmetrical bare copper groundsThree bare copper ground wires nestled at 120° intervals in the core interstices for balanced fault & VFD common-mode returnUL 2225
4Continuously welded corrugated Al (CWCMC)Seamless seam-welded and corrugated aluminum tube forming a 100 % gas-, vapour- and liquid-impervious metallic barrierUL 2225
5Oil, chemical & UV PVC / CPE outer jacket-40 °C flame-retardant (IEEE 1202 / FT4), Oil Resistant I & II black polymeric outer sheathUL 2225

600 V / 1000 V MC-HL Power & VFD Cable (14 AWG to 750 MCM — 3 Phase + 3 Symmetrical Grounds)

XHHW-2 XLPE insulated 3-phase power and inverter feeder cable for Class I Div 1 & 2 hazardous locations.

2.4 kV / 5 kV / 15 kV MV MC-HL (EPR Insulated, Shielded)

Medium-voltage copper-tape-shielded EPR + welded corrugated aluminum sheath MC-HL for offshore and refinery MV distribution.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on UL 2225 / UL 1569 / NEC Art. 330 & 501. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage
600 V / 1,000 V / 2,000 V VFD (plus 5 kV & 15 kV MV series)
Dielectric test & sheath pressure test
3.5 kV AC dielectric + 100 % continuous pneumatic/eddy-current weld integrity test

Thermal

Conductor temperature rating
+90 °C wet or dry · +130 °C emergency overload · +250 °C short-circuit
Installation & operating temperature
-40 °C cold impact & cold bend to +90 °C continuous

Mechanical

Minimum bending radius
7 × OD (fixed training) · 12 × OD (pulling)
Crush & impact resistance
Passes UL 2225 severe Class I Div 1 crush & impact tests (comparable to rigid steel conduit)

Resistance

Imperviousness to gas, vapour & liquids
Seamless welded aluminum tube blocks hydrocarbon migration and water ingress
Flame & oil resistance
UL 1685 / IEEE 1202 / CSA FT4 70,000 BTU/hr tray flame · Oil Resistant I & II

Reference standards

Governing standards
UL 2225, UL 1569, UL 1277, CSA C22.2 No. 123 & NEC Articles 330, 501, 505
Marine & offshore approvals
US Coast Guard (USCG), ABS & IEEE 45 / API RP 14F compliant

Identification

Phase core identification
Black, White, Red (or numbered / ICEA Method 1/4) + 3 bare grounds
Outer jacket colour
Black (or HL/VFD stripe identification)

Sizes

13 standard configurations (MC-HL Power)

Nominal dimensions, copper weight, total mass and electrical parameters for MC-HL Power per UL 2225 / UL 1569 / NEC Art. 330 & 501.

Dimensions & masses
Designation3 Phase + 3 Split GroundGround AWG / NEC 90°C ANom. OD
mm		Copper
kg/km		Total mass ≈
kg/km		Min. bend R
mm		Enquiry
MC-HL Power size schedule
MC-HL 3C 14 AWG3C × 14 AWG + 3G3×18 AWG Gd · 25 A14.2068.0235.099.4
MC-HL 3C 12 AWG3C × 12 AWG + 3G3×16 AWG Gd · 30 A15.20108.0285.0106.4
MC-HL 3C 10 AWG3C × 10 AWG + 3G3×14 AWG Gd · 40 A16.80172.0370.0117.6
MC-HL 3C 8 AWG3C × 8 AWG + 3G3×14 AWG Gd · 55 A19.60248.0510.0137.2
MC-HL 3C 6 AWG3C × 6 AWG + 3G3×12 AWG Gd · 75 A22.10395.0710.0154.7
MC-HL 3C 4 AWG3C × 4 AWG + 3G3×12 AWG Gd · 95 A25.40602.0990.0177.8
MC-HL 3C 2 AWG3C × 2 AWG + 3G3×10 AWG Gd · 130 A28.70955.01,430.0200.9
MC-HL 3C 1/0 AWG3C × 1/0 AWG + 3G3×10 AWG Gd · 170 A33.801,455.02,060.0236.6
MC-HL 3C 2/0 AWG3C × 2/0 AWG + 3G3×8 AWG Gd · 195 A36.601,875.02,550.0256.2
MC-HL 3C 4/0 AWG3C × 4/0 AWG + 3G3×6 AWG Gd · 260 A42.402,975.03,890.0296.8
MC-HL 3C 250 MCM3C × 250 MCM + 3G3×6 AWG Gd · 290 A46.203,415.04,460.0323.4
MC-HL 3C 350 MCM3C × 350 MCM + 3G3×4 AWG Gd · 350 A51.604,800.06,050.0361.2
MC-HL 3C 500 MCM3C × 500 MCM + 3G3×4 AWG Gd · 430 A58.406,600.08,180.0408.8
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Dimensions and tolerances conform to UL 2225 / UL 1569 / NEC Art. 330 & 501.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
3.5 kV AC dielectric + 100 % eddy-current & pressure weld testZero electrical breakdown; 100 % gas-tight aluminum weld seam100 % of reels
Sample tests
UL 2225 severe crush/impact & -40 °C cold impact testPasses Class I Div 1 mechanical crush & arctic impactEvery batch
IEEE 1202 / UL 1685 70,000 BTU/hr flame & gas-tightness testUL 2225 Listed Type MC-HLType qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

UL 2225 Listed Type MC-HLUL 1569 Type MC & UL 1277NEC Class I, II, III Div 1 & 2 (Zone 1 & 2)USCG & ABS Offshore ApprovedIEEE 1202 / CSA FT4

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX (UL) TYPE MC-HL [3/C AWG + 3 SYM GND] XHHW-2 600V/1000V VFD CWCMC -40C OIL RES II SUN RES IEEE 1202 FT4 [lot/ft]
Delivery form
Non-returnable wooden drums, export reels or shrink-wrapped coils
Standard drum lengths
100 m · 250 m · 500 m · 1000 m
MOQ
200 m (stock sizes) · 500 m (custom lengths)
Lead time
2–3 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFMC-HL Power Metal-Clad Power Cable – technical datasheet13 sizes · construction, technical data, approvalsXLSXMC-HL Power spec data (Excel)All 13 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What makes Type MC-HL (UL 2225) fundamentally different from standard Type MC or TECK90?
Standard Type MC (UL 1569) and TECK90 use an interlocked helical metal strip armour, which has microscopic spiral seams and is restricted under the US NEC to Class I Division 2. Type MC-HL (UL 2225) forms a solid aluminum strip into a tube, continuously TIG/laser welds the longitudinal seam and annularly corrugates it (CWCMC). Because the welded metallic sheath is 100 % gas-, vapour- and liquid-impervious and passes rigid-conduit-level crush tests, NEC 501.10(A)(1)(c) permits MC-HL in Class I Division 1 (and Zone 1) hazardous locations.
Why is MC-HL with 3 symmetrical ground conductors the gold standard for VFD (Variable Frequency Drive) motor feeders?
IGBT inverters generate fast-rising PWM voltage pulses that induce high-frequency common-mode currents and radiated EMI. The 360° solid welded aluminum tube acts as an unbroken Faraday cage with ultra-low transfer impedance, while the three bare copper ground wires placed at 120° in the phase interstices cancel magnetic unbalance and return common-mode currents symmetrically to the drive.
How much installation labour does MC-HL save compared with rigid galvanized steel conduit in Class I Div 1?
Field studies on petrochemical and LNG projects show that running MC-HL on open ladder cable trays with UL 2225 barrier glands reduces total installed cost by 40 % to 60 % compared with threading, bending, pulling and pouring explosion-proof seals in rigid galvanized conduit.
Can MC-HL be buried directly underground or installed on offshore platforms?
Yes. The impervious welded aluminum sheath combined with the Oil Resistant II / Sunlight Resistant outer PVC or CPE jacket is listed for direct burial, concrete encasement, open cable trays and USCG/ABS offshore marine decks.
