British Coal MGM 109 / MGM 118 & PN-G-90006 Underground Mining Power CablesMGM 109 Type 1012 / 1013 / 1014640/1100 V · 2C, 3C & 4CSingle Wire Armour (≥ 75 % Earth)

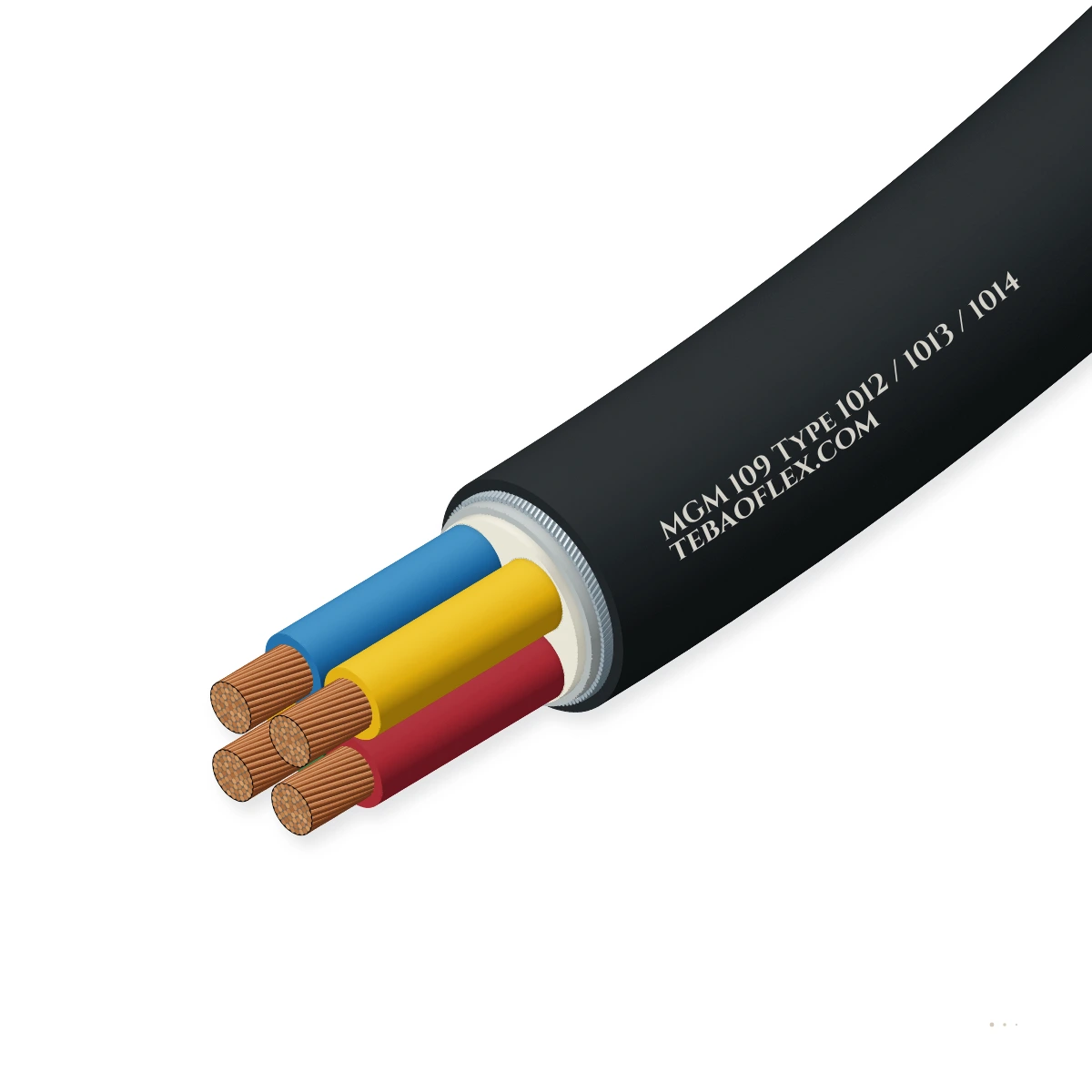

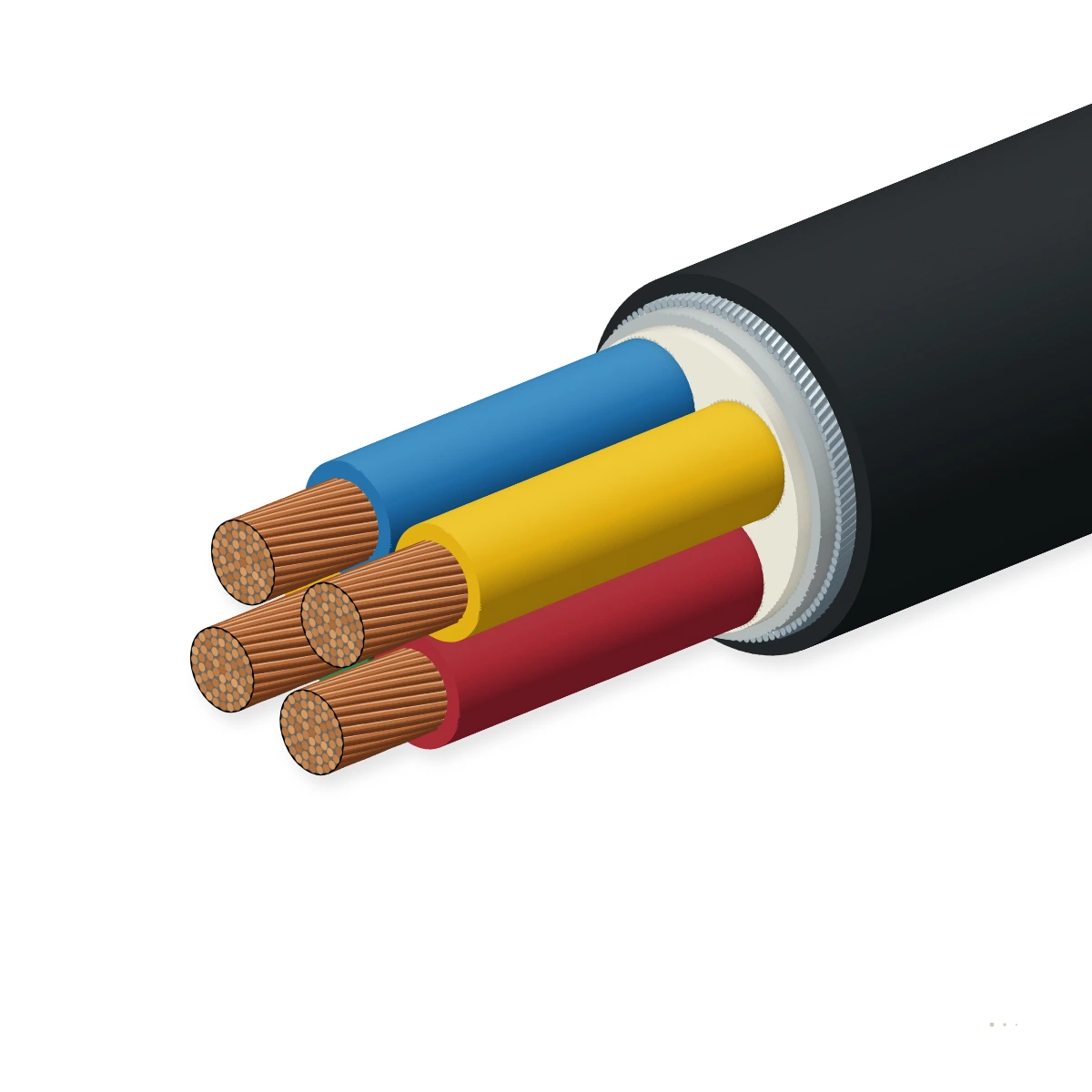

MGM 109 Type 1012 / 1013 / 1014 Single-Armoured LV Feeder CableBritish Coal MGM 109 / BS 6708 640/1100 V Type 1012 (2C), 1013 (3C) & 1014 (4C) SWA

MGM 109 Type 1012 / 1013 / 1014 Single-Armoured LV Feeder Cable is manufactured to British Coal Specification MGM 109 and BS 6708 for 640/1100 V fixed horizontal roadway distribution, lighting transformers, and auxiliary pump/fan circuits in underground

Flame-retardant
EMC screen
Oil-resistant
Water-resistant
Order designation
MGM 109 Type 1013 3C × 6.0 mm² SWA
Outer Ø ≈
18.8 mm
Copper weight
173 kg/km
Total weight ≈
680 kg/km
Min. bend R (fixed)
150 mm
All sizes (6)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Specification
MGM 109 / BS
Type 1012 (2C) · 1013 (3C) · 1014 (4C)
Rated voltage
640/1100 V AC
3.5 kV AC / 5 min dielectric test
Armouring
Single Wire
Galvanized steel (+ Cu wires ≥ 75 %)
Earth conductance
≥ 75 % of Phase
Metallic armour conductance ratio
Insulation
Type GP4 EPR
90 °C cross-linked rubber BS 7655
Outer sheath
Mining FR-PVC
Heavy-duty flame-retardant Black PVC

Typical values for this cable type, based on British Coal MGM 109 / BS 6708 (Type 1012 / 1013 / 1014 LV SWA) — confirmed in the datasheet and quotation for your order.

Application fit

Is MGM 109 Type 1012 / 1013 / 1014 right for your machine?

Engineered for horizontal underground mine roadways, sub-main gate-end box interconnectors, lighting/signalling transformers, and surface colliery preparation plants where single-wire armour

Fixed installation

Suitable

Lighter and smaller-diameter than Double Wire Armour (Type 1023/1024) for horizontal roadway messenger hooks.

Switchgear & control cabinet wiring

Suitable

Terminates into BS 6708 flameproof (Ex d) single-wire-armour mining glands and half-couplers.

Immersion & wet locations

Suitable

Extruded PVC inner bedding and outer sheath seal the SWA against roadway groundwater and stone dust.

Energy chain / drag chain

Not suitable

Fixed armoured mining roadway cable.

YnOGY
Typical machinesUnderground coal mine horizontal roadwaysGate-end box & lighting transformer feedersAuxiliary ventilation & dewatering pumpsSurface coal handling & washery plants

Construction

Layer by layer

Circular stranded tinned annealed copper conductors (BS EN 60228 Class 2, 2.5 to 185 mm²), 90 °C Type GP4 EPR insulation, extruded PVC

12345
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Stranded tinned copper conductorBS EN 60228 Class 2 circular stranded tinned annealed copper (2.5 to 185 mm²)MGM 109 / BS EN 60228
2Type GP4 EPR rubber insulation (90 °C)Cross-linked ethylene-propylene elastomer Type GP4 per BS 7655-1.2MGM 109 / BS 7655-1.2
3Extruded PVC inner beddingFlame-retardant extruded PVC bedding over laid-up coresMGM 109
4Single Wire Armour (SWA ≥ 75 %Single helical layer of galvanized steel wires (with tinned copper wires on larger sizesMGM 109 / BS 6708
5Mining flame-retardant PVC outer sheathHeavy-duty abrasion- and flame-retardant PVC Type TM1/Type 9 outer sheath, BlackMGM 109 / BS 7655

MGM 109 Type 1012 (2-Core × 2.5 to 35 mm²)

640/1100 V 2-core single-wire-armoured lighting and auxiliary control power feeder.

MGM 109 Type 1013 (3-Core) & Type 1014 (4-Core × 2.5 to 185 mm²)

640/1100 V 3-core and 4-core single-wire-armoured roadway power distribution cables.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on British Coal MGM 109 / BS 6708 (Type 1012 / 1013 / 1014 LV SWA). Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
640/1100 V AC
AC dielectric test voltage
3,500 V AC for 5 minutes
Max. conductor operating temp.
+90 °C continuous · +250 °C short-circuit
Metallic armour conductance
≥ 75 % of the conductance of one phase

Thermal

Operating temperature range
-15 °C to +90 °C (fixed installation)
Minimum installation temp.
0 °C

Mechanical

Min. bending radius
8 × overall diameter (D) for SWA mining
Impact & crush protection
Single layer galvanized steel round wire

Resistance

Flame retardance
BS EN 60332-1-2 & British Coal underground
Oil, water & chemical resistance
Resistant to mine water, hydraulic oil, and

Reference standards

Primary specification
British Coal Specification MGM 109 (Types
Material standards
BS EN 60228 · BS 7655-1.2 (GP4 EPR) · BS EN

Identification

Core identification
2C: Brown/Blue · 3C: Brown/Black/Grey · 4C
Outer sheath colour
Black embossed 'MGM 109 TYPE 1012/1013/1014

Sizes

6 standard configurations (MGM 109 Type 1012 / 1013 / 1014)

Nominal dimensions, copper weights, DC resistance and current ratings for MGM 109 Type 1012 / 1013 / 1014 per British Coal MGM 109 / BS 6708 (Type 1012 / 1013

Dimensions & weights
Order designationCores × SizeMain cross-sectionOuter Ø ≈
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard MGM 109 Type 1012 / 1013 / 1014 configurations
MGM 109 Type 1012 2C × 4.0 mm² SWA2 × 4.0 mm² (Type 1012)4.0 mm²16.477490131
MGM 109 Type 1013 3C × 6.0 mm² SWA3 × 6.0 mm² (Type 1013)6.0 mm²18.8173680150
MGM 109 Type 1013 3C × 16 mm² SWA3 × 16 mm² (Type 1013)16.0 mm²23.64611,180189
MGM 109 Type 1013 3C × 50 mm² SWA3 × 50 mm² (Type 1013)50.0 mm²33.41,4402,480267
MGM 109 Type 1013 3C × 95 mm² SWA (Cu/GSW)3 × 95 mm² (Type 1013)95.0 mm²42.83,1204,380342
MGM 109 Type 1014 4C × 35 mm² SWA4 × 35 mm² (Type 1014)35.0 mm²32.61,3442,360261
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal factory values subject to ±5 % manufacturing tolerance per British Coal MGM 109 / BS 6708 (Type 1012 / 1013 / 1014 LV SWA).

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
3.5 kV AC dielectric & insulation resistance3,500 V AC for 5 min per MGM 109 / BS 6708100 % of drums
Phase & SWA armour DC resistance ratioArmour conductance ≥ 75 % of largest phase conductor100 % of drums
Sample tests
GP4 EPR hot-set & galvanizing coat weightBS 7655-1.2 EPR & BS EN 10257-1 SWA wire testsPer production batch
Underground mining flame & impact testPass MGM 109 / BS 6708 flame and mechanical crush checksType approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

British Coal MGM 109BS 6708CE / UKCA

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX MGM 109 TYPE 1012 / 1013 / 1014
Delivery form
Non-returnable timber drums or heavy export
Standard drum lengths
250 m · 500 m · 1000 m · custom cut lengths
MOQ
100 m (stock variants) · 500 m (custom)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFMGM 109 Type 1012 / 1013 / 1014 Single-Armoured LV Feeder Cable – technical datasheet6 sizes · construction, technical data, approvalsXLSXMGM 109 Type 1012 / 1013 / 1014 spec data (Excel)All 6 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What is the difference between MGM 109 Type 1012, Type 1013, and Type 1014?
All three are 640/1100 V ('1'), unscreened ('0'), single-wire-armoured ('1') EPR/PVC mining cables to British Coal MGM 109. The final digit specifies the number of insulated cores: Type 1012 has 2 cores (single-phase lighting/control), Type 1013 has 3 cores (3-phase power), and Type 1014 has 4 cores (3-phase + neutral/pilot).
How does Single-Armoured MGM 109 (Type 1013) maintain ≥ 75 % earth conductance on large cross-sections?
With only a single layer of armour wires, galvanized steel alone cannot match 75 % of the conductance of 70 mm² to 185 mm² copper phase conductors. We intersperse high-conductivity tinned copper wires within the galvanized steel SWA layer so the combined armour conductance exceeds 75 %.
When is Single Wire Armour (Type 1012/1013/1014) selected over Double Wire Armour (Type 1023/1024)?
Single Wire Armour is specified for permanent horizontal galleries, pit-bottom substation rooms, lighting distribution, and surface colliery plants where tighter 8×D routing and lower weight are preferred over the vertical shaft suspension strength of DWA. Each production drum undergoes 100 % conductor DC resistance
Can MGM 109 Type 1013 be terminated with standard industrial BS 6121 SWA glands?
In non-hazardous surface washery buildings, heavy-duty industrial SWA glands can be used; in underground gassy coal roadways (Group I), BS 6708 / ATEX Group I Ex d mining glands and bolted coupler boxes must be used. Each production drum undergoes 100 % conductor DC

Request a quote

Get an engineering quote for MGM 109 Type 1012 / 1013 / 1014

Your selection and application details are copied into the enquiry form below.

01Selected sizes

Use + Add next to a size or configuration.

02Reel & motion

Add your operating conditions here to include them in your enquiry.

03Message for our engineers

MGM 109 Type 1012 / 1013 / 1014 Single-Armoured LV Feeder Cable

Selected sizes:


Reel & motion:
- Reel type:
- Drum core diameter (mm):
- Cable length on drum (m):
- Travel speed (m/min):
- Max. acceleration:
- Cycles per hour:
- Length and quantity:
- Ambient temperature:
- Exposure (outdoor, water, oil, abrasion):
- Destination country:
- Equipment and operating conditions:
