Triboelectric low-noise sensor cable≤ 5–15 fC Triboelectric Noise−70…+260 °C PTFE / FEP / PFACoax, Triax & Differential Pair

Low-Noise Cable for Piezoelectric SensorsConductive-carbon/PTFE triboelectric-treated low-noise charge accelerometer cable

Ultra-low-noise coaxial, triaxial and differential twisted-pair cable for high-impedance charge-mode piezoelectric accelerometers and pressure sensors, featuring a conductive carbon-PTFE anti-triboelectric layer that suppresses flex noise below ≤ 5–15 fC.

Low-EMC design
EMC screen
Flame-retardant
Oil-resistant
Order designation
PIEZO-LN-50-280 (RG-174 LN)
Outer Ø ≈
2.80 mm
Total weight ≈
16.5 kg/km
Min. bend R
14 mm
Construction
50 Ω Coax · AWG 26 (7×34 SPC)
All sizes (12)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Tribo-noise
≤ 5–15 fC
0.005–0.015 pC per IEST whip
Insulation R
≥ 10¹³ Ω·m
prevents charge-amp drift
Temperature
−70…+260 °C
PFA · −65…+200 °C FEP · PUR
Capacitance
95–100 pF/m
50 Ω coax · ~85 pF/m diff. pair
Screen coverage
≥ 95 % SPC Braid
silver-plated copper optical cov.
Bend radius
5 × OD
sub-miniature Ø 1.95–4.80 mm

Typical values for this cable type, based on IEST-RP-DTE011 / MIL-DTL-17 / ISO 16063 — confirmed in the datasheet and quotation for your order.

Application fit

Is Low-Noise Cable for Piezoelectric Sensors right for your machine?

Mandatory between high-impedance charge-mode piezoelectric sensors (pC/g, pC/bar, pC/N) and charge amplifiers where ordinary coaxial cable generates massive false low-frequency spikes from cable vibration.

Fixed installation

Suitable

Routes through gas-turbine casings, jet-engine test cells, nuclear reactor vessels and modal-analysis rigs.

Free-hanging vertical run

Suitable

Anti-triboelectric conductive PTFE interface bleeds off friction charges when the sensor lead vibrates or whips.

Offshore platform & shipboard deck trays

Suitable

FEP, PFA and PUR outer jackets resist aviation fuel, synthetic turbine oil, Skydrol and moisture.

TBM gantry & advancing tunnel reel

Not suitable

Sub-miniature precision sensor lead (Ø 1.95–6.4 mm); install inside protective conduit if routed underground.

RE-2Y(st)Y SWAY Armoured Cable
Typical machinesAero-Engine & Gas Turbine Vibration MonitoringAutomotive NVH, Crash & Shaker Table TestingHigh-Temperature Dynamic Pressure & CombustionNuclear & Steam Turbine Bearing DiagnosticsUnderwater Acoustics & Piezo Hydrophones

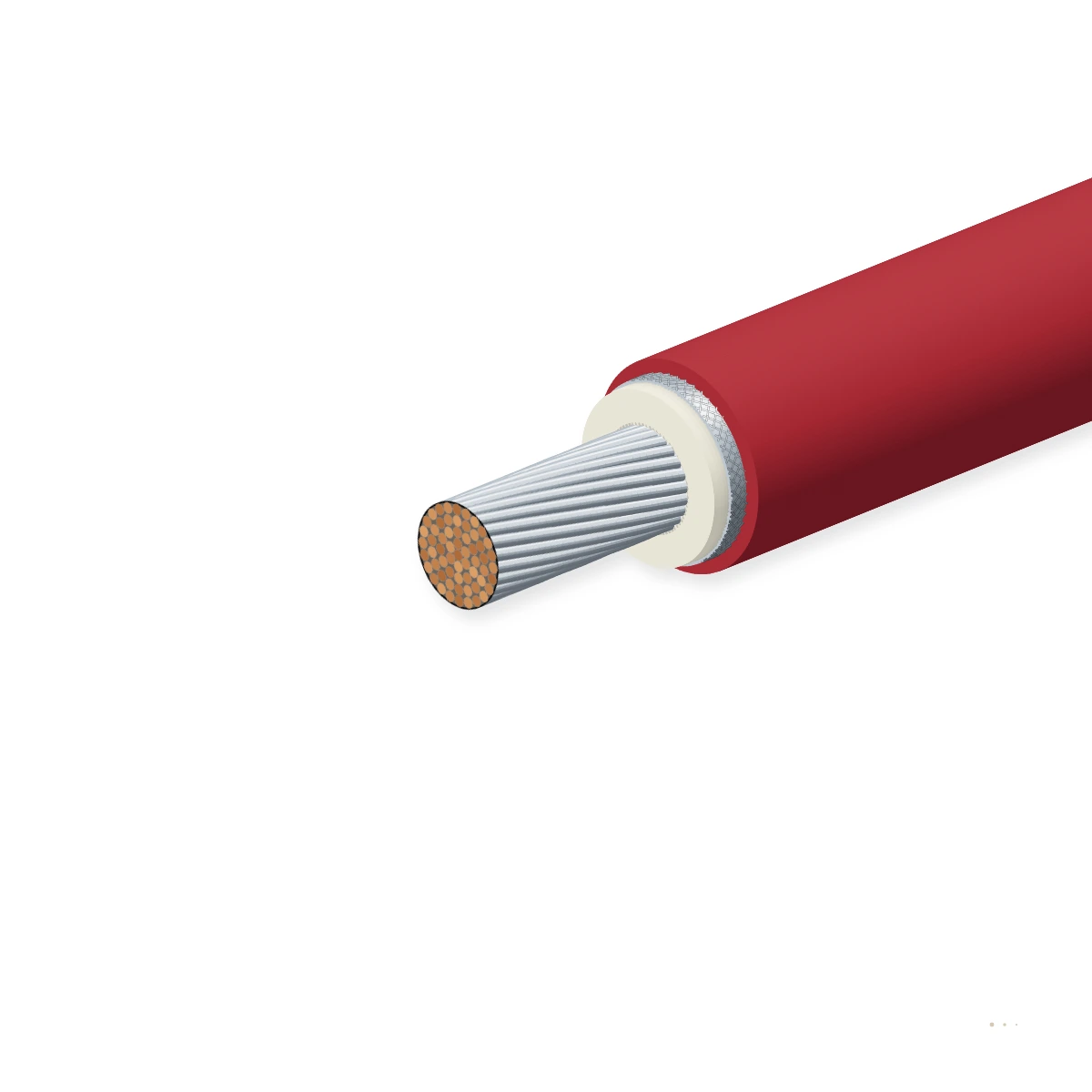

Construction

Layer by layer

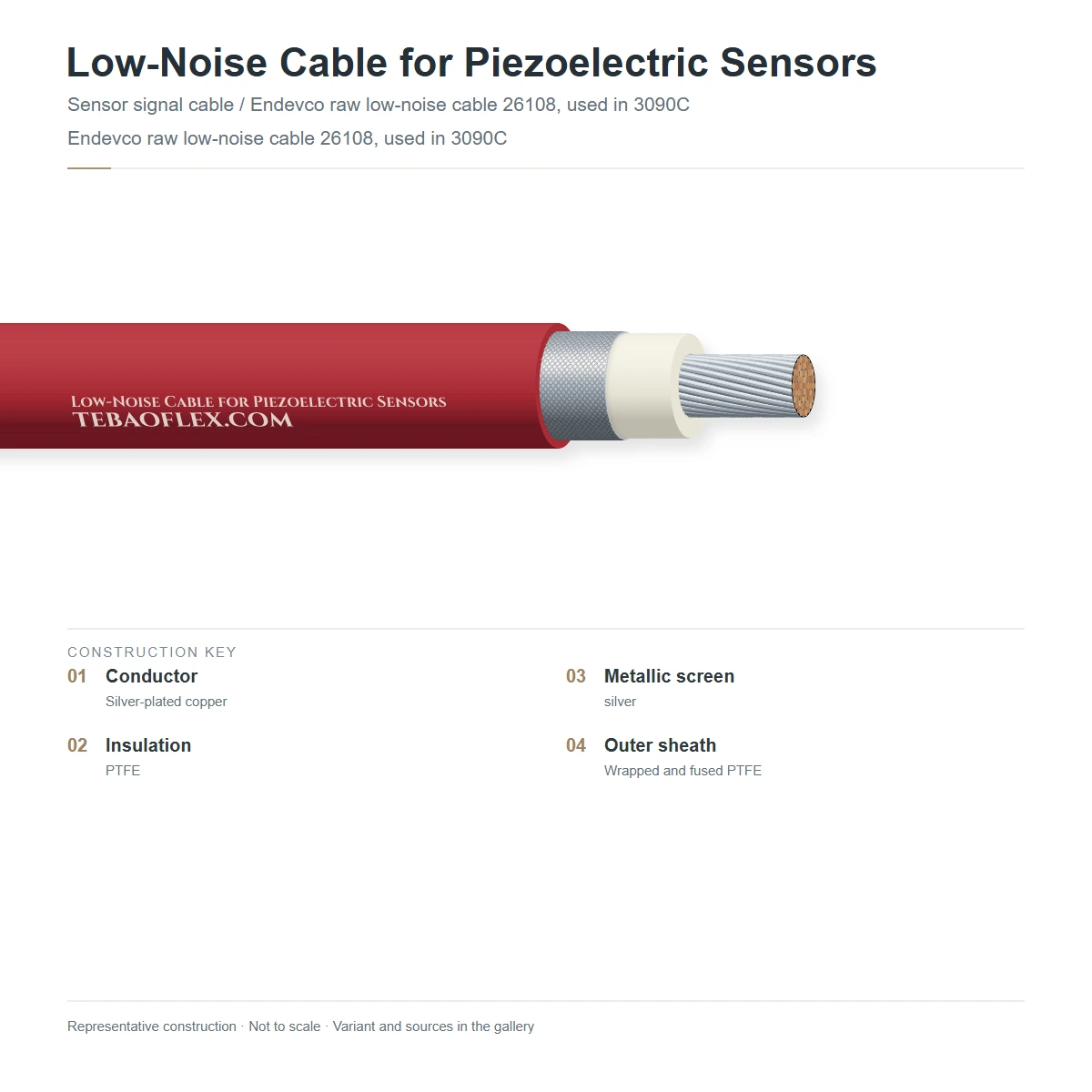

Shown: PIEZO-LN-50-280 (RG-174 LN class) with 7×34 AWG silver-plated copper-clad steel/copper conductor, virgin PTFE dielectric, semi-conductive carbon/graphite-PTFE anti-triboelectric dispersion layer, ≥ 95 % silver-plated copper braid and +200/+260 °C FEP/PFA jacket.

12345
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Fine-stranded silver-plated copper (SPC / SPCCS)7-strand or 19-strand silver-plated oxygen-free copper or high-strength copper-clad steel (AWG 28 to AWG 22)High flex fatigue life under high-frequency shaker vibration up to +260 °C
2Virgin extruded PTFE dielectricHigh-purity polytetrafluoroethylene (PTFE) with insulation resistance ≥ 10¹³ Ω·mPrevents low-frequency RC time-constant droop on charge amplifier inputs
3Semi-conductive carbon/graphite-PTFE triboelectric layer Sintered conductive carbon-loaded PTFE dispersion layer bonded directly to the outer surface of the PTFE dielectricEqualises local electrostatic charges when the braid separates from the dielectric during flexing (≤ 5–15 fC)
4High-density silver-plated copper braid screenTightly woven silver-plated copper (SPC) braid with ≥ 95 % optical coverage in intimate contact with the conductive layerProvides low transfer impedance and mechanical containment
5High-temperature FEP, PFA or flexible PUR jacketExtruded fluoropolymer FEP (−65…+200 °C), PFA (−70…+260 °C), or oil-resistant PUR (−40…+105 °C)Resists jet fuel, hydraulic oils, solvents and thermal cycling

PIEZO-LN Coaxial (50 Ω)

Sub-miniature Ø 1.95, 2.50, 2.80 (RG-174 LN) and 3.20 mm single-ended charge cable for 10-32 UNF / M5 / BNC

PIEZO-LN-TP Differential Pair

Individually tribo-treated twisted pair + overall SPC braid for balanced differential charge amplifiers (2-pin MIL / Lemo)

PIEZO-LN-TRIAX (Concentric Triaxial)

Inner signal + tribo layer + inner guard braid + outer ground braid for driven-guard charge systems

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on IEST-RP-DTE011 / MIL-DTL-17 / ISO 16063. Values for your order are confirmed in the datasheet and quotation.

Electrical

Max. triboelectric charge noise
≤ 5 fC to ≤ 15 fC (0.005–0.015 pC) peak-to-peak
Insulation resistance
≥ 10,000 GΩ·m (10¹³ Ω·m) at +20 °C
Characteristic impedance (coax / triax)
50 Ω ± 2 Ω
Nominal capacitance
95–100 pF/m (50 Ω coax) · ~85 pF/m (differential pair)
Operating & test voltage
250 V rms working · 1000 V rms AC dielectric test

Thermal

Operating temperature (PFA jacket)
−70 °C to +260 °C
Operating temperature (FEP jacket)
−65 °C to +200 °C
Operating temperature (PUR jacket)
−40 °C to +105 °C

Mechanical

Min. bending radius
5 × OD (dynamic vibration) · 3 × OD (static routing)
Connector compatibility
10-32 UNF Microdot, M5, BNC, TNC, LEMO 00/0B, MIL-C-5015

Resistance

Fluid & chemical resistance
Resistant to Jet-A1, Skydrol, synthetic lubricants & solvents
Flame retardance
UL 94 V-0 / IEC 60332-1-2 (FEP & PFA fluoropolymer jackets)

Reference standards

Triboelectric test method
IEST-RP-DTE011 & Perls / ISA S37.10 shaker whip test
Coaxial construction basis
MIL-DTL-17 (RG-174 / RG-178 / RG-316 low-noise derivatives)

Identification

Jacket colour
Translucent Blue, Salmon/Orange, Black or White (by temp grade)
Customs tariff (HS)
8544.20 / 8544.49

Sizes

12 standard Low-Noise Piezoelectric Sensor Cable constructions

Covers 50 Ω single-ended coaxial, differential twisted-pair, concentric triaxial and 4-wire triaxial IEPE cables.

Dimensions, triboelectric noise & temperature ratings
Order designationConstructionDielectric / JacketNoise & temp. ratingOuter Ø ≈
mm		Weight ≈
kg/km		Min. bend R
mm		Enquiry
50 Ω Low-Noise Coaxial Charge-Mode Cables (10-32 UNF / BNC)
PIEZO-LN-50-19550 Ω Coax · AWG 28 (7×36 SPC)PTFE + Carbon / FEP≤ 15 fC · −65…+200 °C1.958.510
PIEZO-LN-50-25050 Ω Coax · AWG 26 (7×34 SPC)PTFE + Carbon / FEP≤ 10 fC · −65…+200 °C2.5013.012
PIEZO-LN-50-280 (RG-174 LN)50 Ω Coax · AWG 26 (7×34 SPC)PTFE + Carbon / PFA≤ 5 fC · −70…+260 °C2.8016.514
PIEZO-LN-50-32050 Ω Coax · AWG 24 (19×36 SPC)PTFE + Carbon / FEP≤ 10 fC · −65…+200 °C3.2021.016
PIEZO-LN-PUR-30050 Ω Coax · AWG 26 (19×38 Cu)PE + Carbon / PUR≤ 25 fC · −40…+105 °C3.0014.515
Differential Twisted-Pair Low-Noise Charge-Mode Cables (Turbine / Industrial)
PIEZO-LN-TP 1×2×AWG261 Pair × AWG 26 (19×38 SPC)PTFE + Carbon / FEPDiff. Charge · −65…+200 °C3.4019.517
PIEZO-LN-TP 1×2×AWG241 Pair × AWG 24 (19×36 SPC)PTFE + Carbon / FEPDiff. Charge · −65…+200 °C4.1028.020
PIEZO-LN-TP 1×2×AWG221 Pair × AWG 22 (19×34 SPC)PTFE + Carbon / PFADiff. Charge · −70…+260 °C4.8039.024
PIEZO-LN-TP 2×2×AWG242 Pairs × AWG 24 (19×36 SPC)PTFE + Carbon / FEPDual-Axis · −65…+200 °C6.4062.032
Concentric Triaxial & 4-Wire Triaxial IEPE Sensor Cables
PIEZO-LN-TRIAX-28050 Ω Triax · AWG 26 SPCPTFE + Carbon / FEPDriven Guard · −65…+200 °C2.8519.014
PIEZO-LN-TRIAX-36050 Ω Triax · AWG 24 SPCPTFE + Carbon / PFADriven Guard · −70…+260 °C3.6029.018
PIEZO-IEPE-4×AWG264-Core × AWG 26 SPCFEP / FEP BraidedTriaxial IEPE · −65…+200 °C3.5023.018
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • When terminating low-noise coaxial cable, strip back or clean any loose conductive carbon residue from the cut end of the PTFE dielectric so insulation resistance stays ≥ 10¹² Ω.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
IEST-RP-DTE011 dynamic shaker triboelectric whip testGenerated charge ≤ 5–15 fC peak-to-peak under standard mechanical displacementEvery production lot
High-resistance electrometer insulation test (≥ 10¹² Ω)Verify zero carbon bridging and ≥ 10,000 GΩ·m dielectric resistanceEvery manufactured reel

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

IEST-RP-DTE011 Low-Triboelectric-Noise QualifiedMIL-DTL-17 Fluoropolymer Coaxial BasisCE, RoHS 2 (2011/65/EU) & REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX PIEZO-LN LOW NOISE SENSOR CABLE
Delivery form
Non-returnable fumigated wooden drums
Standard lengths
500 m · 1000 m standard drums (cut lengths on request)
MOQ
500 m (stock sizes) · 1000 m (custom)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FCA, FOB, CIF, DAP

Technical documents

Downloads

PDFLow-Noise Cable for Piezoelectric Sensors – technical datasheet12 sizes · construction, technical data, approvalsXLSXLow-Noise Cable for Piezoelectric Sensors spec data (Excel)All 12 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20
