IEEE 1580 LSX & BS 6883 Offshore / Shipboard Power CablesIEEE 1580 / IEEE 45 / UL 13090.6/1 kV & 2.0 kV Type LSX100/110°C XLPO LSZH · Tinned Cu

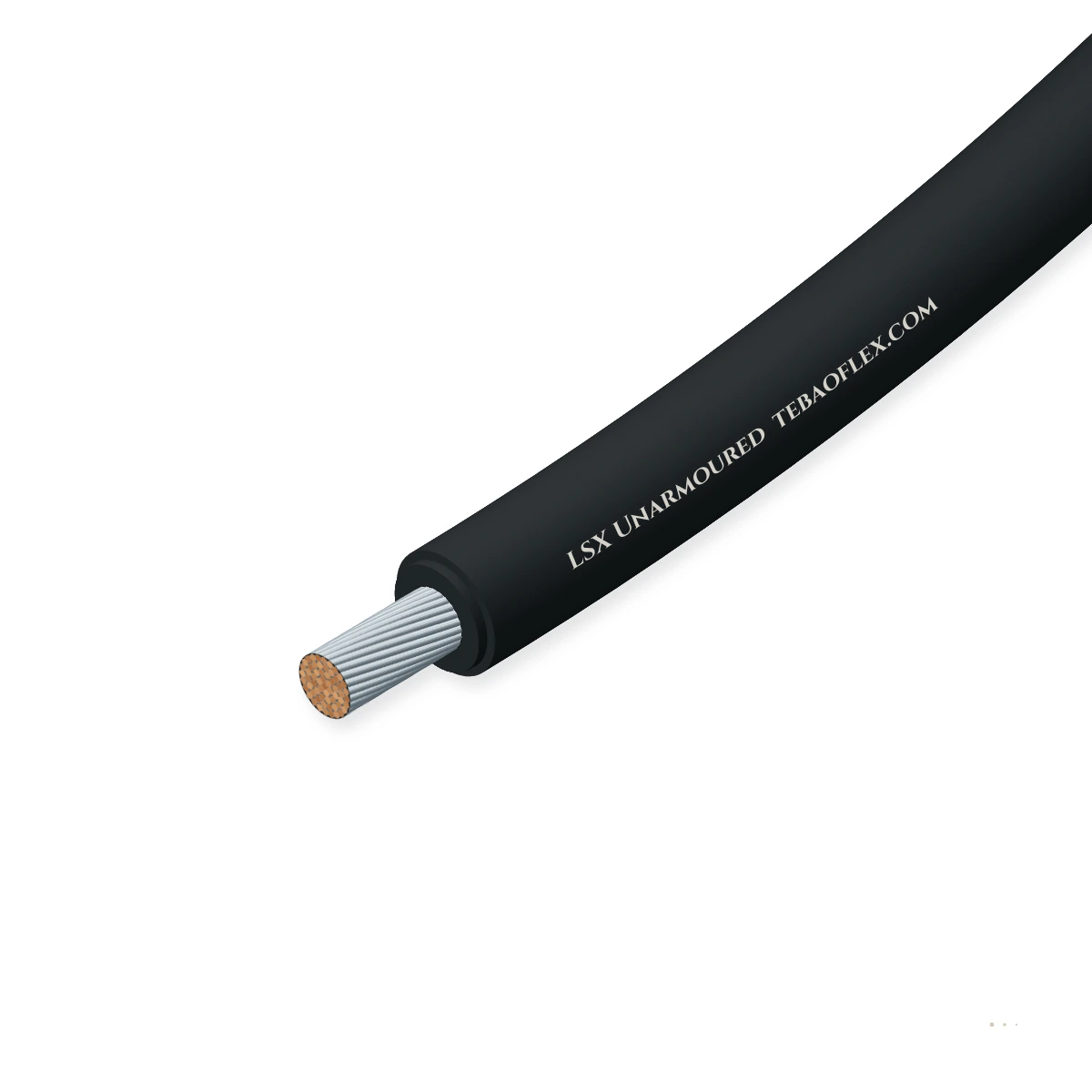

LSX Unarmoured LSZH Single-Conductor Shipboard Power CableIEEE 1580 / UL 1309 0.6/1 kV & 2 kV Class 5 tinned Cu cross-linked polyolefin LSX

LSX Unarmoured LSZH Single-Conductor Shipboard Power Cable is built to IEEE 1580, IEEE 45, and UL 1309 with flexible stranded annealed tinned copper conductors (14 AWG to 777.7 kcmil / 2.5 to 400 mm²) and an integral or dual-layer 100 °C / 110 °C

Flame-retardant
Oil-resistant
Water-resistant
Approved
Order designation
LSX Unarmoured 1C × 35 mm² (2 AWG) 0.6/1 kV
Outer Ø ≈
11.4 mm
Copper weight
325 kg/km
Total weight ≈
405 kg/km
Min. bend R (fixed)
68 mm
All sizes (6)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Standard
IEEE 1580 Type
UL 1309 Marine Shipboard / IEEE 45
Voltage rating
0.6/1 kV & 2 kV
600 V, 1000 V & 2000 V classes
Conductor
Flex Tinned Cu
Fine-stranded ASTM B33 / IEC Class 5
Insulation/Jkt
110 °C XLPO LSZH
Cross-linked low-smoke zero-halogen
Cold bend/impact
-40 °C / -35 °C
CSA C22.2 No. 0.3 arctic marine
Class approvals
ABS / DNV / USCG
Lloyd's Register & Transport Canada

Typical values for this cable type, based on IEEE 1580 / IEEE 45 / UL 1309 (Type LSX Unarmoured Shipboard) — confirmed in the datasheet and quotation for your order.

Application fit

Is LSX Unarmoured right for your machine?

Engineered for high-current AC and DC bus feeders, diesel-electric propulsion switchboards, SCR/VFD converter cubicles, and battery rooms aboard commercial vessels, naval ships, and mobile offshore

Fixed installation

Suitable

Unarmoured single-core design maximizes ampacity and heat dissipation in enclosed switchboard ducts and trays.

Switchgear & control cabinet wiring

Suitable

Fine-stranded diesel-locomotive (DLO) style tinned copper bends at 4×D inside cramped marine switchgear.

Immersion & wet locations

Suitable

Cross-linked Type LSX polyolefin resists diesel fuel, drilling muds, ester fluids, and salt-water humidity.

Energy chain / drag chain

Not suitable

Fixed shipboard and offshore power cable; not intended for dynamic energy chains.

LSX Armoured and Sheathed
Typical machinesDiesel-electric marine propulsionOffshore drilling rigs (MODU / jack-up)Marine main switchboards & UPS batteryNaval, coast guard & workboat power

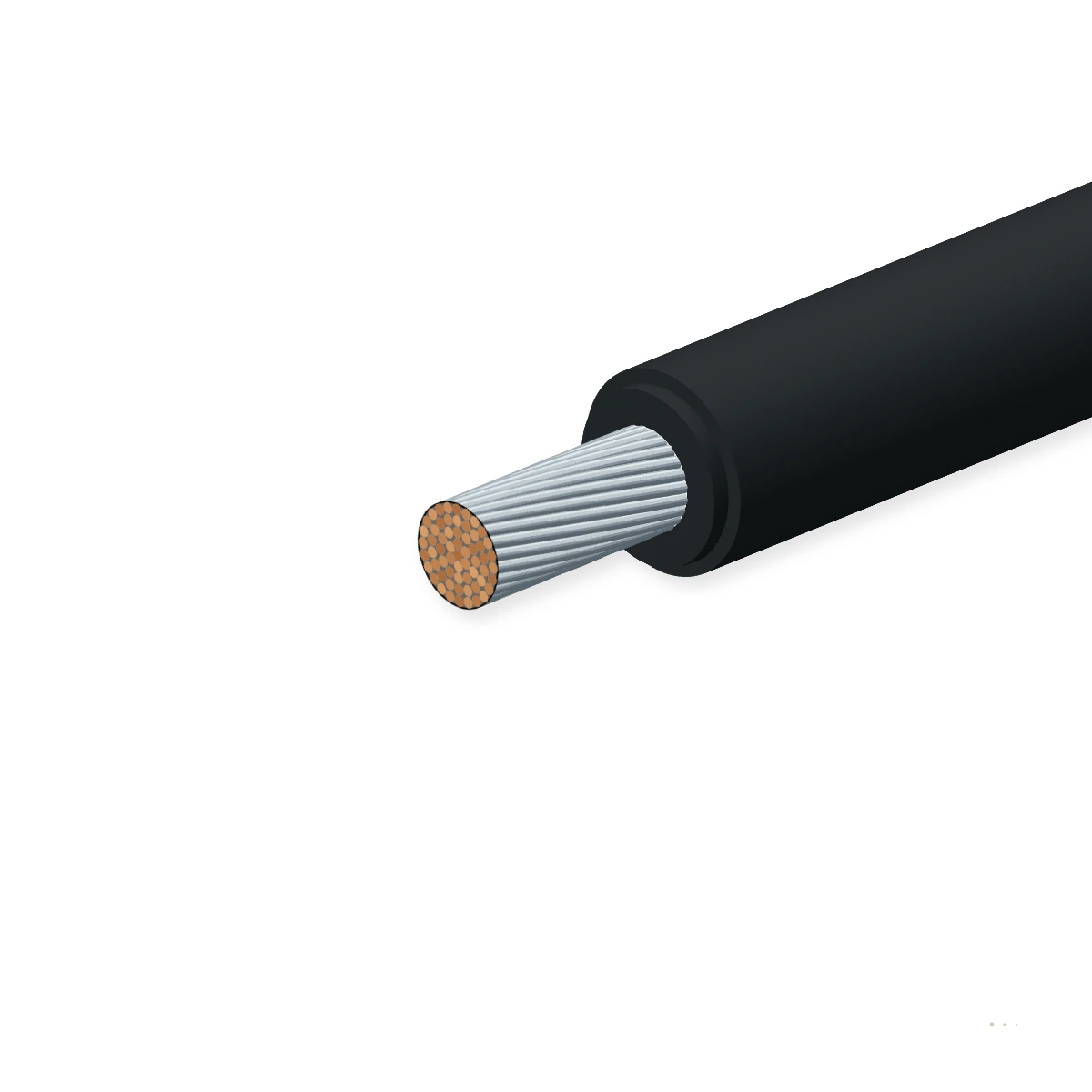

Construction

Layer by layer

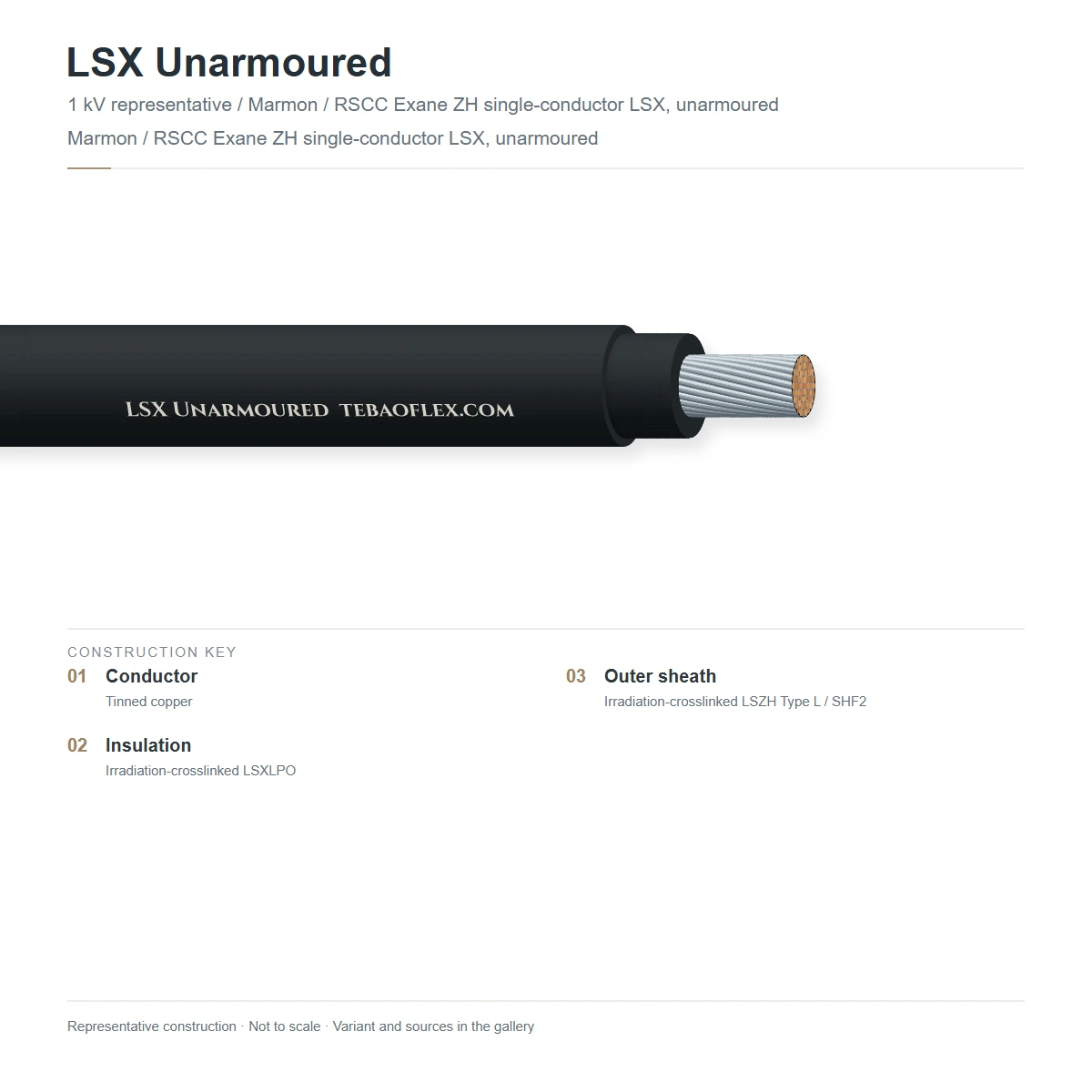

Flexible rope-lay stranded annealed tinned copper conductor (ASTM B33 / B172, 14 AWG to 777.7 kcmil / 2.5 to 400 mm²), polyester separator

1234
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Flexible stranded tinned copperAnnealed tinned copper rope-lay flexible stranding per IEEE 1580 Table 3 / ASTM B33 IEEE 1580 / UL 1309
2Separator tapeHalogen-free polyester tape for clean stripping at compression lugsIEEE 1580
3Type LSX cross-linked polyolefin (XLPO)Irradiation or silane cross-linked low-smoke zero-halogen polyolefin (100/110 °C dry, 90IEEE 1580 Type LSX
4Integral / outer LSX LSZH surfaceOil-, mud-, and sunlight-resistant low-smoke zero-halogen XLPO surface passing IEEE 1202UL 1309 / IEEE 1580

Type LSX 600 V / 1000 V Single-Conductor

Unarmoured single-core shipboard power and switchboard cable from 14 AWG (2.5 mm²) to 777.7 kcmil (400 mm²).

Type LSX 2000 V (2 kV) Heavy Propulsion Feeder

Increased insulation wall thickness for 690–1000 V AC VFD propulsion and 1,000–2,000 V DC drilling drives.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on IEEE 1580 / IEEE 45 / UL 1309 (Type LSX Unarmoured Shipboard). Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage
600/1000 V (0.6/1 kV) & 2000 V (2.0 kV) per
AC dielectric test voltage
3.5 kV AC (0.6/1 kV) · 6.5 kV AC (2.0 kV)
Insulation resistance constant Ki
≥ 3.67 MΩ·km at 90 °C per IEEE 1580
Max. conductor operating temp.
+100 °C / +110 °C (IEC/ABS/DNV) · +95 °C

Thermal

Ambient temperature range
-40 °C to +90 °C
Cold bend & cold impact rating
-40 °C cold bend / -35 °C cold impact (CSA

Mechanical

Min. bending radius
4 × D (D ≤ 25 mm) · 6 × D (D > 25 mm) per
Abrasion & crush resistance
High-modulus cross-linked Type LSX jacket

Resistance

Flame retardancy
IEEE 1202 / FT4 (70,000 BTU/hr) & IEC
Halogen-free, low smoke & oil
IEC 60754-1/2 (< 0.5 % HCl) · IEC 61034-2 ·

Reference standards

Primary specification
IEEE 1580 Type LSX · IEEE 45 · UL 1309 ·
Marine approvals
ABS, DNV, Lloyd's Register, USCG, BV

Identification

Core / sheath colour
Black (Dark Grey, Red, Blue, or
Surface print legend
AWG/kcmil + metric mm², voltage, IEEE 1580

Sizes

6 standard configurations (LSX Unarmoured)

Nominal dimensions, copper weights, DC resistance and current ratings for LSX Unarmoured per IEEE 1580 / IEEE 45 / UL 1309 (Type LSX Unarmoured Shipboard).

Dimensions & weights
Order designationCores × SizeMain cross-sectionOuter Ø ≈
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard LSX Unarmoured configurations
LSX Unarmoured 1C × 16 mm² (6 AWG) 0.6/1 kV1 × 16 mm² (6 AWG)16.0 mm²8.414819550
LSX Unarmoured 1C × 35 mm² (2 AWG) 0.6/1 kV1 × 35 mm² (2 AWG)35.0 mm²11.432540568
LSX Unarmoured 1C × 70 mm² (2/0 AWG) 0.6/1 kV1 × 70 mm² (2/0 AWG)70.0 mm²15.265077591
LSX Unarmoured 1C × 120 mm² (4/0 AWG) 0.6/1 kV1 × 120 mm² (4/0 AWG)120.0 mm²19.31,1101,290116
LSX Unarmoured 1C × 185 mm² (373 kcmil) 2.0 kV1 × 185 mm² (373 kcmil 2kV)185.0 mm²24.11,7201,980145
LSX Unarmoured 1C × 300 mm² (646 kcmil) 2.0 kV1 × 300 mm² (646 kcmil 2kV)300.0 mm²30.22,7903,160181
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal factory values subject to ±5 % manufacturing tolerance per IEEE 1580 / IEEE 45 / UL 1309 (Type LSX Unarmoured Shipboard).

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
3.5 kV / 6.5 kV AC dielectric & water-tank IRIEEE 1580 Table 18 AC test for 5 min after 6 h water immersion100 % of reels
DC conductor resistance @ 20 °CIEEE 1580 Table 3 / IEC 60228 Class 5 tinned copper100 % of reels
Sample tests
-40 °C cold bend & -35 °C cold impactCSA C22.2 No. 0.3 / IEEE 1580 arctic flexibilityPer production batch
IEEE 1202 FT4 & IEC 60332-3-22 Cat A flameVertical tray flame, smoke index & < 0.5 % halogen acid gasClass society approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

IEEE 1580 Type LSXUL 1309 / IEEE 45ABS / DNV / LR / USCG

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX IEEE 1580 TYPE LSX UNARMOURED
Delivery form
Non-returnable timber drums or heavy export
Standard drum lengths
250 m · 500 m · 1000 m · custom cut lengths
MOQ
100 m (stock variants) · 500 m (custom)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFLSX Unarmoured LSZH Single-Conductor Shipboard Power Cable – technical datasheet6 sizes · construction, technical data, approvalsXLSXLSX Unarmoured spec data (Excel)All 6 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What is IEEE 1580 Type LSX insulation and how does it differ from Type P?
Both Type P and Type LSX are flexible cross-linked elastomers defined in IEEE 1580 for marine and offshore drilling cables, using fine-stranded tinned copper conductors. While traditional Type P uses brominated flame retardants, Type LSX is a low-smoke zero-halogen (LSZH) cross-linked polyolefin (< 0.5 % HCl acid gas, ≥ 60 % light transmittance).
When should I use LSX Unarmoured single-conductor cable instead of LSX Armoured and Sheathed?
Single-core unarmoured LSX is specified inside enclosed switchboards, VFD propulsion cubicles, generator terminal boxes, and protected ladder racks where maximum ampacity, tight 4×D bending radii, and absence of magnetic armour eddy-current heating are required. Each production drum undergoes 100 % conductor DC resistance verification,
Why are LSX conductors dual-marked in both AWG/kcmil (DLO sizes) and metric mm²?
North American Gulf-of-Mexico drilling rigs and USCG vessels specify diesel-locomotive (DLO) kcmil sizes (such as 262.6, 373.7, 444.4, 535.3, 646.4, and 777.7 kcmil) under IEEE 1580/UL 1309, while international shipyards specify IEC 60092 metric sizes (120 to 400 mm²). Dual marking simplifies global class inspection.
Why choose the 2.0 kV (2000 V) rated LSX single-conductor cable for 690 V AC VFD drives?
On pulse-width-modulated (PWM) 690 V AC marine thruster and mud-pump drives, high dV/dt voltage reflections can produce repetitive 1.5–1.8 kV voltage spikes at motor terminals. Specifying the 2.0 kV Type LSX wall thickness (tested at 6.5 kV AC) prevents corona and insulation breakdown. Each
