power connection cable series0.6/1 kV Power + 500 MHz Cat6A10GBASE-T S/FTP Double ScreenCPR Cca / B2ca LSZH Hybrid

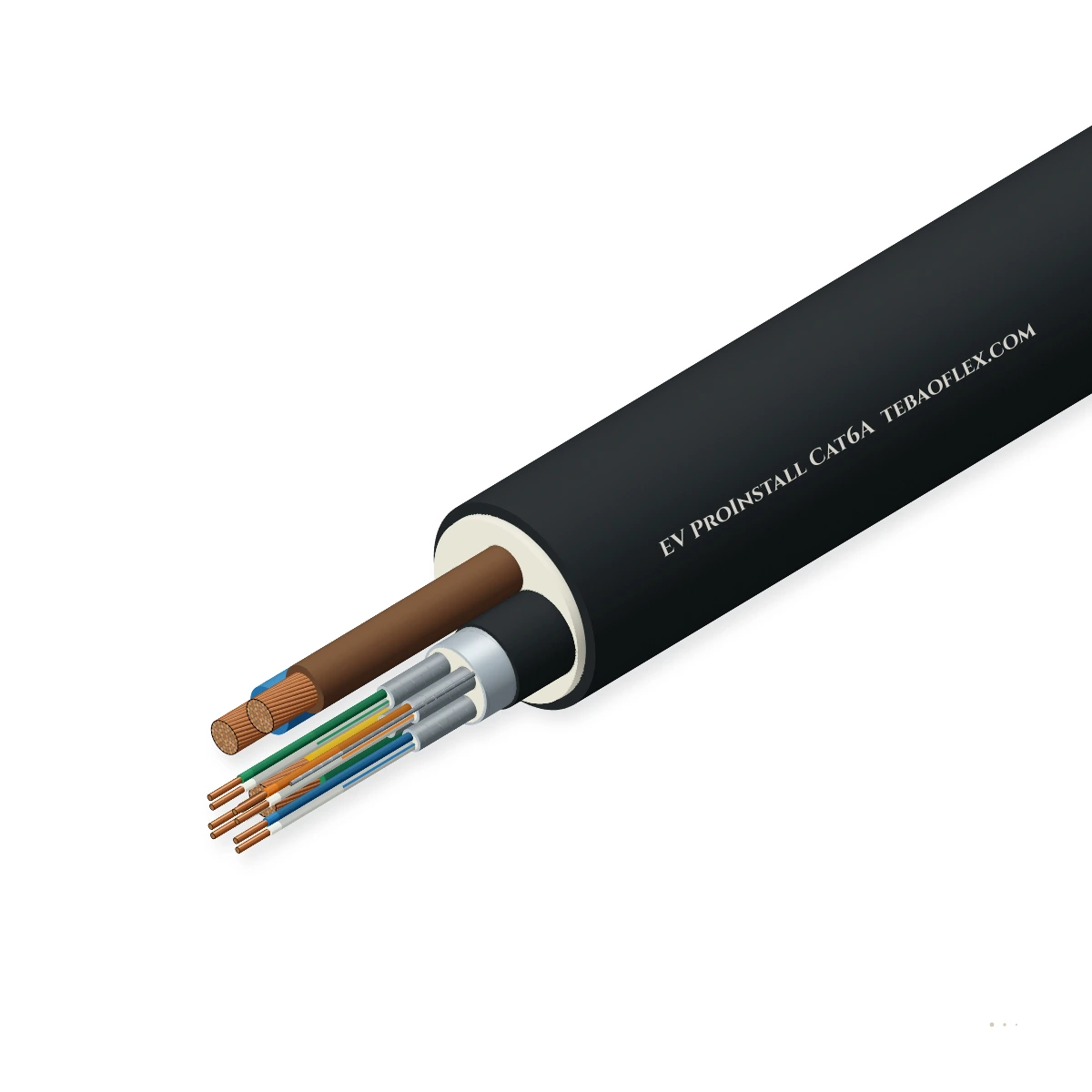

EV ProInstall Cat6ABS 6724 0.6/1 kV XLPE/LSZH power + 500 MHz Cat.6A S/FTP EV charger hybrid cable

EV ProInstall Cat6A LSZH EV Charge-Point Power & Cat.6A Hybrid Cable (0.6/1 kV) engineered per BS 6724, BS 7671 Section 722 and EN 50288-10-1 for commercial buildings, underground car parks and smart fleet hubs—combining 90 °C XLPE.

CPR Cca / B2ca LSZH Sheath
500 MHz Cat.6A S/FTP 10GbE
Optional SWA / Earthed Screen
BS 6724 / EN 50288-10-1
Order designation
EV ProInstall 5G6.0 + Cat6A LSZH
Configuration
5×6.0 mm² XLPE + Cat.6A S/FTP
Outer Ø ≈
19.4 mm
Weight ≈
555 kg/km
Tray/clipped ampacity
47 A
All sizes (6)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Standards
BS 6724 / BS 767
& EN 50288-10-1 Cat.6A S/FTP
Power voltage
0.6 / 1 kV AC
90 °C XLPE power insulation
Power sizes
3G6.0 to 5G16 mm
7.4 kW (1P) & 11–22 kW (3P)
Data element
Cat.6A S/FTP 4×2
500 MHz 10GBASE-T + PoE++
EMC screening
PiMF Foil + Cu B
75 dB coupling attenuation
Fire & CPR
LSZH Cca / B2ca
EN 50575 public building spec

Typical values for this cable type, based on BS 6724 / BS 8436 / BS 7671 Sec. 722 / EN 50288-10-1 (Cat.6A) — confirmed in the datasheet and quotation for your order.

Application fit

Is EV ProInstall Cat6A right for your machine?

Specified by commercial M&E consultants for office basements, hospitals, airports and multi-storey car parks where structured cabling standards require 500 MHz Cat.6A S/FTP (10GBASE-T + PoE++) and strict CPR Cca/B2ca Low-Smoke Zero-Halogen fire performance.

TBM gantry & advancing tunnel reel

Suitable

Halogen-free LSZH inner and outer sheaths pass EN 50399 / IEC 60332-3-24 bunched flame, IEC 61034-2 smoke (> 70 %) and IEC 60754-2.

Switchgear & control cabinet wiring

Suitable

Cat.6A S/FTP (each pair individually foil-shielded PiMF + overall tinned copper braid) provides > 75 dB alien crosstalk & mains.

Fixed installation

Suitable

Supports 22 kW 3-phase AC charging plus high-bandwidth 10GBASE-T backhaul, RFID/contactless payment terminals, ANPR cameras and Wi-Fi.

Immersion & wet locations

Suitable

Available in both unarmoured LSZH (for indoor trays/containment) and galvanized SWA armoured LSZH (for underground ducts and external.

Typical machinesCommercial Office & Underground Basement Car ParksHospital, University & Airport Public EV HubsSmart EV Bollards with ANPR Camera / Payment / Wi-FiISO 15118 Plug & Charge + OCPP 2.0.1 Fleet DepotsHigh-Rise Residential Podium & Garage EV Trays

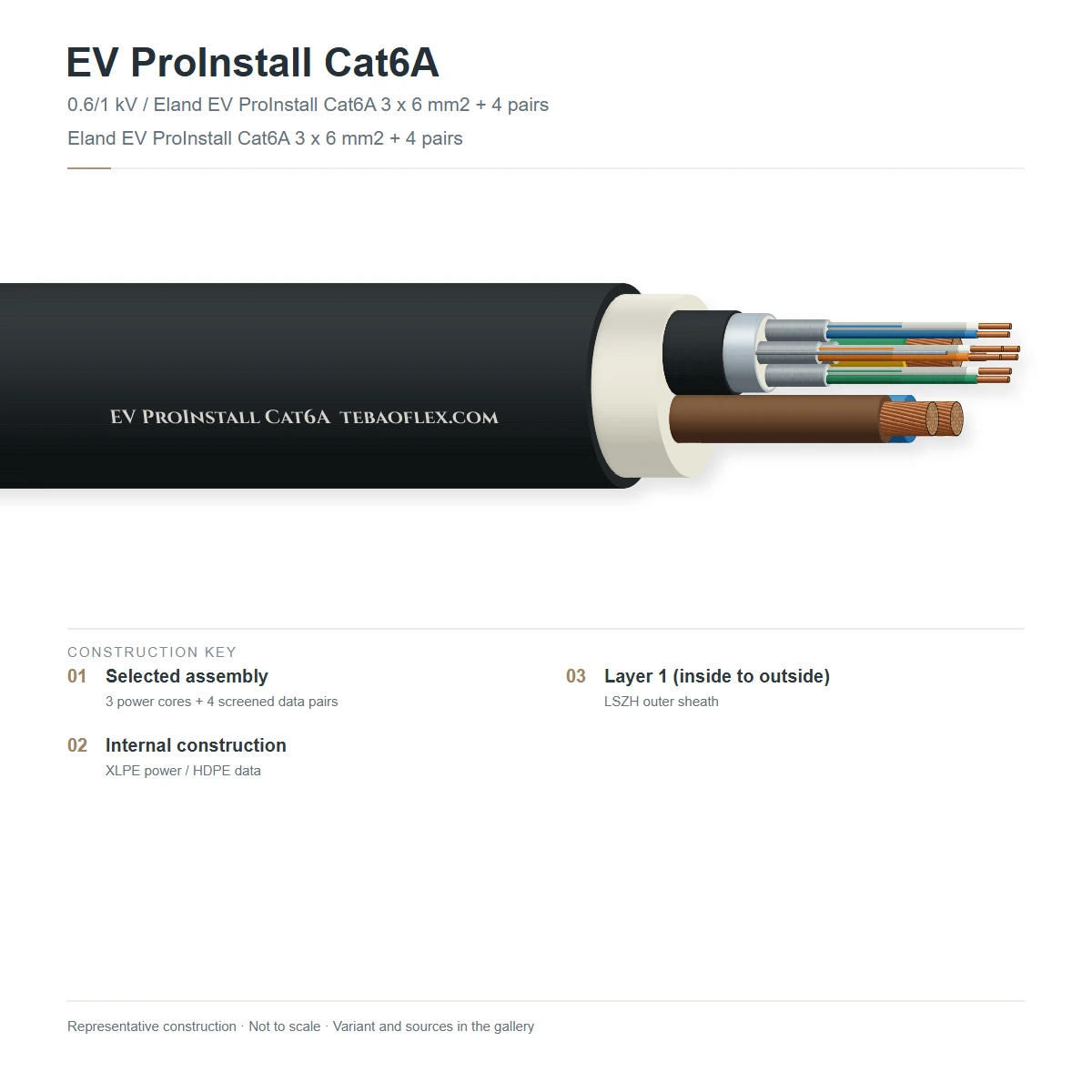

Construction

Layer by layer

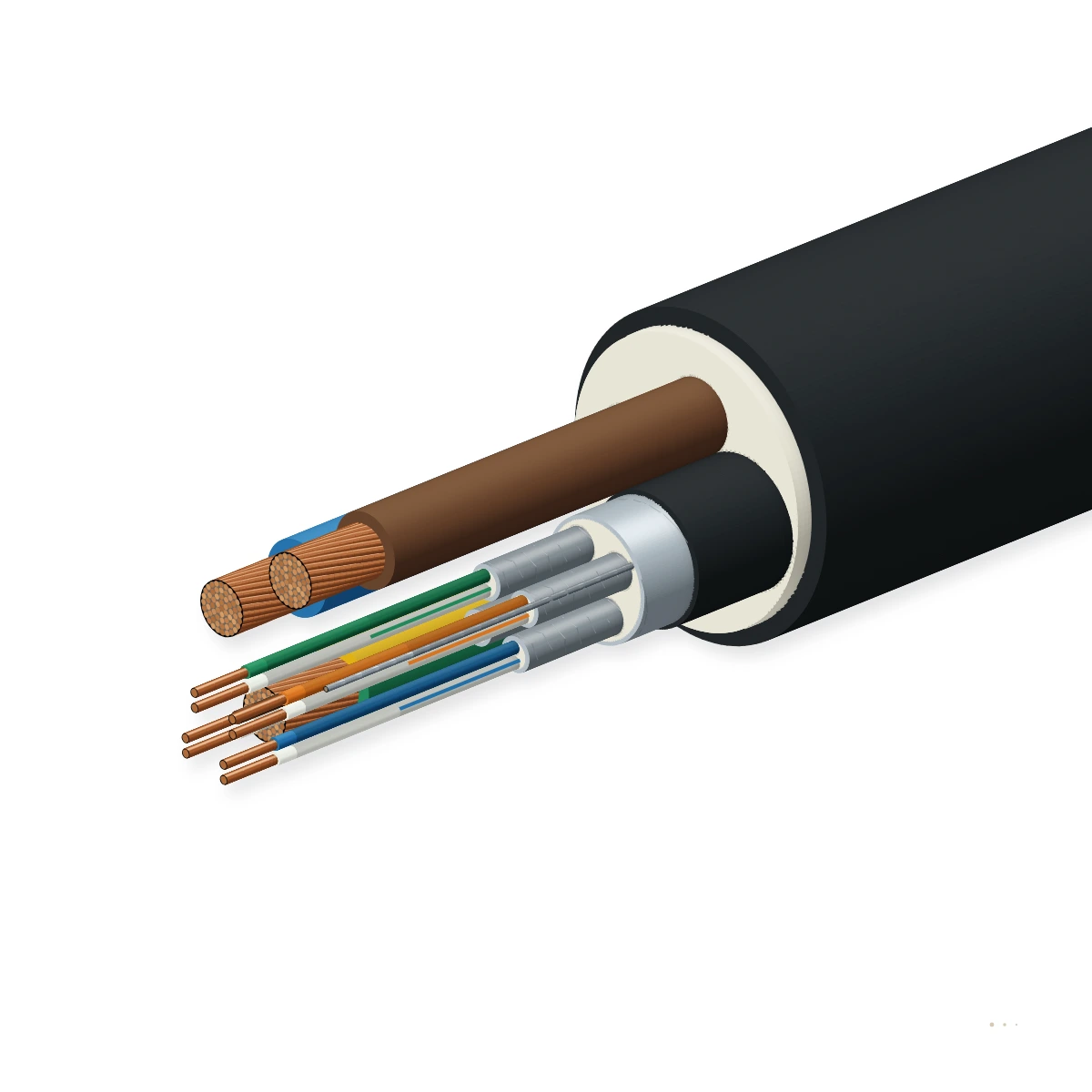

EV ProInstall Cat6A Hybrid Cable showing Class 2 (or Class 5) annealed copper power conductors (3G or 5G) with 90 °C XLPE insulation, an individually 300/500 V LSZH-sheathed 4-pair 23 AWG Cat.6A S/FTP (PiMF foil per pair + overall tinned copper braid) data sub-cable, halogen-free fillers, and a UV-stabilized LSZH outer sheath (with optional SWA armour).

12345
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
13G or 5G Annealed copper power conductors (6.0 to 16 mm²)Class 2 stranded (or Class 5 flexible) plain annealed copper per BS EN 60228 (3G6.0, 3G10, 5G6.0, 5G10, 5G16 mm²)Delivers 32 A single-phase (7.4 kW) or 32–63 A three-phase (22–43 kW) EV power
290 °C GP8 Cross-Linked Polyethylene (XLPE) power insulationThermoset XLPE compound Type GP8 per BS 7655-1.3 (Brown, Black, Grey, Blue, Green/Yellow)High continuous ampacity and +250 °C short-circuit rating
3500 MHz Cat.6A S/FTP (4×2×23 AWG PiMF) data sub-cable4 twisted pairs of 23 AWG bare copper with cellular Foam-Skin PE dielectric and individual Al/PET foil per pair (PiMF)Full 500 MHz 10GBASE-T bandwidth and IEEE 802.3bt 90 W PoE++ capability
4Overall tinned copper braid screen + 300/500 V LSZH sub-jacketTinned copper wire braid screen over the 4 PiMF pairs + 300/500 V halogen-free LSZH isolation jacketDouble S/FTP shielding eliminates 400 V harmonic interference on 500 MHz data
5CPR Cca / B2ca Low-Smoke Zero-Halogen (LSZH) outer sheathUV-stabilized thermoplastic halogen-free polyolefin compound Type LTS1 per BS 7655-6.1 (Unarmoured or with SWA armour)Meets strict public-building fire, low-smoke and zero-halogen regulations

EV ProInstall Cat6A LSZH Unarmoured (3G6.0 to 5G16 mm² + Cat.6A S/FTP)

Halogen-free LSZH hybrid cable for indoor cable trays, basket containment and basement car park distribution

EV ProInstall Cat6A SWA LSZH Armoured (3G6.0 to 5G16 mm² + Cat.6A S/FTP)

Galvanized Steel-Wire-Armoured BS 6724 LSZH hybrid cable for direct burial and exposed outdoor commercial EV bays

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on BS 6724 / BS 8436 / BS 7671 Sec. 722 / EN 50288-10-1 (Cat.6A). Values for your order are confirmed in the datasheet and quotation.

Electrical

Power voltage rating
0.6 / 1 kV AC (power cores) · 300/500 V LSZH jacket on Cat.6A unit
Cat.6A S/FTP performance
500 MHz · 10GBASE-T (up to 100 m) · 100 Ω · IEEE 802.3bt Type 4 PoE++
Power DC resistance @ 20 °C
3.08 Ω/km (6.0) · 1.83 Ω/km (10.0) · 1.15 Ω/km (16.0)
Clipped / tray ampacity
54 A (3G6.0) · 75 A (3G10) · 47 A (5G6.0) · 65 A (5G10) · 87 A (5G16)

Thermal

Max. power conductor temp.
+90 °C continuous (+250 °C short-circuit)
Operating ambient range
-20 °C to +70 °C (fixed) · 0 °C to +50 °C (installation)
PoE++ thermal margin
23 AWG Cat.6A S/FTP minimizes DC loop resistance under 90 W PoE++

Mechanical

Min. bend radius
8 × overall cable OD
Segregation compliance
Meets BS 7671 Reg 528.1 & EN 50174-2 Cat.6A S/FTP segregation class D
Gland compatibility
Fits standard M20 / M25 / M32 IP68 or BS 6121 CW SWA glands

Resistance

CPR & bunched fire test
EN 50575 CPR Cca-s1a,d1,a1 (B2ca opt) & BS EN 60332-3-24
Acid gas & smoke density
BS EN 60754-1/2 (pH ≥ 4.3, cond ≤ 2.5 µS/mm) & BS EN 61034-2 (≥ 70 %)
UV & moisture resistance
UV-stabilized outer LSZH sheath suitable for indoor and outdoor runs

Reference standards

Power & wiring standards
BS 6724 · BS 8436 · BS 7671 Amendment 2 Section 722
Cat.6A data standards
EN 50288-10-1 · ISO/IEC 11801 Class EA · ANSI/TIA-568.2-D Cat.6A
RoHS, REACH & CE / UKCA
2011/65/EU RoHS 2, REACH, CE & UKCA compliant

Identification

Power core colours
3G: Brown, Blue, GNYE · 5G: Brown, Black, Grey, Blue, GNYE
Cat.6A pair colours
4 × individually foil-screened pairs (TIA-568B colour code)
Customs tariff (HS)
8544.4993

Sizes

6 standard EV ProInstall Cat6A (0.6/1 kV Power + 500 MHz Cat.6A S/FTP) configurations

Unarmoured LSZH and SWA Armoured LSZH dimensions, weights and BS 7671 current ratings.

Unarmoured & SWA Armoured Cat.6A hybrid schedule
Order designationPower cores + 500 MHz Cat.6AOuter Ø ≈
mm		Weight ≈
kg/km		Tray/Clip
A		Data classEnquiry
Unarmoured LSZH (Power + Cat.6A S/FTP)
EV ProInstall 3G6.0 + Cat6A LSZH3×6.0 mm² XLPE + Cat.6A S/FTP16.638554500 MHz 10GbE
EV ProInstall 5G6.0 + Cat6A LSZH5×6.0 mm² XLPE + Cat.6A S/FTP19.455547500 MHz 10GbE
EV ProInstall 5G10.0 + Cat6A LSZH5×10.0 mm² XLPE + Cat.6A S/FTP22.882565500 MHz 10GbE
EV ProInstall 5G16.0 + Cat6A LSZH5×16.0 mm² XLPE + Cat.6A S/FTP26.21,19087500 MHz 10GbE
SWA Armoured LSZH (Power + Cat.6A S/FTP)
EV ProInstall SWA 5G6.0 + Cat6A5×6.0 mm² + Cat.6A S/FTP + SWA22.81,02046500 MHz 10GbE
EV ProInstall SWA 5G10.0 + Cat6A5×10.0 mm² + Cat.6A S/FTP + SWA26.01,41063500 MHz 10GbE
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Also available in 3G10 mm² and 4G configurations, or with dual Cat.6A S/FTP sub-cables for daisy-chained smart pedestals.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
100 % 3.5 kV AC power dielectric, 2.5 kV data-to-power isolation & 500 MHz sweepZero breakdown and full 500 MHz Class EA / Cat.6A channel complianceEvery manufactured drum
Sample tests
EN 50288-10-1 coupling attenuation (≥ 75 dB) & alien crosstalk testZero EMI degradation when 400 V power cores carry 32–63 A EV loadPer production batch
EN 50399 / BS EN 60332-3-24 CPR Cca bunched flame & smoke release testMeets CPR Euroclass Cca-s1a,d1,a1 low-smoke zero-halogen criteriaNotified Body CPR certification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

BS 6724 & BS 7671 Sec. 722EN 50288-10-1 Cat.6A S/FTPEN 50575 CPR Cca LSZH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX EV-PROINSTALL 5G6.0mm2 0.6/1kV XLPE + CAT6A S/FTP 500MHz LSZH Cca BS 6724 CE UKCA
Delivery form
Fumigated wooden drums or steel export reels
Standard lengths
500 m · 1000 m (or custom cut lengths)
MOQ
100 m (standard) · 500 m (custom)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFEV ProInstall Cat6A – technical datasheet6 sizes · construction, technical data, approvalsXLSXEV ProInstall Cat6A spec data (Excel)All 6 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

Why specify Cat.6A S/FTP (500 MHz) instead of Cat.5e F/UTP (100 MHz) on commercial EV charge-point installations?
First, many commercial building IT specifications mandate Category 6A S/FTP across all structured cabling runs for 25-year future-proofing and 90 W PoE++ ( powering integrated parking cameras, payment terminals and Wi-Fi access points). Second, under EN 50174-2, a double-screened S/FTP cable (individual aluminum foil on each pair plus an overall tinned copper braid achieving ≥ 75 dB coupling attenuation) allows running data alongside 400 V three-phase power over full 90–100 m horizontal runs with zero electromagnetic coupling.
Why is CPR Euroclass Cca-s1a,d1,a1 LSZH required in underground basement car parks?
In enclosed underground car parks beneath office buildings, hospitals and residential towers, PVC cables release dense black soot and toxic hydrochloric acid gas during a fire. BS 6724 and CPR Cca Low-Smoke Zero-Halogen (LSZH) construction ensures > 70 % light visibility for emergency evacuation and zero corrosive acid damage to building electronics.
How should the Cat.6A S/FTP braid screen be terminated?
Terminate the 4-pair 23 AWG Cat.6A S/FTP cable into a 360° die-cast shielded RJ45 keystone jack or field-termination plug (e.g., Telegärtner MFP8 / Panduit shielded Cat.6A) bonded to earth at the patch panel end.
Can we order EV ProInstall Cat6A with both an S/FTP data cable and a separate 2-core CT-clamp / RS-485 pair?
Yes. In addition to the standard 4-pair Cat.6A S/FTP hybrid, we supply composite versions containing 5G power + 4-pair Cat.6A S/FTP + 1×2×0.75 mm² screened control pair so Ethernet and RS-485/CT circuits remain physically separate.
