Product

Control & signal cablesLow Capacitance ≤ 55 nF/kmPE Insulation (2Y)RS-422 / RS-485

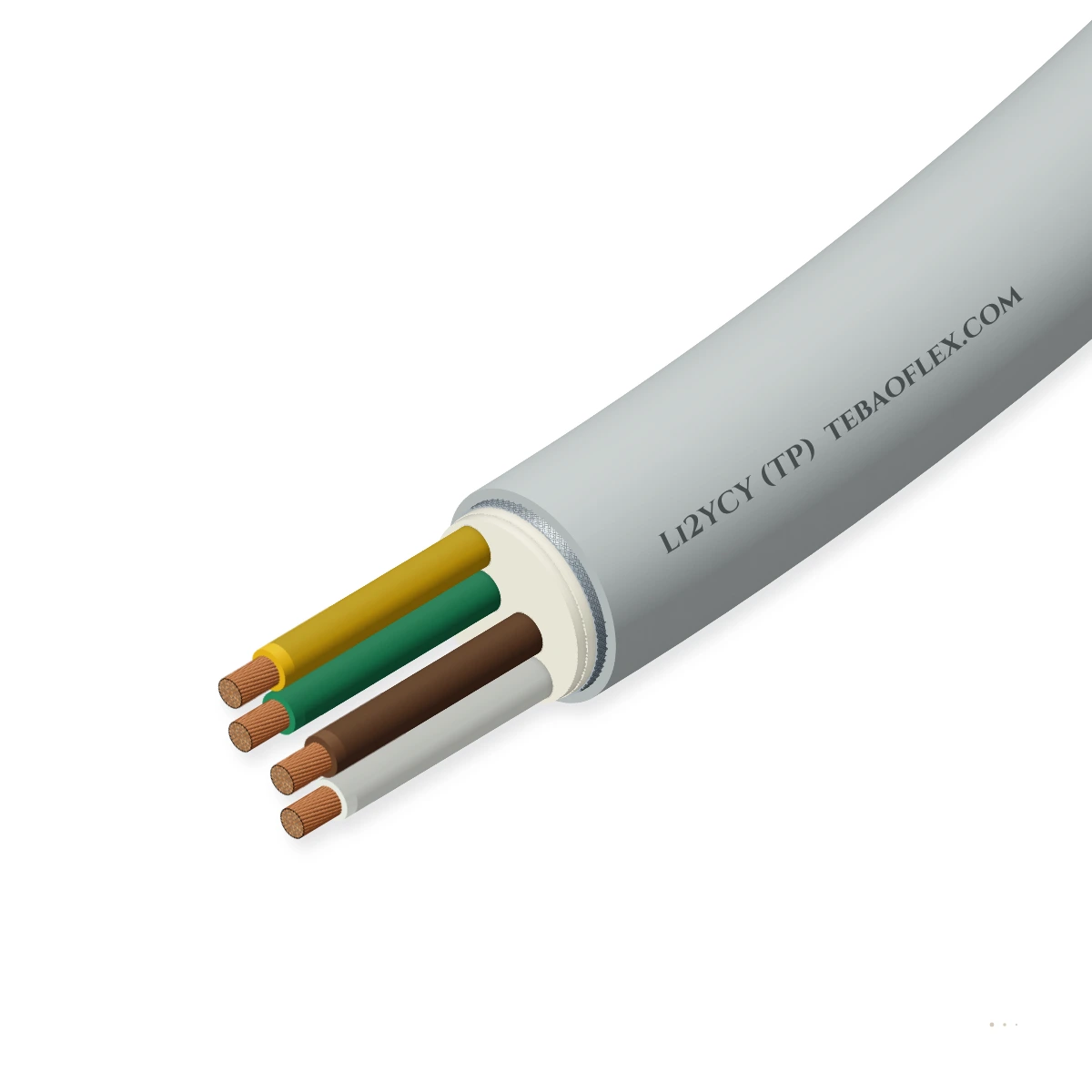

Li2YCY (TP) Low-Capacitance Data CableLow-capacitance PE-insulated screened twisted-pair data cable for RS-422/RS-485

Low-capacitance twisted-pair serial data cable (`Li2YCY (TP)`) with polyethylene (`2Y`) core insulation (mutual capacitance ≈ 45–55 nF/km, Z₀ ≈ 100–120 Ω), Al/PET foil + ≥80 % tinned-copper braid screen and grey YM2 PVC outer sheath.

Flame-retardant

Oil-resistant

Approved

Cores × cross-section

Order designation: Li2YCY (TP) 2×2×0.25
Outer Ø min: 6.2 mm
Outer Ø max: 6.7 mm
Weight ≈: 54 kg/km
Min. bend R: 47 mm

Check against my drum All sizes (20)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Capacitance: ≈ 50 nF/km
Impedance Z₀: 100–120 Ω
Peak voltage: 350 / 500 V
EMC screen: Foil + CuSn
Temp. flexing: −5…+70 °C
Size range: 0.22–0.75 mm²

Typical values for this cable type, based on DIN VDE 0812 / EIA RS-422 & RS-485 — confirmed in the datasheet and quotation for your order.

Application fit

Is Li2YCY (TP) right for your machine?

Li2YCY (TP) replaces PVC core insulation with non-polar polyethylene (`2Y` = 2YI1), cutting mutual capacitance by more than half (~50 nF/km vs ~120 nF/km in LiYCY) to preserve square-wave edge integrity over long EIA RS-485 / RS-422 and SSI encoder runs.

Fixed installation

Suitable

Long-distance RS-485 / RS-422 multi-drop networks, SSI absolute encoders, Modbus RTU and high-speed digital telemetry.

VFD inverter to AC motor screened feeder

Suitable

Dual Al/PET foil + ≥80 % tinned-copper braid screen provides wide-band RF and low-frequency interference rejection.

Trailing & towing

With conditions

Suitable for fixed or lightly flexed routing; reinforced black sheath (Li2YCYv) available for outdoor ducts.

Use LiYCY (TP)

Energy chain / drag chain

Not suitable

Not intended for continuous high-acceleration drag chains.

Use JZ-602-C-PUR

Typical machinesRS-485 / RS-422 & Modbus RTU networksSSI & EnDat absolute encoder feedbackAutomated warehousing & sortation busesProcess plant & SCADA serial telemetryWeighbridge & long-run digital instrumentation

Construction

Layer by layer

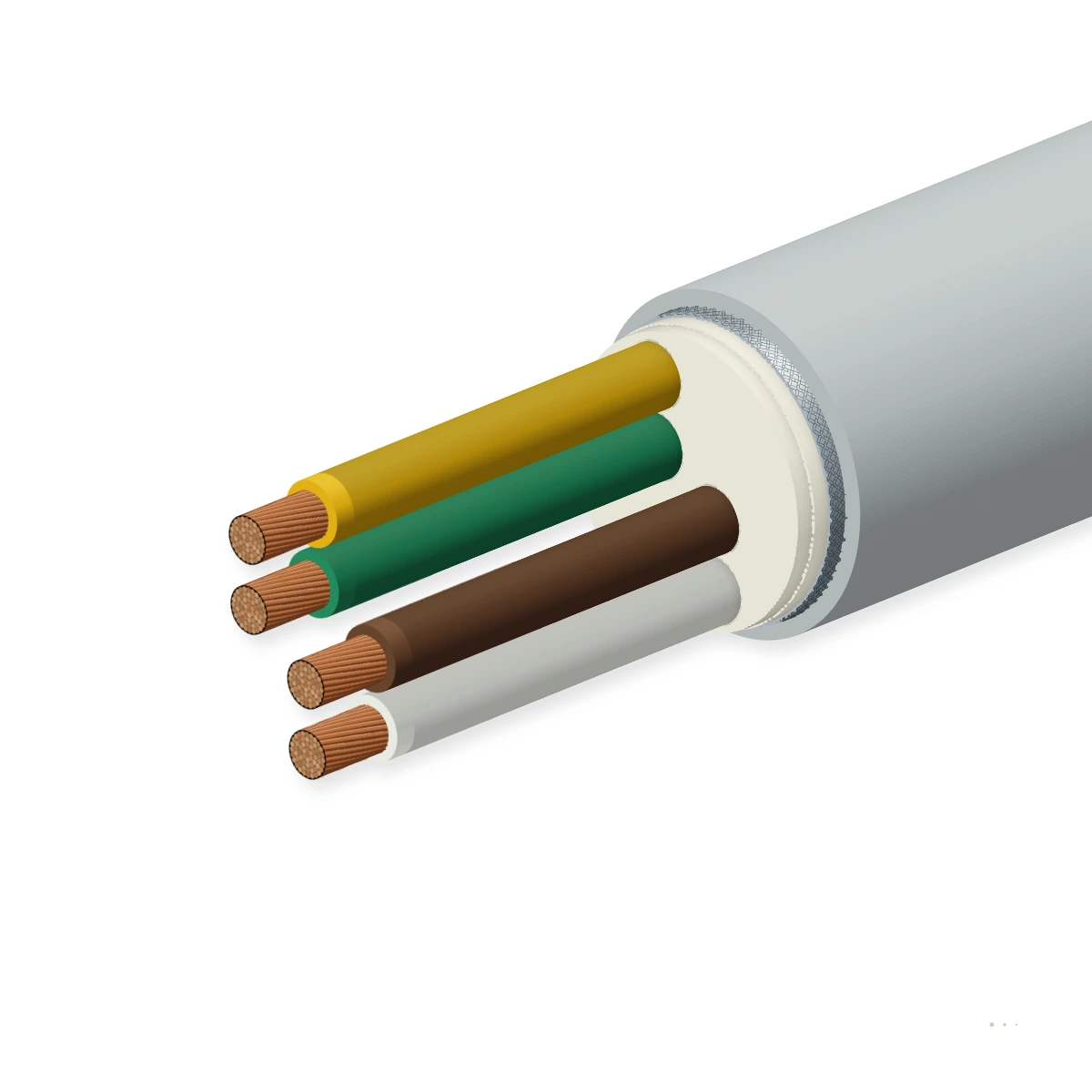

Shown: Li2YCY (TP) 2×2×0.25 — 7-wire/fine-stranded bare copper conductors, low-permittivity polyethylene (PE Type 2YI1) core insulation twisted into pairs, Al-laminated PET foil + ≥80 % tinned-copper braid screen and pebble-grey RAL 7032 YM2 PVC outer sheath.

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	7-wire / fine-stranded copper	Annealed bare copper strands to DIN VDE 0812 (7-wire or fine-stranded Class 5 for stable pair impedance)DIN VDE 0812
2	Polyethylene (2Y) core insulation	Low-dielectric-constant polyethylene compound Type 2YI1 (DIN VDE 0207-2) for ≤ 55 nF/km mutual capacitanceDIN VDE 0207-2 2YI1 · DIN 47100
3	Impedance-matched twisted pairs	Cores twisted into balanced pairs with staggered lay lengths to suppress near-end crosstalkDIN VDE 0812
4	Al/PET foil + tinned-copper braid (C)	Aluminium-laminated polyester tape plus ≥ 80 % optical coverage tinned-copper wire braidDIN VDE 0812 · EN 55011 EMC
5	PVC outer sheath	Flame-retardant polyvinyl chloride compound Type YM2, pebble-grey RAL 7032 (or black for Li2YCYv)DIN VDE 0207-5 YM2 · IEC 60332-1-2

Li2YCY (TP) Grey RAL 7032 (0.22–0.75 mm²)

Indoor low-capacitance PE twisted-pair data cable for RS-422/RS-485 and SSI encoders

Li2YCYv (TP) Black RAL 9005 (Reinforced Sheath)

Thickened UV-stabilised black PVC outer sheath for heavy-duty industrial and sheltered outdoor runs

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0812 / EIA RS-422 & RS-485. Values for your order are confirmed in the datasheet and quotation.

Electrical

Mutual capacitance (800 Hz): Approx. 45–55 nF/km (core/core) — < 50 % of standard PVC LiYCY
Characteristic impedance (Z₀): 100 Ω ± 15 Ω (at > 1 MHz) / ~100–120 Ω for RS-422 & RS-485
Peak operating voltage: 350 V (0.14/0.22 mm²) · 500 V (≥ 0.25 mm²)
AC test voltage (50 Hz): 1500 V (core/core) · 1000–1500 V (core/screen)
Velocity of propagation: Approx. 66 % (0.66 c)
Insulation resistance: ≥ 5000 MΩ·km at +20 °C (polyethylene 2Y)

Thermal

Temperature, flexing: −5 °C to +70 °C
Temperature, fixed: −30 °C to +80 °C
Max. conductor temperature: +70 °C in motion · +80 °C fixed

Mechanical

Min. bending radius, fixed: 6–7.5 × overall diameter
Min. bending radius, flexing: 15 × overall diameter
Screen construction: Plastic-laminated Al foil + ≥ 80 % tinned-copper wire braid

Resistance

Flame retardance: IEC 60332-1-2 / EN 60332-1-2 self-extinguishing · CPR Eca
Signal integrity: Low dielectric loss tangent (tan δ ≈ 0.0003) supports long cable runs up to 1200 m on RS-485

Reference standards

Construction basis: DIN VDE 0812 & DIN VDE 0207-2 (2YI1 PE)
Serial bus compatibility: EIA/TIA-422 (RS-422) & EIA/TIA-485 (RS-485)
Pair colour code: DIN 47100 pair sequence
RoHS & REACH: 2011/65/EU (RoHS 2) & EC 1907/2006 compliant

Identification

Sheath colour: Pebble-grey (RAL 7032) or black (RAL 9005 for Li2YCYv)
Pair identification: DIN 47100 colour & bi-colour ring code paired in sequence
Sheath marking: TEBAOFLEX Li2YCY (TP) [n×2×mm²] LOW CAPACITANCE RS-485/422 CE
Customs tariff (HS): 8544.49 (insulated conductors ≤ 1000 V)

Sizes

20 standard Li2YCY (TP) configurations

Typical DIN VDE 0812 / EIA RS-422 & RS-485 outer diameter limits, copper content and cable weight.

Dimensions & weights
Order designation	Cores × mm²	AWG ≈	Outer Ø min mm	Outer Ø max mm	Copper kg/km	Weight ≈ kg/km	Min. bend R mm
n × 2 × 0.22 mm² (24 AWG) Low-Capacitance PE Data Pairs
Li2YCY (TP) 1×2×0.22	1×2×0.22	24	4.7	5.1	16	33	36
Li2YCY (TP) 2×2×0.22	2×2×0.22	24	6.0	6.5	26	49	46
Li2YCY (TP) 4×2×0.22	4×2×0.22	24	7.0	7.6	39	72	53
Li2YCY (TP) 8×2×0.22	8×2×0.22	24	9.0	9.8	68	124	69
n × 2 × 0.25 mm² (24 AWG) Low-Capacitance PE Data Pairs
Li2YCY (TP) 1×2×0.25	1×2×0.25	24	4.9	5.3	18	36	37
Li2YCY (TP) 2×2×0.25	2×2×0.25	24	6.2	6.7	28	54	47
Li2YCY (TP) 3×2×0.25	3×2×0.25	24	6.5	7.1	35	64	50
Li2YCY (TP) 4×2×0.25	4×2×0.25	24	7.4	8.0	43	79	56
Li2YCY (TP) 8×2×0.25	8×2×0.25	24	9.5	10.3	75	134	72
n × 2 × 0.34 mm² (22 AWG) Low-Capacitance PE Data Pairs
Li2YCY (TP) 1×2×0.34	1×2×0.34	22	5.2	5.7	21	42	40
Li2YCY (TP) 2×2×0.34	2×2×0.34	22	6.7	7.3	34	64	51
Li2YCY (TP) 3×2×0.34	3×2×0.34	22	7.2	7.8	43	77	55
Li2YCY (TP) 4×2×0.34	4×2×0.34	22	8.0	8.7	53	95	61
Li2YCY (TP) 8×2×0.34	8×2×0.34	22	10.5	11.4	96	168	80
n × 2 × 0.50–0.75 mm² Low-Capacitance PE Data Pairs
Li2YCY (TP) 1×2×0.5	1×2×0.5	20	5.8	6.3	27	52	44
Li2YCY (TP) 2×2×0.5	2×2×0.5	20	7.6	8.3	45	82	58
Li2YCY (TP) 4×2×0.5	4×2×0.5	20	9.0	9.8	72	124	69
Li2YCY (TP) 8×2×0.5	8×2×0.5	20	12.1	13.1	132	218	92
Li2YCY (TP) 2×2×0.75	2×2×0.75	18	8.6	9.3	59	104	65
Li2YCY (TP) 4×2×0.75	4×2×0.75	18	10.2	11.1	98	162	78

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Dimensions and weights are typical values per DIN VDE 0812 / EIA RS-422 & RS-485. Minimum fixed bending radius shown is 7 × OD.

Electrical & current ratings
Cross-section mm²	AWG ≈	Max. DC resistance 20 °C, Ω/km	Single pair/core 30 °C, A	Multi-core bundle 30 °C, A
0.22	24	85	3.0	2.0
0.25	24	79	4.0	3.0
0.34	22	57	5.0	4.0
0.5	20	39	9.0	6.0
0.75	18	26	12.0	10.0

Current ratings at 30 °C ambient in free air per DIN VDE 0298-4 / DIN VDE 0891-1. Apply grouping derating factors for multi-core control and signal bundles.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Cable sizeDrum core diameter (mm)

Cable length on drum (m)

Drum core 300 mm ≥ 94 mmBending radius OK (7 × OD 6.7 mm)

Minimum bending radius: 47 mm
Min. drum core diameter: ≈ 94 mm
Cable weight on drum: 2.7 kg
Copper content: 1.4 kg

Indicative only: based on the datasheet outer diameter and 7 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
AC voltage test	1.5 kV AC (50 Hz)	Every manufactured length
Conductor DC resistance	IEC 60228 / DIN VDE 0812 / EIA RS-422 & RS-485 (bare copper)	Every manufactured length
Sample tests
Vertical flame propagation	IEC 60332-1-2 / EN 60332-1-2	Per production batch
Insulation & sheath material physical properties	DIN VDE 0812 / EIA RS-422 & RS-485	Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

DIN VDE 0812 / EIA RS-422 & RS-485CE · RoHS 2 (2011/65/EU) · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX Li2YCY (TP) [n×2×mm²] LOW CAPACITANCE DATA CABLE CE

Delivery form: Export wooden drums or coils, cut-to-length on request
Packaging: Heat-treated ISPM-15 timber drums with sealed cable ends
Conductor / sheath options: Custom core counts, pair counts or sheath colours on request

Technical documents

Downloads

PDFLi2YCY (TP) Low-Capacitance Data Cable – technical datasheet20 sizes · construction, technical data, approvals XLSXLi2YCY (TP) spec data (Excel)All 20 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What does '2Y' mean in Li2YCY (TP)?

In DIN VDE 0207 / VDE 0812 nomenclature, '2Y' designates thermoplastic polyethylene (PE, Type 2YI1) core insulation. Because polyethylene has a relative permittivity of ~2.3 compared with ~4.5–6.0 for PVC ('Y'), it lowers the mutual core-to-core capacitance from ~120 nF/km down to ~45–55 nF/km and raises insulation resistance above 5 GΩ·km.

Why is low capacitance critical for RS-485, RS-422 and SSI encoder cables?

High cable capacitance rounds off fast digital clock and data edges, causing inter-symbol interference and reflections over long runs. With ~50 nF/km capacitance and a 100–120 Ω characteristic impedance, Li2YCY (TP) supports RS-485 / RS-422 bus lengths up to 1200 m at standard baud rates.

What is the difference between Li2YCY (TP) and Li2YCYv (TP)?

Standard Li2YCY (TP) has a pebble-grey (RAL 7032) PVC outer sheath for indoor racks, cable trays and machine tools. Li2YCYv (TP) adds a reinforced ('v' = verstärkt) black (RAL 9005) UV-stabilised PVC outer sheath for heavy mechanical duty and sheltered outdoor cable ducts.

Can Li2YCY (TP) be terminated in standard D-Sub and M12 connectors?

Yes. The 0.22 mm², 0.25 mm² and 0.34 mm² conductor sizes fit standard crimp and solder pins in D-Sub (9/15/25-pin) and M12 industrial circular connectors.
