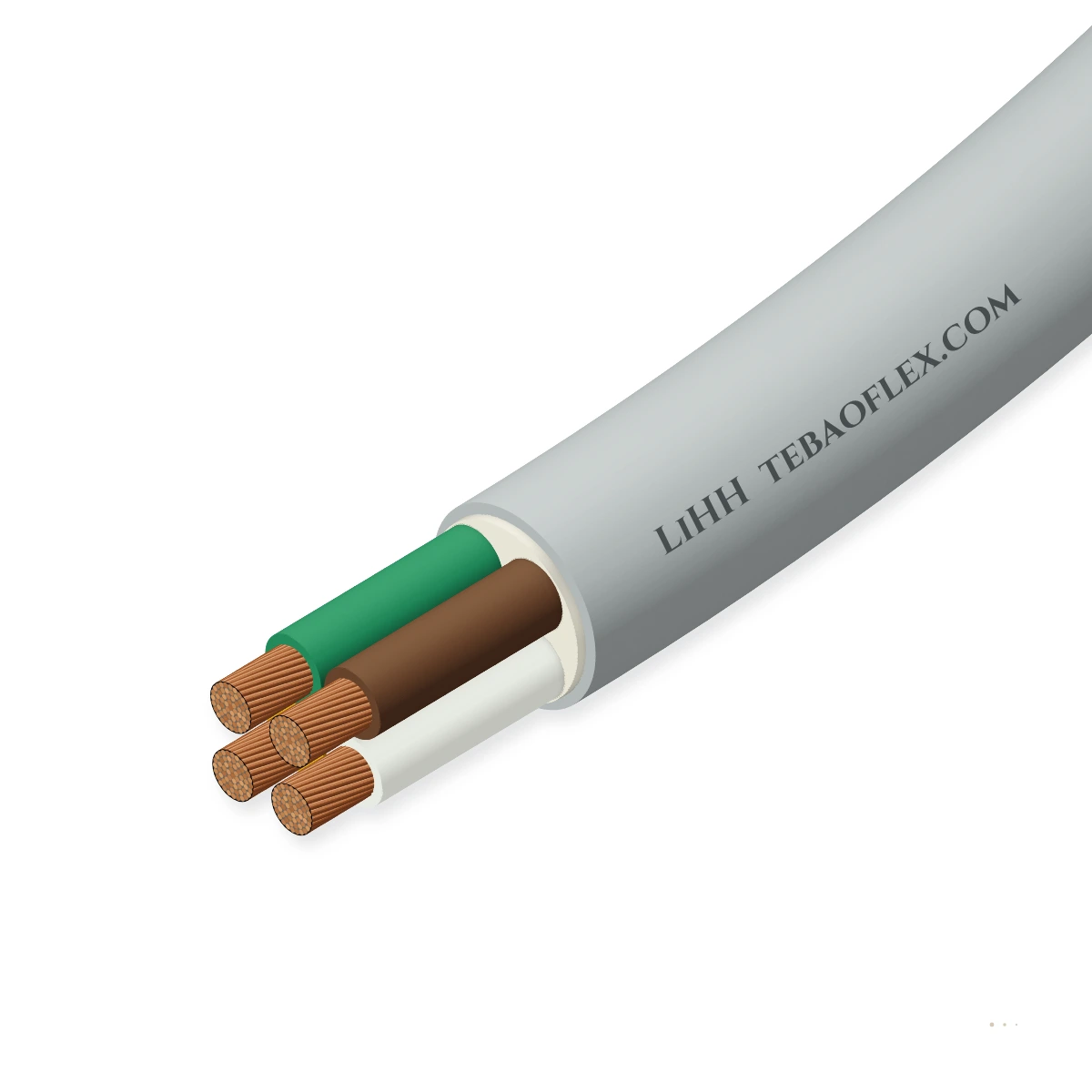

LiHH Unscreened LSZH Signal CableDIN VDE 0812 unscreened halogen-free (LSZH) DIN 47100 electronic signal cable

Halogen-free low-smoke (`LSZH`) flexible electronic signal and data cable built to DIN VDE 0812 (`LiHH`) with fine-stranded bare copper conductors (0.14–1.5 mm²), DIN 47100 colour-coded polyolefin cores (`H`) and a grey HM2 LSZH outer sheath (`H`).

Flame-retardant

Approved

Oil-resistant

Cores × cross-section

Order designation: LiHH 7×0.25
Outer Ø min: 4.8 mm
Outer Ø max: 5.2 mm
Weight ≈: 46 kg/km
Min. bend R: 31 mm

Check against my drum All sizes (22)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Peak voltage: 350 / 500 V
Halogen-free: IEC 60754-1/2
Smoke density: IEC 61034-2
Temp. flexing: −5…+70 °C
Bending radius: 6–10 × OD
Size range: 0.14–1.5 mm²

Typical values for this cable type, based on DIN VDE 0812 / DIN 47100 · LSZH — confirmed in the datasheet and quotation for your order.

Application fit

Is LiHH right for your machine?

LiHH is the low-smoke zero-halogen (`LSZH`) counterpart to LiYY, designed for airports, hospitals, data centres, public transit stations and commercial buildings where corrosive acid gas and dense black PVC smoke must be prevented in a fire.

Fixed installation

Suitable

Public buildings, HVAC/BMS sensors, cleanrooms, laboratories and PLC cabinets requiring LSZH fire safety.

Trailing & towing

With conditions

Suitable for light, tension-free movement between instruments and racks.

Use JZ-500-PUR

VFD inverter to AC motor screened feeder

Not suitable

Unscreened LSZH signal cable; for EMC-protected halogen-free circuits, select tinned-Cu screened LiHCH.

Use LiHCH Screened

Energy chain / drag chain

Not suitable

Not designed for continuous high-cycle drag chains.

Use JZ-500-PUR

Typical machinesAirports, metro stations & public buildingsHospitals, cleanrooms & pharmaceutical plantsBuilding management (BMS) & HVAC controlsData centres & server room telemetryAccess control, intercom & fire-safe electronics

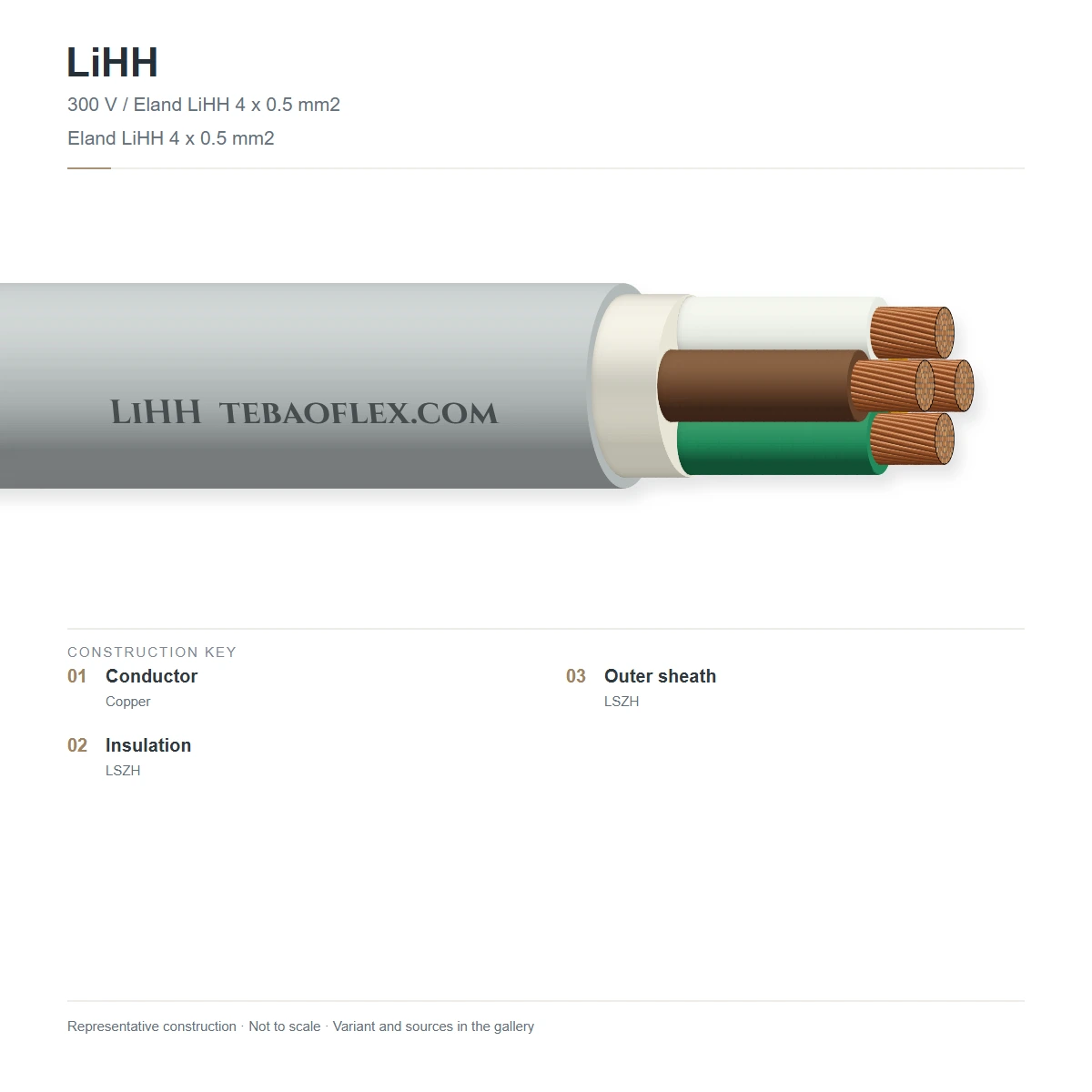

Construction

Layer by layer

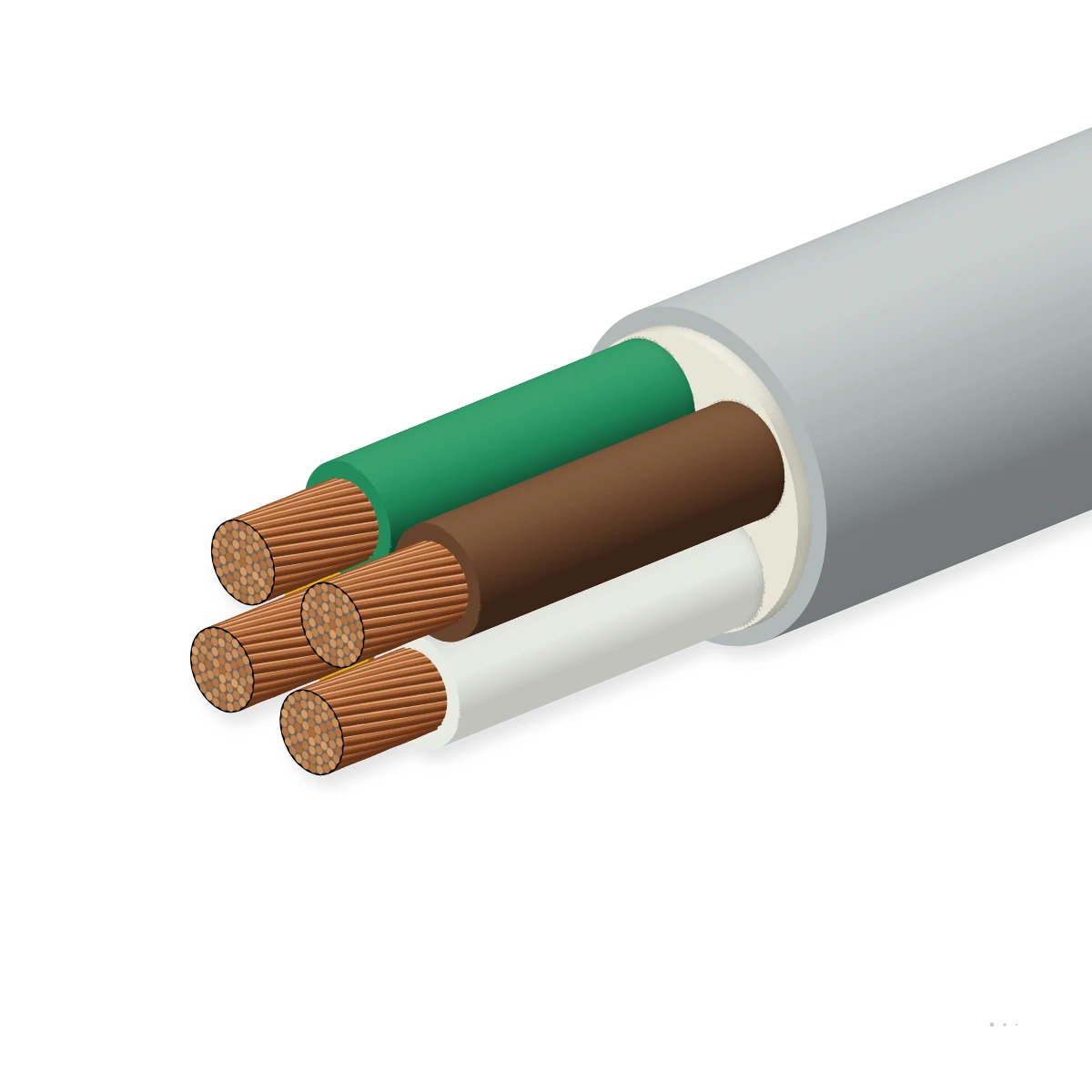

Shown: LiHH 7×0.25 — fine-stranded bare copper conductors, thin-wall halogen-free polyolefin core insulation ('H', DIN 47100 colours), halogen-free wrapping tape and pebble-grey RAL 7032 HM2 low-smoke zero-halogen outer sheath ('H').

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Fine-stranded copper conductor	Annealed bare copper strands to DIN VDE 0812 / IEC 60228 Class 5 (0.14 mm²: 18×0.10 mm)DIN VDE 0812 / IEC 60228
2	Halogen-free LSZH core insulation (H)	Thermoplastic polyolefin compound Type HI2 / TI6 (DIN VDE 0207-24) colour-coded to DIN 47100DIN VDE 0207-24 · DIN 47100
3	Short-lay core stranding	Cores stranded in concentric layers with halogen-free separating tapeDIN VDE 0812
4	Halogen-free LSZH outer sheath (H)	Flame-retardant low-smoke zero-halogen compound Type HM2, pebble-grey RAL 7032DIN VDE 0207-24 HM2 · IEC 60754 / 61034

LiHH 0.14–0.34 mm² (350/500 V peak)

Compact LSZH halogen-free sensor and signal cables from 2 to 36 cores with DIN 47100 colours

LiHH 0.5–1.5 mm² (500 V peak)

Halogen-free BMS, actuator and control signal cables from 2 to 25 cores

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0812 / DIN 47100 · LSZH. Values for your order are confirmed in the datasheet and quotation.

Electrical

Peak operating voltage: 350 V (0.14 mm²) · 500 V (≥ 0.25 mm²)
AC test voltage (50 Hz): 1200 V (0.14 mm²) · 1500 V (≥ 0.25 mm²)
Mutual capacitance (800 Hz): Approx. 110 nF/km (core/core)
Inductance: Approx. 0.65 mH/km
Insulation resistance: ≥ 200 MΩ·km at +20 °C

Thermal

Temperature, flexing: −5 °C to +70 °C
Temperature, fixed: −30 °C to +80 °C
Max. conductor temperature: +70 °C in motion · +80 °C fixed
Short-circuit temperature: +150 °C max.

Mechanical

Min. bending radius, fixed: 6 × overall diameter
Min. bending radius, flexing: 10 × overall diameter
Conductor stranding: 0.14 mm²: 18×0.10 mm · 0.25 mm²: 14×0.15 mm · ≥0.5 mm²: IEC 60228 Cl. 5

Resistance

Halogen-free & non-corrosive: IEC 60754-1 / EN 60754-1 & IEC 60754-2 (pH ≥ 4.3, conductivity ≤ 10 µS/mm)
Low smoke emission: IEC 61034-2 / EN 61034-2 (≥ 60 % light transmittance)
Flame retardance: IEC 60332-1-2 & IEC 60332-3-24 Cat. C bunched flame test

Reference standards

Construction basis: DIN VDE 0812 & DIN VDE 0207-24 (HI2/HM2)
Core colour code: DIN 47100 (without green-yellow earth core)
Fire safety standards: IEC 60754-1/2, IEC 61034-2, IEC 60332-1-2 / 60332-3-24
RoHS & REACH: 2011/65/EU (RoHS 2) & EC 1907/2006 compliant

Identification

Sheath colour: Pebble-grey (RAL 7032)
Core identification: DIN 47100 colour & bi-colour ring code
Sheath marking: TEBAOFLEX LiHH [Size] HALOGEN-FREE LSZH DIN VDE 0812 CE
Customs tariff (HS): 8544.49 (insulated conductors ≤ 1000 V)

Sizes

22 standard LiHH configurations

Typical DIN VDE 0812 / DIN 47100 · LSZH outer diameter limits, copper content and cable weight.

Dimensions & weights
Order designation	Cores × mm²	AWG ≈	Outer Ø min mm	Outer Ø max mm	Copper kg/km	Weight ≈ kg/km	Min. bend R mm
0.14 mm² Unscreened LSZH Signal Configurations (350 V peak)
LiHH 2×0.14	2×0.14	26	3.0	3.3	2	14	20
LiHH 4×0.14	4×0.14	26	3.6	3.9	5	22	23
LiHH 8×0.14	8×0.14	26	4.8	5.2	10	39	31
LiHH 12×0.14	12×0.14	26	5.2	5.7	16	54	34
0.25 mm² Unscreened LSZH Signal Configurations (500 V peak)
LiHH 2×0.25	2×0.25	24	3.6	3.9	4	19	23
LiHH 4×0.25	4×0.25	24	4.0	4.4	9	29	26
LiHH 7×0.25	7×0.25	24	4.8	5.2	16	46	31
LiHH 12×0.25	12×0.25	24	6.3	6.8	28	76	41
LiHH 25×0.25	25×0.25	24	8.8	9.6	60	150	58
0.34 mm² Unscreened LSZH Signal Configurations (500 V peak)
LiHH 2×0.34	2×0.34	22	4.0	4.3	6	23	26
LiHH 4×0.34	4×0.34	22	4.5	4.9	13	37	29
LiHH 8×0.34	8×0.34	22	6.0	6.5	26	68	39
LiHH 12×0.34	12×0.34	22	6.9	7.5	39	98	45
0.50 mm² Unscreened LSZH Signal Configurations (500 V peak)
LiHH 2×0.5	2×0.5	20	4.4	4.8	9	30	29
LiHH 4×0.5	4×0.5	20	5.1	5.5	19	48	33
LiHH 7×0.5	7×0.5	20	6.1	6.6	33	78	40
LiHH 12×0.5	12×0.5	20	8.1	8.8	57	132	53
0.75–1.5 mm² Unscreened LSZH Signal Configurations
LiHH 4×0.75	4×0.75	18	5.6	6.1	28	65	37
LiHH 7×0.75	7×0.75	18	6.8	7.4	50	105	44
LiHH 12×0.75	12×0.75	18	8.9	9.7	86	172	58
LiHH 4×1.0	4×1.0	17	6.0	6.5	38	80	39
LiHH 4×1.5	4×1.5	16	6.7	7.3	57	108	44

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Dimensions and weights are typical values per DIN VDE 0812 / DIN 47100 · LSZH. Minimum fixed bending radius shown is 6 × OD.

Electrical & current ratings
Cross-section mm²	AWG ≈	Max. DC resistance 20 °C, Ω/km	Single pair/core 30 °C, A	Multi-core bundle 30 °C, A
0.14	26	138	2.0	1.5
0.25	24	79	4.0	3.0
0.34	22	57	5.0	4.0
0.5	20	39	9.0	6.0
0.75	18	26	12.0	10.0
1	17	19.5	15.0	13.0
1.5	16	13.3	23.0	18.0

Current ratings at 30 °C ambient in free air per DIN VDE 0298-4 / DIN VDE 0891-1. Apply grouping derating factors for multi-core control and signal bundles.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Cable sizeDrum core diameter (mm)

Cable length on drum (m)

Drum core 300 mm ≥ 62 mmBending radius OK (6 × OD 5.2 mm)

Minimum bending radius: 31 mm
Min. drum core diameter: ≈ 62 mm
Cable weight on drum: 2.3 kg
Copper content: 0.8 kg

Indicative only: based on the datasheet outer diameter and 6 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
AC voltage test	1.5 kV AC (50 Hz)	Every manufactured length
Conductor DC resistance	IEC 60228 / DIN VDE 0812 / DIN 47100 · LSZH (bare copper)	Every manufactured length
Sample tests
Vertical flame propagation	IEC 60332-1-2 / EN 60332-1-2	Per production batch
Insulation & sheath material physical properties	DIN VDE 0812 / DIN 47100 · LSZH	Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

DIN VDE 0812 / DIN 47100 · LSZHCE · RoHS 2 (2011/65/EU) · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX LiHH [Size] HALOGEN-FREE DIN VDE 0812 CE

Delivery form: Export wooden drums or coils, cut-to-length on request
Packaging: Heat-treated ISPM-15 timber drums with sealed cable ends
Conductor / sheath options: Custom core counts, pair counts or sheath colours on request

Technical documents

Downloads

PDFLiHH Unscreened LSZH Signal Cable – technical datasheet22 sizes · construction, technical data, approvals XLSXLiHH spec data (Excel)All 22 sizes with dimensions and data, for your BOM or quotation
