GOST KGE / KGESh screened mining & excavator cablesGOST 13497 / TU 16.K736/6 kV (3.6/6 kV)Semicon Screened · -40 to +75 °C

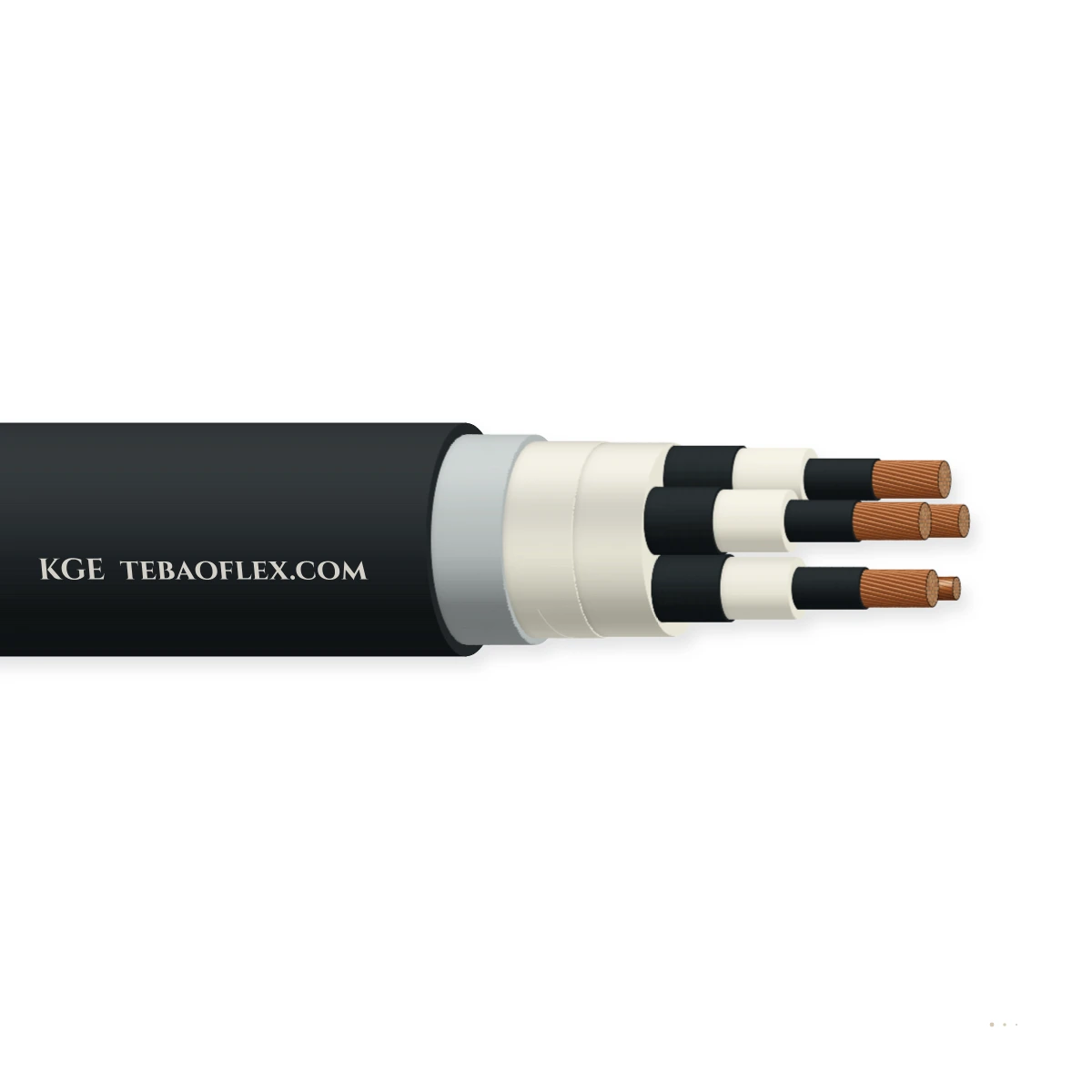

KGE Screened Flexible Rubber Excavator Trailing CableGOST 13497 6/6 kV (3.6/6 kV) screened flexible rubber open-pit excavator trailing cable

KGE (КГЭ) is the classic GOST 13497 and TU 16.K73.02-88 6/6 kV (3.6/6 kV) screened flexible rubber trailing cable engineered for open-pit electric rope shovels (EKG-5A, EKG-8I, EKG-10, EKG-15), walking draglines, and rotary pit drills operating in harsh

EMC screen
Ozone, UV & moisture
Oil-resistant
Anti-torsion braid
Order designation
KGE 3×35+1×10 - 6 kV
Outer Ø ≈
43.0 mm
Copper weight
1,105 kg/km
Total weight ≈
2,580 kg/km
Min. bend R (fixed)
258 mm
All sizes (9)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
6/6 kV (3.6/6)
GOST 6 kV 3-phase + 380 V aux
Conductor
Class 5 Cu
GOST 22483 / IEC 60228 flexible Cu
Screening
Semicon Rubber
Inner & outer conductive rubber Э
Insulation
RTI-1 / EPR
Ozone-resistant MV rubber
Outer sheath
RShN-1 / PCP
Cold & tear-resistant rubber (-40 °C)
Min. bend radius
6×D
Dynamic open-pit trailing 6×D

Typical values for this cable type, based on GOST 13497 / TU 16.K73.02-88 (КГЭ) — confirmed in the datasheet and quotation for your order.

Application fit

Is KGE right for your machine?

Built for open-cast mining electric rope shovels, walking draglines, and blast-hole drills across CIS, Central Asian, and cold-climate surface mines.

Trailing & towing

Suitable

Primary trailing feeder for EKG-series electric rope shovels and open-pit draglines.

Drilling jumbo & rotary mast feed

Suitable

Powers SBSh-250 and similar 6 kV rotary blast-hole drilling rigs on quarry benches.

Motorised monospiral reel

Suitable

Maintains 6×D flexibility down to -40 °C on excavator cable drums and pit sleds.

Fixed installation

Suitable

Used for pit-wall drop lines and mobile substation bench jumpers.

Mine roadway & tunnel wall hangers

With conditions

KGE is designed for open-cast pits; for underground coal mines specify KGESh or KGETSh.

KGESh or KGETSh
Typical machinesOpen-pit coal, iron & copper minesEKG-series electric rope shovelsWalking draglines & pit crushersCold-climate surface mining (-40 °C)

Construction

Layer by layer

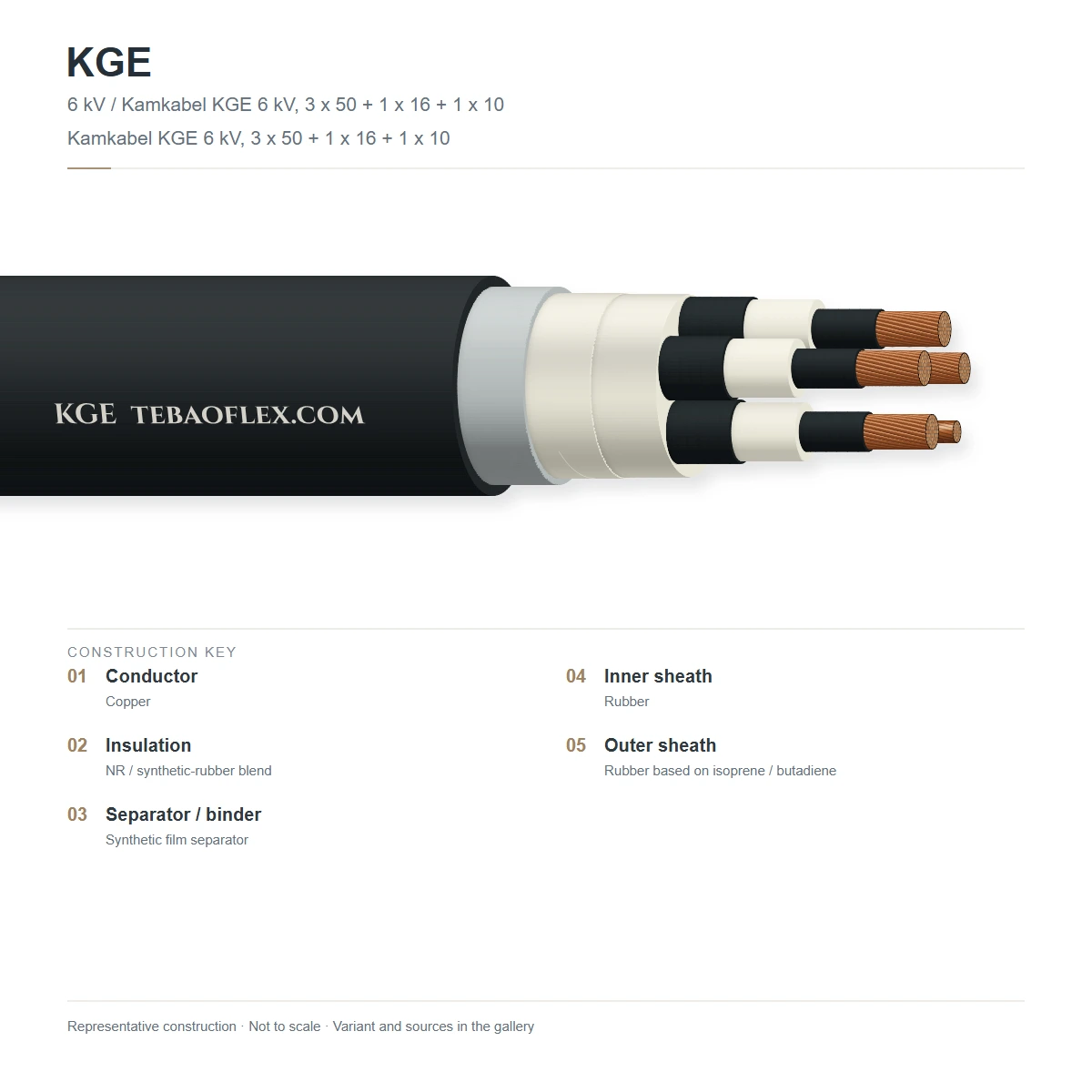

Three Class 5 flexible copper 6 kV power cores with inner and outer semi-conductive rubber screens (Э) over ozone-resistant EPR/RTI-1

123456
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Phase & earth/auxiliary conductorsFinely stranded bare or tinned copper, Class 5 per GOST 22483 / IEC 60228GOST 22483 Class 5
2Central profiled rubber cradleExtruded semi-conductive rubber cradle separating phase and earth coresGOST 13497
3Inner conductor screenSemi-conductive rubber layer equalizing conductor surface electric fieldGOST 13497
46 kV rubber/EPR insulationOzone-resistant ethylene-propylene or RTI-1 insulating rubberGOST 13497
5Outer core screen (Э)Extruded semi-conductive rubber screen in continuous contact with earth coreGOST 13497
6Heavy outer sheath (RShN-1)Cold-resistant, tear-, oil- and sunlight-resistant polychloroprene rubber sheathGOST 13497

KGE (КГЭ) 6 kV (-40 °C)

Standard UHL1 temperate/cold-climate 6 kV excavator trailing cable (3 phase + 1 earth/aux).

KGE-HL (КГЭ-ХЛ) (-60 °C)

Arctic cold-climate execution rated for dynamic trailing down to -60 °C.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on GOST 13497 / TU 16.K73.02-88 (КГЭ). Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage (phase-to-phase)
6 kV AC (3.6/6 kV equivalent), 50 Hz
Auxiliary / earth core voltage
380 V AC
AC routine test voltage
15 kV rms / 5 min on 6 kV phase cores; 2 kV
Specific volume resistance of screen
≤ 250 Ω·cm semi-conductive rubber

Thermal

Max. conductor operating temp.
+75 °C (RTI-1) · +90 °C (EPR upgrade)
Ambient temperature (UHL1)
-40 °C to +50 °C (-60 °C for KGE-HL)
Max. short-circuit temperature
+200 °C / +250 °C (5 s)

Mechanical

Min. bending radius (dynamic)
6 × cable outer diameter
Max. tensile load on copper
19.6 N/mm² (2.0 kgf/mm²) per GOST 13497
Cyclic bending endurance
Tested on sheave test rig under tension per

Resistance

Cold-bend & impact resilience
GOST 13497 UHL1 (-40 °C) / HL1 (-60 °C)
Sunlight, ozone & oil resistance
RShN-1 polychloroprene outdoor pit sheath
Flame retardancy
GOST IEC 60332-1-2 self-extinguishing

Reference standards

Primary specification
GOST 13497 / TU 16.K73.02-88 (КГЭ)
Conductor standard
GOST 22483 / IEC 60228 Class 5

Identification

Core coding
3 screened 6 kV power cores + 1
Outer sheath colour
Black heavy-duty rubber with embossed КГЭ 6

Sizes

9 standard configurations (KGE)

Nominal dimensions, copper weights and electrical parameters for KGE per GOST 13497 / TU 16.K73.02-88 (КГЭ).

Dimensions & weights
Order designationConfigurationPhase size mm²Outer Ø ≈
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard KGE configurations
KGE 3×10+1×6 - 6 kV3×10 + 1×6 (6 kV)1033.03451,350198
KGE 3×16+1×10 - 6 kV3×16 + 1×10 (6 kV)1636.25551,690217
KGE 3×25+1×10 - 6 kV3×25 + 1×10 (6 kV)2539.88152,120239
KGE 3×35+1×10 - 6 kV3×35 + 1×10 (6 kV)3543.01,1052,580258
KGE 3×50+1×16 - 6 kV3×50 + 1×16 (6 kV)5047.51,5953,290285
KGE 3×70+1×25 - 6 kV3×70 + 1×25 (6 kV)7052.82,2554,210317
KGE 3×95+1×35 - 6 kV3×95 + 1×35 (6 kV)9558.53,0855,380351
KGE 3×120+1×50 - 6 kV3×120 + 1×50 (6 kV)12063.83,9506,540383
KGE 3×150+1×50 - 6 kV3×150 + 1×50 (6 kV)15068.54,8107,680411
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal factory values subject to ±5 % manufacturing tolerance per GOST 13497 / TU 16.K73.02-88 (КГЭ).

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
15 kV AC voltage withstand15 kV rms / 5 min on 6 kV cores per GOST 13497100 % of drums
Semi-conductive screen resistance≤ 250 Ω·cm conductive rubber continuity100 % of drums
Sample tests
Cold bend test at -40 °CGOST 13497 no cracking under low-temperature mandrel bendPer production batch
Roller-sheave flex life testGOST 13497 dynamic bending under 2 kgf/mm² tensionType approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

GOST 13497TU 16.K73.02-88EAC / TR CU

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX KGE (КГЭ) 6 kV GOST 13497
Delivery form
Fumigated export wooden drums
Standard drum lengths
300 m · 500 m · 1000 m (or custom cut
MOQ
100 m (stock sizes) · 300 m (custom build)
Lead time
3–5 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFKGE Screened Flexible Rubber Excavator Trailing Cable – technical datasheet9 sizes · construction, technical data, approvalsXLSXKGE spec data (Excel)All 9 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What does the Russian designation KGE (КГЭ) mean?
In the GOST cable coding system, 'К' stands for Кабель (cable), 'Г' stands for Гибкий (flexible), and 'Э' stands for Экранированный (screened) for excavator service (экскаваторный). It is the standard 6 kV open-pit electric shovel and dragline trailing cable across CIS mines. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and sheath dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.
How is KGE screened to protect open-pit shovel operators?
Each 6 kV power core has both an inner semi-conductive rubber layer over the conductor and an outer semi-conductive rubber screen over the insulation. All three phase screens sit in continuous contact with the central semi-conductive rubber cradle and the uninsulated or semi-conductive-covered earth core.
What is the difference between KGE, KGET, and KGESh?
KGE (КГЭ) is the standard 6 kV open-pit excavator cable for temperate and cold climates (-40 °C, or -60 °C in KGE-HL). KGET (КГЭТ) is the tropical-grade 6–10 kV open-pit excavator cable resistant to mould, termites, and equatorial solar radiation, while KGESh (КГЭШ) is the 660/1140 V underground mine cable.
Why is KGE tested at 15 kV AC during factory routine testing?
Under GOST 13497, 6 kV open-pit mining networks operate with isolated or resonant-grounded neutrals where single-phase earth faults elevate healthy phases to full line voltage. The 15 kV rms 5-minute routine test verifies a high dielectric safety margin. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and sheath dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.
