RS-485 / RS-422 & JIS Shipboard Communication CablesJIS C 3410 · Individual Pair Screen'-S' PiMF ≥ 70 dB Crosstalk IsolationTTY-S / TTYC-S / TTYCY-S 250 V

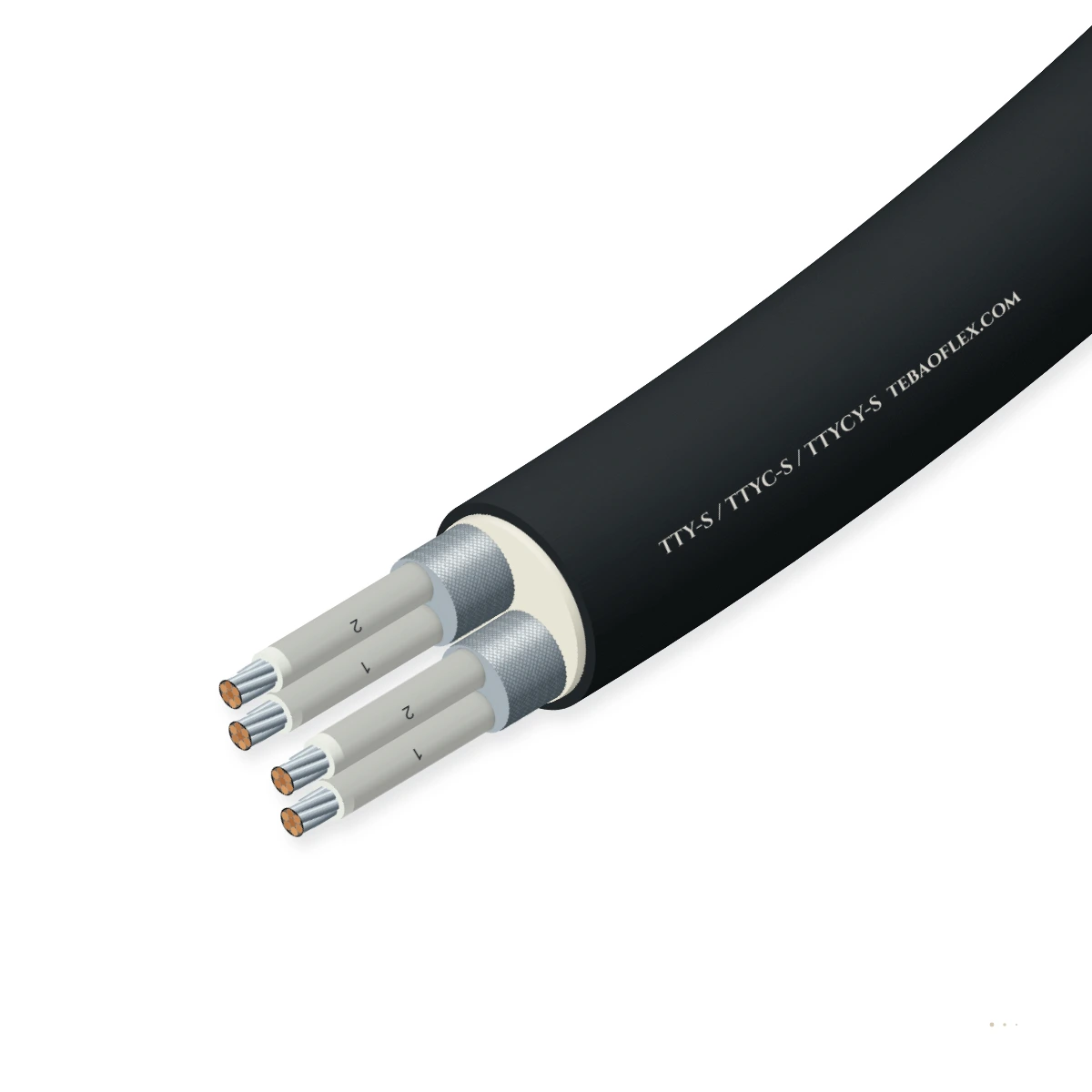

TTY-S / TTYC-S / TTYCY-S JIS Individually Screened Shipboard PairJIS C 3410 250 V individually pair-screened ('-S') 2P to 30P × 0.75 / 1.25 mm² TTY-S

TTY-S / TTYC-S / TTYCY-S JIS Individually Screened Shipboard Pair Cable wraps every individual 90 °C EPR-insulated twisted pair (2P to 30P × 0.75 mm² and 1.25 mm²) in its own numbered 100 % copper or aluminium/polyester tape screen with a dedicated tinned

Low-EMC design
EMC screen
Flame-retardant
Water-resistant
Order designation
TTYCY-S 4P×0.75 mm² Individually Screened JIS C 3410
Outer Ø ≈
16.8 mm
Copper weight
70 kg/km
Total weight ≈
420 kg/km
Min. bend R (fixed)
101 mm
All sizes (6)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Standard
JIS C 3410
Individually screened ('-S') pairs
Rated voltage
250 V AC
1.5 kV AC / 1 min dielectric test
Pair screening
100% Tape / Pair
Individual foil/Cu tape + drain wire
Crosstalk (NEXT)
≥ 70 dB
Pair-to-pair audio & serial isolation
Pair & size range
2P–30P · 0.75/1
90 °C EPR tinned copper pairs
Class approvals
NK / DNV / ABS
IEC 60332-3-22 Cat A bunched flame

Typical values for this cable type, based on JIS C 3410 (TTY-S / TTYC-S / TTYCY-S Individually Screened) — confirmed in the datasheet and quotation for your order.

Application fit

Is TTY-S / TTYC-S / TTYCY-S right for your machine?

Selected for multi-channel shipboard instrumentation trunks carrying mixed NMEA 0183 / RS-422/485 serial data, 4–20 mA HART analog signals, tachometer pulses, and bridge voice intercom pairs inside

Fixed installation

Suitable

Individual pair screens ('-S') prevent digital serial pulses or HART tones on one pair from coupling into adjacent analog pairs.

Switchgear & control cabinet wiring

Suitable

Numbered polyester insulation tape over each pair screen allows independent single-point shield earthing per instrument channel.

Immersion & wet locations

Suitable

TTYCY-S wire-braid armour and PVC outer oversheath withstand engine-room bilge, oil mist, and weather-deck routing.

Typical machinesIntegrated Bridge Systems (IBS) & ECDISEngine Control Room (ECR) multi-pair trunksLNG cargo custody & tank gaugingPropulsion RPM, torque & governor telemetry

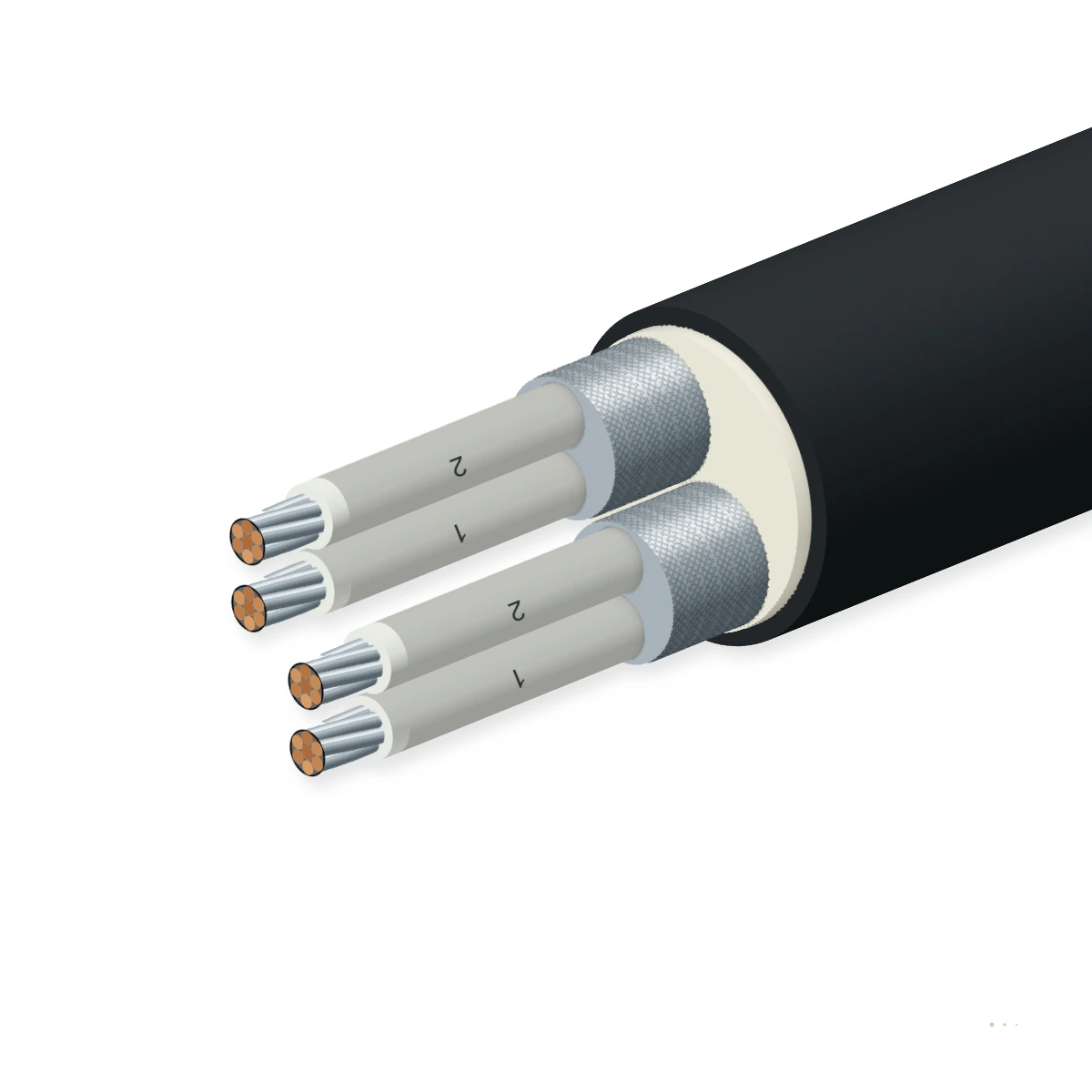

Construction

Layer by layer

Stranded annealed tinned copper conductors (0.75 mm² = 7/0.37 mm; 1.25 mm² = 7/0.48 mm) insulated with 90 °C EPR rubber, twisted into

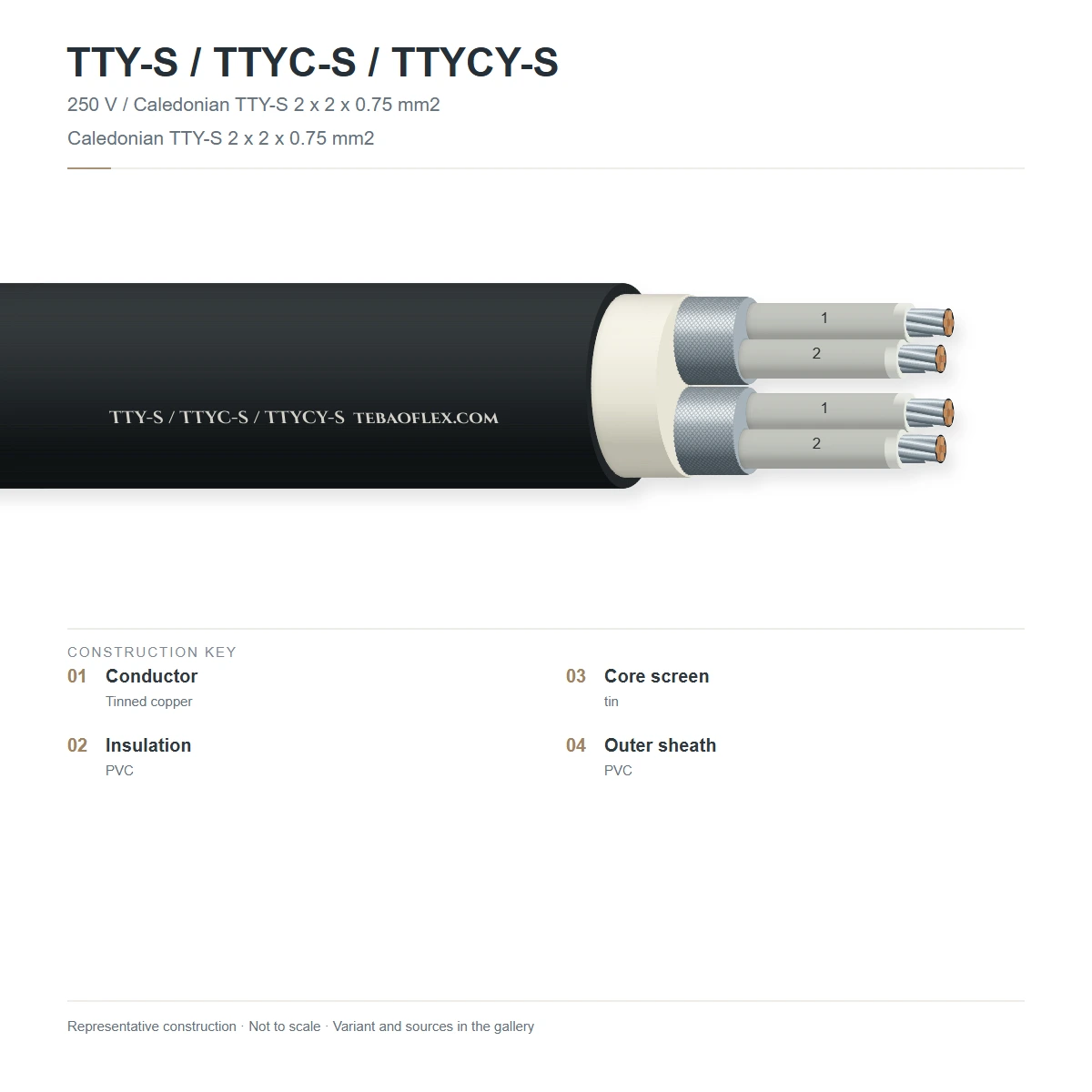

123456
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Stranded tinned copper conductors7/0.37 mm (0.75 mm²) or 7/0.48 mm (1.25 mm²) annealed tinned copper per JIS C 3410JIS C 3410
290 °C EPR rubber insulationCross-linked ethylene-propylene rubber insulation in White and Red per pairJIS C 3410
3Individual pair screen ('-S') +100 % copper or Al/PET tape + tinned Cu drain wire + numbered polyester isolation tapeJIS C 3410 ('-S')
4Flame-retardant PVC inner sheath (TTY-S)Marine flame-retardant PVC sheathJIS C 3410
5Wire braid armour (TTYC-S / TTYCY-S)Galvanized steel wire braid (GSWB) or tinned copper wire braid (TCWB)JIS C 3410
6Protective PVC oversheath (TTYCY-S)Oil- and flame-retardant PVC outer protective sheath per IEC 60332-3-22 Cat AJIS C 3410 / IEC 60332-3-22

TTY-S (Unarmoured Individually Pair-Screened)

Multi-pair individually screened 250 V cable for bridge consoles and dry equipment rooms.

TTYC-S & TTYCY-S (Wire-Braid Armoured + Individually Screened)

Wire-braid armoured (TTYC-S) and PVC-oversheathed (TTYCY-S) for engine rooms and open decks.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on JIS C 3410 (TTY-S / TTYC-S / TTYCY-S Individually Screened). Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
250 V AC
Pair impedance Z0
≈ 85–100 Ω balanced screened pair
Max. DC conductor resistance @ 20 °C
≤ 26.3 Ω/km (0.75 mm²) · ≤ 15.6 Ω/km (1.25
Mutual capacitance @ 1 kHz
≈ 105 nF/km (individually screened pair)
Inter-pair crosstalk attenuation
≥ 70 dB at 10–100 kHz
Insulation resistance & test V
≥ 300 MΩ·km @ 20 °C · 1,500 V AC / 1 min

Thermal

Max. conductor operating temp.
+90 °C (EPR insulation per JIS C 3410)
Ambient installation temperature
-20 °C to +60 °C

Mechanical

Min. bending radius
6 × D fixed installation
Pair screen isolation
Polyester isolation tape over each pair

Resistance

Bunched flame retardancy
IEC 60332-3-22 Category A & IEC 60332-1-2
Marine oil & salt-fog resistance
JIS C 3410 / IEC 60092-350

Reference standards

Primary specification
JIS C 3410 (TTY-S / TTYC-S / TTYCY-S)
Classification societies
ClassNK, DNV, ABS, LR, BV, KR

Identification

Pair identification
White & Red cores with pair number printed
Outer sheath colour
Grey or Black

Sizes

6 standard configurations (TTY-S / TTYC-S / TTYCY-S)

Nominal dimensions, copper weights, impedance and transmission parameters for TTY-S / TTYC-S / TTYCY-S per JIS C 3410 (TTY-S / TTYC-S / TTYCY-S Individually

Dimensions & weights
Order designationConfigurationConductor sizeOuter Ø ≈
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard TTY-S / TTYC-S / TTYCY-S configurations
TTYCY-S 2P×0.75 mm² Individually Screened JIS C 34102P×0.75 mm² (TTYCY-S)0.75 mm² (7/0.37)14.53629587
TTYCY-S 4P×0.75 mm² Individually Screened JIS C 34104P×0.75 mm² (TTYCY-S)0.75 mm² (7/0.37)16.870420101
TTYCY-S 7P×0.75 mm² Individually Screened JIS C 34107P×0.75 mm² (TTYCY-S)0.75 mm² (7/0.37)19.8120585119
TTYCY-S 10P×0.75 mm² Individually Screened JIS C 341010P×0.75 mm² (TTYCY-S)0.75 mm² (7/0.37)24.0170810144
TTYCY-S 2P×1.25 mm² Individually Screened JIS C 34102P×1.25 mm² (TTYCY-S)1.25 mm² (7/0.48)15.85635595
TTYCY-S 4P×1.25 mm² Individually Screened JIS C 34104P×1.25 mm² (TTYCY-S)1.25 mm² (7/0.48)18.6110515112
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal factory values subject to ±5 % manufacturing tolerance per JIS C 3410 (TTY-S / TTYC-S / TTYCY-S Individually Screened).

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
1.5 kV AC core-to-core & core-to-screen dielectric1,500 V AC / 1 min; IR ≥ 300 MΩ·km at 20 °C100 % of reels
Screen-to-screen electrical isolation check500 V DC isolation between individual pair screens100 % of reels
Sample tests
Near-end crosstalk (NEXT) between adjacent pairs≥ 70 dB isolation across voice & serial bandPer production batch
IEC 60332-3-22 Cat A bunched vertical flame testPass Category A marine tray fire testClass society approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

JIS C 3410ClassNK / DNV / ABS / LRIEC 60332-3-22 Cat A

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX JIS C 3410 250V TTY-S / TTYC-S
Delivery form
Non-returnable plywood reels or export drums
Standard reel lengths
100 m · 305 m · 500 m · 1000 m
MOQ
100 m (stock variants) · 500 m (custom)
Lead time
2–3 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFTTY-S / TTYC-S / TTYCY-S JIS Individually Screened Shipboard Pair – technical datasheet6 sizes · construction, technical data, approvalsXLSXTTY-S / TTYC-S / TTYCY-S spec data (Excel)All 6 sizes with dimensions and data, for your BOM or quotation
