RS-485 / RS-422 & JIS Shipboard Communication CablesJIS C 3410 · 250 V Overall Screen100% Collective Tape Screen ('S')TTYS / TTYCS / TTYCYS 0.75 & 1.25

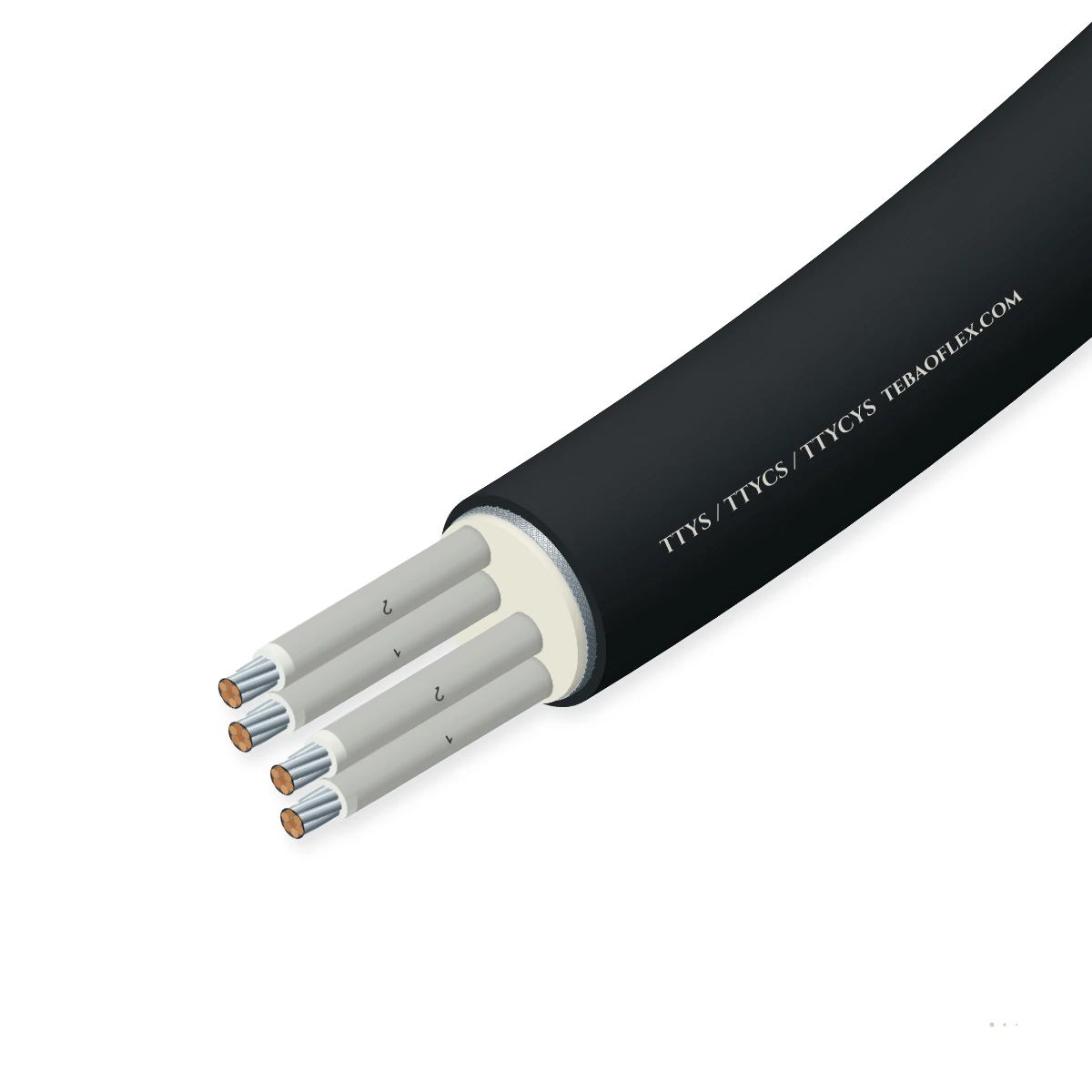

TTYS / TTYCS / TTYCYS JIS Overall-Screened ShipboardJIS C 3410 250 V overall-screened ('S') 1P to 30P × 0.75 / 1.25 mm² TTYS, TTYCS & TTYCYS

TTYS / TTYCS / TTYCYS JIS Overall-Screened Shipboard Communication Cable adds a 100 % collective electrostatic copper/aluminium-polyester tape screen with tinned copper drain wire ('S') over the laid-up 90 °C EPR-insulated twisted pairs or star-quads (1P

Low-EMC design
EMC screen
Flame-retardant
Water-resistant
Order designation
TTYCYS 2P×0.75 mm² (1Q) Overall-Screened JIS C 3410
Outer Ø ≈
12.4 mm
Copper weight
33 kg/km
Total weight ≈
240 kg/km
Min. bend R (fixed)
74 mm
All sizes (6)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Standard
JIS C 3410
Overall-screened ('S') marine cable
Rated voltage
250 V AC
1.5 kV AC / 1 min dielectric test
Overall screen
100% Cu/Al-PET
Collective tape screen + drain wire
Core insulation
90 °C EPR Rubber
0.75 mm² (7/0.37) & 1.25 mm² (7/0.48)
Armour options
TTYS / CS / CYS
Unarmoured · GS/Cu Braid · Oversheath
Class approvals
NK / DNV / ABS
IEC 60332-3-22 Cat A bunched flame

Typical values for this cable type, based on JIS C 3410 (TTYS / TTYCS / TTYCYS Overall-Screened Shipboard) — confirmed in the datasheet and quotation for your order.

Application fit

Is TTYS / TTYCS / TTYCYS right for your machine?

Engineered for shipboard engine-room monitoring and alarm systems (AMS), bridge radar/VDR serial interfaces, thruster control panels, and marine instrumentation routed near main propulsion VFD cables.

Fixed installation

Suitable

Collective 100 % tape screen ('S') plus wire-braid armour ('C') blocks external VFD and generator switching noise.

Switchgear & control cabinet wiring

Suitable

Single collective drain wire grounds the entire bundle screen cleanly at the engine-control-room (ECR) gland plate.

Immersion & wet locations

Suitable

TTYCYS outer PVC oversheath protects the armour braid in humid engine rooms, pump rooms, and open decks.

Energy chain / drag chain

Not suitable

Fixed marine installation cable per JIS C 3410.

PROFINET Type C
Typical machinesEngine-room Alarm & Monitoring (AMS)Main propulsion & thruster controlBridge VDR, AIS & navigation consolesCommercial & offshore vessel automation

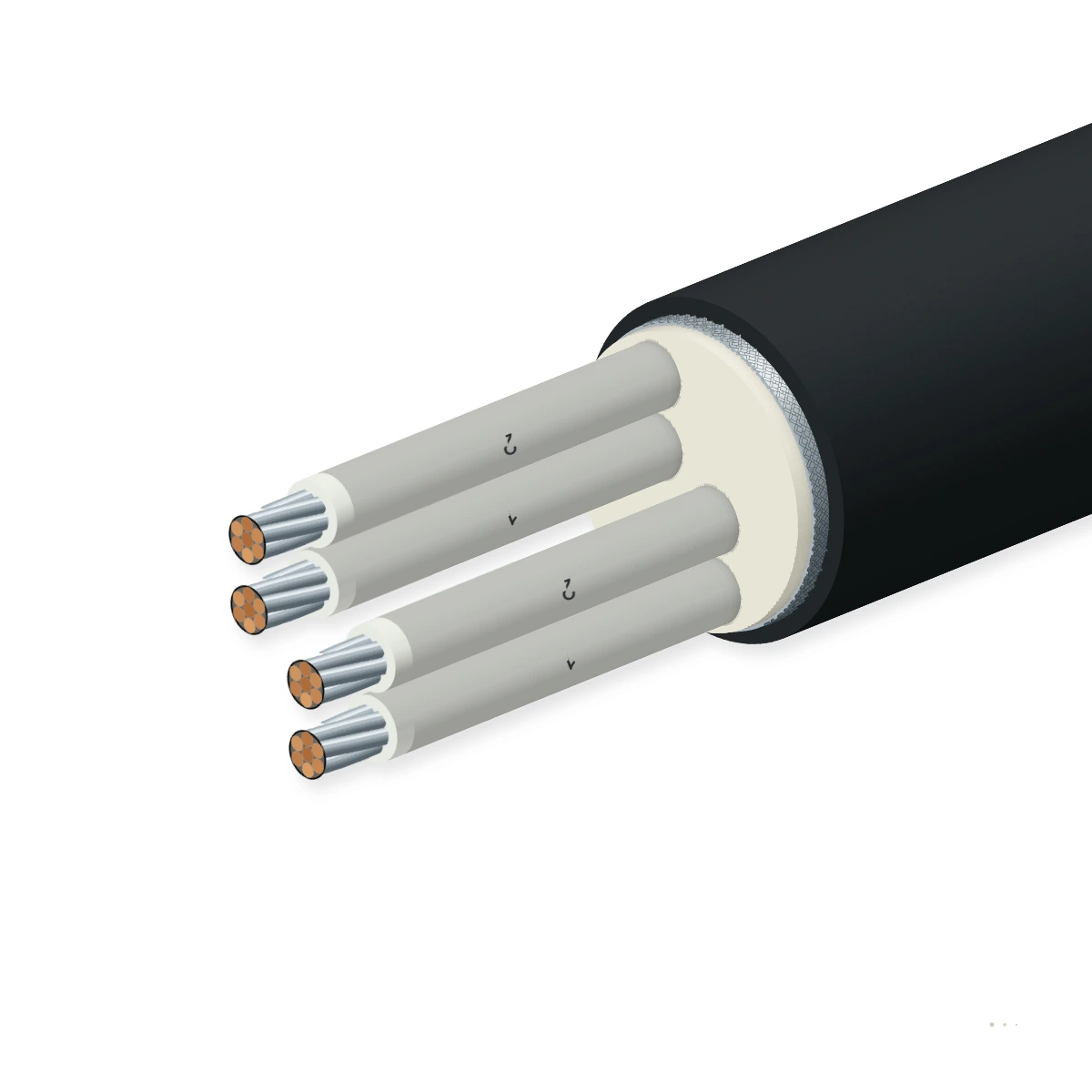

Construction

Layer by layer

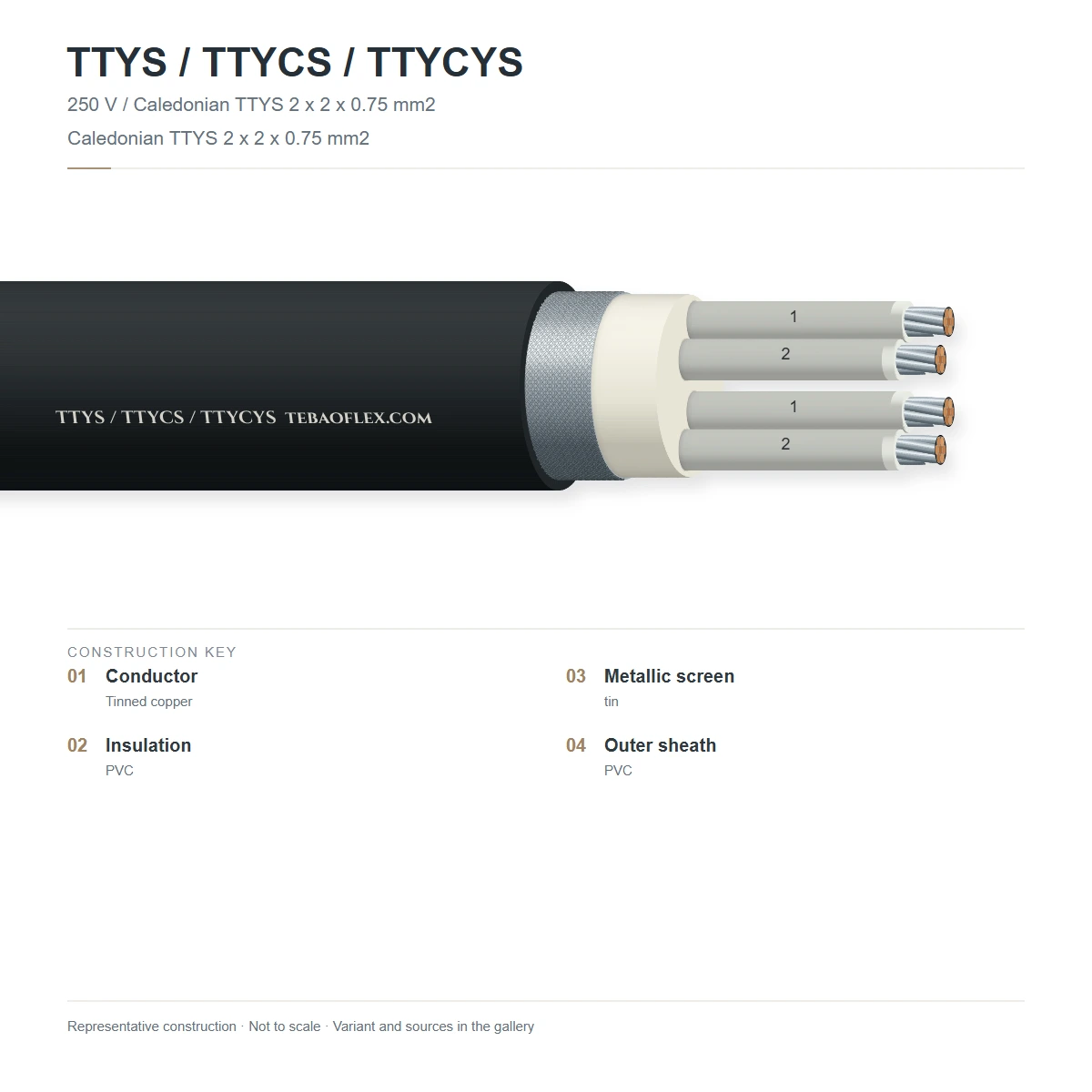

Stranded annealed tinned copper conductors (0.75 mm² or 1.25 mm²) insulated with 90 °C EPR rubber, twisted into pairs or star-quads

123456
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Stranded tinned copper conductors7/0.37 mm (0.75 mm²) or 7/0.48 mm (1.25 mm²) annealed tinned copper per JIS C 3410JIS C 3410
290 °C EPR rubber insulationCross-linked ethylene-propylene rubber insulation on each coreJIS C 3410
3Collective electrostatic screen ('S')100 % coverage copper or aluminium/polyester tape screen over core bundle with tinned CuJIS C 3410 ('S')
4Flame-retardant PVC inner sheath (TTYS)Marine flame-retardant PVC sheathJIS C 3410
5Wire braid armour (TTYCS / TTYCYS)Galvanized steel wire braid (GSWB) or tinned copper wire braid (TCWB)JIS C 3410
6Protective PVC oversheath (TTYCYS)Oil-, salt-fog-, and flame-retardant PVC outer sheath per IEC 60332-3-22 Cat AJIS C 3410 / IEC 60332-3-22

TTYS (Unarmoured Overall-Screened)

Collective foil/tape screened 250 V EPR/PVC shipboard cable for inside control rooms and consoles.

TTYCS & TTYCYS (Wire-Braid Armoured + Overall-Screened)

Dual-protected (collective tape screen + wire braid armour) with optional PVC oversheath (TTYCYS).

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on JIS C 3410 (TTYS / TTYCS / TTYCYS Overall-Screened Shipboard). Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
250 V AC
Characteristic impedance Z0
≈ 90–100 Ω balanced pair
Max. DC conductor resistance @ 20 °C
≤ 26.3 Ω/km (0.75 mm²) · ≤ 15.6 Ω/km (1.25
Mutual capacitance @ 1 kHz
≈ 95 nF/km
Insulation resistance @ 20 °C
≥ 300 MΩ·km
AC dielectric test voltage
1,500 V AC for 1 minute (core-to-core &

Thermal

Max. conductor operating temp.
+90 °C (EPR insulation per JIS C 3410)
Ambient installation temperature
-20 °C to +60 °C

Mechanical

Min. bending radius
6 × D fixed installation
Screen & armour coverage
100 % collective tape screen + ≥ 90 % wire

Resistance

Bunched flame retardancy
IEC 60332-3-22 Category A & IEC 60332-1-2
Marine oil & humidity resistance
JIS C 3410 / IEC 60092-350

Reference standards

Primary specification
JIS C 3410 (TTYS / TTYCS / TTYCYS)
Classification societies
ClassNK, DNV, ABS, LR, BV, KR

Identification

Core & pair identification
Numbered pairs / star-quads per JIS C 3410
Outer sheath colour
Grey or Black

Sizes

6 standard configurations (TTYS / TTYCS / TTYCYS)

Nominal dimensions, copper weights, impedance and transmission parameters for TTYS / TTYCS / TTYCYS per JIS C 3410 (TTYS / TTYCS / TTYCYS Overall-Screened

Dimensions & weights
Order designationConfigurationConductor sizeOuter Ø ≈
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard TTYS / TTYCS / TTYCYS configurations
TTYCYS 1P×0.75 mm² Overall-Screened JIS C 34101P×0.75 mm² (TTYCYS)0.75 mm² (7/0.37)11.51820569
TTYCYS 2P×0.75 mm² (1Q) Overall-Screened JIS C 34102P (1Q)×0.75 mm² (TTYCYS)0.75 mm² (7/0.37)12.43324074
TTYCYS 4P×0.75 mm² (2Q) Overall-Screened JIS C 34104P (2Q)×0.75 mm² (TTYCYS)0.75 mm² (7/0.37)16.06238096
TTYCYS 7P×0.75 mm² Overall-Screened JIS C 34107P×0.75 mm² (TTYCYS)0.75 mm² (7/0.37)18.5106515111
TTYCYS 10P×0.75 mm² Overall-Screened JIS C 341010P×0.75 mm² (TTYCYS)0.75 mm² (7/0.37)22.0150690132
TTYCYS 4P×1.25 mm² (2Q) Overall-Screened JIS C 34104P (2Q)×1.25 mm² (TTYCYS)1.25 mm² (7/0.48)17.8102470107
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal factory values subject to ±5 % manufacturing tolerance per JIS C 3410 (TTYS / TTYCS / TTYCYS Overall-Screened Shipboard).

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
1.5 kV AC core-to-core & core-to-screen dielectric1,500 V AC / 1 min; IR ≥ 300 MΩ·km at 20 °C100 % of reels
DC conductor resistance & collective screen continuity≤ 26.3 / 15.6 Ω/km; continuous drain wire contact100 % of reels
Sample tests
Surface transfer impedance & EMC attenuationCollective tape screen + wire braid dual EMI isolationPer production batch
IEC 60332-3-22 Cat A bunched vertical flame testPass Category A shipboard tray fire testClass society approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

JIS C 3410ClassNK / DNV / ABS / LRIEC 60332-3-22 Cat A

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX JIS C 3410 250V TTYS / TTYCS
Delivery form
Non-returnable plywood reels or export drums
Standard reel lengths
100 m · 305 m · 500 m · 1000 m
MOQ
100 m (stock variants) · 500 m (custom)
Lead time
2–3 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFTTYS / TTYCS / TTYCYS JIS Overall-Screened Shipboard – technical datasheet6 sizes · construction, technical data, approvalsXLSXTTYS / TTYCS / TTYCYS spec data (Excel)All 6 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What is the difference between TTYCYS (without hyphen) and TTYCY-S (with hyphen) under JIS C 3410?
In JIS C 3410, 'S' without a hyphen (TTYS / TTYCS / TTYCYS) denotes an overall collective electrostatic screen tape applied around the entire laid-up core bundle beneath the inner sheath. '-S' with a hyphen (TTY-S / TTYC-S / TTYCY-S) denotes individual electrostatic screening around every single pair to eliminate pair-to-pair crosstalk.
Why specify TTYCYS when TTYCY already has a metallic wire-braid armour?
In a standard TTYCY cable, the outer wire braid ('C') is primarily a mechanical armour grounded at bulkhead glands and has an optical weave aperture at high frequencies. Adding the inner 100 % collective copper/Al-PET tape screen ('S') with drain wire provides a complete 360° Faraday shield isolated from the hull armour by the inner PVC sheath.
When is overall-screened TTYCYS sufficient vs. individually pair-screened TTYCY-S?
Use overall-screened TTYCYS when all pairs inside the cable carry similar signal levels (such as 4–20 mA loops, RTD temperature sensors, or discrete alarm contacts) and only need protection from external engine-room EMI. Use individually screened TTYCY-S when mixed digital RS-485/audio signals in adjacent pairs could cross-couple.
Are halogen-free LSZH (SHF1) versions of TTYCYS available?
Yes. Alongside standard JIS C 3410 flame-retardant PVC sheaths, we manufacture halogen-free low-smoke zero-halogen (IEC 60092-360 SHF1 / IEC 60754-1/2) equivalents for passenger vessels, naval ships, and offshore units. Each production reel undergoes 100 % characteristic impedance verification, mutual capacitance and DC loop resistance testing, and dielectric spark/withstand inspection before dispatch with an EN 10204 3.1 certificate.
