BS EN 50382 High-Temperature Railway Rolling-Stock Power CablesBS EN 50382-21.8/3 kV & 3.6/6 kV AC-50 to +150 °C

EN 50382-2 High-Temperature Rolling Stock Power CableBS EN 50382-2 1.8/3 kV & 3.6/6 kV high-temperature silicone rubber (+120 °C / +150 °C) EN

EN 50382-2 is a halogen-free high-temperature railway rolling-stock traction power cable engineered to BS EN 50382-2 for 1.8/3 kV and 3.6/6 kV AC (up to 2.7/4.5 kV and 5.4/9 kV DC) locomotive, high-speed train, and metro bogie power circuits. Constructed with

EN 45545-2 HL3
Oil & Fuel Res.
-50 to +150 °C
BS EN 50382-2
Order designation
EN 50382-2 1×70 (1.8/3 kV)
Nom. OD
16.40 mm
Copper mass
420.5 kg/km
Total mass ≈
725.0 kg/km
Min. bend R
98.4 mm
All sizes (8)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
1.8/3 kV & 3.6/6
Max 3.6 kV / 7.2 kV AC (5.4 kV / 9 kV DC
Test voltage
6500 V AC (1.8/3
Dielectric withstand
Operating temp
-50 to +150 °C
Short-circuit +300 °C
Min. bend radius
4 × D
Flexing 6 × D
Primary standard
BS EN 50382-2
BS EN 50382-2; BS EN 50382-1; EN 45545-2
Flame rating
EN 45545-2 R15/R
Fire & safety compliance

Typical values for this cable type, based on BS EN 50382-2 — confirmed in the datasheet and quotation for your order.

Application fit

Is EN 50382-2 right for your machine?

Used for high-power traction motor feeders, auxiliary converter buses, braking resistor leads, and transformer connections on high-speed trains, metros, locomotives, and light rail vehicles.

Motor stator, traction & converter leads

Suitable

Engineered specifically for locomotive and EMU bogie traction motor leads and transformer connections

Switchgear & control cabinet wiring

Suitable

High +150 °C conductor rating allows compact cross-sections inside traction converters and roof-mounted switchgear

Fixed installation

Suitable

Approved for EN 45545-2 HL3 interior and exterior underframe fixed wiring on passenger rolling stock

Trailing & towing

With conditions

Designed for carbody-to-bogie jumpers (Class 6 stranding); not a ground-drag mining cable

Typical machinesBogie Traction Motor Jumper LeadsTraction Converter & Roof Braking Resistor WiringUnderground Metro & Tunnel Passenger Trains

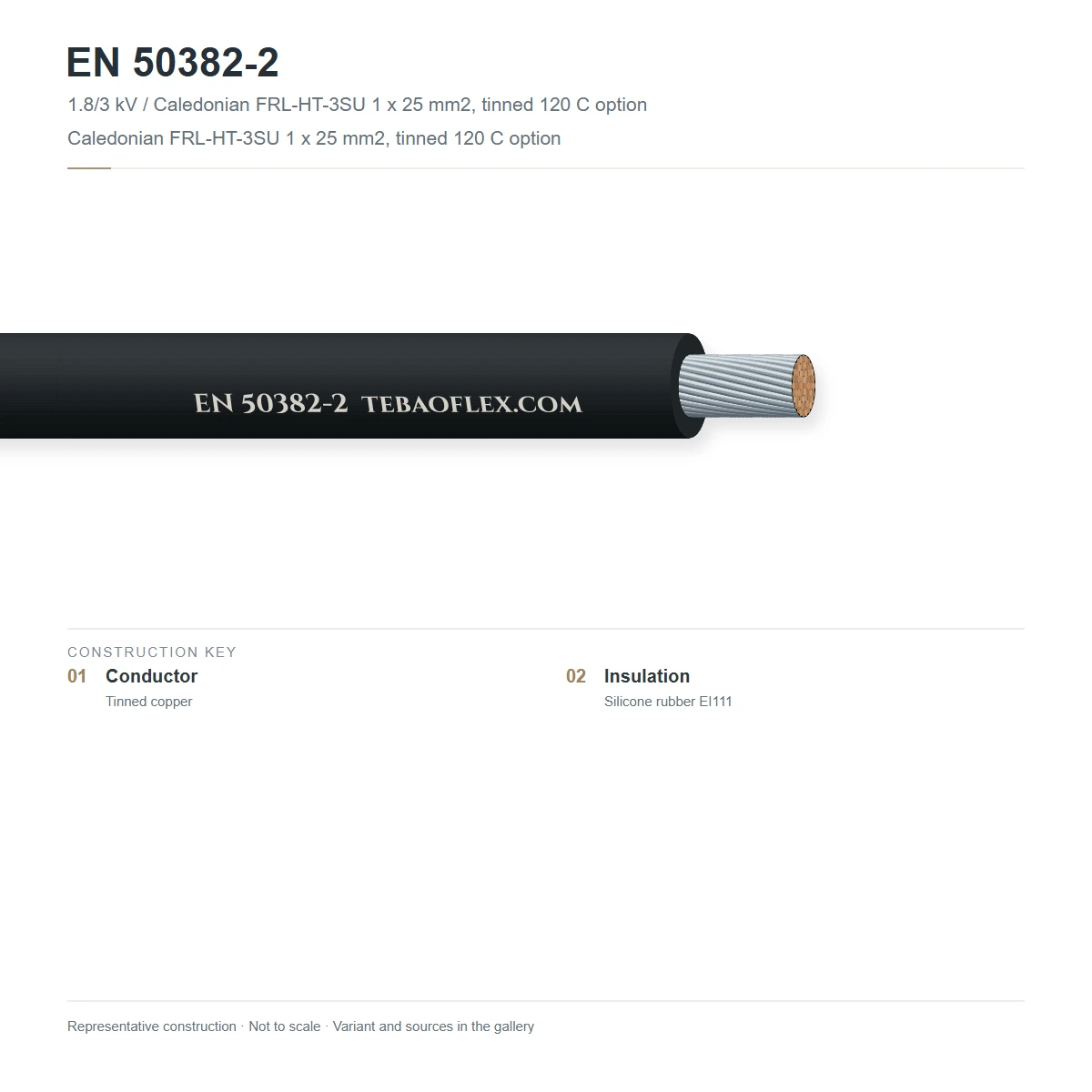

Construction

Layer by layer

Class 5 flexible or Class 6 extra-flexible annealed tinned copper (IEC 60228); High-temperature halogen-free cross-linked silicone rubber elastomer (EI 111 +120 °C or EI 112 +150 °C per EN 50382-1); Semiconductive or separator tape over conductor; bonded dual-layer silicone elastomer wall; LSZH flame-retardant, oil-resistant cross-linked silicone elastomer sheath (EM 107 per EN 50382-1, Black).

1234
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1ConductorClass 5 / Class 6 flexible tinned copper conductor (IEC 60228)BS EN 50382-2
2TapeNon-hygroscopic separator tapeBS EN 50382-2
3InsulationHigh-temperature silicone rubber dielectric (EI 111 / EI 112, +150 °C)BS EN 50382-2
4SheathLSZH flame-retardant silicone elastomer outer sheath (EM 107, Black)BS EN 50382-2

Bogie Traction Motor Jumper Leads

Class 6 extra-flexible tinned copper stranding and -50 °C to +150 °C silicone elastomer withstand continuous bogie articulation and winter track ballast impact.

Traction Converter & Roof Braking Resistor Wiring

+150 °C continuous rating (short-circuit to +300 °C) allows smaller conductor cross-sections in thermally dense converter cabinets.

Underground Metro & Tunnel Passenger Trains

Certified to EN 45545-2 Hazard Level HL3 (R15/R16) for zero halogen, minimal smoke, and flame containment in underground rail tunnels.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on BS EN 50382-2. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage (U0/U)
1.8/3 kV & 3.6/6 kV AC
Max. operating voltage
3.6 kV / 7.2 kV AC (5.4 kV / 9 kV DC)
Dielectric test voltage
6500 V AC (1.8/3 kV) / 11000 V AC (3.6/6 kV)
Insulation resistance
≥ 500 MΩ·km at +20 °C

Thermal

Operating temperature range
-50 °C to +150 °C
Dynamic / flexing temperature
-40 °C to +150 °C
Max. short-circuit temperature
+300 °C

Mechanical

Min. bend radius (fixed)
4 × D
Min. bend radius (flexing)
6 × D
Max. tensile pulling load
15 N/mm²
Vibration & mechanical duty
Bogie-to-carbody dynamic movement

Resistance

Flame retardancy
EN 45545-2 R15/R16 Hazard Level HL3; IEC 60332-1-2; IEC 60332-3-24; IEC 61034-2; IEC 60754-1/2
Oil & fluid resistance
EN 50382-1 mineral oil, transformer fluid, acid & alkali resistant
UV, weather & ozone
UV, ozone & extreme sub-zero (-50 °C) cold-impact resistant
Chemical & environmental
Zero halogen, ultra-low smoke density, non-corrosive combustion gases (EN 60754-2)

Reference standards

Governing standard
BS EN 50382-2 (2008) — Railway applications — Cabling of rolling stock having special fire performance — High temperature power cables — Part 2: Single core silicone rubber insulated cables
Applicable clauses
BS EN 50382-2; BS EN 50382-1; EN 45545-2 HL1/HL2/HL3
Secondary reference
EN 45545-2 — Railway applications — Fire protection on railway vehicles — Requirement sets R15/R16 (HL3)

Identification

Core identification
Single-core high-temperature power conductor
Outer sheath colour
Black
Surface print legend
TEBAOFLEX — EN 50382-2 — 1.8/3 kV (or 3.6/6 kV) — 150°C — 1×<size> mm² — EN 45545-2 HL3

Sizes

8 standard configurations (EN 50382-2)

Nominal dimensions, copper weight, total mass and electrical parameters for EN 50382-2 per BS EN 50382-2.

Dimensions & masses
DesignationSize / ConfigurationStranding · WallNom. OD
mm		Copper
kg/km		Total mass ≈
kg/km		Min. bend R
mm		Enquiry
EN 50382-2 size schedule
EN 50382-2 1×10 (1.8/3 kV)1×10 (1.8/3 kV)0.21 · 2.3 mm9.6084.1145.057.6
EN 50382-2 1×25 (1.8/3 kV)1×25 (1.8/3 kV)0.21 · 2.3 mm11.80171.1295.070.8
EN 50382-2 1×50 (1.8/3 kV)1×50 (1.8/3 kV)0.31 · 2.3 mm14.50310.3535.087.0
EN 50382-2 1×70 (1.8/3 kV)1×70 (1.8/3 kV)0.31 · 2.3 mm16.40420.5725.098.4
EN 50382-2 1×95 (1.8/3 kV)1×95 (1.8/3 kV)0.31 · 2.5 mm18.80559.7965.0112.8
EN 50382-2 1×120 (1.8/3 kV)1×120 (1.8/3 kV)0.31 · 2.5 mm20.50693.11,195.0123.0
EN 50382-2 1×185 (1.8/3 kV)1×185 (1.8/3 kV)0.41 · 2.6 mm24.201,049.81,810.0145.2
EN 50382-2 1×240 (1.8/3 kV)1×240 (1.8/3 kV)0.41 · 2.8 mm27.301,363.02,350.0163.8
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Dimensions and tolerances conform to BS EN 50382-2.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
Dielectric voltage withstand & conductor DC resistance6500 V AC (1.8/3 kV) / 11000 V AC (3.6/6 kV)100 % of production lengths
Sample tests
Insulation wall thickness, hot-set / pinch & cold bendConforms to BS EN 50382-2 sample scheduleEvery production batch
Fluid immersion, flame propagation & thermal agingEN 45545-2 R15/R16 Hazard Level HL3; IEC 60332-1-2; IEC 60332-3-24; IEC 61034-2; IEC 60754-1/2Type qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

BS EN 50382-2; BS EN 50382-1; EN 45545-2 HL1/HL2/HL3EN 45545-2 (2020)RoHS 3 & REACH Compliant

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX — EN 50382-2 — 1.8/3 kV (or 3.6/6 kV) — 150°C — 1×<size> mm² — EN 45545-2 HL3
Delivery form
Non-returnable wooden drums, export reels or shrink-wrapped coils
Standard drum lengths
100 m · 250 m · 500 m · 1000 m
MOQ
200 m (stock sizes) · 500 m (custom lengths)
Lead time
2–3 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFEN 50382-2 High-Temperature Rolling Stock Power Cable – technical datasheet8 sizes · construction, technical data, approvalsXLSXEN 50382-2 spec data (Excel)All 8 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

Why specify BS EN 50382-2 instead of standard EN 50264 rolling-stock cable?
Standard EN 50264 cables use elastomeric compounds rated to +90 °C (or +110 °C). BS EN 50382-2 uses high-temperature silicone rubber rated for +120 °C or +150 °C continuous service, enabling higher current ampacity (reducing cable size and train weight) and safe routing near hot traction motors and braking resistors.
What is the difference between Class 5 and Class 6 conductors in EN 50382-2?
BS EN 50382-2 defines two conductor flexibility classes: Class 5 flexible tinned copper for fixed carbody and cabinet routing, and Class 6 extra-flexible tinned copper for dynamic carbody-to-bogie traction motor jumpers.
Does EN 50382-2 meet EN 45545-2 HL3 fire safety requirements?
Yes. The LSZH cross-linked silicone insulation (EI 111/112) and sheath (EM 107) meet EN 45545-2 Requirement Sets R15 (interior) and R16 (exterior) up to Hazard Level HL3.
What voltage and temperature ratings apply to EN 50382-2 under BS EN 50382-2?
EN 50382-2 is rated for 1.8/3 kV & 3.6/6 kV AC (maximum operating voltage 3.6 kV / 7.2 kV AC (5.4 kV / 9 kV DC), dielectric test voltage 6500 V AC (1.8/3 kV) / 11000 V AC (3.6/6 kV)) and continuous operation from -50 °C to +150 °C (short-circuit up to +300 °C) per BS EN 50382-2.
