NACE SP0169 HMWPE direct-burial CP cableNACE SP0169 · 600 V DC110/125 mil Heavy-Wall HMWPEASTM D1248 Type I Class C Cat 5

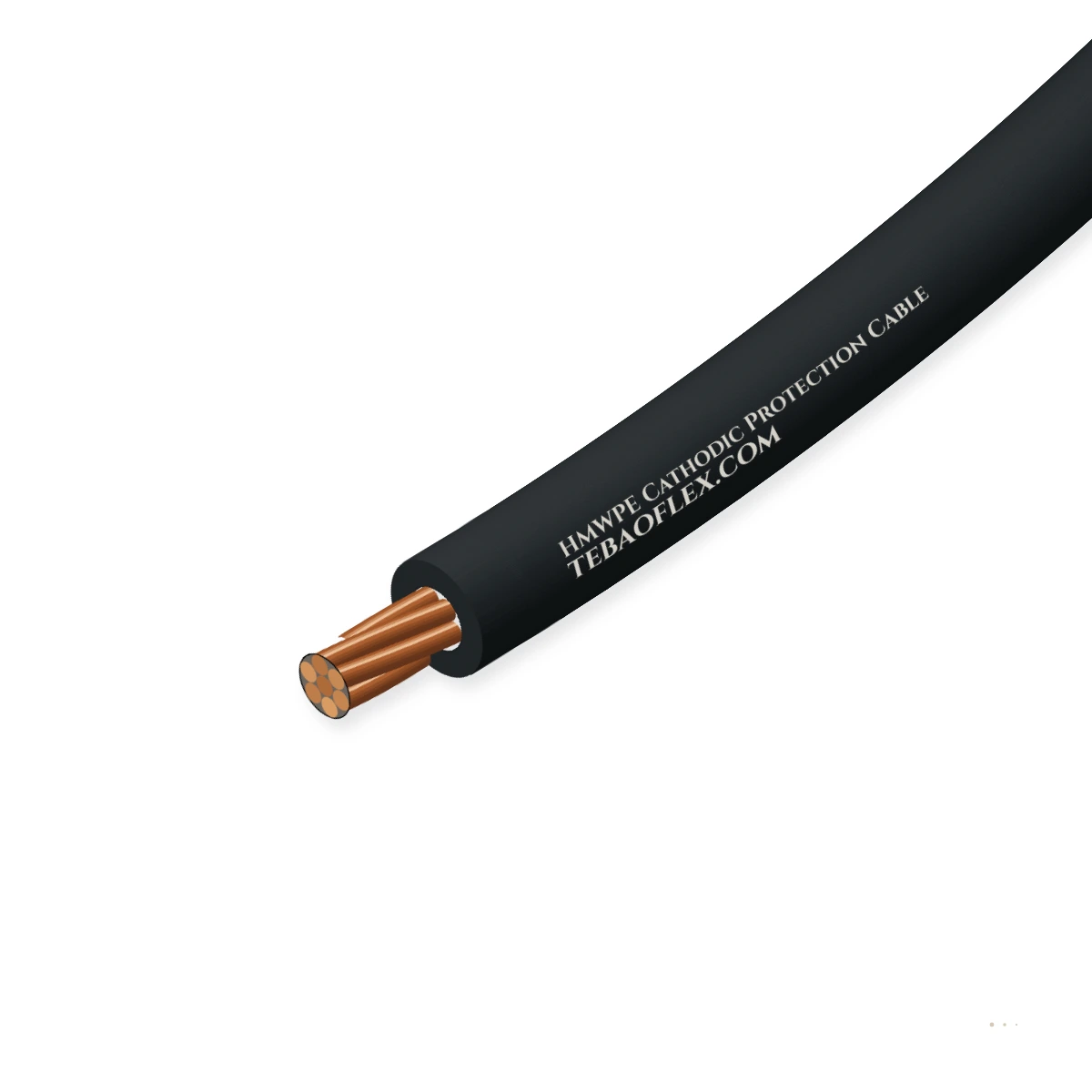

HMWPE Cathodic Protection Cable600 V DC heavy-wall 110 mil HMWPE direct-burial cathodic protection header & anode cable

Direct-burial Impressed Current and Galvanic Cathodic Protection cable (HMWPE Cathodic Protection Cable) manufactured to NACE SP0169 and ASTM D1248 Type I Class C Category 5 Grade E5 with stranded annealed copper (#10 AWG to 2/0 AWG) and single-extruded.

Water-resistant
Oil-resistant
Outdoor & humid
Approved
Order designation
HMWPE-CP 1×2 AWG (110 mil)
Outer Ø ≈
13.0 mm
Copper weight
300 kg/km
Total weight ≈
358 kg/km
Max. DC cur.
130 A
All sizes (8)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
600 V DC / AC
direct-burial CP header & return
Wall thickness
110 to 125 mil
2.79 mm (#10–#2) · 3.18 mm (≥#1)
Polymer grade
ASTM D1248 E5
Type I · Class C · Cat. 5 · J3
Conductor
10 to 2/0 AWG
7- or 19-wire annealed bare Cu
Service temp.
−40 to +75 °C
direct soil burial & wet trench
Min. bend R
6 × OD
direct trench plowing & burial

Typical values for this cable type, based on NACE SP0169 / ASTM D1248 Type I Class C Cat 5 / ICEA S-95-658 — confirmed in the datasheet and quotation for your order.

Application fit

Is HMWPE Cathodic Protection Cable right for your machine?

The industry-standard direct-burial DC power cable for pipeline cathodic protection rectifier positive headers, negative structure return drains, shallow horizontal groundbeds, storage tank bottom grids and sacrificial magnesium/zinc anode leads.

TBM gantry & advancing tunnel reel

Suitable

Heavy 2.79–3.18 mm (110–125 mil) HMWPE wall resists rock impingement, backfill settlement and trench plowing without conduit.

Immersion & wet locations

Suitable

Ultra-low water permeability (< 0.01 % absorption) prevents soil moisture from reaching the positive DC copper conductor.

Fixed installation

Suitable

Terminated directly in transformer-rectifier cabinets, anode junction boxes and exothermic (Cadweld) pipe bonds.

Furnace, kiln & high-temp zone

Not suitable

For deep-well boreholes saturated with concentrated nascent chlorine (Cl₂) gas, specify dual-layer ECTFE/HMWPE or PVDF/HMWPE.

ECTFE-HMWPE Dual-Layer CP Cable
Typical machinesOil, Gas & Water Transmission Pipeline CP HeadersAboveground Storage Tank (AST) Bottom Cathodic GridsShallow Horizontal Coke-Breeze GroundbedsSacrificial Magnesium & Zinc Anode Lead Wires

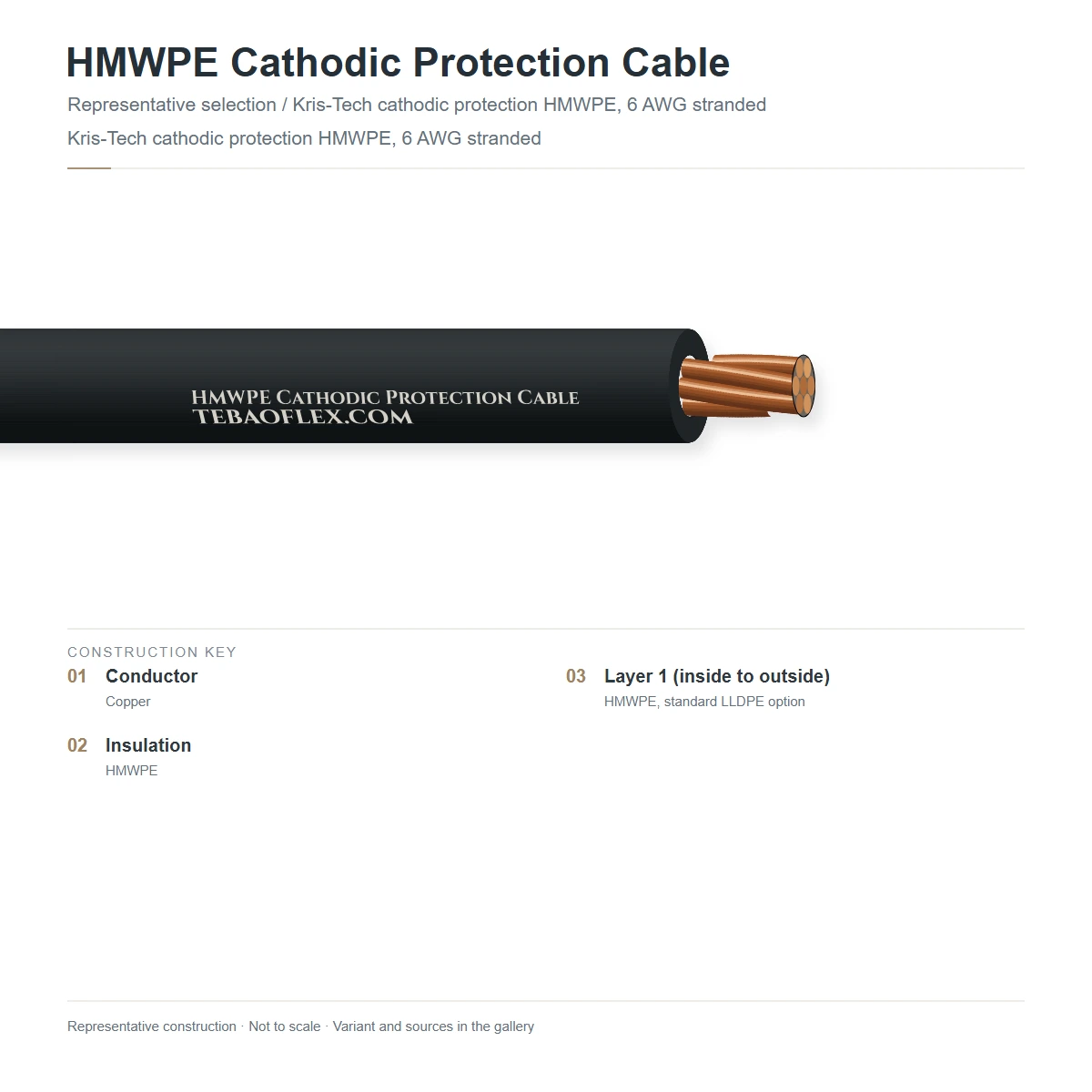

Construction

Layer by layer

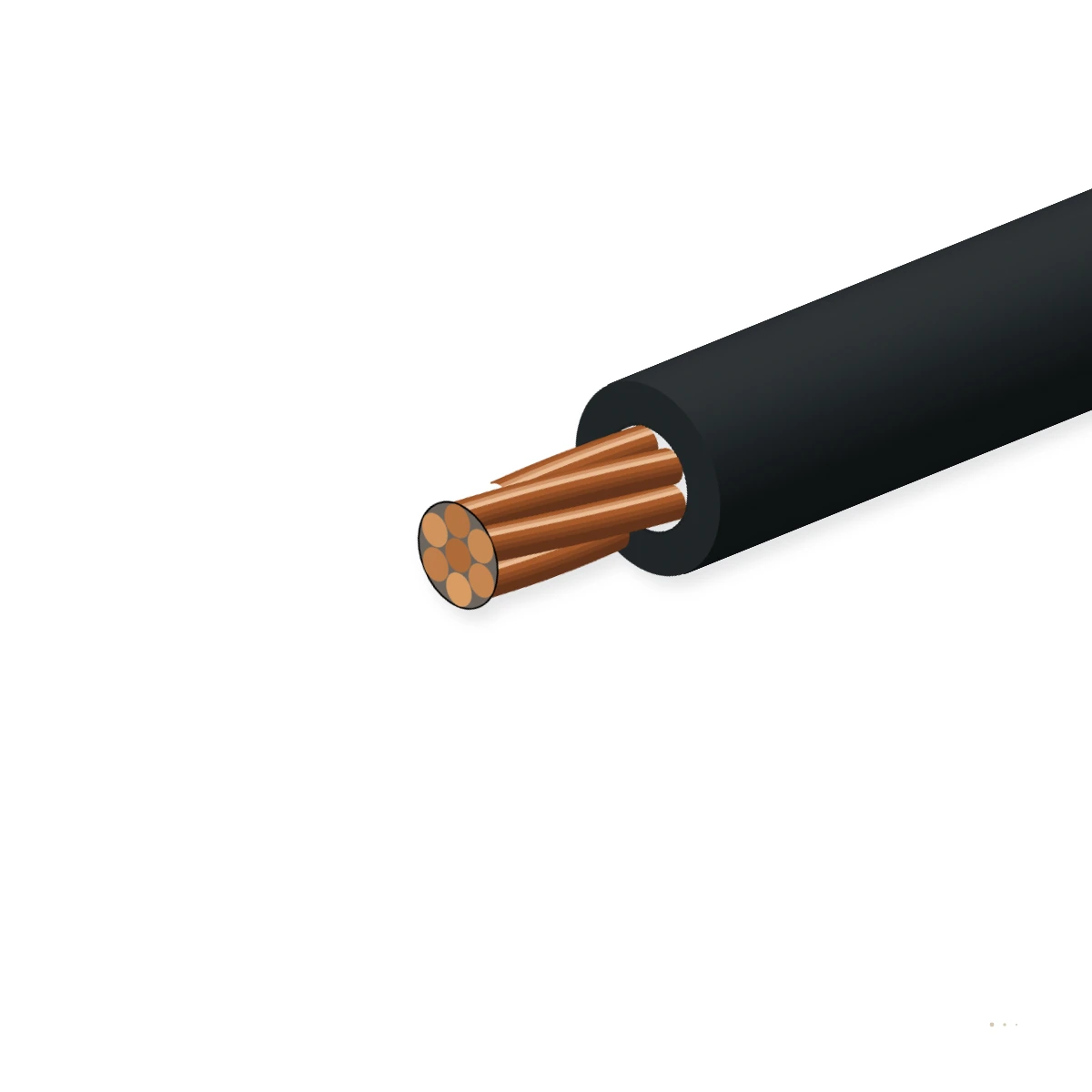

Shown: HMWPE-CP 1×2 AWG (33.6 mm²) 600 V DC with 7-strand compressed annealed bare copper conductor and single-extruded 110 mil (2.79 mm) black High-Molecular-Weight Polyethylene (ASTM D1248 Type I Class C Cat 5 Grade E5) insulation/jacket.

123
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Stranded annealed bare copper (ASTM B3 / B8)7-wire (#10 to #2 AWG) or 19-wire (#1 to #2/0 AWG) concentric-lay stranded copperLow DC loop resistance and mechanical ductility for exothermic thermite welding to steel pipe
2Concentric extrusion bonding interfaceMelt-homogenised virgin polyethylene interfaceEliminates voids at the conductor surface under 600 V DC stress
3Heavy-wall High-Molecular-Weight Polyethylene (HMWPE)Single-extruded 110 mil (2.79 mm) or 125 mil (3.18 mm) ASTM D1248 Type I, Class C (2 %Serves simultaneously as 600 V DC primary dielectric and tough direct-burial abrasion barrier

HMWPE 110/125 mil Single-Layer (Header & Shallow Bed)

Standard heavy-wall HMWPE for positive headers, negative structure returns and shallow beds

ECTFE/HMWPE or PVDF/HMWPE Dual-Layer (Deep Anode)

Adds inner 20 mil fluoropolymer barrier for chlorine-generating deep anode wells

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on NACE SP0169 / ASTM D1248 Type I Class C Cat 5 / ICEA S-95-658. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated operating voltage
600 V DC / AC continuous
Factory spark & water-immersion HV test
15 kV AC dry spark test + 6.0 kV AC water-tank dielectric withstand test
Volume resistivity & IR @ 20 °C
> 10¹⁶ Ω·cm · Insulation resistance ≥ 10,000 MΩ·km

Thermal

Operating temperature range
−40 °C to +75 °C continuous in wet/dry soil
Thermal cycling & overload stability
Verified thermal ageing and short-circuit withstand per standard

Mechanical

Nominal HMWPE wall thickness
110 mil (2.79 mm for #12–#2 AWG) · 125 mil (3.18 mm for #1–250 kcmil)
Tensile strength & ultimate elongation
≥ 19.3 MPa (2,800 psi) · Elongation at break ≥ 600 %
Minimum bending radius
6 × OD (static trench) · 8 × OD (pulling)

Resistance

Environmental stress-crack resistance
Zero failures after 1,000 h (ASTM D1693 Condition C)
Soil chemical, humic acid & UV
2.0–2.5 % finely dispersed carbon black (ASTM D1248 Class C)

Reference standards

Governing standards
NACE SP0169 (AMPP), ASTM D1248 Type I Class C Cat 5, ASTM B8 & ICEA
Factory QA & material compliance
EN 10204 3.1 routine test certificate · RoHS 2 & REACH compliant

Identification

Jacket colour & sequential print
Black (Red, Yellow or Blue striping optional) with sequential
Customs tariff (HS)
8544.49

Sizes

8 standard HMWPE 600 V DC direct-burial cathodic protection cable sizes

110 mil and 125 mil heavy-wall HMWPE single-conductor CP header and negative return cables.

Dimensions, copper weight & DC current rating
Order designationAWG / MetricRatingOuter Ø ≈
mm		Copper
kg/km		Weight ≈
kg/km		Max. DC cur.
A		Min. bend R
mm		Enquiry
600 V DC Heavy-Wall HMWPE Direct-Burial Cathodic Protection Cables
HMWPE-CP 1×10 AWG (110 mil)10 AWG (5.26 mm²) · 7W600 V DC8.547784051
HMWPE-CP 1×8 AWG (110 mil)8 AWG (8.37 mm²) · 7W600 V DC9.3751125556
HMWPE-CP 1×6 AWG (110 mil)6 AWG (13.3 mm²) · 7W600 V DC10.31191627562
HMWPE-CP 1×4 AWG (110 mil)4 AWG (21.2 mm²) · 7W600 V DC11.51892389569
HMWPE-CP 1×2 AWG (110 mil)2 AWG (33.6 mm²) · 7W600 V DC13.030035813078
HMWPE-CP 1×1 AWG (125 mil)1 AWG (42.4 mm²) · 19W600 V DC14.837945215089
HMWPE-CP 1×1/0 AWG (125 mil)1/0 AWG (53.5 mm²) · 19W600 V DC15.847855817595
HMWPE-CP 1×2/0 AWG (125 mil)2/0 AWG (67.4 mm²) · 19W600 V DC17.0603692200102
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Larger collector header sizes up to 4/0 AWG and 250 kcmil are also supplied.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
15 kV AC dry spark + 6 kV AC water-immersion dielectric & IR test100 % holiday-free insulation wall; IR ≥ 10,000 MΩ·kmEvery reel
Sample tests
ASTM D1693 environmental stress-crack & Melt Flow Index (Cat 5) testMFI ≤ 0.4 g/10 min (High Molecular Weight Cat 5); zero ESCR failuresResin & extrusion lot

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

NACE SP0169 / AMPP Direct-Burial CP CompliantASTM D1248 Type I Class C Category 5 Grade E5ICEA S-95-658 600 V Dielectric Qualified

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX HMWPE CATHODIC PROTECTION <AWG> 600V ASTM D1248 + FT/M
Delivery form
Non-returnable fumigated wooden or steel drums
Standard lengths
250 m · 500 m · 1000 m standard drums
MOQ
250 m (stock sizes) · 500 m (custom)
Lead time
3–5 weeks ex-works
Incoterms
EXW, FCA, FOB, CIF, DAP

Technical documents

Downloads

PDFHMWPE Cathodic Protection Cable – technical datasheet8 sizes · construction, technical data, approvalsXLSXHMWPE Cathodic Protection Cable spec data (Excel)All 8 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

Why does cathodic protection cable use a 110 mil (2.79 mm) HMWPE wall instead of standard building wire (THWN / RHW-2)?
In an Impressed Current Cathodic Protection (ICCP) positive header cable buried in moist soil, the copper conductor is held at a positive DC potential relative to the earth. Any microscopic pinhole, nick or moisture permeation in ordinary PVC/nylon wire will cause anodic electrolysis that dissolves the copper conductor in weeks. A single-extruded 110 mil High-Molecular-Weight Polyethylene (HMWPE) wall has near-zero water permeability and extreme abrasion resistance.
What does 'ASTM D1248 Type I, Class C, Category 5, Grade E5' mean?
Type I specifies low-density branched polyethylene (0.910–0.925 g/cm³) for low stiffness; Class C specifies ≥ 2 % weather-resistant carbon black; Category 5 specifies the lowest Melt Flow Index (≤ 0.4 g/10 min), which corresponds to the highest molecular weight and highest environmental stress-crack resistance (ESCR); and Grade E5 specifies electrical dielectric purity.
When should I upgrade from single-layer HMWPE to dual-layer ECTFE/HMWPE or PVDF/HMWPE?
Use single-layer HMWPE for surface header trenches, negative pipeline return leads and shallow groundbeds. Upgrade to dual-layer ECTFE/HMWPE or PVDF/HMWPE for individual anode tail leads lowered into deep-well boreholes or saline groundbeds where trapped nascent chlorine gas (Cl₂) attacks polyethylene.
What factory routine tests and certificates are supplied with HMWPE Cathodic Protection Cable?
Every production drum of HMWPE Cathodic Protection Cable undergoes 100 % conductor DC resistance measurement at 20 °C, high-voltage AC/DC dielectric withstand testing, and dimensional verification per NACE SP0169 / ASTM D1248 Type I Class C Cat 5 / ICEA S-95-658, supplied with an EN 10204 3.1 inspection certificate.
