fiber optic cable series980/1000 µm PMMA POFØ 2.2 mm Sub-UnitsPUR Drag-Chain / Cabinet

POF Duplex Polymer Optical Fibre Industrial Patch Cable980/1000 µm PMMA Polymer Optical Fibre (POF) industrial duplex & drag-chain cable

HITRONIC POF DUPLEX Polymer Optical Fibre Industrial Patch Cable with two 980/1000 µm step-index PMMA cores in Ø 2.2 mm PE sub-units, aramid yarn strain relief, and PUR or LSZH outer sheath for short-range (up to 70 m) PROFINET,.

100 % Dielectric EMC
Oil-Resistant PUR
Tight Bend R ≥ 25 mm
LSZH / UL VW-1
Order designation
HITRONIC POF DUPLEX FD-PUR
Outer Ø / width
6.8 mm
Weight ≈
42 kg/km
Max. pull load
500 N
Min. bend radius
68 mm
All sizes (3)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Fibre type
980/1000 µm POF
PMMA core / Fluoropolymer clad
Attenuation
≤ 160 dB/km
@ 650 nm visible red LED
Link distance
Up to 50–70 m
PROFINET / SERCOS / Profibus
Sub-unit Ø
2.2 ± 0.07 mm
Fits HFBR / SC-RJ / FSMA
Min. bend R
25 mm (sub-unit)
Extreme cabinet flexibility
Temperature
-40 to +70 °C
+85 °C short-term cabinet

Typical values for this cable type, based on IEC 60793-2-40 (A4a.2 POF) / IEC 61784-5-3 — confirmed in the datasheet and quotation for your order.

Application fit

Is POF Duplex 980/1000 µm right for your machine?

Ideal for short-haul (< 70 m) industrial optical links where tool-free hot-plate or razor-blade cutting, visible 650 nm red fault checking, and tight cabinet bends are priorities.

Switchgear & control cabinet wiring

Suitable

Zipcord 2.2 × 4.4 mm and round duplex versions route tightly inside PLC, drive and CNC cabinets.

Energy chain / drag chain

Suitable

Heavy-duty PUR round jacket version supports 5 million drag-chain flexing cycles on machine tools.

VFD inverter to AC motor screened feeder

Suitable

Provides high-voltage galvanic isolation for inverter IGBT gate-driver boards (HFBR links).

Fixed installation

With conditions

Limited to 50–70 m @ 650 nm due to PMMA attenuation; for 70–500 m runs specify HITRONIC PCF DUPLEX.

Use HITRONIC PCF DUPLEX
Typical machinesCNC Machine Tool & SERCOS Motion BusesPROFINET & Profibus Optical PatchingIGBT Power Stack & VFD Gate IsolationSwitchgear & Wind Turbine Control PanelsAutomated Assembly & Robotics Cells

Construction

Layer by layer

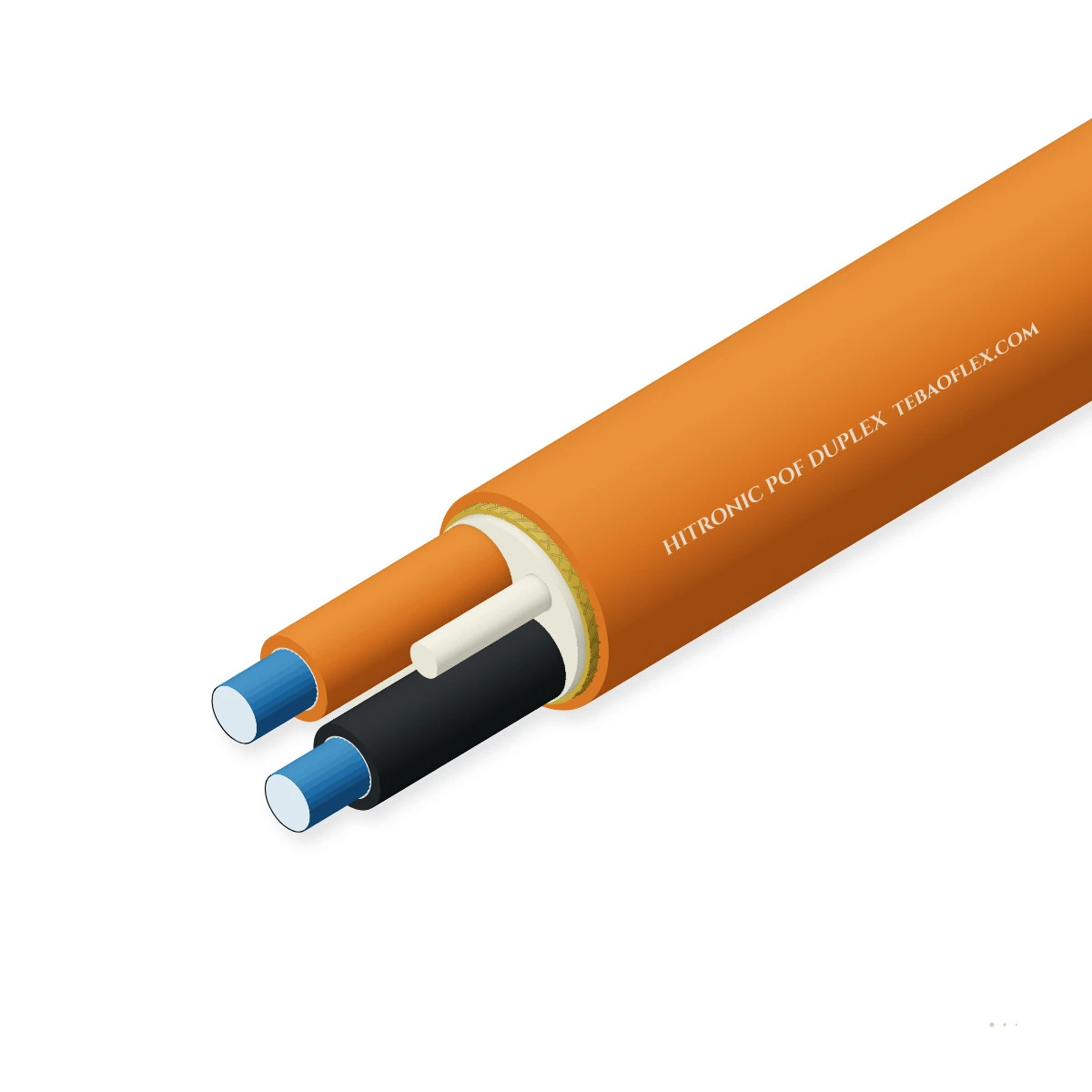

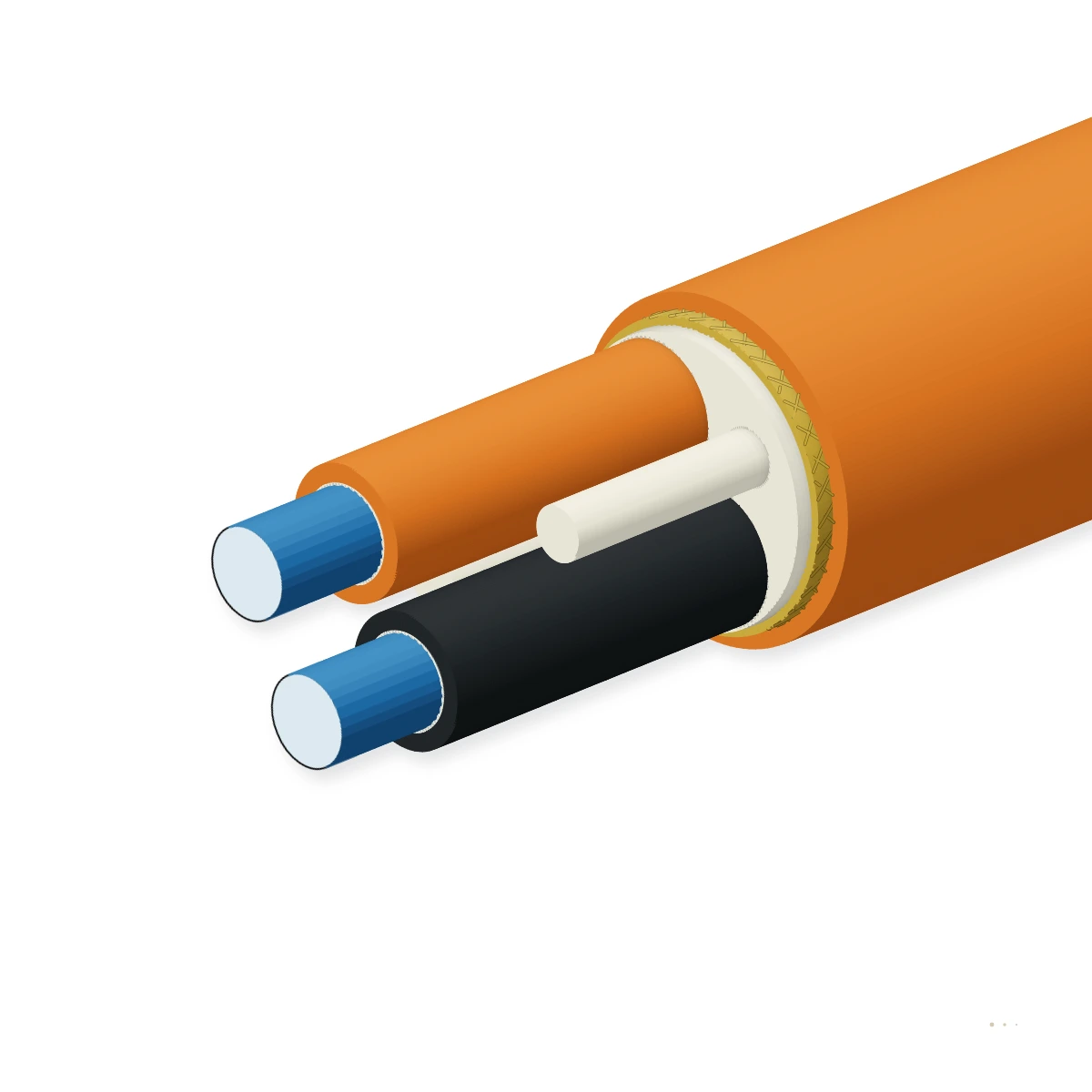

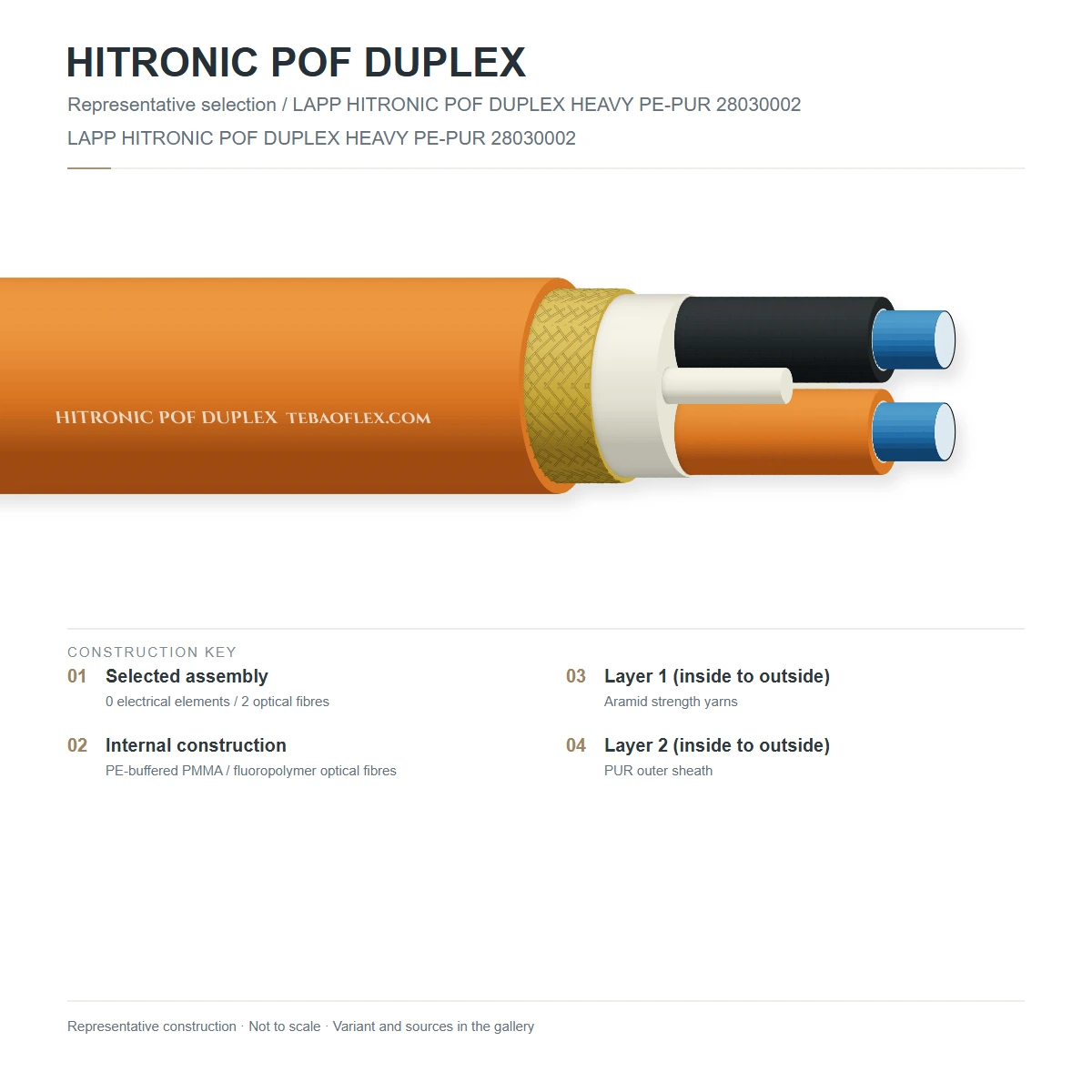

HITRONIC POF DUPLEX showing two 980 µm PMMA cores with 1000 µm fluorinated polymer cladding, Ø 2.2 mm Black/Orange PE sub-jackets, aramid strain-relief yarns, and outer PUR orPE/LSZH sheath.

1234
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1980/1000 µm PMMA polymer optical fibre980 µm polymethyl-methacrylate (PMMA) optical core with 1000 µm (1.0 mm) fluorinated polymer cladding (NA = 0.50)IEC 60793-2-40 Category A4a.2 step-index POF
2Ø 2.2 mm colour-coded sub-unit buffers2 × Ø 2.2 mm opaque Polyethylene (PE) or PA sub-jackets (1 × Black, 1 × Orange with arrows) shielding core from ambient lightDirect crimp/clamp fit for HFBR, SC-RJ and FSMA connectors
3Aramid yarn tensile reinforcementHigh-modulus polyaramid yarns and elastomeric fillers (in round sheathed drag-chain/industrial versions)Up to 400–600 N pulling load protection
4Outer PUR / LSZH jacket (or twin zipcord)Oil-resistant Polyether PUR (Green RAL 6018 or Violet/Black), flame-retardant LSZH, or unjacketed 2.2 × 4.4 mm PE zipcordResists cutting fluids, mineral oils and drag-chain abrasion

POF DUPLEX ZIP (2.2 × 4.4 mm)

Unjacketed twin figure-8 zipcord for internal cabinet wiring and IGBT board interconnects

POF DUPLEX PUR (Ø 6.8 mm Drag-Chain)

Aramid-reinforced oil-resistant PUR outer sheath for moving drag chains and factory trays

POF DUPLEX PN-LSZH (Ø 6.8 mm)

PROFINET Green or Orange halogen-free flame-retardant LSZH jacket for fixed plant conduits

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on IEC 60793-2-40 (A4a.2 POF) / IEC 61784-5-3. Values for your order are confirmed in the datasheet and quotation.

Electrical

Galvanic isolation
100 % non-conductive polymer waveguide
Numerical aperture (NA)
0.50 (30° acceptance half-angle for 650 nm LEDs)
Max. link length
50 m (PROFINET 100 Mbps) · 70 m (Profibus / HFBR)

Thermal

Operating temp (fixed)
-40 °C to +70 °C (+85 °C sub-unit short-term)
Operating temp (flexing)
-20 °C to +70 °C
Storage temperature
-40 °C to +80 °C

Mechanical

Core / cladding / buffer Ø
980 µm / 1000 µm / 2.2 mm ± 0.07 mm
Max. tensile load
120 N (zipcord) · 500 N (PUR/LSZH sheathed)
Crush resistance
600 N (zipcord) · 1,200 N/100 mm (PUR round)
Min. bend radius
25 mm (sub-unit) · 10 × OD (round jacket)

Optical

Attenuation @ 650 nm
≤ 160 dB/km (0.16 dB/m) at 25 °C
Bandwidth @ 650 nm
≥ 40 MHz × 100 m (step-index PMMA)
Operating wavelength
650 nm visible red (visual continuity check)

Resistance

Oil & lubricant resistance
EN 60811-404 resistant on PUR outer jacket
Flame retardancy
IEC 60332-1-2 (PUR/LSZH)
Ambient light block
Carbon-pigmented Ø 2.2 mm sub-units prevent crosstalk

Reference standards

Optical fibre standard
IEC 60793-2-40 Category A4a.2 (980/1000 POF)
Fieldbus standard
IEC 61784-5-3 (PROFINET) & IEC 61491 (SERCOS)
RoHS & REACH
2011/65/EU & EC 1907/2006 compliant

Identification

Sub-unit colours
Core 1 Black · Core 2 Orange (with directional arrows)
Outer sheath colour
Green (RAL 6018), Violet, Orange or Black
Customs tariff (HS)
8544.7000

Sizes

3 standard HITRONIC POF DUPLEX (980/1000 µm) configurations

Dimensional and mechanical ratings for cabinet zipcord, drag-chain PUR, and LSZH POF duplex cables.

Dimensions & mechanical ratings
Order designationProfile & jacket materialOuter Ø / W
mm		Weight ≈
kg/km		Max. pull
N		Min. bend R
mm		Enquiry
980/1000 µm PMMA POF Duplex Cables
HITRONIC POF DUPLEX ZIP-PE2×980/1000 POF · 2.2×4.4 mm PE Zipcord4.4812025
HITRONIC POF DUPLEX FD-PUR2×980/1000 POF · Ø 6.8 mm Drag-Chain PUR6.84250068
HITRONIC POF DUPLEX PN-LSZH2×980/1000 POF · Ø 6.8 mm Flame-Retardant LSZH6.84650068
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Terminates with tool-free SC-RJ POF clamp plugs, HFBR-4501/4511 snap-in plugs, or FSMA connectors.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
100 % 650 nm optical attenuation & sub-unit diameter check≤ 160 dB/km @ 650 nm and sub-unit Ø 2.20 ± 0.07 mmEvery spool length
Sample tests
Drag-chain flex test (5,000,000 cycles on FD-PUR)Δα ≤ 0.5 dB after 5M cycles at R = 10 × ODType qualification
Oil resistance & flame retardancyPass EN 60811-404 oil immersion & IEC 60332-1-2 vertical flameType qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

IEC 60793-2-40 (980/1000 POF)PROFINET & SERCOS CompliantRoHS 2 & REACH Compliant

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX HITRONIC POF DUPLEX 2P980/1000 PUR
Delivery form
Fumigated export wooden or steel drums
Standard drum lengths
1000 m · 2000 m · 4000 m (or custom cut lengths)
MOQ
500 m (standard) · 1000 m (custom build)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP
