Low-smoke halogen-free cablesEN 50525-3-21U0/U 450/750 VEI8/EM8 LSZH · Cat. C

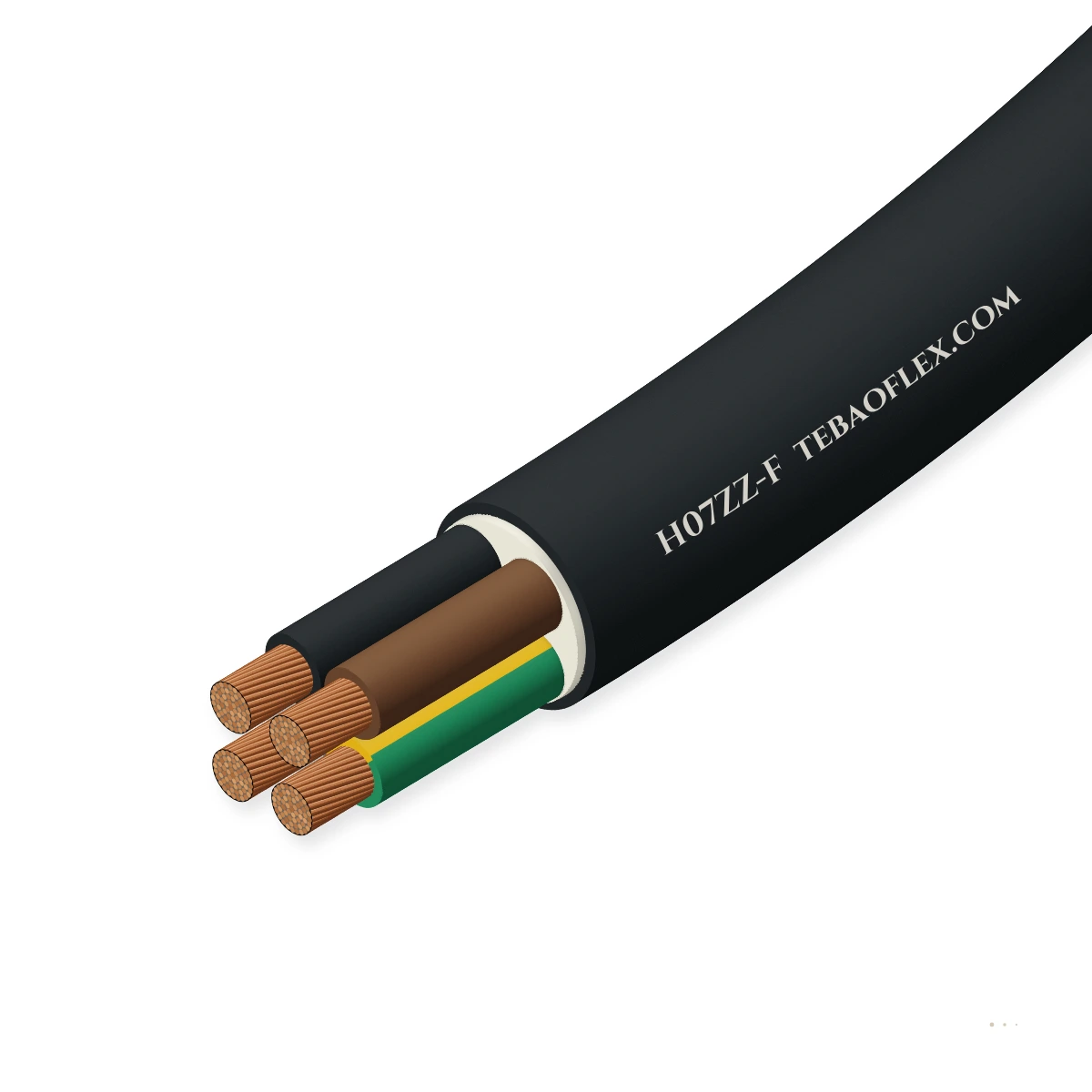

H07ZZ-F Halogen-Free Rubber CableHarmonised 450/750 V EI8/EM8 low-smoke zero-halogen (LSZH) flexible rubber cable

Harmonised 450/750 V (0.6/1 kV fixed protected) low-smoke zero-halogen flexible rubber cable to EN 50525-3-21 with Class 5 copper conductors, +90 °C EI8 LSZH core insulation and EM8 LSZH elastomer sheath for public buildings, tunnels, data centres and events.

Flame-retardant

Approved

Outdoor & humid

LSZH · EN 60754 / 61034

Cores × cross-section

Order designation: H07ZZ-F 5G6
Outer Ø min: 17.3 mm
Outer Ø max: 18.8 mm
Weight ≈: 610 kg/km
Min. bend R: 75 mm

Check against my drum All sizes (23)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Rated voltage: 450/750 V
Conductor temp.: +90 °C max.
Ambient temp.: −5…+70 °C
Bending radius: 4–8 × OD
Fire & smoke: IEC 60332-3-24
Size range: 1.5–240 mm²

Typical values for this cable type, based on EN 50525-3-21 (HD 22.13) — confirmed in the datasheet and quotation for your order.

Application fit

Is H07ZZ-F right for your machine?

H07ZZ-F replaces polychloroprene H07RN-F wherever fire safety specifications prohibit halogenated smoke and acid gas emission (EN 60754-2, EN 61034-2, IEC 60332-3-24).

Trailing & towing

Suitable

Temporary power distribution, mobile generators, stage lighting and event rigging inside public venues and tunnels.

Fixed installation

Suitable

Protected 0.6/1 kV feeders in airports, hospitals, metro stations, data centres and exhibition halls.

Festoon & line chain

Suitable

Indoor overhead crane festoons and hoist loops in fire-regulated industrial buildings.

Immersion & wet locations

Not suitable

EM8 LSZH compound is for dry or damp interiors and temporary outdoor use, not continuous water submersion.

Use H07RN8-F AD8

Typical machinesAirports, metro & rail stationsHospitals, theatres & event venuesData centres & UPS loadbank testingTunnels & underground civil worksFire-regulated industrial plants

Construction

Layer by layer

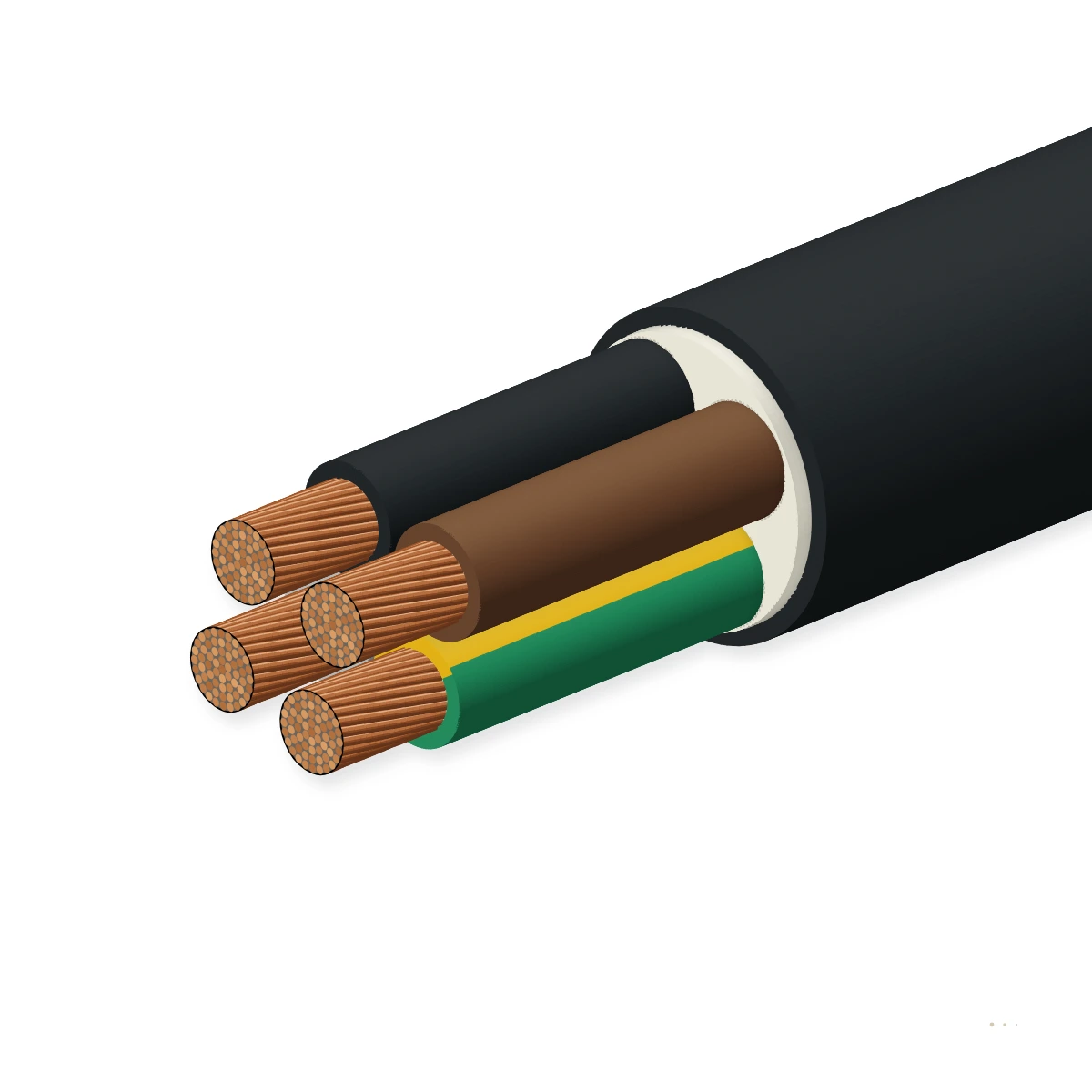

Shown: H07ZZ-F 5G6 — Class 5 bare copper conductors, +90 °C EI8 cross-linked LSZH elastomer core insulation and black EM8 LSZH elastomer outer sheath.

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Flexible copper conductor	Fine-stranded bare copper wire (IEC 60228 Class 5)EN 60228 Class 5
2	Separator tape	Halogen-free polyester foil separator over conductor on larger sizesClean stripping & core flexibility
3	LSZH elastomer insulation	Cross-linked halogen-free low-smoke elastomeric compound Type EI8 (+90 °C)EN 50363-5 EI8
4	LSZH elastomer outer sheath	Cross-linked halogen-free, low-smoke, flame-retardant elastomeric compound Type EM8, blackEN 50363-6 EM8 · IEC 60754-2 & IEC 61034-2

H07ZZ-F Single-Core (1×1.5–1×240)

Halogen-free single-core flexible power tails for UPS, data centre loadbanks and switchgear

H07ZZ-F Multicore (2–12C, 1.5–50)

Halogen-free multi-core flexible power and control cables with HD 308 S2 colour or numbered cores

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on EN 50525-3-21 (HD 22.13). Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U: 450/750 V AC (0.6/1 kV fixed protected)
Max. operating voltage: 495/825 V AC (up to 1000 V AC protected)
AC test voltage: 2500 V AC (50 Hz, 15 min)
Conductor stranding: IEC 60228 Class 5 fine-stranded bare copper
Current rating basis: DIN VDE 0298-4 (+90 °C conductor rating)

Thermal

Max. conductor temperature: +90 °C continuous operation
Short-circuit temperature: +250 °C max. (up to 5 s)
Temperature, flexing: −5 °C to +70 °C
Temperature, fixed: −40 °C to +70 °C

Mechanical

Min. bending radius, fixed: 4 × OD (OD ≤ 25 mm) · 6 × OD (OD > 25 mm)
Min. bending radius, moving: 6 × OD (OD ≤ 25 mm) · 8 × OD (OD > 25 mm)
Max. tensile load: 15 N/mm² dynamic (50 N/mm² static)
Mechanical duty class: Medium-to-heavy mechanical stress (EN 50565-2)

Resistance

Halogen-free / acid gas: EN 60754-1 & EN 60754-2 (pH ≥ 4.3, conductivity ≤ 10 µS/mm)
Smoke density: EN 61034-2 / IEC 61034-2 (light transmittance ≥ 60 %)
Flame propagation: EN 60332-1-2 single & EN 60332-3-24 Cat. C bunched flame
Oil & ozone resistance: EN 60811-404 oil & EN 60811-403 ozone resistant (EM8)

Reference standards

Construction standard: EN 50525-3-21 (HD 22.13 S2 / DIN VDE 0285-525-3-21)
Compound standards: EN 50363-5 Type EI8 & EN 50363-6 Type EM8
Selection & installation: EN 50565-1 & EN 50565-2
RoHS & REACH: 2011/65/EU (RoHS 2) & EC 1907/2006 compliant

Identification

Sheath colour: Black
Core identification: HD 308 S2 colour code (≤ 5 cores); black numbered + GN/YE (≥ 6 cores)
Sheath marking: TEBAOFLEX H07ZZ-F <HAR> [Size] 450/750V EN 50525-3-21 LSZH CE
Customs tariff (HS): 8544.49 (insulated conductors ≤ 1000 V)

Sizes

23 standard H07ZZ-F configurations

Typical EN 50525-3-21 (HD 22.13) outer diameter limits, copper content and cable weight.

Dimensions & weights
Order designation	Cores × mm²	AWG ≈	Outer Ø min mm	Outer Ø max mm	Copper kg/km	Weight ≈ kg/km	Min. bend R mm
Single-core H07ZZ-F LSZH power & UPS loadbank leads (16–240 mm²)
H07ZZ-F 1×16	1×16	6	9.9	10.8	154	240	43
H07ZZ-F 1×35	1×35	2	13.2	14.3	336	455	57
H07ZZ-F 1×50	1×50	1	15.2	16.5	480	635	66
H07ZZ-F 1×70	1×70	2/0	17.1	18.6	672	850	74
H07ZZ-F 1×95	1×95	3/0	19.3	21.0	912	1,130	84
H07ZZ-F 1×120	1×120	4/0	21.3	23.2	1,152	1,405	93
H07ZZ-F 1×185	1×185	350 kcmil	25.8	28.0	1,776	2,095	112
H07ZZ-F 1×240	1×240	500 kcmil	29.0	31.5	2,304	2,690	126
Multicore H07ZZ-F LSZH power & control cables (3G1.5–4G50)
H07ZZ-F 3G1.5	3G1.5	16	9.0	9.8	43	138	39
H07ZZ-F 4G1.5	4G1.5	16	9.9	10.8	58	172	43
H07ZZ-F 5G1.5	5G1.5	16	10.9	11.9	72	210	48
H07ZZ-F 3G2.5	3G2.5	14	10.7	11.6	72	202	46
H07ZZ-F 4G2.5	4G2.5	14	11.8	12.8	96	250	51
H07ZZ-F 5G2.5	5G2.5	14	13.1	14.2	120	312	57
H07ZZ-F 4G4	4G4	12	13.6	14.8	154	362	59
H07ZZ-F 5G4	5G4	12	15.1	16.4	192	446	66
H07ZZ-F 4G6	4G6	10	15.5	16.8	230	495	67
H07ZZ-F 5G6	5G6	10	17.3	18.8	288	610	75
H07ZZ-F 4G10	4G10	8	20.1	21.8	384	860	87
H07ZZ-F 4G16	4G16	6	23.2	25.2	614	1,210	101
H07ZZ-F 4G25	4G25	4	28.0	30.4	960	1,790	122
H07ZZ-F 4G35	4G35	2	31.5	34.2	1,344	2,360	137
H07ZZ-F 4G50	4G50	1	36.4	39.6	1,920	3,250	158

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Dimensions and weights are typical values per EN 50525-3-21 (HD 22.13). Minimum fixed bending radius shown is 4 × OD.

Electrical & current ratings
Cross-section mm²	AWG ≈	Max. DC resistance 20 °C, Ω/km	1-core in air 30 °C, A	3–4 core in air 30 °C, A
1.5	16	13.3	23	18
2.5	14	7.98	30	25
4	12	4.95	41	34
6	10	3.3	53	44
10	8	1.91	74	61
16	6	1.21	99	82
25	4	0.78	131	108
35	2	0.554	162	135
50	1	0.386	202	168
70	2/0	0.272	250	207
95	3/0	0.206	301	250
120	4/0	0.161	352	292
185	350 kcmil	0.106	461	382
240	500 kcmil	0.08	540	453

Current ratings at 30 °C ambient in free air per DIN VDE 0298-4 / EN 50565-1. Apply derating factors for elevated ambient temperature or reeling layer grouping.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Cable sizeDrum core diameter (mm)

Cable length on drum (m)

Drum core 300 mm ≥ 150 mmBending radius OK (4 × OD 18.8 mm)

Minimum bending radius: 75 mm
Min. drum core diameter: ≈ 150 mm
Cable weight on drum: 30.5 kg
Copper content: 14.4 kg

Indicative only: based on the datasheet outer diameter and 4 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
AC voltage test	2.5 kV AC (50 Hz)	Every manufactured length
Conductor DC resistance	IEC 60228 Class 5 (bare copper)	Every manufactured length
Sample tests
Vertical flame propagation	IEC 60332-1-2 / EN 60332-1-2	Per production batch
Insulation & sheath elastomer physical properties	EN 50525-3-21 (HD 22.13)	Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

EN 50525-3-21 (HD 22.13)CE · RoHS 2 (2011/65/EU) · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX H07ZZ-F 450/750 V [Size] EN 50525-3-21 LSZH CE

Delivery form: Export wooden drums or coils, cut-to-length on request
Packaging: Heat-treated ISPM-15 timber drums with sealed cable ends
Conductor / sheath options: Custom core counts, pilot cores or sheath colours on request

Technical documents

Downloads

PDFH07ZZ-F Halogen-Free Rubber Cable – technical datasheet23 sizes · construction, technical data, approvals XLSXH07ZZ-F spec data (Excel)All 23 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

Why does H07RN-F fail LSZH fire specifications while H07ZZ-F passes?

Standard H07RN-F uses a polychloroprene (chlorinated rubber) EM2 outer sheath that releases dense black smoke and corrosive hydrochloric acid gas when burned. H07ZZ-F is built to EN 50525-3-21 using cross-linked EI8/EM8 zero-halogen compounds that pass EN 60754-2 acid gas, EN 61034-2 light transmittance (≥ 60 %) and EN 60332-3-24 Cat. C bunched flame tests.

What does 'ZZ' mean in the H07ZZ-F designation?

Under the CENELEC harmonised code, 'Z' designates a cross-linked polyolefin or elastomeric compound with low emission of corrosive gases and smoke when exposed to fire. 'ZZ' means both the core insulation (Type EI8) and the outer sheath (Type EM8) are low-smoke zero-halogen thermoset elastomers.

Where is H07ZZ-F most commonly required instead of H07RN-F?

H07ZZ-F is specified for data centre loadbank commissioning, airport terminals, underground metro stations, theatres, exhibition halls, hospitals and tunnel construction where flexible rubber mechanical handling is needed inside occupied or enclosed spaces.

What if I need a 0.6/1 kV heavy mining-grade halogen-free rubber cable?

For heavy underground mining, tunnelling and severe mechanical trailing at 0.6/1 kV where halogen-free fire performance is required, compare H07ZZ-F with our NSHXÖU-J / NSHXÖU-O cable to DIN VDE 0250-812.
