EN 50620 / IEC 62893 AC & DC Electric Vehicle Charging Cables450/750 V EN 50620 / IEC 628937.4 kW / 11 kW / 22 kW / 43 kWEVI-2 Cores + EVM-1 PUR Sheath

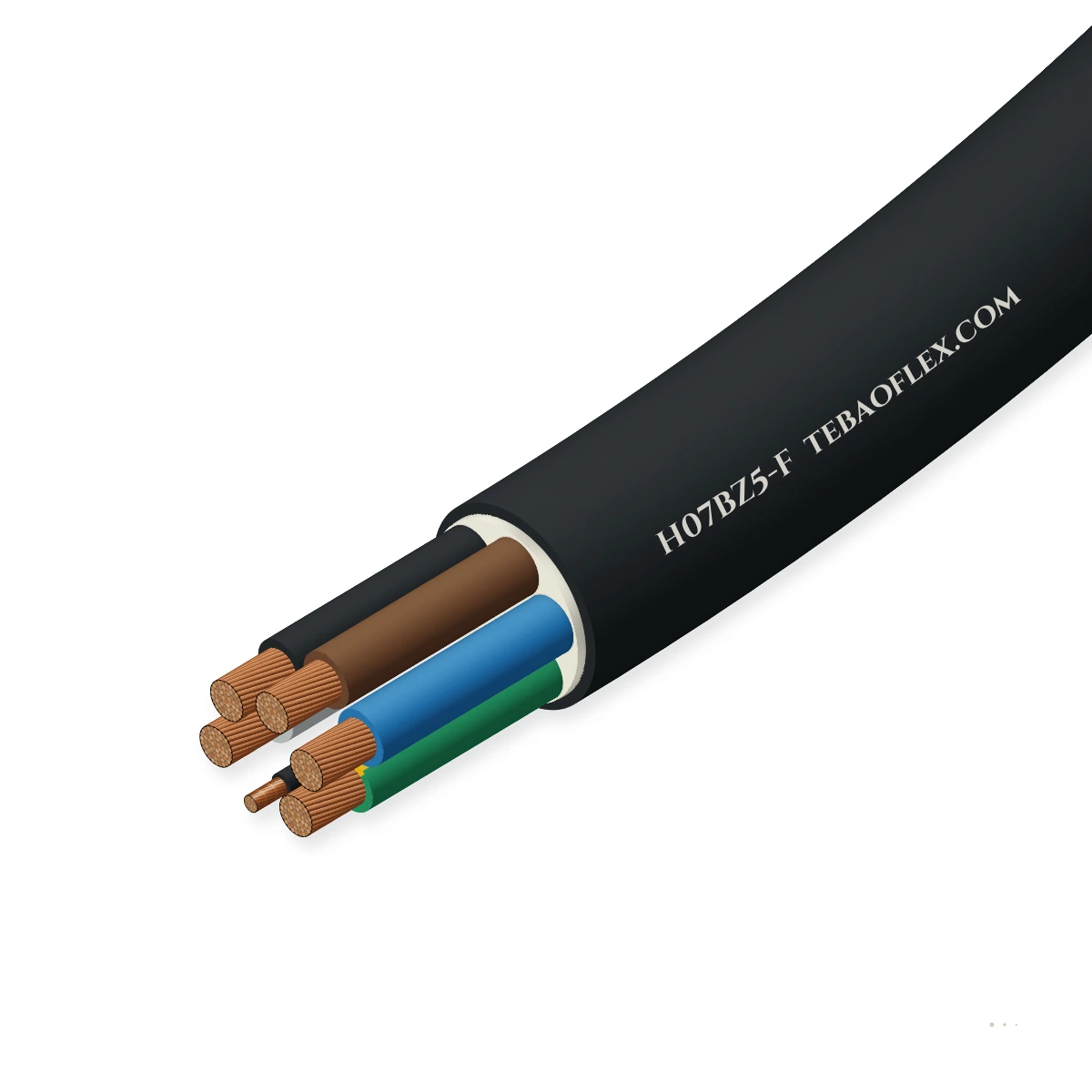

H07BZ5-F AC EV Charging Cable450/750 V EN 50620 heavy-duty Mode 3 AC EV charging cable (7.4 / 11 / 22 / 43 kW, EVM-1 PU

H07BZ5-F is the heavy-duty 450/750 V European and international AC electric vehicle charging cable per BS EN 50620 and IEC 62893-2 (62893 IEC 131). Built with EN 60228 Class 5 fine-stranded copper power cores (2.5 to 16 mm²), 1 or 2 × 0.5/0.75 mm² Control Pilo

Heavy-Duty EVM-1 PUR (22–43 kW)

-40 °C Cold Flex & Outdoor UV

AD7 Submersion & Road-Salt Proof

EN 50620 / IEC 62893-2

Power + Pilot Cores

Order designation: 3G6.0 + 2×0.5
Nom. OD: 14.80 mm
Copper mass: 182.4 kg/km
Total mass ≈: 342.0 kg/km
Min. bend R: 74.0 mm

All sizes (12)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Rated voltage: 450 / 750 V AC
Charging power: 7.4 / 11 / 22 /
Core insulation: Type EVI-2 LSZH
Outer sheath: Type EVM-1 PUR
Size range: 3G2.5 to 5G16 +
Operating temp: -40 to +90 °C

Typical values for this cable type, based on EN 50620 / IEC 62893-2 — confirmed in the datasheet and quotation for your order.

Application fit

Is H07BZ5-F right for your machine?

Specified for public curbside Mode 3 AC charging bollards, commercial car-park 22 kW charging stations, fleet depot chargers, tethered wallboxes and detachably plugged Type 2 / Type 1 charging cordsets.

Trailing & towing

Suitable

Heavy-wall EVM-1 PUR sheath withstands constant dragging across asphalt, concrete curbs and vehicle run-over.

Free-hanging vertical run

Suitable

Supple Class 5 stranding and low-friction fleece separator allow effortless winter coiling at -40 °C.

Festoon & line chain

Suitable

Available in straight tethered lengths or heat-set helical spiral cords for 11 kW and 22 kW chargers.

Furnace, kiln & high-temp zone

Not suitable

For 1000–1500 V DC Mode 4 fast charging (150–500 A CCS2), select DC EV Charging Cable.

DC EV Charging Cable

Typical machinesPublic 22 kW Mode 3 AC bollardsCommercial & workplace EV parking7.4 kW / 11 kW / 22 kW Type 2 cordsMunicipal bus & van depot AC chargersTethered smart home wallboxes

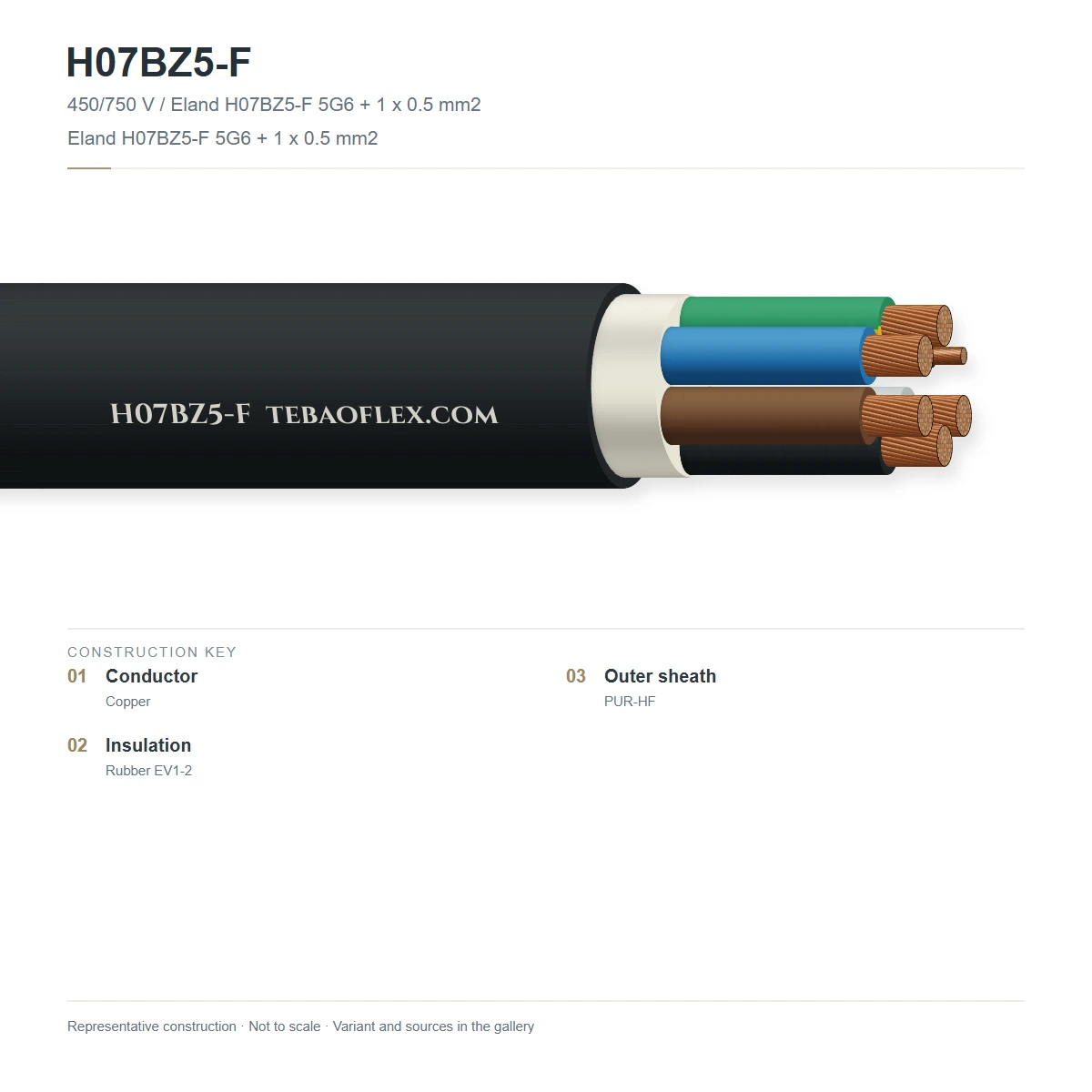

Construction

Layer by layer

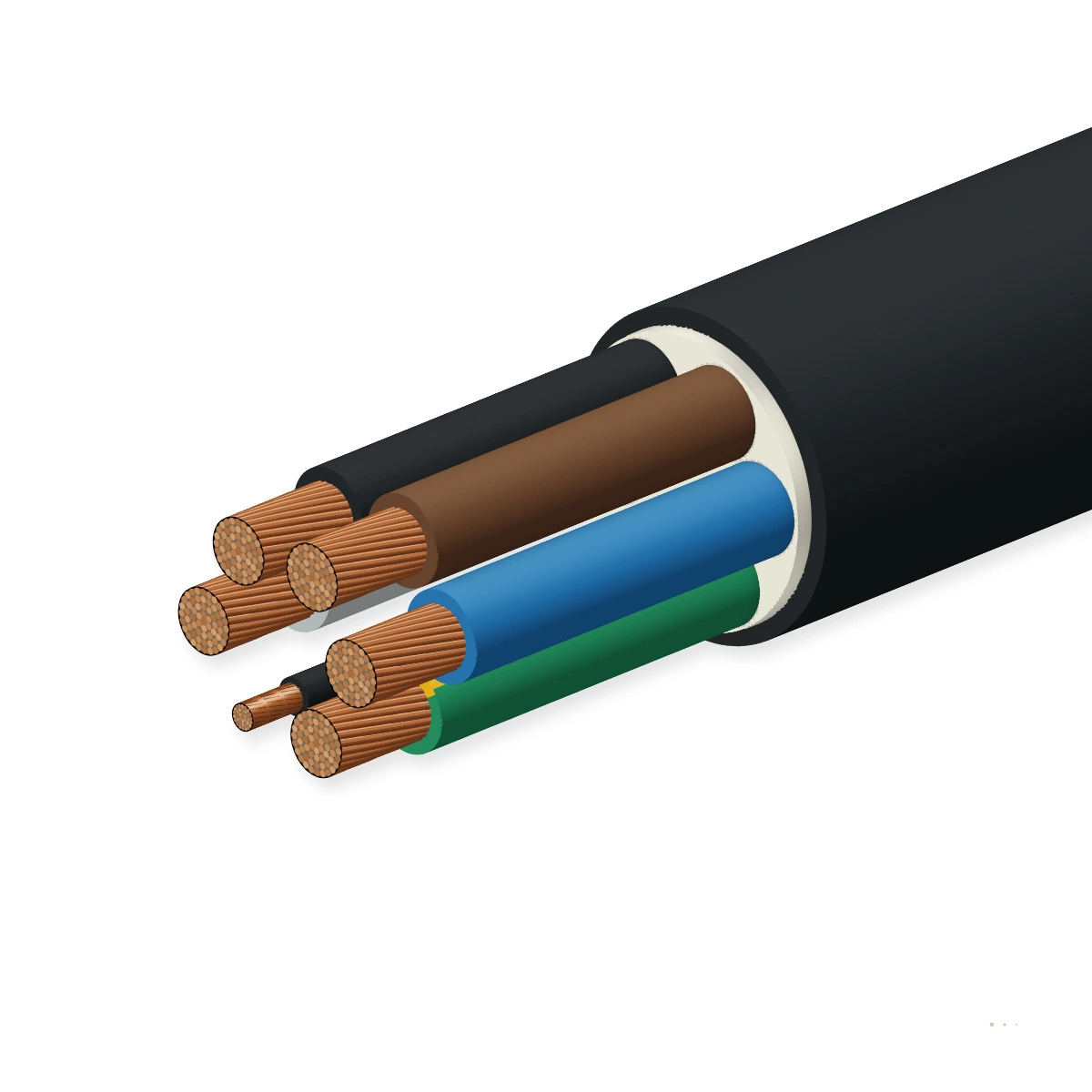

EN 60228 Class 5 fine-stranded bare copper power & PE conductors (2.5–16 mm²) + 1 or 2 × 0.5/0.75 mm² Control Pilot (CP/PP) cores + Type EVI-2 cross-linked halogen-free elastomer insulation + fleece tape + Type EVM-1 heavy-duty polyurethane (PUR) outer sheath.

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Class 5 fine-stranded bare copper	EN 60228 Class 5 flexible annealed copper for power/PE cores (2.5 to 16 mm²) plus 0.50 or 0.75 mm² pilot core(s)EN 60228
2	Type EVI-2 cross-linked LSZH elastomer	Halogen-free cross-linked elastomeric insulation rated to +90 °C continuous / +250 °C short-circuitEN 50620
3	Non-woven separator tape	Wraps the cabled core assembly for high torsional and flexing cycle lifeEN 50620
4	Type EVM-1 heavy-duty PUR sheath	Halogen-free polyurethane outer jacket resistant to oil, gasoline, UV, microbes, AD7 water and vehicle crushEN 50620

Single-Phase 3G6.0 + 1×0.5 mm² (32 A / 7.4 kW)

230 V AC 32 A single-phase Mode 3 charging cable (L1, N, PE + CP) for 7.4 kW home and commercial chargers.

Three-Phase 5G2.5 + 1×0.5 mm² (16/20 A / 11 kW)

400 V AC three-phase Mode 3 charging cable (L1, L2, L3, N, PE + CP) for 11 kW Type 2 stations.

Three-Phase 5G6.0 + 1×0.5 mm² (32 A / 22 kW)

Industry-standard 400 V AC 32 A three-phase 22 kW public and commercial Mode 3 Type 2 charging cable.

Three-Phase 5G16 + 1×0.75 mm² (63 A / 43 kW)

High-current 400 V AC 63 A three-phase Mode 3 AC fast-charging cable.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on EN 50620 / IEC 62893-2. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage (U0/U): 450 / 750 V AC (power cores) · 30 V AC / 60 V DC (pilot core)
AC test voltage: 2.5 kV rms on power cores · 1.0 kV rms on pilot core (15 min)
Pilot & proximity signalling: 1 or 2 × 0.50 / 0.75 mm² cores per IEC 61851-1

Thermal

Conductor operating temperature: +90 °C max continuous · +250 °C short-circuit (5 s)
Ambient operating temperature: -40 °C to +50 °C flexing · max surface temp ≤+60 °C at rated current

Mechanical

Minimum bending radius: 5 × cable OD (free movement) · >30,000 flex cycles in EN 50620 test
Crush & impact resistance: Withstands 11,000 N / 5,000 N vehicle tyre drive-over per EN 50620

Resistance

Water, oil & chemical resistance: AD7 temporary water immersion; resistant to gasoline, diesel, oil, brake fluid & road salt
Halogen-free & flame retardancy: Halogen-free per EN 60754-1/2 · self-extinguishing per IEC 60332-1-2

Reference standards

Governing standards: BS EN 50620 & IEC 62893-2 (62893 IEC 131)
Plug & system standards: IEC 62196-2 Type 2 / Type 1 & IEC 61851-1 Mode 3

Identification

CENELEC designation: H = harmonized · 07 = 450/750 V · B = EVI-2 elastomer · Z5 = EVM-1 PUR · -F = Class 5 flexible
Jacket colours: Black (RAL 9005), Orange (RAL 2003), Blue, Green or custom OEM branding

Sizes

12 standard configurations (H07BZ5-F)

Nominal dimensions, copper weight, total mass and electrical parameters for H07BZ5-F per EN 50620 / IEC 62893-2.

Dimensions & masses
Designation	Power + Pilot Cores	Mode 3 Power / Current	Nom. OD mm	Copper kg/km	Total mass ≈ kg/km	Min. bend R mm
H07BZ5-F size schedule
3G2.5 + 1×0.5	3G2.5 + 1×0.5 mm²	20 A · 4.6 kW 1-Ph	11.20	76.8	178.0	56.0
3G4.0 + 1×0.5	3G4.0 + 1×0.5 mm²	25 A · 5.8 kW 1-Ph	12.80	120.0	245.0	64.0
3G6.0 + 1×0.5	3G6.0 + 1×0.5 mm²	32 A · 7.4 kW 1-Ph	14.50	177.6	330.0	72.5
3G6.0 + 2×0.5	3G6.0 + 2×0.5 mm²	32 A · 7.4 kW CP+PP	14.80	182.4	342.0	74.0
3G10 + 1×0.75	3G10 + 1×0.75 mm²	50 A · 11.5 kW 1-Ph	17.80	295.0	510.0	89.0
5G2.5 + 1×0.5	5G2.5 + 1×0.5 mm²	20 A · 11 kW 3-Ph	13.60	124.8	270.0	68.0
5G2.5 + 2×0.5	5G2.5 + 2×0.5 mm²	20 A · 11 kW CP+PP	13.90	129.6	282.0	69.5
5G4.0 + 1×0.5	5G4.0 + 1×0.5 mm²	25 A · 17 kW 3-Ph	15.60	196.8	380.0	78.0
5G6.0 + 1×0.5	5G6.0 + 1×0.5 mm²	32 A · 22 kW 3-Ph	17.60	292.8	515.0	88.0
5G6.0 + 2×0.5	5G6.0 + 2×0.5 mm²	32 A · 22 kW CP+PP	17.90	297.6	528.0	89.5
5G10 + 1×0.75	5G10 + 1×0.75 mm²	50 A · 34 kW 3-Ph	21.80	487.2	810.0	109.0
5G16 + 1×0.75	5G16 + 1×0.75 mm²	63 A · 43 kW 3-Ph	25.50	775.2	1,180.0	127.5

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Dimensions and tolerances conform to EN 50620 / IEC 62893-2.

Electrical data
Power + Pilot Cores	Max. DC R @ 20 °C Ω/km	Current in air A	Installed / duty A
3G2.5 + 1×0.5 mm²	7.980	20	16
3G4.0 + 1×0.5 mm²	4.950	25	20
3G6.0 + 1×0.5 mm²	3.300	32	26
3G6.0 + 2×0.5 mm²	3.300	32	26
3G10 + 1×0.75 mm²	1.910	50	40
5G2.5 + 1×0.5 mm²	7.980	20	16
5G2.5 + 2×0.5 mm²	7.980	20	16
5G4.0 + 1×0.5 mm²	4.950	25	20
5G6.0 + 1×0.5 mm²	3.300	32	26
5G6.0 + 2×0.5 mm²	3.300	32	26
5G10 + 1×0.75 mm²	1.910	50	40
5G16 + 1×0.75 mm²	1.210	63	50

Reference ampacities at +30 °C ambient; apply duty-cycle or grouping correction factors per standard.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
2.5 kV / 1.0 kV AC dielectric & DC conductor resistance	Zero breakdown; resistance per EN 60228 Class 5	100 % of drums
Sample tests
EVI-2 hot-set, EVM-1 PUR abrasion & -40 °C cold wind	Complies with EN 50620 mechanical & sub-zero criteria	Every batch
30,000-cycle flexing, vehicle crush & AD7 water immersion	Certified to BS EN 50620 & IEC 62893-2	Type qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

BS EN 50620 (H07BZ5-F)IEC 62893-2 (62893 IEC 131)VDE / TÜV CertifiedCE / RoHS 3 & REACH Compliant

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX H07BZ5-F [Config] EN 50620 450/750V IEC 62893-2 131 EV CHARGING [lot/m]

Delivery form: Non-returnable wooden drums, export reels or shrink-wrapped coils
Standard drum lengths: 100 m · 250 m · 500 m · 1000 m
MOQ: 200 m (stock sizes) · 500 m (custom lengths)
Lead time: 2–3 weeks ex-works
Incoterms: EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFH07BZ5-F AC EV Charging Cable – technical datasheet12 sizes · construction, technical data, approvals XLSXH07BZ5-F spec data (Excel)All 12 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20
