Product

High-temperature wireEN 50525-2-42450/750 VClass 2 Stranded EVA

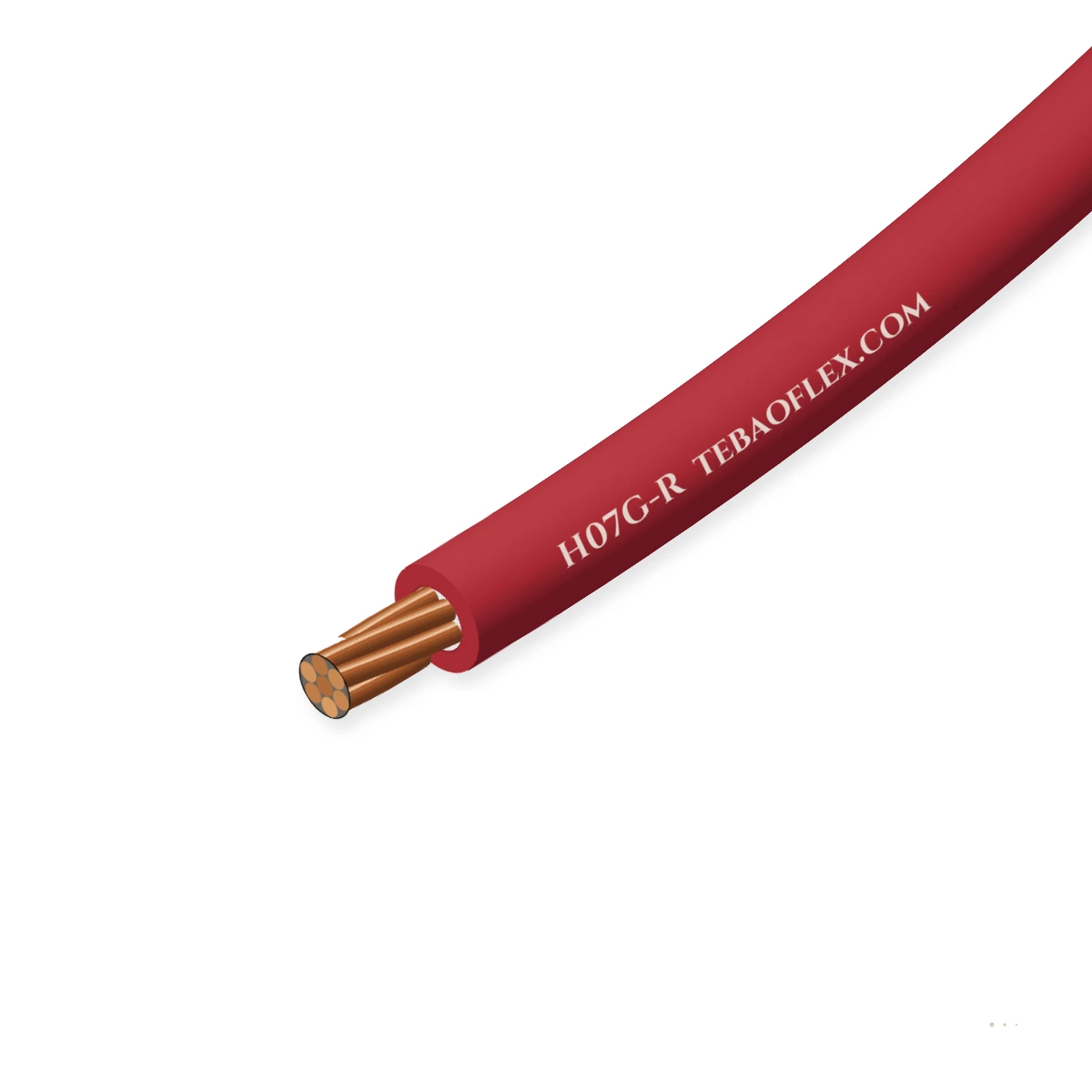

H07G-R Stranded EVA Heat-Resistant Wire450/750 V Class 2 rigid stranded tinned copper wire with +110 °C EVA EI3 insulation

Harmonised H07G-R heat-resistant wire to EN 50525-2-42 featuring an IEC 60228 Class 2 concentric stranded tinned copper conductor and cross-linked EVA (EI3) insulation for fixed high-temperature power feeders up to +110 °C.

Flame-retardant
Ozone, UV & moisture
Approved
Order designation
H07G-R 1×10
Outer Ø ≈
6.50 mm
Wall thickness
1.20 mm
Total weight ≈
125.3 kg/km
Min. bend R (fixed)
26 mm
All sizes (11)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
450/750 V
U0/U · 2500 V AC test voltage
Max temperature
+110 °C
Continuous conductor · +120 °C peak
Conductor
Sn-Cu Class 2
7/19-wire rigid stranded tinned Cu
Insulation
EVA Type EI3
Cross-linked halogen-free EVA
Min bend radius
4–6 × OD fixed
4 × OD ≤ 8 mm; 5–6 × OD larger
Size range
1.5 to 95 mm²
EN 50525-2-42 Class 2 power range

Typical values for this cable type, based on EN 50525-2-42 / DIN VDE 0285-525-2-42 — confirmed in the datasheet and quotation for your order.

Application fit

Is H07G-R right for your machine?

Select H07G-R when cross-sections from 1.5 mm² to 95 mm² require easier conduit pulling than solid Class 1 wire while preserving rigid terminal stability without ferrules.

Furnace, kiln & high-temp zone

Suitable

Engineered for fixed feeder conduits, heater banks, and drying kiln distribution panels operating at up to +110 °C.

Switchgear & control cabinet wiring

Suitable

7-wire and 19-wire Class 2 stranding clamps directly into heavy cage terminals and compression lugs without splaying.

Fixed installation

Suitable

Designed for fixed installation in conduits, trunking, and cable trays in elevated-temperature plant zones.

Motorised monospiral reel

Not suitable

Class 2 concentric stranding is for fixed routing only; repeated flexing will work-harden the strands.

Use H07G-K Class 5 flexible wire
Typical machinesIndustrial Heating & OvensPower Distribution SwitchgearFoundry & Steelworks ConduitsCommercial Lighting TrunkingThermal Processing Equipment

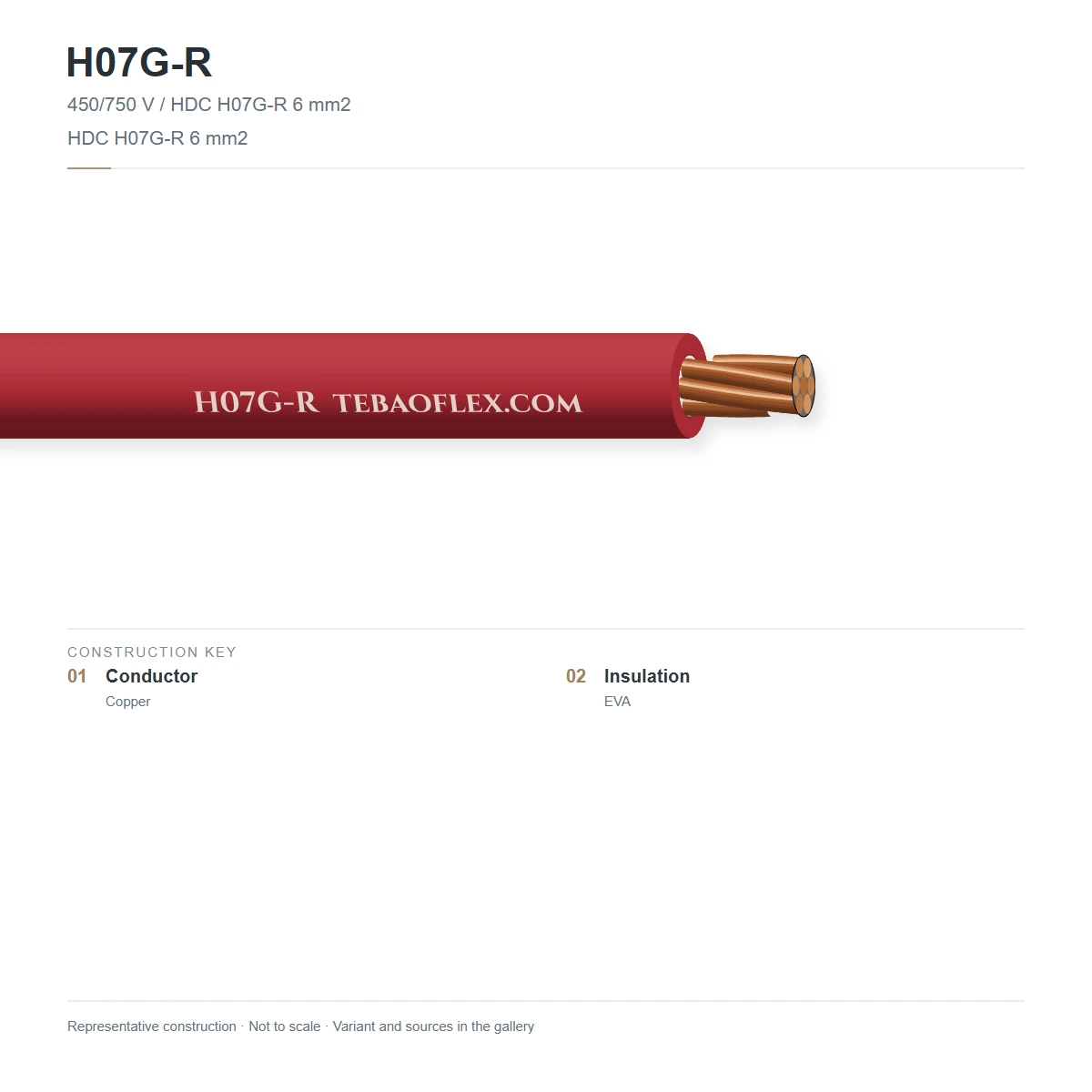

Construction

Layer by layer

Single-core Class 2 concentric stranded construction per EN 50525-2-42: 7-wire or 19-wire tinned copper conductor with halogen-free EI3 EVA insulation.

1234
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Class 2 stranded tinned copper7-wire or 19-wire concentric stranded tinned copper (IEC 60228 Class 2)Combines semi-rigid form retention with reduced pulling force in conduit bends
2Separator foil (≥ 16 mm²)Heat-resistant polyester separator tape over conductorPrevents elastomer penetration between strands and ensures clean stripping
3Cross-linked EVA EI3 wallEthylene-vinyl acetate thermoset compound Type EI3 (EN 50363-1)Continuous +110 °C thermal endurance and +250 °C short-circuit withstand
4Halogen-free outer finishExtruded smooth EI3 outer surface in standard VDE coloursFlame-retardant per IEC 60332-1-2 and low-corrosivity per IEC 60754-2

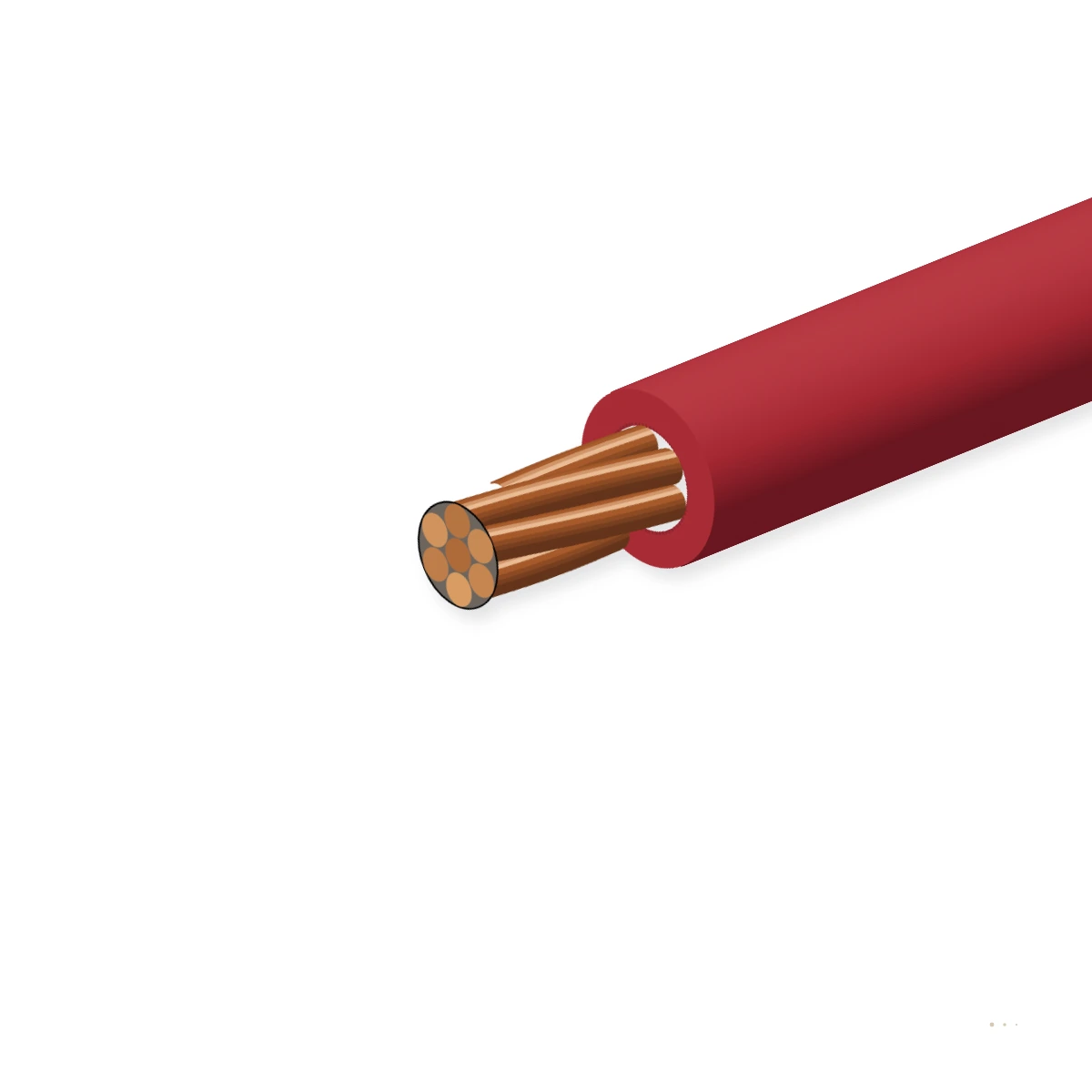

H07G-R 7-wire (1.5–35 mm²)

7-strand concentric tinned copper conductor with EI3 EVA insulation

H07G-R 19-wire (50–95 mm²)

19-strand concentric tinned copper feeder conductor for high-current furnace bus drops

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on EN 50525-2-42 / DIN VDE 0285-525-2-42. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
450/750 V AC
Protected installation voltage
600/1000 V AC inside enclosed switchgear
AC dielectric test voltage
2500 V AC for 5 min in water bath
Insulation resistance
≥ 200 MΩ·km at +20 °C
Current rating basis
DIN VDE 0298-4 (+110 °C conductor table)

Thermal

Continuous operating temp.
-40 °C to +110 °C at conductor
Short-term peak temperature
+120 °C
Max. short-circuit temperature
+250 °C (5 s max.)
Thermal ageing test
240 h at +150 °C per EN 60811-401

Mechanical

Conductor class
IEC 60228 Class 2 (7 or 19 wires)
Min. bending radius (≤ 8 mm OD)
4 × overall diameter (fixed)
Min. bending radius (> 8 mm OD)
5 × OD (8–12 mm) · 6 × OD (> 12 mm)
Max. tensile pulling load
50 N/mm² of copper cross-section

Resistance

Flame propagation
Self-extinguishing to IEC 60332-1-2
Halogen & acid gas
Halogen-free per IEC 60754-1 & -2
Ozone resistance
EN 60811-403 Method A / B compliant

Reference standards

Product standard
EN 50525-2-42 / DIN VDE 0285-525-2-42
Conductor standard
IEC 60228 Table 2 Class 2 tinned copper
RoHS & REACH
RoHS 3 (2015/863/EU) & REACH compliant

Identification

Core colours
Black, blue, brown, red, white, GNYE
Marking legend
TEBAOFLEX H07G-R <HAR> [mm²] EN 50525-2-42
Customs tariff (HS)
8544.49

Sizes

11 standard configurations (H07G-R)

Engineering dimensions, conductor stranding, mass and electrical ratings for H07G-R per EN 50525-2-42 / DIN VDE 0285-525-2-42.

Dimensions & weights
Order designationCross-section / sizeConductor buildWall ≈
mm		Outer Ø ≈
mm		Metal
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard H07G-R configurations
H07G-R 1×1.51.57×0.52 mm Cl.20.803.2014.423.213
H07G-R 1×2.52.57×0.67 mm Cl.20.903.8024.035.715
H07G-R 1×447×0.85 mm Cl.21.004.6038.455.018
H07G-R 1×667×1.04 mm Cl.21.005.2057.677.121
H07G-R 1×10107×1.35 mm Cl.21.206.5096.0125.326
H07G-R 1×16167×1.71 mm Cl.21.207.50153.6187.530
H07G-R 1×25257×2.13 mm Cl.21.409.20240.0289.346
H07G-R 1×35357×2.52 mm Cl.21.4010.40336.0393.252
H07G-R 1×505019×1.83 mm Cl.21.6012.30480.0558.162
H07G-R 1×707019×2.17 mm Cl.21.6014.00672.0763.370
H07G-R 1×959519×2.52 mm Cl.21.8016.10912.01,028.280
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal engineering values for H07G-R subject to standard manufacturing tolerances per EN 50525-2-42 / DIN VDE 0285-525-2-42.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
Dielectric spark / high-voltage withstand test100 % in-line spark and AC/DC dielectric withstand per EN 50525-2-42 / DIN VDE 0285-525-2-42Every manufactured length
Conductor DC resistance & continuity checkWithin maximum 20 °C resistance limit specified for H07G-REvery spool or drum length
Sample tests
Thermal ageing & dimensional verificationWall thickness, concentricity and post-ageing elongation per EN 50525-2-42 / DIN VDE 0285-525-2-42Per production batch
Flame, outgassing or high-temperature enduranceQualified to EN 50525-2-42 / DIN VDE 0285-525-2-42 thermal and environmental performance criteriaType qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

EN 50525-2-42 / DIN VDE 0285-525-2-42CE (2014/35/EU) & RoHS 3 (2015/863/EU) CompliantREACH SVHC & Halogen/Asbestos Compliance Verified

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX H07G-R 450/750 V 1×10 EN 50525-2-42 CE
Delivery form
Precision spools, coils or export wooden drums
Standard lengths
50 m · 100 m · 500 m · 1000 m (or cut harnesses)
MOQ
100 m (stock sizes) · 300–500 m (custom build)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFH07G-R Stranded EVA Heat-Resistant Wire – technical datasheet11 sizes · construction, technical data, approvalsXLSXH07G-R spec data (Excel)All 11 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

When should engineers specify H07G-R instead of H07G-U or H07G-K?
Specify H07G-R for fixed conduit runs and heavy heater feeders above 6 mm² where solid H07G-U is too stiff to pull through conduit bends, or where terminal blocks are designed for rigid Class 2 conductors without ultrasonic welding or crimp ferrules required by Class 5 H07G-K.
How many strands make up the Class 2 conductor in H07G-R?
Per IEC 60228 Table 2, H07G-R cross-sections from 1.5 mm² up to 35 mm² use a 7-wire concentric lay, while 50 mm², 70 mm², and 95 mm² sizes use a 19-wire concentric lay of tinned annealed copper.
What is the maximum continuous and short-circuit temperature of H07G-R?
The cross-linked EI3 EVA insulation is rated for +110 °C continuous conductor temperature (+120 °C short-term peak) and withstands up to +250 °C during a 5-second short-circuit without thermoplastic melt-through.
Does H07G-R emit corrosive halogen gases if exposed to fire?
No. The EN 50363-1 Type EI3 ethylene-vinyl acetate elastomer is completely free of chlorine, fluorine, and bromine, meeting IEC 60754-1 and IEC 60754-2 halogen-free criteria.
