Product

General rubber flexible cablesEN 50525-2-21U0/U 450/750 VEI7 EPR · TMPU PUR

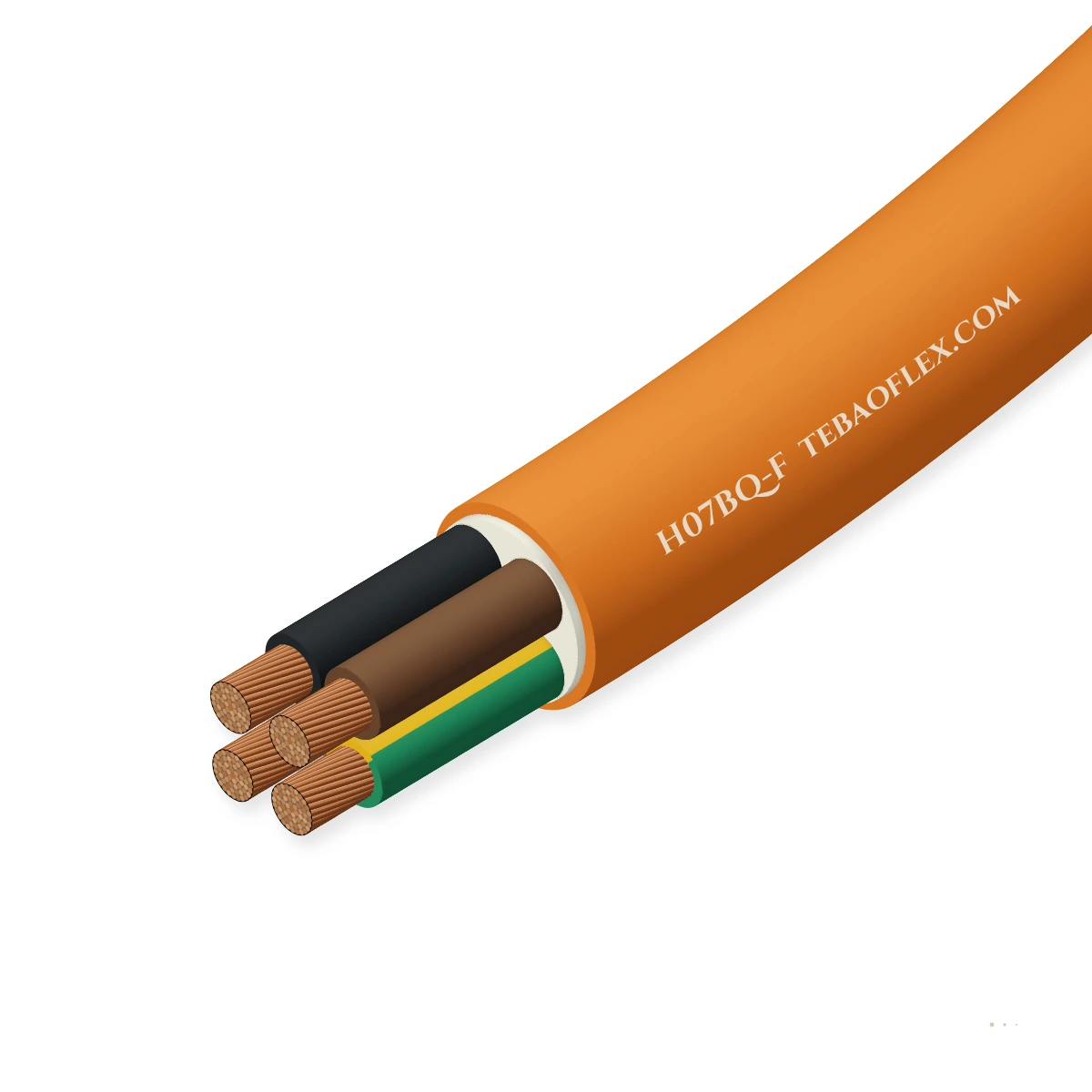

H07BQ-F PUR Sheathed Flexible CableHarmonised 450/750 V EI7 EPR-insulated and TMPU polyurethane-sheathed power cable

Heavy-duty 450/750 V flexible power and control cable to EN 50525-2-21 combining +90 °C cross-linked EI7 EPR core insulation with an abrasion-, cut-, oil- and −40 °C cold-resistant TMPU polyurethane outer jacket for construction plant and workshops.

Oil-resistant

Ozone, UV & moisture

Outdoor & humid

Cut & Abrasion PUR

Cores × cross-section

Order designation: H07BQ-F 4G6
Outer Ø min: 14.6 mm
Outer Ø max: 15.9 mm
Weight ≈: 445 kg/km
Min. bend R: 64 mm

Check against my drum All sizes (21)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Rated voltage: 450/750 V
Conductor temp.: +90 °C max.
Ambient temp.: −40…+80 °C
Bending radius: 4–5 × OD
Compounds: EI7 / TMPU
Size range: 1.5–50 mm²

Typical values for this cable type, based on EN 50525-2-21 (HD 22.10) — confirmed in the datasheet and quotation for your order.

Application fit

Is H07BQ-F right for your machine?

H07BQ-F is selected where standard H07RN-F chloroprene jackets suffer rapid wear from sharp gravel, metal swarf, aggressive cutting oils or sub-zero flexing down to −40 °C.

Trailing & towing

Suitable

Heavy construction site power leads, mobile compressors, generators and workshop machinery dragged over rough concrete or gravel.

Festoon & line chain

Suitable

Round cable loops on crane festoon trolleys and hoist power feeds indoors and outdoors.

Fixed installation

Suitable

Up to 0.6/1 kV when installed in protected conduits, trays or crane switchgear.

Motorised monospiral reel

With conditions

Suitable for hand-wound and light spring reels; for high-tension motorised reels, use reinforced S07BQ-F.

Use S07BQ-F Reinforced

Typical machinesConstruction & quarry site distributionMachine tools & metalworking plantsShipyards, ports & offshore maintenanceCold stores, ski lifts & winter plantAgricultural & forestry machinery

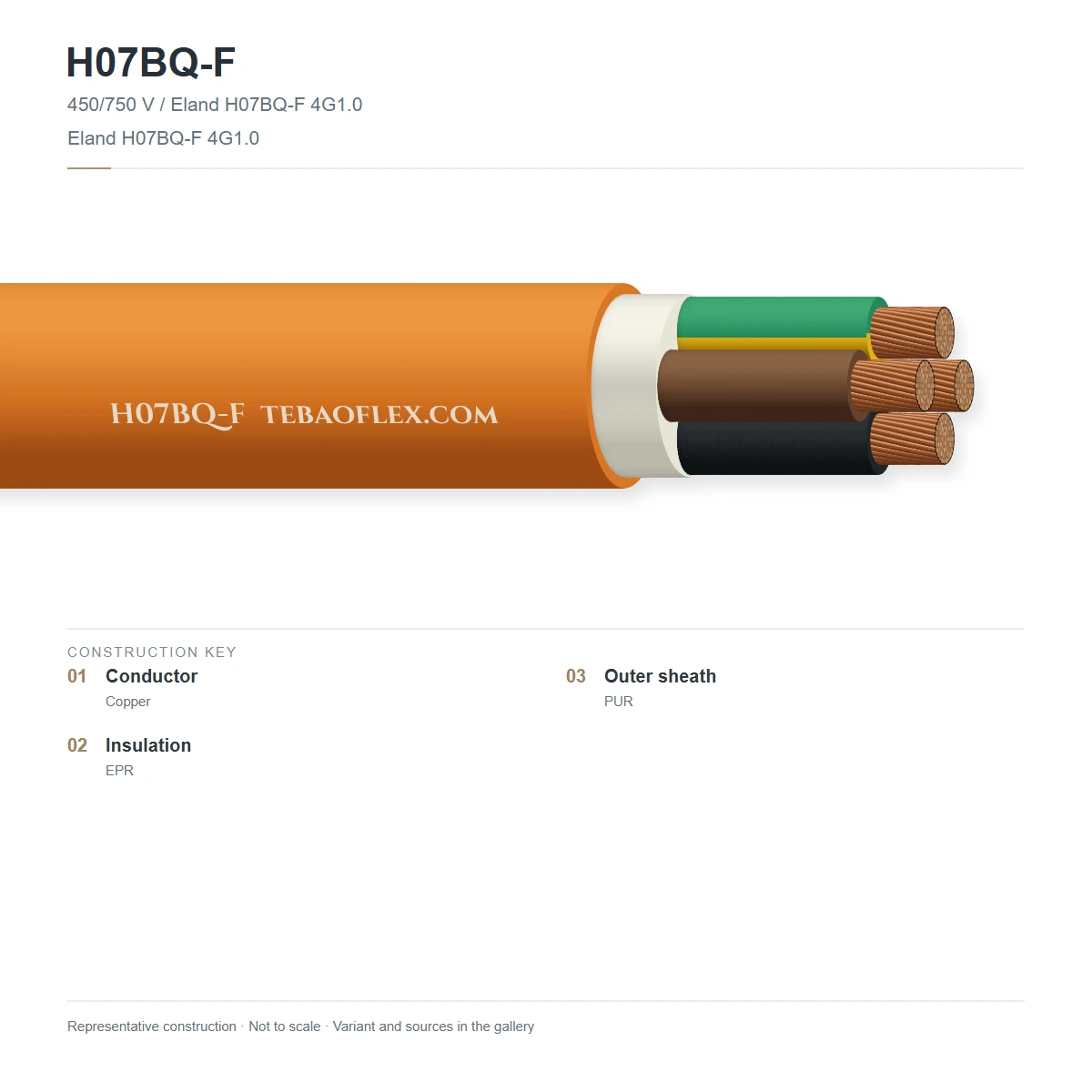

Construction

Layer by layer

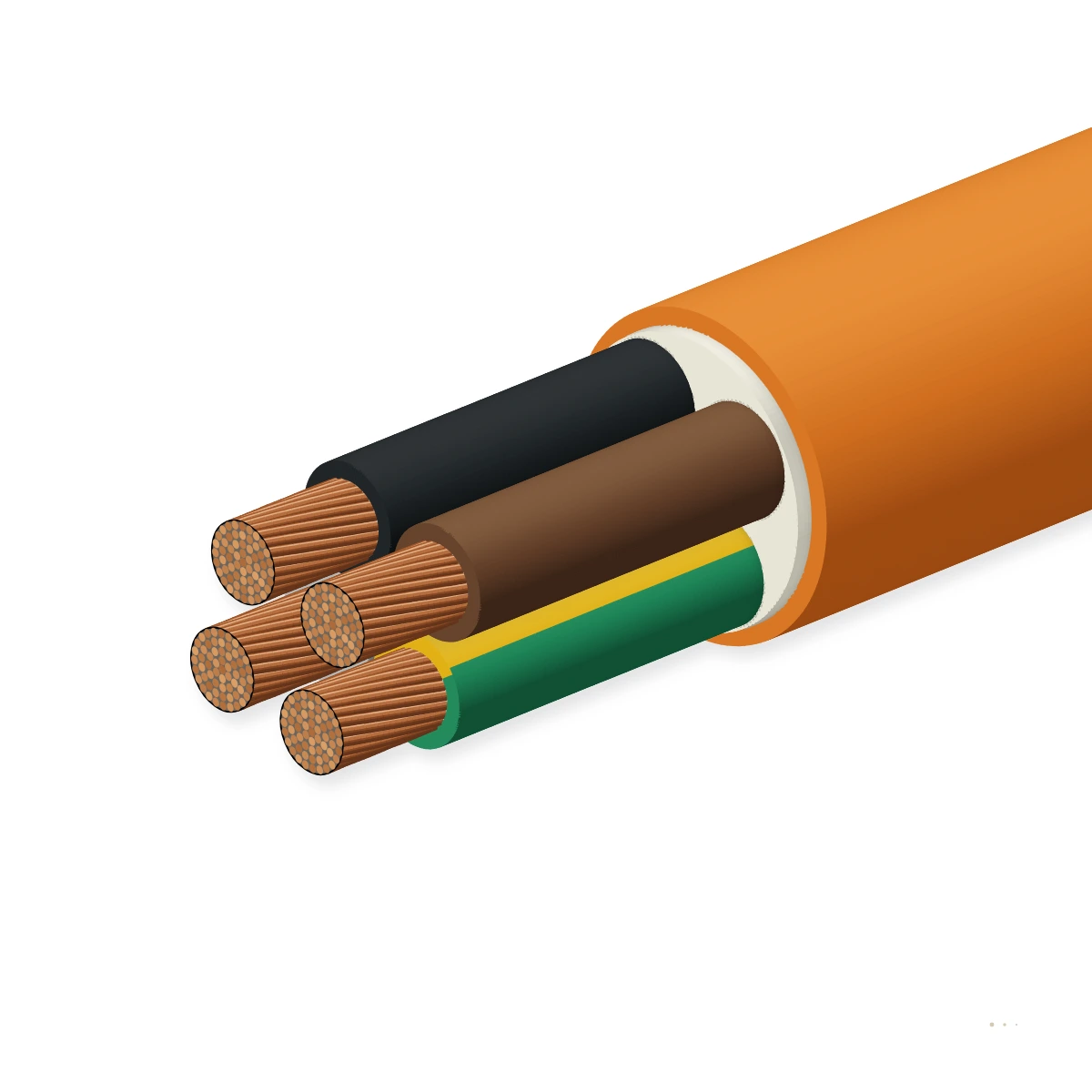

Shown: H07BQ-F 4G6 — Class 5 bare copper conductors, +90 °C EI7 EPR core insulation (HD 308 S2 colour code) and high-visibility orange TMPU polyurethane outer sheath.

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Flexible copper conductor	Fine-stranded bare copper wire (IEC 60228 Class 5)EN 60228 Class 5
2	Heat-resistant EPR insulation	Cross-linked ethylene-propylene elastomer compound Type EI7 (+90 °C)EN 50363-1 EI7
3	Inner elastomeric filler	Extruded elastomeric filler / inner bedding on multi-core sizesMaintains circular profile under impact
4	Polyurethane outer sheath	Heavy-duty thermoplastic polyurethane elastomer Type TMPU (11YM1), orange (RAL 2003)EN 50363-10-2 TMPU · extreme cut & oil resistance

H07BQ-F (2–5 cores, 1.5–25 mm²)

Harmonised EN 50525-2-21 Table B.4 sizes with HD 308 S2 colour-coded EI7 cores

07BQ-F (7–12 cores & ≥ 35 mm²)

Extended control and high-power sizes built to EN 50525-2-21 compound specifications

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on EN 50525-2-21 (HD 22.10). Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U: 450/750 V AC (0.6/1 kV fixed protected)
Max. operating voltage: 495/825 V AC (up to 1000 V protected)
AC test voltage: 2500 V AC (50 Hz, 15 min)
Conductor stranding: IEC 60228 Class 5 fine-stranded bare copper
Current rating basis: DIN VDE 0298-4 (+90 °C EPR conductor rating)

Thermal

Max. conductor temperature: +90 °C continuous operation
Short-circuit temperature: +250 °C max. (up to 5 s)
Temperature, flexing: −40 °C to +80 °C
Temperature, fixed: −50 °C to +90 °C

Mechanical

Min. bending radius, fixed: 4 × overall diameter
Min. bending radius, moving: 5 × overall diameter (free flexing)
Max. tensile load: 15 N/mm² dynamic (50 N/mm² static)
Abrasion & tear strength: TMPU polyurethane per EN 50363-10-2 (high cut/notch resistance)

Resistance

Oil & chemical resistance: EN 60811-404 mineral oils, hydraulic fluids, coolants & alkalis
Halogen-free: IEC 60754-1 / EN 60754-1 halogen-free compounds
Weather, UV & microbes: Resistant to UV sunlight, ozone, hydrolysis and microbial attack
Water exposure: AD6/AD7 washdown and temporary immersion

Reference standards

Construction standard: EN 50525-2-21 (HD 22.10 S2 / DIN VDE 0285-525-2-21)
Compound standards: EN 50363-1 (EI7 EPR) & EN 50363-10-2 (TMPU PUR)
Application guide: EN 50565-1 / DIN VDE 0298-300
RoHS & REACH: 2011/65/EU (RoHS 2) & EC 1907/2006 compliant

Identification

Sheath colour: Orange (RAL 2003), yellow or black
Core identification: HD 308 S2 colour code (≤ 5 cores); black numbered + GN/YE (≥ 7 cores)
Sheath marking: TEBAOFLEX H07BQ-F <HAR> [Size] 450/750V EN 50525-2-21 CE
Customs tariff (HS): 8544.49 (insulated conductors ≤ 1000 V)

Sizes

21 standard H07BQ-F configurations

Typical EN 50525-2-21 (HD 22.10) outer diameter limits, copper content and cable weight.

Dimensions & weights
Order designation	Cores × mm²	AWG ≈	Outer Ø min mm	Outer Ø max mm	Copper kg/km	Weight ≈ kg/km	Min. bend R mm
Harmonised H07BQ-F power & control sizes (1.5–25 mm² per EN 50525-2-21 Table B.4)
H07BQ-F 2×1.5	2×1.5	16	7.7	8.4	29	92	34
H07BQ-F 3G1.5	3G1.5	16	8.4	9.1	43	115	36
H07BQ-F 4G1.5	4G1.5	16	9.2	10.0	58	144	40
H07BQ-F 5G1.5	5G1.5	16	10.1	11.0	72	178	44
H07BQ-F 3G2.5	3G2.5	14	9.9	10.8	72	172	43
H07BQ-F 4G2.5	4G2.5	14	10.9	11.9	96	215	48
H07BQ-F 5G2.5	5G2.5	14	12.1	13.2	120	268	53
H07BQ-F 4G4	4G4	12	12.9	14.0	154	320	56
H07BQ-F 5G4	5G4	12	14.4	15.6	192	395	62
H07BQ-F 4G6	4G6	10	14.6	15.9	230	445	64
H07BQ-F 5G6	5G6	10	16.4	17.8	288	555	71
H07BQ-F 4G10	4G10	8	19.1	20.8	384	780	83
H07BQ-F 5G10	5G10	8	21.1	22.9	480	965	92
H07BQ-F 4G16	4G16	6	22.1	24.0	614	1,110	96
H07BQ-F 5G16	5G16	6	24.7	26.8	768	1,385	107
H07BQ-F 4G25	4G25	4	26.9	29.2	960	1,660	117
Extended 07BQ-F multicore & heavy power sizes (7–12 cores & 35–50 mm²)
07BQ-F 7G1.5	7G1.5	16	12.3	13.4	101	255	54
07BQ-F 12G1.5	12G1.5	16	15.5	16.8	173	410	67
07BQ-F 7G2.5	7G2.5	14	14.5	15.8	168	375	63
07BQ-F 4G35	4G35	2	30.2	32.8	1,344	2,190	131
07BQ-F 4G50	4G50	1	35.1	38.2	1,920	3,040	153

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Dimensions and weights are typical values per EN 50525-2-21 (HD 22.10). Minimum fixed bending radius shown is 4 × OD.

Electrical & current ratings
Cross-section mm²	AWG ≈	Max. DC resistance 20 °C, Ω/km	1-core in air 30 °C, A	3–4 core in air 30 °C, A
1.5	16	13.3	23	18
2.5	14	7.98	30	25
4	12	4.95	41	34
6	10	3.3	53	44
10	8	1.91	74	61
16	6	1.21	99	82
25	4	0.78	131	108
35	2	0.554	162	135
50	1	0.386	202	168

Current ratings at 30 °C ambient in free air per DIN VDE 0298-4 / EN 50565-1. Apply derating factors for elevated ambient temperature or reeling layer grouping.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Cable sizeDrum core diameter (mm)

Cable length on drum (m)

Drum core 300 mm ≥ 128 mmBending radius OK (4 × OD 15.9 mm)

Minimum bending radius: 64 mm
Min. drum core diameter: ≈ 128 mm
Cable weight on drum: 22.3 kg
Copper content: 11.5 kg

Indicative only: based on the datasheet outer diameter and 4 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
AC voltage test	2.5 kV AC (50 Hz)	Every manufactured length
Conductor DC resistance	IEC 60228 Class 5 (bare copper)	Every manufactured length
Sample tests
Vertical flame propagation	IEC 60332-1-2 / EN 60332-1-2	Per production batch
Insulation & sheath elastomer physical properties	EN 50525-2-21 (HD 22.10)	Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

EN 50525-2-21 (HD 22.10)CE · RoHS 2 (2011/65/EU) · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX H07BQ-F 450/750 V [Size] EN 50525-2-21 CE

Delivery form: Export wooden drums or coils, cut-to-length on request
Packaging: Heat-treated ISPM-15 timber drums with sealed cable ends
Conductor / sheath options: Custom core counts, pilot cores or sheath colours on request

Technical documents

Downloads

PDFH07BQ-F PUR Sheathed Flexible Cable – technical datasheet21 sizes · construction, technical data, approvals XLSXH07BQ-F spec data (Excel)All 21 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

How does H07BQ-F compare with H07RN-F in harsh industrial service?

Both cables are rated 450/750 V under EN 50525-2-21, but H07BQ-F upgrades both layers: it pairs +90 °C EI7 EPR core insulation (versus +60 °C EI4 on standard harmonised H07RN-F) with a thermoplastic polyurethane (TMPU) outer sheath that provides several times higher cut, tear and abrasion resistance than polychloroprene, plus cold flexibility down to −40 °C in motion.

Why is H07BQ-F typically supplied with a bright orange outer sheath?

High-visibility orange (RAL 2003) allows crane operators, forklift drivers and construction crews to spot live trailing cables across muddy trenches, dark tunnels and workshop floors, reducing accidental run-over damage. Yellow and black outer sheaths are also available.

Can H07BQ-F be operated at 0.6/1 kV?

Yes. In accordance with EN 50565-1 and DIN VDE 0298-300, 450/750 V heavy-duty rubber and PUR cables such as H07BQ-F may be operated up to 0.6/1 kV (600/1000 V AC) when installed in fixed, mechanically protected raceways, conduits or crane control gear.

When should I upgrade from H07BQ-F to S07BQ-F?

Standard H07BQ-F is rated for 15 N/mm² dynamic tensile load in free trailing and festoon loops. If the cable runs on a spring-operated or motorised reeling drum or undergoes frequent reversing bends over small sheaves, select S07BQ-F, which adds an anti-torsion support braid under the PUR jacket.
