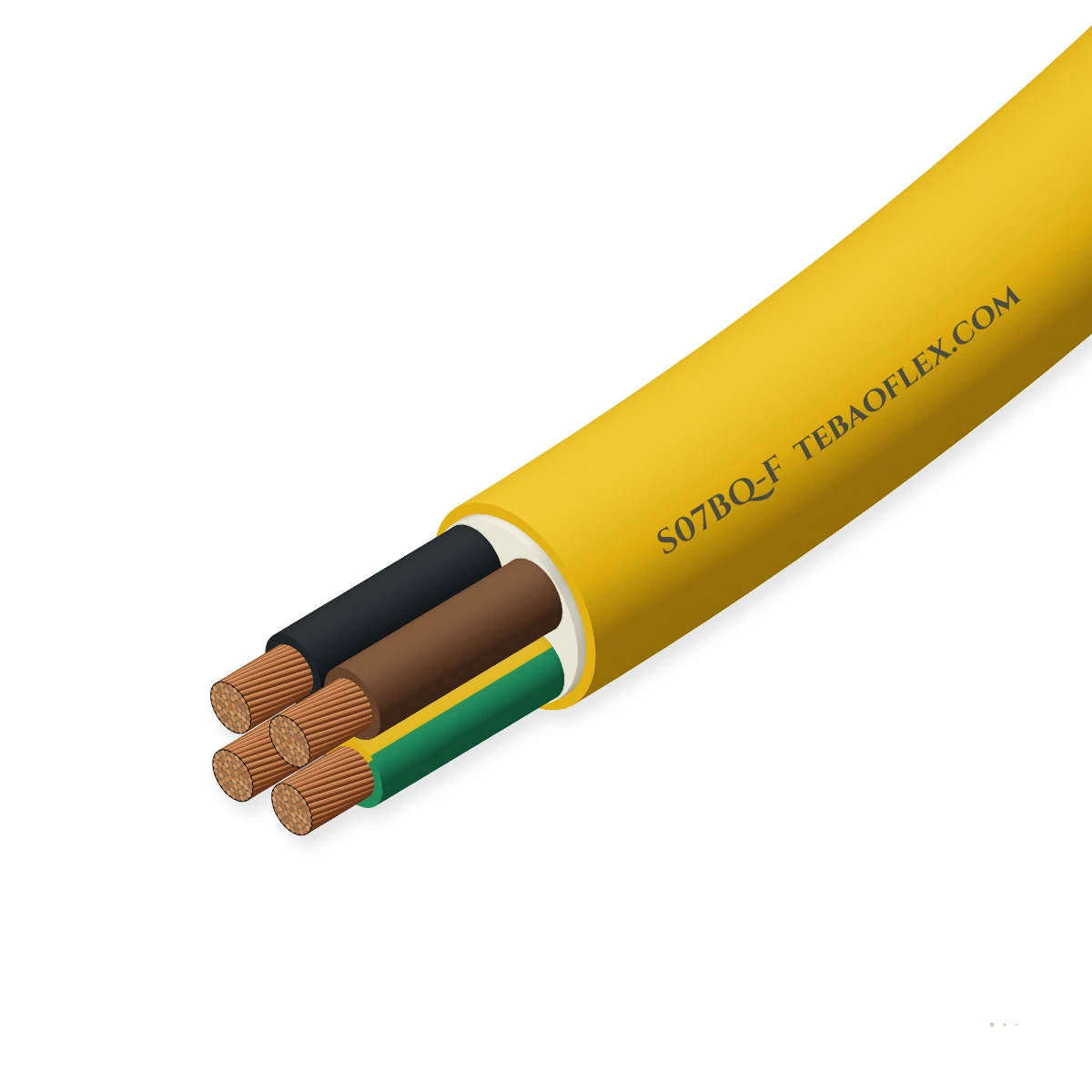

S07BQ-F Reinforced PUR-Sheathed Flexible CableReinforced 450/750 V (0.6/1 kV) EI7 EPR-insulated and TMPU PUR-sheathed reeling cable

Mechanically reinforced 450/750 V (0.6/1 kV protected) flexible cable combining +90 °C EI7 EPR core insulation, elastomeric inner bedding, an anti-torsion synthetic support braid and a TMPU polyurethane jacket for spring reels and harsh trailing.

Anti-torsion braid

Oil-resistant

Ozone, UV & moisture

Outdoor & humid

Cores × cross-section

Order designation: S07BQ-F 4G6
Outer Ø min: 16.2 mm
Outer Ø max: 17.6 mm
Weight ≈: 515 kg/km
Min. bend R: 106 mm

Check against my drum All sizes (18)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Rated voltage: 450/750 V
Tensile load: 20 N/mm²
Travel speed: 60 m/min
Ambient temp.: −40…+80 °C
Bending radius: 5–6 × OD
Size range: 1.5–50 mm²

Typical values for this cable type, based on Based on EN 50525-2-21 / DIN VDE 0250 — confirmed in the datasheet and quotation for your order.

Application fit

Is S07BQ-F right for your machine?

The 'S' prefix in S07BQ-F denotes a special reinforced construction with an inner bedding and anti-torsion textile braid, upgrading H07BQ-F for spring reels, drum reeling and high-pull trailing.

Motorised monospiral reel

Suitable

Spring-driven and motorised horizontal cable reels on construction cranes, municipal vehicles and workshops.

Cylindrical / multi-layer drum

Suitable

Cylindrical multi-layer reeling drums up to 60 m/min with anti-torsion braid preventing corkscrewing.

Trailing & towing

Suitable

Heavy dragging across sharp rock, concrete, metal swarf and oily floors under up to 20 N/mm² pull.

Festoon & line chain

Suitable

Crane festoon trolleys and guided loops in cold stores (−40 °C) and outdoor yards.

Typical machinesSpring & motorised cable reelsConstruction cranes & concrete pumpsMunicipal sweeping & sewer vehiclesMachine shops & steel service centresCold-climate outdoor mobile plant

Construction

Layer by layer

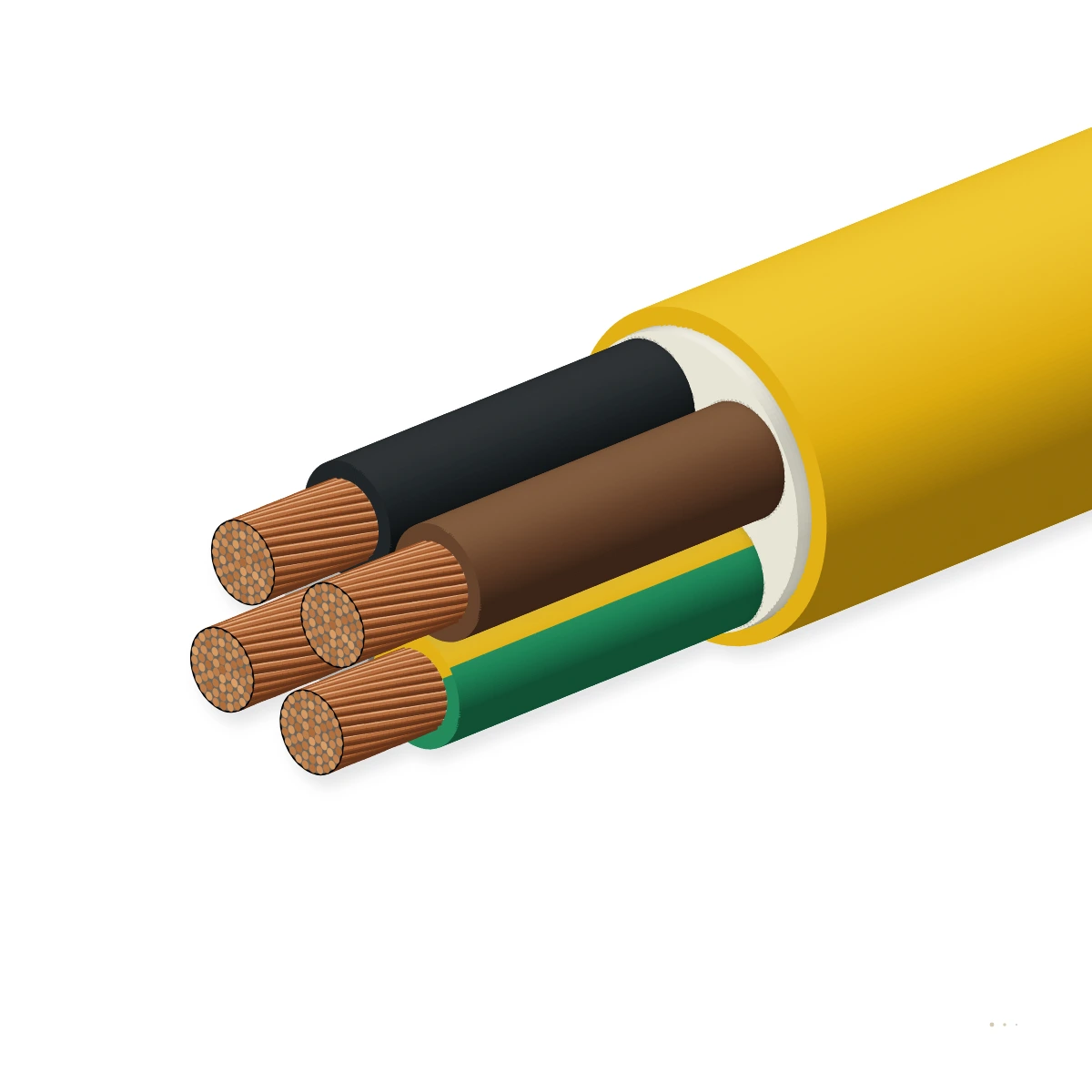

Shown: S07BQ-F 4G6 — Class 5 copper conductors, +90 °C EI7 EPR core insulation, elastomeric inner sheath, anti-torsion synthetic braid and orange/yellow TMPU PUR outer sheath.

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Flexible copper conductor	Fine-stranded bare copper wire (IEC 60228 Class 5)EN 60228 Class 5
2	Heat-resistant EPR insulation	Cross-linked ethylene-propylene elastomer compound Type EI7 (+90 °C)EN 50363-1 EI7
3	Elastomeric inner sheath	Extruded rubber inner bedding encapsulating laid-up coresStabilises core geometry under reel tension
4	Anti-torsion support braid	High-tenacity polyester/synthetic yarn braid vulcanised between inner and outer sheathsPrevents corkscrewing & raises pull to 20 N/mm²
5	Polyurethane outer sheath	Heavy-duty thermoplastic polyurethane Type TMPU (11YM1), yellow or orangeEN 50363-10-2 TMPU · cut, oil & −40 °C cold resistant

S07BQ-F Power (3G–5G, 1.5–50 mm²)

Braid-reinforced 3-, 4- and 5-core power reeling cables with HD 308 S2 colour code

S07BQ-F Control (7G–12G, 1.5–2.5 mm²)

Braid-reinforced multi-core control cables with black numbered cores + GN/YE earth

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on Based on EN 50525-2-21 / DIN VDE 0250. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U: 450/750 V AC (0.6/1 kV fixed protected)
Max. operating voltage: 495/825 V AC (up to 1000 V AC protected)
AC test voltage: 2500 V AC (50 Hz, 15 min)
Conductor stranding: IEC 60228 Class 5 fine-stranded bare copper
Current rating basis: DIN VDE 0298-4 (+90 °C EPR conductor rating)

Thermal

Max. conductor temperature: +90 °C continuous operation
Short-circuit temperature: +250 °C max. (up to 5 s)
Temperature, flexing: −40 °C to +80 °C
Temperature, fixed: −50 °C to +90 °C

Mechanical

Min. bending radius, fixed: 5 × overall diameter
Min. bending radius, reeling: 6 × overall diameter (reeling & guided flexing)
Max. tensile load: 20 N/mm² dynamic (reinforced with anti-torsion braid)
Torsional stress: ± 25 °/m (protected by integrated synthetic braid)

Resistance

Oil & chemical resistance: EN 60811-404 mineral oils, hydraulic fluids & coolants
Cut, tear & abrasion: High-density TMPU polyurethane resists sharp gravel & swarf
Halogen-free: IEC 60754-1 halogen-free EPR/PUR construction
Weather, UV & microbes: UV, ozone, hydrolysis and microbe resistant for outdoor reels

Reference standards

Construction basis: Based on EN 50525-2-21 (HD 22.10) & DIN VDE 0250
Compound standards: EN 50363-1 Type EI7 & EN 50363-10-2 Type TMPU
Application guide: DIN VDE 0298-3 & EN 50565-1
RoHS & REACH: 2011/65/EU (RoHS 2) & EC 1907/2006 compliant

Identification

Sheath colour: Yellow, orange (RAL 2003) or black
Core identification: HD 308 S2 colour code (≤ 5 cores); black numbered + GN/YE (≥ 7 cores)
Sheath marking: TEBAOFLEX S07BQ-F 450/750V [Size] REINFORCED PUR CE
Customs tariff (HS): 8544.49 (insulated conductors ≤ 1000 V)

Sizes

18 standard S07BQ-F configurations

Typical Based on EN 50525-2-21 / DIN VDE 0250 outer diameter limits, copper content and cable weight.

Dimensions & weights
Order designation	Cores × mm²	AWG ≈	Outer Ø min mm	Outer Ø max mm	Copper kg/km	Weight ≈ kg/km	Min. bend R mm
S07BQ-F reinforced 3–5 core power reeling sizes (1.5–50 mm²)
S07BQ-F 3G1.5	3G1.5	16	9.6	10.4	43	145	62
S07BQ-F 4G1.5	4G1.5	16	10.5	11.4	58	178	68
S07BQ-F 5G1.5	5G1.5	16	11.5	12.5	72	218	75
S07BQ-F 3G2.5	3G2.5	14	11.2	12.2	72	210	73
S07BQ-F 4G2.5	4G2.5	14	12.3	13.4	96	260	80
S07BQ-F 5G2.5	5G2.5	14	13.6	14.8	120	320	89
S07BQ-F 4G4	4G4	12	14.4	15.6	154	375	94
S07BQ-F 5G4	5G4	12	15.8	17.2	192	460	103
S07BQ-F 4G6	4G6	10	16.2	17.6	230	515	106
S07BQ-F 5G6	5G6	10	18.0	19.6	288	635	118
S07BQ-F 4G10	4G10	8	20.8	22.6	384	880	136
S07BQ-F 4G16	4G16	6	23.9	26.0	614	1,240	156
S07BQ-F 4G25	4G25	4	28.9	31.4	960	1,840	188
S07BQ-F 4G35	4G35	2	32.4	35.2	1,344	2,410	211
S07BQ-F 4G50	4G50	1	37.5	40.8	1,920	3,310	245
S07BQ-F reinforced 7–12 core control reeling sizes (1.5–2.5 mm²)
S07BQ-F 7G1.5	7G1.5	16	13.6	14.8	101	305	89
S07BQ-F 12G1.5	12G1.5	16	16.9	18.4	173	475	110
S07BQ-F 7G2.5	7G2.5	14	16.0	17.4	168	445	104

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Dimensions and weights are typical values per Based on EN 50525-2-21 / DIN VDE 0250. Minimum fixed bending radius shown is 6 × OD.

Electrical & current ratings
Cross-section mm²	AWG ≈	Max. DC resistance 20 °C, Ω/km	1-core in air 30 °C, A	3–4 core in air 30 °C, A
1.5	16	13.3	23	18
2.5	14	7.98	30	25
4	12	4.95	41	34
6	10	3.3	53	44
10	8	1.91	74	61
16	6	1.21	99	82
25	4	0.78	131	108
35	2	0.554	162	135
50	1	0.386	202	168

Current ratings at 30 °C ambient in free air per DIN VDE 0298-4 / EN 50565-1. Apply derating factors for elevated ambient temperature or reeling layer grouping.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Cable sizeDrum core diameter (mm)

Cable length on drum (m)

Drum core 300 mm ≥ 212 mmBending radius OK (6 × OD 17.6 mm)

Minimum bending radius: 106 mm
Min. drum core diameter: ≈ 212 mm
Cable weight on drum: 25.8 kg
Copper content: 11.5 kg

Indicative only: based on the datasheet outer diameter and 6 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
AC voltage test	2.5 kV AC (50 Hz)	Every manufactured length
Conductor DC resistance	IEC 60228 Class 5 (bare copper)	Every manufactured length
Sample tests
Vertical flame propagation	IEC 60332-1-2 / EN 60332-1-2	Per production batch
Insulation & sheath elastomer physical properties	Based on EN 50525-2-21 / DIN VDE 0250	Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

Based on EN 50525-2-21 / DIN VDE 0250CE · RoHS 2 (2011/65/EU) · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX S07BQ-F 450/750 V [Size] REINFORCED PUR CE

Delivery form: Export wooden drums or coils, cut-to-length on request
Packaging: Heat-treated ISPM-15 timber drums with sealed cable ends
Conductor / sheath options: Custom core counts, pilot cores or sheath colours on request

Technical documents

Downloads

PDFS07BQ-F Reinforced PUR-Sheathed Flexible Cable – technical datasheet18 sizes · construction, technical data, approvals XLSXS07BQ-F spec data (Excel)All 18 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20
