High-temperature wires & cablesSAE AS22759/32 & /33600 V · 150 °C / 200 °CCrosslinked ETFE (XL-ETFE)

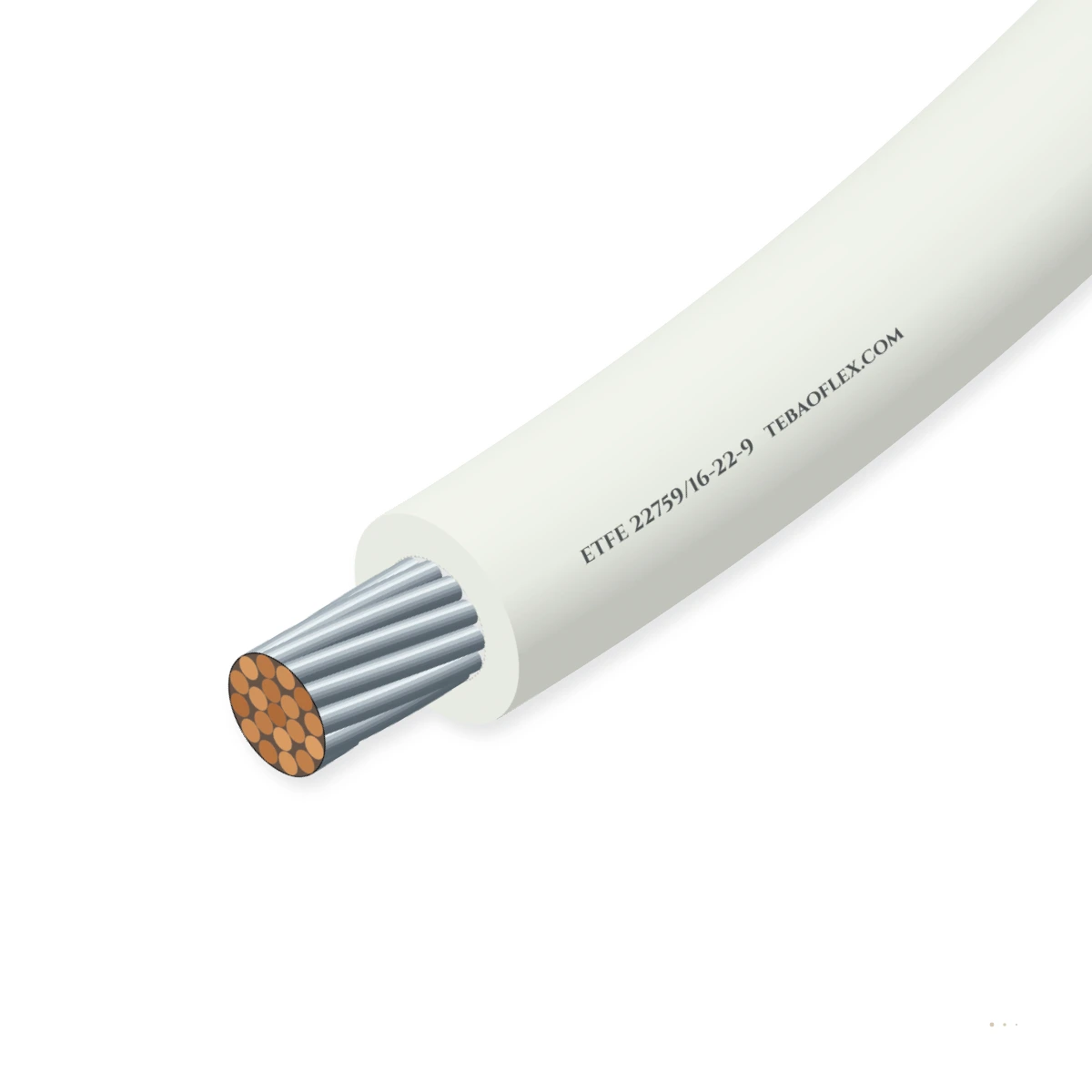

ETFE High-Temperature Aerospace Wire (SAE AS22759/32 & /33)600 V lightweight radiation-crosslinked modified ETFE hook-up & airframe wire

Lightweight 600 V single-wall radiation-crosslinked modified ETFE (XL-ETFE) aerospace wire to SAE AS22759/32A (150 °C tin-coated copper, 30–12 AWG) and SAE AS22759/33A (200 °C silver-coated high-strength copper alloy, 30–20 AWG).

Flame-retardant

Oil-resistant

Outdoor & humid

Approved

Preview configuration

Order designation: M22759/32-20
Nominal OD: 1.27 mm
Wall: 0.15 mm
Max. mass: 6.40 kg/km
Max. DC res.: 33.5 Ω/km

Check against my drum All sizes (16)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Max. operating T: 150 / 200 °C
Rated voltage: 600 V RMS
Insulation: XL-ETFE
AWG range: 30–12 AWG
Cold bend T: −65 °C
Min. bend radius: 6 × OD / 10 × OD

Typical values for this cable type, based on SAE AS22759/32A & /33A — confirmed in the datasheet and quotation for your order.

Application fit

Is M22759/32 & M22759/33 XL-ETFE right for your machine?

Tough cross-linked/extruded ETFE airframe and high-density chassis wire (-65 °C to +150 °C) combining cut-through resistance with compact diameter.

Switchgear & control cabinet wiring

Suitable

Primary duty — high-density avionics bays, traction control racks and switchgear wiring harnesses.

Motor stator, traction & converter leads

Suitable

Stator, actuator and instrumentation leads exposed to vibration, lubricants and +150 °C heat.

Furnace, kiln & high-temp zone

With conditions

Rated to +150 °C continuous; for +200 °C to +260 °C furnace zones select FEP, PFA or PTFE.

Trailing & towing

Not suitable

Single-core equipment wire without a heavy-duty trailing outer sheath.

Use NSSHÖU Heavy Rubber

Motorised monospiral reel

Not suitable

Not intended for crane or mobile machinery reeling drums.

Use (N)SHTÖU Reeling

Typical machinesCommercial & military airframe harnessesAvionics & flight-control cabinetsUAV, drone & satellite wiringDefense ground vehicles & turret systemsHigh-density industrial test benchesRadiation-exposed instrumentation

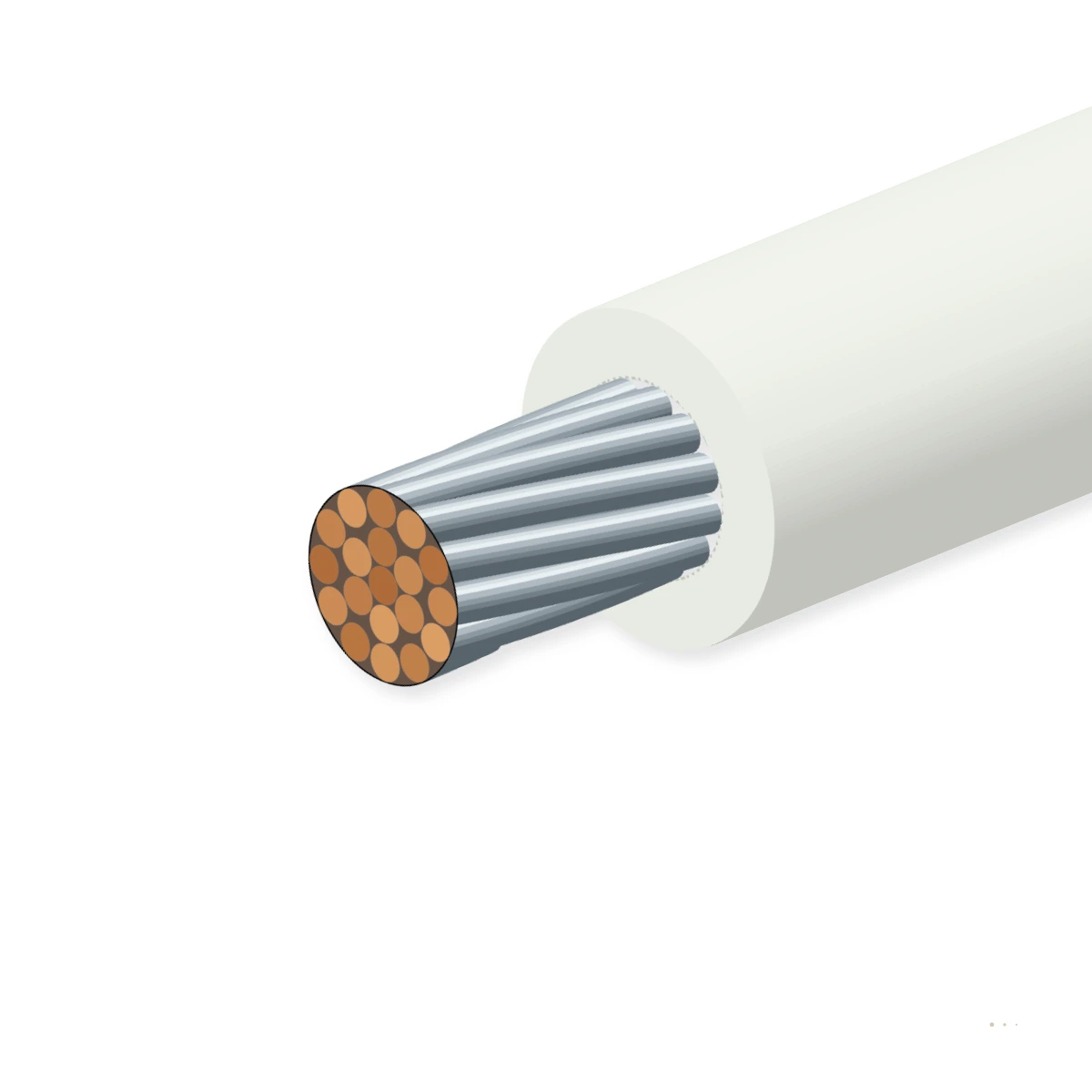

Construction

Layer by layer

A single concentric-lay stranded conductor—tin-coated annealed copper for 150 °C M22759/32 (30 to 12 AWG) or silver-coated high-strength copper alloy for 200 °C M22759/33 (30 to 20 AWG)—is insulated with a precision single-wall extrusion of radiation-crosslinked modified ethylene-tetrafluoroethylene (XL-ETFE).

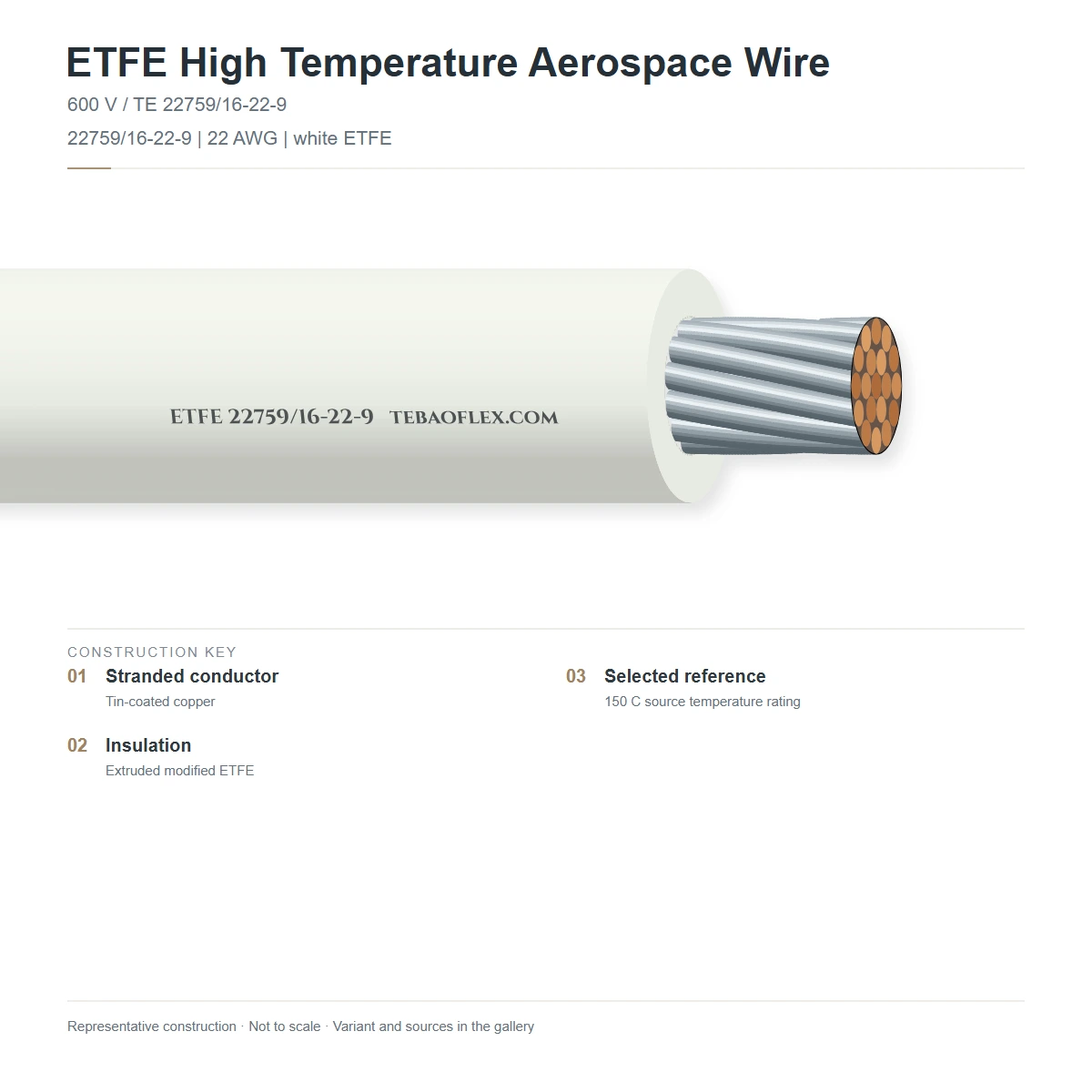

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Stranded aerospace conductor core	M22759/32: concentric stranded annealed copper (30–12 AWG) · M22759/33: stranded high-strength copper alloy (30–20 AWG)SAE AS22759 / ASTM B33 & B624
2	Metallurgical conductor plating	Electrolytic tin coating per ASTM B33 (150 °C M22759/32) or min. 40 µin silver coating per ASTM B624 (200 °C M22759/33)SAE AS22759/32A & /33A
3	Single-wall XL-ETFE insulation	Radiation-crosslinked modified ethylene-tetrafluoroethylene (ETFE), 0.15 to 0.20 mm nominal radial wallSAE AS22759/32A & /33A

SAE AS22759/32 (M22759/32) · 30 to 12 AWG

Tin-coated copper conductor + single-wall crosslinked modified ETFE insulation · 600 V · −65 °C to +150 °C

SAE AS22759/33 (M22759/33) · 30 to 20 AWG

Silver-coated high-strength copper alloy conductor + single-wall crosslinked modified ETFE insulation · 600 V · −65 °C to +200 °C

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on SAE AS22759/32A & /33A. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage: 600 V RMS (AC aircraft & avionics power/signal rating)
Dielectric & spark test: 2.5 kV RMS wet dielectric test + 6.0 kV RMS impulse spark test per SAE AS22759
Conductor material & plating: M22759/32: concentric stranded tin-coated annealed copper (30–12 AWG) · M22759/33: stranded silver-coated high-strength copper alloy (30–20 AWG)

Thermal

Operating temperature range: −65 °C to +150 °C (M22759/32 tin-coated) · −65 °C to +200 °C (M22759/33 silver-coated alloy)
Crosslinked thermal behaviour: Radiation-crosslinked modified ETFE prevents melt-back during soldering and resists short-duration thermal overload up to +300 °C

Mechanical

Single-wall insulation thickness: Lightweight single-wall 0.006 in (0.15 mm) nominal wall on 30–16 AWG · 0.007 in (0.18 mm) on 14 AWG · 0.008 in (0.20 mm) on 12 AWG
Minimum bending radius: 6 × OD fixed; 10 × OD flexing

Resistance

Flammability: Self-extinguishing aerospace vertical/60° flame resistance per SAE AS22759 & FAR Part 25.869
Fluid, chemical & radiation resistance: Resists Skydrol hydraulic fluid, Jet A/JP-8 fuel, de-icing fluids, lubricating oils, UV, ozone and high-altitude radiation

Reference standards

Applicable standards: SAE AS22759/32A (MIL-DTL-22759/32); SAE AS22759/33A (MIL-DTL-22759/33)
Environmental & RoHS: RoHS & REACH compliant aerospace fluoropolymer system

Identification

Military / SAE part numbering: M22759/32-[AWG]-[Color] (150 °C tin-coated Cu) · M22759/33-[AWG]-[Color] (200 °C silver-coated high-strength Cu alloy)
Colour coding & marking: MIL-STD-681 solid colours (0–9) with optional helical stripes and UV-laser markability

Sizes

16 configurations across SAE AS22759/32 (30–12 AWG) & SAE AS22759/33 (30–20 AWG)

Nominal stranding, conductor diameter, XL-ETFE wall thickness, finished wire OD, weight and max DC resistance at 20 °C.

Dimensions, weights & DC resistance
Part designation	Size AWG	Nominal CSA mm²	Stranding (count/AWG)	Conductor finish & T	Cond. Ø mm	Wall mm	Nominal OD mm	Max. mass kg/km	Max. DC res. (20 °C) Ω/km
SAE AS22759/32 (M22759/32) · 600 V · 150 °C · Tin-Coated Copper (30–12 AWG)
M22759/32-30	30 AWG	0.057	19/42	SnCu (150 °C)	0.30	0.15	0.61	0.89	355.0
M22759/32-28	28 AWG	0.089	19/40	SnCu (150 °C)	0.38	0.15	0.69	1.25	224.0
M22759/32-26	26 AWG	0.155	19/38	SnCu (150 °C)	0.48	0.15	0.79	1.93	135.0
M22759/32-24	24 AWG	0.241	19/36	SnCu (150 °C)	0.61	0.15	0.91	2.83	86.0
M22759/32-22	22 AWG	0.382	19/34	SnCu (150 °C)	0.76	0.15	1.07	4.17	53.1
M22759/32-20	20 AWG	0.616	19/32	SnCu (150 °C)	0.97	0.15	1.27	6.40	33.5
M22759/32-18	18 AWG	0.963	19/30	SnCu (150 °C)	1.22	0.15	1.52	9.67	21.1
M22759/32-16	16 AWG	1.23	19/29	SnCu (150 °C)	1.37	0.15	1.73	12.40	16.5
M22759/32-14	14 AWG	1.94	19/27	SnCu (150 °C)	1.70	0.18	2.16	19.30	10.4
M22759/32-12	12 AWG	3.08	37/28	SnCu (150 °C)	2.18	0.20	2.72	30.10	6.6
SAE AS22759/33 (M22759/33) · 600 V · 200 °C · Silver-Coated High-Strength Copper Alloy (30–20 AWG)
M22759/33-30	30 AWG	0.057	19/42	AgCu Alloy (200 °C)	0.30	0.15	0.61	0.91	381.0
M22759/33-28	28 AWG	0.089	19/40	AgCu Alloy (200 °C)	0.38	0.15	0.69	1.28	240.0
M22759/33-26	26 AWG	0.155	19/38	AgCu Alloy (200 °C)	0.48	0.15	0.79	1.98	147.0
M22759/33-24	24 AWG	0.241	19/36	AgCu Alloy (200 °C)	0.61	0.15	0.91	2.87	94.2
M22759/33-22	22 AWG	0.382	19/34	AgCu Alloy (200 °C)	0.76	0.15	1.07	4.24	57.4
M22759/33-20	20 AWG	0.616	19/32	AgCu Alloy (200 °C)	0.97	0.15	1.27	6.50	35.1

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
M22759/33 uses high-strength silver-coated copper alloy to prevent conductor breakage on fine 30–20 AWG aerospace signal harnesses under vibration.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Cable sizeDrum core diameter (mm)

Cable length on drum (m)

Enter your drum core diameterMinimum for this size is about 16 mm

Minimum bending radius: 8 mm
Min. drum core diameter: ≈ 16 mm
Cable weight on drum: 0.6 kg
Outer diameter: 1.3 mm

Indicative only: based on the datasheet outer diameter and 6 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
Impulse dielectric spark test	100% in-line 6.0 kV RMS impulse spark test per SAE AS22759	Every spool
Conductor DC resistance check	Verified at 20 °C against SAE AS22759 limits for tin-coated Cu (/32) and silver-coated Cu alloy (/33)	Every spool
Sample tests
Wet dielectric voltage withstand	2.5 kV RMS immersed dielectric test without breakdown	Production lot
Crosslink proof & thermal shock test	High-temperature crosslink verification (+300 °C) and −65 °C cold bend test	Production lot

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

SAE AS22759/32 & /33CE · LVDRoHS · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

M22759/32-[AWG]-[Color] or M22759/33-[AWG]-[Color] · CAGE / Manufacturer ID

Delivery form: Precision-wound non-returnable aerospace spools and reels
Lengths: Standard spool lengths and custom harness cut lengths
Certificate: EN 10204 3.1 inspection certificate with every dispatch
