industrial data rf cable seriesISO/IEC 11801 · Cat.5e / Cat.6A100 Ω · ECOLAB & Bio-Oil TPE-40 °C to +80 °C · Flame-Retardant

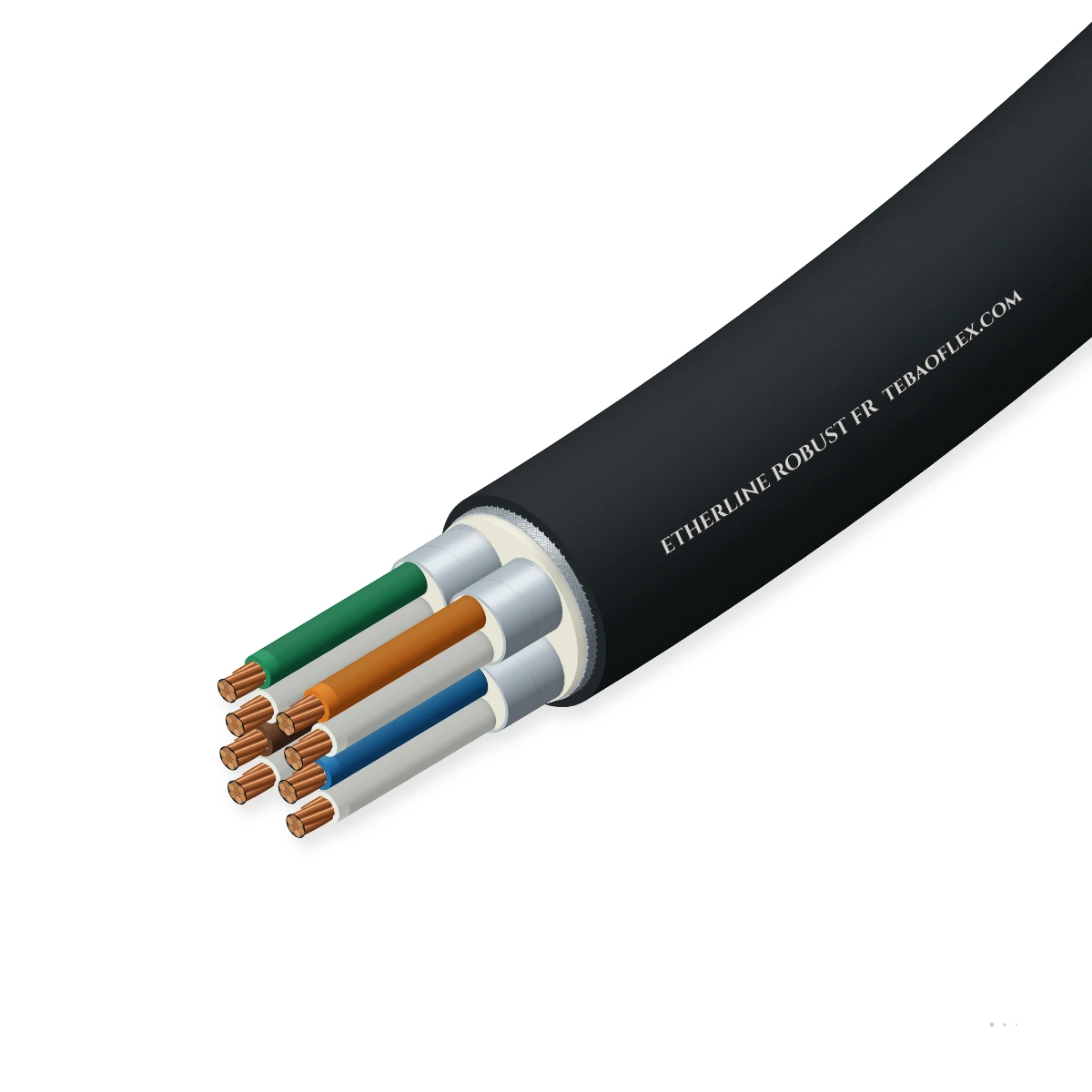

Industrial Ethernet Robust FR Weather- and Bio-Oil-Resistant Cable100 Ω Cat.5e / Cat.6A halogen-free FR TPE Ethernet cable for washdown & bio-oils

Halogen-free UV-, weather-, and bio-oil-resistant industrial Ethernet cable (Cat.5e SF/UTP and Cat.7 S/FTP) per ISO/IEC 11801 and EN 50288 with 7-wire tinned copper cores, 100 Ω pairs, foil + braid EMC screen, and ECOLAB-tested TPE/TPE-V FR sheath.

Oil-resistant
Water-resistant
Ozone, UV & moisture
Flame-retardant
Order designation
ROBUST FR PN Cat.5e Flex
Outer Ø ≈
6.50 mm
Wall thickness
0.90 mm
Total weight ≈
56.0 kg/km
Min. bend R (fixed)
26 mm
All sizes (8)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Impedance
100 Ω ± 15 Ω
1–100 MHz (Cat.5e) / 500 MHz (6A)
Categories
Cat.5e / Cat.6A
100 Mbps PROFINET to 10GBASE-T
Outer sheath
ROBUST FR TPE
Halogen-free flame-retardant TPE
Chemical proof
ECOLAB certified
Bio-oils, fats, acids & alkalis
Temperature
-40…+80 °C
Fixed · -25 to +80 °C flexing
Min bend radius
4 × OD fixed
8 × OD occasional flexing

Typical values for this cable type, based on ISO/IEC 11801 / EN 50173 / IEC 61156-6 (Halogen-Free TPE Industrial Ethernet) — confirmed in the datasheet and quotation for your order.

Application fit

Is Industrial Ethernet Robust FR right for your machine?

Specify ETHERLINE ROBUST FR for dairy, meat, and beverage bottling lines, agricultural machinery, car washes, and outdoor solar/wind plants exposed to hot water, ECOLAB detergents, and vegetable oils.

Fixed installation

Suitable

Flame-retardant TPE jacket resists animal fats, plant-based bio-oils, lactic acid, caustic soda, and outdoor UV weather.

Immersion & wet locations

Suitable

Low-water-absorption TPE sheath withstands daily high-pressure hot-water washdown and ECOLAB P3 foam sanitization.

VFD inverter to AC motor screened feeder

Suitable

SF/UTP (Al/PET foil + ≥ 85 % tinned braid) or S/FTP screening ensures Class D/EA EMC immunity near washdown servo drives.

Energy chain / drag chain

With conditions

7-wire stranded AWG 22/7 or 23/7 cores support occasional flexing (Type B); for cleanroom drag chains, use SABclean CATLine.

Use SABclean CATLine
Typical machinesFood, Dairy & Beverage Washdown LinesPharmaceutical & CIP/SIP SkidsMachine Tools with Bio-Ester CoolantsOutdoor Water & Sewage TreatmentCar-Wash & Agricultural Equipment

Construction

Layer by layer

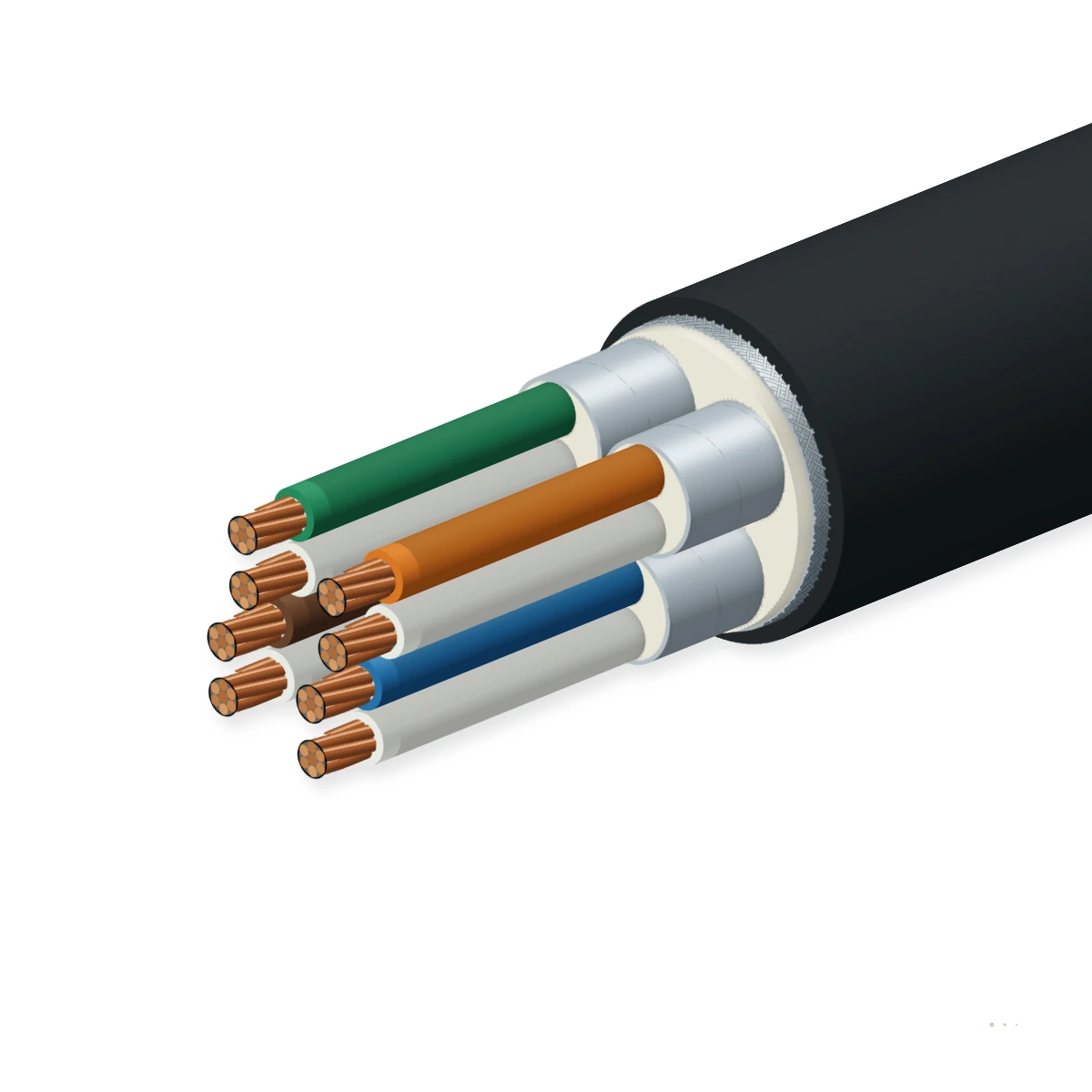

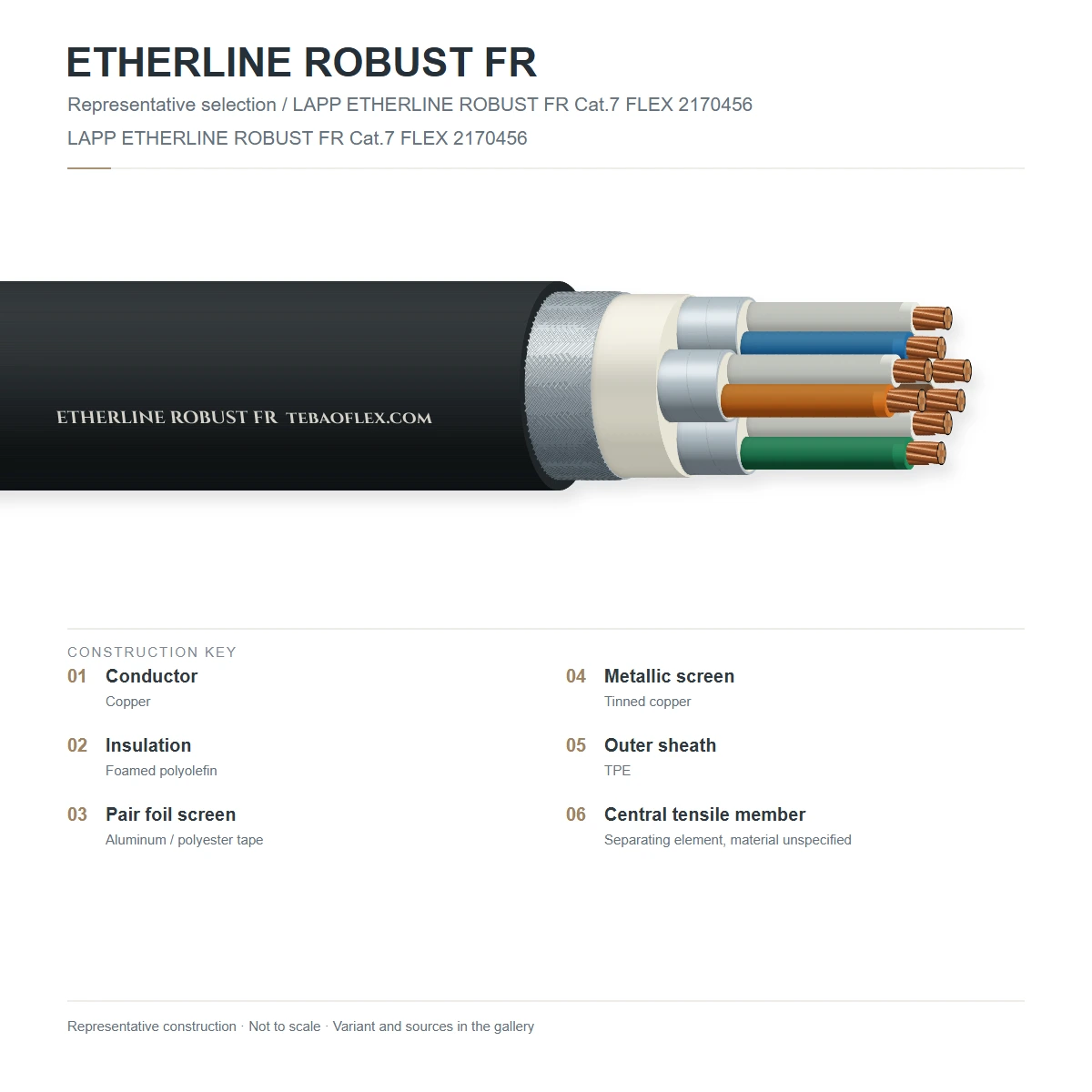

Washdown Industrial Ethernet build: 7-strand bare/tinned copper conductors, PO/foam-PE insulation (PROFINET star-quad or 4-pair), Al/PET foil + Sn-Cu braid, and black ROBUST FR TPE sheath.

12345
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
17-wire stranded copper conductorsStranded bare or tinned copper wires (AWG 22/7 for 2-pair Cat.5e; AWG 23/7 or 22/7 for 4-pair Cat.6A)PROFINET Type B vibration and flexing resilience
2Polyolefin / cellular PE core insulationLow-permittivity polyolefin (Cat.5e star-quad: yellow, white, orange, blue) or foam-skin PE (Cat.6A)Maintains 100 Ω ± 15 Ω impedance and 68–77 % velocity of propagation
3Inner inner-sheath / laminated aluminum foil screenHalogen-free inner bedding plus 100 % coverage aluminum-laminated polyester tape (plus PiMF on Cat.6A)High-frequency NEXT and alien-crosstalk suppression
4Tinned copper wire braid screenHigh-coverage tinned copper wire braid (≥ 85 % optical coverage)Low transfer impedance for industrial PROFINET and EtherNet/IP immunity
5Flame-retardant ROBUST TPE outer sheathSpecial halogen-free, flame-retardant thermoplastic elastomer (TPE, black RAL 9005)ECOLAB washdown, bio-oil, UV, ozone, and IEC 60332-1-2 flame resistance

ETHERLINE ROBUST FR PN Cat.5e (2×2×AWG22/7)

PROFINET Type B star-quad (yellow/white/orange/blue) SF/UTP cable, Ø 6.5 mm, 100 Mbps

ETHERLINE ROBUST FR Cat.6A (4×2×AWG23/7)

10 Gigabit Ethernet (500 MHz) S/FTP 4-pair washdown cable, Ø 8.8 mm, 10GBASE-T

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on ISO/IEC 11801 / EN 50173 / IEC 61156-6 (Halogen-Free TPE Industrial Ethernet). Values for your order are confirmed in the datasheet and quotation.

Electrical

Characteristic impedance
100 Ω ± 15 Ω (1–100 MHz / 500 MHz)
Loop DC resistance @ 20 °C
≤ 115 Ω/km (AWG 22/7) · ≤ 145 Ω/km (AWG 23/7)
Mutual capacitance @ 800 Hz
≈ 50 nF/km (50 pF/m) nominal
Velocity of propagation
68 % (Cat.5e solid PO) · 76 % (Cat.6A foam PE)
Dielectric test voltage
1,500 V AC rms (core/core & core/screen)

Thermal

Operating temp. (fixed)
-40 °C to +80 °C (-50 °C non-FR version)
Operating temp. (flexing)
-25 °C to +80 °C
Peak operating voltage
125 V (not for mains power purposes) / PoE+

Mechanical

Conductor build
7-wire stranded bare/tinned Cu (AWG 22/7, 23/7)
Overall cable diameter
6.5 mm (2×2×AWG22/7) · 8.8 mm (4×2×AWG23/7)
Min. bending radius
4 × OD (fixed) · 8 × OD (occasional flexing)

Resistance

Detergent & bio-oil resistance
ECOLAB certified · EN 60811-404 bio-oils & fats
Flame & halogen-free
IEC 60332-1-2 flame-retardant & IEC 60754-1/2
UV & weather resistance
ISO 4892-2 UV, ozone & outdoor weatherproof

Reference standards

Transmission standards
ISO/IEC 11801, EN 50173, PROFINET Guideline
PoE capability
IEEE 802.3af / 802.3at PoE+ & 802.3bt Type 3
RoHS, REACH & LABS
RoHS 3, REACH & LABS/PWIS-free

Identification

Outer sheath colour
Black (RAL 9005) UV-stabilized TPE
Surface legend
TEBAOFLEX ETHERLINE ROBUST FR PN CAT.5e 1x4xAWG22/7 HALOGEN-FREE
Customs tariff (HS)
8544.49

Sizes

8 standard configurations (ETHERLINE ROBUST FR)

Engineering dimensions, impedance, propagation velocity, and electrical ratings for ETHERLINE ROBUST FR per ISO/IEC 11801 / EN 50173 / IEC 61156-6 (Halogen-Free TPE Industrial Ethernet).

Dimensions & weights
Order designationImpedance / sizeConductor & dielectricWall ≈
mm		Outer Ø ≈
mm		Metal
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard ETHERLINE ROBUST FR configurations
ROBUST FR PN Cat.5e Flex1×4×AWG22/7 · 100 ΩAWG 22/7 Star-Quad SF/UTP0.906.5032.056.026
ROBUST FR PN Cat.5e Solid1×4×AWG22/1 · 100 ΩAWG 22/1 Star-Quad SF/UTP0.906.4031.054.026
ROBUST FR Cat.5e 4-Pair4×2×AWG24/7 · 100 ΩAWG 24/7 4-Pair SF/UTP0.906.6029.055.027
ROBUST FR Cat.6A Flex4×2×AWG23/7 · 100 ΩAWG 23/7 4-Pair S/FTP1.058.8044.086.036
ROBUST FR Cat.6A Heavy4×2×AWG22/7 · 100 ΩAWG 22/7 4-Pair S/FTP1.109.4052.098.038
ROBUST FR Cat.6A Solid4×2×AWG22/1 · 100 ΩAWG 22/1 4-Pair S/FTP1.059.1050.092.037
ROBUST FR Cat.7 600MHz4×2×AWG23/7 · 100 ΩAWG 23/7 PiMF S/FTP1.058.9045.088.036
ROBUST FR Patch Cat.5e2×2×AWG26/7 · 100 ΩAWG 26/7 Patch SF/UTP0.755.4019.036.022
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal engineering values for ETHERLINE ROBUST FR subject to standard manufacturing tolerances per ISO/IEC 11801 / EN 50173 / IEC 61156-6 (Halogen-Free TPE Industrial Ethernet).

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
Characteristic impedance, return loss (VSWR) & TDR sweep100 % frequency-domain return loss and TDR impedance verification per ISO/IEC 11801 / EN 50173 / IEC 61156-6 (Halogen-Free TPE Industrial Ethernet)Every manufactured length
Dielectric spark & high-voltage withstand test100 % in-line spark and AC/DC dielectric withstand per ISO/IEC 11801 / EN 50173 / IEC 61156-6 (Halogen-Free TPE Industrial Ethernet)Every spool or drum length
Sample tests
Insertion loss (attenuation), velocity & capacitance checkAttenuation (dB/100m), VoP (%), and capacitance within ISO/IEC 11801 / EN 50173 / IEC 61156-6 (Halogen-Free TPE Industrial Ethernet) limitsPer production batch
Screening attenuation, transfer impedance & environmental qualificationQualified to ISO/IEC 11801 / EN 50173 / IEC 61156-6 (Halogen-Free TPE Industrial Ethernet) EMC shielding, thermal, and flame/fluid criteriaType qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

ISO/IEC 11801 / EN 50173 / IEC 61156-6 (Halogen-Free TPE Industrial Ethernet)CE (2014/35/EU) & RoHS 3 (2015/863/EU) CompliantREACH SVHC Compliance Verified

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX ETHERLINE ROBUST FR PN CAT.5e 1x4xAWG22/7 TPE HALOGEN-FREE
Delivery form
Export wooden drums, flange reels or precision coils
Standard lengths
100 m · 305 m · 500 m · 1000 m (or custom cut lengths)
MOQ
100 m (stock sizes) · 300–500 m (custom build)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFIndustrial Ethernet Robust FR Weather- and Bio-Oil-Resistant Cable – technical datasheet8 sizes · construction, technical data, approvalsXLSXIndustrial Ethernet Robust FR spec data (Excel)All 8 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

Why choose ETHERLINE ROBUST FR over standard PVC or PUR Industrial Ethernet cables in food & beverage plants?
Standard PVC hardens and cracks when exposed to vegetable/animal oils and caustic washdown foams, while standard PUR can degrade under concentrated nitric/lactic acids and hot hypochlorite sanitizers. The ROBUST FR thermoplastic elastomer (TPE) jacket is ECOLAB-tested against aggressive acid/alkaline disinfectants and bio-oils.
What does the 'FR' suffix signify in ETHERLINE ROBUST FR?
The 'FR' version uses a halogen-free, flame-retardant TPE compound that passes IEC 60332-1-2 vertical flame propagation testing while retaining full chemical, UV, and washdown resistance.
Is ETHERLINE ROBUST FR compatible with FastConnect (FC) RJ45 and M12 connectors?
Yes. The 1×4×AWG22/7 and 1×4×AWG22/1 PROFINET Cat.5e versions have a 6.5 mm outer diameter and inner sheath geometry matched to standard M12 D-coded and RJ45 field-terminable industrial plugs.
Can ETHERLINE ROBUST FR be installed outdoors without conduit?
Yes. The black RAL 9005 TPE sheath is UV-stabilized per ISO 4892-2, ozone-resistant, and rated down to -40 °C fixed (-50 °C for non-FR variants).
