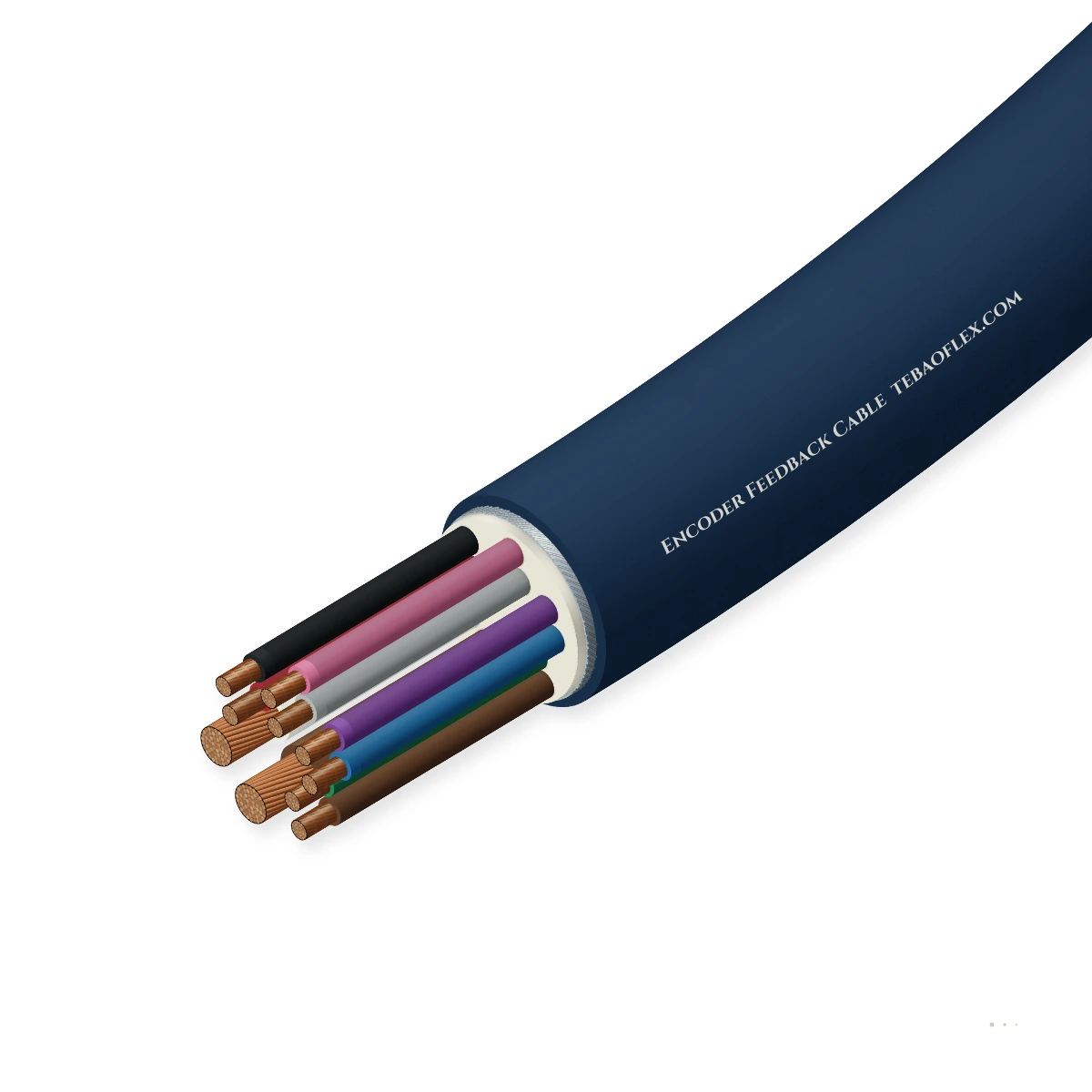

Encoder feedback drag-chain cable30/300 V UL AWMTwisted Pairs + SupplyDESINA RAL 6018

Encoder Feedback CableMulti-pair + DC supply screened PUR drag-chain encoder cable

High-flexibility measuring-system cable combining low-capacitance PP signal twisted pairs (0.14–0.25 mm²) for differential clock/data tracks with larger 0.5–1.0 mm² DC supply cores, overall ≥ 85 % tinned copper braid and DESINA green RAL 6018 PUR jacket.

Low-EMC design
EMC screen
Oil-resistant
Flame-retardant
Order designation
ENC-FD-CP 4×2×0.14+4×0.5
Outer Ø ≈
8.5 mm
Total copper
48 kg/km
Total weight ≈
92 kg/km
Min. bend R (chain)
64 mm
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
300 V (UL)
VDE 350 V peak · 30 V Style 20236
Capacitance
≈ 50 pF/m
low-cap PP twisted signal pairs
Bend radius
7.5 × OD
moving in chain · 4 × OD fixed
Acceleration
Up to 50 m/s²
travel speed up to 5 m/s
Temperature
−40…+80 °C
moving · −50…+80 °C fixed
Outer sheath
PUR (RAL 6018)
DESINA green · halogen-free

Typical values for this cable type, based on DIN VDE 0812 / UL AWM Style 20236 — confirmed in the datasheet and quotation for your order.

Application fit

Is Encoder Feedback Cable right for your machine?

Engineered for optical and magnetic rotary/linear encoders (EnDat, SinCos 1 Vpp, SSI, HIPERFACE, TTL/HTL, DRIVE-CLiQ) in high-speed cable carriers.

Energy chain / drag chain

Suitable

Fine-stranded signal pairs + 0.5/1.0 mm² supply cores survive ≥ 8 million cycles at 7.5 × OD and 50 m/s².

Fixed installation

Suitable

UL/CSA AWM recognition and flame-retardant PUR jacket allow direct routing into drive cabinets.

Festoon & line chain

Suitable

Suitable for C-rail festoons feeding linear scales and crane hoist position encoders.

VFD inverter to AC motor screened feeder

Not suitable

Low-voltage measuring cable only; for 0.6/1 kV motor power use Shielded Servo Motor Power Cable.

Use Shielded Servo Motor Power Cable
Typical machinesCNC Spindle & Linear EncodersSemiconductor Wafer StagesCoordinate Measuring MachinesServo Packaging & Printing AxesRobotics & Gantry Position Scales

Construction

Layer by layer

Shown: 4×2×0.14 + 4×0.5 hybrid encoder feedback cable with four twisted signal pairs, four 0.5 mm² DC supply/sense cores, overall tinned copper braid and green RAL 6018 PUR jacket.

123456
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Signal & DC supply conductorsSuperfine stranded bare/tinned copper (0.14–0.25 mm² data pairs + 0.5–1.0 mm² power cores)IEC 60228 Class 6
2Low-capacitance insulationPolypropylene (PP / cellular PE) with colour code per DIN 47100 / OEM encoder standardLow capacitance ≈ 50 pF/m for clean differential square waves
3Differential pair & supply lay-upShort-pitch twisted signal pairs laid up with 0.5/1.0 mm² 5 V / 12 V supply and sense coresCancels magnetic cross-talk and eliminates 5 V encoder supply drop
4PTFE / fleece sliding wrapNon-woven anti-friction tape over hybrid core bundlePrevents pair untwisting during 50 m/s² carrier reversals
5Overall EMC braid screenTinned copper wire braid (≥ 85 % optical coverage; optional inner pair screens on 'C' types)High-frequency EMI immunity alongside VFD motor cables
6Outer motion jacketHalogen-free polyurethane (TMPU), DESINA green RAL 6018DIN EN 50363-10-2 · oil, coolant & abrasion resistant

Overall Screened (CP)

Twisted signal pairs + larger 0.5/1.0 mm² DC supply cores inside an overall ≥ 85 % tinned copper braid

Individually + Overall Screened

Critical Sin/Cos or clock pairs wrapped in individual tinned copper screens (2×0.14)C plus overall copper braid

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0812 / UL AWM Style 20236. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
300 V (UL AWM) · 350 V peak (VDE)
AC test voltage
1500 V AC core/core · 1000 V AC core/screen
Screen / Field control
Tinned copper braid ≥ 85 % (+ pair screens on C types)
Capacitance
≈ 50 pF/m (core/core) · ≈ 90 pF/m (core/screen)
Insulation resistance
≥ 1000 MΩ·km at 20 °C

Thermal

Temperature, flexing
−40 °C to +80 °C
Temperature, fixed installation
−50 °C to +80 °C
Max. conductor temperature
+80 °C

Mechanical

Min. bending radius, moving
7.5 × OD in energy chain
Min. bending radius, fixed
4 × OD
Max. travel speed
5 m/s gliding · 10 m/s unsupported
Max. acceleration
Up to 50 m/s²

Resistance

Oil resistance
DIN EN 50363-10-2 · UL Oil Res I & II
Flame retardance
IEC 60332-1-2 · UL 1581 FT1 / VW-1
Halogen-free / Smoke density
IEC 60754-1/2 halogen-free PUR
Hydrolysis & microbes
Hydrolysis-resistant polyether PUR (EN ISO 846)

Reference standards

Cable type (construction standard)
Heidenhain / Siemens / Sick / Fanuc feedback spec
Conductor
IEC 60228 Class 6 superfine copper
Product approvals
UL AWM Style 20236 / 20233 · CSA AWM I/II A/B
RoHS & REACH
2011/65/EU (RoHS 2) & EC 1907/2006 compliant

Identification

Sheath colour
Green (RAL 6018 per DESINA measuring systems)
Core identification
DIN 47100 colour code / OEM encoder pair colours
Marking
TEBAOFLEX ENC-FD-CP <size> DESINA 80C 300V UL CE
Customs tariff (HS)
8544.49

Sizes

12 standard OEM-matched encoder feedback configurations

Hybrid twisted signal pairs + 0.5/1.0 mm² DC supply cores for optical/magnetic incremental and absolute encoders.

Dimensions & weights
Order designationConfigurationTypical encoder interfaceOuter Ø ≈
mm
Total Cu
kg/km
Weight ≈
kg/km
Min. bend R
chain mm
Enquiry
EnDat / SSI / HIPERFACE 8–12 core encoder cables
ENC-FD-CP 4×2×0.14+4×0.54×2×0.14 + 4×0.5Heidenhain / Incremental + 5 V Sense8.5489264
ENC-FD-CP 4×2×0.25+2×1.04×2×0.25 + 2×1.0EnDat / SSI Long-Run Feedback8.85610466
ENC-FD-CP 3×2×0.14+2×1.03×2×0.14 + 2×1.0Absolute EnDat / BiSS-C Encoder7.8428258
ENC-FD-CP 2×2×0.14+2×(0.5)C2×2×0.14 + 2×(0.5)CSick HIPERFACE Feedback7.6407857
SinCos 1 Vpp / TTL / Fanuc 12–18 core encoder cables
ENC-FD-CP 4×2×0.14+4×0.14+4×0.54×2×0.14 + 4×0.14 + 4×0.516-Pin Incremental + Commutation9.15811268
ENC-FD-CP 3×(2×0.14)C+4×0.14+2×0.53×(2×0.14)C + 4×0.14 + 2×0.5Siemens SinCos 1 Vpp Measuring9.46612470
ENC-FD-CP 3×(2×0.14)C+4×0.14+4×0.22+2×0.53×(2×0.14)C + 4×0.14 + 4×0.22 + 2×0.5Multi-Track SinCos + Thermal10.27914676
ENC-FD-CP 8×2×0.188×2×0.18TTL / HTL 16-Core Differential8.6529864
ENC-FD-CP 10×0.14+2×0.510×0.14 + 2×0.512-Core Standard Rotary Encoder7.9418459
ENC-FD-CP 12×0.22+2×0.512×0.22 + 2×0.5Fanuc / Mitsubishi Pulse Coder8.75410265
Digital 24 V / Single-cable serial encoder cables
ENC-FD-CP 2×(2×0.20)C+(2×0.38)2×(2×0.20)C + (2×0.38)24 V Digital DRIVE-CLiQ Style7.1387253
ENC-FD-CP 1×2×0.22+2×0.51×2×0.22 + 2×0.54-Wire Single-Pair Digital Encoder6.4295848
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Larger 0.5 mm² and 1.0 mm² cores inside each configuration supply 5 V DC power and remote voltage-sense lines to prevent encoder brownouts.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Check results

Drum core 100 mm is below 128 mmUse a larger drum core or a smaller cable size
240 m/min ≤ 300 m/minWithin the rated travel speed
Minimum bending radius
64 mm
Min. drum core diameter
≈ 128 mm
Cable weight on drum
1.4 kg
Copper content
0.7 kg
Indicative only: based on the datasheet outer diameter and 7.5 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC voltage dielectric test1500 V AC core/core · 1000 V AC core/screen for 5 minEvery manufactured length
Pair capacitance & impedance balanceMutual capacitance ≤ 55 pF/m at 1 kHz across all data pairsEvery drum length
Sample tests
High-speed drag-chain endurance test≥ 8 million flex cycles at 7.5 × OD without bit-error or core breakPeriodic lot test
Oil, coolant & flame resistancePass DIN EN 50363-10-2 TMPU oil test and IEC 60332-1-2 / UL VW-1Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

CE & RoHS 2 / REACH CompliantUL AWM Style 20236 / 20233 (80 °C 30 V / 300 V)DESINA Measuring-System Green (RAL 6018)

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX ENC-FD-CP <size> DESINA GREEN AWM 20233 80C 300V CE
Delivery form
Non-returnable fumigated wooden drums or coils
Standard lengths
100 m · 500 m · 1000 m (cut lengths on request)
MOQ
100 m (stock sizes) · 300 m (custom)
Lead time
2–3 weeks ex-works
Incoterms
EXW, FCA, FOB, CIF, DAP

Technical documents

Downloads

Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

Why does an Encoder Feedback Cable combine 0.14 mm² signal pairs with thicker 0.5 mm² or 1.0 mm² cores?
Optical encoders such as Heidenhain EnDat and SinCos 1 Vpp require a tightly regulated 5.0 V ± 5 % DC supply at the sensor head, while drawing 150 to 300 mA. If 0.14 mm² wires (138 Ω/km) were used for the 5 V supply over a 25 m drag-chain run, ohmic voltage drop would cause encoder under-voltage faults. Dedicated 0.5 mm² or 1.0 mm² supply cores plus remote sense lines keep 5 V regulation exact.
What is the difference between Encoder Feedback Cable and Resolver Feedback Cable?
Optical and digital encoders transmit high-frequency differential clock/data or 1 Vpp Sin/Cos signals and rely heavily on low-capacitance PP pairs plus heavy 5 V supply cores (e.g. 4×2×0.14 + 4×0.5). Magnetic resolvers operate at 4–10 kHz carrier excitation with higher excitation voltage and require individually screened twisted pairs — such as 3×(2×0.14)C + (2×0.5)C — to prevent phase-shift cross-talk between Sin, Cos, and Reference windings.
Why is low pair capacitance (≈ 50 pF/m) critical for EnDat 2.2, SSI, and BiSS-C absolute encoders?
Serial absolute encoders transmit RS-485 differential clock and data pulses at up to 16 MHz. Standard PVC insulation (~120 pF/m) rounds off the rising edges and increases propagation delay skew over runs longer than 15 m. Polypropylene (PP) insulation (~50 pF/m) preserves sharp square-wave edges up to 50–100 m.
Why is the outer PUR sheath coloured green (RAL 6018)?
Green (RAL 6018) is the DESINA® standard colour assigned to position measuring and encoder feedback cables on machine tools and robotics, allowing instant visual separation from orange (RAL 2003) servo power cables.
