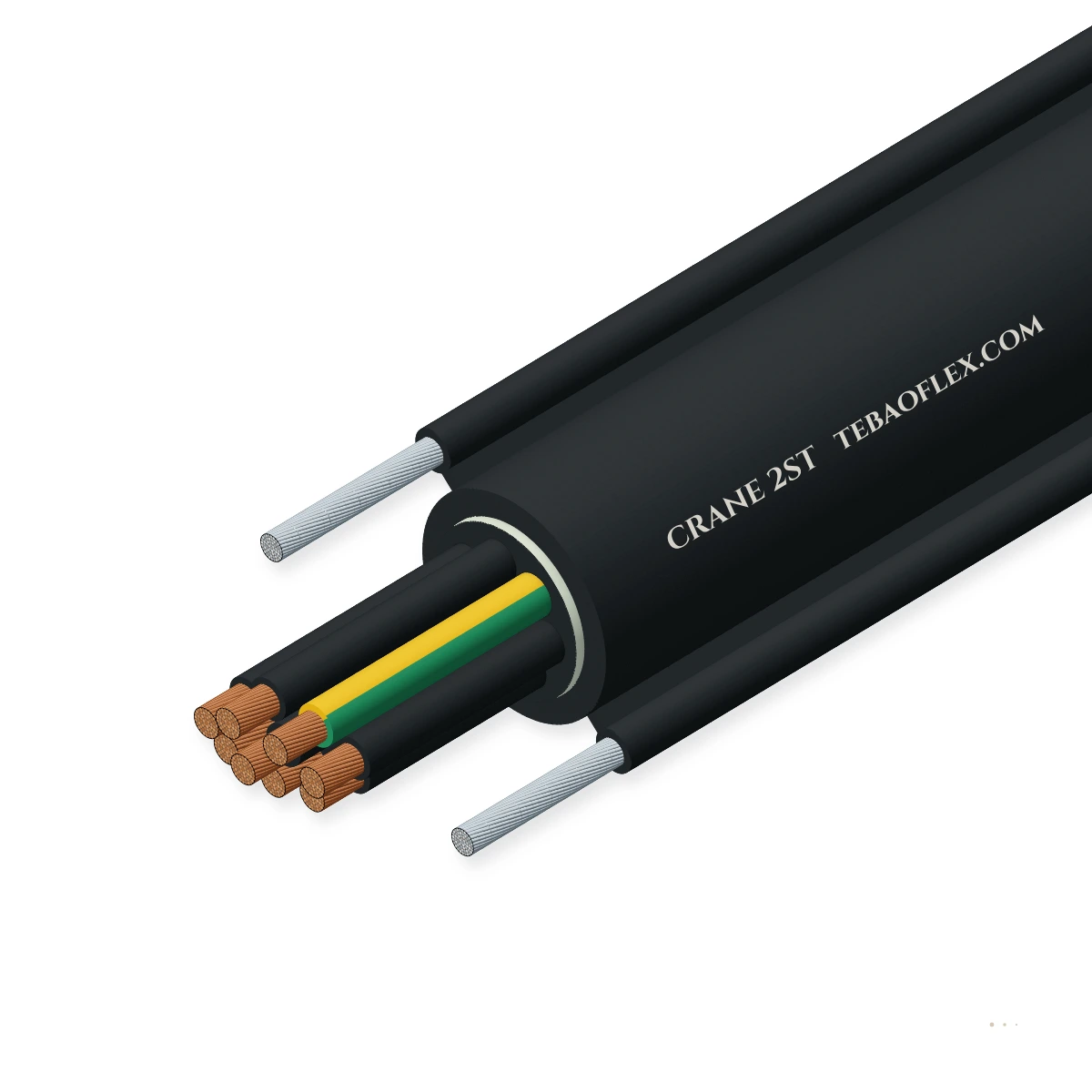

CRANE-2ST 300/500 V Self-Supporting PVC Pendant Control CableFigure-8 pendant push-button control cable with two opposing steel support ropes

Self-supporting 300/500 V PVC pendant control cable (CRANE-2ST / FYMYTW) for crane push-button stations and hoists, with Class 5 copper cores, numbered PVC insulation and two opposing galvanized steel wire ropes (2,100 N each) in side webs.

Flame-retardant

Oil-resistant

Ozone, UV & moisture

Cores × cross-section

Order designation: CRANE-2ST 12G1.5
Body Ø: 15.5 mm
Over webs: 21.0 mm
Weight ≈: 510 kg/km
Steel load: 4,200 N

Check against my drum All sizes (9)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Rated voltage: 300/500 V
Test voltage: 4.0 kV
Support wires: 2 × 2,100 N
Bending radius: 20 × D
Flexing temp.: -15 to +70 °C
Flame rating: IEC 60332-1-2

Typical values for this cable type, based on DIN VDE 0285 / IEC 60227 — confirmed in the datasheet and quotation for your order.

Application fit

Is CRANE-2ST right for your machine?

Round PVC control cable with two vulcanised external galvanized steel wire ropes in side ears for overhead crane push-button pendant stations.

Self-supporting pendant & push-button drop

Suitable

Primary duty — twin external steel ropes take 100 % of the pendant box weight while copper cores stay strain-free.

Free-hanging vertical run

Suitable

Free-hanging vertical control drops up to 50 m+ on bridge cranes, hoists and monorails.

Festoon & line chain

With conditions

Usable on light C-rail trolley loops driving a travelling operator pendant.

Motorised monospiral reel

Not suitable

External side-ear steel wire profile cannot wind smoothly onto a reeling drum.

Use C800 PVC Reeling

Energy chain / drag chain

Not suitable

Figure-8 side-web profile is incompatible with enclosed energy chains.

Use (N)12YRD11Y PUR Chain

Typical machinesOverhead bridge & workshop cranesElectric chain & wire-rope hoistsMonorail & jib crane pendant switchesWarehouse & assembly-line gantriesStage & industrial lifting gearMachine tool pendant stations

Construction

Layer by layer

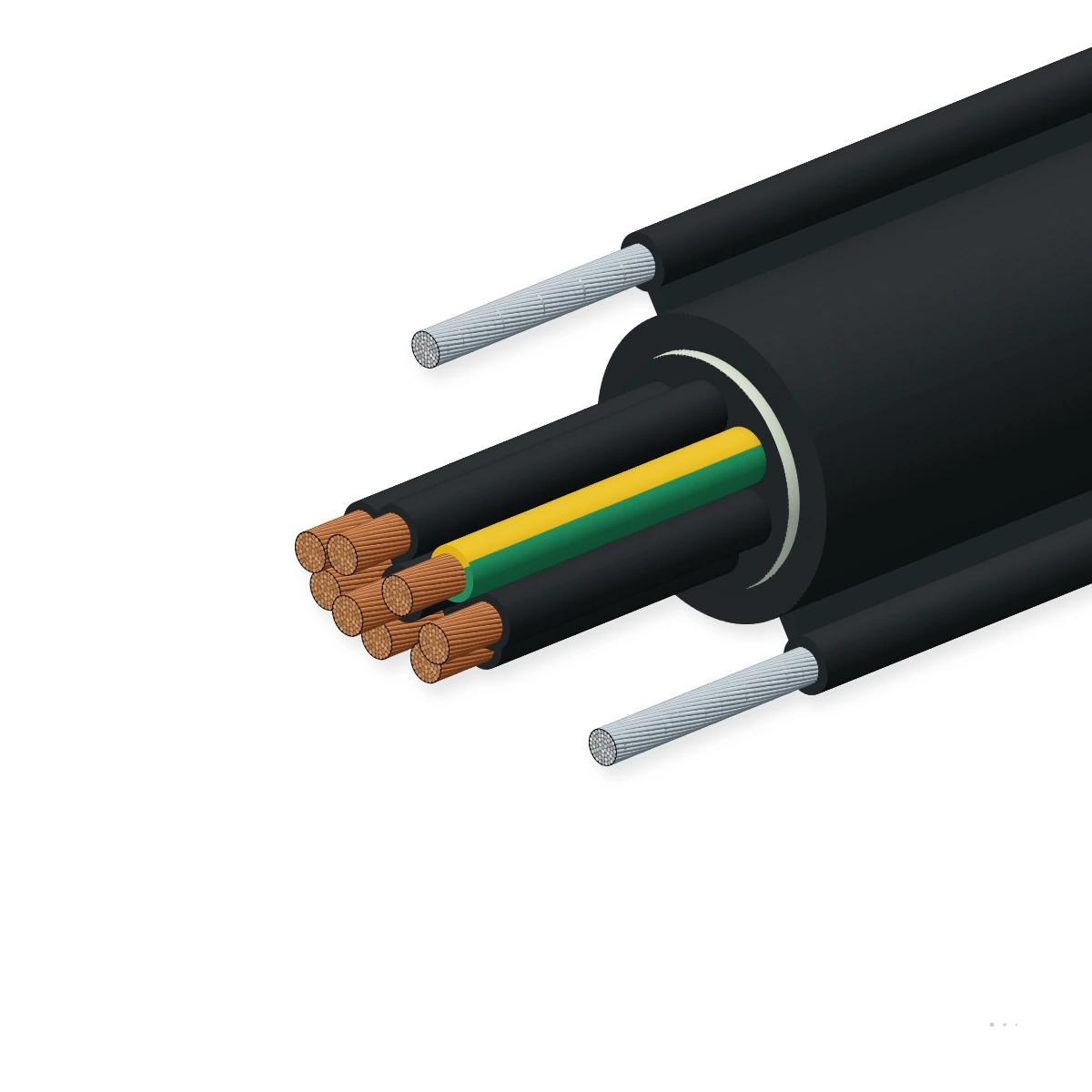

Shown: CRANE-2ST 12G1.5 — 12 Class 5 copper cores (black with white numbers + green-yellow earth), non-woven wrapping tape, and black oil-resistant PVC outer sheath with two opposing galvanized steel support ropes embedded in side webs.

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Conductor	Finely stranded bare copper wires, Class 5IEC 60228 / DIN VDE 0295 Class 5
2	Core insulation	Special PVC compound, black cores with white printed numbers + 1 green-yellow earth coreDIN VDE 0207 / VDE 0293
3	Wrapping	Non-woven fleece tape over the stranded core bundleAllows cores to slide freely without kinking during pendant movement
4	Supporting elements (2 × steel)	Two opposing galvanized steel wire ropes embedded in external lateral sheath webs2,100 N tensile load capacity per steel element (4,200 N pair)
5	Outer sheath	Oil-resistant special PVC compound, black (RAL 9005)Flame-retardant IEC 60332-1-2 · Easy web separation for strain-relief clamps

CRANE-2ST 8G1.5 – 20G1.5

Standard 1.5 mm² pendant control series (8, 12 and 20 cores) with 2 × 2,100 N steel ropes

FYMYTW 12G1.0 – 30G1.5

Extended 1.0 mm² and 1.5 mm² pendant range (5 to 30 cores) with opposing steel support webs

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0285 / IEC 60227. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U: 300/500 V
AC test voltage: 4,000 V (5 min)

Thermal

Operating temperature — flexing: -15 to +70 °C
Max. conductor operating temperature: +70 °C (short-circuit +160 °C)

Mechanical

Integrated strain relief: 2 opposing galvanized steel wire ropes embedded in outer sheath webs (2,100 N tensile load per steel element)
Min. bending radius: 20 × cable diameter D for occasional flexing

Reference standards

Conductor & core identification: IEC 60228 Class 5 fine-wire bare copper · Black PVC cores with white numbers + green-yellow earth (VDE 0293)
Flame & oil resistance: Flame-retardant IEC 60332-1-2 · Oil-resistant special PVC outer sheath

Sizes

Dimensions, weights & electrical ratings

9 self-supporting CRANE-2ST / FYMYTW pendant control configurations (5 to 30 cores in 1.0 mm² and 1.5 mm²)

Dimensions & weights
Order designation	Cores × mm²	AWG ≈	Body Ø mm	Width over webs mm	Copper kg/km	Weight ≈ kg/km	Min. bend R mm	Steel load (2×) N
All sizes
1.5 mm² (5G–30G)
CRANE-2ST 5G1.5	5 G 1.5	16	8.7	15.7	72	183	174	4,200
CRANE-2ST 8G1.5	8 G 1.5	16	13.6	19.0	115	430	272	4,200
CRANE-2ST 12G1.5	12 G 1.5	16	15.5	21.0	173	510	310	4,200
CRANE-2ST 16G1.5	16 G 1.5	16	15.2	22.4	230	464	304	4,200
CRANE-2ST 20G1.5	20 G 1.5	16	20.0	25.0	288	720	400	4,200
CRANE-2ST 30G1.5	30 G 1.5	16	20.5	27.6	432	761	410	4,200
1.0 mm² (12G–25G)
CRANE-2ST 12G1.0	12 G 1.0	18	12.0	18.8	115	290	240	4,200
CRANE-2ST 18G1.0	18 G 1.0	18	14.3	21.3	173	396	286	4,200
CRANE-2ST 25G1.0	25 G 1.0	18	17.1	24.3	240	520	342	4,200

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Body Ø / Width over webs (mm) denotes the round cable body diameter and the total width across the two opposing external steel-rope webs.

Electrical & conductor data
Cross-section mm²	AWG ≈	Max. R20 Ω/km	Base rating in air 30 °C, A	Short-circuit 1 s kA
1.0	18	19.5	15	0.12
1.5	16	13.3	18	0.17

Apply DIN VDE 0298-4 multicore grouping factors for simultaneously loaded control cores.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Cable sizeDrum core diameter (mm)

Travel speed (m/min)

m/min

Expected tensile force (N)

Cable length on drum (m)

Drum core 320 mm is below 620 mmUse a larger drum core or a smaller cable size

40 m/min ≤ 60 m/minWithin the rated travel speed

500 N exceeds 0 N dynamicChoose a larger cross-section or reduce tension

Minimum bending radius: 310 mm
Min. drum core diameter: ≈ 620 mm
Cable weight on drum: 15.3 kg
Copper content: 5.2 kg

Indicative only: based on the datasheet outer diameter and 20 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
AC voltage test	4,000 V, 5 min	Every length
Conductor resistance	IEC 60228 / DIN VDE 0295 Class 5	Every length
Sample tests
Flame propagation	IEC 60332-1-2	Per batch
Steel support element tensile test	≥ 2,100 N per steel wire rope	Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

300/500 VCE · LVDRoHS · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX CRANE-2ST 12G1.5 300/500 V · SELF-SUPPORTING · CE · [year] · [metre mark]

Standard packing: 500 m / 1,000 m on drums or cut-to-length pendant drops
HS code: 8544.49

Technical documents

Downloads

PDFCRANE-2ST 300/500 V Self-Supporting PVC Pendant Control Cable – technical datasheet9 sizes · construction, technical data, approvals XLSXCRANE-2ST spec data (Excel)All 9 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20
