Control & signal cableDIN VDE 0250-814300/500 V · 3G Silicone CoreGravity Spreader Basket

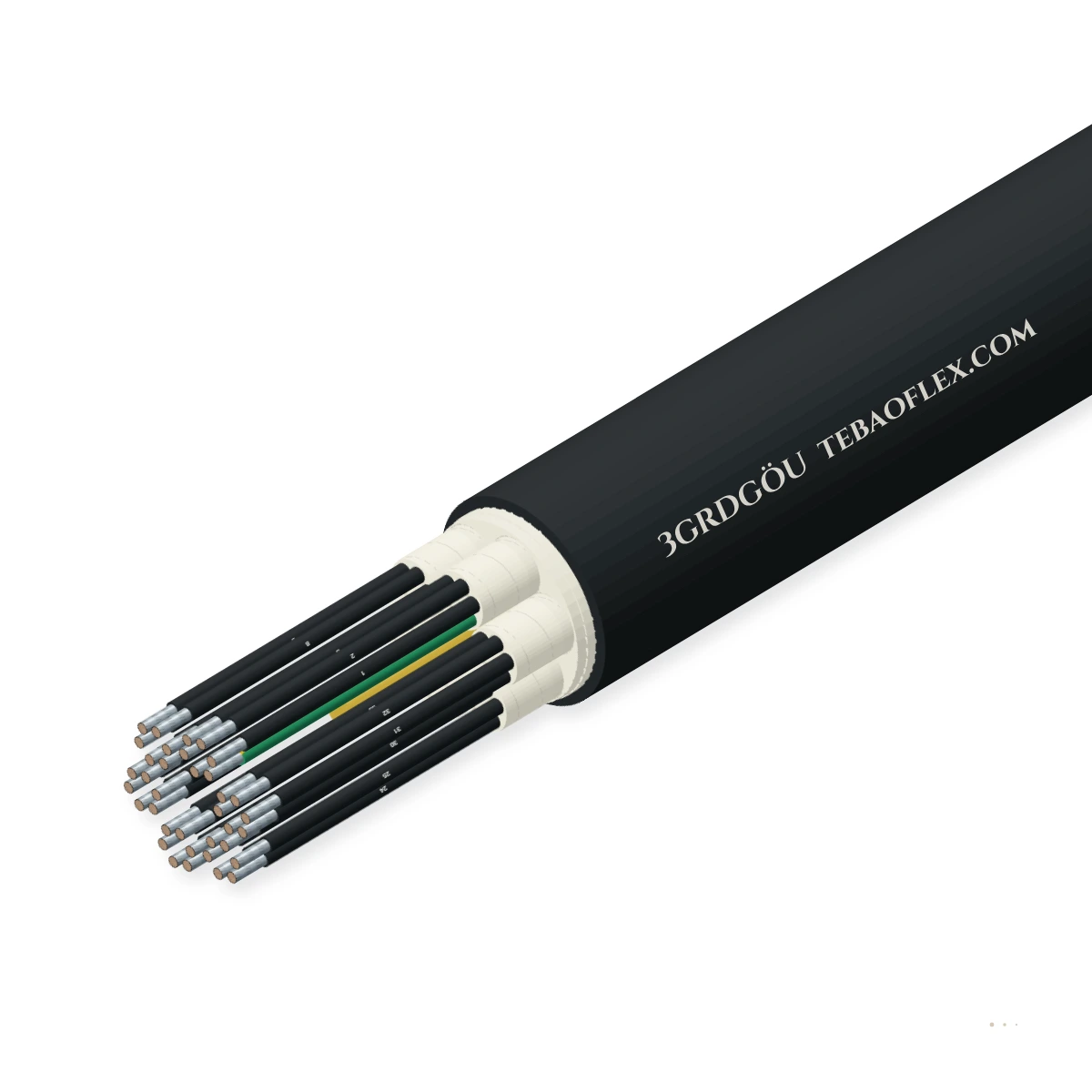

3GRDGÖU Rubber Collector-Basket Spreader CableDIN VDE 0250 300/500 V 3G silicone-core & 5GM3 rubber crane spreader basket cable

3GRDGÖU (DIN VDE 0250, 300/500 V) vertical gravity-fed crane spreader collector-basket control cable combining Class 5/6 tinned copper cores, cold-limp '3G' silicone rubber core insulation, 'RD' anti-torsion textile braid, and a 5GM3 PCP jacket ('GÖU').

Anti-torsion braid
Oil-resistant
Ozone, UV & moisture
Outdoor & humid
Order designation
3GRDGÖU 36G1.5
Outer Ø ≈
23.00 mm
Wall thickness
1.80 mm
Total weight ≈
1,195.5 kg/km
Min. bend R (fixed)
230 mm
All sizes (13)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
300/500 V
U0/U · 2000 V AC test voltage
Temperature
-40…+90 °C
Dynamic basket · +180 °C 3G core
Core dielectric
3G Silicone
Supple low-stiffness silicone
Anti-torsion
RD braid + core
Central support + torsion braid
Outer jacket
5GM3 PCP (GÖU)
Oil & seawater resistant rubber
Basket speed
Up to 160 m/min
Gravity coiling into basket

Typical values for this cable type, based on DIN VDE 0250-814 / VDE 0250 (3G Silicone + RD + GÖU) — confirmed in the datasheet and quotation for your order.

Application fit

Is 3GRDGÖU right for your machine?

Specify 3GRDGÖU for STS and RMG/RTG container crane headblock-to-spreader gravity collector baskets where the cable must coil under its own weight without corkscrewing.

Spreader gravity collector basket

Suitable

Supple 3G silicone cores let the cable drop and coil smoothly by gravity into conical spreader baskets up to 160 m/min.

Free-hanging vertical run

Suitable

Central synthetic load-bearing core and double-sheath anti-torsion braid (RD) support vertical free-hanging loops up to 50–80 m.

Offshore platform & shipboard deck trays

Suitable

Heavy-duty 5GM3 polychloroprene outer sheath (GÖU) resists marine salt spray, hydraulic spreader oil, and UV sunlight.

Motorised monospiral reel

Not suitable

Optimised for gravity-fed collector baskets rather than high-tension horizontal travelling monospiral reels.

Use Spreader Reel Cable
Typical machinesSTS Quayside Container CranesRMG & RTG Intermodal CranesAutomated Stacking Cranes (ASC)Grab & Bulk Unloader BasketsPort Spreader Twistlock Controls

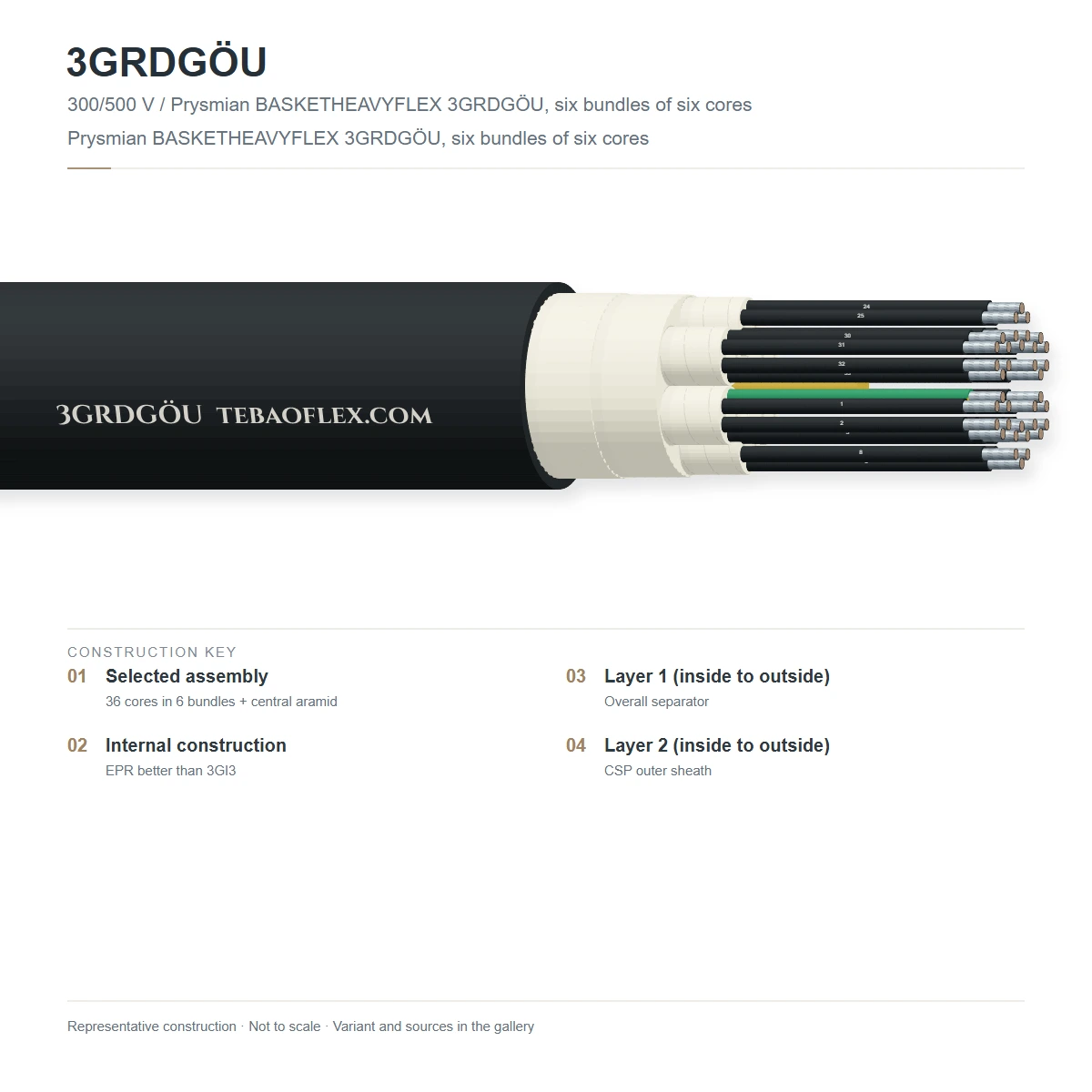

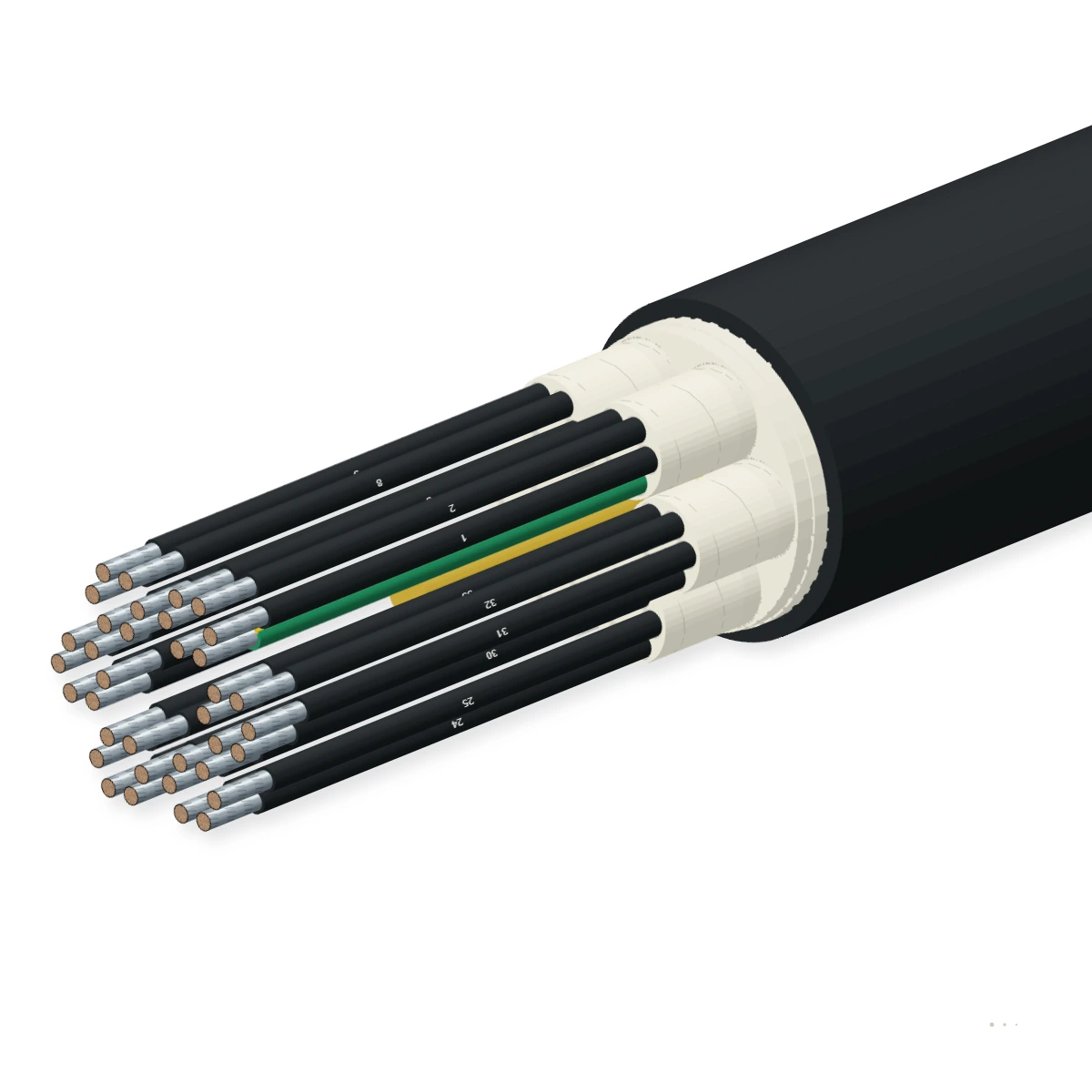

Construction

Layer by layer

VDE 0250-814 spreader basket build: central textile/aramid strain core, Class 5/6 tinned copper conductors, 3G silicone core insulation, inner rubber sheath, RD anti-torsion braid, and 5GM3 PCP jacket.

123456
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Fine-stranded tinned copperTinned annealed copper conductors (IEC 60228 Class 5 / Class 6) laid in reverse-lay concentric layersTin coating prevents corrosion and sulphide blackening in coastal port air
2Central load-bearing support coreHigh-tensile synthetic aramid/polyester centre cord with elastomeric cushionAbsorbs dynamic vertical suspension weight and snatch loads during spreader hoisting
33G silicone rubber core insulationHeat- and cold-elastic silicone elastomer Type 3G (DIN VDE 0207-20, numbered cores)Remains ultra-limp at -40 °C so the cable coils by gravity without spring-back
4Inner elastomer bedding sheathVulcanised rubber inner sheath filling the core intersticesLocks core geometry to prevent internal core migration during basket coiling
5Anti-torsion textile braid (RD)vulcanised high-tenacity synthetic yarn anti-torsion braid between inner and outer sheathsNeutralises rotational torque (±25°/m) as the cable loops into the round collector basket
6Heavy-duty PCP outer sheath (GÖU)Oil-, flame-, and weather-resistant polychloroprene compound Type 5GM3 (black or yellow)Withstands repeated impact against steel spreader baskets and twistlock hydraulic fluids

3GRDGÖU Control (24G1.5–61G1.5)

Multi-conductor 1.5 mm² and 2.5 mm² spreader control cable for twistlock, flipper, and PLC I/O signals

3GRDGÖU Hybrid Power/Control

Combined 4×(4–16 mm²) power cores + 24–36×(1.5–2.5 mm²) control cores in a single basket cable

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0250-814 / VDE 0250 (3G Silicone + RD + GÖU). Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
300/500 V AC (max. operating 330/550 V)
AC dielectric test voltage
2,000 V AC (50 Hz, 5 min)
Insulation resistance
≥ 200 MΩ·km at +20 °C (3G silicone)
Conductor DC resistance
IEC 60228 Class 5 tinned copper

Thermal

Dynamic basket temperature
-40 °C to +90 °C ambient
3G core thermal endurance
-50 °C to +180 °C (silicone core)
Short-circuit conductor temp.
+250 °C

Mechanical

Max. basket hoisting speed
Up to 160 m/min (gravity coiling)
Max. tensile suspension load
20 N/mm² (plus central strain core)
Torsional stress limit
± 25 °/m in gravity basket loop
Min. bending radius (dynamic)
10 × overall cable diameter

Resistance

Oil & hydraulic fluid test
EN 60811-404 (5GM3 polychloroprene)
Flame retardance
IEC 60332-1-2 self-extinguishing
Ozone, UV & marine weather
Heavy-duty quayside marine grade

Reference standards

Construction standard
DIN VDE 0250-814 / DIN VDE 0250
Application guideline
DIN VDE 0298-3 crane & basket routing
RoHS & REACH
RoHS 3 & REACH compliant

Identification

Outer sheath colour
Black or high-visibility safety yellow
Surface legend
TEBAOFLEX 3GRDGÖU [nGmm²] 300/500V SPREADER
Customs tariff (HS)
8544.49

Sizes

13 standard configurations (3GRDGÖU)

Engineering dimensions, conductor stranding, mass and electrical ratings for 3GRDGÖU per DIN VDE 0250-814 / VDE 0250 (3G Silicone + RD + GÖU).

Dimensions & weights
Order designationCross-section / sizeConductor buildWall ≈
mm		Outer Ø ≈
mm		Metal
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard 3GRDGÖU configurations
3GRDGÖU 12G1.512G1.5 mm²Class 5/6 Sn-Cu (1.5 mm²)1.8015.00172.8460.8150
3GRDGÖU 18G1.518G1.5 mm²Class 5/6 Sn-Cu (1.5 mm²)1.8017.30259.2642.3173
3GRDGÖU 24G1.524G1.5 mm²Class 5/6 Sn-Cu (1.5 mm²)1.8019.70345.6842.4197
3GRDGÖU 30G1.530G1.5 mm²Class 5/6 Sn-Cu (1.5 mm²)1.8021.30432.01,012.7213
3GRDGÖU 36G1.536G1.5 mm²Class 5/6 Sn-Cu (1.5 mm²)1.8023.00518.41,195.5230
3GRDGÖU 40G1.540G1.5 mm²Class 5/6 Sn-Cu (1.5 mm²)1.8024.10576.01,319.4241
3GRDGÖU 52G1.552G1.5 mm²Class 5/6 Sn-Cu (1.5 mm²)1.8026.80748.81,668.1268
3GRDGÖU 12G2.512G2.5 mm²Class 5/6 Sn-Cu (2.5 mm²)1.8016.90288.0653.6169
3GRDGÖU 18G2.518G2.5 mm²Class 5/6 Sn-Cu (2.5 mm²)1.8019.60432.0923.7196
3GRDGÖU 24G2.524G2.5 mm²Class 5/6 Sn-Cu (2.5 mm²)1.8022.50576.01,224.0225
3GRDGÖU 30G2.530G2.5 mm²Class 5/6 Sn-Cu (2.5 mm²)1.8024.40720.01,482.1244
3GRDGÖU 36G2.536G2.5 mm²Class 5/6 Sn-Cu (2.5 mm²)1.8026.40864.01,756.1264
3GRDGÖU 40G2.540G2.5 mm²Class 5/6 Sn-Cu (2.5 mm²)1.8027.60960.01,935.1276
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal engineering values for 3GRDGÖU subject to standard manufacturing tolerances per DIN VDE 0250-814 / VDE 0250 (3G Silicone + RD + GÖU).

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
Dielectric spark / high-voltage withstand test100 % in-line spark and AC/DC dielectric withstand per DIN VDE 0250-814 / VDE 0250 (3G Silicone + RD + GÖU)Every manufactured length
Conductor DC resistance & continuity checkWithin maximum 20 °C resistance limit specified for 3GRDGÖUEvery spool or drum length
Sample tests
Insulation resistance & dimensional verificationWall thickness, concentricity and insulation resistance per DIN VDE 0250-814 / VDE 0250 (3G Silicone + RD + GÖU)Per production batch
Environmental, mechanical & EMC qualificationQualified to DIN VDE 0250-814 / VDE 0250 (3G Silicone + RD + GÖU) thermal, mechanical and environmental performance criteriaType qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

DIN VDE 0250-814 / VDE 0250 (3G Silicone + RD + GÖU)CE (2014/35/EU) & RoHS 3 (2015/863/EU) CompliantREACH SVHC Compliance Verified

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX 3GRDGÖU 36G1.5 300/500V VDE 0250 SPREADER BASKET
Delivery form
Export wooden drums, tactical reels or coils
Standard lengths
100 m · 500 m · 1000 m (or custom cut lengths)
MOQ
100 m (stock sizes) · 300–500 m (custom build)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDF3GRDGÖU Rubber Collector-Basket Spreader Cable – technical datasheet13 sizes · construction, technical data, approvalsXLSX3GRDGÖU spec data (Excel)All 13 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

Why does 3GRDGÖU use 3G silicone rubber core insulation inside a polychloroprene outer sheath?
In a gravity-fed spreader collector basket, the cable is not pulled into the basket by a motor — it must coil smoothly under its own weight as the crane trolley lowers. Silicone rubber ('3G') core insulation has ultra-low flexural modulus from -40 °C to +90 °C, preventing the cable from stiffening in winter while the tough 5GM3 polychloroprene outer jacket ('GÖU') protects against oil and impact.
What does every code letter in 3GRDGÖU stand for?
'3G' = silicone rubber core insulation, 'RD' = round cable with anti-torsion textile braid reinforcement over an inner sheath, 'G' = elastomeric rubber sheath, 'Ö' = oil-resistant outer jacket, and 'U' = flame-retardant (self-extinguishing) compound.
How is 3GRDGÖU suspended at the crane headblock and spreader basket?
Use a long-mesh stainless-steel Kellems/stocking cable grip combined with a strain-relief bell mouth (bend limiter) and swivel/fixed anchor shackles so tensile load transfers smoothly to the double sheath and central strain core.
How many cores are typically specified for container crane spreaders?
Standard twin-lift and telescopic STS spreaders typically use 30G1.5, 36G1.5, 42G1.5, or 36G2.5 (or hybrid power + optical/bus versions) to carry twistlock solenoids, landing-pin proximity sensors, and flipper motor controls.
