Hook-up & equipment wiresUL 3271 · CSA CL1251600 V · 125 °C XLPE26–2 AWG Motor & Panel Lead

UL AWM 3271 Cross-Linked Equipment WireUL AWM 3271 & CSA CL1251 600 V 125 °C cross-linked XLPE equipment & motor lead wire

Heavy-duty 600 V 125 °C thermoset equipment and motor lead wire certified to UL AWM Style 3271 and CSA CL1251, constructed with flexible tinned copper conductors (26–2 AWG) and a 0.76 mm (30 mil) electron-beam cross-linked polyolefin (XLPE) insulation wall.

Flame-retardant
Oil-resistant
Ozone, UV & moisture
Approved
Order designation
UL 3271 14 AWG (41/30)
Outer Ø min
3.2 mm
Outer Ø max
3.5 mm
Weight ≈
27 kg/km
Min. bend R
14 mm
Check against my drumAll sizes (10)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Voltage rating
600 V RMS
UL AWM Style 3271 & CSA CL1251
Temp. rating
−55…+125 °C
Class B (130 °C) motor/transformer lead
Insulation wall
0.76 mm (30 mil)
30 mil (26–10 AWG) · 45–60 mil (8–2 AWG)
Dielectric type
Thermoset XLPE
Thermoset e-beam cross-linked polyolefin
Flame rating
Horizontal / FT2
UL Horizontal & VW-1 / CSA FT1 options
Size range
26–2 AWG
0.13–33.6 mm² · stranded tinned Cu

Typical values for this cable type, based on UL 758 Style 3271 · CSA C22.2 No. 210 CL1251 — confirmed in the datasheet and quotation for your order.

Application fit

Is UL AWM 3271 right for your machine?

UL Style 3271 is the 125 °C thermoset XLPE counterpart to 105 °C PVC UL 1015, engineered to survive varnish dip-and-bake processing, thermal overloads and high-ambient power cabinets in transformers, motors, generators, solar inverters and commercial appliances.

Fixed installation

Suitable

Motor stator leads, dry-type transformer coils, UPS/inverter bus leads and +125 °C appliance wiring.

VFD inverter to AC motor screened feeder

With conditions

Thermoset XLPE resists PWM inverter voltage spikes inside motor terminal boxes; unscreened single-core.

Trailing & towing

Not suitable

Internal equipment and motor lead wire; not for external trailing.

Use EN 50264-2-2

Energy chain / drag chain

Not suitable

When utility substation switchboard UL 44 Type SIS listing is also required, select UL 3173 / SIS.

Use UL 3173 / SIS
Typical machinesElectric motor & generator stator lead-outsDry-type transformers, inductors & reactorsPower inverters, UPS & battery energy storageCommercial cooking, curing & heating equipmentHID / high-power LED luminaire ballasts

Construction

Layer by layer

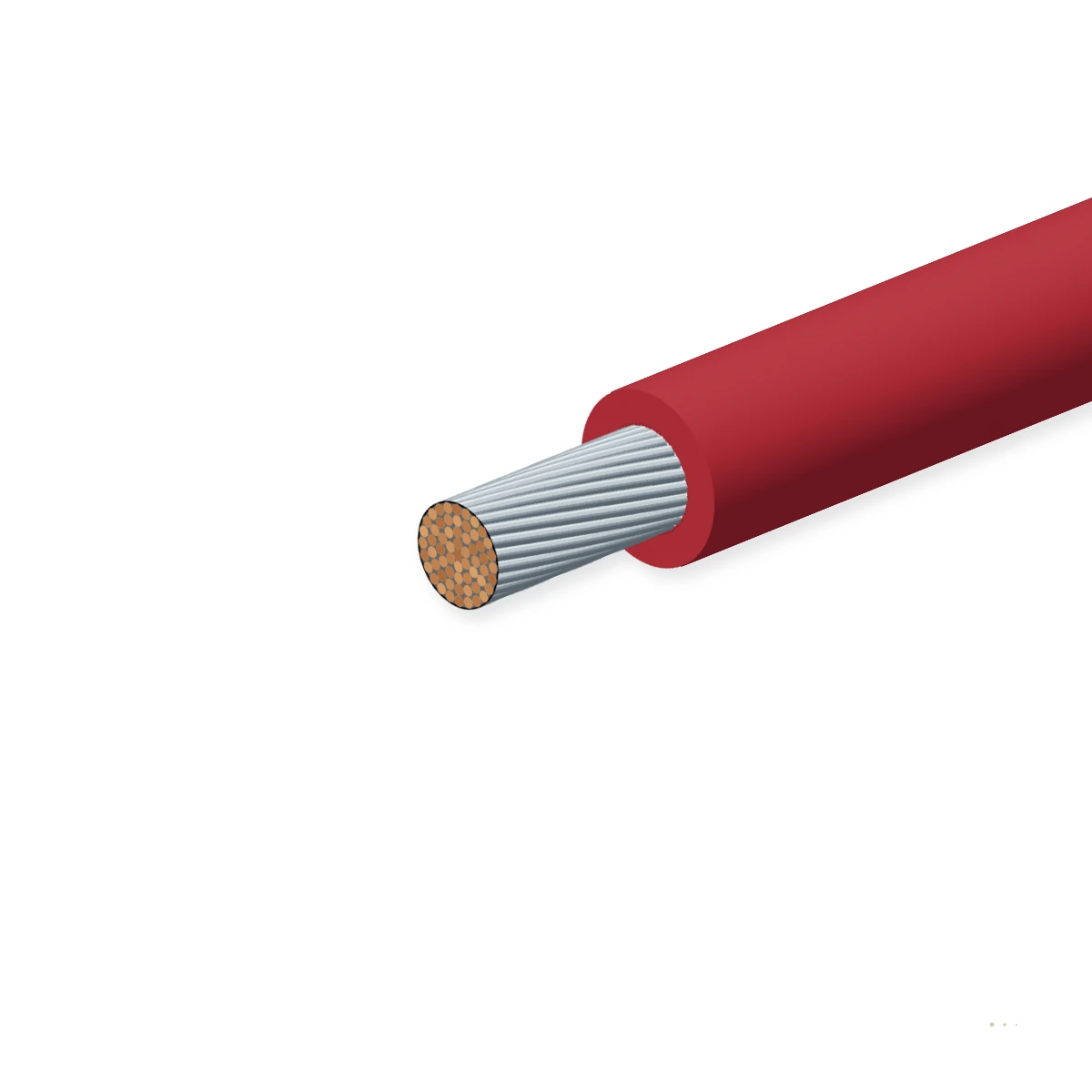

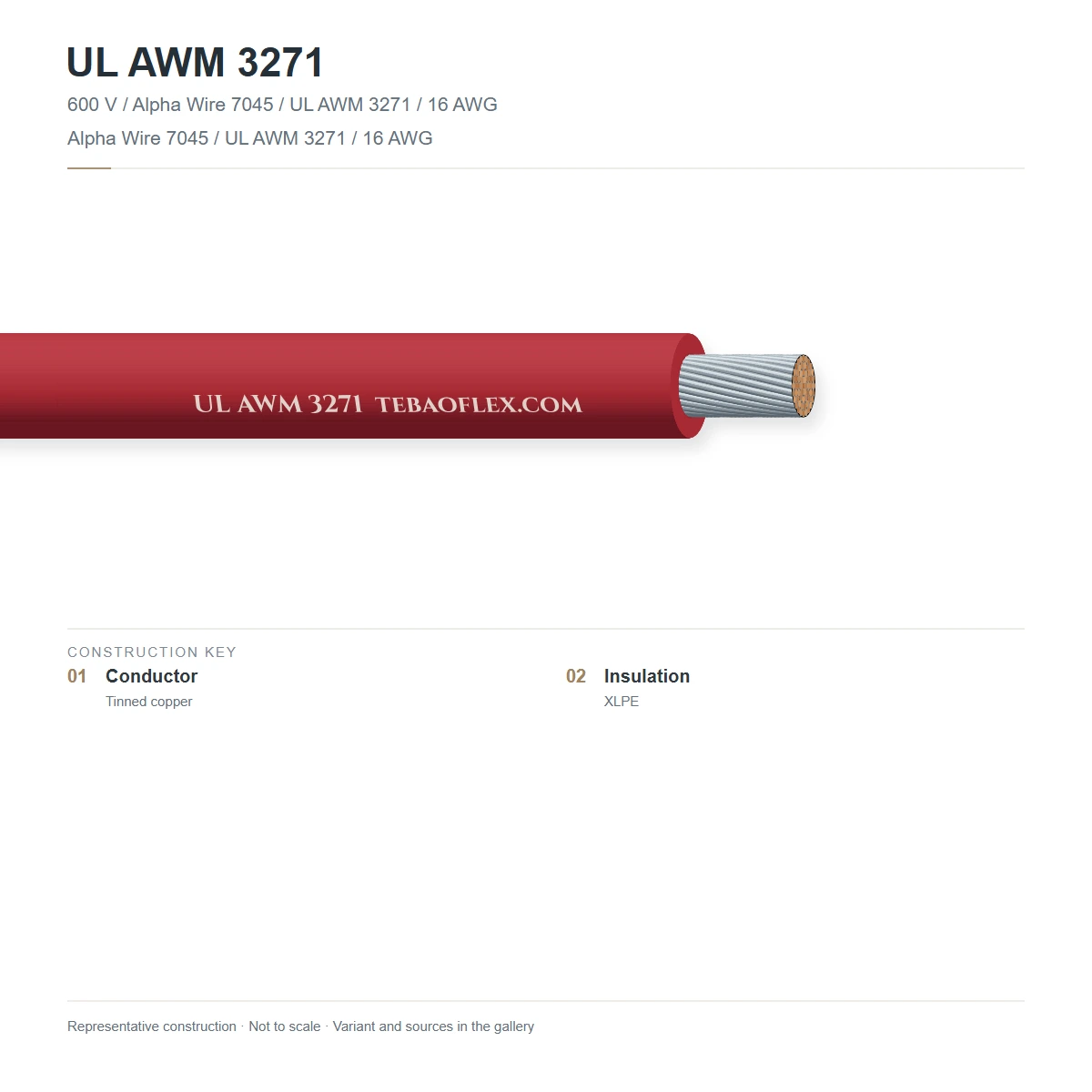

Shown: UL AWM 3271 14 AWG (41/30) — flexible 41-strand tinned annealed copper conductor (2.08 mm²), 0.76 mm (30 mil) electron-beam cross-linked polyolefin (XLPE) primary insulation and varnish/heat-resistant thermoset outer surface.

123
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Flexible stranded tinned copperFine-stranded tinned annealed copper (26 AWG to 2 AWG) per ASTM B33 for corrosion-free crimping, brazing and varnish bakingASTM B33 · UL 758
20.76 mm (30 mil) 125 °C XLPE dielectricElectron-beam or chemically cross-linked polyethylene / polyolefin (0.76 mm on 26–10 AWG; 1.14 mm on 8 AWG; 1.52 mm on 6–2 AWG)UL 758 Style 3271
3Varnish- & crush-resistant XLPO finishThermoset surface that withstands coil lacing pressure, impregnating varnishes and 150–165 °C baking ovensUL 758 · CSA C22.2 No. 210 CL1251

UL AWM 3271 · CSA CL1251 Control & Coil Leads (26–10 AWG, 30-mil wall)

600 V 125 °C XLPE lead wire for fractional-HP motors, control transformers and appliance harnesses

UL AWM 3271 · CSA CL1251 Power & Stator Leads (8–2 AWG, 45/60-mil wall)

Heavy-gauge flexible tinned copper XLPE power leads for industrial motors, generators and inverters

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on UL 758 Style 3271 · CSA C22.2 No. 210 CL1251. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage
600 V RMS
Dielectric withstand voltage
2000 V AC for 1 min · 6000 V AC spark test
Max. DC conductor resistance (20 °C)
18 AWG: ≤ 21.0 Ω/km · 16 AWG: ≤ 13.2 Ω/km · 14 AWG: ≤ 8.28 Ω/km · 12 AWG: ≤ 5.21 Ω/km · 10 AWG: ≤ 3.28 Ω/km · 8 AWG: ≤ 2.06 Ω/km

Thermal

Continuous temperature rating
−55 °C to +125 °C (compatible with Class B 130 °C insulation systems)
Baking & overload endurance
Withstands 160 °C varnish bake cycles and +250 °C short-circuit temperatures without melting or splitting

Mechanical

Nominal insulation wall
26–10 AWG: 0.76 mm (30 mil) · 8 AWG: 1.14 mm (45 mil) · 6–2 AWG: 1.52 mm (60 mil)
Min. bending radius
4 × overall diameter (fixed routing)

Resistance

Flame retardance
UL 758 Horizontal / FT2 (VW-1 / CSA FT1 flame-retardant grades available)
Varnish, oil & solvent resistance
Resistant to polyester/epoxy impregnating varnishes, mineral oil, xylene and toluene

Reference standards

UL AWM style
UL 758 Appliance Wiring Material Style 3271 (600 V, 125 °C)
CSA certification
CSA C22.2 No. 210 Type CL1251 (600 V, 125 °C) & CSA AWM I A/B
Companion multi-ratings
Often dual/triple-marked with UL 3173, UL 3289 and CSA CL1251
RoHS & REACH
2011/65/EU (RoHS 2) & EC 1907/2006 compliant

Identification

Standard stock colours
Black, White, Red, Blue, Yellow, Green, Brown, Orange, Violet & Grey
Surface marking
AWM STYLE 3271 125C 600V XLPE [AWG] CSA CL1251 125C 600V TEBAOFLEX
Customs tariff (HS)
8544.49 (insulated conductors ≤ 1000 V)

Sizes

10 standard UL AWM 3271 configurations

Typical UL 758 Style 3271 · CSA C22.2 No. 210 CL1251 outer diameter limits, copper content and cable weight.

Dimensions & weights
Order designationCores × mm² / AWGAWG ≈Outer Ø min
mm		Outer Ø max
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
mm		Enquiry
600 V 125 °C XLPE Equipment & Coil Leads (UL 3271, 22–10 AWG, 30-mil wall)
UL 3271 22 AWG (7/30)22 AWG (0.33 mm²)222.22.4389
UL 3271 20 AWG (10/30)20 AWG (0.52 mm²)202.32.551010
UL 3271 18 AWG (16/30)18 AWG (0.82 mm²)182.62.871311
UL 3271 16 AWG (26/30)16 AWG (1.31 mm²)162.93.1121912
UL 3271 14 AWG (41/30)14 AWG (2.08 mm²)143.23.5202714
UL 3271 12 AWG (65/30)12 AWG (3.31 mm²)123.74.0314016
UL 3271 10 AWG (105/30)10 AWG (5.26 mm²)104.34.7506119
600 V 125 °C XLPE Heavy Motor & Inverter Leads (UL 3271, 8–4 AWG)
UL 3271 8 AWG (133/29)8 AWG (8.37 mm²)85.96.48010426
UL 3271 6 AWG (133/27)6 AWG (13.3 mm²)67.58.112716532
UL 3271 4 AWG (133/25)4 AWG (21.2 mm²)48.79.520325238
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Dimensions and weights are typical values per UL 758 Style 3271 · CSA C22.2 No. 210 CL1251. Minimum fixed bending radius shown is 4 × OD.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Check results

Drum core 300 mm ≥ 28 mmBending radius OK (4 × OD 3.5 mm)
Minimum bending radius
14 mm
Min. drum core diameter
≈ 28 mm
Cable weight on drum
1.4 kg
Copper content
1.0 kg
Indicative only: based on the datasheet outer diameter and 4 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC dielectric voltage test2.0 kV AC (50/60 Hz)Every manufactured length
Conductor DC resistanceIEC 60228 / ASTM (tinned copper)Every manufactured length
Sample tests
Flame propagation testIEC 60332-1-2 / UL VW-1 / ISO 6722-1Per production batch
Insulation & sheath material physical propertiesUL 758 Style 3271 · CSA C22.2 No. 210 CL1251Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

UL 758 Style 3271 · CSA C22.2 No. 210 CL1251CE · RoHS 2 (2011/65/EU) · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

AWM STYLE 3271 125C 600V XLPE [AWG] CSA CL1251 TEBAOFLEX
Delivery form
Export wooden drums, reels or coils, cut-to-length on request
Packaging
Heat-treated ISPM-15 timber drums or spools with sealed ends
Conductor / colour options
Custom core counts, stripe combinations or cut harnesses on request

Technical documents

Downloads

PDFUL AWM 3271 Cross-Linked Equipment Wire – technical datasheet10 sizes · construction, technical data, approvalsXLSXUL AWM 3271 spec data (Excel)All 10 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20
