Hook-up & equipment wiresUL 1007 / 1569 · CSA TR-64300 V · 80 / 105 °C · VW-130–16 AWG Tinned Cu

UL AWM 1007 / 1569 Hook-Up WireDual-rated UL AWM 1007 (80 °C) / 1569 (105 °C) & CSA TR-64 300 V PVC hook-up wire

Industry-standard 300 V appliance and electronic chassis hook-up wire triple-rated to UL AWM Style 1007 (80 °C), UL AWM Style 1569 (105 °C) and CSA TR-64 (90 °C), featuring a 0.41 mm (16 mil) VW-1 / FT1 flame-retardant PVC wall over tinned copper (30–16 AWG).

Flame-retardant
Oil-resistant
Approved
Order designation
UL 1007/1569 22 AWG (7/30)
Outer Ø min
1.5 mm
Outer Ø max
1.6 mm
Weight ≈
5 kg/km
Min. bend R
6 mm
Check against my drumAll sizes (8)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Voltage rating
300 V RMS
UL AWM 1007 / 1569 & CSA TR-64
Temp. rating
80 / 105 °C
UL 1007 (80 °C) · UL 1569 (105 °C)
Insulation wall
0.41 mm (16 mil)
Nominal 1/64 inch extruded PVC wall
Flame rating
UL VW-1 / FT1
Vertical wire flame test compliant
Bending radius
4 × OD
4 × overall diameter fixed routing
Size range
30–16 AWG
0.05–1.31 mm² · stranded/solid CuSn

Typical values for this cable type, based on UL 758 Style 1007 / 1569 · CSA C22.2 No. 210 TR-64 — confirmed in the datasheet and quotation for your order.

Application fit

Is UL AWM 1007 / 1569 right for your machine?

Dual-marking a single PVC compound to both UL Style 1007 (80 °C) and Style 1569 (105 °C) plus CSA TR-64 allows electronics and appliance OEMs to consolidate inventory into one 300 V 16-mil hook-up wire for North American and global export equipment.

Fixed installation

Suitable

Internal point-to-point wiring of electronic instruments, power supplies, appliances and control sub-assemblies.

VFD inverter to AC motor screened feeder

Not suitable

Unscreened 300 V chassis lead wire; for shielded multi-conductor signal harnesses use UL 2464 / 2517.

Use UL 2464 / 2517

Trailing & towing

Not suitable

Internal cabinet and chassis wire; not designed for external floor trailing or mechanical drag.

Use EN 50264-2-2

Energy chain / drag chain

Not suitable

For 600 V NFPA 79 industrial control panels and machine tools, select UL 1015 / MTW / TEW.

Use UL 1015 / MTW
Typical machinesElectronic test & measurement instrumentsSwitch-mode power supplies & UPS unitsCommercial appliances & HVAC control boxesPCB jumper leads & internal wire harnessesVending, gaming & medical diagnostic chassis

Construction

Layer by layer

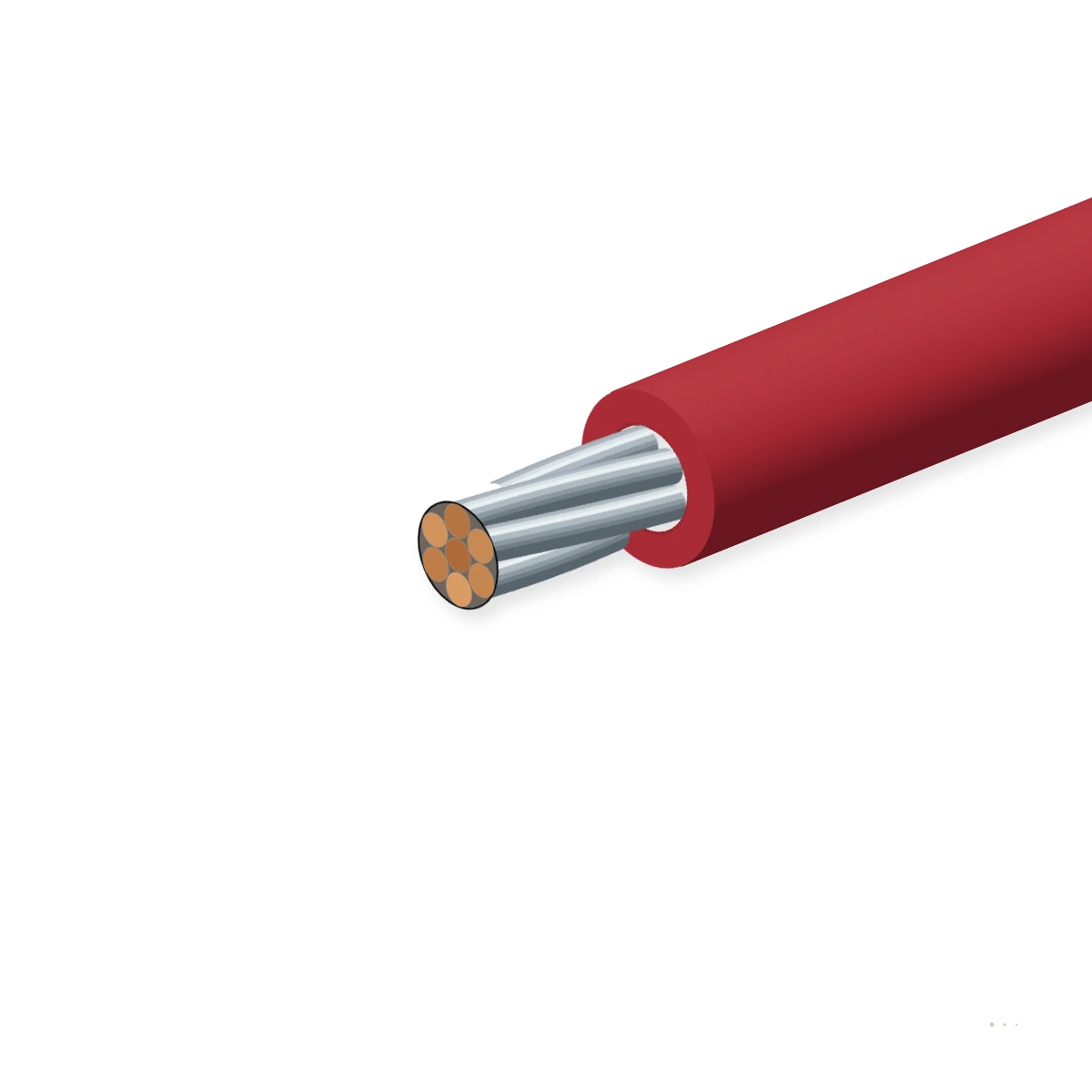

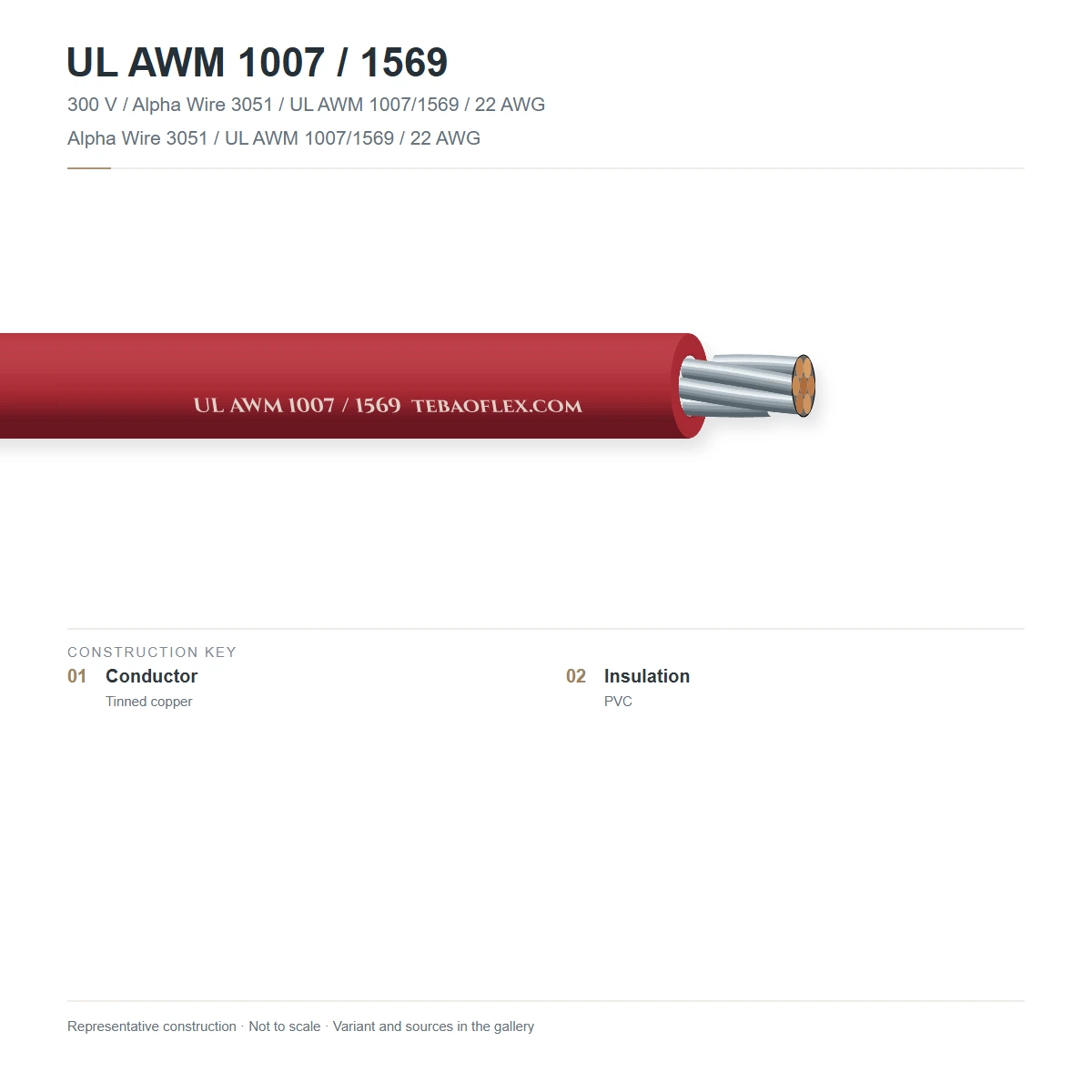

Shown: UL AWM 1007 / 1569 22 AWG (7/30) — 7-strand tinned annealed copper conductor (0.33 mm²), 0.41 mm (16 mil) colour-coded 105 °C PVC primary dielectric and smooth VW-1 / FT1 flame-retardant surface finish.

123
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Stranded or solid tinned copperStranded (7/38 to 26/30) or solid tinned annealed copper per ASTM B33 / B286 for rapid solderability and corrosion resistanceASTM B33 · UL 758
20.41 mm (16 mil) 105 °C PVC dielectricExtruded polyvinyl chloride compound meeting both UL Style 1007 (80 °C) and Style 1569 (105 °C) at 300 V RMSUL 758 Style 1007 / 1569
3VW-1 / FT1 colour-coded PVC surfaceSmooth, strip-clean outer PVC surface with sequential UL/CSA surface legend and 10 standard EIA coloursUL 1581 VW-1 · CSA FT1

UL 1007 / 1569 · CSA TR-64 Stranded Tinned Copper (30–16 AWG)

Flexible 7-strand or 19/26-strand tinned copper for crimped harnesses and soldered PCB leads

UL 1007 / 1569 · CSA TR-64 Solid Tinned Copper (26–18 AWG)

Formable solid tinned copper core for breadboards, push-in terminals and rigid point-to-point dressing

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on UL 758 Style 1007 / 1569 · CSA C22.2 No. 210 TR-64. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage
300 V RMS
Dielectric withstand voltage
1500 V AC for 1 min · 3000 V AC spark test
Max. DC conductor resistance (20 °C)
28 AWG: ≤ 216 Ω/km · 24 AWG: ≤ 84.2 Ω/km · 22 AWG: ≤ 53.2 Ω/km · 20 AWG: ≤ 33.2 Ω/km · 18 AWG: ≤ 21.0 Ω/km · 16 AWG: ≤ 13.2 Ω/km

Thermal

Temperature rating
−40 °C to +105 °C (UL 1569) / +80 °C (UL 1007) / +90 °C (CSA TR-64 / AWM I A/B)
Short-circuit / solder heat
+150 °C to +250 °C (5 s)

Mechanical

Nominal insulation wall
0.41 mm (0.016 in / 16 mil) minimum average, 0.33 mm (13 mil) minimum at any point
Min. bending radius
4 × overall diameter (fixed chassis routing)
Automated processing
Concentric extrusion allows high-speed cut-and-strip without nicking tinned strands

Resistance

Flame retardance
UL 1581 VW-1 vertical wire flame test & CSA C22.2 FT1
Oil, acid & solvent resistance
Passes UL 60 °C oil immersion, weak acid, alkali and fungus resistance requirements

Reference standards

UL AWM styles
UL 758 Style 1007 (80 °C, 300 V) & Style 1569 (105 °C, 300 V)
CSA certification
CSA C22.2 No. 210 Type TR-64 (90 °C) & CSA AWM I A/B (105 °C, 300 V, FT1)
RoHS & REACH
2011/65/EU (RoHS 2) & EC 1907/2006 phthalate-free compliant

Identification

Standard stock colours
Black, White, Red, Blue, Yellow, Green, Brown, Orange, Violet, Grey & Green-Yellow
Surface marking
E-File AWM STYLE 1007 80C / 1569 105C 300V VW-1 [AWG] CSA TR-64 90C FT1 TEBAOFLEX
Customs tariff (HS)
8544.49 (insulated conductors ≤ 1000 V)

Sizes

8 standard UL AWM 1007 / 1569 configurations

Typical UL 758 Style 1007 / 1569 · CSA C22.2 No. 210 TR-64 outer diameter limits, copper content and cable weight.

Dimensions & weights
Order designationCores × mm² / AWGAWG ≈Outer Ø min
mm		Outer Ø max
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
mm		Enquiry
300 V PVC Hook-Up Wire (UL 1007 / 1569 · CSA TR-64, 30–16 AWG)
UL 1007/1569 30 AWG (7/38)30 AWG (0.05 mm²)301.01.1024
UL 1007/1569 28 AWG (7/36)28 AWG (0.08 mm²)281.11.2025
UL 1007/1569 26 AWG (7/34)26 AWG (0.13 mm²)261.21.3135
UL 1007/1569 24 AWG (7/32)24 AWG (0.20 mm²)241.31.4246
UL 1007/1569 22 AWG (7/30)22 AWG (0.33 mm²)221.51.6356
UL 1007/1569 20 AWG (7/28)20 AWG (0.52 mm²)201.71.8577
UL 1007/1569 18 AWG (16/30)18 AWG (0.82 mm²)181.92.07108
UL 1007/1569 16 AWG (26/30)16 AWG (1.31 mm²)162.22.412159
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Dimensions and weights are typical values per UL 758 Style 1007 / 1569 · CSA C22.2 No. 210 TR-64. Minimum fixed bending radius shown is 4 × OD.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Check results

Drum core 300 mm ≥ 12 mmBending radius OK (4 × OD 1.6 mm)
Minimum bending radius
6 mm
Min. drum core diameter
≈ 12 mm
Cable weight on drum
0.3 kg
Copper content
0.2 kg
Indicative only: based on the datasheet outer diameter and 4 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC dielectric voltage test1.5 kV AC (50/60 Hz)Every manufactured length
Conductor DC resistanceIEC 60228 / ASTM (tinned copper)Every manufactured length
Sample tests
Flame propagation testIEC 60332-1-2 / UL VW-1 / ISO 6722-1Per production batch
Insulation & sheath material physical propertiesUL 758 Style 1007 / 1569 · CSA C22.2 No. 210 TR-64Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

UL 758 Style 1007 / 1569 · CSA C22.2 No. 210 TR-64CE · RoHS 2 (2011/65/EU) · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

AWM STYLE 1007/1569 105C 300V VW-1 [AWG] CSA TR-64 FT1 TEBAOFLEX
Delivery form
Export wooden drums, reels or coils, cut-to-length on request
Packaging
Heat-treated ISPM-15 timber drums or spools with sealed ends
Conductor / colour options
Custom core counts, stripe combinations or cut harnesses on request

Technical documents

Downloads

PDFUL AWM 1007 / 1569 Hook-Up Wire – technical datasheet8 sizes · construction, technical data, approvalsXLSXUL AWM 1007 / 1569 spec data (Excel)All 8 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What is the difference between UL AWM 1007 and UL AWM 1569?
Both UL 1007 and UL 1569 specify a 300 V RMS PVC hook-up wire with a 0.41 mm (16 mil / 1/64 inch) nominal insulation wall over 30–16 AWG conductors. UL 1007 is rated +80 °C, whereas UL 1569 is rated +105 °C. By formulating with a +105 °C PVC compound, our wire is dual-marked UL 1007 / 1569 and CSA TR-64.
When should I choose UL 1007 / 1569 instead of UL 1015?
Use UL 1007 / 1569 for 300 V low-voltage electronics, power supplies and compact appliances where a 1.60 mm OD (at 22 AWG) saves space. Use UL 1015 (600 V, 0.79 mm / 30 mil wall, 2.40 mm OD at 22 AWG) when 600 V rating or UL 1063 MTW machine-tool certification is required.
What if my hand-soldering assembly melts standard PVC insulation?
For dense PCB hand-soldering or wave-soldering where iron contact causes PVC shrinkback, upgrade to UL AWM 1429 / 1430 electron-beam cross-linked PVC (XLPVC) or UL 3265 / 3266 cross-linked polyolefin (XLPE).
Is UL 1007 / 1569 available in striped colour combinations?
Yes. In addition to 10 solid EIA colours, spiral or longitudinal tracer stripes are available to order.
