Fixed installation
Clamped along vertical, deviated and horizontal production tubing strings up to 30,000 ft (9,000 m) splice-free.
Product

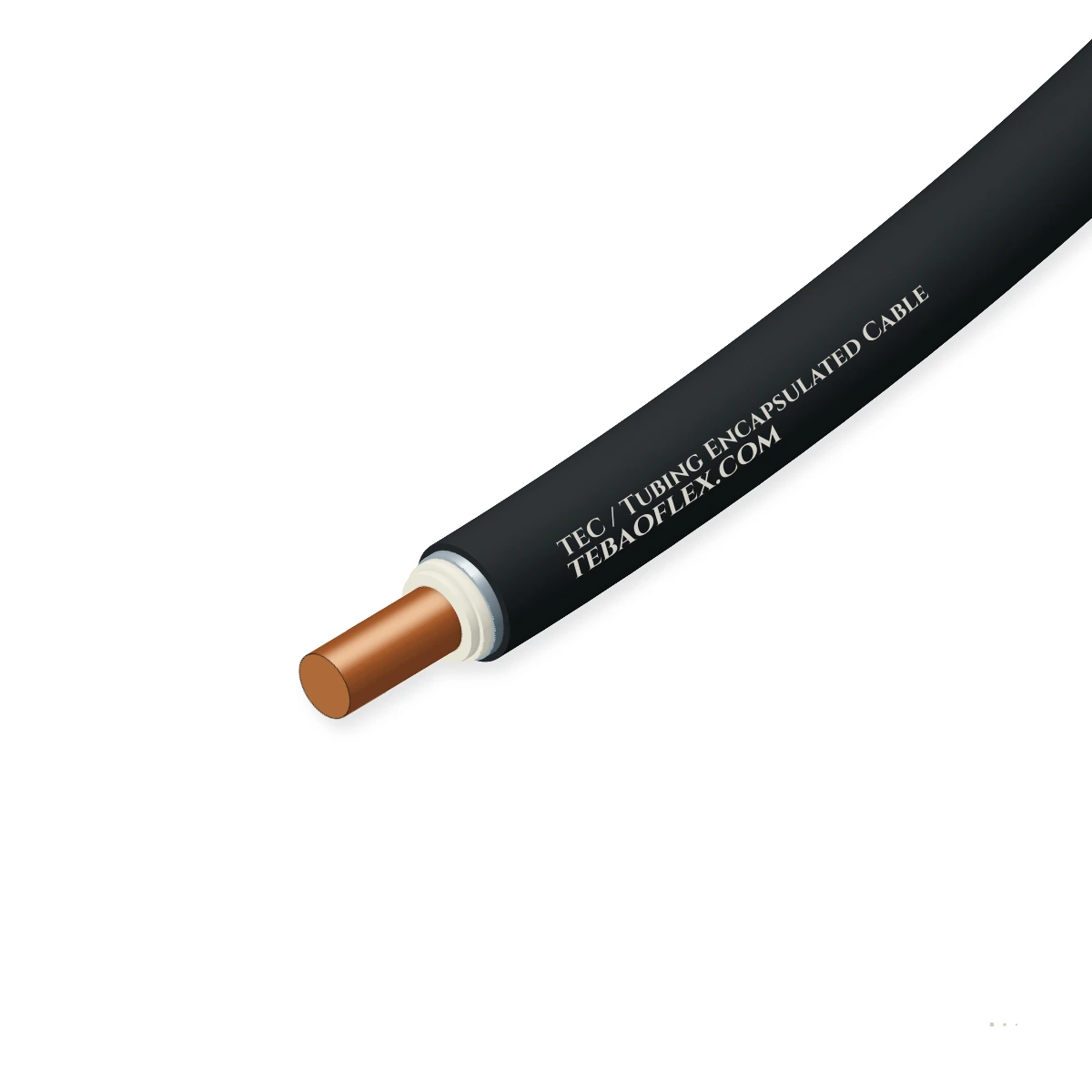

High-pressure, sour-service Tubing Encapsulated Cable (TEC) engineered to API 17E and NACE MR0175 (ISO 15156) with 18/16 AWG copper cores, FEP/PEEK-PFA dielectric, cold-drawn 1/4" (6.35 mm) Alloy 825 or 316L tube and 11×11 mm PVDF/PP encapsulation.
Typical values for this cable type, based on API 17E (ISO 13628-5) / NACE MR0175 (ISO 15156) / ASTM A269 / B423 — confirmed in the datasheet and quotation for your order.
Application fit
Clamped directly to the outside of production tubing during well completion, TEC transmits power and digital telemetry between the surface wellhead and Permanent Downhole Gauges (PDHG), smart-well interval control valves (ICV), downhole safety valves and ESP monitoring pods.
Clamped along vertical, deviated and horizontal production tubing strings up to 30,000 ft (9,000 m) splice-free.
Hermetic 1/4" Alloy 825 or 316L tube withstands 15,000–25,000 psi hydrostatic annulus pressure, H₂S/CO₂ sour brines and completion fluids.
Square 11 × 11 mm polymeric encapsulation absorbs spider/slip impact and prevents galvanic corrosion against the production tubing.
Designed for run-in-hole spooling over completion sheaves (min. bend radius ~10–12 in.), not continuous drag chains.
PUR Drag-Chain Control CableConstruction

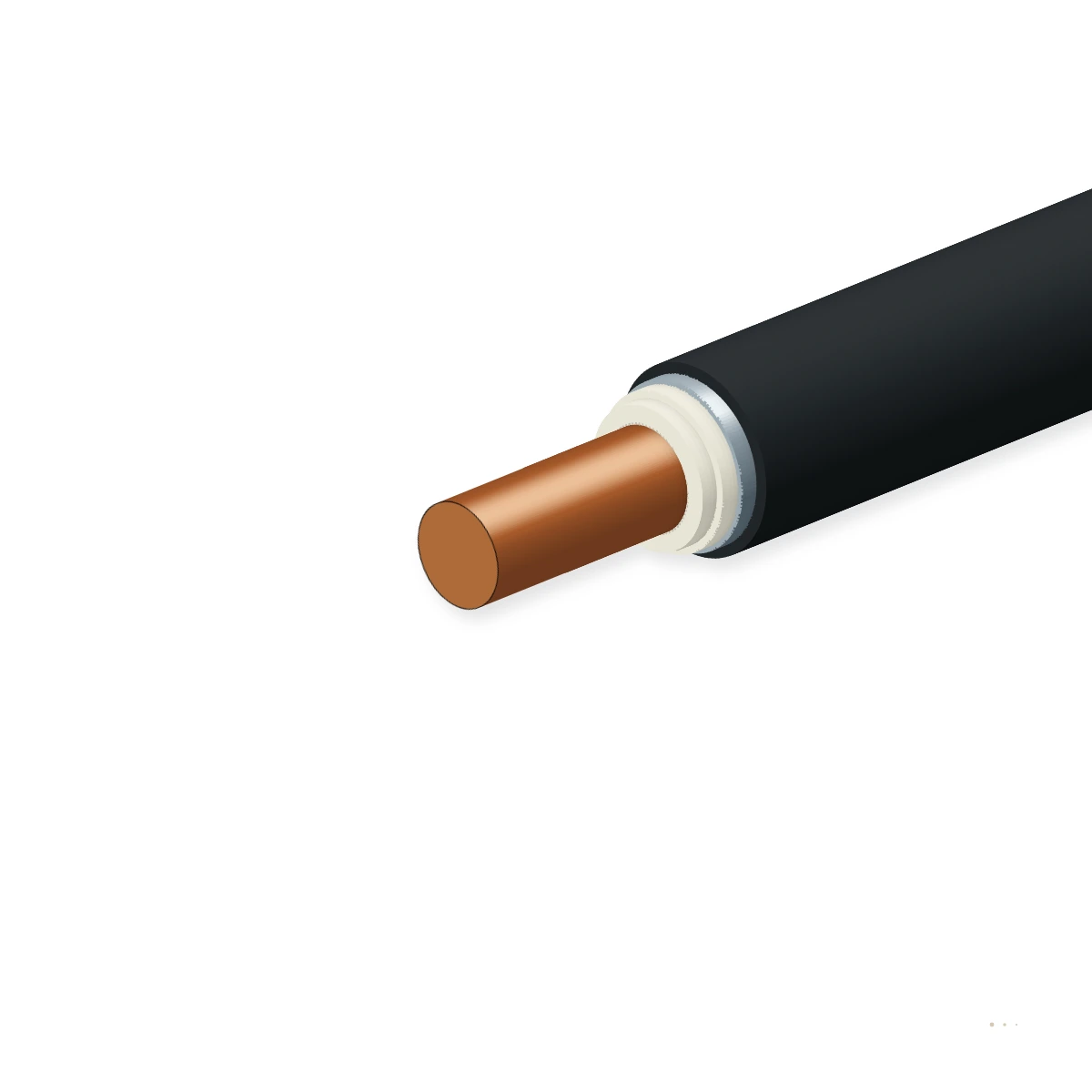

Shown: TEC-1C18-A825-049-PVDF with 1×18 AWG solid copper conductor, FEP primary insulation, polymeric buffer/cabling rod filler (for 100 % core support against vertical slippage), 1/4" × 0.049" wall cold-drawn Alloy 825 tube and 11×11 mm square PVDF encapsulation.
| # | Layer | Material & reference |
|---|---|---|
| 1 | High-conductivity copper downhole conductor | 1×18 AWG (0.82 mm²), 1×16 AWG (1.31 mm²) or 2×18 AWG twisted pair in bare, tinned or nickel-plated copperDelivers low-attenuation DC power and digital gauge telemetry (tube acts as common return on 1C designs) |
| 2 | High-temperature fluoropolymer dielectric & filler matrix | Extruded ETFE (+150 °C), FEP (+200 °C) or dual-layer PEEK/PFA (+230/+260 °C) surrounded by locked polymeric filler rodsProvides > 5,000 MΩ·km insulation resistance at 1000 V DC and locks the core mechanically so it cannot telescope down a 6,000 m vertical well |
| 3 | Seamless / orbital-welded & cold-drawn 1/4" metallic tube | 1/4" OD (6.35 mm) × 0.035" (0.89 mm) or 0.049" (1.24 mm) wall in Alloy 825 (UNS N08825), Super Duplex 2507 or AISI 316LTube is formed around the core and cold-drawn (swaged) down to mechanically grip the internal cable while providing a 15,000–25,000 psi hermetic barrier |
| 4 | 11 × 11 mm square (0.433" × 0.433") polymeric encapsulation | Injection-extruded Polypropylene (PP to +150 °C), TPV elastomer (+135 °C), PVDF (+175 °C) or FEP/PFA (+200/+230 °C), optionally flanked by two Ø 1.6 mm galvanised steel bumper wiresProtects the 1/4" metal tube against crushing during run-in-hole and locks into cross-coupling protectors |
42Ni-21Cr-3Mo-2Cu alloy certified to NACE MR0175 / ISO 15156 for H₂S, CO₂ and high-chloride wells
316L (UNS S31603) for sweet wells; Super Duplex 2507 (UNS S32750) for high collapse & tensile loads
1×18/16 AWG (tube return), 2×18 AWG isolated pair, or 1×18 AWG + optical fibres for DTS/DAS
Technical data
Sizes
1-conductor, 2-conductor and hybrid electro-optical TEC in AISI 316L, Alloy 825 and Super Duplex 2507.
| Order designation | Internal core | 1/4" Tube alloy & wall | Dielectric / Encapsulation | Tube OD mm | Total weight kg/km ≈ | Max. downhole temp. | Enquiry |
|---|---|---|---|---|---|---|---|
| Single-Conductor (1×18 AWG & 1×16 AWG) Coaxial-Return Downhole Gauge TEC | |||||||
| TEC-1C18-316L-035-PP | 1×18 AWG (0.82 mm²) Solid Cu | AISI 316L · 0.035" (0.89 mm) | FEP / PP (11×11 mm) | 6.35 | 215 | +150 °C | |
| TEC-1C18-A825-035-PVDF | 1×18 AWG (0.82 mm²) Solid Cu | Alloy 825 · 0.035" (0.89 mm) | FEP / PVDF (11×11 mm) | 6.35 | 238 | +175 °C | |
| TEC-1C18-A825-049-PVDF | 1×18 AWG (0.82 mm²) Solid Cu | Alloy 825 · 0.049" (1.24 mm) | FEP / PVDF (11×11 mm) | 6.35 | 282 | +175 °C | |
| TEC-1C18-A825-049-PFA | 1×18 AWG (0.96 mm²) NPC/SPC | Alloy 825 · 0.049" (1.24 mm) | PEEK-PFA / FEP (11×11) | 6.35 | 295 | +230 °C | |
| TEC-1C16-A825-035-PVDF | 1×16 AWG (1.31 mm²) Solid Cu | Alloy 825 · 0.035" (0.89 mm) | FEP / PVDF (11×11 mm) | 6.35 | 244 | +175 °C | |
| TEC-1C16-A825-049-PVDF | 1×16 AWG (1.31 mm²) Solid Cu | Alloy 825 · 0.049" (1.24 mm) | FEP / PVDF (11×11 mm) | 6.35 | 288 | +175 °C | |
| TEC-1C16-SD2507-049-PVDF | 1×16 AWG (1.31 mm²) Solid Cu | Super Duplex 2507 · 0.049" | FEP / PVDF (11×11 mm) | 6.35 | 280 | +175 °C | |
| Two-Conductor (2×18 AWG Twisted Pair) Isolated-Return Downhole TEC | |||||||
| TEC-2C18-A825-035-PVDF | 2×18 AWG (0.82 mm²) Twisted Pair | Alloy 825 · 0.035" (0.89 mm) | FEP / PVDF (11×11 mm) | 6.35 | 248 | +175 °C | |
| TEC-2C18-A825-049-PVDF | 2×18 AWG (0.82 mm²) Twisted Pair | Alloy 825 · 0.049" (1.24 mm) | FEP / PVDF (11×11 mm) | 6.35 | 292 | +175 °C | |
| Hybrid Electro-Optical (1×18 AWG + 2×Single-Mode Fibre) DTS/DAS + PDHG TEC | |||||||
| TEC-1C18+2SMF-A825-049 | 1×18 AWG Cu + 2×SM Fibre (FIMT) | Alloy 825 · 0.049" (1.24 mm) | PFA / PVDF (11×11 mm) | 6.35 | 290 | +200 °C | |
| 1/4" (6.35 mm) Tube specification | Tube ID mm | Min. yield MPa (ksi) | Working pressure psi (MPa) | Tube breaking load kN ≈ |
|---|---|---|---|---|
| AISI 316L × 0.035" (0.89 mm) wall | 4.57 | 205 MPa (30 ksi) | 12,500 psi (86 MPa) | 8.4 |
| Alloy 825 × 0.035" (0.89 mm) wall | 4.57 | 240 MPa (35 ksi) | 15,000 psi (103 MPa) | 10.2 |
| Alloy 825 × 0.049" (1.24 mm) wall | 3.87 | 240 MPa (35 ksi) | 20,000 psi (138 MPa) | 13.4 |
| Super Duplex 2507 × 0.049" (1.24 mm) wall | 3.87 | 550 MPa (80 ksi) | 25,000 psi (172 MPa) | 16.8 |
Quality & approvals
Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.
| Testing & inspection | Test value / reference | Frequency |
|---|---|---|
| Routine tests | ||
| 100 % Eddy-current, ultrasonic weld inspection & helium leak test | Zero weld/wall defects; hermeticity verified across full continuous reel length | Every manufactured reel |
| 2,500 V DC dielectric withstand & 1,000 V DC insulation resistance test | IR ≥ 5,000 MΩ·km at 20 °C; conductor & tube continuity verified | Every manufactured reel |
Marking & supply
Sheath marking
Technical documents
FAQ
