Control & signal cableDIN VDE 0285 / EN 50363-10-2300/500 V · EMC Cu Braid-50 °C to +90 °C

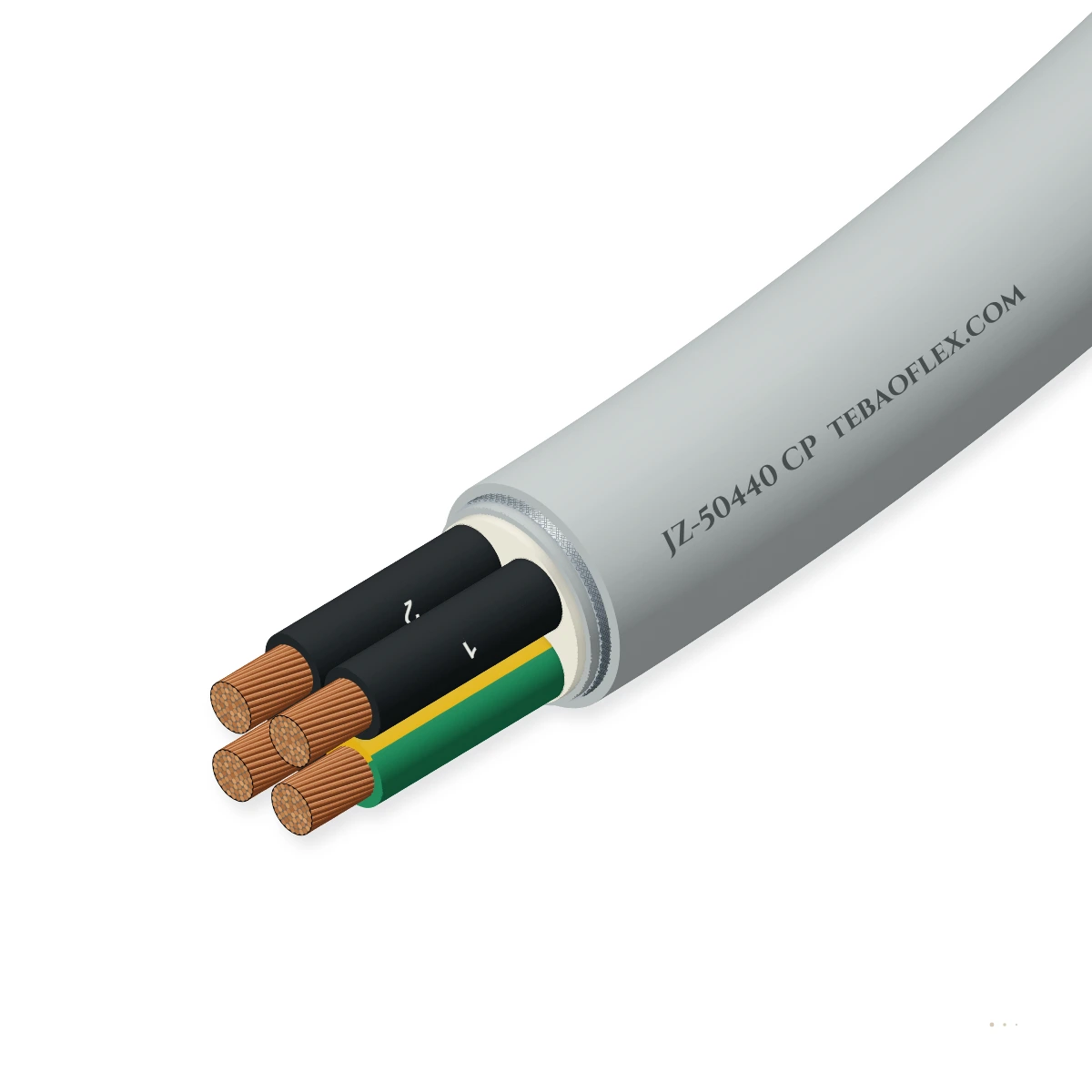

JZ-50440 CP Halogen-Free Screened TPE/PUR Control Cable300/500 V -40 to +90 °C EMC-screened halogen-free TPE/PUR drag-chain control cable

JZ-50440 CP EMC-screened halogen-free control cable (300/500 V, -40 to +90 °C) combining Class 5 copper conductors, TPE-E core insulation, inner elastomer bedding, ≥ 85 % tinned copper wire braid ('C'), and an oil-resistant TMPU PUR jacket ('P').

EMC screen

Low-EMC design

Oil-resistant

Flame-retardant

Configuration

Order designation: JZ-50440 CP 4G1.5
Outer Ø ≈: 9.10 mm
Wall thickness: 1.25 mm
Total weight ≈: 179.8 kg/km
Min. bend R (fixed): 46 mm

All sizes (25)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Rated voltage: 300/500 V
Temperature: -50…+90 °C
Conductor: Bare Cu Class 5
EMC screen: Sn-Cu braid ≥85%
Outer jacket: TMPU PUR (grey)
Min bend radius: 5 × OD fixed

Typical values for this cable type, based on DIN VDE 0285-525-2-21 / EN 50363-10-2 (TPE/C/PUR) — confirmed in the datasheet and quotation for your order.

Application fit

Is JZ-50440 CP right for your machine?

Specify JZ-50440 CP where machine-tool sensors, proportional valves, and servo axes require both 360° braided copper EMC shielding and a halogen-free, coolant-proof PUR jacket.

VFD inverter to AC motor screened feeder

Suitable

Tinned copper braid screen (≥ 85 % coverage) and low-capacitance TPE cores prevent EMI cross-talk near frequency converters.

Energy chain / drag chain

Suitable

Extruded halogen-free inner bedding stabilizes the copper braid during flexing in machine-tool gantries down to -40 °C.

Fixed installation

Suitable

TMPU outer jacket withstands aggressive cutting oils, ester lubricants, hydrolysis, and mechanical swarf abrasion.

Furnace, kiln & high-temp zone

Not suitable

Rated up to +90 °C; for +180 °C furnace zones requiring EMC screening, select SiHFC.

Use SiHFC for +180 °C EMC

Typical machinesCNC Machining & Grinding CentresWind Turbine Pitch & Yaw ControlRobotic Welding & Assembly CellsAutomated Test BenchesIndustrial Cranes & Conveyors

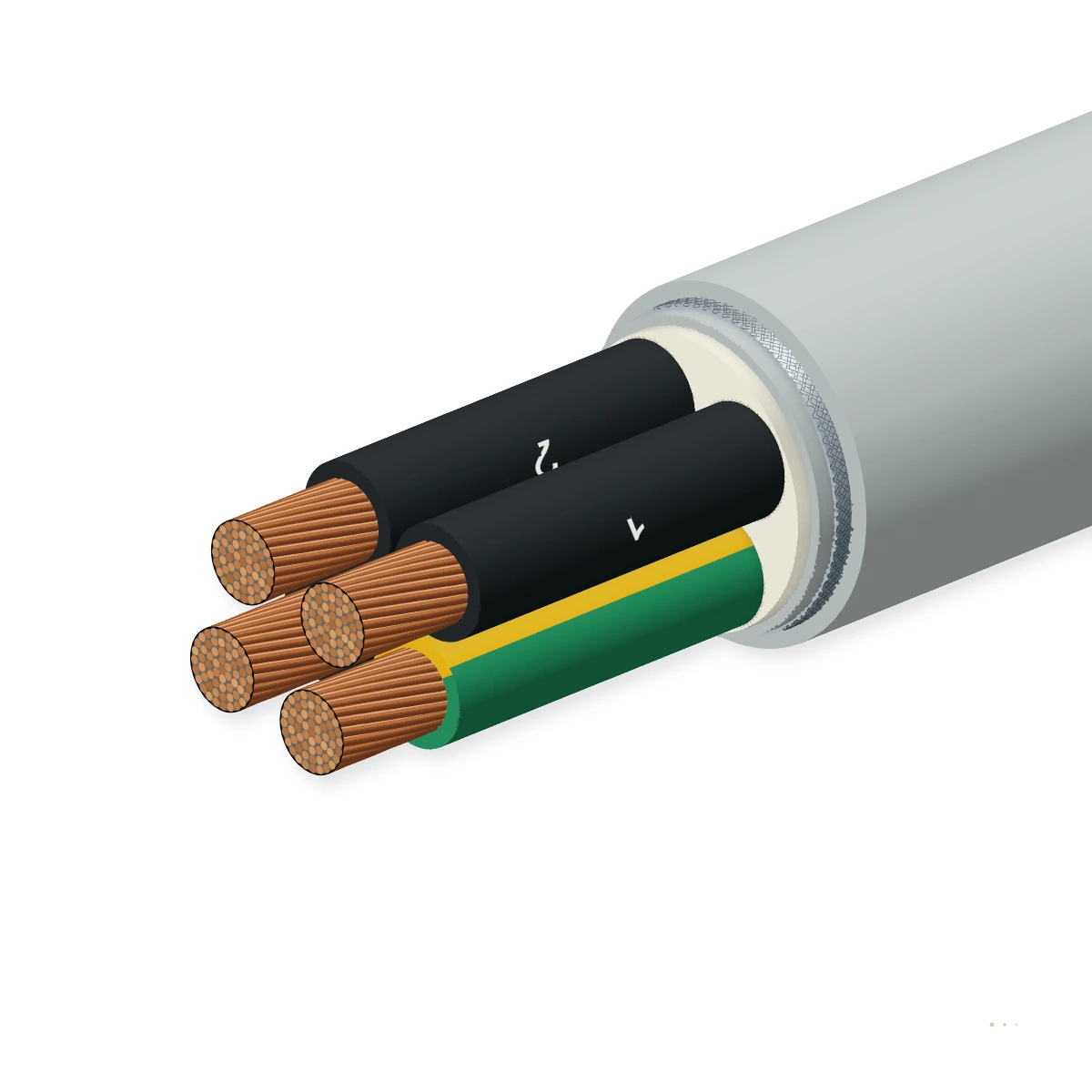

Construction

Layer by layer

5-layer EMC TPE/PUR construction: Class 5 copper cores, numbered TPE insulation, halogen-free inner bedding, tinned copper EMC braid (C), and TMPU outer sheath (P).

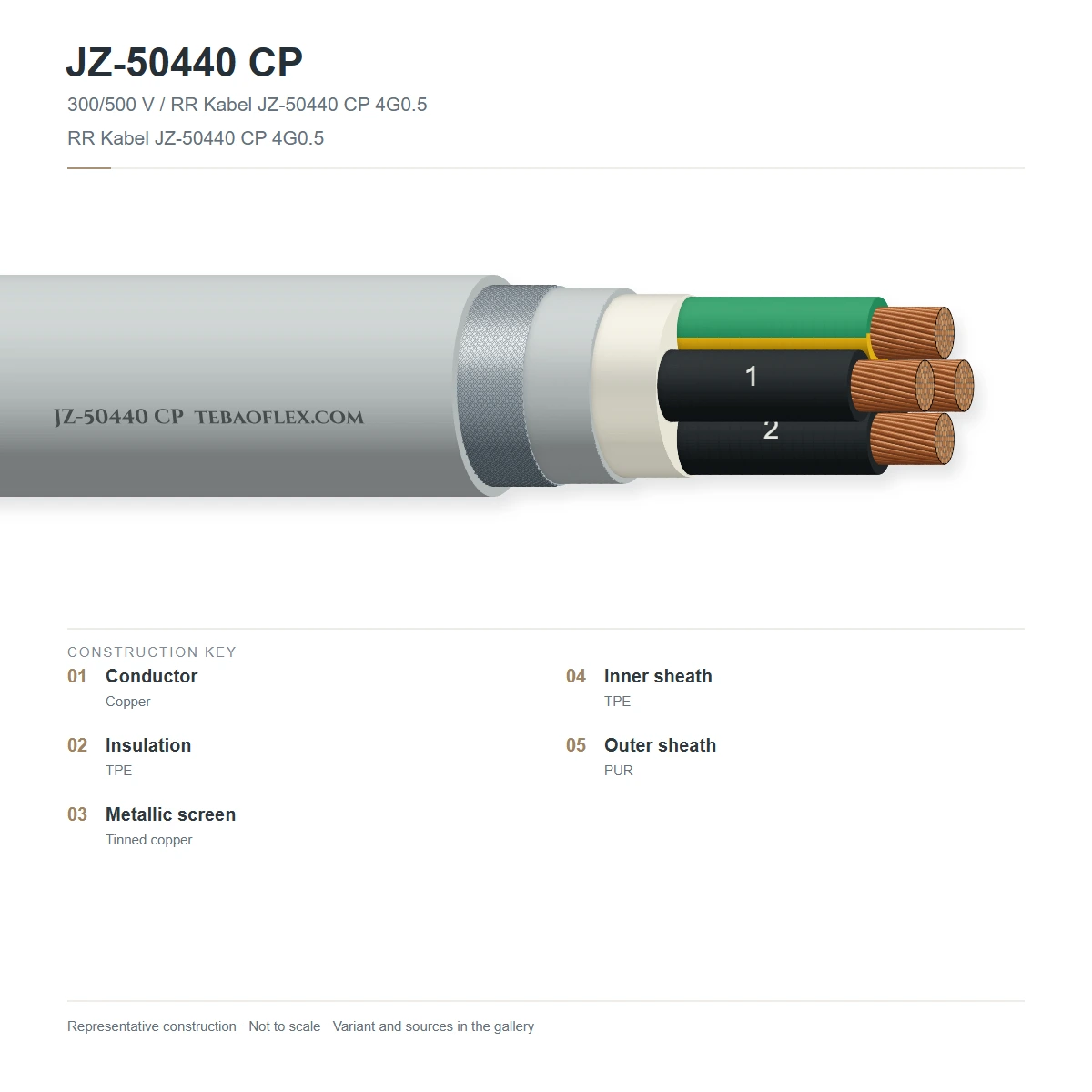

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Fine-stranded bare copper	Annealed electrolytic bare copper wires (IEC 60228 Class 5)Flexible stranding for moving machine axes and cabinet entries
2	Halogen-free TPE core insulation	Thermoplastic elastomer compound (black numbered cores + green/yellow earth)Low mutual capacitance and -50 °C to +90 °C thermal stability
3	Halogen-free inner bedding	Extruded halogen-free TPE inner sheath / wrapping over laid-up coresProvides a circular, kink-free bedding for the tinned copper braid
4	Tinned copper EMC braid (C)	Interwoven tinned copper wire braid (≥ 85 % optical coverage)Low coupling resistance up to 100 MHz for industrial EMC compliance
5	Polyurethane (TMPU) outer sheath (P)	Halogen-free, flame-retardant TMPU polyurethane (EN 50363-10-2, grey RAL 7001)Resists cutting emulsions, hydraulic oils, UV, and abrasion

JZ-50440 CP (3G–36G)

EMC-screened TPE/PUR cable with black white-numbered cores and green/yellow protective conductor

OZ-50440 CP (2×–7×)

EMC-screened TPE/PUR cable with numbered cores and no green/yellow earth wire

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0285-525-2-21 / EN 50363-10-2 (TPE/C/PUR). Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U: 300/500 V AC
Test voltage (core/core): 3,000 V AC (50 Hz, 5 min)
Test voltage (core/screen): 1,500 V AC
Coupling resistance (30 MHz): ≤ 250 Ω/km (EMC braid ≥ 85 %)

Thermal

Operating temp. (fixed): -50 °C to +90 °C
Operating temp. (flexing): -40 °C to +90 °C
Short-circuit conductor temp.: +150 °C max.

Mechanical

Conductor stranding: IEC 60228 Class 5 fine-stranded Cu
Min. bending radius (fixed): 5 × overall cable diameter
Min. bending radius (flexing): 10 × overall cable diameter

Resistance

Oil & coolant resistance: EN 60811-404 oils & machining emulsions
Halogen-free verification: IEC 60754-1 & IEC 60754-2 compliant
Hydrolysis & UV resistance: Weather-, UV-, microbe- & hydrolysis-proof

Reference standards

Design reference: DIN VDE 0285-525-2-21 / EN 50363-10-2
Core identification: DIN VDE 0293-334 black numbered + GNYE
RoHS & REACH: RoHS 3, REACH & LABS/silicone-free

Identification

Outer sheath colour: Silver grey (RAL 7001)
Surface legend: TEBAOFLEX JZ-50440 CP [nGmm²] 300/500V EMC PUR
Customs tariff (HS): 8544.49

Sizes

25 standard configurations (JZ-50440 CP)

Engineering dimensions, conductor stranding, mass and electrical ratings for JZ-50440 CP per DIN VDE 0285-525-2-21 / EN 50363-10-2 (TPE/C/PUR).

Dimensions & weights
Order designation	Cross-section / size	Conductor build	Wall ≈ mm	Outer Ø ≈ mm	Metal kg/km	Weight ≈ kg/km	Min. bend R fixed mm
Standard JZ-50440 CP configurations
JZ-50440 CP 2×0.5	2×0.5 mm²	Class 5 Cu (0.5 mm²)	1.25	6.20	31.9	73.4	31
JZ-50440 CP 3G0.5	3G0.5 mm²	Class 5 Cu (0.5 mm²)	1.25	6.50	37.8	83.4	32
JZ-50440 CP 4G0.5	4G0.5 mm²	Class 5 Cu (0.5 mm²)	1.25	7.00	44.4	97.3	35
JZ-50440 CP 5G0.5	5G0.5 mm²	Class 5 Cu (0.5 mm²)	1.25	7.50	51.0	111.8	38
JZ-50440 CP 7G0.5	7G0.5 mm²	Class 5 Cu (0.5 mm²)	1.25	8.00	62.4	131.5	40
JZ-50440 CP 12G0.5	12G0.5 mm²	Class 5 Cu (0.5 mm²)	1.45	10.60	95.8	217.1	53
JZ-50440 CP 3G0.75	3G0.75 mm²	Class 5 Cu (0.75 mm²)	1.25	6.90	46.4	97.8	34
JZ-50440 CP 4G0.75	4G0.75 mm²	Class 5 Cu (0.75 mm²)	1.25	7.50	55.8	116.6	38
JZ-50440 CP 5G0.75	5G0.75 mm²	Class 5 Cu (0.75 mm²)	1.25	8.00	64.8	133.9	40
JZ-50440 CP 7G0.75	7G0.75 mm²	Class 5 Cu (0.75 mm²)	1.25	8.70	81.7	163.4	44
JZ-50440 CP 12G0.75	12G0.75 mm²	Class 5 Cu (0.75 mm²)	1.45	11.40	127.4	267.8	57
JZ-50440 CP 18G0.75	18G0.75 mm²	Class 5 Cu (0.75 mm²)	1.45	13.20	177.1	365.3	66
JZ-50440 CP 3G1	3G1 mm²	Class 5 Cu (1 mm²)	1.25	7.30	55.1	112.7	36
JZ-50440 CP 4G1	4G1 mm²	Class 5 Cu (1 mm²)	1.25	7.90	66.8	134.2	40
JZ-50440 CP 5G1	5G1 mm²	Class 5 Cu (1 mm²)	1.25	8.50	78.6	156.6	42
JZ-50440 CP 7G1	7G1 mm²	Class 5 Cu (1 mm²)	1.25	9.20	100.3	191.7	46
JZ-50440 CP 12G1	12G1 mm²	Class 5 Cu (1 mm²)	1.45	12.20	159.1	319.8	61
JZ-50440 CP 3G1.5	3G1.5 mm²	Class 5 Cu (1.5 mm²)	1.25	8.40	73.4	149.6	42
JZ-50440 CP 4G1.5	4G1.5 mm²	Class 5 Cu (1.5 mm²)	1.25	9.10	90.4	179.8	46
JZ-50440 CP 5G1.5	5G1.5 mm²	Class 5 Cu (1.5 mm²)	1.25	9.90	107.6	213.5	50
JZ-50440 CP 7G1.5	7G1.5 mm²	Class 5 Cu (1.5 mm²)	1.25	10.70	139.3	262.9	54
JZ-50440 CP 12G1.5	12G1.5 mm²	Class 5 Cu (1.5 mm²)	1.45	14.30	224.3	445.1	72
JZ-50440 CP 4G2.5	4G2.5 mm²	Class 5 Cu (2.5 mm²)	1.25	10.30	133.1	247.7	52
JZ-50440 CP 5G2.5	5G2.5 mm²	Class 5 Cu (2.5 mm²)	1.25	11.20	160.3	295.8	56
JZ-50440 CP 4G4	4G4 mm²	Class 5 Cu (4 mm²)	1.25	12.60	199.0	370.5	63

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Outer diameters and weights are nominal engineering values for JZ-50440 CP subject to standard manufacturing tolerances per DIN VDE 0285-525-2-21 / EN 50363-10-2 (TPE/C/PUR).

Electrical & rating data
Configuration	Max. DC R @ 20 °C Ω/km	Primary rating (A or nF/km)	Secondary rating	Dielectric test V AC rms
2×0.5 mm²	39.00	9.0	7.0	3,000
3G0.5 mm²	39.00	9.0	7.0	3,000
4G0.5 mm²	39.00	9.0	7.0	3,000
5G0.5 mm²	39.00	9.0	7.0	3,000
7G0.5 mm²	39.00	9.0	7.0	3,000
12G0.5 mm²	39.00	9.0	7.0	3,000
3G0.75 mm²	26.00	12.0	9.0	3,000
4G0.75 mm²	26.00	12.0	9.0	3,000
5G0.75 mm²	26.00	12.0	9.0	3,000
7G0.75 mm²	26.00	12.0	9.0	3,000
12G0.75 mm²	26.00	12.0	9.0	3,000
18G0.75 mm²	26.00	12.0	9.0	3,000
3G1 mm²	19.50	15.0	11.0	3,000
4G1 mm²	19.50	15.0	11.0	3,000
5G1 mm²	19.50	15.0	11.0	3,000
7G1 mm²	19.50	15.0	11.0	3,000
12G1 mm²	19.50	15.0	11.0	3,000
3G1.5 mm²	13.30	18.0	14.0	3,000
4G1.5 mm²	13.30	18.0	14.0	3,000
5G1.5 mm²	13.30	18.0	14.0	3,000
7G1.5 mm²	13.30	18.0	14.0	3,000
12G1.5 mm²	13.30	18.0	14.0	3,000
4G2.5 mm²	7.98	26.0	20.0	3,000
5G2.5 mm²	7.98	26.0	20.0	3,000
4G4 mm²	4.95	34.0	26.0	3,000

Electrical resistance at +20 °C and dielectric withstand voltages verified per DIN VDE 0285-525-2-21 / EN 50363-10-2 (TPE/C/PUR).

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
Dielectric spark / high-voltage withstand test	100 % in-line spark and AC/DC dielectric withstand per DIN VDE 0285-525-2-21 / EN 50363-10-2 (TPE/C/PUR)	Every manufactured length
Conductor DC resistance & continuity check	Within maximum 20 °C resistance limit specified for JZ-50440 CP	Every spool or drum length
Sample tests
Insulation resistance & dimensional verification	Wall thickness, concentricity and insulation resistance per DIN VDE 0285-525-2-21 / EN 50363-10-2 (TPE/C/PUR)	Per production batch
Environmental, mechanical & EMC qualification	Qualified to DIN VDE 0285-525-2-21 / EN 50363-10-2 (TPE/C/PUR) thermal, mechanical and environmental performance criteria	Type qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

DIN VDE 0285-525-2-21 / EN 50363-10-2 (TPE/C/PUR)CE (2014/35/EU) & RoHS 3 (2015/863/EU) CompliantREACH SVHC Compliance Verified

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX JZ-50440 CP 4G1.5 300/500V TPE/C/PUR HALOGEN-FREE CE

Delivery form: Export wooden drums, tactical reels or coils
Standard lengths: 100 m · 500 m · 1000 m (or custom cut lengths)
MOQ: 100 m (stock sizes) · 300–500 m (custom build)
Lead time: 2–4 weeks ex-works
Incoterms: EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFJZ-50440 CP Halogen-Free Screened TPE/PUR Control Cable – technical datasheet25 sizes · construction, technical data, approvals XLSXJZ-50440 CP spec data (Excel)All 25 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20
