Product

Control & signal cablesUL 1277 Type TC-ER600 V · 90 °C Dry / 75 °C WetDirect Burial & Sunlight Res.

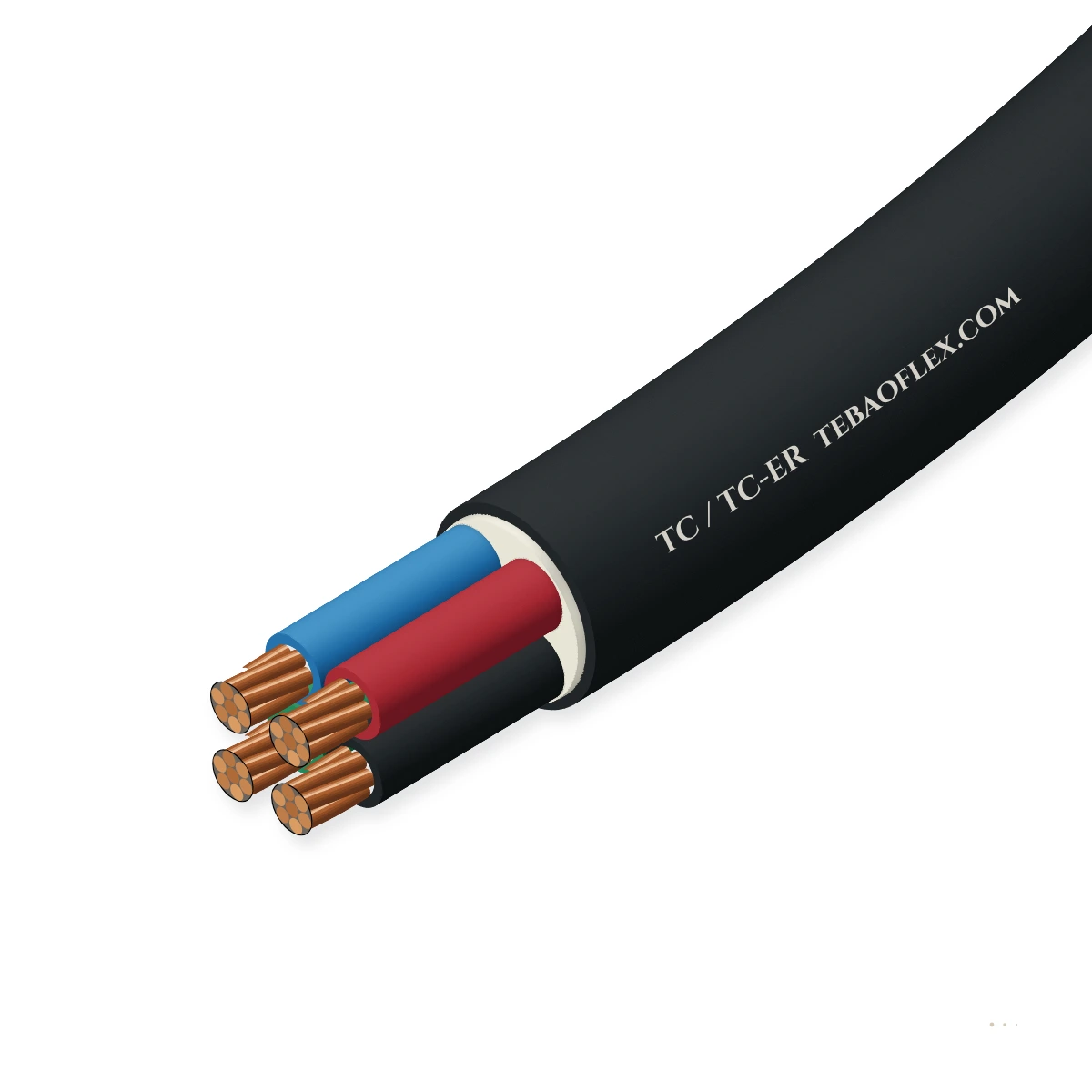

TC / TC-ER TC/TC-ER Industrial Tray CableUL 1277 600 V Exposed Run (TC-ER) industrial power & control tray cable

North American 600 V industrial power and control tray cable certified to UL 1277 and NEC Article 336 with Exposed Run (`TC-ER`) crush and impact rating, eliminating metal conduit drops between cable tray and machine.

Flame-retardant

Oil-resistant

Outdoor & humid

Approved

Cores × cross-section

Order designation: TC-ER 12C 14 AWG (2.5 mm²)
Outer Ø min: 14.0 mm
Outer Ø max: 15.2 mm
Weight ≈: 398 kg/km
Min. bend R: 76 mm

Check against my drum All sizes (23)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Voltage rating: 600 V
Thermal rating: 90 °C / 75 °C
Exposed Run: TC-ER rated
Flame test: UL 1685 / FT4
Bending radius: 5–8 × OD
Size range: 18–2 AWG

Typical values for this cable type, based on UL 1277 / NEC Art. 336 (TC-ER) — confirmed in the datasheet and quotation for your order.

Application fit

Is TC / TC-ER right for your machine?

Type TC-ER passes the severe crush and impact tests of UL 2225 / UL 1277, permitting unsupported transition from ladder tray directly to field motors, junction boxes and control panels without intermediate EMT or rigid metal conduit.

Fixed installation

Suitable

Industrial ladder cable trays, raceways, outdoor pipe racks, direct burial and exposed transitions to machinery.

VFD inverter to AC motor screened feeder

With conditions

Available with overall foil/braid shield for noisy control loops; use dedicated symmetrical VFD cable for large PWM motor leads.

Use CY Screened

Trailing & towing

Not suitable

Class B / Class K stranded building/tray cable; not designed for mobile floor trailing.

Use JZ-600 PUR

Energy chain / drag chain

Not suitable

Fixed tray and exposed-run installation cable; not for dynamic drag chains.

Use JZ-602-C-PUR

Typical machinesNorth American NEC industrial plantsPetrochemical, oil & gas pipe racksAutomotive assembly & conveyor linesWater treatment & power generationPulp, paper, cement & food processing

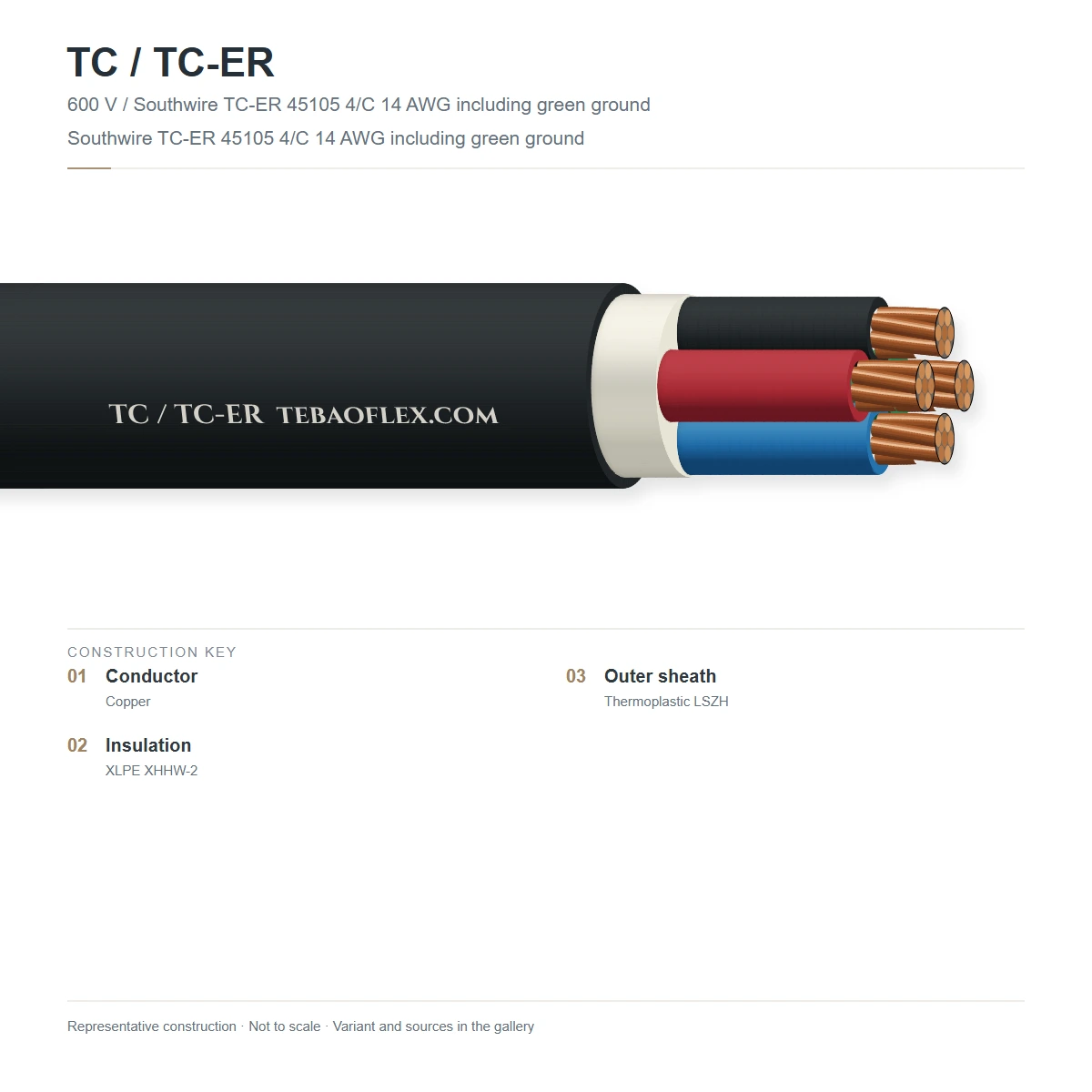

Construction

Layer by layer

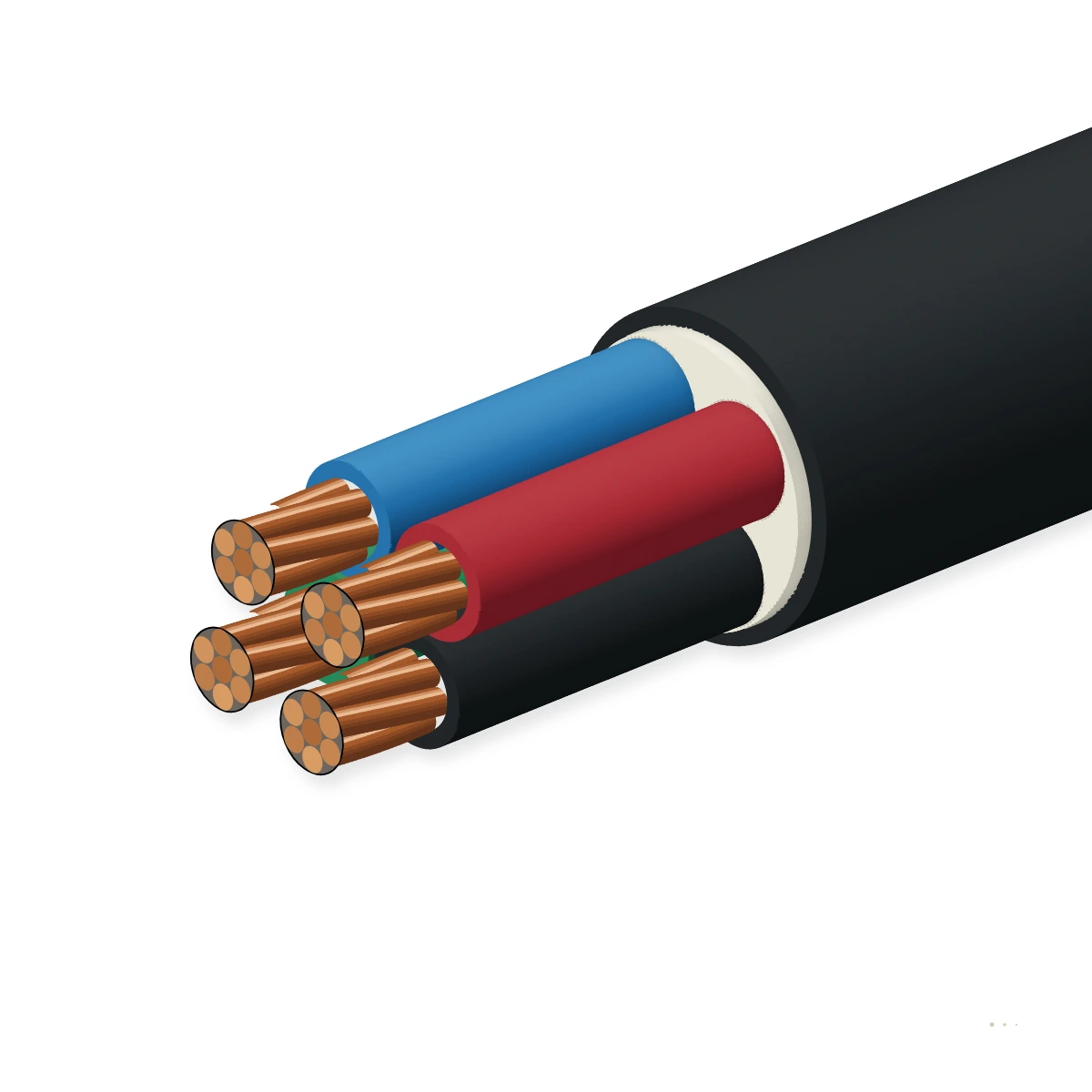

Shown: TC-ER 12×14 AWG (12G2.5 mm²) — stranded bare annealed copper conductors, flame-retardant PVC/nylon (THHN/THWN-2) or XLPE (XHHW-2) core insulation (ICEA Method 1/4 identification + green ground) and black sunlight/oil-resistant PVC outer jacket.

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Stranded bare copper conductor	ASTM B3 / B8 Class B (7-strand) or flexible Class K annealed bare copper from 18 AWG to 2 AWGASTM B3 / B8 · UL 1277
2	THHN/THWN-2 or XHHW-2 insulation	Heat- and moisture-resistant PVC with polyamide nylon skin (UL 83 THHN/THWN-2) or cross-linked polyethylene (UL 44 XHHW-2)UL 83 / UL 44 · 90 °C Dry / 75 °C Wet
3	Cabled core bundle + ripcord	Conductors cabled with non-hygroscopic fillers, binder tape and high-strength nylon jacket ripcordUL 1277
4	Optional foil / braid shield	Unshielded standard, or 100 % Al/Mylar tape + tinned-copper drain wire / braid for shielded TC-ER controlUL 1277
5	Sunlight- & oil-resistant PVC jacket	Heavy-duty black polyvinyl chloride jacket meeting UL Oil Res I/II, sunlight resistance and Direct BurialUL 1277 · UL 1685 / FT4

TC-ER THHN/THWN-2 Unshielded (18–2 AWG)

600 V PVC/nylon insulated industrial power and control tray cable with ICEA colour/number code

TC-ER Shielded (OAS / Foil + Braid)

600 V overall-shielded instrumentation and PLC control tray cable for EMI-heavy plant trays

TC-ER XHHW-2 XLPE (90 °C Wet/Dry)

Cross-linked polyethylene (XLPE) insulated tray cable rated +90 °C in both wet and dry locations

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on UL 1277 / NEC Art. 336 (TC-ER). Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage: 600 V RMS
Dielectric test voltage: 2000 V – 3500 V AC per UL 83 / UL 1277
Insulation resistance: ≥ 500 MΩ·km at +20 °C

Thermal

Max. conductor temperature: +90 °C dry · +75 °C wet (THHN/THWN-2) / +90 °C wet & dry (XHHW-2)
Cold bend / impact rating: −25 °C cold impact · −40 °C fixed service
Short-circuit temperature: +150 °C (THHN/THWN-2) · +250 °C (XHHW-2 XLPE)

Mechanical

Exposed Run (TC-ER): Passes UL 1277 crush (2000 lbf) and impact tests for open tray-to-machine drops
Min. bending radius: 5 × OD (unshielded ≤ 25 mm) · 8 × OD (shielded)
Pulling tension: Max. 0.008 lbf/cmil (≈ 70 N/mm² on copper area) in tray pulls

Resistance

Vertical tray flame test: UL 1685 (70,000 BTU/hr) · IEEE 1202 / CSA FT4
Oil resistance: UL Oil Res I (+60 °C) & Oil Res II (+75 °C) optional
Outdoor & direct burial: 720-hour xenon-arc Sunlight Resistant & Direct Burial rated

Reference standards

Primary standard: UL 1277 (Type TC / TC-ER)
Installation code: NFPA 70 National Electrical Code (NEC) Article 336, Class I Div 2 per NEC 501.10(B)
Core identification: ICEA S-73-532 / NEMA WC 57 Method 1 (Table E1/E2 colour code) or Method 4 (numbered black)
RoHS & REACH: RoHS 2 & REACH compliant

Identification

Jacket colour: Black (UV-stabilised)
Conductor identification: ICEA Method 1 (Black, Red, Blue, Orange, Yellow, Brown…) or Method 4 numbered + Green GND
Jacket print legend: TEBAOFLEX (UL) E-FILE TYPE TC-ER 600V THHN/THWN-2 90C DRY 75C WET SUN RES DIR BUR FT4
Customs tariff (HS): 8544.49 (insulated conductors ≤ 1000 V)

Sizes

23 standard TC / TC-ER configurations

Typical UL 1277 / NEC Art. 336 (TC-ER) outer diameter limits, copper content and cable weight.

Dimensions & weights
Order designation	Cores × mm²	AWG ≈	Outer Ø min mm	Outer Ø max mm	Copper kg/km	Weight ≈ kg/km	Min. bend R mm
18 AWG (≈ 0.75 mm²) 600 V Control Tray Configurations
TC-ER 3C 18 AWG (0.75 mm²)	3×0.75	18	6.5	7.1	21	72	36
TC-ER 5C 18 AWG (0.75 mm²)	5×0.75	18	7.5	8.2	36	102	41
TC-ER 9C 18 AWG (0.75 mm²)	9×0.75	18	9.6	10.4	64	162	52
TC-ER 12C 18 AWG (0.75 mm²)	12×0.75	18	10.8	11.7	86	206	58
TC-ER 19C 18 AWG (0.75 mm²)	19×0.75	18	12.7	13.8	136	304	69
16 AWG (≈ 1.5 mm²) 600 V Control Tray Configurations
TC-ER 3C 16 AWG (1.5 mm²)	3×1.5	16	7.3	7.9	43	95	40
TC-ER 5C 16 AWG (1.5 mm²)	5×1.5	16	8.5	9.2	72	138	46
TC-ER 9C 16 AWG (1.5 mm²)	9×1.5	16	10.8	11.7	129	224	58
TC-ER 12C 16 AWG (1.5 mm²)	12×1.5	16	12.8	13.9	172	298	70
TC-ER 19C 16 AWG (1.5 mm²)	19×1.5	16	15.0	16.3	273	442	82
14 AWG (≈ 2.5 mm²) 600 V Control & Branch Tray Configurations
TC-ER 3C 14 AWG (2.5 mm²)	3×2.5	14	8.0	8.7	72	122	44
TC-ER 4C 14 AWG (2.5 mm²)	4×2.5	14	8.7	9.5	96	152	48
TC-ER 7C 14 AWG (2.5 mm²)	7×2.5	14	10.5	11.4	168	236	57
TC-ER 12C 14 AWG (2.5 mm²)	12×2.5	14	14.0	15.2	288	398	76
TC-ER 19C 14 AWG (2.5 mm²)	19×2.5	14	16.4	17.8	456	595	89
12 AWG (≈ 4.0 mm²) 600 V Power & Control Tray Configurations
TC-ER 4C 12 AWG (4 mm²)	4×4	12	9.8	10.6	153	208	53
TC-ER 7C 12 AWG (4 mm²)	7×4	12	11.8	12.8	268	332	64
TC-ER 12C 12 AWG (4 mm²)	12×4	12	15.7	17.1	460	558	86
10 AWG to 2 AWG (6–35 mm²) 600 V Feeder Tray Configurations
TC-ER 4C 10 AWG (6 mm²)	4×6	10	11.6	12.6	230	298	63
TC-ER 4C 8 AWG (10 mm²)	4×10	8	14.9	16.2	384	495	81
TC-ER 4C 6 AWG (16 mm²)	4×16	6	17.3	18.8	614	735	94
TC-ER 4C 4 AWG (25 mm²)	4×25	4	20.6	22.4	960	1,110	112
TC-ER 4C 2 AWG (35 mm²)	4×35	2	23.6	25.6	1,344	1,520	128

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Dimensions and weights are typical values per UL 1277 / NEC Art. 336 (TC-ER). Minimum fixed bending radius shown is 5 × OD.

Electrical & current ratings
Cross-section mm²	AWG ≈	Max. DC resistance 20 °C, Ω/km	Single pair/core 30 °C, A	Multi-core bundle 30 °C, A
0.75	18	26	12.0	10.0
1.5	16	13.3	23.0	18.0
2.5	14	7.98	30.0	25.0
4	12	4.95	41.0	34.0
6	10	3.3	53.0	44.0
10	8	1.91	74.0	61.0
16	6	1.21	99.0	82.0
25	4	0.78	131.0	108.0
35	2	0.554	162.0	135.0

Current ratings at 30 °C ambient in free air per DIN VDE 0298-4 / DIN VDE 0891-1. Apply grouping derating factors for multi-core control and signal bundles.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Cable sizeDrum core diameter (mm)

Cable length on drum (m)

Drum core 300 mm ≥ 152 mmBending radius OK (5 × OD 15.2 mm)

Minimum bending radius: 76 mm
Min. drum core diameter: ≈ 152 mm
Cable weight on drum: 19.9 kg
Copper content: 14.4 kg

Indicative only: based on the datasheet outer diameter and 5 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
AC voltage test	2.0 kV AC (50 Hz)	Every manufactured length
Conductor DC resistance	IEC 60228 / UL 1277 / NEC Art. 336 (TC-ER) (bare copper)	Every manufactured length
Sample tests
Vertical flame propagation	IEC 60332-1-2 / EN 60332-1-2	Per production batch
Insulation & sheath material physical properties	UL 1277 / NEC Art. 336 (TC-ER)	Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

UL 1277 / NEC Art. 336 (TC-ER)CE · RoHS 2 (2011/65/EU) · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX (UL) TYPE TC-ER 600V THHN/THWN-2 90C DRY 75C WET SUN RES DIR BUR FT4

Delivery form: Export wooden drums or coils, cut-to-length on request
Packaging: Heat-treated ISPM-15 timber drums with sealed cable ends
Conductor / sheath options: Custom core counts, pair counts or sheath colours on request

Technical documents

Downloads

PDFTC / TC-ER TC/TC-ER Industrial Tray Cable – technical datasheet23 sizes · construction, technical data, approvals XLSXTC / TC-ER spec data (Excel)All 23 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What is the difference between Type TC and Type TC-ER under NEC Article 336?

Standard UL 1277 Type TC ('Tray Cable') must remain enclosed inside a cable tray, raceway or conduit throughout its run. Type TC-ER ('Exposed Run') passes the much tougher crush and impact tests originally developed for metal-clad (MC) cable, allowing the cable to exit the tray and run unsupported for up to 6 ft (or longer when mechanically supported in industrial establishments under NEC 336.10(7)) directly to motors and control cabinets without conduit.

What is the difference between THHN/THWN-2 and XHHW-2 core insulation in TC-ER cables?

THHN/THWN-2 uses flame-retardant PVC with an extruded clear nylon armour skin, giving a smaller overall cable diameter and high oil/chemical resistance (+90 °C dry / +75–90 °C wet). XHHW-2 uses thermoset cross-linked polyethylene (XLPE), providing lower dielectric capacitance, +250 °C short-circuit rating and +90 °C continuous rating in both wet and dry locations.

Can TC-ER be used in Class I, Division 2 hazardous locations?

Yes. Under NFPA 70 (NEC) Article 501.10(B)(1)(6), Type TC-ER cable (including an equipment grounding conductor) is permitted in Class I, Division 2 hazardous locations in industrial establishments.

How are conductors identified inside a TC-ER control cable?

Control sizes (18–10 AWG) are supplied with either ICEA S-73-532 Method 1 (Table E1 or E2 colour code) or Method 4 (black cores printed with sequential numbers plus a green or green-yellow grounding conductor).
