Product

Control & signal cables0.6/1 kV (600/1000 V)TMPU Polyurethane Sheath (11Y)Indoor & Outdoor Heavy Duty

JZ-600 PUR 0.6/1 kV PVC/PUR Control and Connection Cable0.6/1 kV heavy-duty PVC-insulated TMPU polyurethane control & connection cable

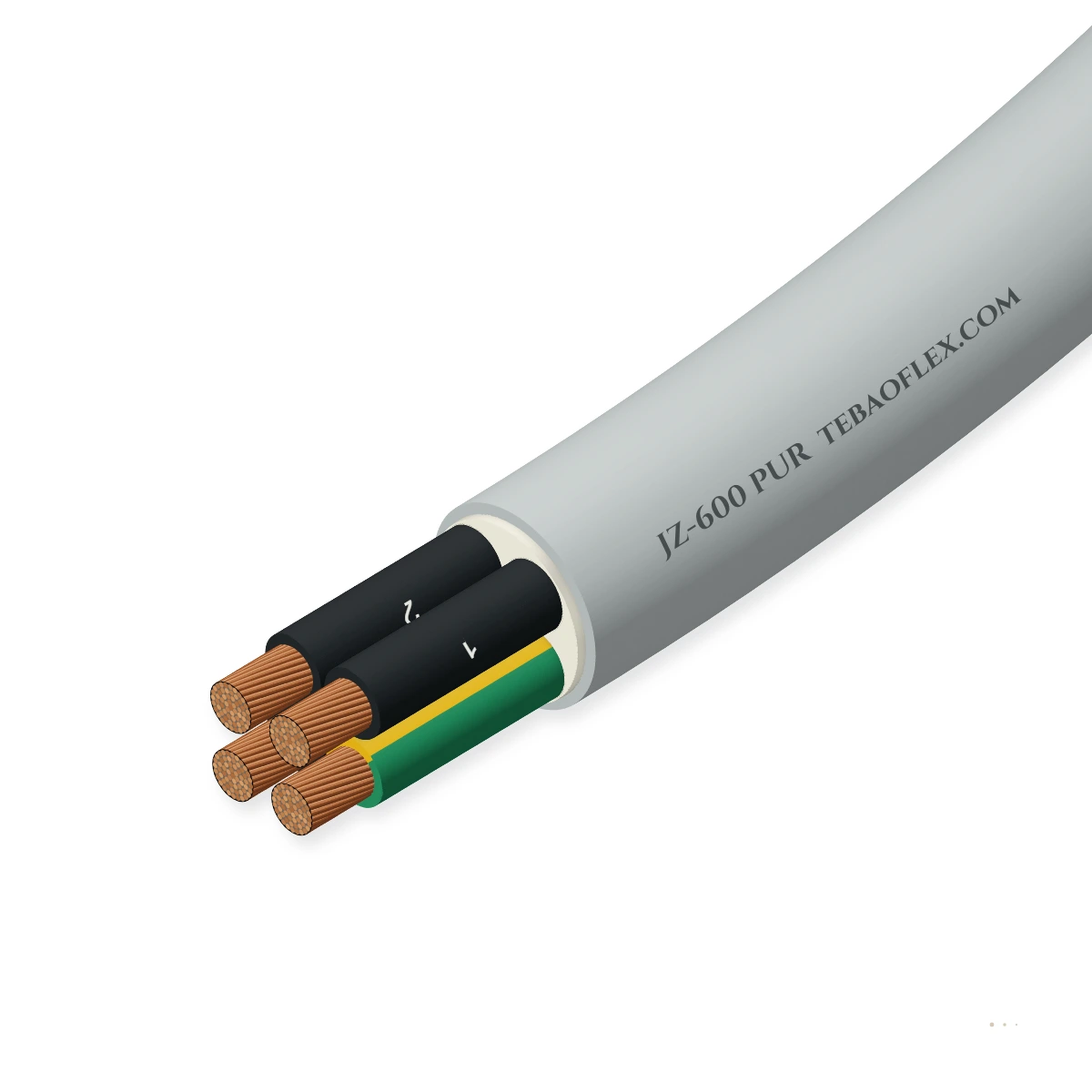

Heavy-duty 0.6/1 kV (600/1000 V) flexible control and power connection cable (`JZ-600 PUR`) with Class 5 bare copper conductors (0.75–35 mm²), thick-wall TI2 numbered PVC cores and a cut-, oil-, UV- and microbe-resistant TMPU polyurethane (`11Y`) outer sheath.

Oil-resistant

Outdoor & humid

Water-resistant

Ozone, UV & moisture

Cores × cross-section

Order designation: JZ-600 PUR 4G2.5
Outer Ø min: 9.8 mm
Outer Ø max: 10.7 mm
Weight ≈: 202 kg/km
Min. bend R: 43 mm

Check against my drum All sizes (32)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Voltage rating: 0.6/1 kV
Outer sheath: TMPU (11Y)
Temp. flexing: −15…+80 °C
Bending radius: 4–12.5 × OD
Outdoor rated: UV & hydrolysis
Size range: 0.75–35 mm²

Typical values for this cable type, based on DIN VDE 0250 / VDE 0285 · 0.6/1 kV TMPU — confirmed in the datasheet and quotation for your order.

Application fit

Is JZ-600 PUR right for your machine?

JZ-600 PUR steps up from 300/500 V control cables to a full `0.6/1 kV` insulation and reinforced `TMPU` polyurethane jacket, allowing a single rugged cable type to serve both 400/690 V motor feeders and heavy control circuits in steelworks, quarries, construction sites and outdoor plants.

Fixed installation

Suitable

0.6/1 kV industrial machinery feeders, outdoor conveyors, steel mills, concrete batching and washdown plants.

Trailing & towing

Suitable

Thick-wall TMPU polyurethane jacket withstands rough workshop floors, gravel, metal swarf and mobile equipment trailing.

VFD inverter to AC motor screened feeder

Not suitable

Unscreened 0.6/1 kV cable; for EMC-screened PUR cables, select JZ-602-C-PUR.

Use JZ-602-C-PUR

Energy chain / drag chain

With conditions

Suitable for occasional flexing and free movement; for 300/500 V compact control, see JZ-500-PUR.

Use JZ-500-PUR

Typical machinesSteelworks, rolling mills & foundriesMining, quarrying & concrete batching plantsMachine tool 400/690 V power & controlOutdoor conveyors, cranes & material handlingChemical, recycling & heavy washdown lines

Construction

Layer by layer

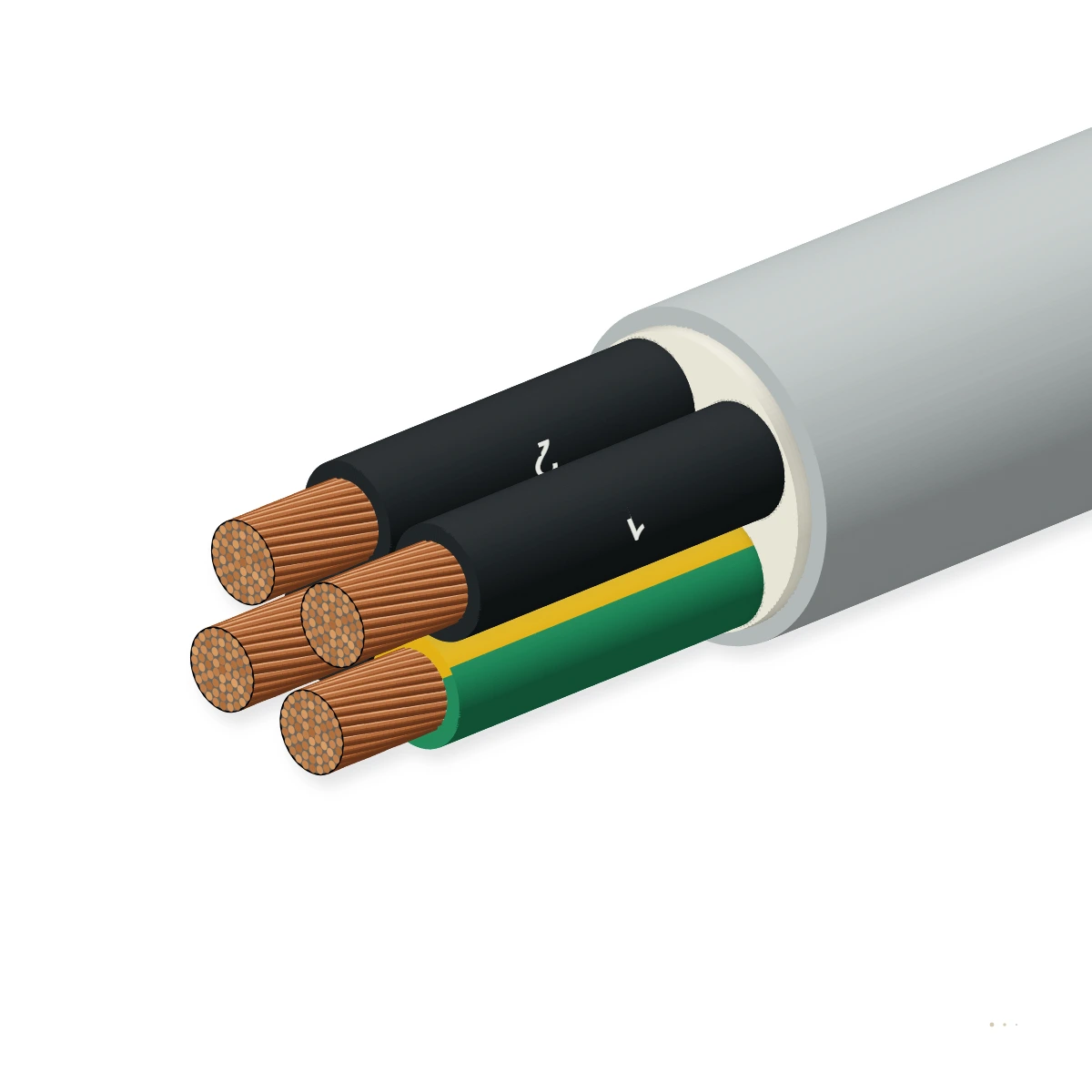

Shown: JZ-600 PUR 4G2.5 — Class 5 flexible bare copper conductors, 0.6/1 kV thick-wall TI2 PVC core insulation (black cores with white sequential numbers + green-yellow earth), fleece separator and silver-grey (or black) EN 50363-10-2 TMPU polyurethane outer sheath.

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Class 5 flexible copper conductor	Fine-stranded annealed bare copper to DIN VDE 0295 / IEC 60228 Class 5IEC 60228 Class 5
2	0.6/1 kV TI2 PVC core insulation	Reinforced-wall PVC compound Type TI2 (EN 50363-3) rated for 600/1000 V serviceDIN VDE 0250 / 0285 · EN 50334
3	Short-lay core stranding + fleece	Cores stranded in concentric layers with non-woven fleece separator for torsional stabilityDIN VDE 0285
4	Heavy-duty TMPU outer sheath (11Y)	Polyether-based thermoplastic polyurethane compound Type TMPU (EN 50363-10-2 / DIN VDE 0207-20 Type 11YM1)EN 50363-10-2 TMPU · EN 60811-404

JZ-600 PUR (G — with Green/Yellow Earth Core)

3G to 25G 0.6/1 kV control and power feeder configurations from 0.75 to 35 mm²

OZ-600 PUR (X — without Earth Core)

2X to 7X 0.6/1 kV numbered-only control configurations without green-yellow core

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0250 / VDE 0285 · 0.6/1 kV TMPU. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U: 0.6/1 kV (600/1000 V AC)
AC test voltage (50 Hz): 4000 V AC
Insulation resistance (20 °C): ≥ 20 MΩ·km

Thermal

Temperature, flexing: −15 °C to +80 °C
Temperature, fixed: −40 °C to +80 °C
Max. conductor temperature: +80 °C continuous · +160 °C short-circuit

Mechanical

Min. bending radius, fixed: 4 × overall diameter
Min. bending radius, flexing: 10–12.5 × overall diameter
Cut, tear & impact strength: Reinforced 0.6/1 kV core wall + TMPU jacket resists sharp rock, metal chips and vehicular roll-over

Resistance

Oil & coolant resistance: EN 60811-404 mineral oils, synthetic lubricants, hydraulic fluids and emulsions
UV, weather & hydrolysis: UV-stabilised and hydrolysis/microbe-resistant for permanent outdoor installation

Reference standards

Construction basis: DIN VDE 0250 / DIN VDE 0285 & DIN VDE 0207-20 (11YM1)
Sheath compound: EN 50363-10-2 Type TMPU
Core identification: DIN VDE 0293-334 / EN 50334 sequential numbers + green-yellow earth
RoHS & REACH: 2011/65/EU (RoHS 2) & EC 1907/2006 compliant

Identification

Sheath colour: Silver-grey (RAL 7001) or black (RAL 9005)
Core identification: Black cores with white sequential numbers + green-yellow earth core (JZ)
Sheath marking: TEBAOFLEX JZ-600 PUR [Size] 0.6/1kV TMPU OIL & UV RESISTANT CE
Customs tariff (HS): 8544.49 (insulated conductors ≤ 1000 V)

Sizes

32 standard JZ-600 PUR configurations

Typical DIN VDE 0250 / VDE 0285 · 0.6/1 kV TMPU outer diameter limits, copper content and cable weight.

Dimensions & weights
Order designation	Cores × mm²	AWG ≈	Outer Ø min mm	Outer Ø max mm	Copper kg/km	Weight ≈ kg/km	Min. bend R mm
0.75 mm² JZ-600 PUR 0.6/1 kV Control Configurations
JZ-600 PUR 3G0.75	3×0.75	18	6.6	7.2	21	74	29
JZ-600 PUR 4G0.75	4×0.75	18	7.3	7.9	28	92	32
JZ-600 PUR 5G0.75	5×0.75	18	7.9	8.6	36	112	34
JZ-600 PUR 7G0.75	7×0.75	18	8.9	9.7	50	148	39
JZ-600 PUR 12G0.75	12×0.75	18	11.6	12.6	86	242	50
1.00 mm² JZ-600 PUR 0.6/1 kV Control Configurations
JZ-600 PUR 3G1.0	3×1.0	17	6.9	7.5	28	86	30
JZ-600 PUR 4G1.0	4×1.0	17	7.5	8.2	38	106	33
JZ-600 PUR 5G1.0	5×1.0	17	8.3	9.0	48	130	36
JZ-600 PUR 7G1.0	7×1.0	17	9.4	10.2	67	174	41
JZ-600 PUR 12G1.0	12×1.0	17	12.2	13.3	115	288	53
JZ-600 PUR 18G1.0	18×1.0	17	14.4	15.6	172	412	62
JZ-600 PUR 25G1.0	25×1.0	17	17.1	18.6	240	568	74
1.50 mm² JZ-600 PUR 0.6/1 kV Control Configurations
JZ-600 PUR 3G1.5	3×1.5	16	7.6	8.3	43	108	33
JZ-600 PUR 4G1.5	4×1.5	16	8.4	9.1	57	136	36
JZ-600 PUR 5G1.5	5×1.5	16	9.2	10.0	72	168	40
JZ-600 PUR 7G1.5	7×1.5	16	10.5	11.4	100	226	46
JZ-600 PUR 12G1.5	12×1.5	16	13.7	14.9	172	376	60
JZ-600 PUR 18G1.5	18×1.5	16	16.2	17.6	259	542	70
JZ-600 PUR 25G1.5	25×1.5	16	19.3	21.0	360	748	84
2.50 mm² JZ-600 PUR 0.6/1 kV Control & Motor Feeders
JZ-600 PUR 3G2.5	3×2.5	14	8.9	9.7	72	158	39
JZ-600 PUR 4G2.5	4×2.5	14	9.8	10.7	96	202	43
JZ-600 PUR 5G2.5	5×2.5	14	10.9	11.8	120	248	47
JZ-600 PUR 7G2.5	7×2.5	14	12.4	13.5	168	336	54
JZ-600 PUR 12G2.5	12×2.5	14	16.2	17.6	288	558	70
4.0–35 mm² JZ-600 PUR 0.6/1 kV Power Connection Cables
JZ-600 PUR 4G4	4×4	12	11.4	12.4	153	288	50
JZ-600 PUR 5G4	5×4	12	12.6	13.7	192	355	55
JZ-600 PUR 4G6	4×6	10	13.1	14.2	230	405	57
JZ-600 PUR 5G6	5×6	10	14.5	15.8	288	498	63
JZ-600 PUR 4G10	4×10	8	16.4	17.8	384	645	71
JZ-600 PUR 4G16	4×16	6	19.5	21.2	614	965	85
JZ-600 PUR 4G25	4×25	4	23.7	25.8	960	1,460	103
JZ-600 PUR 4G35	4×35	2	27.0	29.4	1,344	1,980	118

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Dimensions and weights are typical values per DIN VDE 0250 / VDE 0285 · 0.6/1 kV TMPU. Minimum fixed bending radius shown is 4 × OD.

Electrical & current ratings
Cross-section mm²	AWG ≈	Max. DC resistance 20 °C, Ω/km	Single pair/core 30 °C, A	Multi-core bundle 30 °C, A
0.75	18	26	12.0	10.0
1	17	19.5	15.0	13.0
1.5	16	13.3	23.0	18.0
2.5	14	7.98	30.0	25.0
4	12	4.95	41.0	34.0
6	10	3.3	53.0	44.0
10	8	1.91	74.0	61.0
16	6	1.21	99.0	82.0
25	4	0.78	131.0	108.0
35	2	0.554	162.0	135.0

Current ratings at 30 °C ambient in free air per DIN VDE 0298-4 / DIN VDE 0891-1. Apply grouping derating factors for multi-core control and signal bundles.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Cable sizeDrum core diameter (mm)

Cable length on drum (m)

Drum core 300 mm ≥ 86 mmBending radius OK (4 × OD 10.7 mm)

Minimum bending radius: 43 mm
Min. drum core diameter: ≈ 86 mm
Cable weight on drum: 10.1 kg
Copper content: 4.8 kg

Indicative only: based on the datasheet outer diameter and 4 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
AC voltage test	4.0 kV AC (50 Hz)	Every manufactured length
Conductor DC resistance	IEC 60228 / DIN VDE 0250 / VDE 0285 · 0.6/1 kV TMPU (bare copper)	Every manufactured length
Sample tests
Vertical flame propagation	IEC 60332-1-2 / EN 60332-1-2	Per production batch
Insulation & sheath material physical properties	DIN VDE 0250 / VDE 0285 · 0.6/1 kV TMPU	Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

DIN VDE 0250 / VDE 0285 · 0.6/1 kV TMPUCE · RoHS 2 (2011/65/EU) · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX JZ-600 PUR [Size] 0.6/1kV TMPU OIL & UV RESISTANT CE

Delivery form: Export wooden drums or coils, cut-to-length on request
Packaging: Heat-treated ISPM-15 timber drums with sealed cable ends
Conductor / sheath options: Custom core counts, pair counts or sheath colours on request

Technical documents

Downloads

PDFJZ-600 PUR 0.6/1 kV PVC/PUR Control and Connection Cable – technical datasheet32 sizes · construction, technical data, approvals XLSXJZ-600 PUR spec data (Excel)All 32 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

How does JZ-600 PUR differ from JZ-500-PUR?

JZ-500-PUR is rated 300/500 V with standard control wall thickness. JZ-600 PUR is built with reinforced 0.6/1 kV (600/1000 V) PVC core insulation and a thicker EN 50363-10-2 TMPU polyurethane outer sheath, permitting direct connection to 400/690 V industrial motors, outdoor conveyors and heavy construction machinery.

Can JZ-600 PUR be installed outdoors?

Yes. The polyether-based TMPU polyurethane outer jacket is UV-stabilised, ozone-resistant, waterproof and immune to microbial degradation, making JZ-600 PUR suitable for year-round outdoor and wet-area service from −40 °C (fixed) to +80 °C.

Is JZ-600 PUR more compact than rubber H07RN-F?

Yes. Because TI2 PVC core insulation and high-strength TMPU polyurethane require thinner walls than elastomeric rubber while achieving 0.6/1 kV rating (vs 450/750 V for H07RN-F), JZ-600 PUR has a ~20–25 % smaller outer diameter and superior cut/swarf resistance.

What if my 600 V / 1 kV PUR cable also needs an EMC copper braid screen?

Select JZ-602-C-PUR / OZ-602-C-PUR, which adds a high-coverage tinned-copper wire braid screen and dual VDE / UL 600 V recognition.
