General rubber flexible cablesAD8 Submersible · 500 m450/750 V / 0.6/1 kVPower + 2×1.5 Monitoring

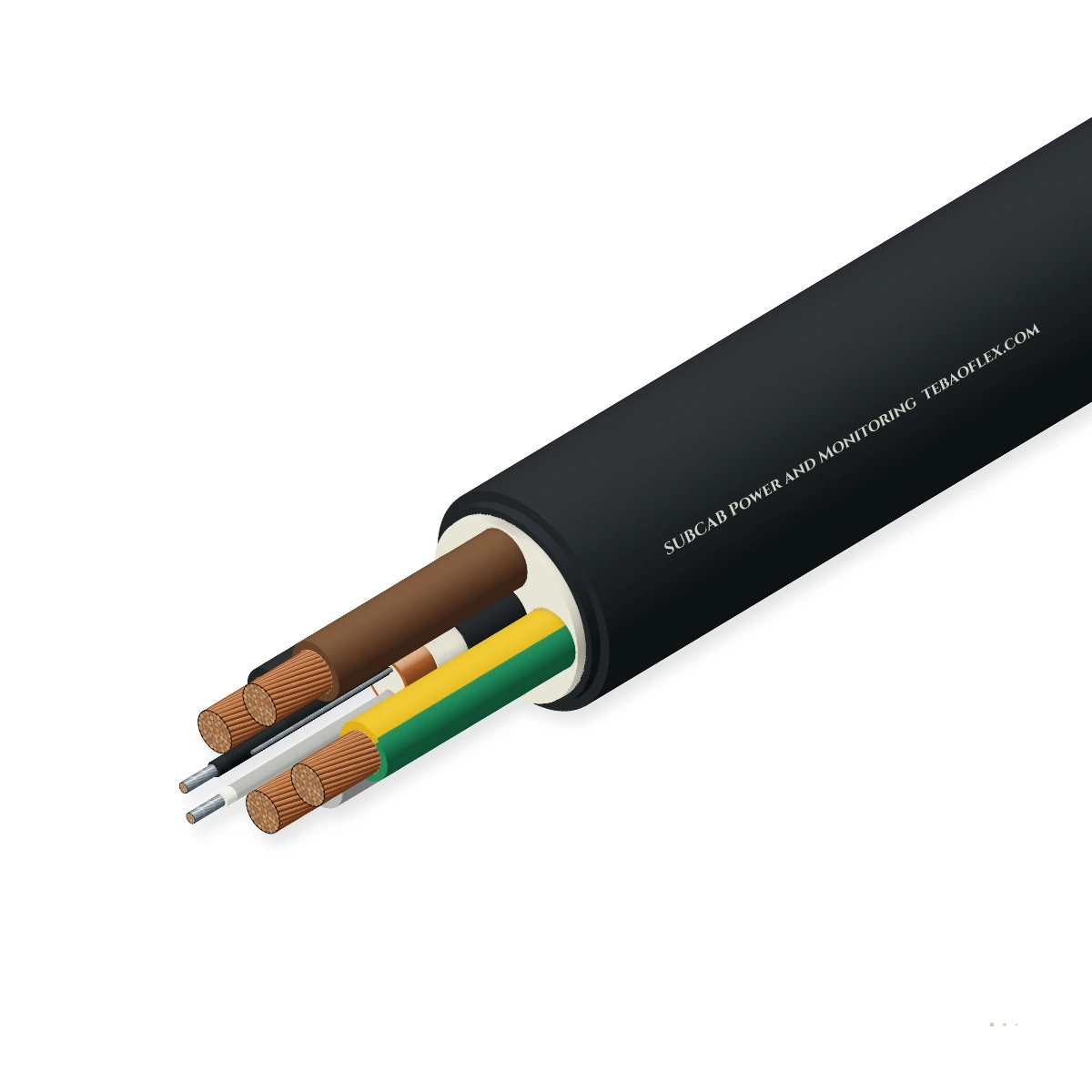

SUBCAB Power and Monitoring450/750 V (0.6/1 kV) AD8 submersible pump power + control monitoring hybrid rubber cable

Heavy-duty AD8 permanent-submersion hybrid rubber cable combining Class 5 power conductors (1.5–120 mm²) and dedicated thermal/seal-monitoring control cores (2×1.5 mm² or screened pair) inside a water-, sewage- and oil-resistant chlorinated elastomer jacket.

Water-resistant
Oil-resistant
Flame-retardant
Outdoor & humid
Order designation
SUBCAB 4G16+2×1.5
Outer Ø min
24.8 mm
Outer Ø max
27.0 mm
Weight ≈
1,265 kg/km
Min. bend R
108 mm
Check against my drumAll sizes (13)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
450/750 V
0.6/1 kV power · 3.0 kV AC test
Water depth
Up to 500 m
AD8 permanent submersion (50 bar)
Water temp.
+70 °C max.
+90 °C max. conductor temp.
Ambient temp.
−25…+80 °C
Flexing (−40…+80 °C fixed)
Bending radius
4–6 × OD
4 × OD fixed · 6 × OD flexing
Hybrid layout
3–4P + 2×1.5
Power 1.5–120 mm² + sensor cores

Typical values for this cable type, based on EN 50525-2-21 AD8 / DIN VDE 0250 — confirmed in the datasheet and quotation for your order.

Application fit

Is SUBCAB Power and Monitoring right for your machine?

SUBCAB Power and Monitoring eliminates separate power and sensor leads on heavy submersible pumps, mixers and dredgers by integrating power, protective earth and PTC/leakage monitoring cores inside one gland-tight round rubber jacket.

Immersion & wet locations

Suitable

Continuous AD8 submersion up to 500 m depth in groundwater, municipal sewage, industrial sludge and seawater (pH 3–10).

Free-hanging vertical run

With conditions

Supports vertical pump riser suspension up to 15 N/mm² of copper; use cable grips every 5–10 m or armoured NTSCGERLWÖU for deep shafts.

Use NTSCGERLWÖU Armoured

Trailing & towing

Suitable

Portable dewatering pumps, quarry sumps, construction trenches and emergency flood pumping.

Fixed installation

Suitable

Wet-well risers, submersible mixer guide rails and treatment plant conduits.

Typical machinesSubmersible wastewater & sewage pumpsMine & tunnel dewatering sumpsSubmersible mixers & aeratorsStormwater & flood-control stationsOffshore & quarry slurry pumping

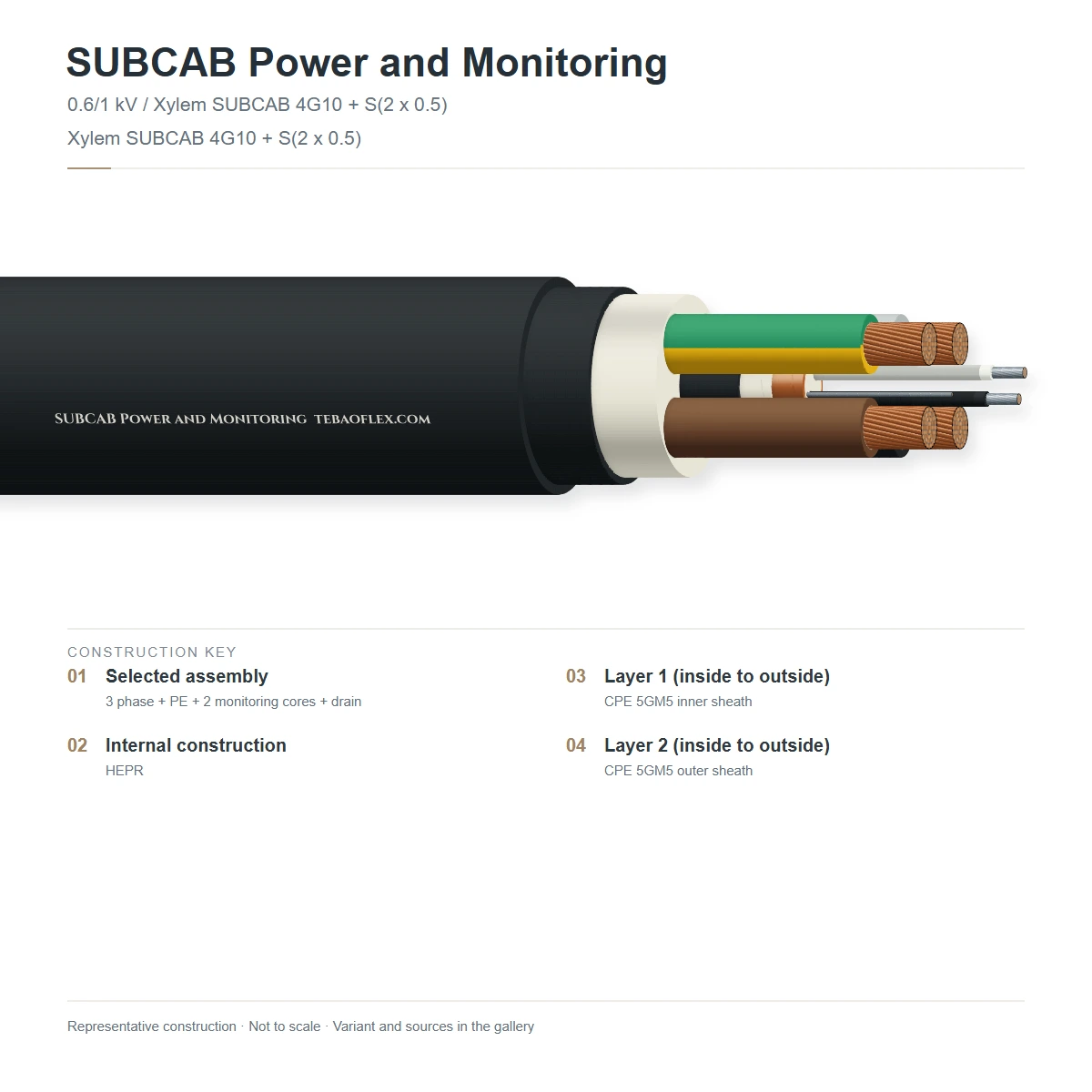

Construction

Layer by layer

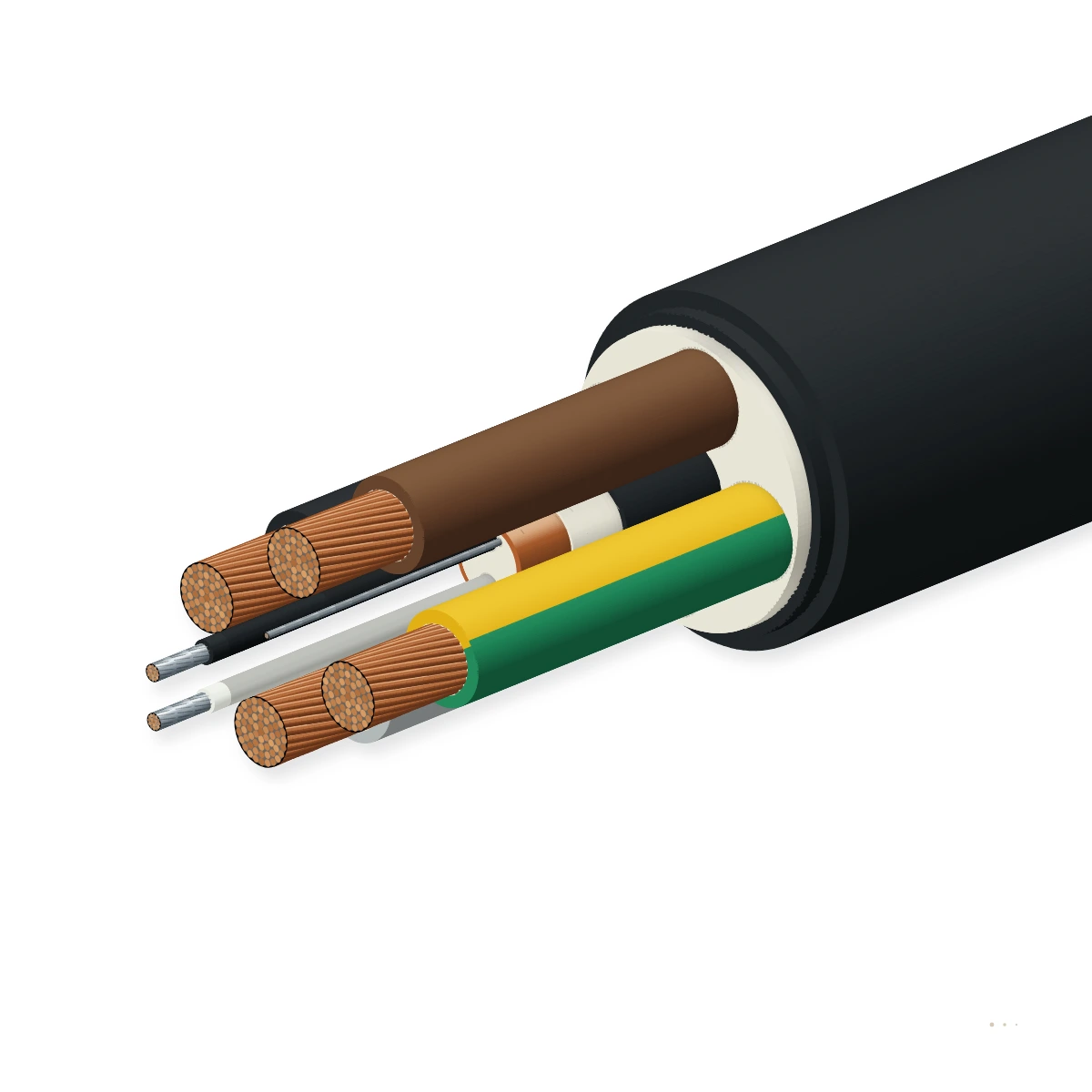

Shown: SUBCAB 4G16+2×1.5 — four 16 mm² EPR-insulated power cores (3 phase + GN/YE earth) plus two 1.5 mm² numbered monitoring cores inside a heavy-duty black chlorinated rubber AD8 sheath.

1234
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Power & monitoring conductorsFine-stranded bare or tinned copper wire (IEC 60228 Class 5): 3–4 power cores + 2×1.5 mm² control coresIEC 60228 Class 5
2Water-resistant EPR insulationCross-linked ethylene-propylene rubber compound Type 3GI3 / EI4 (+90 °C rated, low water absorption)DIN VDE 0207-20 3GI3
3Inner elastomeric beddingExtruded water-blocking elastomeric filler consolidating power and control cores into a tight circular profileEnsures pressure-tight cable gland sealing
4Heavy-duty AD8 outer sheathCross-linked chlorinated elastomer / polychloroprene (CSM/PCP, Type 5GM5 / EM2), blackAD8 permanent submersion · oil, sewage & abrasion resistant

SUBCAB 4G + 2×1.5 mm²

3 phase cores + 1 green-yellow earth + 2 numbered 1.5 mm² pilot/monitoring cores (1.5 to 70 mm²)

SUBCAB 3× + 3G/3 + 2×1.5 mm²

Symmetrical 3 phase cores + 3 split interstitial earth cores + 2×1.5 mm² control cores (95 to 120 mm²)

SUBCAB Screened S3× + S(2×0.5)

EMC-screened VFD pump power construction with individually screened control pair for analog/bus sensors

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on EN 50525-2-21 AD8 / DIN VDE 0250. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage (power cores)
450/750 V / 0.6/1 kV U0/U (max. 1200 V AC)
Rated voltage (control cores)
300/500 V U0/U (thermal & seal sensor circuits)
AC test voltage
3000 V AC on power cores · 2000 V AC on control cores
Conductor stranding
IEC 60228 Class 5 fine-stranded copper
Current rating basis
DIN VDE 0298-4 (+90 °C EPR conductor rating)

Thermal

Max. conductor temperature
+90 °C continuous operation
Max. water temperature
+70 °C continuous submersion
Short-circuit temperature
+250 °C max. (up to 5 s)
Ambient temperature range
−25 °C to +80 °C flexing · −40 °C to +80 °C fixed

Mechanical

Min. bending radius, fixed
4 × overall diameter
Min. bending radius, moving
6 × overall diameter
Max. tensile load
15 N/mm² of total copper cross-section
Max. submersion depth
500 m water column (50 bar hydrostatic pressure, AD8)

Resistance

Water & sewage resistance
AD8 permanent immersion in wastewater, sludge & seawater (pH 3–10)
Oil & grease resistance
EN 60811-404 mineral oil & effluent grease resistant
Flame retardance
IEC 60332-1-2 self-extinguishing
Ozone, UV & abrasion
EN 60811-403 ozone-resistant chlorinated elastomer jacket

Reference standards

Construction basis
EN 50525-2-21 (AD8) & DIN VDE 0250
Conductor standard
IEC 60228 / EN 60228 Class 5
Submersion classification
HD 384 / IEC 60364-5-51 Class AD8
RoHS & REACH
2011/65/EU (RoHS 2) & EC 1907/2006 compliant

Identification

Sheath colour
Black
Core identification
Power: HD 308 S2 (brown, black, grey + GN/YE) · Control: black numbered T1, T2
Sheath marking
TEBAOFLEX SUBCAB [Size] 450/750V-0.6/1kV AD8 SUBMERSIBLE PUMP CABLE CE
Customs tariff (HS)
8544.49 (insulated conductors ≤ 1000 V)

Sizes

13 standard SUBCAB Power and Monitoring configurations

Typical EN 50525-2-21 AD8 / DIN VDE 0250 outer diameter limits, copper content and cable weight.

Dimensions & weights
Order designationCores × mm²AWG ≈Outer Ø min
mm		Outer Ø max
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
mm		Enquiry
4G Power + 2×1.5 mm² Monitoring Hybrid Configurations (1.5–70 mm²)
SUBCAB 3G1.5+2×1.53G1.5+2×1.51612.013.07222552
SUBCAB 4G1.5+2×1.54G1.5+2×1.51613.114.28626557
SUBCAB 4G2.5+2×1.54G2.5+2×1.51414.716.012534564
SUBCAB 4G4+2×1.54G4+2×1.51216.417.818245571
SUBCAB 4G6+2×1.54G6+2×1.51018.219.825959579
SUBCAB 4G10+2×1.54G10+2×1.5821.723.641391094
SUBCAB 4G16+2×1.54G16+2×1.5624.827.06431,265108
SUBCAB 4G25+2×1.54G25+2×1.5429.632.29891,850129
SUBCAB 4G35+2×1.54G35+2×1.5232.935.81,3732,410143
SUBCAB 4G50+2×1.54G50+2×1.5137.941.21,9493,290165
SUBCAB 4G70+2×1.54G70+2×1.52/042.846.52,7174,380186
3×Phase + 3G Split Earth + 2×1.5 mm² High-Power Pump Configurations (95–120 mm²)
SUBCAB 3×95+3G16+2×1.53×95+3G16+2×1.53/045.849.83,2265,120199
SUBCAB 3×120+3G16+2×1.53×120+3G16+2×1.54/049.754.03,9466,150216
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Dimensions and weights are typical values per EN 50525-2-21 AD8 / DIN VDE 0250. Minimum fixed bending radius shown is 4 × OD.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Check results

Drum core 300 mm ≥ 216 mmBending radius OK (4 × OD 27.0 mm)
Minimum bending radius
108 mm
Min. drum core diameter
≈ 216 mm
Cable weight on drum
63.3 kg
Copper content
32.2 kg
Indicative only: based on the datasheet outer diameter and 4 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC voltage test3.0 kV AC (50 Hz)Every manufactured length
Conductor DC resistanceIEC 60228 Class 5 (bare copper)Every manufactured length
Sample tests
Vertical flame propagationIEC 60332-1-2 / EN 60332-1-2Per production batch
Insulation & sheath elastomer physical propertiesEN 50525-2-21 AD8 / DIN VDE 0250Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

EN 50525-2-21 AD8 / DIN VDE 0250CE · RoHS 2 (2011/65/EU) · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX SUBCAB [Size] 450/750V-0.6/1kV AD8 SUBMERSIBLE PUMP CABLE CE
Delivery form
Export wooden drums or coils, cut-to-length on request
Packaging
Heat-treated ISPM-15 timber drums with sealed cable ends
Conductor / sheath options
Custom core counts, pilot cores or sheath colours on request

Technical documents

Downloads

PDFSUBCAB Power and Monitoring – technical datasheet13 sizes · construction, technical data, approvalsXLSXSUBCAB Power and Monitoring spec data (Excel)All 13 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20
